Presentation Transcript

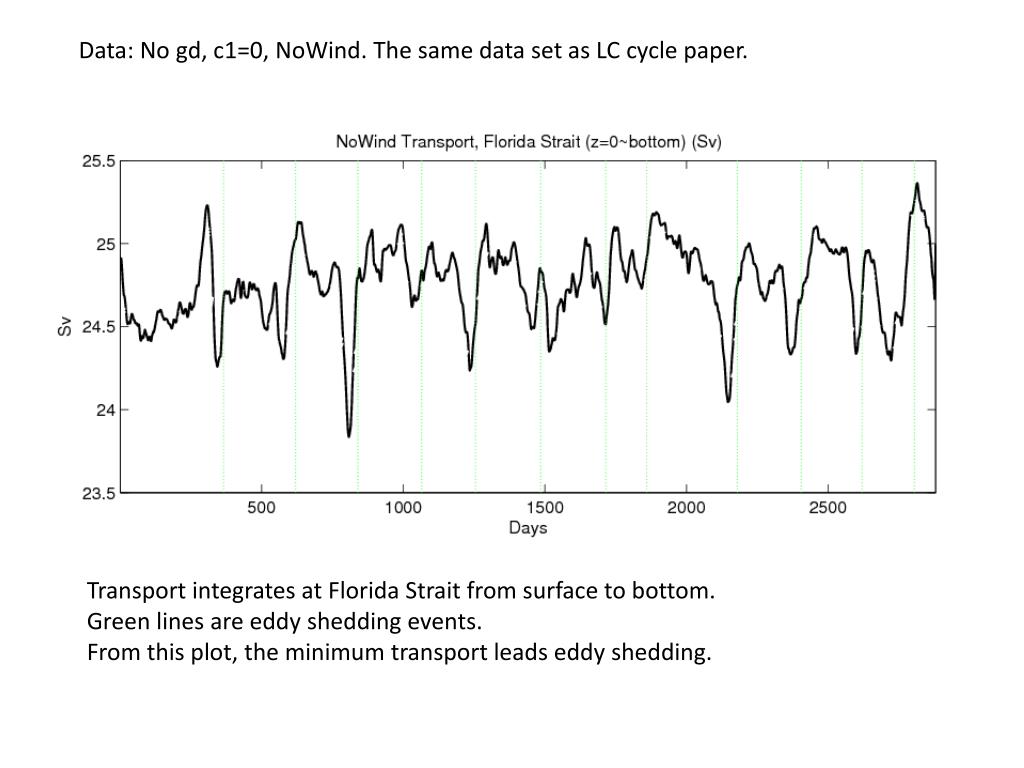

Data no gd c1 0 nowind the same data set as lc cycle paper

Data: No gd, c1=0, NoWind. The same data set as LC cycle paper.

Transport integrates at Florida Strait from surface to bottom.

Green lines are eddy shedding events.

From this plot, the minimum transport leads eddy shedding.


Data no gd c1 0 nowind the same data set as lc cycle paper

upper:0~200m

lower:200~bottom

The upper layer transport has similar signal as total transport, but it has more fluctuations. The lower layer is not as clear as the upper one.


Data no gd c1 0 nowind the same data set as lc cycle paper

Florida Strait transport with deep Yucatan Transport

Florida & Yucatan Deep

Flo

0

YucDeep

I put those together in order to show the interaction between eddy shedding, Yucatan deep flow and Florida transport.

Black contour is Florida transport corresponding to left axis, and red dash curve is Yucatan deep flow respecting to right axis.


Data no gd c1 0 nowind the same data set as lc cycle paper

Discussion

The Yucatan deep flow reaches its minimum (-ve or max.outflow) after eddy shedding. The eddy propagates westward causing the compensating eastward return deep flow @90W. The return flow is the main source of Yucatan deep flow in this stage.

The minimum of Florida transport appears before eddy shedding. It goes back to normal state after eddy shedding. When the LC eddy grows large enough (in stage B, before eddy shedding), the Florida transport starts to drop.

This is connected to the Yucatan inflow (upper layer) and the interaction of LC cycle.

See next page

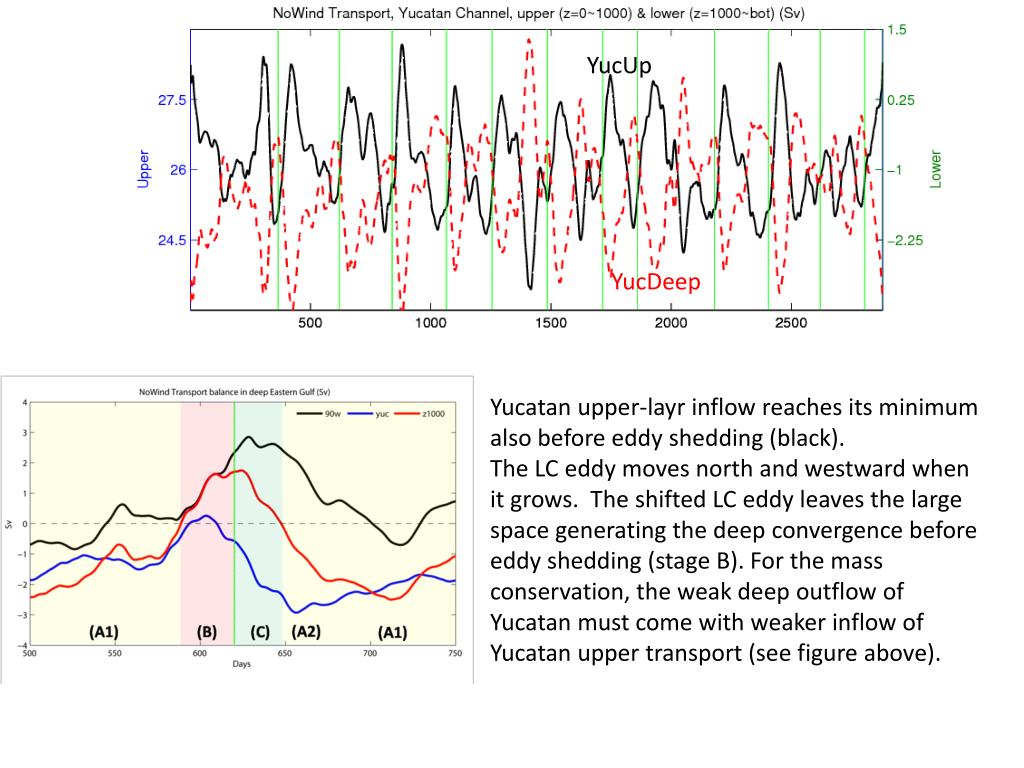

Data no gd c1 0 nowind the same data set as lc cycle paper

YucUp

YucDeep

Yucatan upper-layr inflow reaches its minimum also before eddy shedding (black).

The LC eddy moves north and westward when it grows. The shifted LC eddy leaves the large space generating the deep convergence before eddy shedding (stage B). For the mass conservation, the weak deep outflow of Yucatan must come with weaker inflow of Yucatan upper transport (see figure above).


Data no gd c1 0 nowind the same data set as lc cycle paper

Florida & Yucatan Up

Flo

YucUp

After eddy shedding, the strong Yucatan deep outflow is induced by the compensating return flow across 90W of westward propagating eddy. The Yucatan upper transport increases also. Therefore, the Florida transport increases (goes back to normal state) after eddy shedding.

But the Florida transport (0~bot) and Yucatan upper transport (0~1000m) are not correlated all the time. Because the Florida transport is decided by the sum of upper and lower layer of Yucatan transport. In the other word, only when the lower layer of Yucatan flow is quiet, the upper Yucatan transport is correllated with Florida transport well.

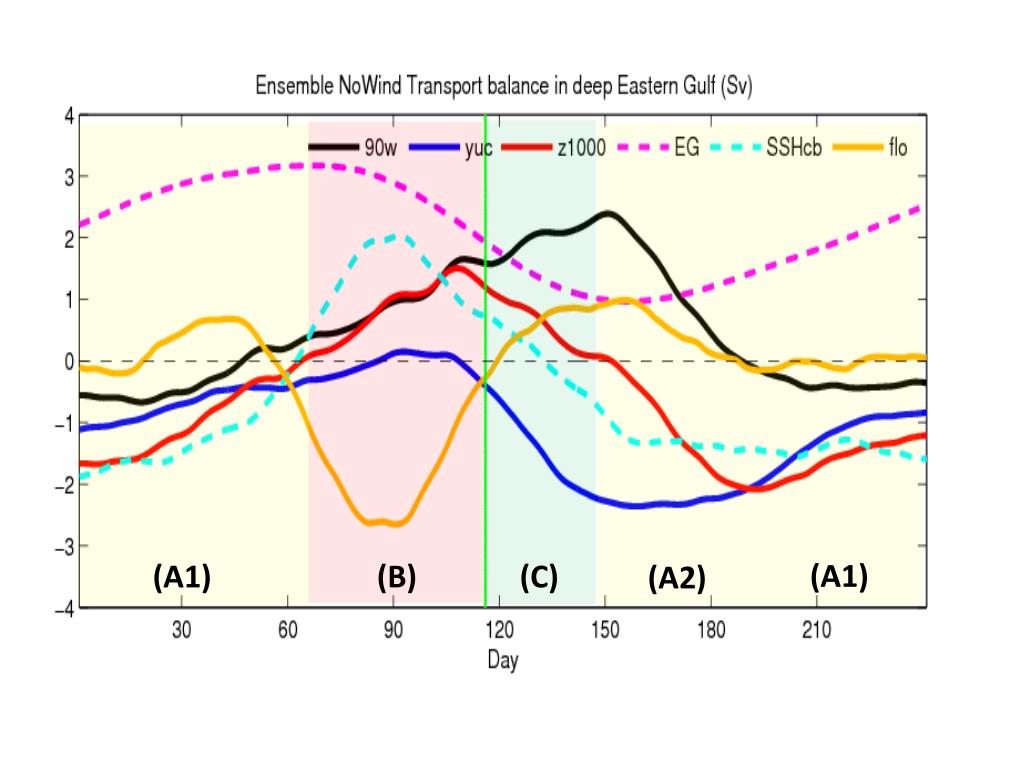

Data no gd c1 0 nowind the same data set as lc cycle paper

(A1)

(A1)

(B)

(C)

(A2)


Data no gd c1 0 nowind the same data set as lc cycle paper

(A1)

(A1)

(B)

(C)

(A2)

Write down the interpretation and also plot the time series of Caribbean SSH.


Data no gd c1 0 nowind the same data set as lc cycle paper

25.3

24.8

(A1)

(A1)

(B)

(C)

(A2)

24.3


Data no gd c1 0 nowind the same data set as lc cycle paper

(A1)

(A1)

(B)

(C)

(A2)
