4g using mimo

4G using MIMO

Presented by:

Joel AbrahamAnoop Prabha

Binaya Parhy



  • Why MIMO

  • Different Arrangements of Antennas

  • Working


  • Types of MIMO

    • Diversity

    • Spatial Multiplexing

    • Uplink Collaborative MIMO Link

  • Actual Working

  • Channel Matrix

  • System Model

  • Advantages and Application

Why mimo

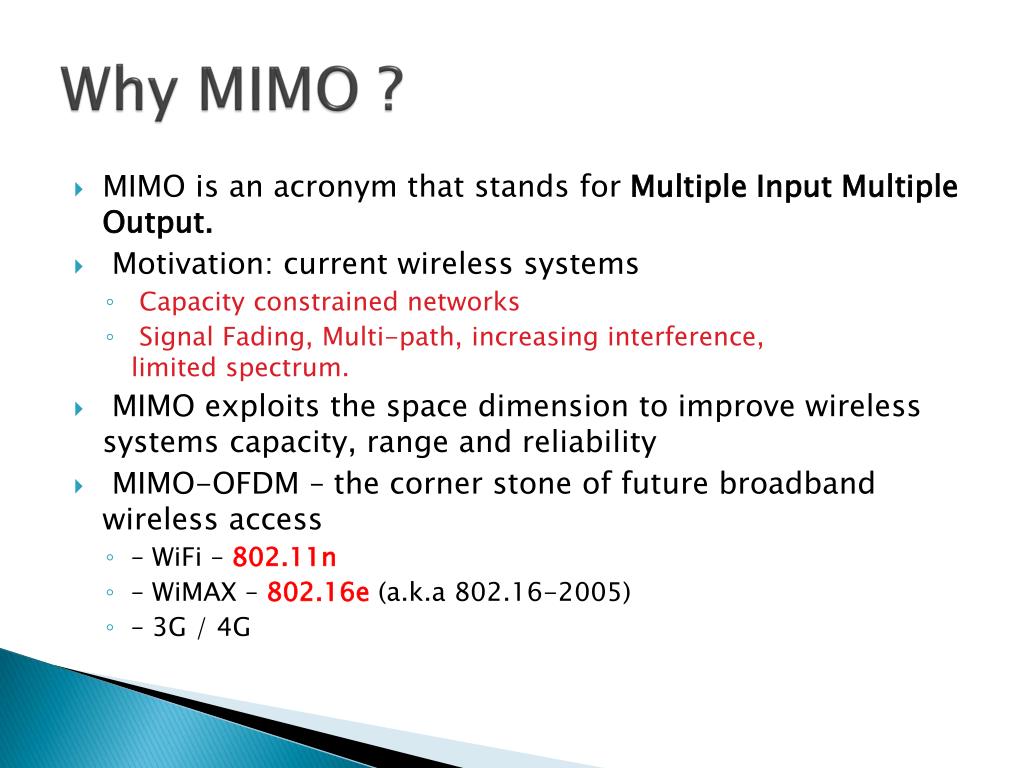

Why MIMO ?

  • MIMO is an acronym that stands for Multiple Input Multiple Output.

  • Motivation: current wireless systems

    • Capacity constrained networks

    • Signal Fading, Multi-path, increasing interference, limited spectrum.

  • MIMO exploits the space dimension to improve wireless systems capacity, range and reliability

  • MIMO-OFDM – the corner stone of future broadband wireless access

    • – WiFi – 802.11n

    • – WiMAX – 802.16e (a.k.a 802.16-2005)

    • – 3G / 4G

Different types

Different types

Mimo defined

MIMO Defined

  • In short - Two or more data signals transmitted in the same radio channel at the same time

  • It is an antenna technology that is used both in transmission and receiver equipment for wireless radio communication.

  • MIMO uses multiple antennas to send multiple parallel signals (from transmitter).

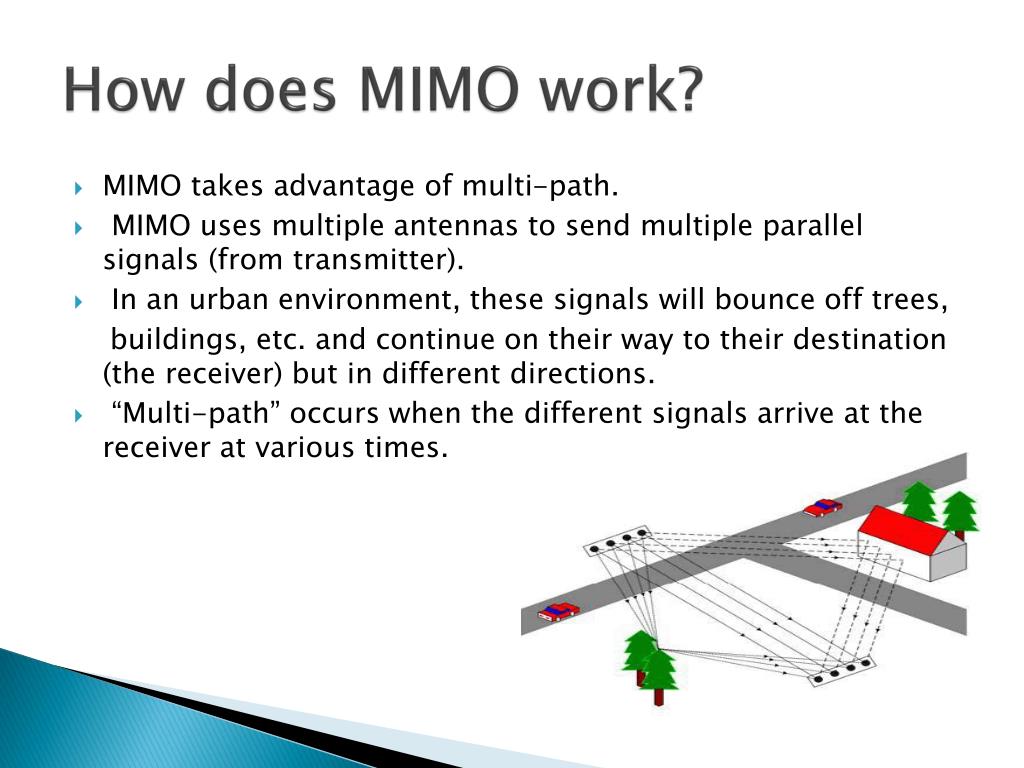

How does mimo work

How does MIMO work?

  • MIMO takes advantage of multi-path.

  • MIMO uses multiple antennas to send multiple parallel signals (from transmitter).

  • In an urban environment, these signals will bounce off trees,

    buildings, etc. and continue on their way to their destination (the receiver) but in different directions.

  • “Multi-path” occurs when the different signals arrive at the receiver at various times.

How does mimo work cont

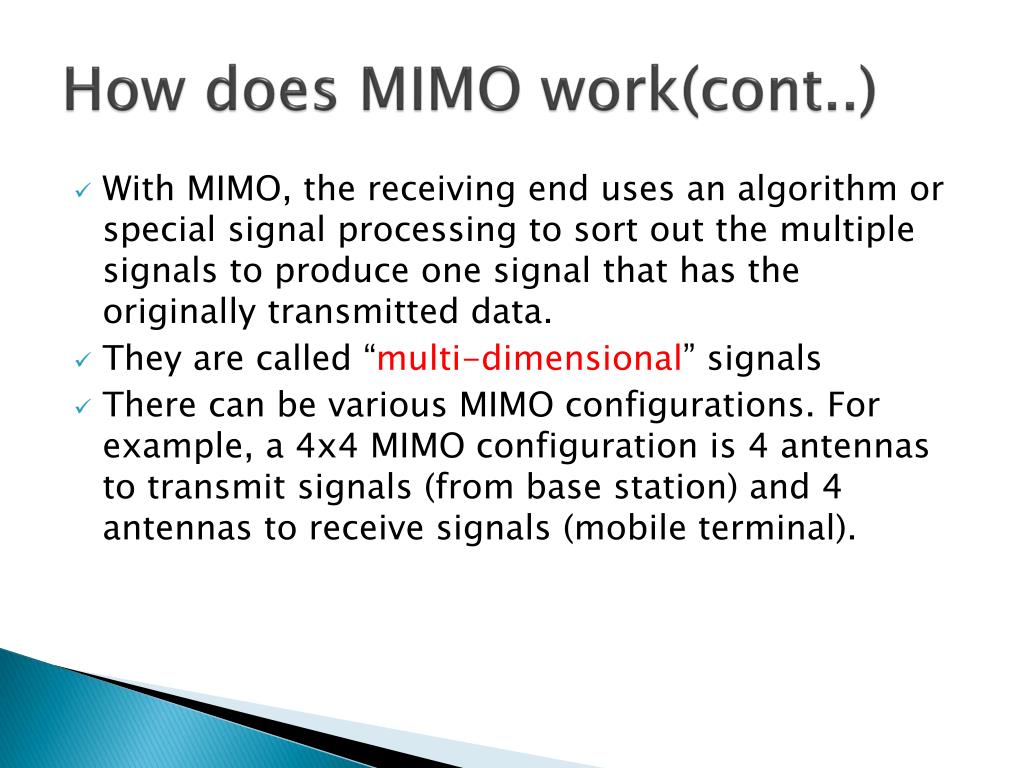

How does MIMO work(cont..)

  • With MIMO, the receiving end uses an algorithm or special signal processing to sort out the multiple signals to produce one signal that has the originally transmitted data.

  • They are called “multi-dimensional” signals

  • There can be various MIMO configurations. For example, a 4x4 MIMO configuration is 4 antennas to transmit signals (from base station) and 4 antennas to receive signals (mobile terminal).

4 x 4 mimo configuration

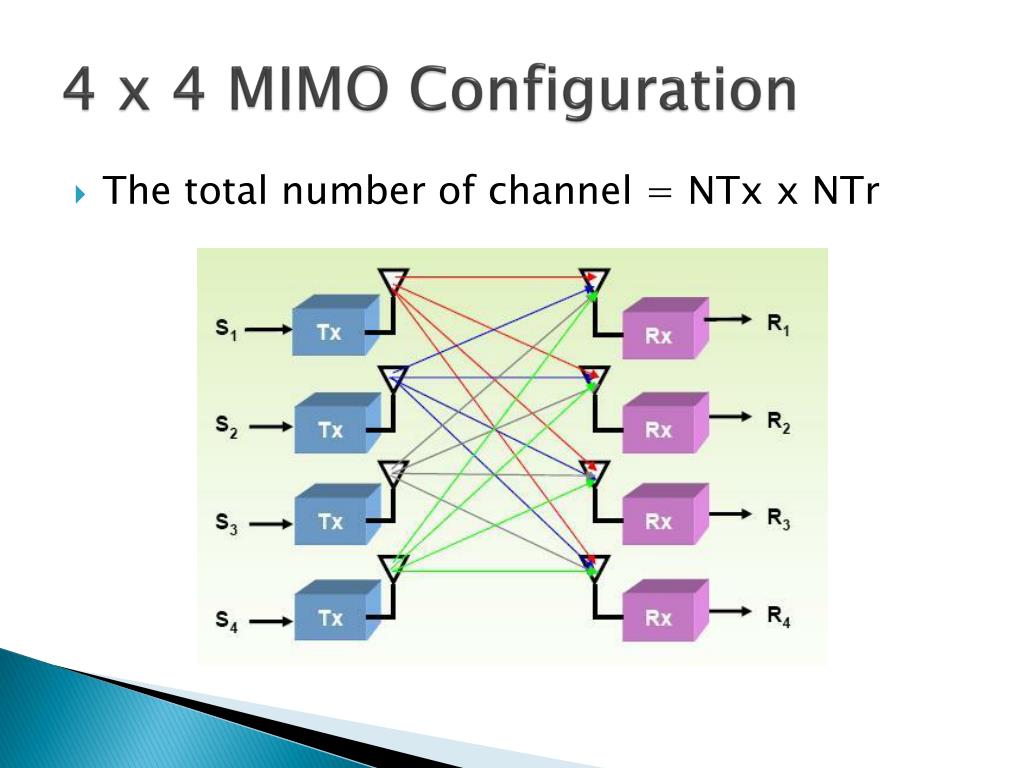

4 x 4 MIMO Configuration

  • The total number of channel = NTx x NTr

Mimo vs simo miso


Forms of mimo

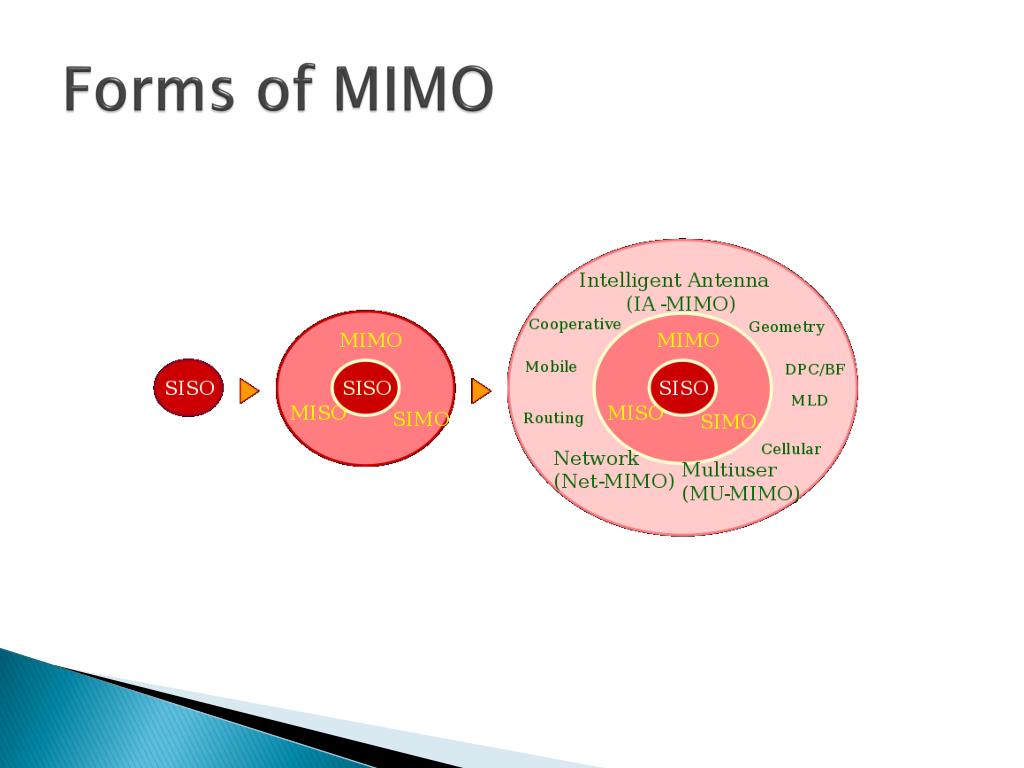

Forms of MIMO

Types of mimo

Types of MIMO

  • MIMO involves Space Time Transmit Diversity (STTD), Spatial Multiplexing (SM) and Uplink Collaborative MIMO.

  • Space Time Transmit Diversity (STTD) - The same data is

    coded and transmitted through different antennas, which effectively

    doubles the power in the channel. This improves Signal Noise Ratio

    (SNR) for cell edge performance.

  • Spatial Multiplexing (SM) - the “Secret Sauce” of MIMO. SM

    delivers parallel streams of data to CPE by exploiting multi-path. It

    can double (2x2 MIMO) or quadruple (4x4) capacity and throughput.

    SM gives higher capacity when RF conditions are favorable and

    users are closer to the BTS.

  • Uplink Collaborative MIMO Link - Leverages conventional single

    Power Amplifier (PA) at device. Two devices can collaboratively

    transmit on the same sub-channel which can also double uplink


Mimo increases throughput spatial multiplexing

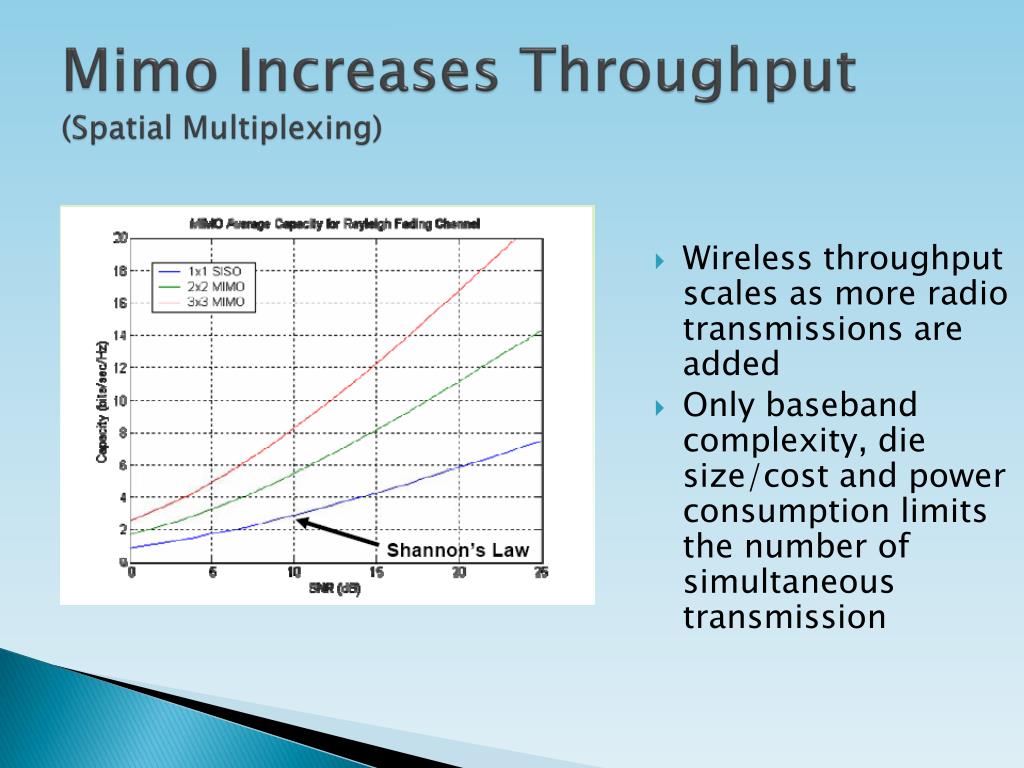

Mimo Increases Throughput(Spatial Multiplexing)

Wireless throughput scales as more radio transmissions are added

Only baseband complexity, die size/cost and power consumption limits the number of simultaneous transmission

Mimo increases range

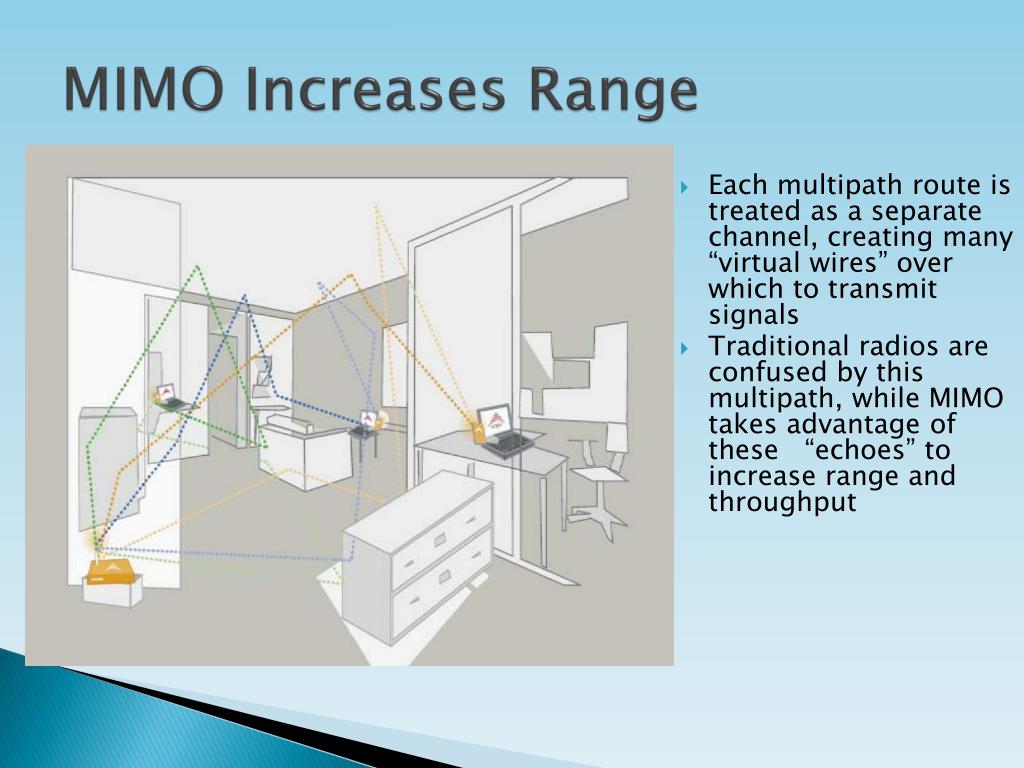

MIMO Increases Range

Each multipath route is treated as a separate channel, creating many “virtual wires” over which to transmit signals

Traditional radios are confused by this multipath, while MIMO takes advantage of these “echoes” to increase range and throughput

The working

The Working

  • Consider a simple BPSK bit sequence 1,-1,1,1,-1

  • We code 1 as C1 and -1 as C2

  • C1 = c2 =

    1 -1

  • Dimension of C is determined by the Number of Tx and Rx

Mimo channel matrix

MIMO channel Matrix

Mimo system model

MIMO system model

Y = Hx + n

H = Channel Matrix

n = Noise

  • Rx1 = h11Tx1 + h21Tx2

    + h31Tx3 + n1

Single radio vs mimo performance

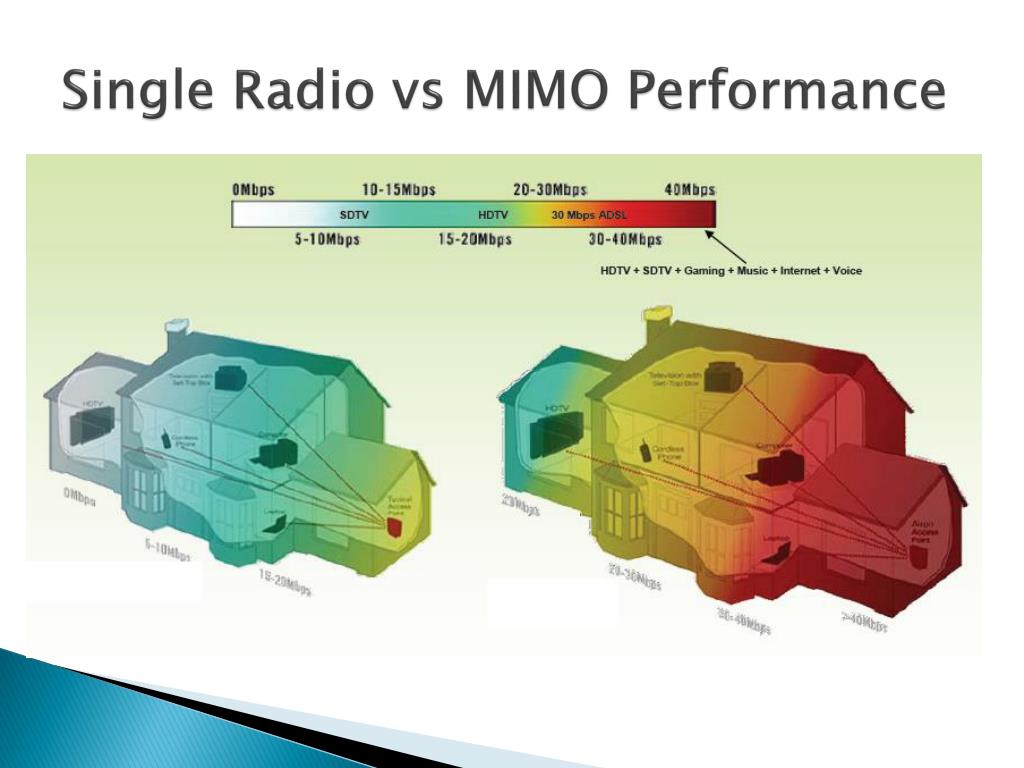

Single Radio vs MIMO Performance

General info application

General Info & Application

  • Using the space dimension (MIMO) to boost data rates up to 600 Mbps through multiple antennas and signal processing.

  • Target applications include: large files backup, HD streams, online interactive gaming, home entertainment, etc.

  • Backwards compatible with 802.11a/b/g

  • Application

    • WLAN – WiFi 802.11n

    • Mesh Networks (e.g., MuniWireless)

    • WMAN – WiMAX 802.16e

    • 4G

    • RFID

    • Digital Home



  • http://en.wikipedia.org/wiki/4G

  • http://en.wikipedia.org/wiki/MIMO#MIMO_literature

  • http://www.wirelessnetdesignline.com/howto/wlan/185300393;jsessionid=3R20PO41AV3Y1QE1GHRSKHWATMY32JVN?pgno=1

  • www.ieeeexplore.com

  • http://www.ece.ualberta.ca/~HCDC/mimohistory.html

  • http://citeseerx.ist.psu.edu/viewdoc/download?doi=

Thank you

Thank you

Presented by

Presented By

Anoop Madhusoodhanan Prabha


Distribution of fading channel

Distribution of Fading channel

  • Rayleigh Model

  • Statistical Modeling of wireless channels.

  • Magnitude of signal varies randomly as it propagates in the medium.

  • Best fit for tropospheric and ionospheric signal propagation.

  • Fits fine for Urban environments too.

  • Highlight – No dominant light of sight communication between transmitter and receiver.

  • Rate of channel fade – Studied by Doppler shift. 10Hz to 100 Hz is the shift considered in GSM phones modeling for an operating frequency of 1800 MHz and speed between 6km/h to 60 km/h

Distribution of fading channel contd

Distribution of Fading channel (Contd.)

  • Racian Fading

  • Comes into picture when there is a dominant component present (especially line of sight way)

  • v(t) = Ccoswct + ∑Nn=1rncos (wct + fn)

  • Examples

  • Vehicle to vehicle communication

  • Satellite channels

  • Indoor communication

Distribution of fading channel contd1

Distribution of Fading Channel (Contd.)

  • Nakagami fading

  • Reason for modeling – Empirical results matched with short wave ionospheric propagation.

  • If amplitude – Nakagami distributed, power – gamma distributed and ‘m’ is the shape factor in this distribution.

  • For m=1, its Rayleigh fading (amplitude distribution) and corresponding power distribution is exponential.

  • These days many recent papers recommend this model as an approx. to Rician model.

Evolution of mimo

Evolution of MIMO

  • The fading and shadowing effects are overcome by spatial diversity i.e. my installing multiple antennas.

  • Antennas separated by 4 – 10 times the wavelength to ensure unique propagation paths.

  • As a part 4G, one of important emphasis is on throughput improvement.

  • This stressed on better modulation techniques and coding practices.

Mimo architecture

MIMO Architecture

Spatial diversity at receiver

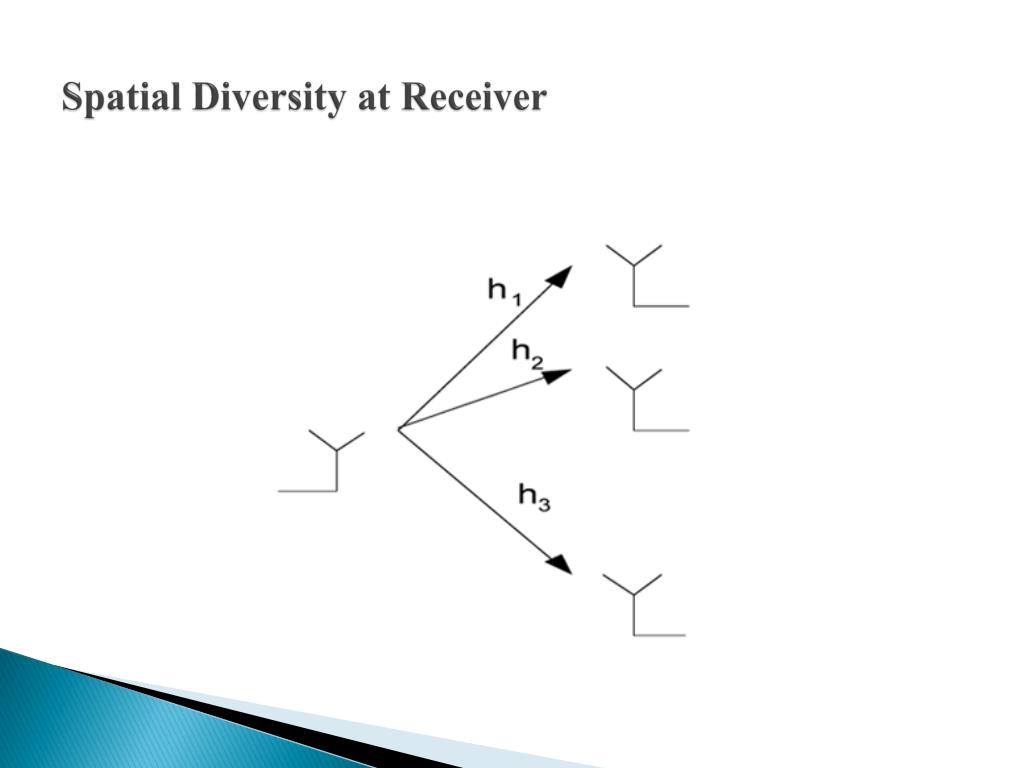

Spatial Diversity at Receiver

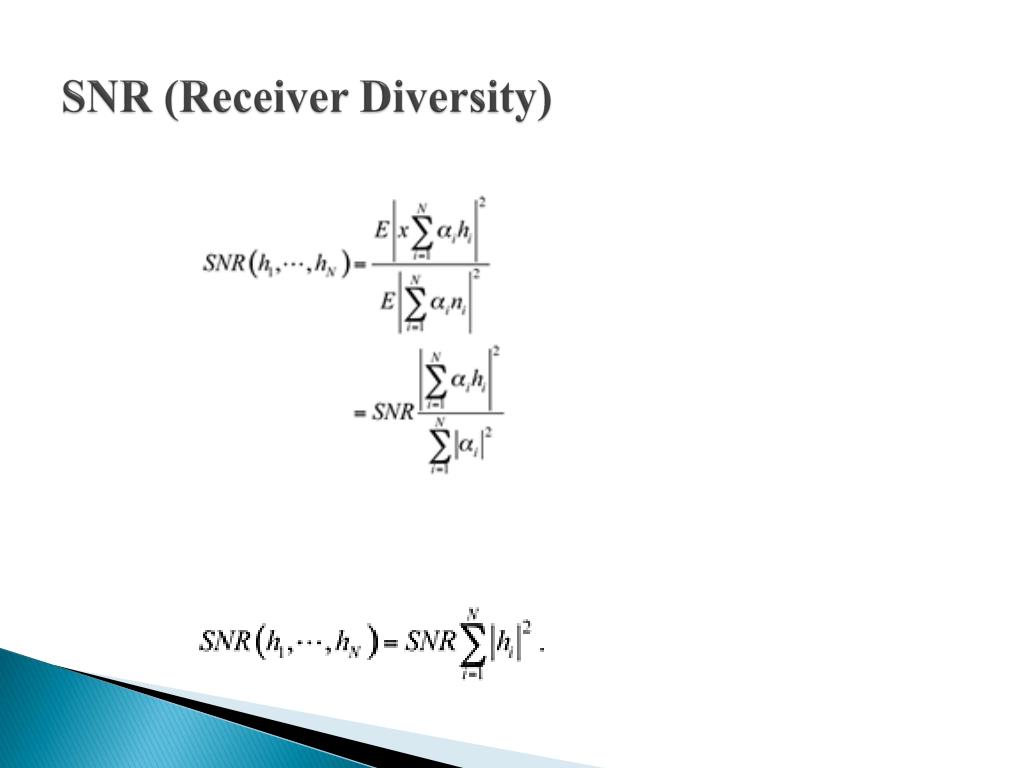

Snr receiver diversity

SNR (Receiver Diversity)

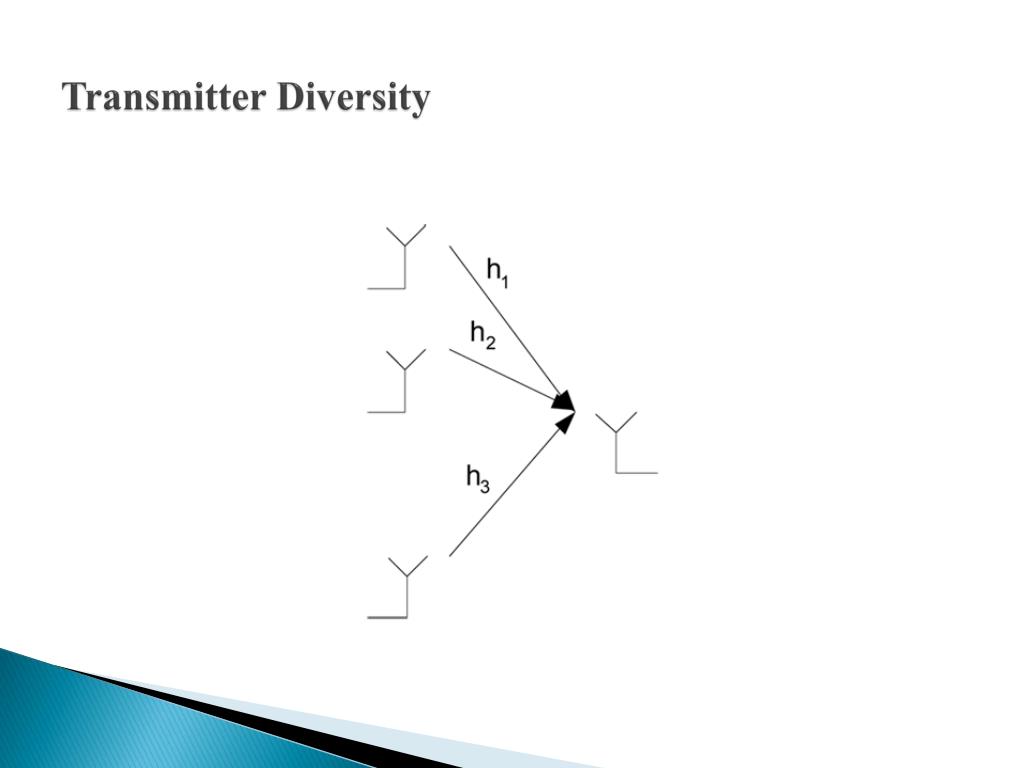

Transmitter diversity

Transmitter Diversity

Snr transmitter diversity

SNR (Transmitter Diversity)

Transmit receive diversity

Transmit/Receive Diversity

Snr transmitter receiver diversity

SNR(Transmitter/Receiver Diversity)

  • For transmit/receive beamforming we have a diversity order of MN, referred to as full diversity.

    M – Number of transmitting antennas

    N – Number of receiving antennas

    v – beamforming vector for receiver

    u – beamforming vector for transmitter

Application on 802 11n

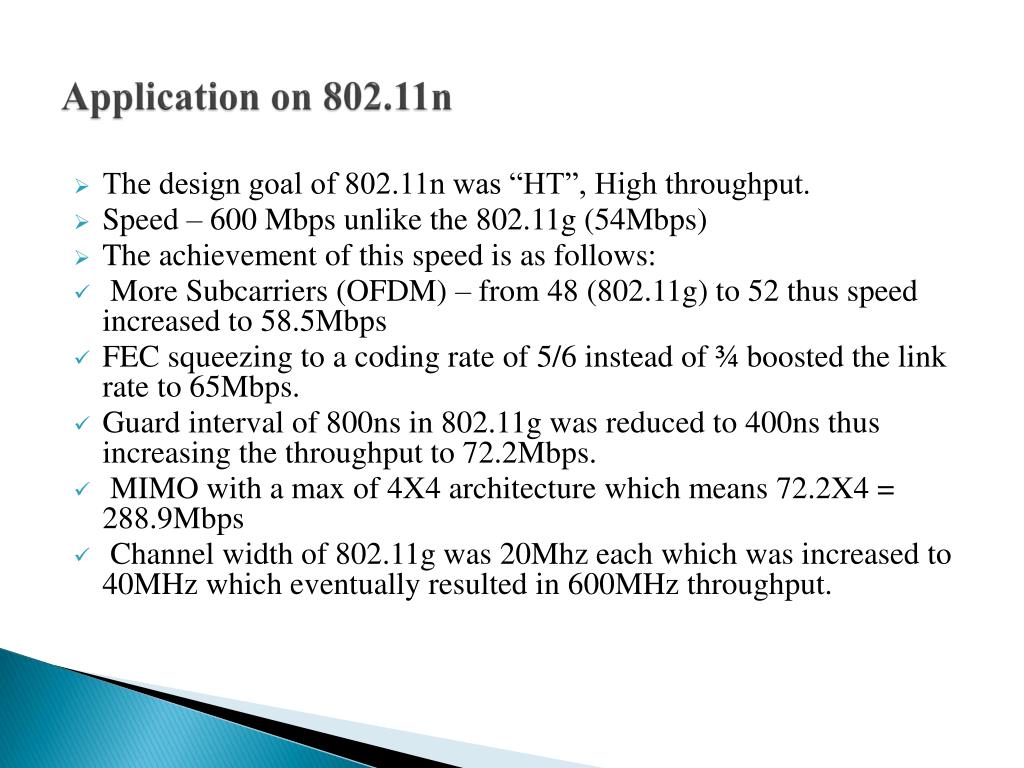

Application on 802.11n

  • The design goal of 802.11n was “HT”, High throughput.

  • Speed – 600 Mbps unlike the 802.11g (54Mbps)

  • The achievement of this speed is as follows:

  • More Subcarriers (OFDM) – from 48 (802.11g) to 52 thus speed increased to 58.5Mbps

  • FEC squeezing to a coding rate of 5/6 instead of ¾ boosted the link rate to 65Mbps.

  • Guard interval of 800ns in 802.11g was reduced to 400ns thus increasing the throughput to 72.2Mbps.

  • MIMO with a max of 4X4 architecture which means 72.2X4 = 288.9Mbps

  • Channel width of 802.11g was 20Mhz each which was increased to 40MHz which eventually resulted in 600MHz throughput.



  • http://www.wirelesscommunication.nl/

  • Wikipedia

  • http://www.intel.com/technology/itj/2006/volume10issue02/art07_mimo_architecture/p04_mimo_systems_reliability.htm

  • http://www.wirevolution.com

Presented by1

Presented By

Binaya Parhy

Mimo wireless communication system

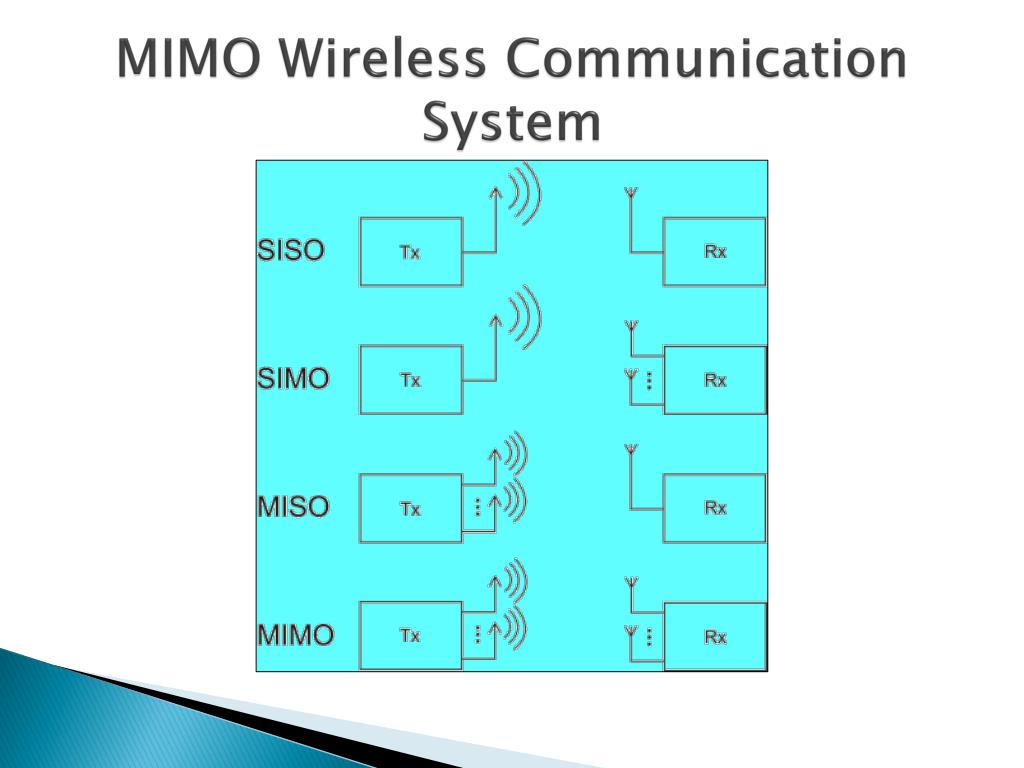

MIMO Wireless Communication System



  • MIMO Wireless Communications

    • Capacity of MIMO

  • Well known STBC codes

    • Criteria to be a good ST BC code.

    • Cyclic and Unitary STBC

    • Orthogonal STBC

    • Diagonal algebric


    • Differential STBC(Non coherent detection)

  • Summarize

Mimo wireless communication system1

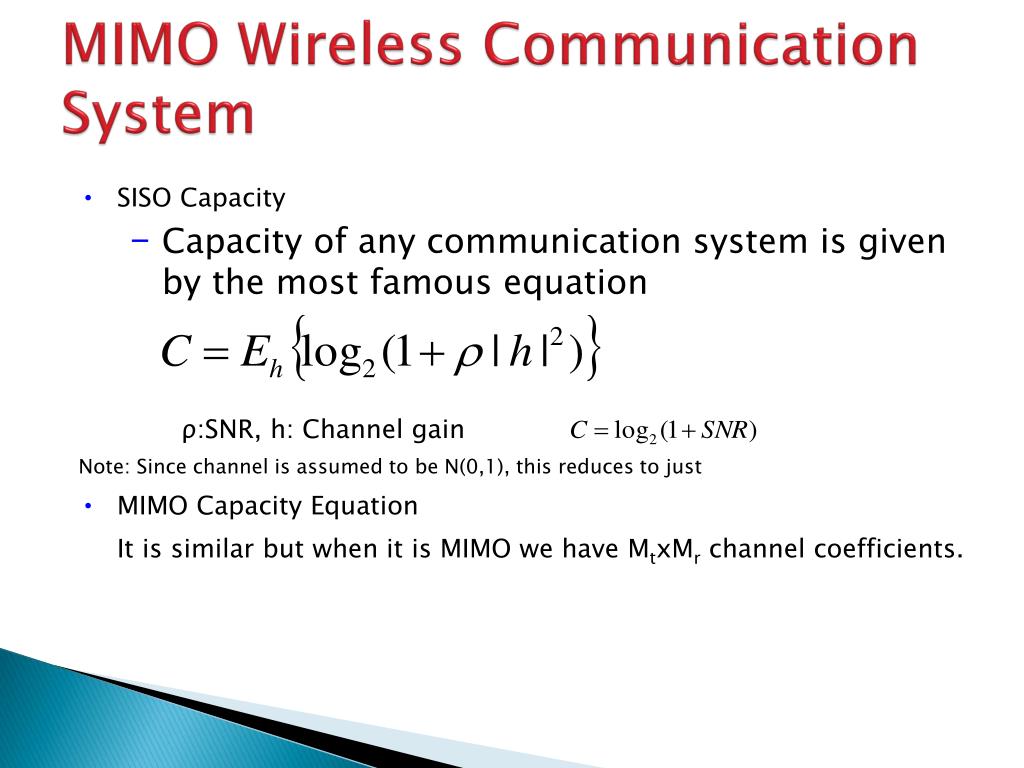

MIMO Wireless Communication System

  • SISO Capacity

    • Capacity of any communication system is given by the most famous equation

  • ρ:SNR, h: Channel gain

  • Note: Since channel is assumed to be N(0,1), this reduces to just

  • MIMO Capacity Equation

  • It is similar but when it is MIMO we have MtxMr channel coefficients.

Mimo capacity cont

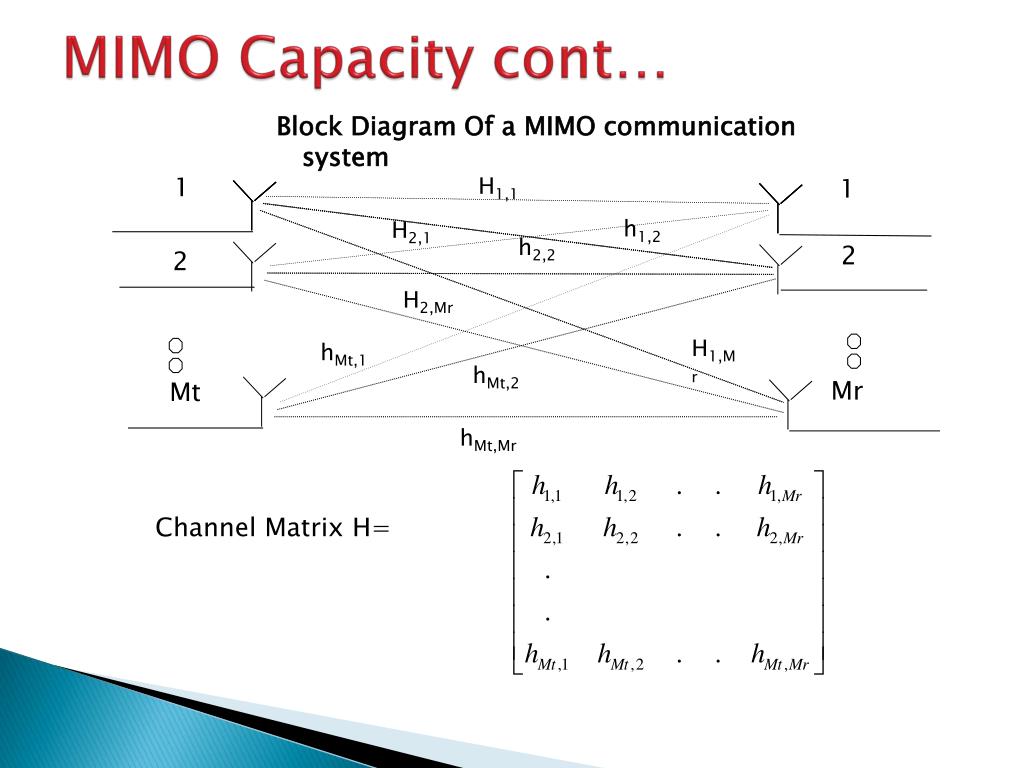

MIMO Capacity cont…

  • Block Diagram Of a MIMO communication system
















Channel Matrix H=

Mimo capacity cont1

MIMO Capacity

Four Cases

Mt=Mr=1 Reduces to SISO

Mr=1, Mt>1

Mt=1, Mr>1

Mr>1, Mt>1

MIMO Capacity cont…

Mimo capacity cont2

MIMO Capacity cont…

ρ =10 dB

  • Case:2(Mr=1, Mt>1)

ρ =5 dB

ρ =1 dB



Mimo capacity cont3

MIMO Capacity cont…

  • Case:3(Mt=1, Mr>1)

ρ =10 dB


ρ =5 dB

ρ =1 dB


Mimo capacity cont4

MIMO Capacity cont…

  • Case:4(Mt>1, Mr>1)

ρ =10 dB

ρ =5 dB

ρ =1 dB



Mimo capacity cont5

MIMO Capacity cont…

  • Conclusion:

  • M=min(Mt,Mr)

  • The capacity of the MIMO system increases linearly with

    the minimum of transmitter and receiver antenna.

  • To achieve the potential huge capacity, new coding and modulation called Space Time coding or ST-modulation is developed since 1998.

St code design criteria

ST code design criteria

  • The maximum probability of error (also called PEP- Piece wise error probability) of a MIMO system is given by

  • r-> rank of and λi’s are the eigen valus of

  • Based on the PEP code design criteria were proposed by Tarokh in 1998.

    • Rank criterion or Diversity criterion

      The minimum rank of difference of any 2 code word over all possible pairs should be should be as large as possible. If there are L signals then there are L(L-1)/2 pairs.

    • Product criterion or Coding gain criterion

      The minimum value of the product over all pairs of distinct code word difference should be as large as possible.

St code design criteria cont

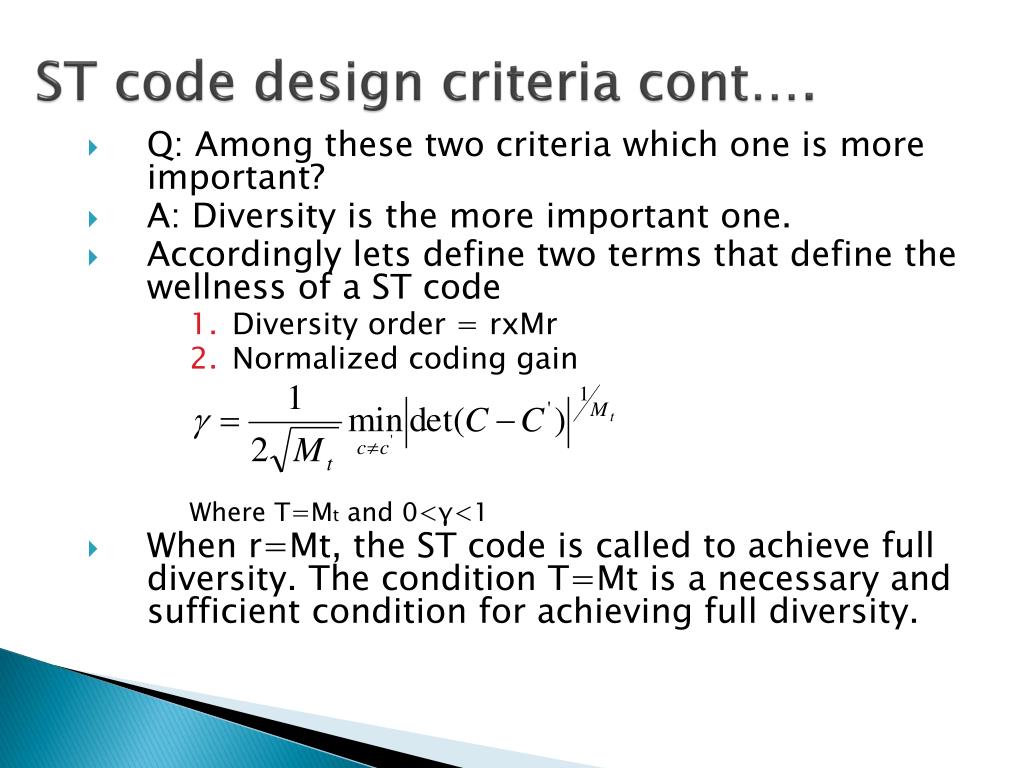

ST code design criteria cont….

  • Q: Among these two criteria which one is more important?

  • A: Diversity is the more important one.

  • Accordingly lets define two terms that define the wellness of a ST code

    • Diversity order = rxMr

    • Normalized coding gain

      Where T=Mt and 0<γ<1

  • When r=Mt, the ST code is called to achieve full diversity. The condition T=Mt is a necessary and sufficient condition for achieving full diversity.

  • St code design criteria cont1

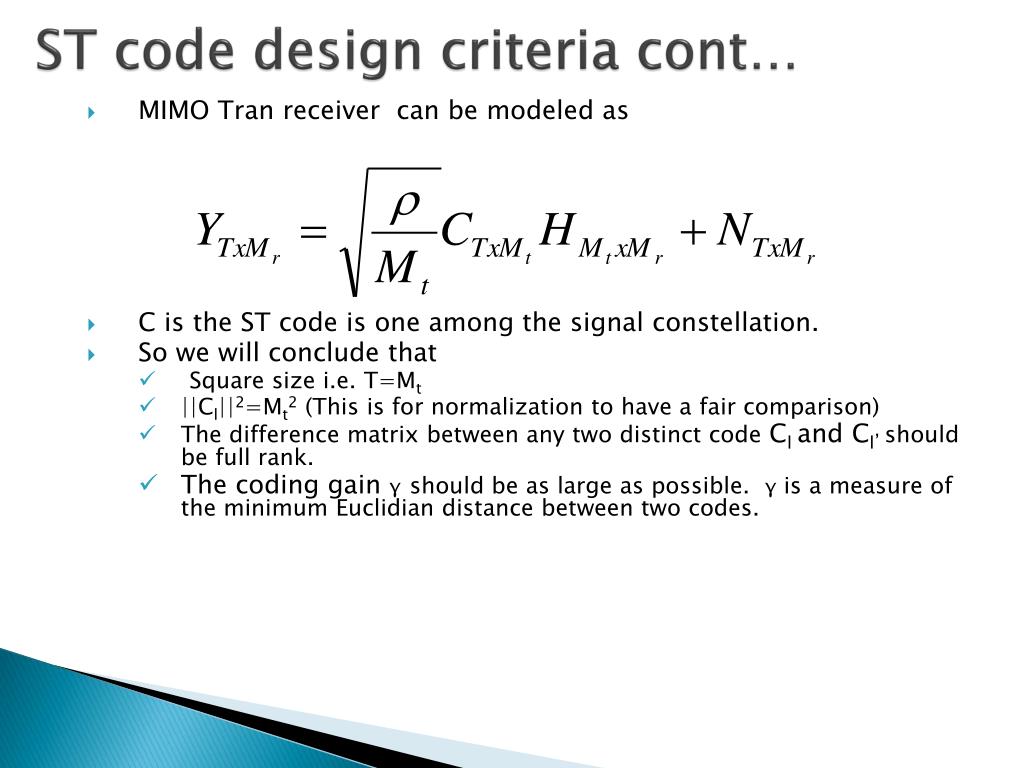

    ST code design criteria cont…

    • MIMO Tran receiver can be modeled as

    • C is the ST code is one among the signal constellation.

    • So we will conclude that

      • Square size i.e. T=Mt

      • ||Cl||2=Mt2 (This is for normalization to have a fair comparison)

      • The difference matrix between any two distinct code Cl and Cl’should be full rank.

      • The coding gain γshould be as large as possible. γ is a measure of the minimum Euclidian distance between two codes.

    Some well known st signals

    Some well known ST signals

    • Cyclic and Unitary STBC

    • Orthogonal STBC

    • Diagonal algebric


    • Differential STBC(Non coherent detection)

    Cyclic stbc

    Cyclic STBC

    • Proposed by Hochwald & Sweldens in 2000.

    Cyclic stbc cont

    Cyclic STBC cont…

    • Why Cyclic?

    • Cl=CL+li.e. the code regenerates itself.

    • Sqrt(M) is to satisfy the energy criterion ||Cl||2=Mt2.

    • Achieves full diversity.

    • To maximize coding gain ui’s should be chosen carefully.

    • Exhaustive search methodology is used to find ui’s.

    • For Mt=2, L=4, [u1 u2]=[1 1], coding gain=.707

    • For Mt=2, L=16, [u1 u2]=[1 7]

    • For Mt=4, L=16, [u1 u2 u3 u4]=[1 3 5 7], coding gain=.4095

    • As Clis a diagonal matrix, at a time slot only one Tx transmits.

    • Why Unitary?

    • An unitary matrix satisfies AHA=I (Identity Matrix).

    • Cyclic ST is an unitary code.

    Cyclic stbc cont1

    Cyclic STBC cont…

    • Cyclic ST code is not the optimum unitary code. There are others which can give lesser coding gain for e.g. Mt=2, L=4

    • The coding gain for above ST code is 0.8165. The upper bound is given by

    • For L=8, the optimal code is not yet discovered.

    • No new ST coding techniques has to be explored.

    Orthogonal stbc

    Orthogonal STBC

    • Orthogonal STBC achieve full diversity and offer fast ML decoding. Proposed by Alamouti in 1998 for two Tx.

    • X1, X2 are any two complex symbols.

    • Fast ML decoding means for ML X1, X2 can be minimized separately therefore decreasing the complexity of the minimization problem.

    • For more transmitters, Orthogonal design can be used.

    Orthogonal stbc cont

    Orthogonal STBC cont…..

    • Orthogonal design with k variables X1, X2,…… Xk is a pxn matrix such that

    • The entries of G are 0,+/- X1, +/- X2 ,……., +/- Xk or their conjugates.

    • The columns are orthogonal to each other. i.e.

    • n is related to the number of transmitter antenna and p to the time delay.

    • The rate of orthogonal design is k/p i.e a code word of time delay p carries k information symbols.

    Orthogonal stbc cont1

    Orthogonal STBC cont…..

    • In general n=2l an orthogonal design of size n by n can be given as

    • Rate is given by l+1/2l

    • With increase in l the rate decreases, so 2x2 Alemouti is normally used.

    Diagonal algebraic st code

    Diagonal Algebraic ST code

    • Vandermonde transformation is used.

    • S1,S2…Sk are the k information symbols. |θk|=1. The code word is formed as diag[X1,X2,…Xk].

    • Θk=exp(j(4k-3)/2K) k=1,2..K

    • Achieves full diversity.

    Blast bell lab layred st code

    BLAST(Bell Lab lAyred St code)

    • The first MIMO system proposed by Tuschini from Bell Lab to verify the potential MIMO capacity.

    • V-Blast Systme

    • Each data stream layer for each Tx.

    • No coding across different layer. Decoding by nulling and cancellation method. Ymr is used to obtain Ymr-1 and so on.

    • Disadvantage- error propagation.







    Blast bell lab layred st code1

    BLAST(Bell Lab lAyred St code)

    • The first MIMO system proposed by Tuschini from Bell Lab to verify the potential MIMO capacity.

    • V-Blast Systme

    • Each data stream layer for each Tx.

    • No coding across different layer. Decoding by nulling and cancellation method. Ymr is used to obtain Ymr-1 and so on.

    • Disadvantage- error propagation.







    D blast


    • Coding is done with in each data stream but no coding across different streams.

    • At the 1st time slot only 1 transmitted sends other send nothing. At 2nd only 1st and 2nd Tx sends and so on. After Mt time slots all Tx starts sending.

    • Achieves full diversity.

    • Better performance than V-BlAST.

    • Decoding is same as V-BLAST.

    Mimo transmission detection strategies

    MIMO Transmission/Detection Strategies

    • There are 3 scenarios.

    • CSI is not available at Tx but available at Rx---ST coding

    • CSI is not available at both Tx and Rx--- Differential Coding

    • CSI is available at both Tx and Rx--- Beam forming or Smart Antenna

    • Differential Encoding/Decoding

    • Proposed by Hughes, Hochwald and Swelden in 2000.

    • Non coherent detection ideal for slow fading channels.

    • So at first a dump (identity matrix is sent)

    Differential encoding

    Differential Encoding

    • For stability unitary ST coding is used.

    • ML Detection-:

    • Performance of Non-coherent detection is 3 dB below then coherent case dute to noise.

    • The received vector at the previous slot is used for detection of present information symbol.





  • Login
