  1. Xerox Project Paper Stacking Detection Group 5 Lisa Washakowski Samantha Harter Will Nauman

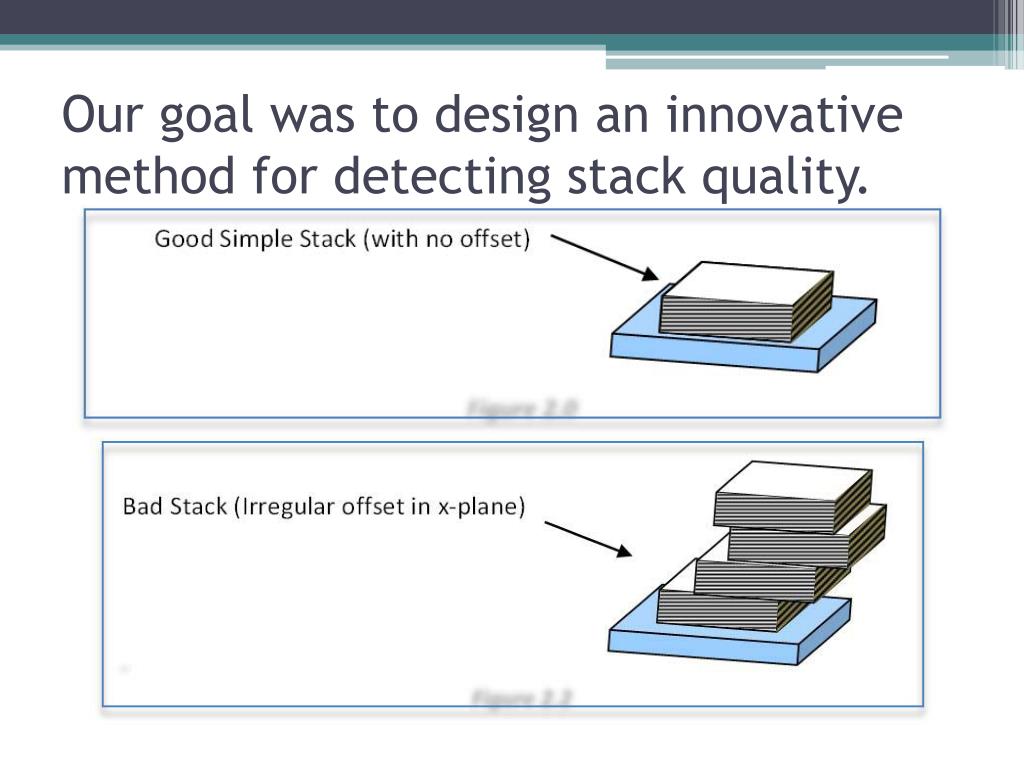

  2. Our goal was to design an innovative method for detecting stack quality.

  3. Customer Needs

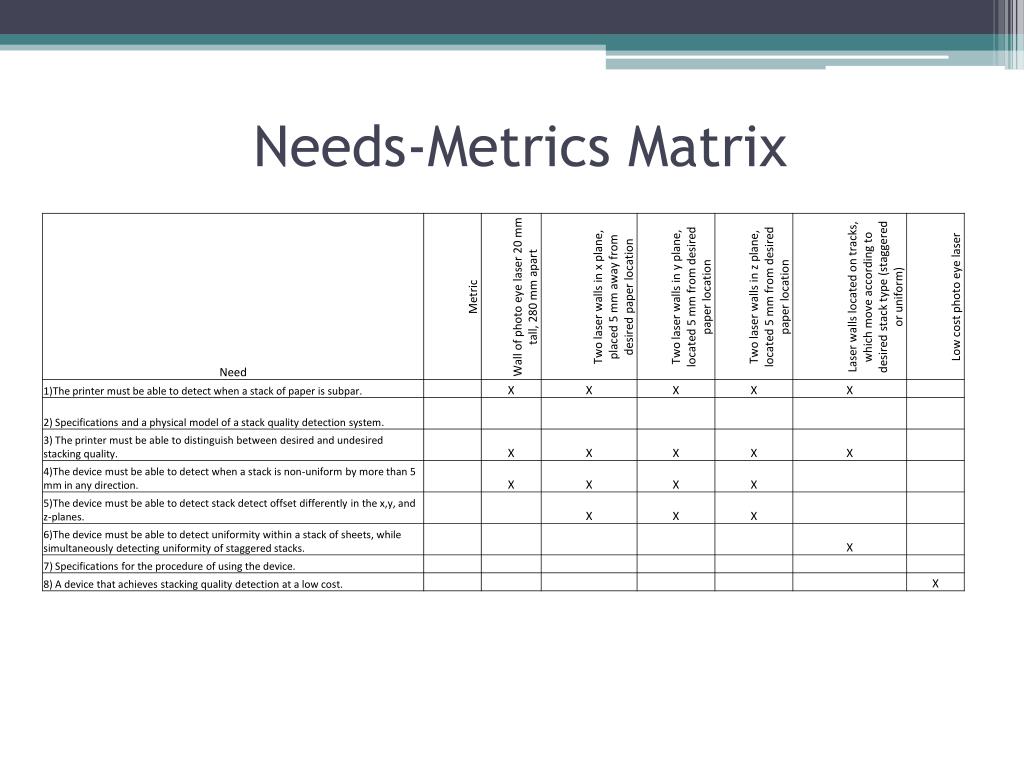

  4. Needs-Metrics Matrix

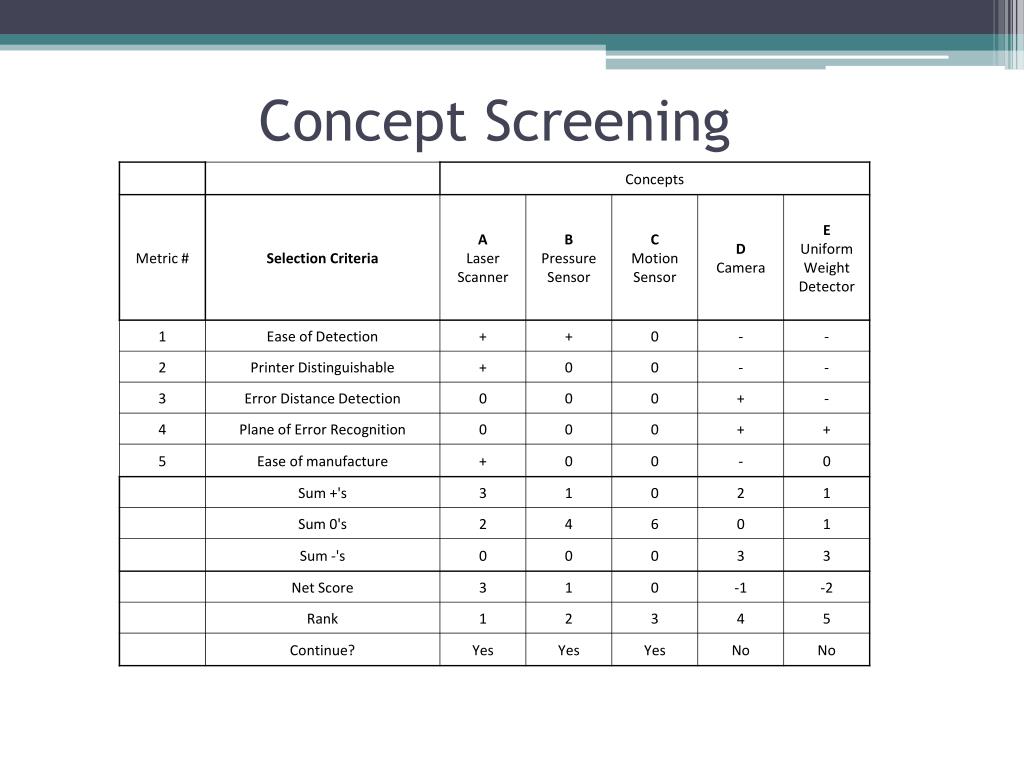

  5. Concept Screening

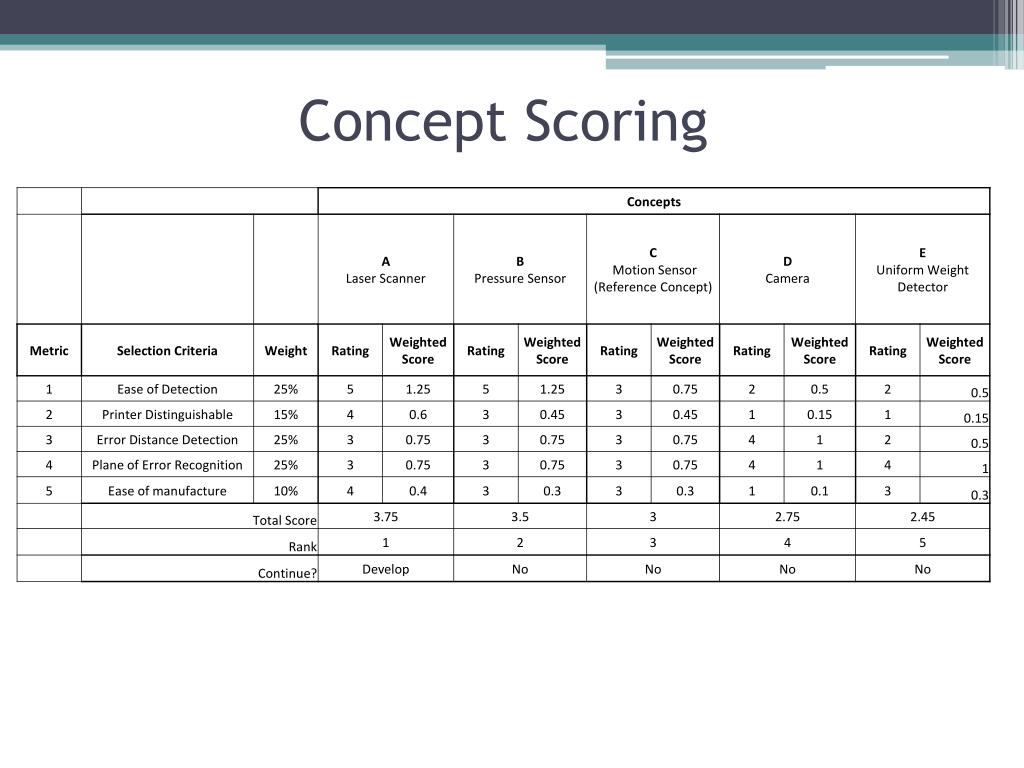

  6. Concept Scoring

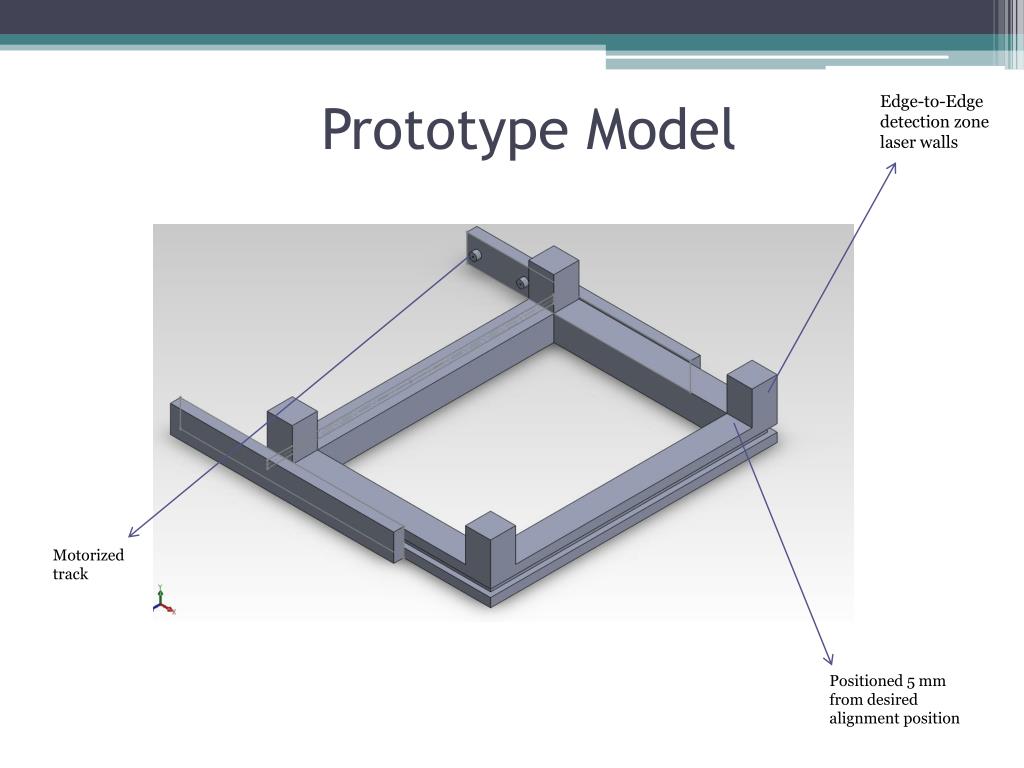

  7. Edge-to-Edge detection zone laser walls Prototype Model Motorized track Positioned 5 mm from desired alignment position

  8. The most efficient means of detecting a position of a paper stack is by using a Photoelectric Sensor SL-V Series Safety Light Curtain Features: Edge-to-Edge Detection Zone [World’s First]

  9. The sliding rail and electric motor allow the detector to adjust to the desired stacking specifications. DC 12V 10000RPM 0.13A 27mm Diameter Mini Electric Motor Prime Line Products R7137 Mono-Rail Drawer Slide Kit

  10. Stacking detection is achieved effectively, but the simple design keeps expenses at a minimum. Cost Analysis

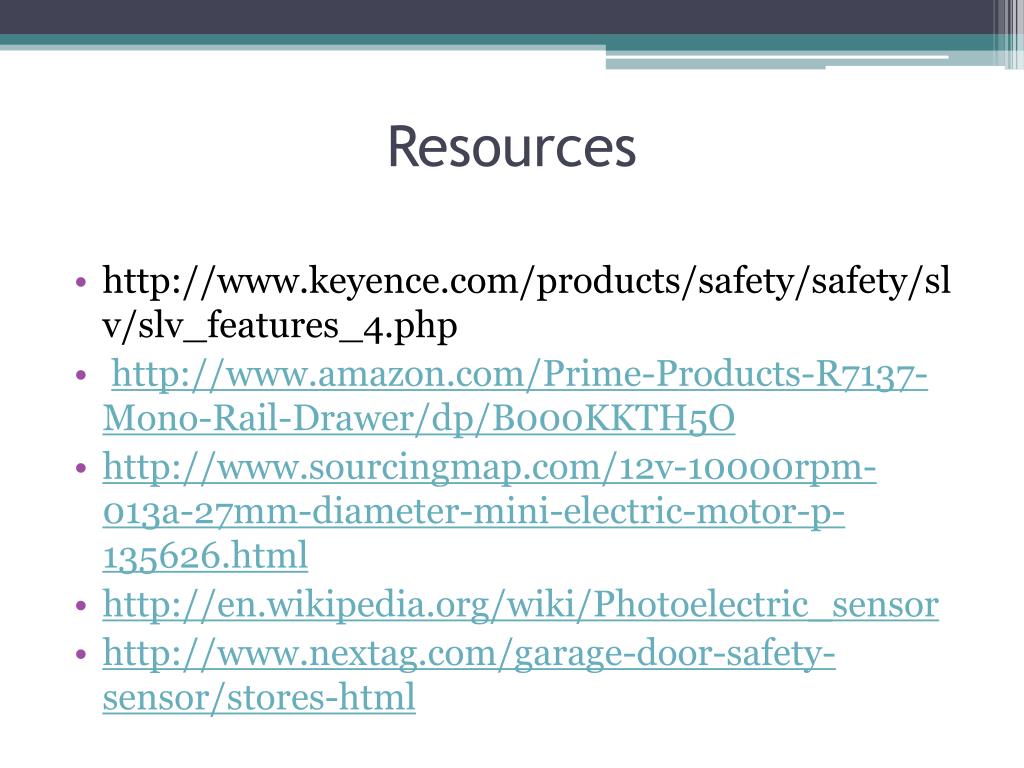

  11. Resources • http://www.keyence.com/products/safety/safety/slv/slv_features_4.php • http://www.amazon.com/Prime-Products-R7137-Mono-Rail-Drawer/dp/B000KKTH5O • http://www.sourcingmap.com/12v-10000rpm-013a-27mm-diameter-mini-electric-motor-p-135626.html • http://en.wikipedia.org/wiki/Photoelectric_sensor • http://www.nextag.com/garage-door-safety-sensor/stores-html
