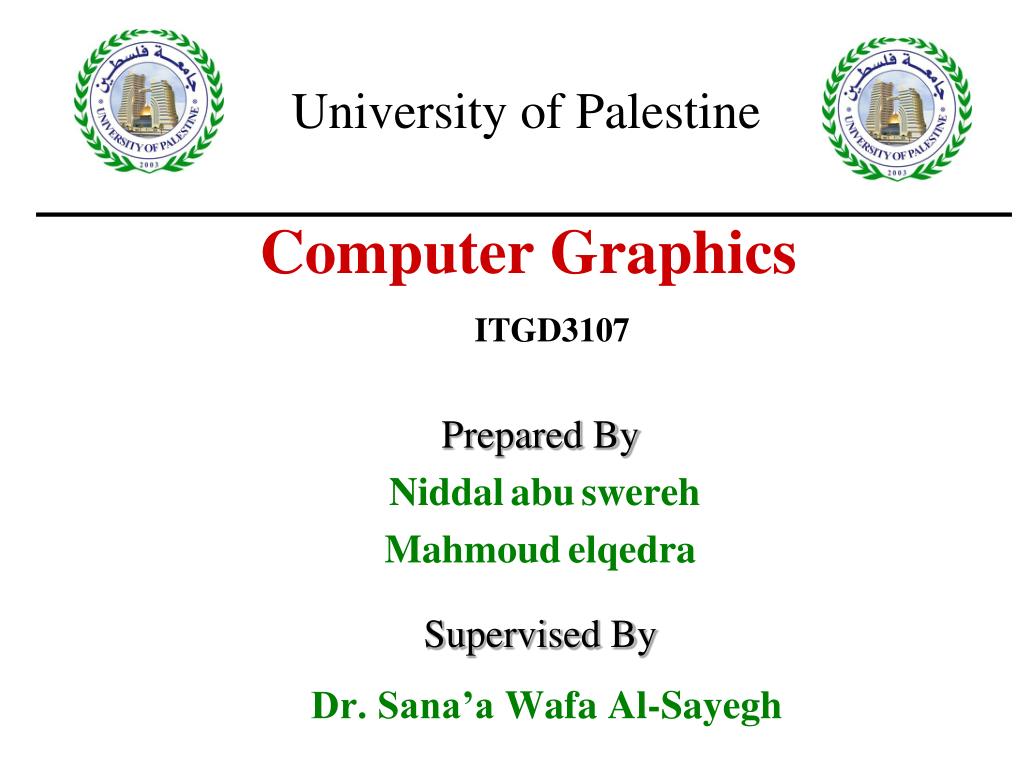

  1. Prepared By Niddalabuswereh Mahmoudelqedra Supervised By Dr. Sana’a Wafa Al-Sayegh Computer Graphics University of Palestine ITGD3107

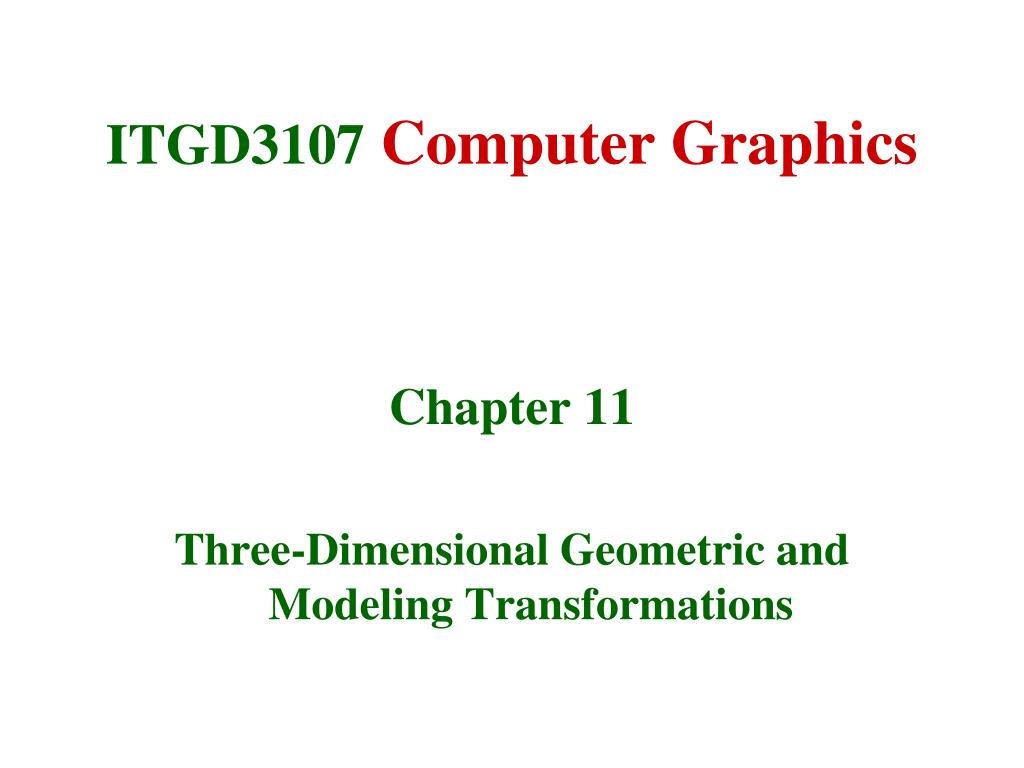

  2. ITGD3107Computer Graphics Chapter 11 Three-Dimensional Geometric and Modeling Transformations

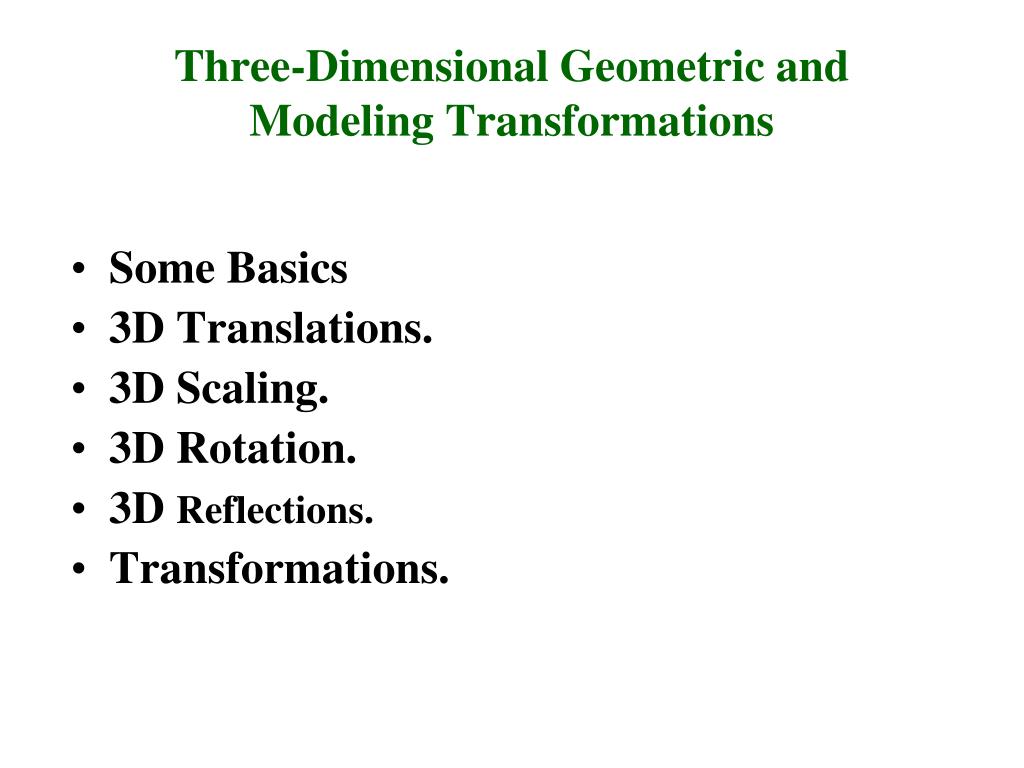

  3. Three-Dimensional Geometric and Modeling Transformations • Some Basics • 3D Translations. • 3D Scaling. • 3D Rotation. • 3D Reflections. • Transformations.

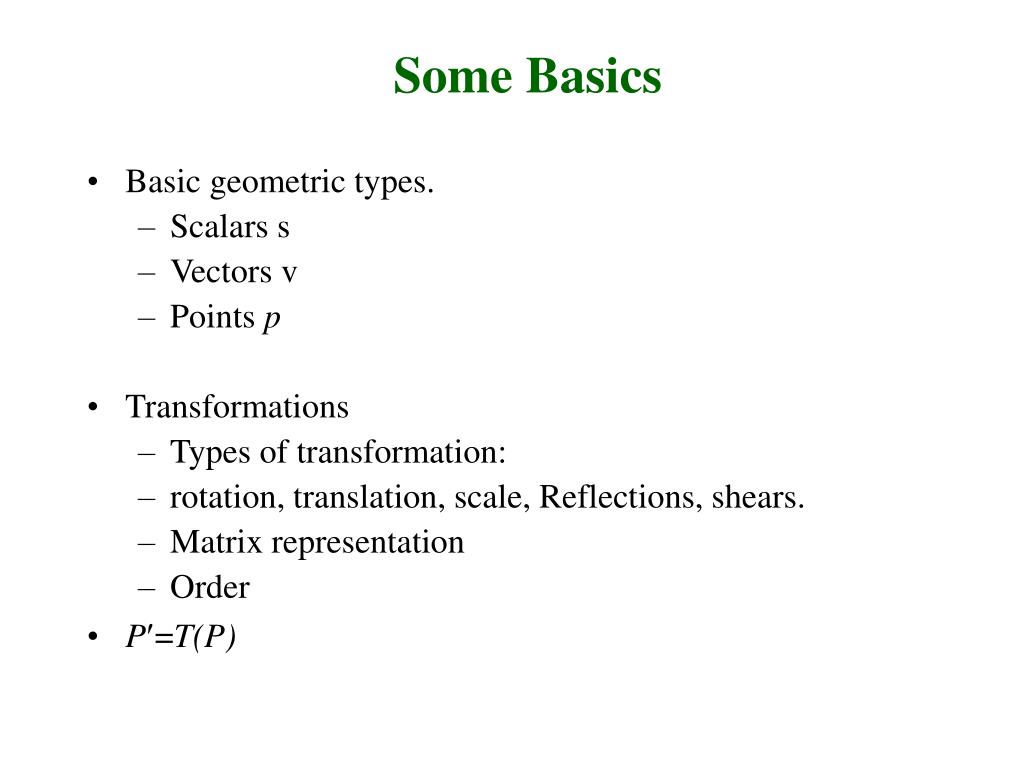

  4. Some Basics • Basic geometric types. • Scalars s • Vectors v • Points p • Transformations • Types of transformation: • rotation, translation, scale,Reflections, shears. • Matrix representation • Order • P=T(P)

  5. 3DPoint • We will consider points as column vectors. Thus, a typical point with coordinates (x, y, z) is represented as:

  6. P is translated to P' by T: 3D Translations. Called the translation matrix T =

  7. 3D Translations.

  8. 3D Translations. • An object is translated in 3D dimensional by transforming each of the defining points of the objects.

  9. 3D Translations.

  10. P is scaled to P' by S: 3D Scaling Called the Scaling matrix S =

  11. 3D Scaling • Scaling with respect to the coordinate origin

  12. 3D Scaling • Scaling with respect to a selected fixed position (xf, yf, zf) • Translate the fixed point to origin • Scale the object relative to the coordinate origin • Translate the fixed point back to its original position

  13. 3D Scaling

  14. 3D Reflections • About an axis:equivalent to 180˚rotation about that axis

  15. 3D Reflections

  16. 3D Shearing • Modify object shapes • Useful for perspective projections: • E.g. draw a cube (3D) on a screen (2D) • Alter the values for xand y by an amount proportional to the distance from zref

  17. 3D Shearing

  18. Shears

  19. Rotation Positive rotation angles produce counterclockwise rotations about a coordinate axis mshe1990@hotmail.com &&

  20. Rotation mshe1990@hotmail.com &&

  21. Coordinate-Axes Rotations mshe1990@hotmail.com &&

  22. Coordinate-Axes Rotations mshe1990@hotmail.com &&

  23. Coordinate-Axes Rotations mshe1990@hotmail.com &&

  24. Coordinate-Axes Rotations mshe1990@hotmail.com &&

  25. General Three-Dimensional Rotations • An object is to be rotated about an axis that is parallel to one of the coordinate axes • Translate the object so that the rotation axis coincides with the parallel coordinate axis • Perform the specified rotation about that axis • Translate the object so that the rotation axis is moved back to its original position mshe1990@hotmail.com &&

  26. General Three-Dimensional Rotations • An object is to be rotated about an axis that is not parallel to one of the coordinate axes • Translate the object so that the rotation axis passes through the coordinate origin. • Rotate the object so that the axis of rotation coincide with one of the coordinate axes. • Perform the specified rotation about that coordinate axis. • Apply inverse rotations to bring the rotation axis back to its original orientation. • Apply the inverse Translation to bring the rotation axis back to its original position. mshe1990@hotmail.com &&

  27. Quiz Draw any shape, then moving translation matrix. Good Luck
