Presentation Transcript

Neoplasia l.jpg


Pathophysiology of tumors and cancer

Slide2 l.jpg

The following pictures and descriptions were found at:

Slide3 l.jpg

Cells normally differentiate, grow, mature and divide.

These are regulated processes, balanced in a healthy system such that cell birth is nearly equal to cell death

Slide4 l.jpg

Regulation of cell division includes:

1. Signaling by biochemicals released from one cell that interact with other cells

growth factors or cytokines

2. Other external factors , such as contact inhibition

Slide5 l.jpg

3. Genes and internal factors that promote and regulate cell division

genes and chromosomal factors - telomeres

braking proteins – Rb proteins

Slide6 l.jpg

A tumor cell’s growth is autonomous – independent of controls

Neoplasm – a type of tumor – group of neoplasic cells

Study of tumors is oncology from Greek for tumor

Slide7 l.jpg

Two major types: Benign and Malignant (table 6.2)

Benign:grow slowly

low mitotic rate

well differentiated

not invasive; well-defined borders

remain localized; do not metastasize

Slide8 l.jpg

Any increase in tissue size is not necessarily neoplasia. Here is an example of left ventricular cardiac hypertrophy in which there has been an increase in the size of the myocardial fibers in response to an increased pressure load from hypertension. With hypertrophy, the cells increase in size, but the cells do not increase in number. Except for being larger, the cells are normal in appearance. Alterations in cell growth can be physiologic (normal responses to stimuli) or pathologic. These alterations of cell growth are potentially reversible and include:

Hypertrophy: an increase in cell size. Increase in skeletal muscle fiber size is a physiologic response to exercise, but the cardiac hypertrophy shown above is a pathologic response to abnormally elevated blood pressure.

Hyperplasia: an increase in the number of cells. Postpartum breast lobules undergo hyperplasia for lactation, but endometrial hyperplasia in a postmenopausal woman is abnormal.

Slide10 l.jpg

The large fronds of endometrium seen in this uterus opened to reveal the endometrial cavity are a result of hyperplasia. This resulted from increased estrogen. With hyperplasia, there is an increase in cell numbers to produce an increase in tissue size. However, the cells are normal in appearance. Sometimes hyperplasias can be "atypical" and the cells not completely normal. Such conditions can be premalignant.

Slide12 l.jpg

The first step toward neoplasia is cellular transformation. Here, there is metaplasia of normal respiratory laryngeal epithelium on the right to squamous epithelium on the left in response to chronic irritation of smoking. The two forms of cellular transformation that are potentially reversible, but may be steps toward a neoplasm, are:

Metaplasia: the exchange of normal epithelium for another type of epithelium. Metaplasia is reversible when the stimulus for it is taken away.

Dysplasia: a disordered growth and maturation of an epithelium, which is still reversible if the factors driving it are eliminated.

Slide13 l.jpg

This is the next step toward neoplasia. Here, there is normal cervical squamous epithelium at the left, but dysplastic squamous epithelium at the right. Dysplasia is a disorderly growth of epithelium, but still confined to the epithelium. Dysplasia is still reversible.

Slide14 l.jpg

Of course, neoplasms can be benign as well as malignant, though it is not always easy to tell how a neoplasm will act. Here is a benign lipoma on the serosal surface of the small intestine. It has the characteristics of a benign neoplasm: it is well circumscribed, slow growing, and resembles the tissue of origin (fat).

Slide15 l.jpg

At low power magnification, a lipoma of the small intestine is seen to be well demarcated from the mucosa at the lower center-right. This neoplasm is so well-differentiated that, except for its appearance as a localized mass, it is impossible to tell from normal adipose tissue.

Slide16 l.jpg

Remember that the most common neoplasm is a benign nevus (pigmented mole) of the skin, and most people have several, as seen here over the skin of the chest. As a general rule, benign neoplasms do not give rise to malignant neoplasms.

Slide17 l.jpg

Malignant – cancer – from Latin for crab

autonomy and anaplasia

Grow rapidly ; high mitotic index, poorly differentiated; do not have a capsule; invade surrounding structures; can metastasize from the primary to a secondary site (metastasis).

Slide18 l.jpg

Some epithelia are accessible enough, such as the cervix, that cancer screening can be done by sampling some of the cells and sending them to the laboratory. Here is a cervical Pap smear in which dysplastic cells are present that have much larger and darker nuclei than the normal squamous cells with small nuclei and large amounts of cytoplasm.

Slide19 l.jpg

When the entire epithelium is dysplastic and no normal epithelial cells are left, then the process is beyond dysplasia and is now neoplasia. If the basement membrane is still intact, as shown here, then the process is called "carcinoma in situ" because the carcinoma is still confined to the epithelium.

Slide20 l.jpg

This is a neoplasm. Neoplasia is uncontrolled new growth. Note the mass of abnormal tissue on the surface of the cervix. The term "tumor" is often used synonymously with neoplasm, but a "tumor" can mean any mass effect, whether it is inflammatory, hemodynamic, or neoplastic in origin. Once a neoplasm has started, it is not reversible.

Slide21 l.jpg

This is the microscopic appearance of neoplasia, or uncontrolled new growth. Here, the neoplasm is infiltrating into the underlying cervical stroma.

Slide22 l.jpg

This gastric adenocarcinoma is positive for cytokeratin by immunoperoxidase. This is a typical staining reaction for carcinomas and helps to distinguish carcinomas from sarcomas and lymphomas. Immunoperoxidase staining is helpful to determine the cell type of a neoplasm when the degree of differentiation, or morphology alone, does not allow an exact classification.

Slide23 l.jpg

Here is a small hepatic adenoma, an uncommon benign neoplasm, but one that shows how well-demarcated an benign neoplasm is. It also illustrates how function of the normal tissue is maintained, because the adenoma is making bile pigment, giving it a green color.

Slide24 l.jpg

In contrast, this hepatocellular carcinoma is not as well circumscribed (note the infiltration of tumor off to the lower right) nor as uniform in consistency. It is also arising in a cirrhotic (nodular) liver.

Slide25 l.jpg

Malignant neoplasms are also characterized by the tendency to invade surrounding tissues. Here, a lung cancer is seen to be spreading along the bronchi into the surrounding lung.

Slide26 l.jpg

This is an example of metastases to the liver. Note that the tan-white masses are multiple and irregularly sized. A primary neoplasm is more likely to be a solitary mass. Metastasis is the best indication that a neoplasm is malignant.

Slide27 l.jpg

Here are three abnormal mitoses. Mitoses by themselves are not indicators of malignancy. However, abnormal mitoses are highly indicative of malignancy. The marked pleomorphism and hyperchromatism of surrounding cells also favors malignancy.

Slide28 l.jpg

Nomenclature – In General :

Tissue of origin + “-oma” indicates a benign tumor

Slide29 l.jpg

Malignant tumors – use embryonic origin of tissue

Carcinomas come from ectoderm and

Endoderm - epithelial and glandular tissue

Sarcomas arise from mesoderm

connective tissue, muscle, nerve and endothelial tissues

Genetic basis of cancer l.jpg

Genetic Basis of cancer

  • Older theory : Initiation-promotion-progression

  • “Multi-hit” hypothesis

  • Cancer is a disease of aging

  • Clonal proliferation

Slide31 l.jpg

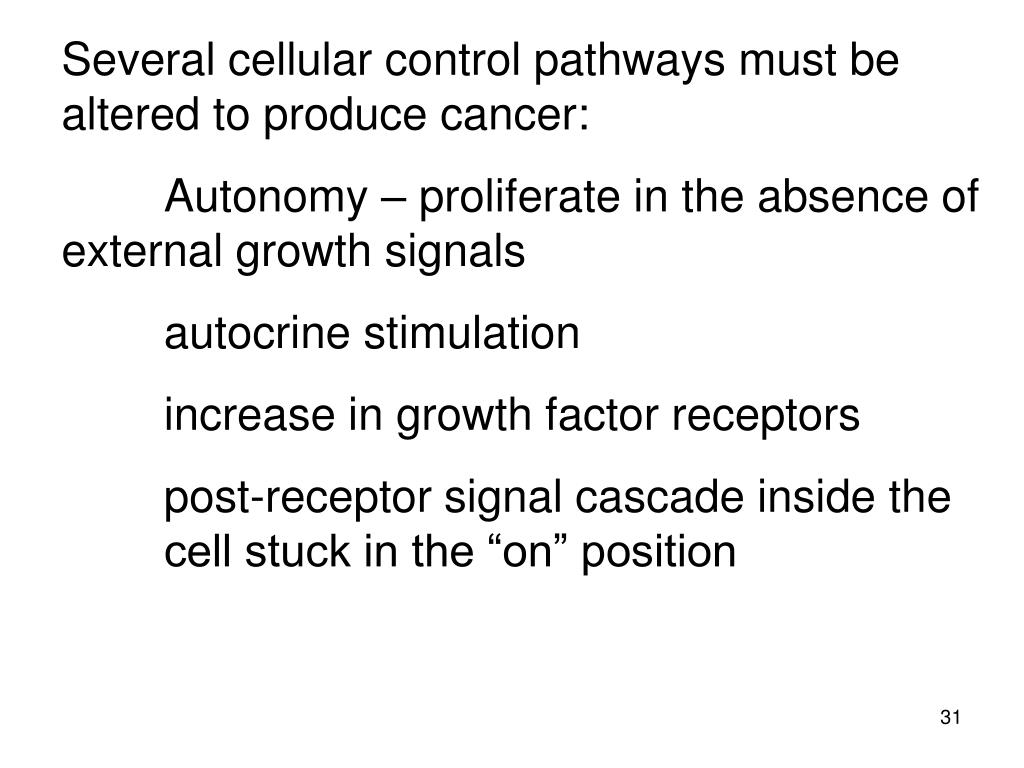

Several cellular control pathways must be altered to produce cancer:

Autonomy – proliferate in the absence of external growth signals

autocrine stimulation

increase in growth factor receptors

post-receptor signal cascade inside the cell stuck in the “on” position

Slide32 l.jpg

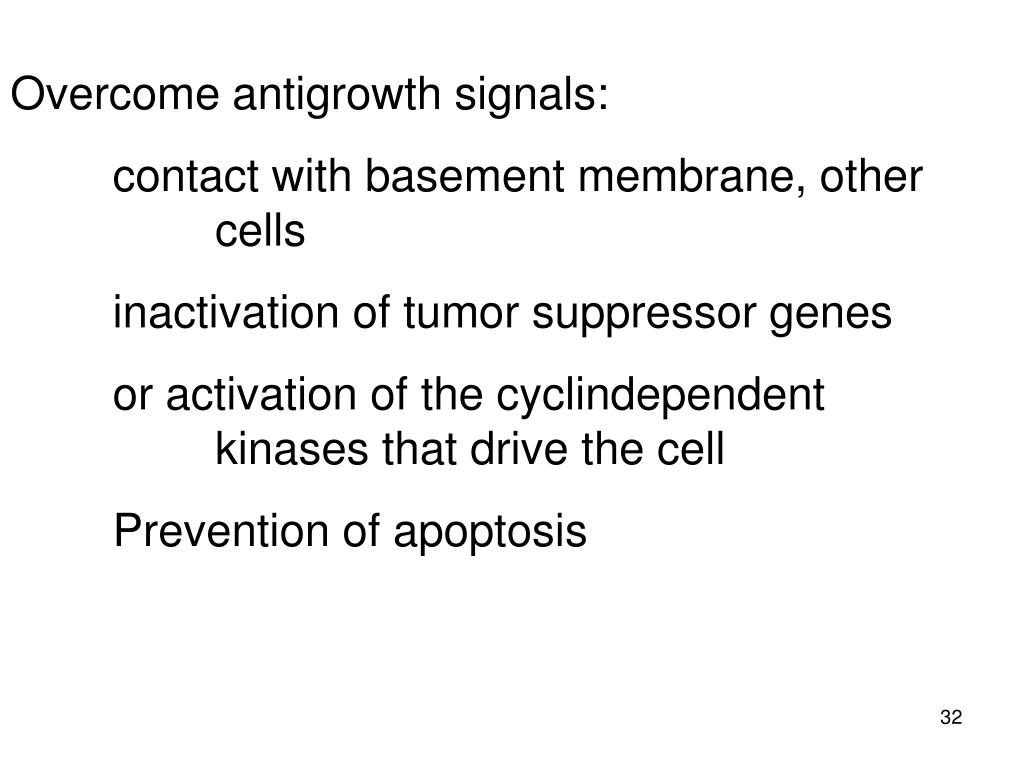

Overcome antigrowth signals:

contact with basement membrane, other cells

inactivation of tumor suppressor genes

or activation of the cyclindependent kinases that drive the cell

Prevention of apoptosis

Slide33 l.jpg

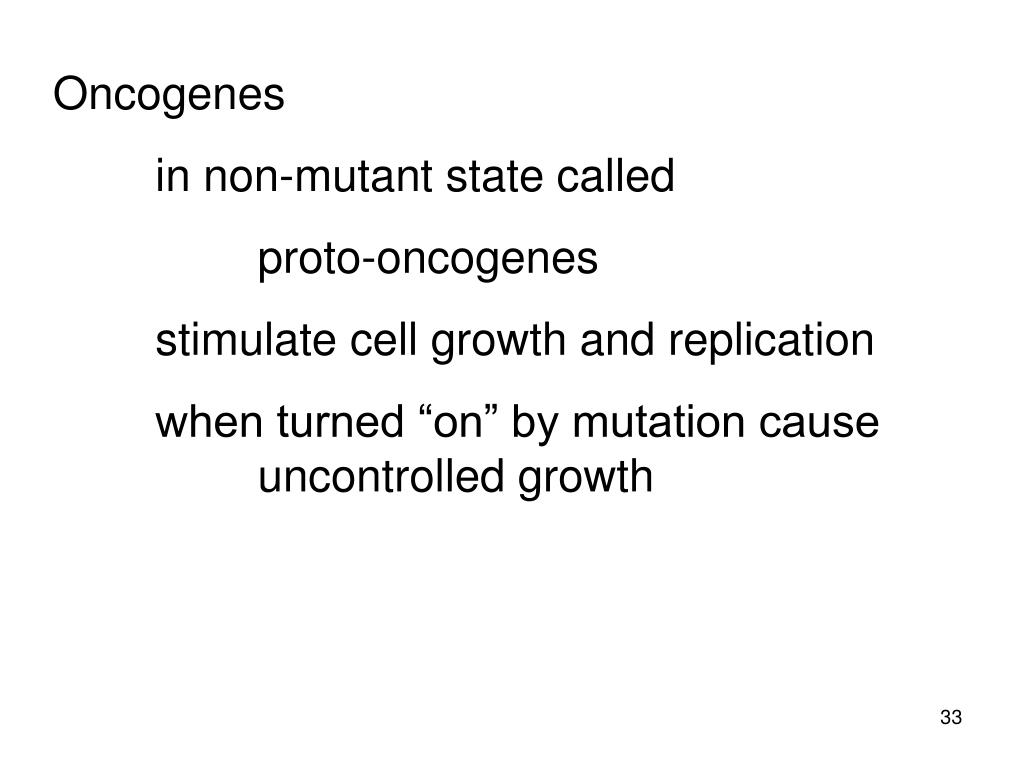

in non-mutant state called


stimulate cell growth and replication

when turned “on” by mutation cause uncontrolled growth

Slide34 l.jpg

Tumor suppressor genes

negatively regulate proliferation - antioncogenes

want these to remain intact

takes two “hits” to remove both genes

Slide36 l.jpg

Gene silencing

regions of genes normally turned off

can spread without mutation and turn off tumor suppressor genes

drugs that demethylate DNA may turn genes back on

Slide37 l.jpg

Loss of caretaker genes

Chromosomal instability

Slide38 l.jpg

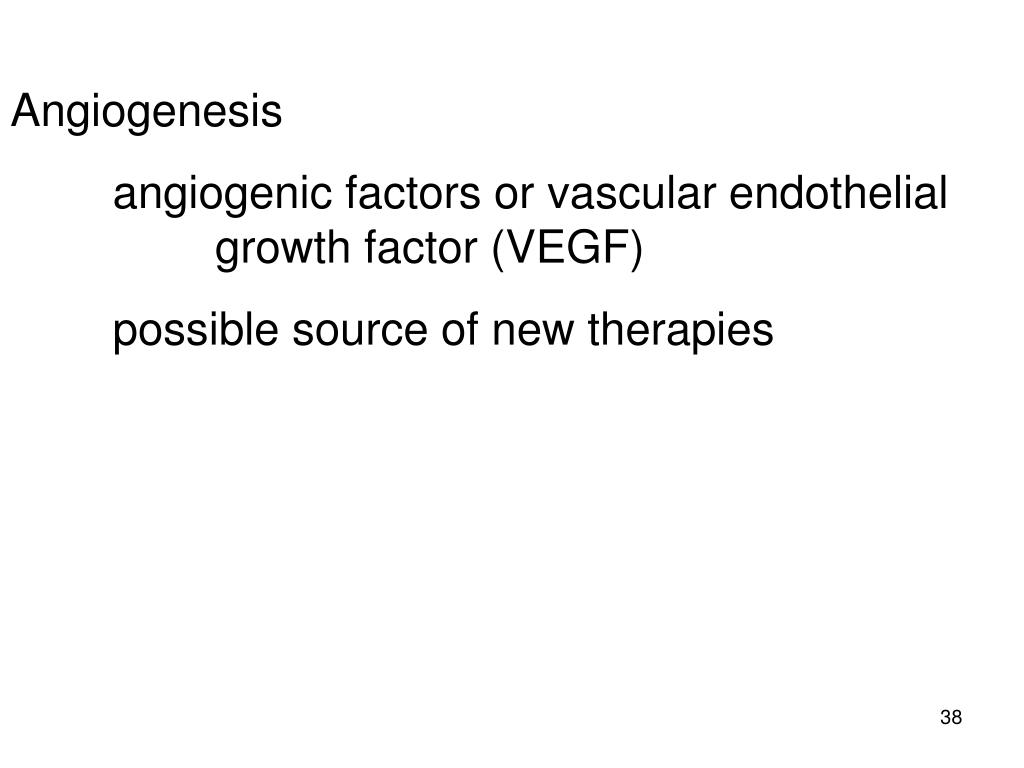

angiogenic factors or vascular endothelial growth factor (VEGF)

possible source of new therapies

Slide39 l.jpg


Other factors:

decreased cell-to-cell adhesion

secretions of proteases

ability to grow in new locations

Slide40 l.jpg

Genetics and cancer prone families

to be passed down, mutations must occur in germ cells

inherited mutations almost always in tumor suppressor genes (table 9-6)

these individuals are targets for cancer screening

Slide41 l.jpg

Viral causes of cancer:

viruses assoc. with about 15 % of cancers world wide – us. Cervix or liver

hepatitis B or C in chronic form

Human papilloma virus

spread through sexual contact

HPV integrates into DNA and usesviral oncogenes

Slide42 l.jpg

Epstein-Barr and Kaposi sarcoma

both herpes viruses

Human T cell leukemia-lymphoma virus

blood transfusions, needles, sex and breast feeding

infections may be asymptomatic

may have high incidence, but low #’s of cancer

cofactors increase the risk of cancer

Slide43 l.jpg

Bacterial causes of Cancer

Helicobacter pylori infects >1/2 world’s population

assoc. with B cell lymphomas of the stomach

treatment with antibiotics can cause regression of lymphoma

Tumors arise in MALT -MALTomas

Environmental factors l.jpg

Environmental factors

  • Tobacco use

  • Diet

  • Alcohol use

  • Sexual and reproductive behavior

  • Air pollution

  • Occupation hazards – asbestos

  • UV radiation and other radiation

  • hormones

Slide45 l.jpg

Gene-Environment Interactions:

Exposure to environmental agents can cause increased risk of cancer

cancer in lab animals – carcinogens

Comparisons of populations

genetics vs. lifestyle

Slide46 l.jpg

“Genetics loads the gun; the environment pulls the trigger.” director of Nat’l Institute of Environmental Health & Safety

Slide47 l.jpg


screening procedures and blood tests:

Tumor markers

substances on plasma membranes

in blood, spinal fluid or urine

hormones, genes antigens or antibodies

Slide48 l.jpg

Markers can be used:

to screen and identify individuals at high risk

to help diagnose the specific type of tumor

to follow the course of the cancer

Tumor spread l.jpg

Tumor spread

  • Local spread

    • Cellular multiplication

      • Function of generation time

      • Growth if cell reproduction > cell death

Slide50 l.jpg

  • Mechanical invasion

  • along path of least resistance

  • compresses blood vessels, leading to tissue death and increased space

Slide51 l.jpg

  • Lytic enzymes

  • proteases, collagenases, plasminogen activators, lysosomal enzymes

  • some involved in producing new blood vessels

Slide52 l.jpg

  • Decreased cell adhesion

  • loss of anchoring molecules allows cancer to slip between normal cells

Slide53 l.jpg

  • Increased motility

  • essential for metastasis

  • intravasation

  • extravasation

  • may secrete autocrine motility factor

  • extend psuedopodia

  • three step hypothesis:

  • attachment to the matrix

  • dissolution of the matrix

  • locomotion through the matrix

Slide54 l.jpg

Stages of cancer spread:

Stage 1 – confined to site of origin

Stage 2- cancer is locally invasive

Stage 3 – cancer has spread to regional structures

Stage 4- cancer has spread to distant sites

Slide55 l.jpg

TNM system:

tumor spread

node involvement

presence of distant metastasis

Staging may influence choice of treatment

Slide56 l.jpg

  • Staging TNM system

  • Size of tumor – T0, T1, T2,T3

  • Degree of local invasion – lymph node involvement

  • Extent of spread – metastasis

Patterns of spread metastasis l.jpg

Patterns of spread: Metastasis

  • Direct or continuous extension

  • By lymphatics or blood stream

    • As clumps or as single cells

    • Lymphatics most common

Patterns of spread metastasis58 l.jpg

Patterns of spread: Metastasis

  • Angiogenesis

    • Due to production of angiogenic factors

    • Due to drop in antiangiogenic factors

Slide59 l.jpg

A metastasis grows when:

vascular network is developed

host defenses are evaded

a compatible environment is available

Slide60 l.jpg

  • Distribution and common sites of distant metastases

  • often occurs in the first capillary bed encountered

  • Others show “organ tropism”

  • Due to:

    • Local growth factors or hormones

    • Preferential adherence to the surface

    • Presence of chemotactic factors

Clinical manifestations of cancer l.jpg

Clinical manifestations of Cancer

  • Pain

    • Usually not in early stages

    • 60 – 80 % of terminally ill

    • Psychogenic, cultural and physiologic components

    • Due to pressure, obstruction, stretching, tissue damage or inflammation

Slide62 l.jpg

Branches of peripheral nerve are invaded by nests of malignant cells. This is often why pain associated with cancers is unrelenting.

Clinical manifestations of cancer63 l.jpg

Clinical manifestations of Cancer


sleep disturbances

biochemical changes

loss of muscle function

Clinical manifestations of cancer64 l.jpg

Clinical manifestations of Cancer

Cachexia – wasting


early satiety

weight loss


marked weakness

taste alterations

altered metabolism

Clinical manifestations of cancer65 l.jpg

Clinical manifestations of Cancer


chronic bleeding


medical therapies

malignancy in blood forming organs

Administer erythropoietin

Clinical manifestations of cancer66 l.jpg

Clinical manifestations of Cancer

Leukopenia and thrombocytopenia

tumor invasion of bone marrow

chemotherapy or radiation

Clinical manifestations of cancer67 l.jpg

Clinical manifestations of Cancer

  • Paraneoplastic Syndromes

    • Release of hormones by cancer cells

    • Hematological complications such as procoagulation factors

    • Causes weakness by attacking neuromuscular junction (similar to myasthenia gravis)

Clinical manifestations of cancer68 l.jpg

Clinical manifestations of Cancer

  • Infection

  • most significant cause of complications and death

Cancer treatment l.jpg

Cancer Treatment

  • Chemotherapy

    • Cytotoxic drugs + body defenses

      • Single agent

      • Combination chemotherapy

        • Avoids single agent resistance

        • Can use lower dose

        • Better remission and cure rate

Cancer treatment70 l.jpg

Cancer Treatment


targets DNA

kill tumor without damage to surrounding tissues

tumor must be accessible

Cancer treatment71 l.jpg

Cancer Treatment


method of choice

can remove entire tumor


adjuvant chemotherapy or radiationpalliation

Cancer treatment72 l.jpg

Cancer Treatment


Nonspecific enhancement of the immune system – interferons or interleukins

protect against recurrence

eliminates cancer cells only

T- cell based or antibody responses

Conjugated antibodies

Cancer treatment73 l.jpg

Cancer Treatment

  • Targeted Therapies

    • Drugs that target the processes of cancer cells specifically

      • Thalidomide

    • Vaccines

Side effects of treatment l.jpg

Side effects of treatment

  • Gastrointestinal tract:

    • Oral ulcers

    • Malabsorption

    • Diarrhea

    • Vomiting – caused by effects on CNS

Side effects of treatment75 l.jpg

Side effects of treatment

Bone marrow:

chemo and radiation suppress bone marrow

decrease in red blood cells, white blood cells and platelets

Side effects of treatment76 l.jpg

Side effects of treatment

Hair and skin:


skin breakdown and dryness

Side effects of treatment77 l.jpg

Side effects of treatment

Reproductive tract:

affects gametes

premature menopause

also due to damage of hypothalamus and/or pituitary

sperm or embryo bank

  • Login
