Presentation Transcript
wi fi access points configurations
Wi-Fi Access Points Configurations

Secure your wireless connection by following the instructions provided for the following routers

D-Link

Linksys

Netgear

slide4

Authentication and Encryption

  • Go to home ->Wireless
    • SSID-Change the default SSID
    • SSID Broadcast –DISABLE
  • Authentication-WPA-PSK
  • Cipher Type – TKIP or AES
  • Pass phrase- Configure the PSK(withminimum of 8 characters)
slide5

MAC Authentication

Go To ->Advanced –Filter to accept or reject a MAC address

change the default settings

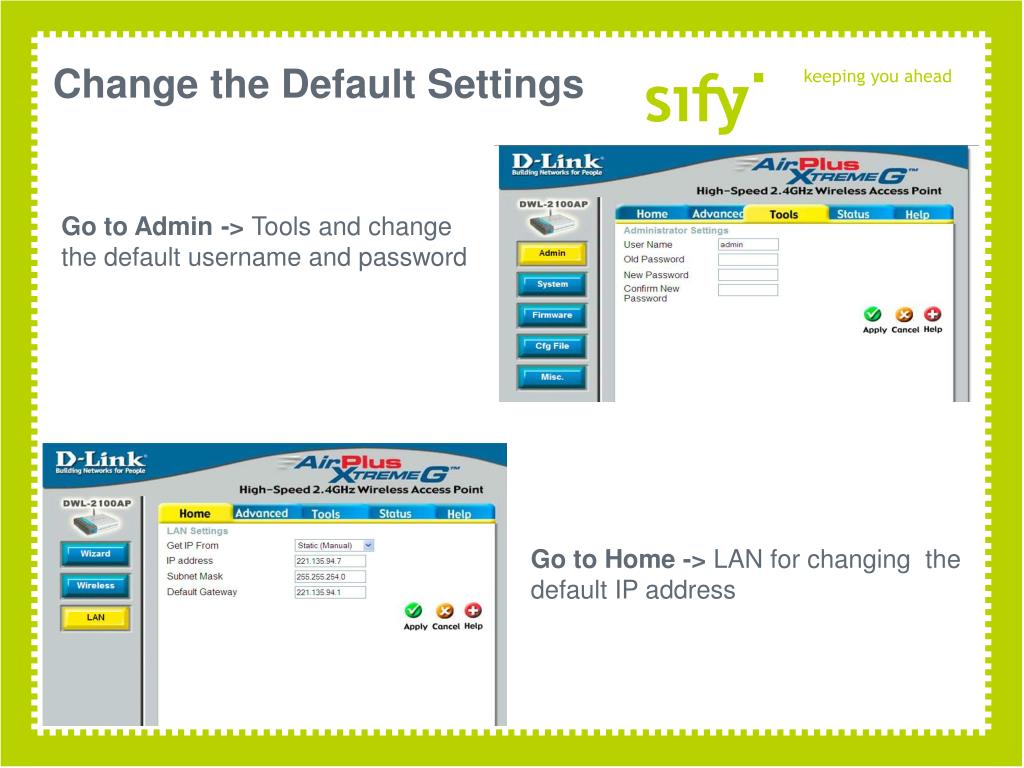

Change the Default Settings

Go to Admin -> Tools and change the default username and password

Go to Home -> LAN for changing the default IP address

wireless router web access logging into the wireless router

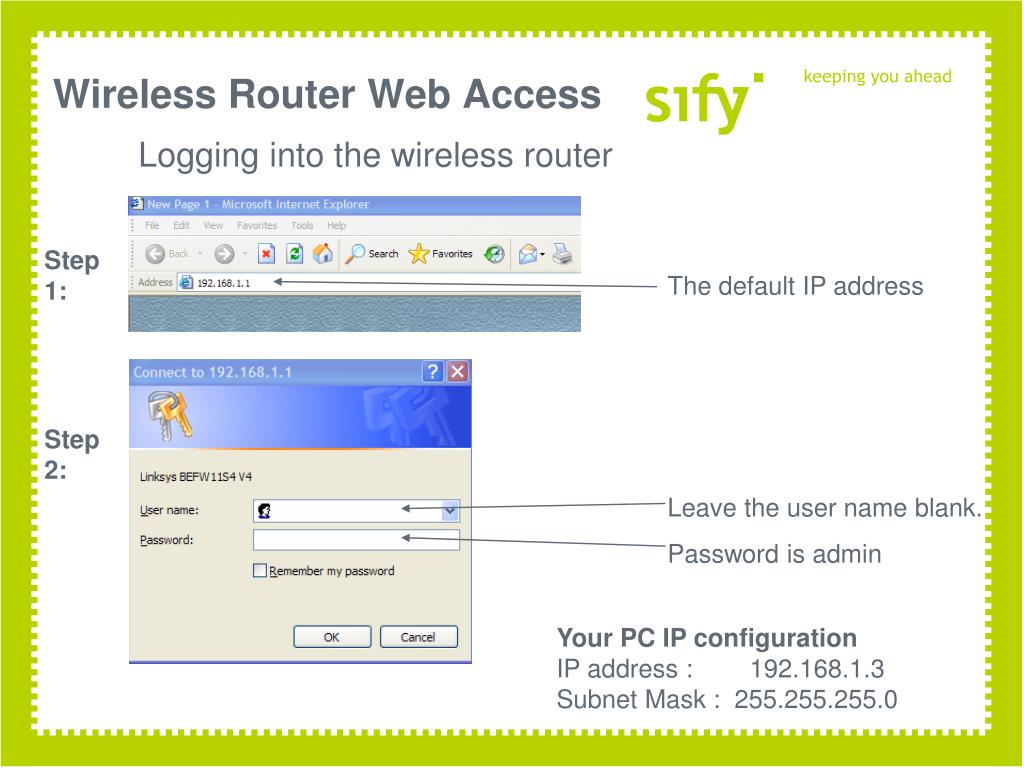

Wireless Router Web AccessLogging into the wireless router

Step 1:

The default IP address

Step 2:

Leave the user name blank.

Password is admin

Your PC IP configuration

IP address : 192.168.1.3

Subnet Mask : 255.255.255.0

main menus and sub menus

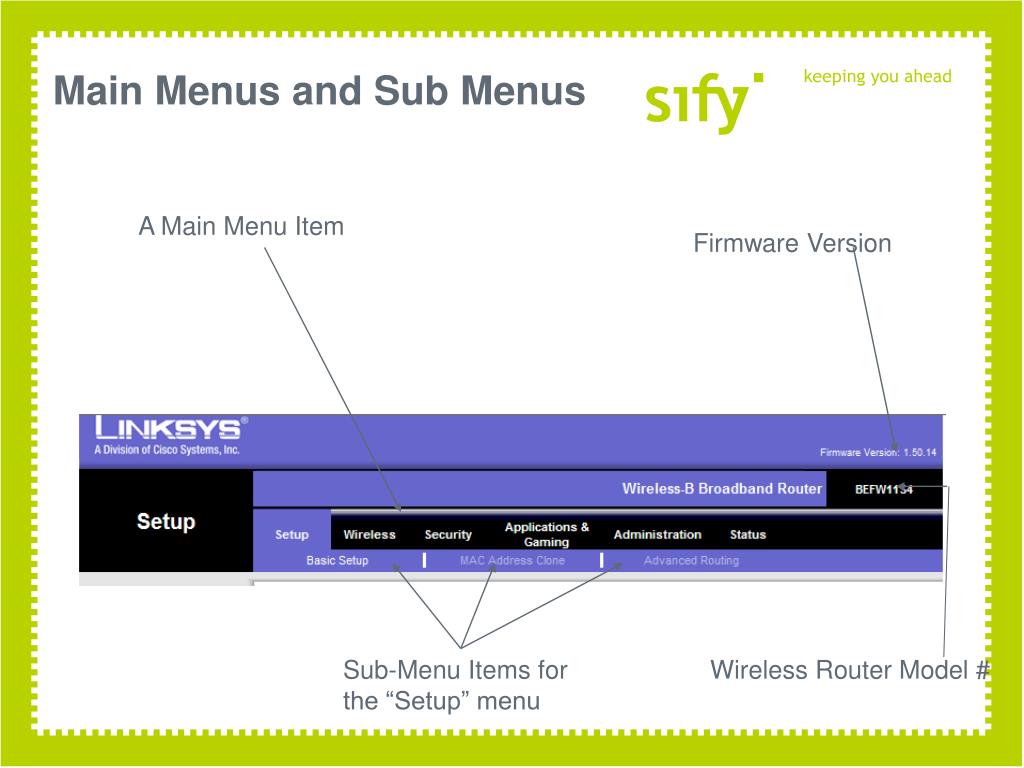

Main Menus and Sub Menus

A Main Menu Item

Firmware Version

Sub-Menu Items for the “Setup” menu

Wireless Router Model #

change default settings

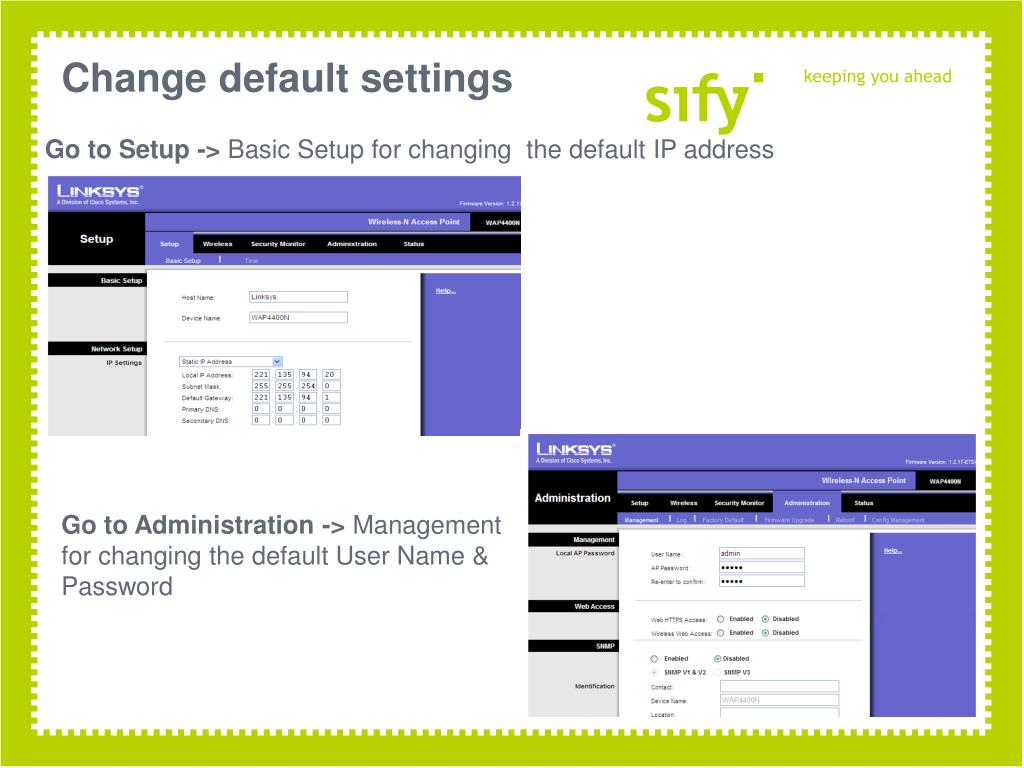

Change default settings

Go to Setup -> Basic Setup for changing the default IP address

Go to Administration -> Management for changing the default User Name & Password

authentication and encryption

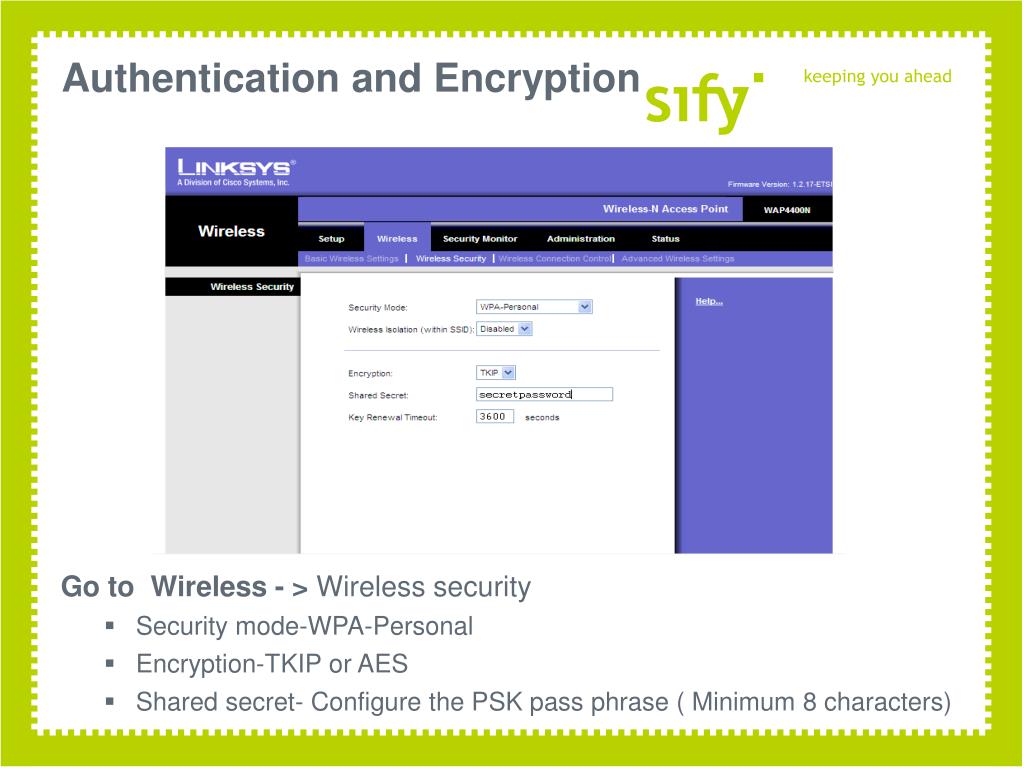

Authentication and Encryption
  • Go to Wireless - > Wireless security
    • Security mode-WPA-Personal
    • Encryption-TKIP or AES
    • Shared secret- Configure the PSK pass phrase ( Minimum 8 characters)
mac authentication

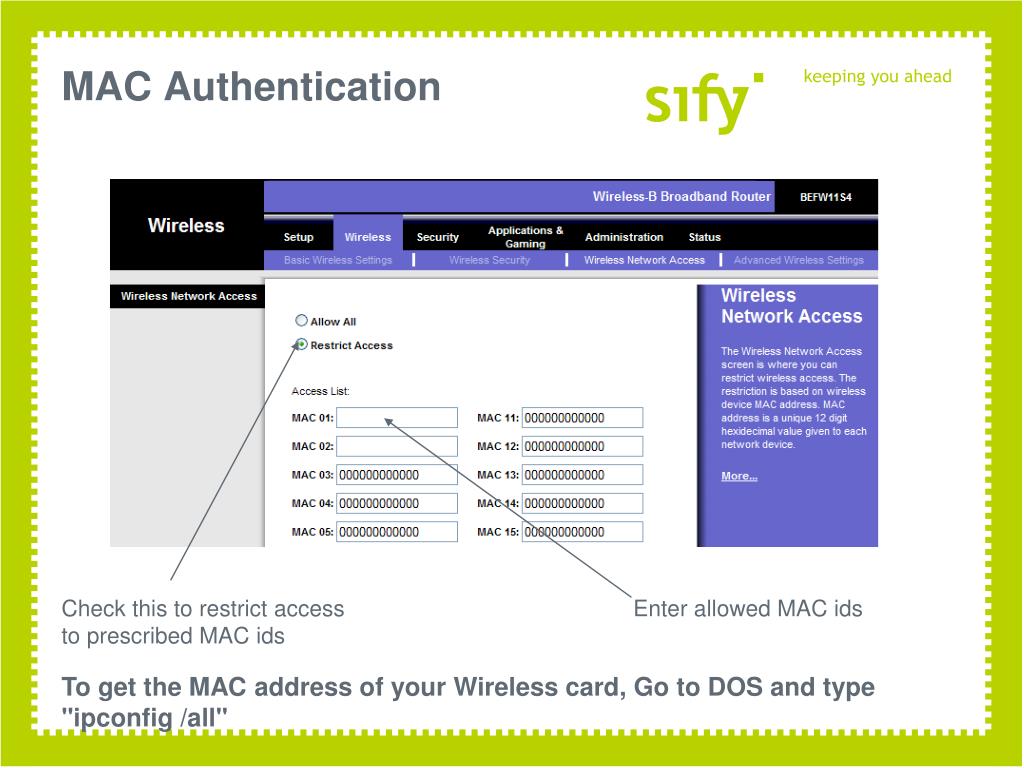

MAC Authentication

Check this to restrict access to prescribed MAC ids

Enter allowed MAC ids

To get the MAC address of your Wireless card, Go to DOS and type "ipconfig /all"

slide14

Authentication and Encryption

  • Go to Wireless Settings
    • Authentication-WPA-PSK
    • Cipher type(Encryption)-TKIP or AES
    • Pass phrase- Configure the PSK pass phrase (Minimum 8 characters)
    • SSID-Change the default SSID
slide15

SSID Setting

Go to Advanced-> Wireless Settings →Disable SSID Broadcast option

Change the Default Settings

Go to set password-> Change the default password

slide16

Thank You!!!

For securing your Wireless connection
