Presentation Transcript


Chapter 1 an introduction to computer security

Chapter 1An Introduction To Computer Security

TOPICS

  • Introduction

  • Threats to Computer Systems

    • Threats, Vulnerabilities and Attacks

    • Characteristics of Computer Intrusion

    • Type of Threats

    • Points of Security Vulnerabilities

    • Methods of Defense

  • Categories of Computer Attacks

    • Using an Attack Taxonomy

    • Consideration in Selecting an Attack Taxonomy

    • Simple Attack Taxonomy

    • Risk Based Attack Taxonomy

  • Examples of Common Attack Methods

  • Attack Prevention Methods

  • Summary


Introduction

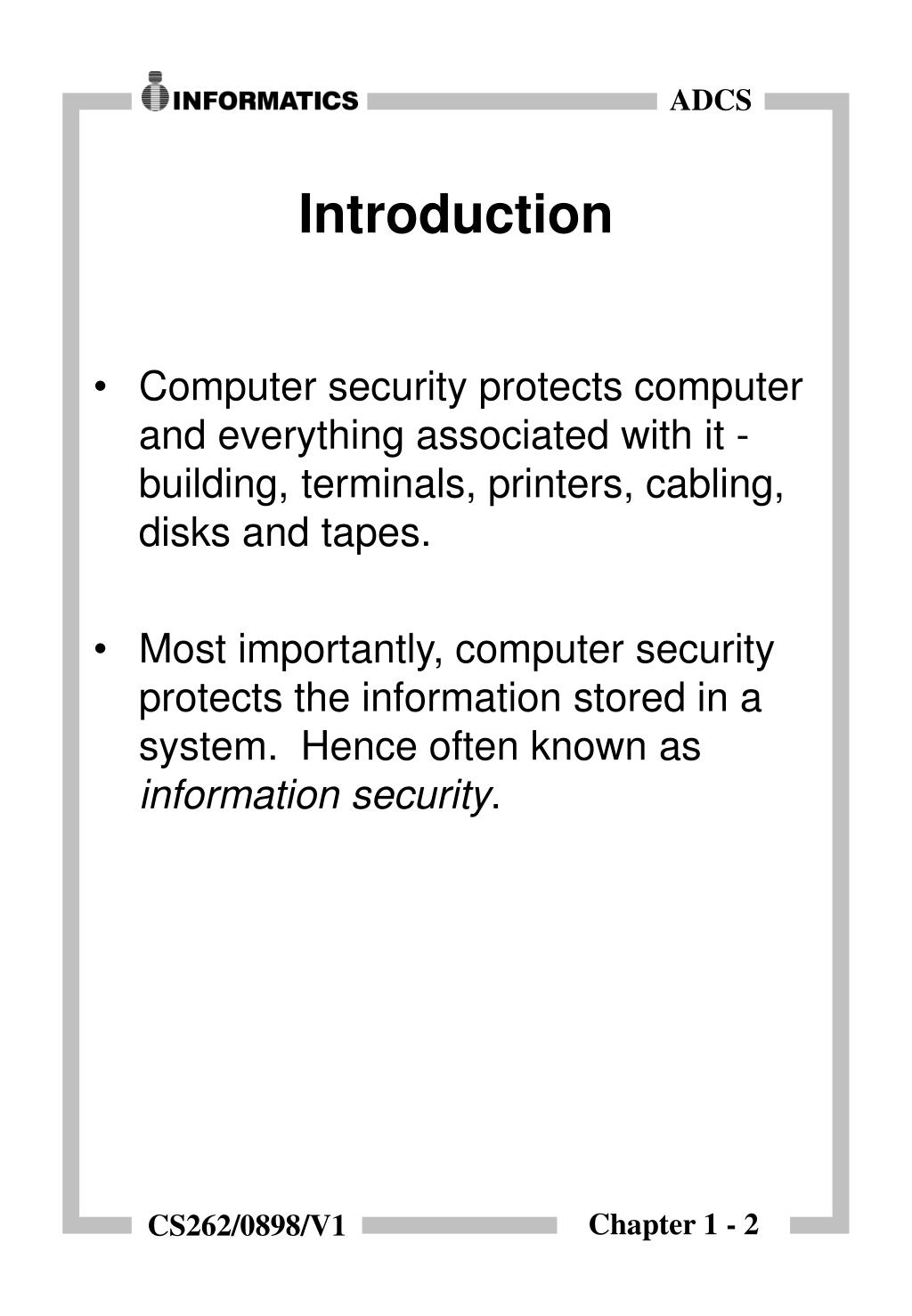

Introduction

  • Computer security protects computer and everything associated with it - building, terminals, printers, cabling, disks and tapes.

  • Most importantly, computer security protects the information stored in a system. Hence often known as information security.


Threats to computer systems

Threats to Computer Systems

  • Threats

  • Vulnerabilities

  • Attacks


Threat s

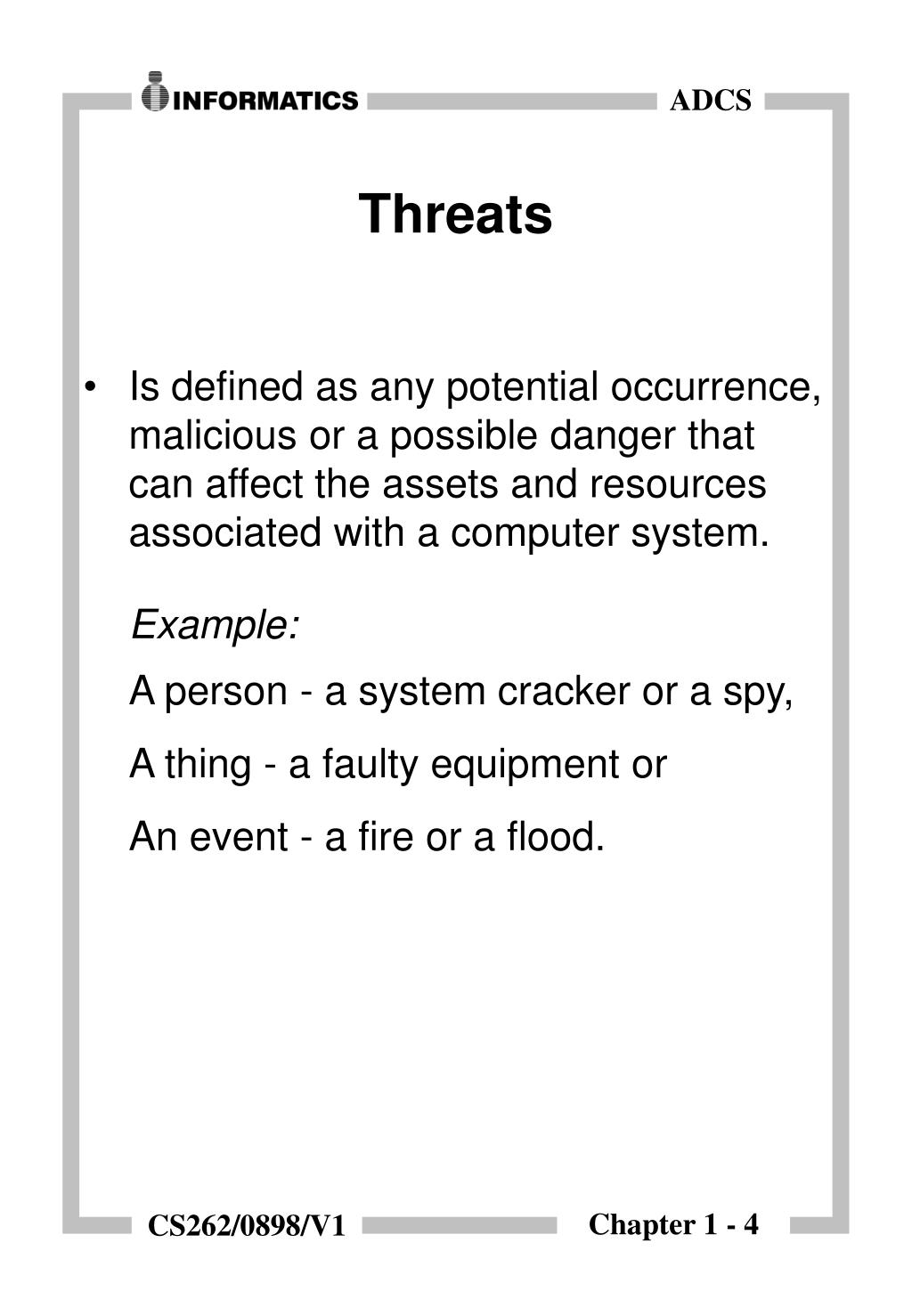

Threats

  • Is defined as any potential occurrence, malicious or a possible danger that can affect the assets and resources associated with a computer system.

    Example:

    A person - a system cracker or a spy,

    A thing - a faulty equipment or

    An event - a fire or a flood.


Vulnerabilities

Vulnerabilities

  • Is a point where a system is susceptible to attack. In other words the presence of vulnerabilities allows bad things to happen on a computer system.

    Example:

    Physical: buildings and computer rooms are vulnerable.

    Natural: computers are very vulnerable to natural disasters such as fire, flood etc.

    Human: people who administer and user computer system represent greatest vulnerability of all.


Attack

Attack

  • An attack on a computer system is some action taken by a malicious intruder that involves the exploitation of certain vulnerabilities to cause an existing threat to occur.


Characteristic of computer intrusion

Characteristic of Computer Intrusion

  • The target of computer crime involves - hardware, software, media, data and people.

  • In any system, the weakest point is the most serious vulnerability.


Types of threats

Types of Threats

  • Confidentiality threat:

    • To protect information from unauthorised disclosure.

    • Also known as secrecy or privacy.

  • Integrity threat:

    • To ensure that information is accurate, complete and authentic.

    • Accuracy is more important than confidentiality of information.

  • Availability threat:

    • To ensure that the computer systems work efficiently.

    • Able to recover quickly and completely if a disaster occurs.

    • Opposite of availability is denial of service.


Points of security vulnerabilities

Points of Security Vulnerabilities

  • Attacks on hardware:

    • Computer hardware is so visible and hence easy to attack.

    • Includes power supply surge, unstable power supply etc.

  • Attacks on Software:

    • Software can be destroyed maliciously or modified, deleted or misplaced.

    • Examples include time bomb, Trojan horse, computer bug etc.

  • Attacks on data:

    • Available in many forms, such as electronic, printout and media.

    • Can be destroyed, changed, modified or deleted very easily.


Categories of computer attacks

Categories of Computer Attacks

  • Attack Taxonomy:

    • Defined as any generalised categorisation of potential attacks that might occur on given computer system.

    • Classes of system like real-time systems, databases and local area networks.

  • Consideration in selecting attack taxonomy:

    • Completeness

    • Appropriateness

    • Internal and External threats


Simple attack taxonomy

Simple Attack Taxonomy


Risk based attack taxonomy

Risk Based Attack Taxonomy

  • External information theft

  • External abuse of resources

  • Masquerading

  • Pest programs

  • Bypassing of internal controls


Risk based attack taxonomy1

Risk Based Attack Taxonomy

  • External information theft:

    • Involves unauthorised access to information without exploiting any mechanisms.

    • Abuse of mechanisms without direct access to the system.

    • Associated with disclosure threat.

    • Example, an individual glancing at a colleague's terminal screen.

  • External abuse of resources:

    • Involves physical destruction of computer system hardware.

    • Associated with the integrity threat.

    • Example, direct vandalism.


Risk based attack taxonomy2

Risk Based Attack Taxonomy

  • External masquerading:

    • Involves a malicious intruder successfully impersonating another user.

    • Associated with disclosure, integrity or denial of service threats.

    • Example, intruder tapping into a communication media.

  • Pest Program:

    • Programs that cause subsequent harm to computer systemcan be viewed as a time bomb.

    • Requires mechanisms internal to the computer systemassociated with integrity threat.

    • Example, Trojan horse and computer virus attacks.


Risk based attack taxonomy3

Risk Based Attack Taxonomy

  • Bypassing of Internal Controls:

    • Involves the explicit avoidance of authorisation, access and authority controls.

    • Associated with disclosure, integrity or denial of service threats.

    • Example, cracking techniques that subvert protective approaches.


Examples of common attack methods

Examples of Common Attack Methods

  • Password spoof program

  • Password theft by clever reasoning

  • Logic bomb mail

  • Schedule file removal

  • Field separate attack

  • Insertion of compiler Trojan horse


Examples of common attack methods1

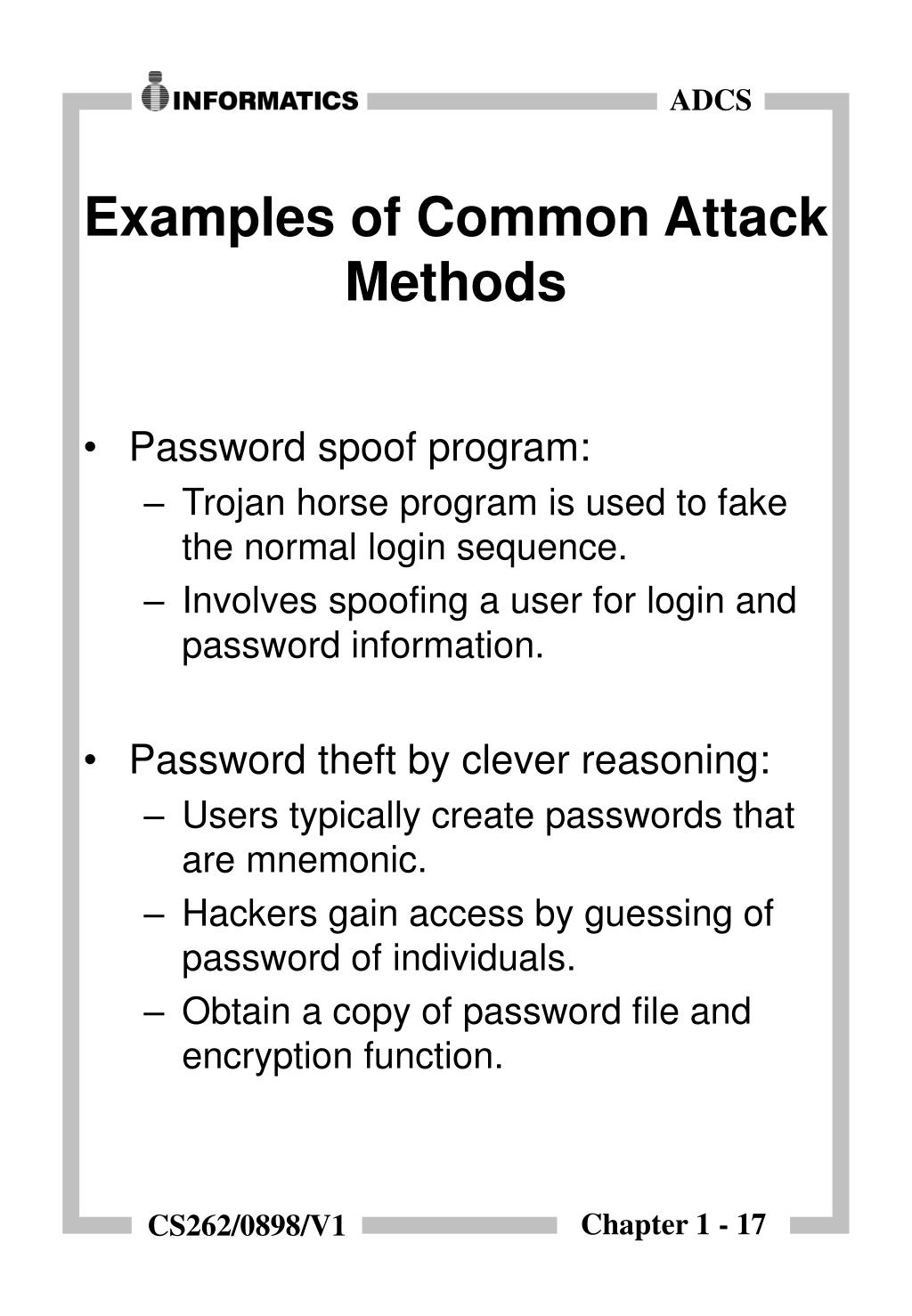

Examples of Common Attack Methods

  • Password spoof program:

    • Trojan horse program is used to fake the normal login sequence.

    • Involves spoofing a user for login and password information.

  • Password theft by clever reasoning:

    • Users typically create passwords that are mnemonic.

    • Hackers gain access by guessing of password of individuals.

    • Obtain a copy of password file and encryption function.


Examples of common attack methods2

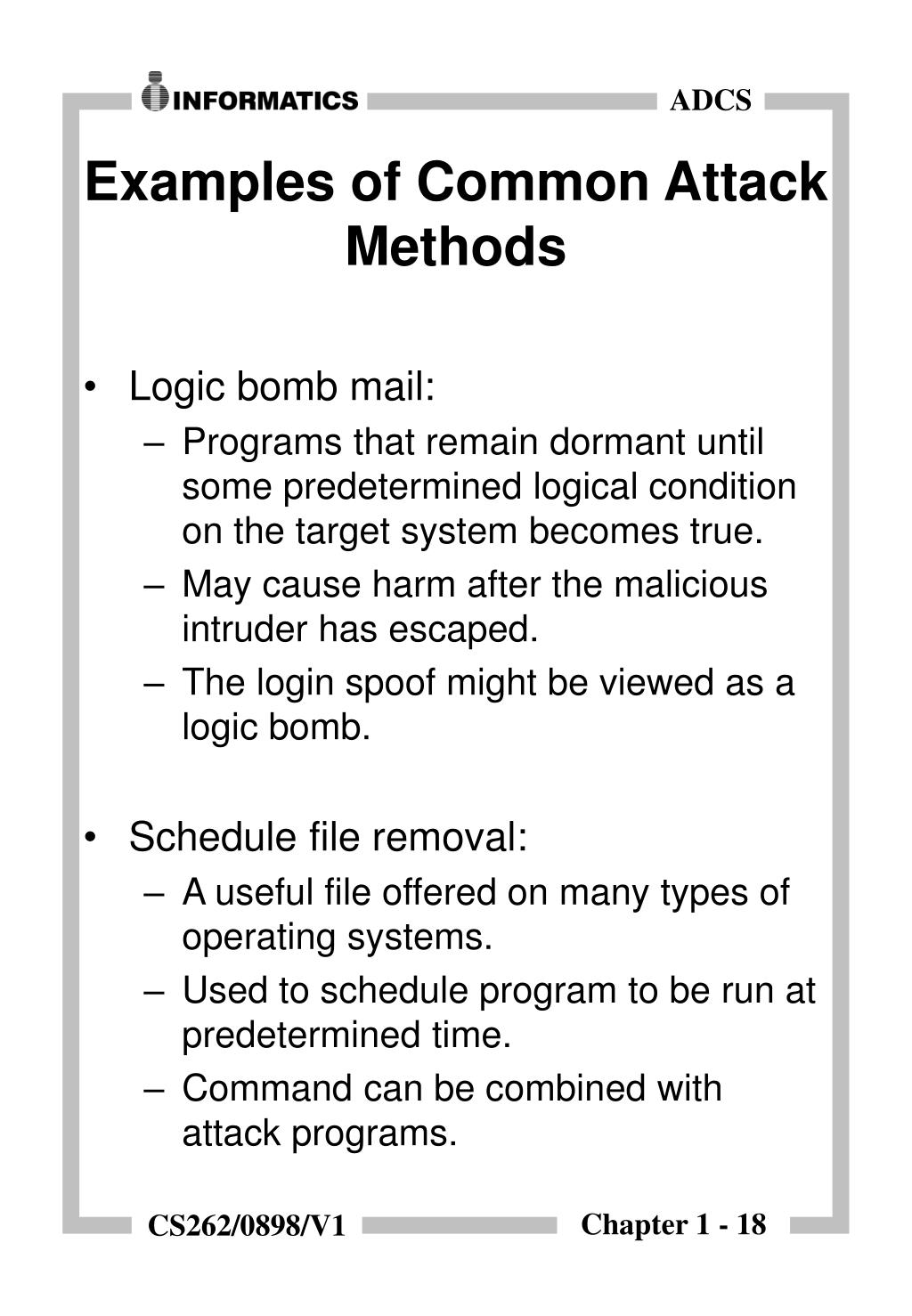

Examples of Common Attack Methods

  • Logic bomb mail:

    • Programs that remain dormant until some predetermined logical condition on the target system becomes true.

    • May cause harm after the malicious intruder has escaped.

    • The login spoof might be viewed as a logic bomb.

  • Schedule file removal:

    • A useful file offered on many types of operating systems.

    • Used to schedule program to be run at predetermined time.

    • Command can be combined with attack programs.


Examples of common attack methods3

Examples of Common Attack Methods

  • Field separate attack:

    • This attack relies on several technical assumptions underlying operating system.

    • Field separate can be redefined to include various characters.

    • Also relies on existence of system program invoked by a normal user.

  • Insertion of compiler Trojan horse:

    • Programs used by many different users are the attractive target for Trojan horse for widespread damage.

    • Hence, compilers are attractive targets for Trojan horse insertion.


Attack prevention methods

Attack PreventionMethods

  • Individual screening

  • Physical security

  • Care in operations


Attack prevention methods1

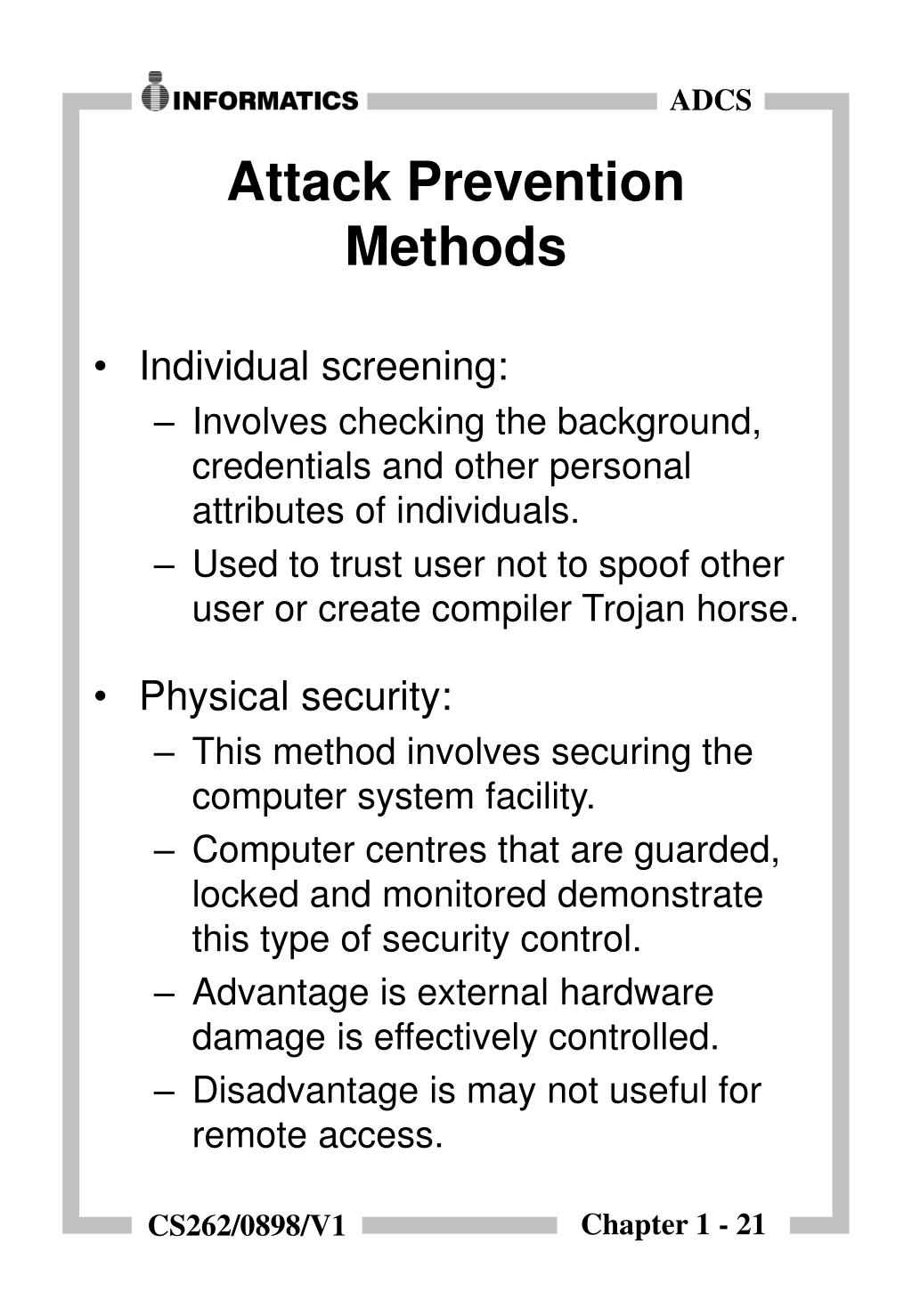

Attack Prevention Methods

  • Individual screening:

    • Involves checking the background, credentials and other personal attributes of individuals.

    • Used to trust user not to spoof other user or create compiler Trojan horse.

  • Physical security:

    • This method involves securing the computer system facility.

    • Computer centres that are guarded, locked and monitored demonstrate this type of security control.

    • Advantage is external hardware damage is effectively controlled.

    • Disadvantage is may not useful for remote access.


Attack prevention methods2

Attack Prevention Methods

  • Care in operations:

    • Involves individuals being careful in their day-to-day activities to avoid common types of attacks.

    • Users can often avoid password spoof attacks by clearing the terminals before login into system.

    • Similarly compiler attacks can be avoided by simple access and configuration controls.


  • Login
