  1. CSC 2300Data Structures & Algorithms April 27, 2007 Chap. 10. Algorithm Design Techniques

  2. Today • File Compression • Huffman Code

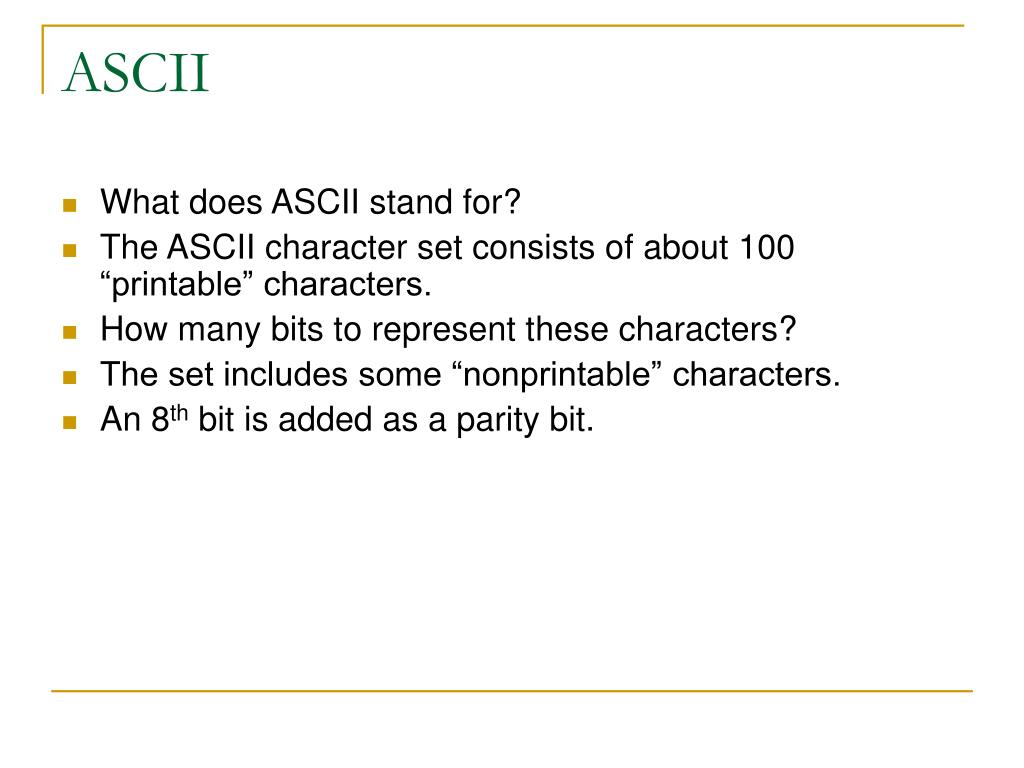

  3. ASCII • What does ASCII stand for? • The ASCII character set consists of about 100 “printable” characters. • How many bits to represent these characters? • The set includes some “nonprintable” characters. • An 8th bit is added as a parity bit.

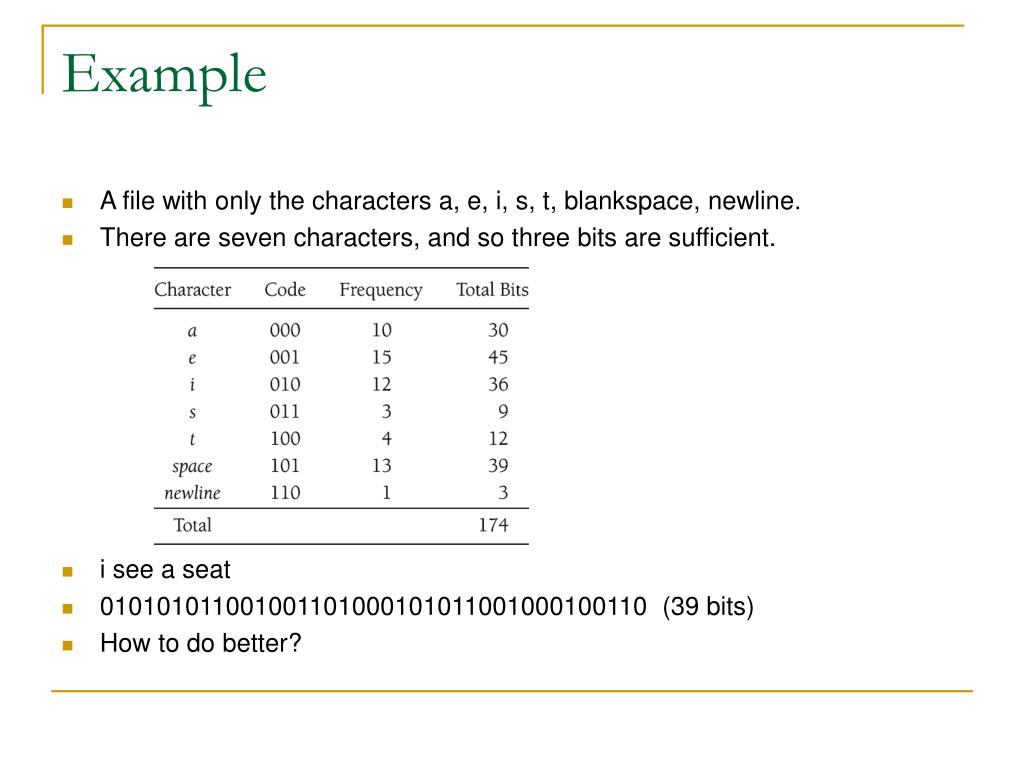

  4. Example • A file with only the characters a, e, i, s, t, blankspace, newline. • There are seven characters, and so three bits are sufficient. • i see a seat • 010101011001001101000101011001000100110 (39 bits) • How to do better?

  5. Binary Tree • Binary tree: • The data reside only at the leaves. • Can you improve this representation?

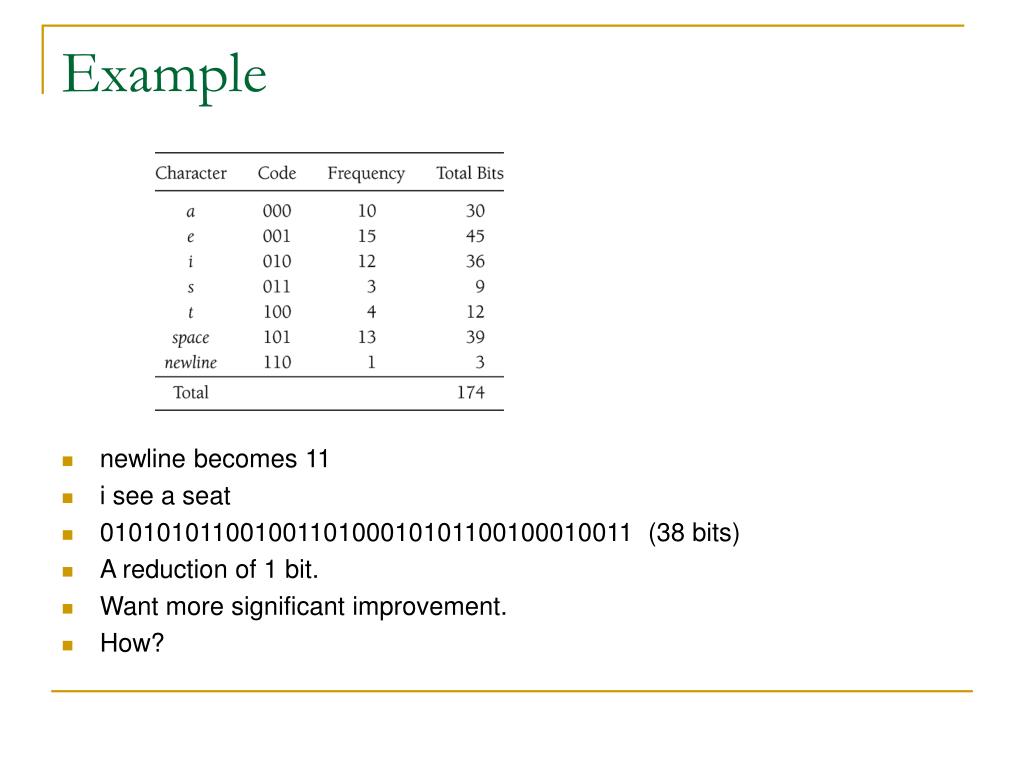

  6. Example • newline becomes 11 • i see a seat • 01010101100100110100010101100100010011 (38 bits) • A reduction of 1 bit. • Want more significant improvement. • How?

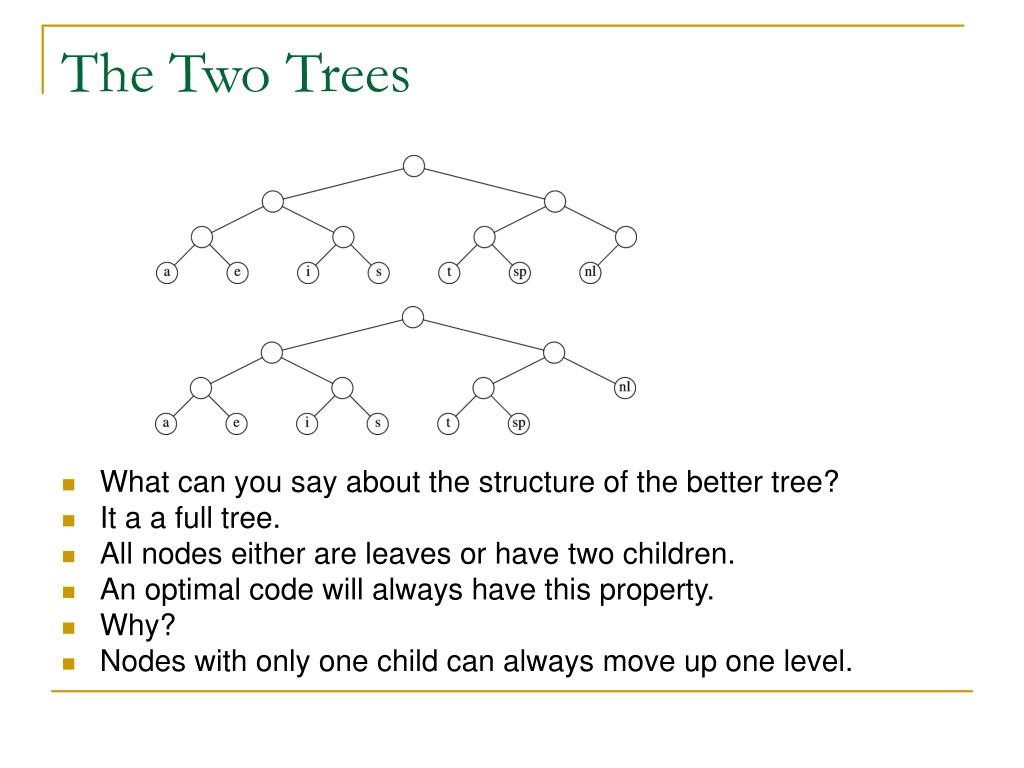

  7. The Two Trees • What can you say about the structure of the better tree? • It a a full tree. • All nodes either are leaves or have two children. • An optimal code will always have this property. • Why? • Nodes with only one child can always move up one level.

  8. Prefix Code • If the characters are placed only at the leaves, the given sequence of bits can be decoded unambiguously. • Prefix code: no character code is a prefix of another character code. • Example: 01001111000010110001000111 • What is it? • is a tie

  9. Optimal Prefix Code • Binary tree: • How to find optimal code?

  10. Our Example • i see a seat • 1011000000101110011100000010010001 (34 bits) • The code in the table is not optimal for our example. • Why not? • Exercise. Find the optimal code for our example.

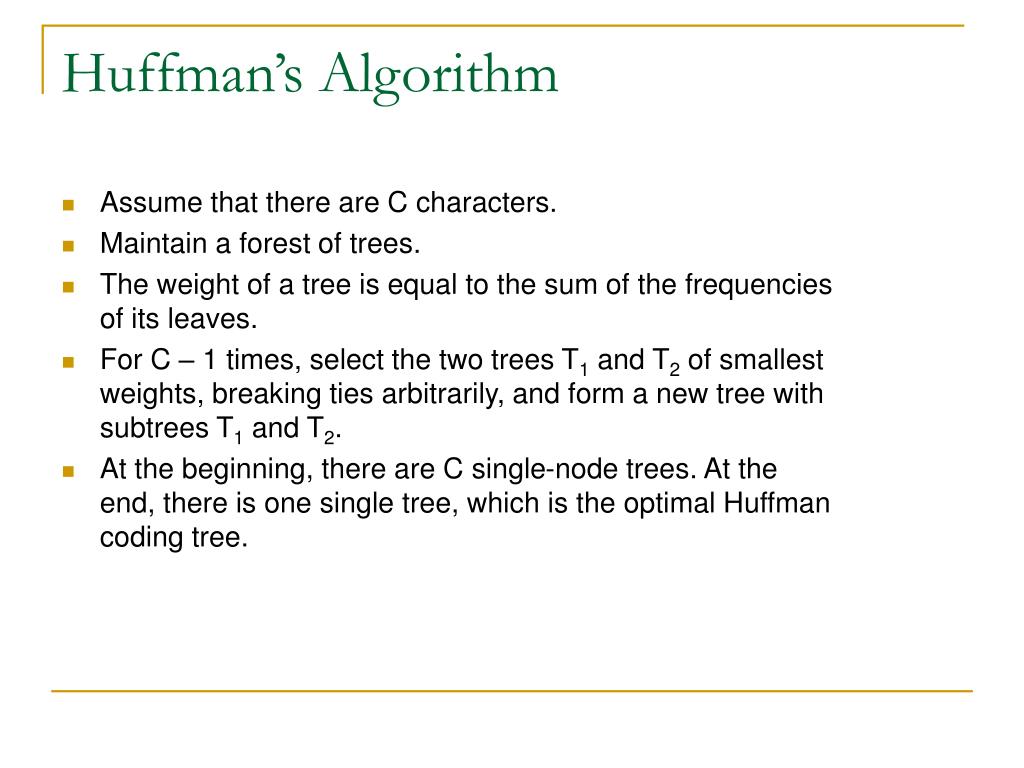

  11. Huffman’s Algorithm • Assume that there are C characters. • Maintain a forest of trees. • The weight of a tree is equal to the sum of the frequencies of its leaves. • For C – 1 times, select the two trees T1 and T2 of smallest weights, breaking ties arbitrarily, and form a new tree with subtrees T1 and T2. • At the beginning, there are C single-node trees. At the end, there is one single tree, which is the optimal Huffman coding tree.

  12. Example • Initial stage: • After first merge:

  13. Example • After first merge: • After second merge: • After third merge:

  14. Example • After third merge: • After fourth merge:

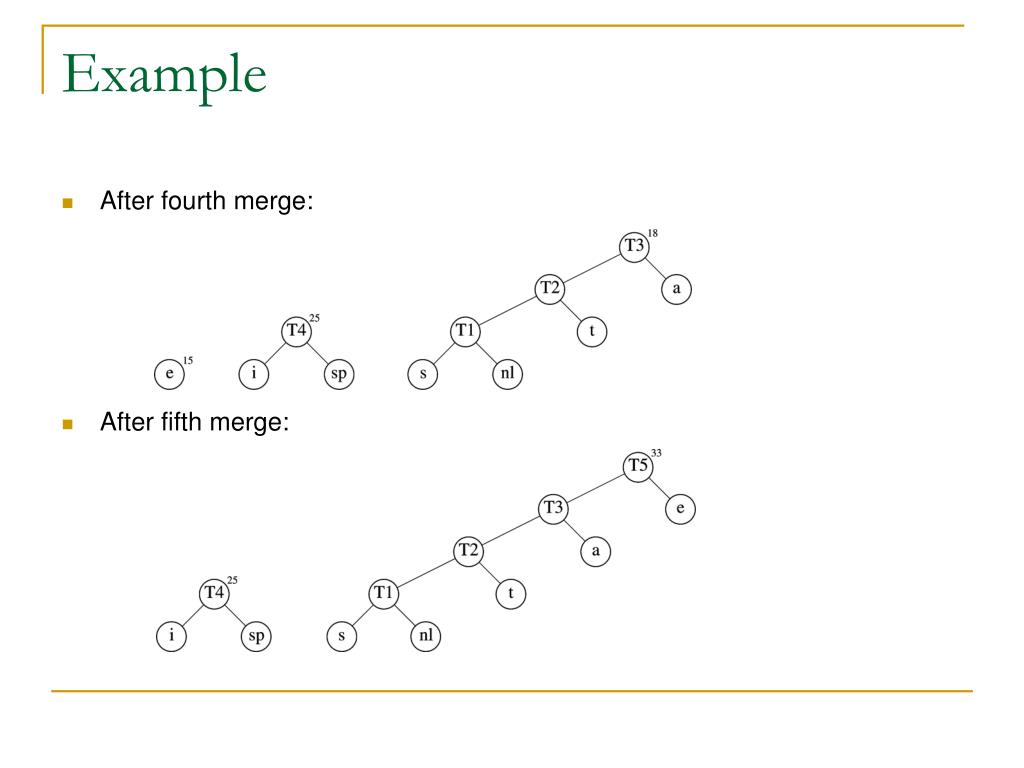

  15. Example • After fourth merge: • After fifth merge:

  16. Example • After fifth merge: • After final merge:

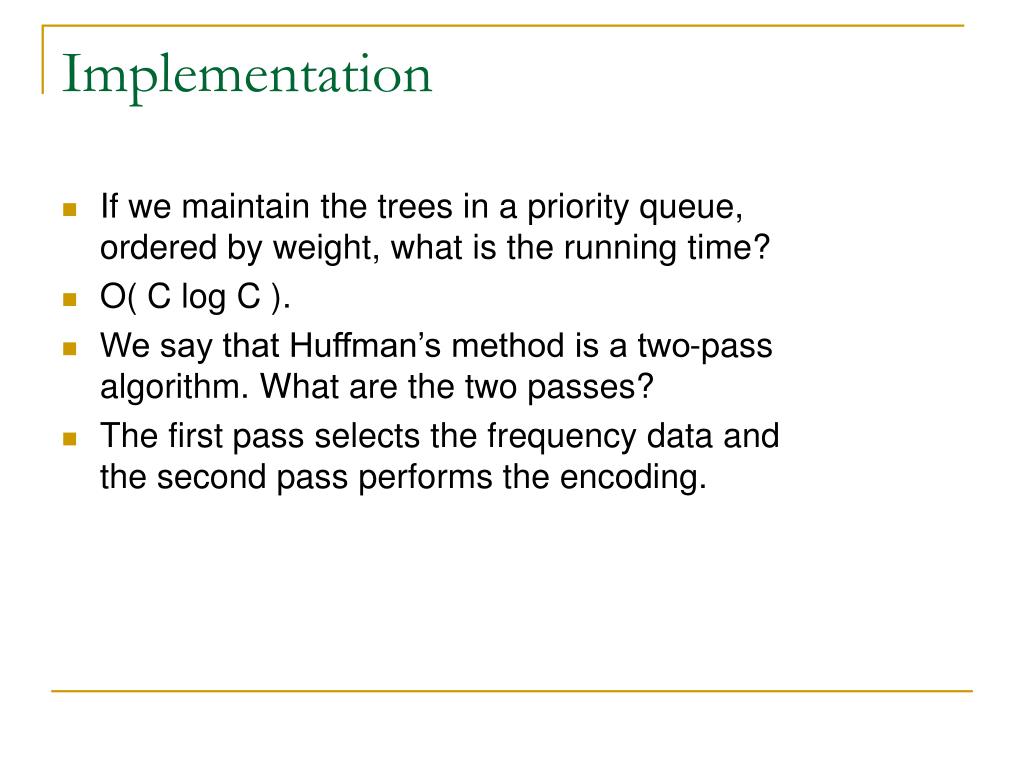

  17. Implementation • If we maintain the trees in a priority queue, ordered by weight, what is the running time? • O( C log C ). • We say that Huffman’s method is a two-pass algorithm. What are the two passes? • The first pass selects the frequency data and the second pass performs the encoding.
