Large scale near real-time log indexing with Apache Flume and SolrCloud Hadoop Summit 2013 Ari Flink Operations Architect Cisco/WebEx June 27 th , 2013. Agenda. Intro P roblem to solve? How does Flume/Solr help ? Syslog indexing example HA, DR & scalability. Me.

Download Presentation

Agenda

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Agenda 2581869

Large scale near real-time log indexing with Apache Flume and SolrCloudHadoop Summit 2013 Ari FlinkOperations ArchitectCisco/WebExJune 27th, 2013


Agenda

Agenda

  • Intro

  • Problem to solve?

  • How does Flume/Solr help?

  • Syslog indexing example

  • HA, DR & scalability


Agenda 2581869

Me

Ops Architect at Cisco CCATG(WebEx)

  • Ensure operational readiness for complex distributed services

  • HA, DR, monitoring, config, deployment

    Previously eBay, [email protected], IBM, VISA

  • Operations architecture, monitoring, event correlation


What s that funny accent

What’s that funny accent?


Cisco ccatg cloud collaboration application technology group

Cisco CCATG - Cloud Collaboration Application Technology Group

  • Cisco WebEx Meetings

  • Voice, video, desktop sharing

  • Meeting/Event/Support/Training

  • Centers

  • Integration with TelePresence

  • Cisco WebEx Messenger

  • IM, presence

  • Integrate with voice, video

  • XMPP

  • Cisco WebEx Social

  • Social networking

  • Content creation

  • Integrated IM


Agenda 2581869

Cisco WebEx - Leader for SaaS Web Conferencing

Participants from over 231 countries, 52% market share

9.4 million registered hosts worldwide

40.5 Million meeting attendees per month

2.2 Billion meeting minutes per month

4Million mobile downloads


Agenda 2581869

Cisco WebEx Collaboration Cloud

Global Scale: 13 datacenters & iPoPs around the globe

Dedicated network: dual path 10G circuits between DCs

Multi-tenant: 95k sites

Real-time collaboration: voice, desktop sharing, video, chat

Datacenter / PoP

Leased network link


Agenda 2581869

S#!% happens ..

People make mistakes

Hardware fails

Software fails

Even failovers sometimes fail

Datacenter / PoP

Leased network link


Recovery oriented computing philosophy

Recovery-Oriented Computing Philosophy

“If a problem has no solution, it may not be a problem, but a fact, not to be solved, but to be coped with over time”

— Shimon Peres (“Peres’s Law”)

People/HW/SW failures are facts, not problems

  • Operations main goal is to maintain high service availability

  • Recovery/repair is how we cope with above facts

  • Improving recovery/repair improves availability

    • UnAvailability= MTTR / MTBF

    • 1/10th MTTR just as valuable as 10x MTBF


How could we make recovery repair faster

How could we make recovery & repair faster?

Good: reactive

Your search – What is the root cause of the outage? – did not match any documents.

Even better: proactive


The goal nrt full text log search

The goal: NRT full text log search

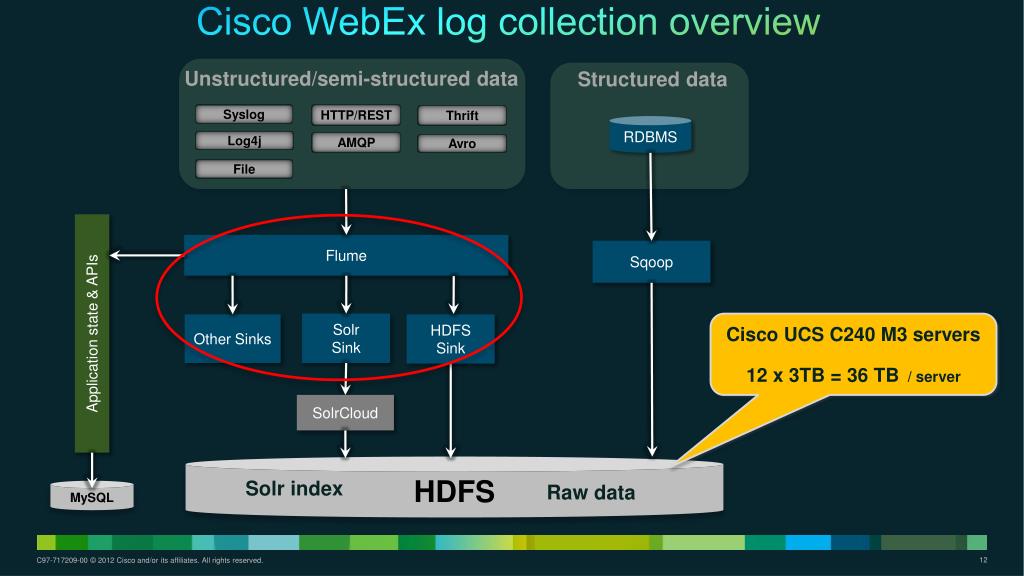

Cisco webex log collection overview

Cisco WebEx log collection overview

Unstructured/semi-structured data

Structured data

HTTP/REST

Syslog

Thrift

RDBMS

Log4j

AMQP

Avro

File

Flume

Sqoop

Solr

Sink

Cisco UCS C240 M3 servers

12 x 3TB = 36 TB / server

Other Sinks

HDFS

Sink

Application state & APIs

SolrCloud

HDFS

Solr index

Raw data

MySQL


Global flume topology

Global Flume topology

DC 1

DC N

syslog

log4j

file

syslog

log4j

file

Collector

tier

Flume

Flume

Flume

Flume

Flume

Flume

DC 2

DC 1

Flume

Flume

Flume

Flume

Flume

Flume

Storage

tier

SolrCloud

SolrCloud

HDFS

HDFS


Flume collector tier

Flume Collector tier

Failover & load

balancing agents

agent

agent

agent

All events replicated to both Channels

Avro src

Replicating

fan-out

flow

File

Channel 1

File

Channel 2

Flume Collector server

DC1 Avro sink

DC2 Avro sink

DC1

DC2

Flume Storage tier


Global flume topology1

Global Flume topology

DC 1

DC N

syslog

log4j

file

syslog

log4j

file

Collector

tier

Flume

Flume

Flume

Flume

Flume

Flume

DC 2

DC 1

Flume

Flume

Flume

Flume

Flume

Flume

Storage

tier

SolrCloud

SolrCloud

HDFS

HDFS


Flume storage tier

Flume Storage tier

Flume

Collector

Flume

Collector

Failover & load

balancing agents

Flume

Collector

Avro src

Routing to Solr by Flume event header

All events to HDFS

Multiplexing

fan-out

flow

File

Channel 1

File

Channel 2

Flume Storage tier server

Solr

Sink

HDFS

sink

SolrCloud

HDFS


Schema or no schema

Schema or no schema ..

  • Isn’t Big Data “schema on read”?

  • Why does Solr require a schema on write?

  • Dirty little secret: there’s always a schema

  • Performance & functionality vs flexibility

  • Optimize operations and storage based on field type - that's how you get sub second response times

  • There’s always a schema

  • Application code vs. central location


Cloudera morphlines streaming etl

Cloudera Morphlines: streaming ETL

Flume event = headers + body

  • Cloudera Morphlines

  • Framework to simplify event transformation

  • Compatible with existing grok patterns

  • Reusable across multiple index workloads: Flume & M/R

SolrSink

Command: readLine

Record

Command: grok

Record

Command: addValues

Record

Record

Command: tryRules

Record

Command: loadSolr

Document matching schema.xml

Solr


Flume morphline example

Flume Morphline example

Convert syslog message..

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

.. into Solr schema fields

Severity=[3]

Facility=[22]

host=[colo01-wxp00-ace01b-connect.webex.com]

timestamp=[2013-06-16T04:36:49.000Z]

syslog_message=[%ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

severity_label=[error]

access_token=[54asdf654]

id=[b2f839c3-dece-404f-a535-e0141ad549bf]

cisco_product=[ACE]

cisco_level=[3]

cisco_id=[251008]

cisco_code=[%ACE-3-251008]


Flume morphline example1

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 1: readLinereads in Flume event headers and body

timestamp=[1371357409000]

host=[colo01-wxp00-ace01b-connect.webex.com]

category=[545f5sfsd5sf]

Severity=[3]

Facility=[22]

message=[<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

Headers

Body


Flume morphline example2

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 2: convertTimestampconverts epoch to ISO 8601 format

timestamp=[2013-06-16T04:36:49.000Z]

host=[colo01-wxp00-ace01b-connect.webex.com]

access_token=[545f5sfsd5sf]

message=[<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

Severity=[3]

Facility=[22]


Flume morphline example3

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 3: addValuescreates new field access_token

timestamp=[2013-06-16T04:36:49.000Z]

category=[545f5sfsd5sf]

access_token=[545f5sfsd5sf]

message=[<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

host=[colo01-wxp00-ace01b-connect.webex.com]

Severity=[3]

Facility=[22]


Flume morphline example4

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 4: tryRulescreates field severity_label for severity

timestamp=[2013-06-16T04:36:49.000Z]

severity_label=[error]

access_token=[545f5sfsd5sf]

message=[<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

host=[colo01-wxp00-ace01b-connect.webex.com]

category=[545f5sfsd5sf]

Severity=[3]

Facility=[22]


Flume morphline example5

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 5: tryRules creates new fields

syslog_message=[%ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

cisco_product=[ACE]

cisco_level=[3]

cisco_id=[251008]

cisco_code=[%ACE-3-251008]


Flume morphline example6

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 6: sanitizeUnknownSolrFieldsdrops non-schema fields

timestamp=[2013-06-16T04:36:49.000Z]

syslog_message=[%ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

severity_label=[error]

access_token=[545f5sfsd5sf]

host=[colo01-wxp00-ace01b-connect.webex.com]

cisco_product=[ACE]

cisco_level=[3]

cisco_id=[251008]

cisco_code=[%ACE-3-251008]


Flume morphline example7

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 7: generateUUIDcreates an unique id for the document

timestamp=[2013-06-16T04:36:49.000Z]

syslog_message=[%ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234]

severity_label=[error]

access_token=[545f5sfsd5sf]

id=[b2f839c3-dece-404f-a535-e0141ad549bf]

host=[colo01-wxp00-ace01b-connect.webex.com]

cisco_product=[ACE]

cisco_level=[3]

cisco_id=[251008]

cisco_code=[%ACE-3-251008]


Flume morphline example8

Flume Morphline example

Convert syslog message

<179>Jun 16 04:36:49 colo01-wxp00-ace01b-connect.webex.com Jun 16 2013 04:36:49 : %ACE-3-251008: Health probe failed for server 10.240.22.111 on port 1234

Step 8: loadSolrloads a record into a Solr server


Morphlines recap

Morphlines recap

Flume syslog event = headers + body

SolrSink

Command: readLine

Record

Command: grok

Record

Command: addValues

Record

Record

Command: tryRules

Record

Command: loadSolr

Document matching schema.xml

SolrCloud


Solrcloud

SolrCloud

Add doc to syslog index

Where can I index data?

  • Collections, shards & replicas

  • Pluggable file system

  • Central config & coordination with ZK

  • Full HA, automatic fail-over

  • NRT indexing

  • Automatic routing

Collection

ZooKeeper

Shard2

Shard3

Shard1

zk1

leader1

replica2

replica3

leader3

zk2

replica1

leader2

leader3

zk3

SolrCloud cluster

Pluggable filesystem

(local, HDFS)


Solrcloud1

SolrCloud

Collection “syslog” with three shards


Solr index management

Solr index management

Special case of search

  • Logs are time series data: timestamp + data

  • High indexing rate, no updates

  • New data is more frequently searched than old

    Collection aliases

  • Time partitioned collections – e.g. one collection per day

  • Reduces the workload to near-real-time data only

  • One-to-many collection mapping: queries go to a logical representation mapped to multiple, same-schema collection

  • Simplifies for hot-warm-cold migration of data

    Index expiration

  • Old data is aged out by Collection Aliases

  • Remap only the latest collection to an alias


Solr hdfs dr

Solr & HDFS DR

Solr

  • No multi-datacenter cluster support

    HDFS

  • No multi-datacenter cluster support

    Options?

  • All our services must survive DC outage

  • . . so should logging and indexing


Dr option 1 flume dual writes

DR option 1: Flume dual writes

DC 1

DC 2

DC N

syslog

log4j

file

syslog

log4j

file

syslog

log4j

file

Flume

Flume Collector disk channel buffering DC1 events

Flume

Collector

tier

Flume

Flume

Flume

Flume

Flume

Flume

Flume

DC1 Hadoop cluster back online after outage

DC 2

Storage

tier

DC 1

Replicate aggregate data

Planned or unplanned outage

Flume

Flume

Flume

Flume

Flume

Flume

SolrCloud

SolrCloud

HDFS

HDFS


Dr option 2 distcp m r

DR option 2: distcp + M/R

DC 1

DC 2

DC N

syslog

log4j

file

syslog

log4j

file

syslog

log4j

file

Collector

tier

Flume

Flume

Flume

Flume

Flume

Data sent only to a single DC

Flume

Flume

Flume

Flume

DC1 back online, sync data from DC2

DNS CNAME change back to DC1

DC 1

DC 2

Flume buffering events at collector tier

Create indexes with M/R

Flume

Flume

Manual CNAME change to DC2

Flume

Flume

Flume

Flume

Storage

tier

Flip distcp the other way

SolrCloud

SolrCloud

distcp

HDFS

HDFS

distcp


Agenda 2581869

Tiers to scale

  • Flume Collector tier

  • Flume Storage tier

  • SolrCloud


Flume collector tier throughput

Flume Collector tier throughput

100 – 5000 servers per a datacenter

agent

agent

agent

agent

agent

agent

More agents and data

Max per server:

14MB/s

1.2 TB/day

70k events/s

NIC:

100MB/sec

Avro src

Avro src

FileChannel:14MB/sec

Replicating

fan-out

flow

Replicating

fan-out

flow

File

Channel 1

File

Channel 2

File

Channel 1

File

Channel 2

Flume Collector

DC1 Avro sink

DC2 Avro sink

DC1 Avro sink

DC2 Avro sink

NIC:

100MB/sec


Scalability flume storage tier

Scalability: Flume Storage tier

DC 1 collectors

DC 2 collectors

DC N collectors

Avro sink 1

Avro sink 2

Avro sink N

Avro sink 1

Avro sink 2

Avro sink N

Avro sink 1

Avro sink 2

Avro sink N

Avro src

Avro src

Avro src

Avro src

Multiplexing

fan-out

flow

Multiplexing

fan-out

flow

Multiplexing

fan-out

flow

Multiplexing

fan-out

flow

File

Chan2

File

Chan1

File

Chan1

File

Chan2

File

Chan2

File

Chan1

File

Chan1

File

Chan2

Max per server:

14MB/s

1.2 TB/day

70k events/s

HDFS

sink

HDFS

sink

HDFS

sink

Solrsink

HDFS

sink

Solrsink

Solrsink

Solrsink

DC 1

storage tier

DC2

storage tier

Flume 1


Solrcloud scalablity

SolrCloud scalablity

Search

queries

New logs

to index

1000 tx/sec/core

ZooKeeper

Shard2

Shard3

Shard1

2x8 cores

16k tx/sec

zk1

leader1

replica2

replica3

zk2

replica1

leader2

leader3

3 shards

3 x 16k = 48k tx/sec

zk3

SolrCloud cluster

Pluggable filesystem

(local, HDFS)


Syslog indexing recap

Syslog indexing recap

Central syslog servers

  • Network and OS system messages forwarded to several central syslog servers

    Forward syslog to Solr using Flume Morphline SolrSink

  • Parse messages with Morphline and grok patterns

    SolrCloud

  • Index log lines as documents into a Collection (i.e. index)

    HUE Solr search

  • Simple UI to build a customized search page layout with faceting, sorting.

  • Easy drill down with multiple facets: severity, datacenter, hostname, etc


Agenda 2581869

Screen shots


Agenda 2581869

Sort by select field

Search by time

Facets by selected fields


Agenda 2581869

Wildcard query by field

Highlight the query keywords


Summary

Summary

  • Data sources: REST/JSON, log4j, syslog, Avro, Thrift

  • Parsing: Cloudera Morphlines

  • NRT Indexing: SolrCloud embedded in CDH

  • Batch indexing: MapReduce

  • Analytics: Use your favorite tool, raw detailed data stored in HDFS


Questions

Questions ?

  • email: [email protected]

  • twitter: @raaka


  • Login
