Vertical diffusion in ERA-40. Vertical diffusion in ERA-40. Dirk Olivié 12 November 2003. Overview. Vertical Diffusion Louis, Holtslag, ECMW6h K z –profile Radon distribution Comparison with measurements Ecmwf3h, Ecmwf6h Radon distribution Comparison with measurements.

Download Presentation

Vertical diffusion in ERA-40

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Vertical diffusion in era 40

Vertical diffusion in ERA-40

Vertical diffusion in ERA-40

Dirk Olivié

12 November 2003


Overview

Overview

  • Vertical Diffusion

  • Louis, Holtslag, ECMW6h

    • Kz –profile

    • Radon distribution

    • Comparison with measurements

  • Ecmwf3h, Ecmwf6h

    • Radon distribution

    • Comparison with measurements


What it s all about

What it’s all about …

Kz : diffusion coefficient [m2s-1]

C : tracer concentration

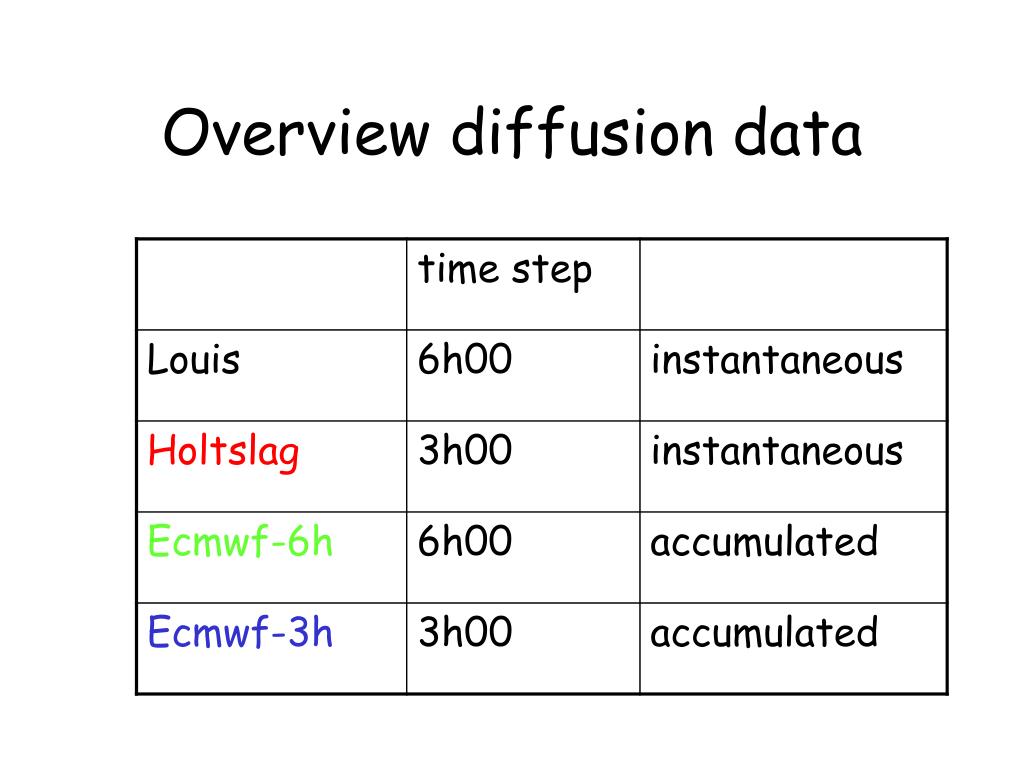

Overview diffusion data

Overview diffusion data


Louis holtslag ecmwf6h

Louis – Holtslag – ECMWF6h

  • Kz profile

  • Global Radon distribution

  • Comparison with Radon measurement

    • daily cycle

    • correlation


K z mean profile

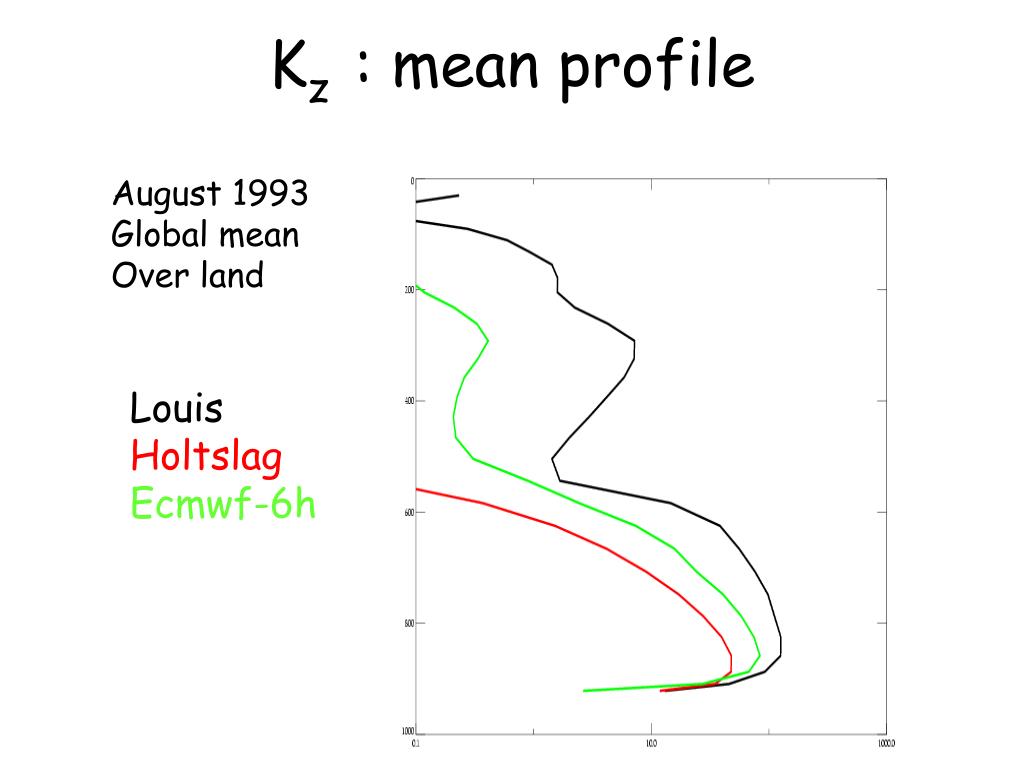

Kz : mean profile

August 1993

Global mean

Over land

Louis

Holtslag

Ecmwf-6h


K z daily cycle

Louis

Holtslag

Ecmwf-6h

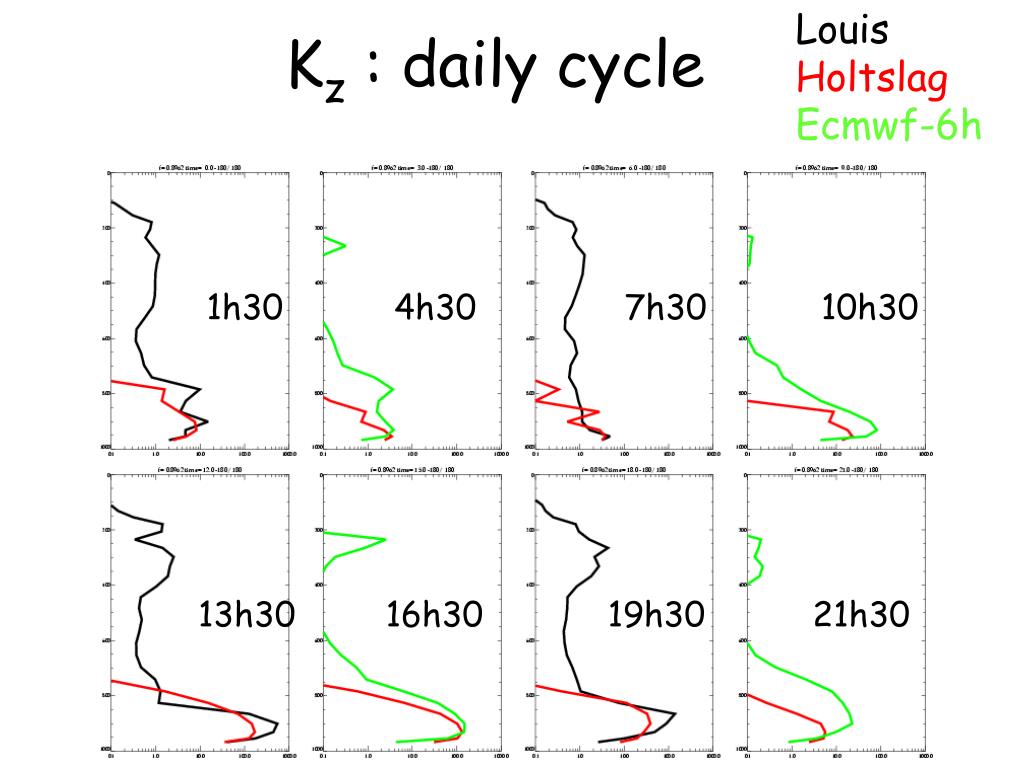

Kz : daily cycle

1h30

4h30

7h30

10h30

13h30

16h30

19h30

21h30


Radon holtslag louis

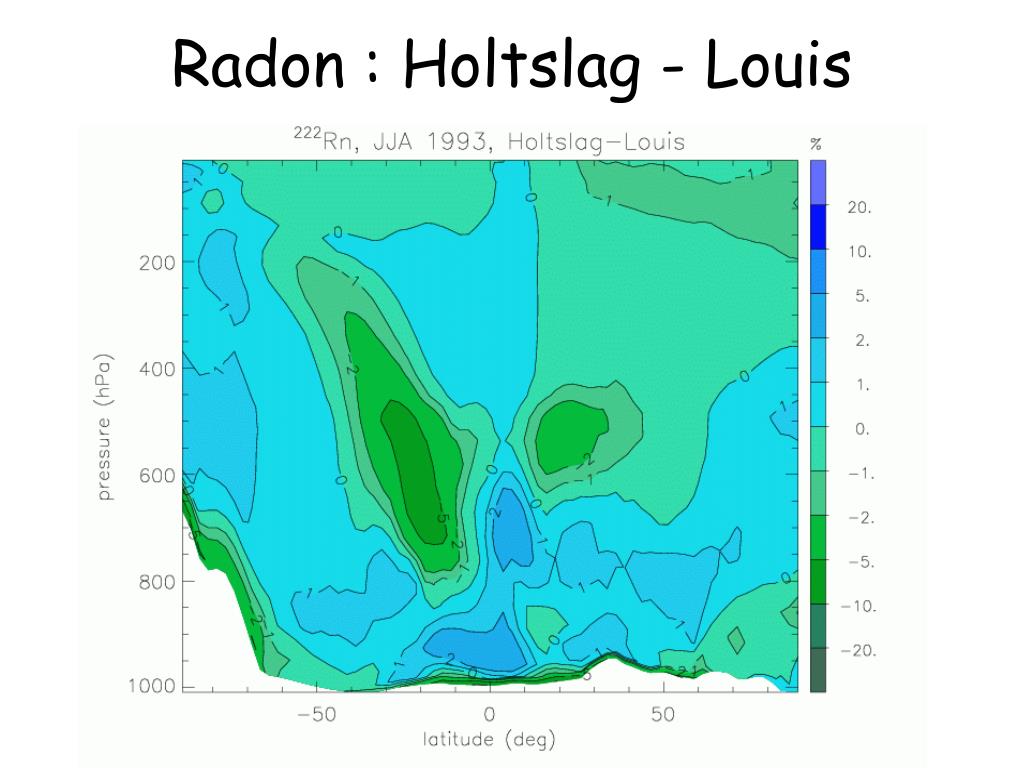

Radon : Holtslag - Louis

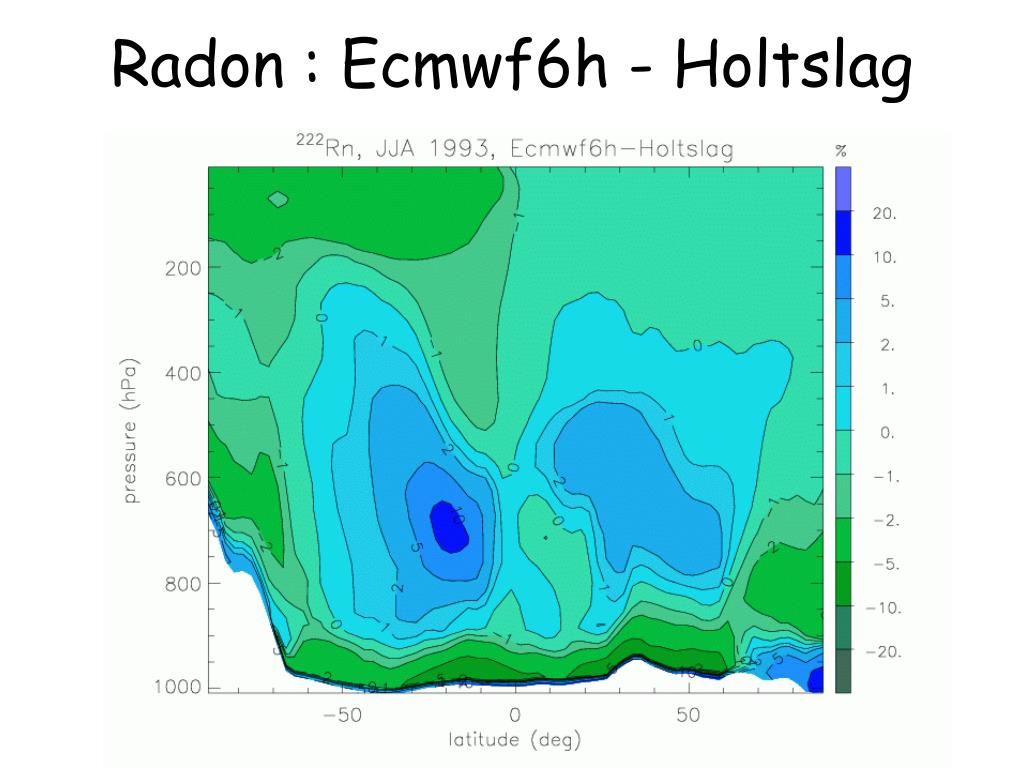

Radon ecmwf6h holtslag

Radon : Ecmwf6h - Holtslag

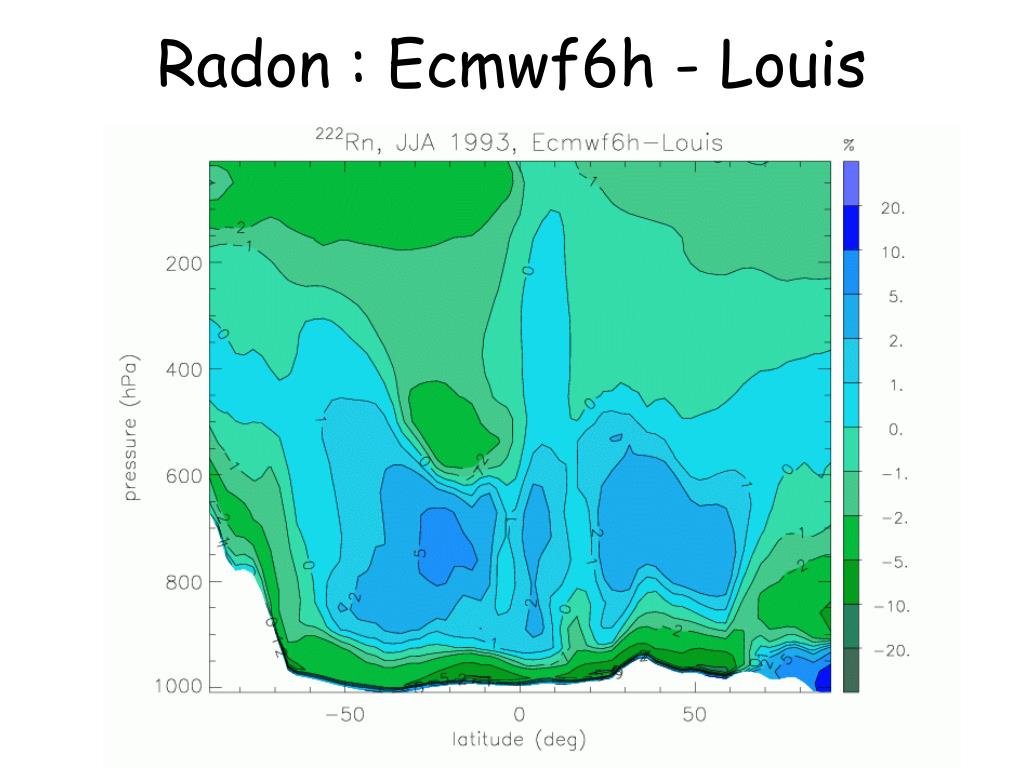

Radon ecmwf6h louis

Radon : Ecmwf6h - Louis

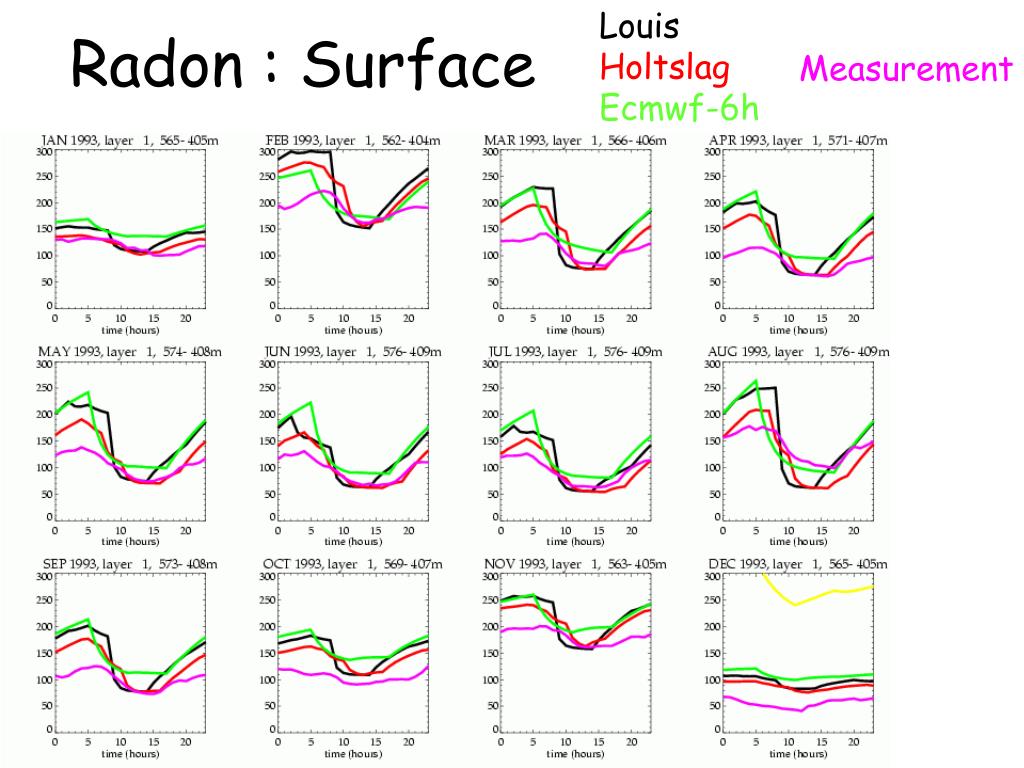

Radon surface

Louis

Holtslag

Ecmwf-6h

Measurement

Radon : Surface

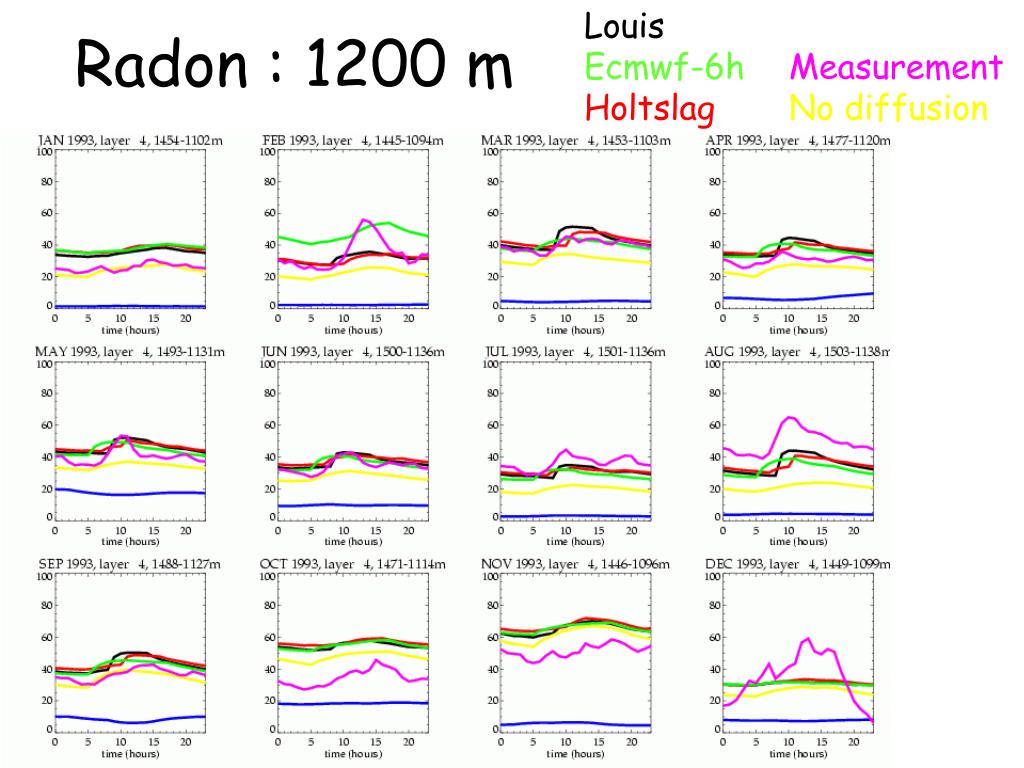

Radon 1200 m

Louis

Ecmwf-6hMeasurement

HoltslagNo diffusion

Radon : 1200 m


Correlation surface

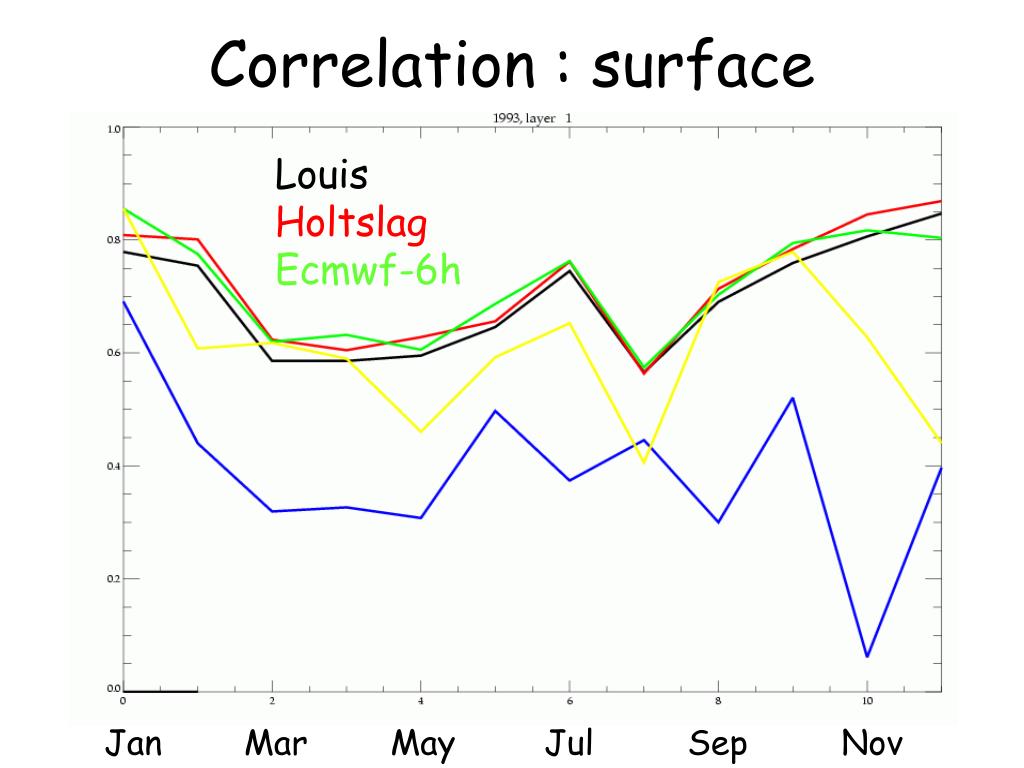

Correlation : surface

Louis

Holtslag

Ecmwf-6h

Jan Mar May Jul Sep Nov

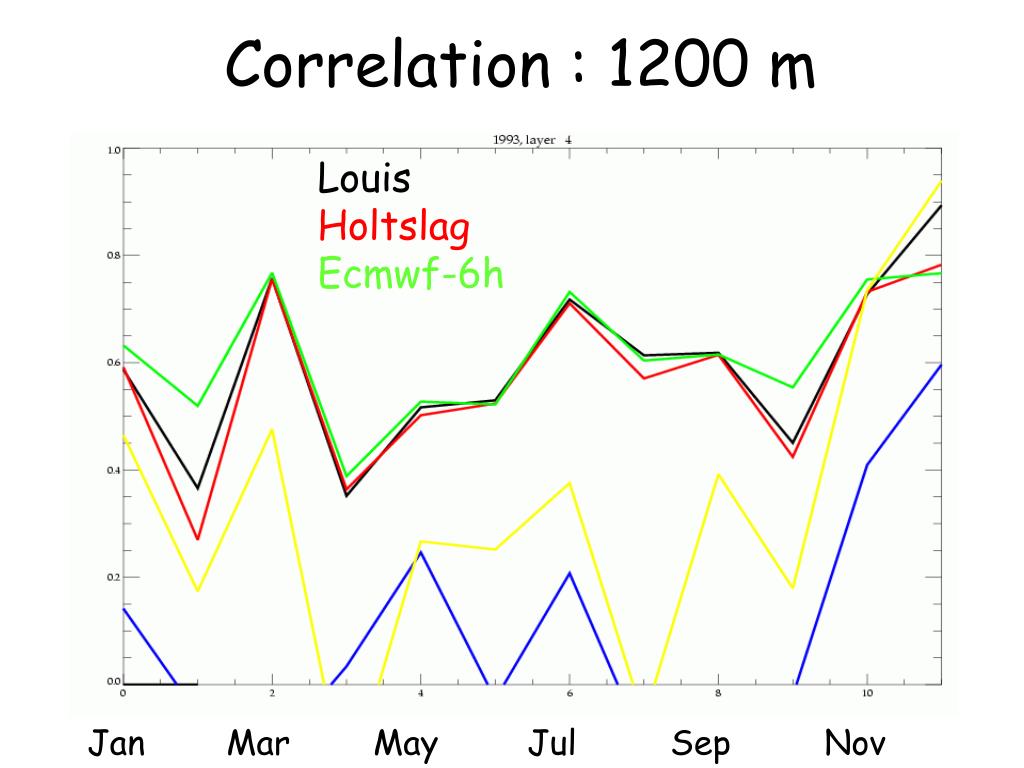

Correlation 1200 m

Correlation : 1200 m

Louis

Holtslag

Ecmwf-6h

Jan Mar May Jul Sep Nov


Ecmwf3h ecmwf6h

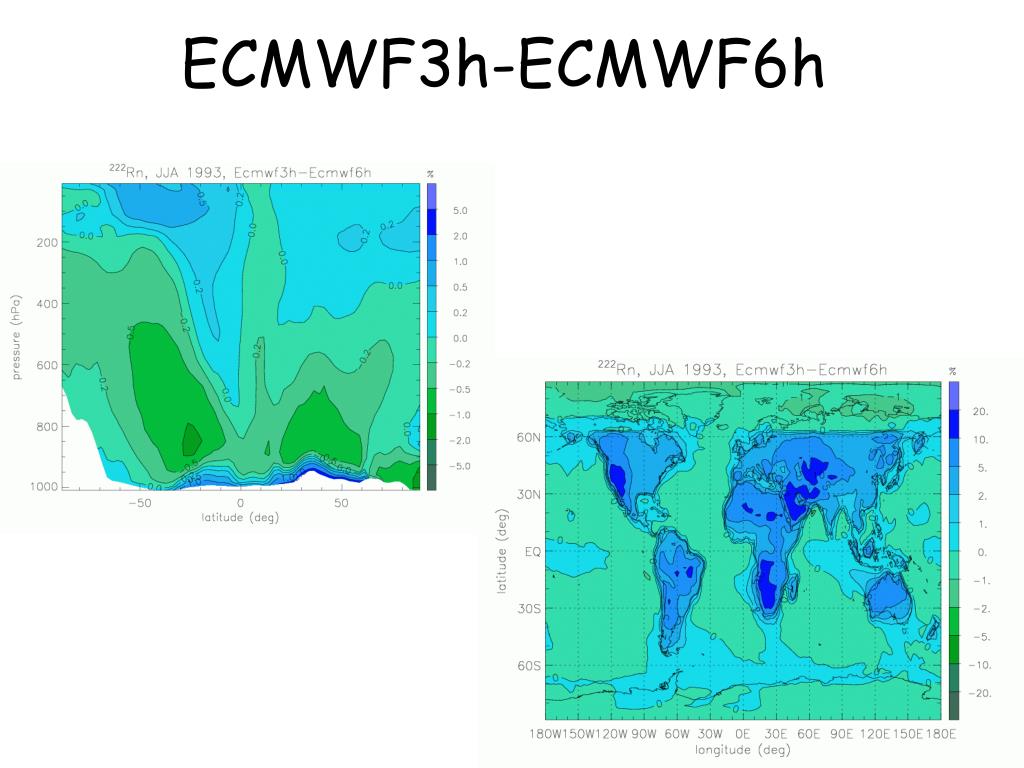

ECMWF3h-ECMWF6h

  • Global Radon distribution

  • Daily cycle

  • Correlation


Ecmwf3h ecmwf6h1

ECMWF3h-ECMWF6h

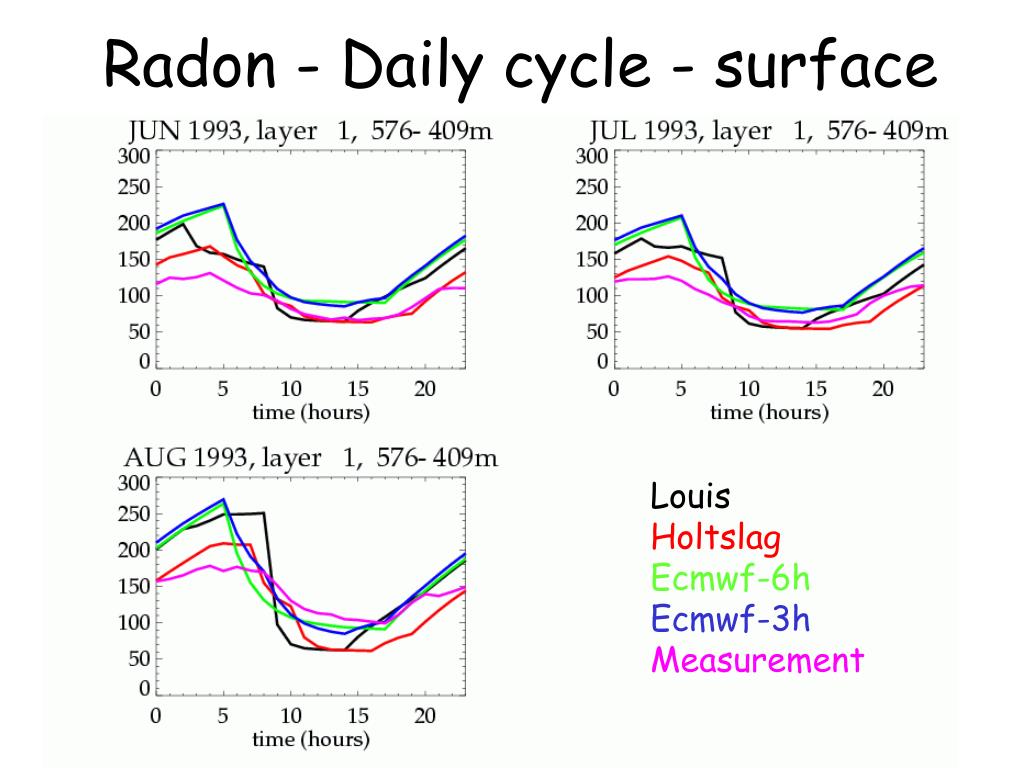

Radon daily cycle surface

Radon - Daily cycle - surface

Louis

Holtslag

Ecmwf-6h

Ecmwf-3h

Measurement

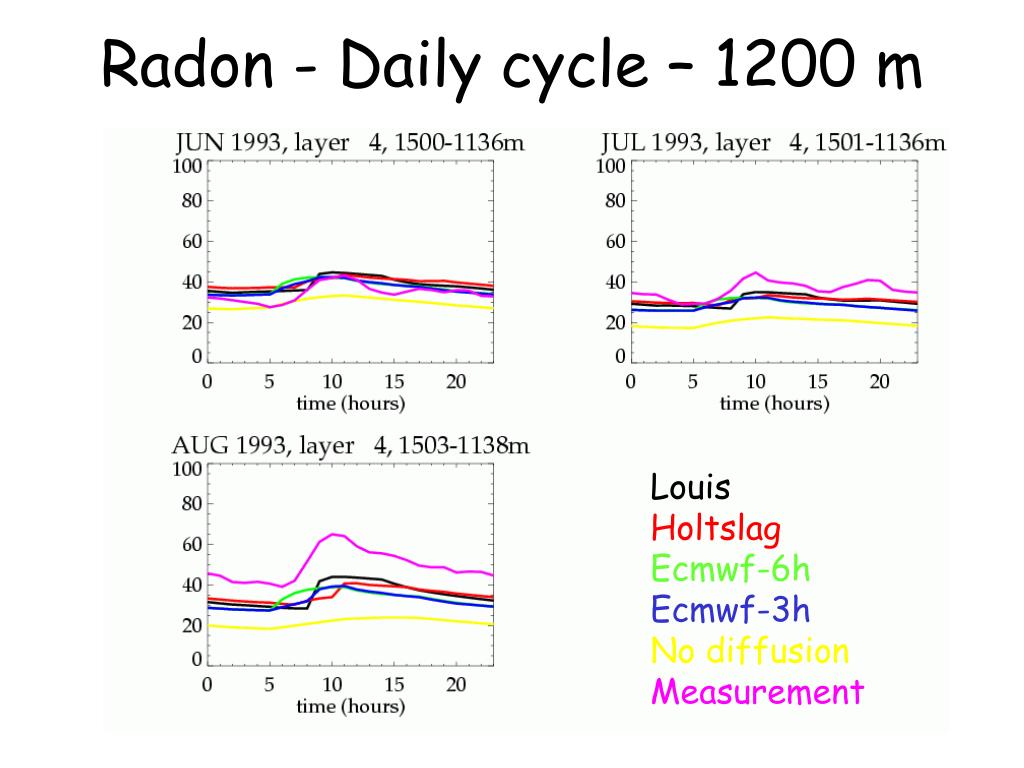

Radon daily cycle 1200 m

Radon - Daily cycle – 1200 m

Louis

Holtslag

Ecmwf-6h

Ecmwf-3h

No diffusion

Measurement

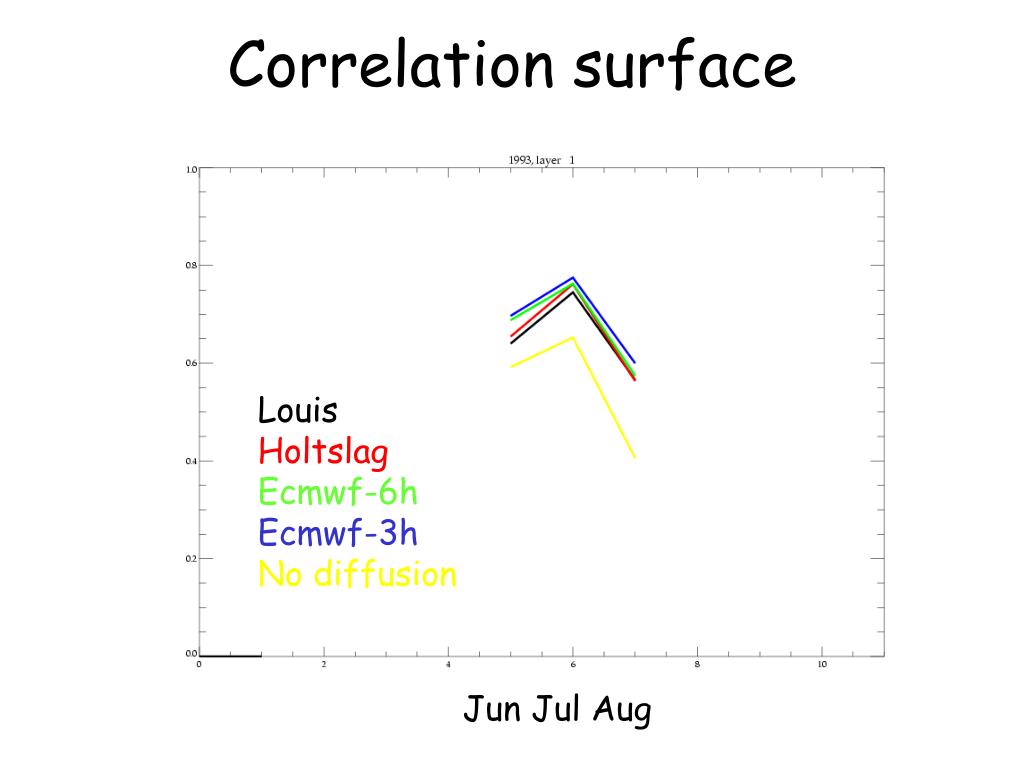

Correlation surface1

Correlation surface

Louis

Holtslag

Ecmwf-6h

Ecmwf-3h

No diffusion

Jun Jul Aug

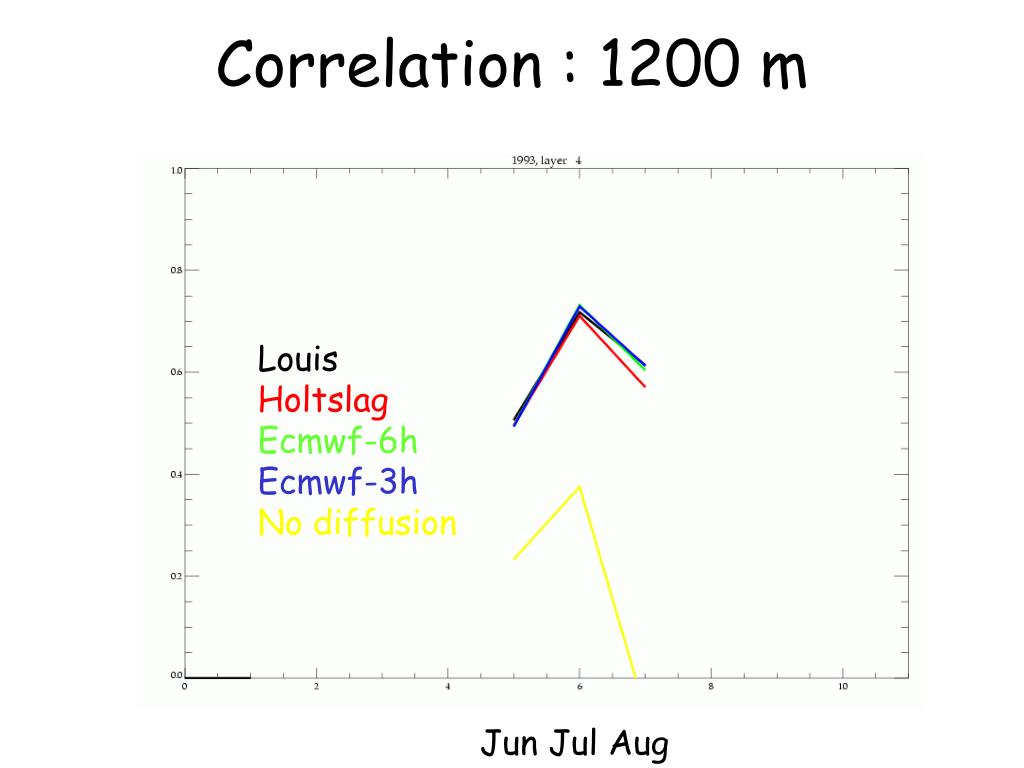

Correlation 1200 m1

Correlation : 1200 m

Louis

Holtslag

Ecmwf-6h

Ecmwf-3h

No diffusion

Jun Jul Aug

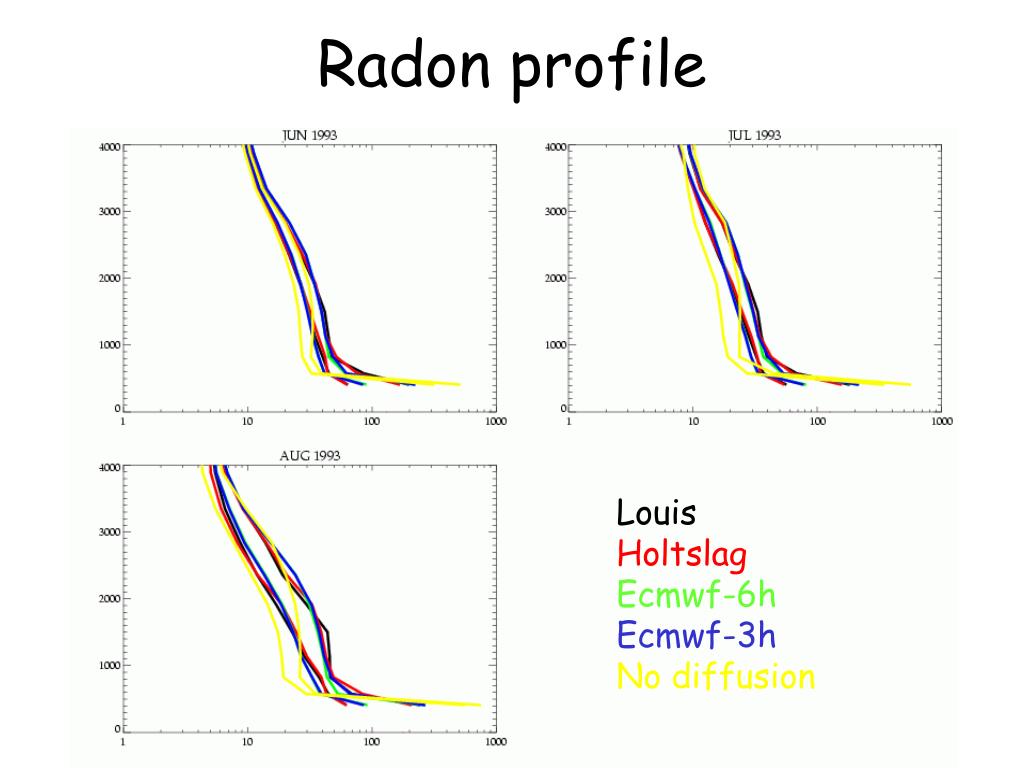

Radon profile

Radon profile

Louis

Holtslag

Ecmwf-6h

Ecmwf-3h

No diffusion
