First Risk Analysis for the LHCb V ertex D etector S ystem

1. First Risk Analysis for the LHCb Vertex Detector System • Purpose • Framework • model taken from CERN CSAMS • functional analysis of VDS • estimation of downtime for various tasks • Identified undesired events for VDS design (july’00) • Summary and outlook Massimiliano Ferro-Luzzi, CERN/EP

2. Purpose of Risk Analysis • To provide an objective basis for a constructive and methodical evaluation of the VDS design. • comprehensive overview of all (major) risks involved • what risk scenarios, what consequences, what probabilities to occur ? • requirements/recommendations for a given design choice • what tests should be performed and what results obtained to make the chosen option acceptable ? • basis for a later, more detailed risk analysis • f.i. risk of “injuries to personnel” are not assessed in details, but believed to be  downtime and CHF loss risks Massimiliano Ferro-Luzzi, CERN/EP

3. Framework of Risk Analysis • Use model defined in • “CERN Safety Alarms Monitoring System Functional and Safety Requirements”, IT-2694/ST, September 2000. • (1) Identify undesired event (UE) • (2) Determine the consequence category of UE • (3) Use predefined table to fix maximum allowable frequency (MAF) • (4) Determine required frequency by reducing MAF by factor 100 Massimiliano Ferro-Luzzi, CERN/EP

4. Framework: frequency categories Indicative frequency CategoryDescription level (per year) Frequent Events which are very likely to occur > 1 in the facility during its life time Probable Events which are likely to occur 10-1 - 1 in the facility during its life time Occasional Events which are possible and expected 10-2 - 10-1 to occur in the facility during its life time Remote Events which are possible but not expected 10-3 - 10-2 to occur in the facility during its life time Improbable Events which are unlikely to occur in the 10-4 - 10-3 facility during its life time Negligible Events which are extremely unlikely to < 10-4 occur in the facility during its life time Massimiliano Ferro-Luzzi, CERN/EP

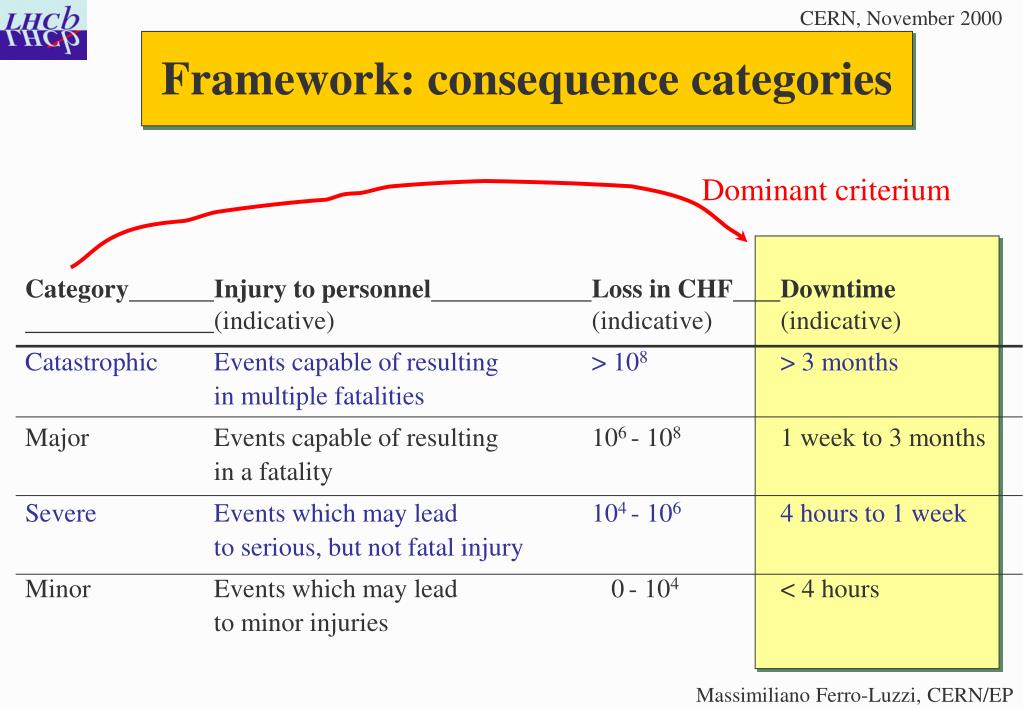

5. Framework: consequence categories Dominant criterium CategoryInjury to personnelLoss in CHFDowntime (indicative) (indicative) (indicative) Catastrophic Events capable of resulting > 108 > 3 months in multiple fatalities Major Events capable of resulting 106 - 108 1 week to 3 months in a fatality Severe Events which may lead 104 - 106 4 hours to 1 week to serious, but not fatal injury Minor Events which may lead 0- 104 < 4 hours to minor injuries Massimiliano Ferro-Luzzi, CERN/EP

6. Framework: risk classification table max allowable frequency FrequencyConsequence category category Catastrophic Major Severe Minor Frequent I I I II Probable I I II III Occasional I II III III Remote II III III IV Improbable III III IV IV Negligible IV IV IV IV required frequency Legend: I = intolerable risk II = undesirable but tolerable if risk reduction is out of proportion III = tolerable if risk reduction “exceeds” improvement gained IV = negligible risk Massimiliano Ferro-Luzzi, CERN/EP

7. Functional Analysis • Within context of risk analysis, consider 3 main modes of operation: • Normal • ring valves open full aperture of VD < 54 mm • normal running mode for LHCb physics • Standby • ring valves open full aperture of VD > 54 mm • e.g. beam filling/tuning, scheduled dump • (in some cases LHCb might take data) • Isolated • ring valves closed full aperture of VD is any • e.g. hall access, remote-controlled or in-situ maintenance Massimiliano Ferro-Luzzi, CERN/EP

8. Assumptions • If the NEGs are exposed to ambient air (even if at low pressure) •  heating is needed after the subsequent pump-down ! • This assumes that • * we need a minimum pumping capacity from the NEGs • and/or • * the desorption yields of such exposed NEGs are not low enough • If primary vacuum system vented with ultrapure Ar/Ne •  heating is not needed (NEGs are unaffected, C. Benvenuti & P. Chiggiato) check! A. Rossi check! M.P. Lozano Massimiliano Ferro-Luzzi, CERN/EP

9. Downtime estimations • Needed to assess gravity of a given undesired event! • Tasks: • granting general access to experimental zone 1 hour ? • granting access to VD area  1 shift ? • bring VDS to atmospheric pressure (and room temperature)  1 shift ? • preparation tasks around LHCb beam pipe for heating NEGs 6 shifts ? • replacement of an LHCb beam pipe section 6 shifts ? • pump down to pressure appropriate for NEG heating 3 shifts ? • heating of NEGs 3 shifts ? • pump down to pressure appropriate for beam filling 3 shifts ? • reverse of above “preparation tasks for heating NEGs” 6 shifts ? • Evacuation and closing of experimental zone 1 hour ? • (some tasks can proceed in parallel !) Massimiliano Ferro-Luzzi, CERN/EP

10. Undesired Events UE-1: Damaged feedthrough pin in secondary vacuum UE-2: Loss of electrical power UE-3: CO2 cooling system goes down UE-4: Leak in CO2 cooling pipe UE-5: Uncontrolled beam displacement UE-6: Ion-getter pump goes down UE-7: Turbomolecular pump station goes down UE-8: Bellow between secondary & primary vacua breaks UE-9: Jamming of detector halves motion mechanics UE-10: Bellow between air & primary vacuum breaks . . . Massimiliano Ferro-Luzzi, CERN/EP

11. Sample Undesired Event • UE-1a: Damaged feedthrough pin in secondary vacuum • Assumptions: • due to human action  mode Isolated (ring valves closed) • leak rate into 2ary vacuum small enough that safety valves stay closed • leak rate to 1ary vacuum < outgassing rate of 1ary vacuum • VDS can be brought to atmospheric pressure according to normal • procedure with Ar/Ne ( 1 shift) • Estimated damage: • 1ary vacuum not exposed to air  no NEG heating needed • replace feedthrough flange (1 shift) • pump down (6 shifts) •  LHC loss  0 CHF, LHC downtime < 3 days •  category: Severe • Requirements/remarks: see • required frequency: Remote (see experience with LEP/SPS/... ?) • precautions: countersink flange connectors, tighten cable connectors, • tighten cables, use of a protective cage around feedthroughs, ... Prove! Prove! Massimiliano Ferro-Luzzi, CERN/EP

12. Sample Undesired Event (continued) • UE-1b: as UE-1a but differential pressure triggers safety valves to open • Assumptions: • as in UE-1a except that leak rate into 2ary vacuum is such that safety • valves open • leak rate to 1ary vacuum  substantial fraction of leak rate to 2ary vacuum • VDS can be brought to atmospheric pressure according to normal • procedure with dry gas (N2) • Estimated damage: (compare to UE-1a) • 1ary vacuum exposed to air  NEG heating needed (3 additional days) • service/inspect pumps, thin foil, … (1 additional day) •  LHC loss  0 CHF, LHC downtime  1 week (but longer for LHCb !) •  category: Severe • Requirements/remarks: • required frequency: Remote • demonstrate that breaking of feedthrough pin will in most cases not be followed by • a differential pressure increase which triggers safety valves to open • e.g. this probability should be < 0.1, if actual frequency of UE-1a is Occasional ? Massimiliano Ferro-Luzzi, CERN/EP

13. Sample Undesired Event (continued) • UE-1c: as UE-1b but all safety devices fail to protect the thin-walled box • Assumptions: • as in UE-1b except that electrically activated valve, gravity-controlled safety • valve (and rupture disc, pcrit 10 mbar) fail to protect the thin-walled box • Estimated damage: (compare to UE-1b) • as in UE-1b, but the thin-walled box (and perhaps some Si modules ?) must • be replaced • debris (if any) must be collected ? • LHCb beam pipe must be refurbished ? •  LHC loss  ? CHF, LHC downtime  ? weeks •  category: Major • Requirements/remarks: • required frequency: Improbable • demonstrate that probability for coincidental failure is < 0.1, if actual • frequency of UE-1b is Remote Massimiliano Ferro-Luzzi, CERN/EP

14. Some Precautions / Recommendations(to be discussed further) • Closed and controlled area around VD system (dust-free, humidity controlled) • All servicing and maintenance operations performed by qualified • personnel exclusively • Interlock between hall access doors and ring valves • (force to close valves when hall access granted) • Safety of the beam pipe: foresee protection structures ? • Interlocks/alarms between VD and LHC control systems • Foresee spare parts for “critical scenarios” (which are allowed to hinder LHCb • operation, if unavoidable!) so that LHC beam conditions can readily be restored: • dummy wake field guide to replace Si housings • dummy beam pipe to replace VD tank & RICH section (?) • ... Massimiliano Ferro-Luzzi, CERN/EP

15. Summary and Outlook • Gather more info on • downtime and “CHF loss” estimations Daniel Lacarrère, Juan Ramon Knaster, Martin Doets, et al. • (dynamic) vacuum properties of (saturated) NEGs Paolo Chiggiato, Maria Pilar Lozano, et al. • beam handling failure scenarios Oliver Brüning, Rudiger Schmidt, et al. • Risk analysis will be publicized in the form of an LHCb note • with only one of two possible conclusions (needed for TDR): • (1) it is not a viable solution (there are unsurmountable obstacles) • (2) it is an acceptable solutionif this and this is done, checked, etc. • Perform required tests before installation into LHC This is were the work is! Massimiliano Ferro-Luzzi, CERN/EP
