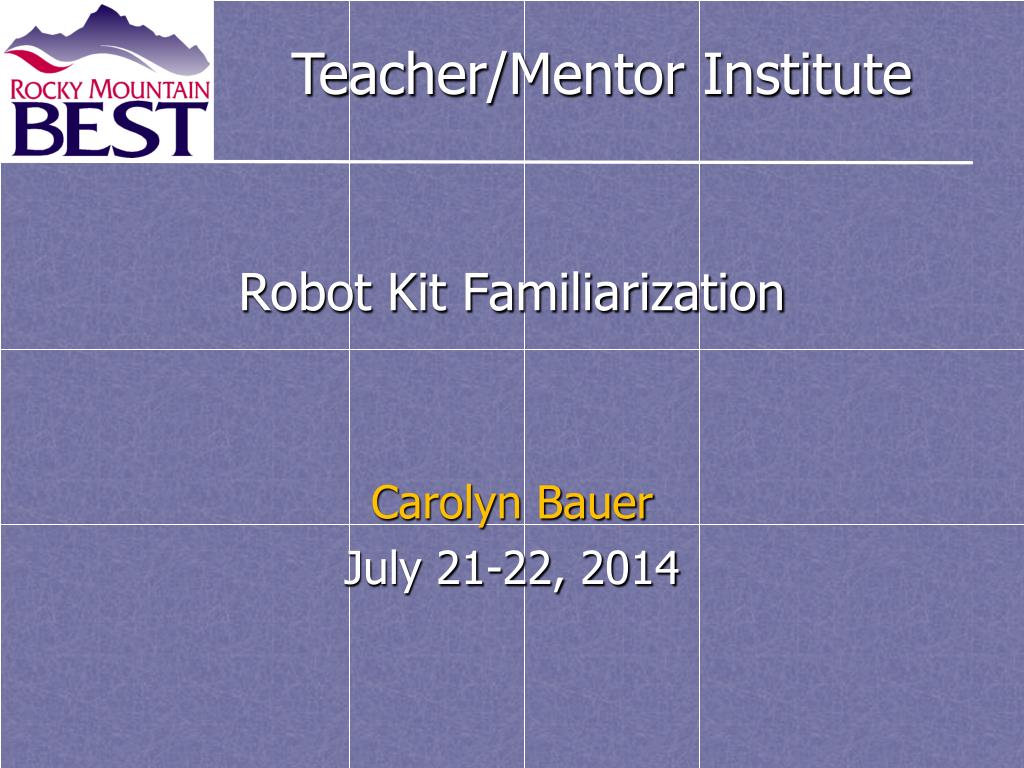

  1. Robot Kit Familiarization Carolyn Bauer July 21-22, 2014

  2. Kit Paperwork • Returnable Kit List • Inventory list inside the red tote • Consumable Kit List • Inventory list inside the blue tote • ReturnableKit Agreement • You sign & submit at Kickoff to get the kits • Request for Loan of Returnable Kit • If you want to keep the kit after Game Day • Generic Kit Usage Guide • slightly modified from year to year • Software List – with websites & keys (passwords)

  3. Returnable Kit • Provided to you in a redtote with a kit number at Kickoff • Use the returnable kit items carefully – we inventory, test, refurbish & use next year • Return the red toteand all the contents • Do an inventory immediately after Kickoff! • Do it again before you return the kit to us! • You will be charged for damaged / lost items

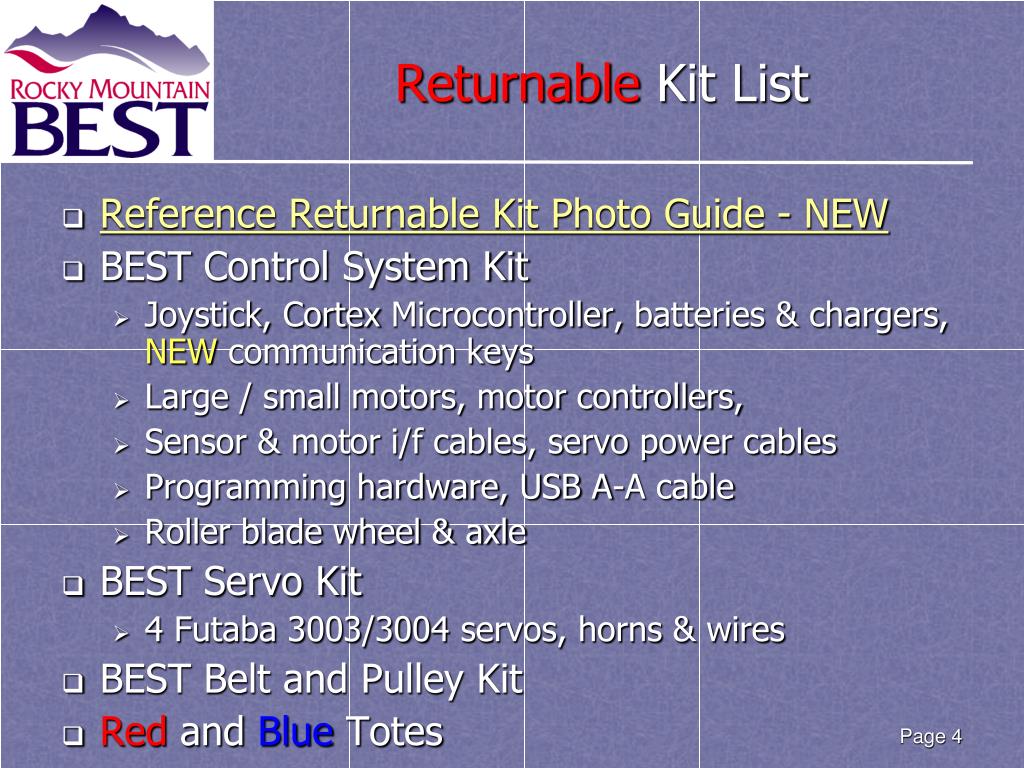

  4. Returnable Kit List • Reference Returnable Kit Photo Guide - NEW • BEST Control System Kit • Joystick, Cortex Microcontroller, batteries & chargers, NEW communication keys • Large / small motors, motor controllers, • Sensor & motor i/f cables, servo power cables • Programming hardware, USB A-A cable • Roller blade wheel & axle • BEST Servo Kit • 4 Futaba 3003/3004 servos, horns & wires • BEST Belt and Pulley Kit • Red and Blue Totes

  5. Consumable Kit • Provided to you in a blue tote with a kit number at Kickoff • Also provided are big items that don’t fit in the tote • Use / keep the Consumable kit • Or return unused items to us • Return the blue tote

  6. Consumable Kit List Reference Consumable Kit Photo Guide - NEW • Igus® donated parts • Plastic & metal stock • Wood stock • PVC pipes & fittings • Hardware • Electrical • Some slight modifications from last year’s list • Tapes & adhesives • Threaded fasteners • Miscellaneous • Game field parts – you’ll need to create some for yourselves • Approved Optional Items you can use • Longer list than before • And they’re all cheap

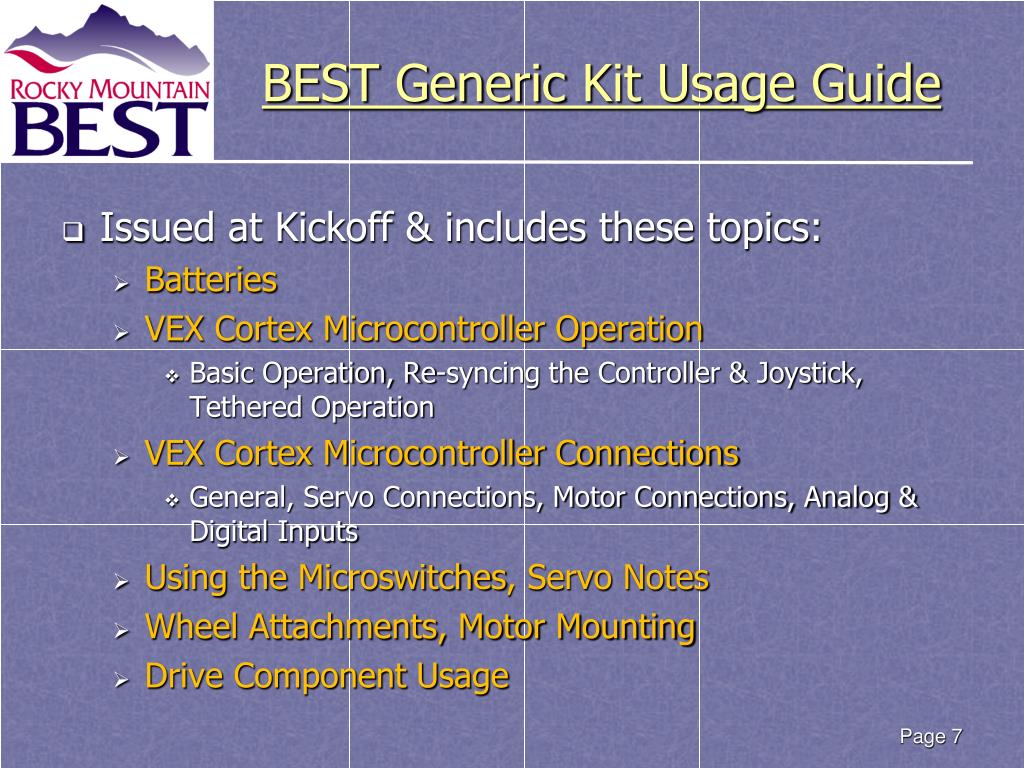

  7. BEST Generic Kit Usage Guide • Issued at Kickoff & includes these topics: • Batteries • VEX Cortex Microcontroller Operation • Basic Operation, Re-syncing the Controller & Joystick, Tethered Operation • VEX Cortex Microcontroller Connections • General, Servo Connections, Motor Connections, Analog & Digital Inputs • Using the Microswitches, Servo Notes • Wheel Attachments, Motor Mounting • Drive Component Usage

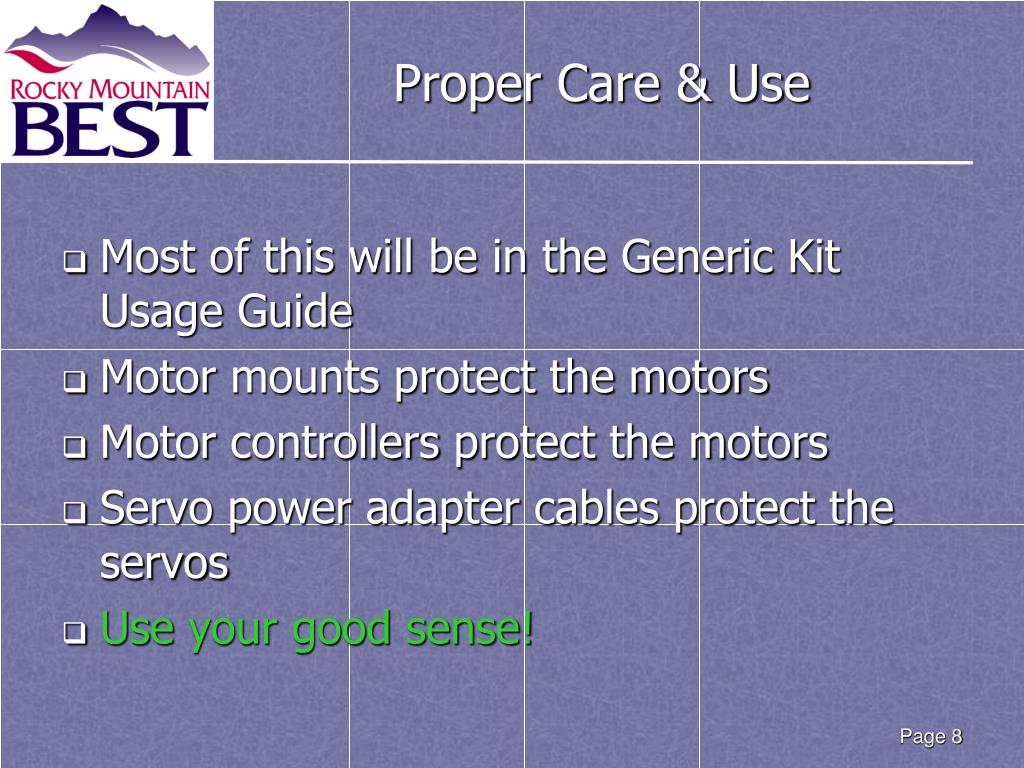

  8. Proper Care & Use • Most of this will be in the Generic Kit Usage Guide • Motor mounts protect the motors • Motor controllers protect the motors • Servo power adapter cables protect the servos • Use your good sense!

  9. Motors vs. Servos • Futaba S3003 servo • Torque:  2.75 in-lb • Gear Type:  Plastic • BEST Small Motor • Torque 9.49 in-lb • BEST Large Motor • Torque 23.53 in-lb Servos can handle only a fraction of the load of motors

  10. Charge Batteries • Charge batteries overnight before competitions. • Every team will have power in the pit. • Team-owned chargers are not allowed. • Have extra 6-packs of AAA batteries as backup. • Plug joystick into a/c adaptor at driver station. • Note battery cable modifications – unplug at red/black connections.

  11. At Game Day • Inventory & return your Returnable Kit – including both totes • Or you can keep your kit longer • If you don’t want to take the robot apart • If you might attend Regional Competition • If you want to show off your robot • Submit a Request for Loan of Returnable Kit Form • All kits must be returned to Club Workshop no later than February 28, 2015 (unless approved by Carolyn Bauer)

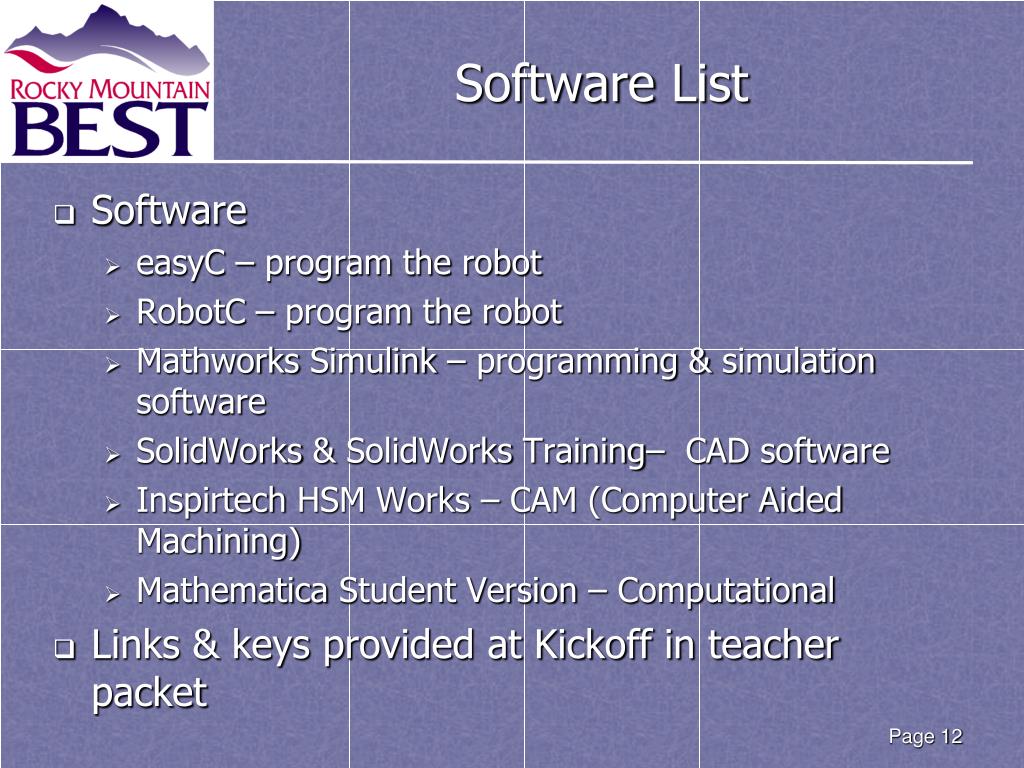

  12. SoftwareList • Software • easyC – program the robot • RobotC – program the robot • Mathworks Simulink – programming & simulation software • SolidWorks & SolidWorks Training– CAD software • Inspirtech HSM Works – CAM (Computer Aided Machining) • Mathematica Student Version – Computational • Links & keys provided at Kickoff in teacher packet

  13. Charge the Batteries • Before you begin any construction, charge the following: • Both 7.2 V batteries • All 6 AAA batteries
