Presentation Transcript

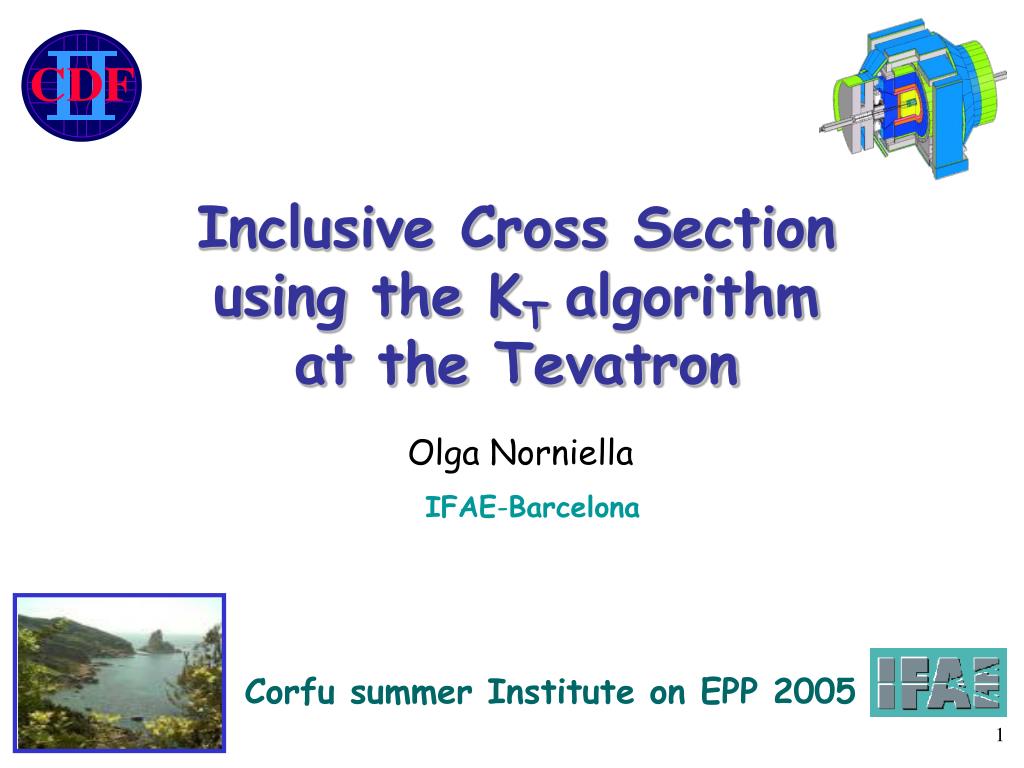

slide1

Inclusive Cross Section using the KT algorithm at the Tevatron

Olga Norniella

IFAE-Barcelona

Corfu summer Institute on EPP 2005

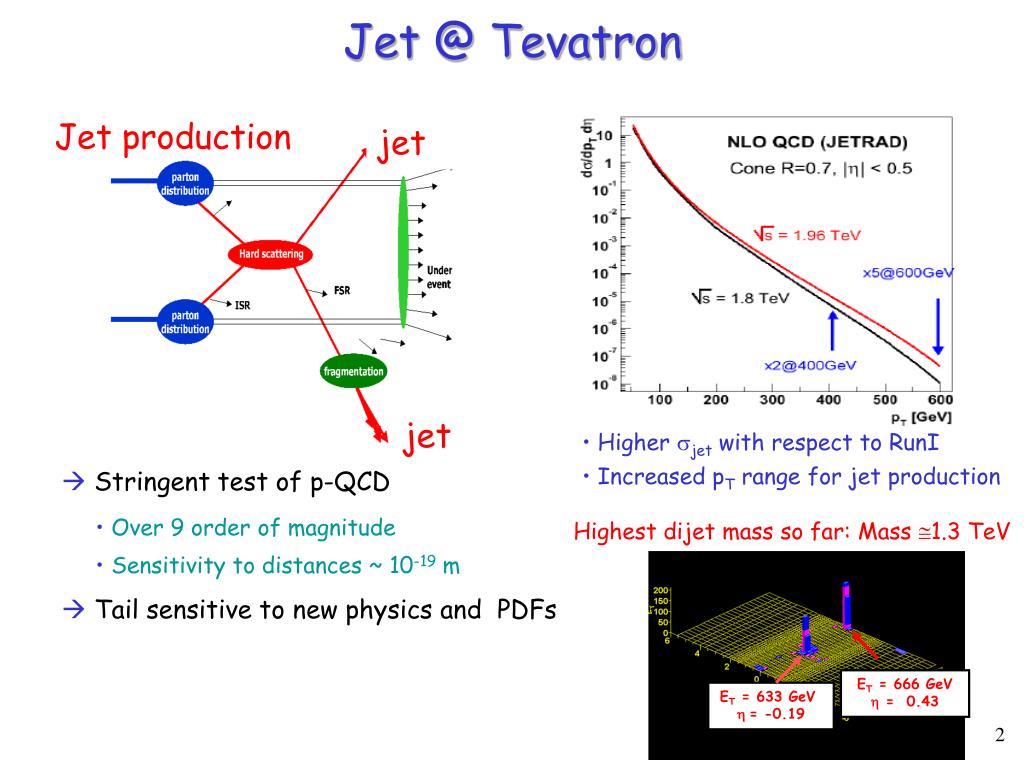

slide2

Jet @ Tevatron

Jet production

jet

jet

  • Higher jet with respect to RunI
  • Increased pT range for jet production
  • Stringent test of p-QCD
  • Over 9 order of magnitude

Highest dijet mass so far: Mass 1.3 TeV

  • Sensitivity to distances ~ 10-19 m
  • Tail sensitive to new physics and PDFs

ET = 666 GeV

h = 0.43

ET = 633 GeV

h = -0.19

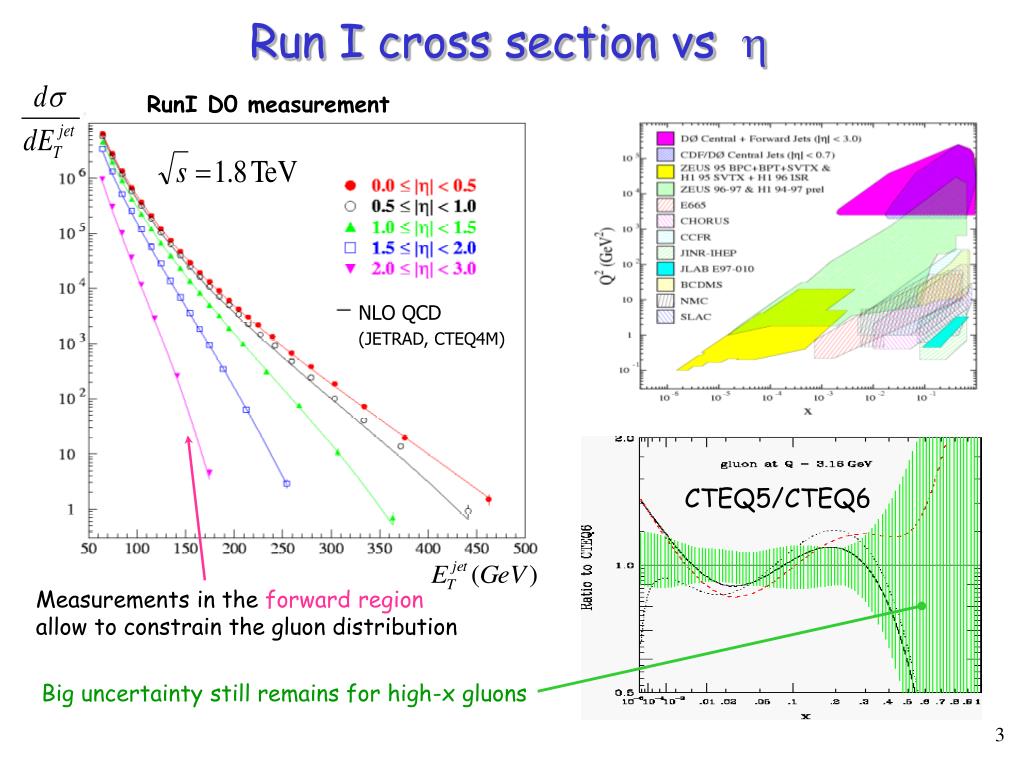

slide3

Run I cross section vs 

RunI D0 measurement

NLO QCD

(JETRAD, CTEQ4M)

CTEQ5/CTEQ6

Measurements in the forward region

allow to constrain the gluon distribution

Big uncertainty still remains for high-x gluons

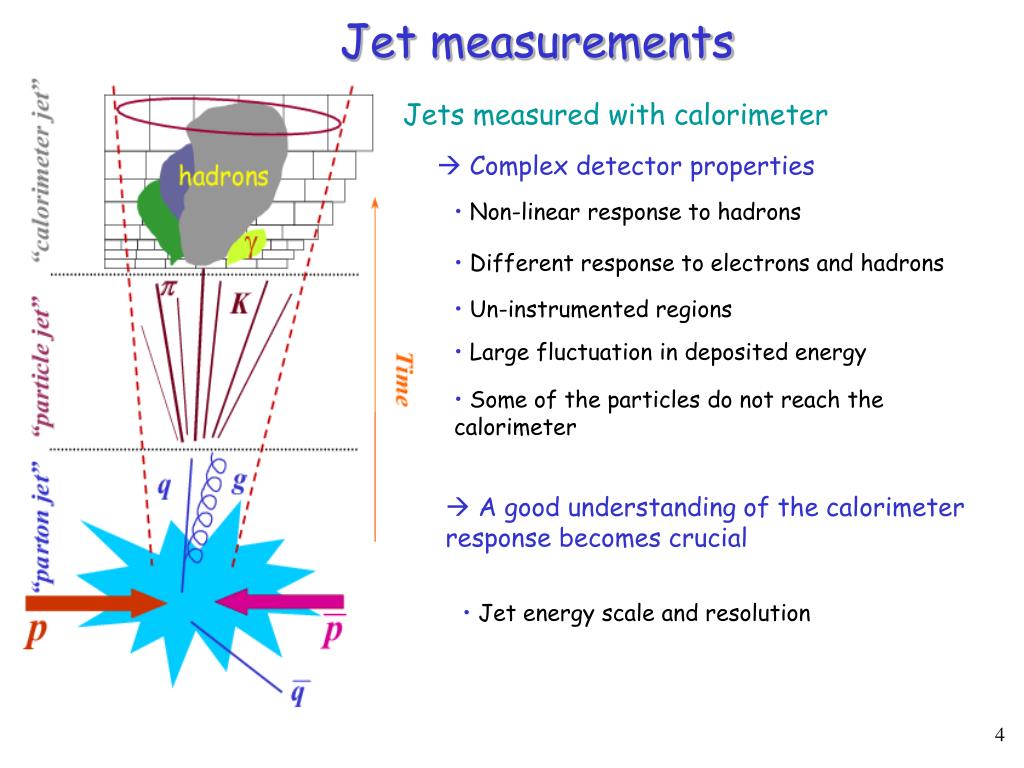

slide4

Jet measurements

Jets measured with calorimeter

  • Complex detector properties
  • Non-linear response to hadrons
  • Different response to electrons and hadrons
  • Un-instrumented regions
  • Large fluctuation in deposited energy
  • Some of the particles do not reach the calorimeter
  • A good understanding of the calorimeter response becomes crucial
  • Jet energy scale and resolution

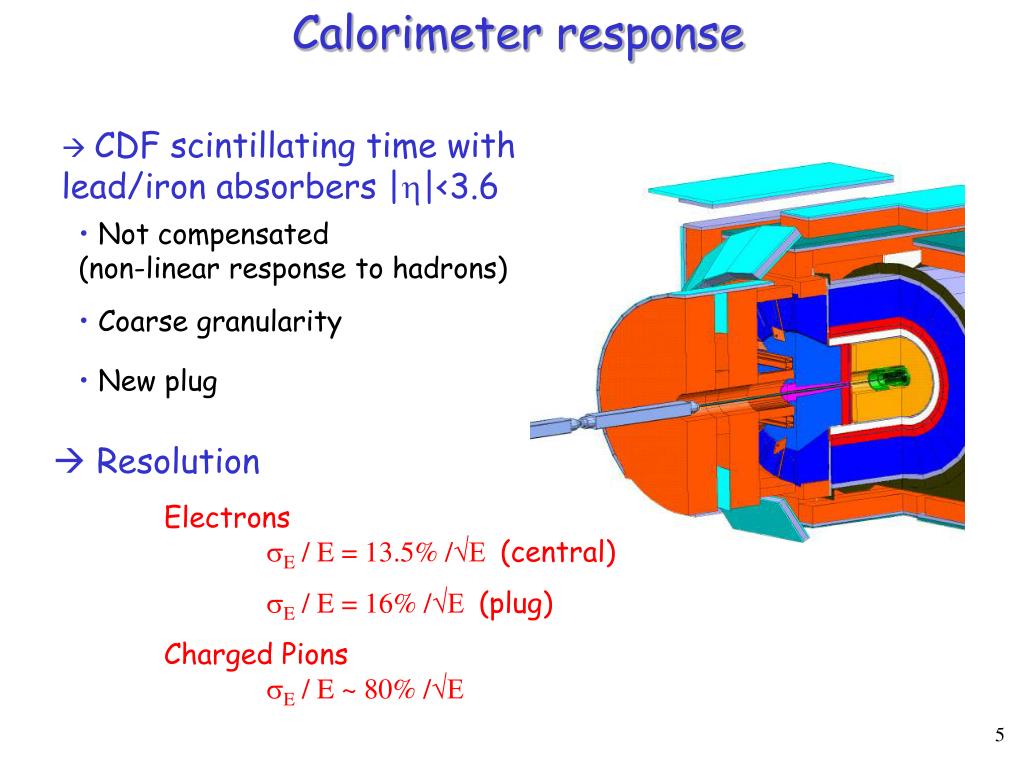

slide5

Calorimeter response

  • CDF scintillating time with lead/iron absorbers ||<3.6
  • Not compensated (non-linear response to hadrons)
  • Coarse granularity
  • New plug
  • Resolution

ElectronssE / E = 13.5% /ÖE (central)

sE / E = 16% /ÖE (plug)

Charged PionssE / E ~ 80% /ÖE

slide6

Jet Energy scale

  • Measured E/p using single particles

- Charged pions, ’s (J/Psi and W decays)

- Z->ee mass is used to set absolute EM scale

  • E/p used to tune the simulation
  •  GFLASH parameterization of the showering in the calorimeter
  • -jet balance used to checkthe jet energy scale
  • Systematic uncertainties
  • Calorimeter simulation

- Residual differences between dataand simulation in the response of the calorimeter to single particles (E/p)

  • Fragmentation

- Spectra of the particles inside jets

  • Stability

- Calibration fluctuation with time

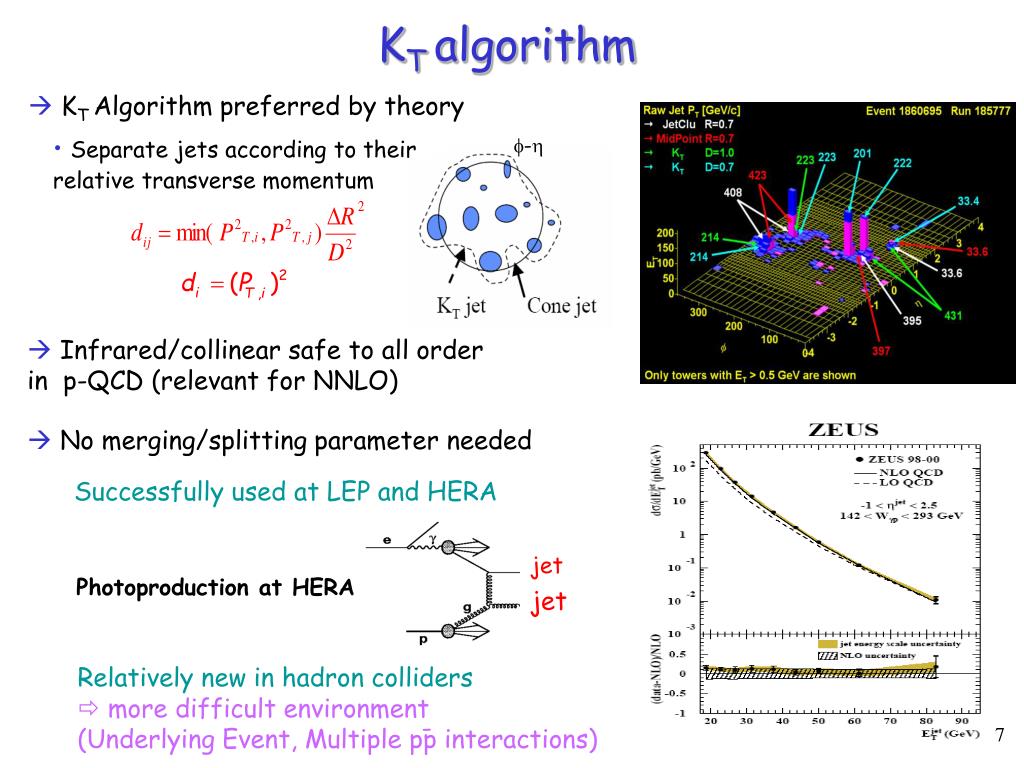

slide7

KT algorithm

  • KT Algorithm preferred by theory
  • Separate jets according to their relative transverse momentum

-

  • Infrared/collinear safe to all order in p-QCD (relevant for NNLO)
  • No merging/splitting parameter needed

Successfully used at LEP and HERA

jet

Photoproduction at HERA

jet

Relatively new in hadron colliders more difficult environment(Underlying Event, Multiple pp interactions)

-

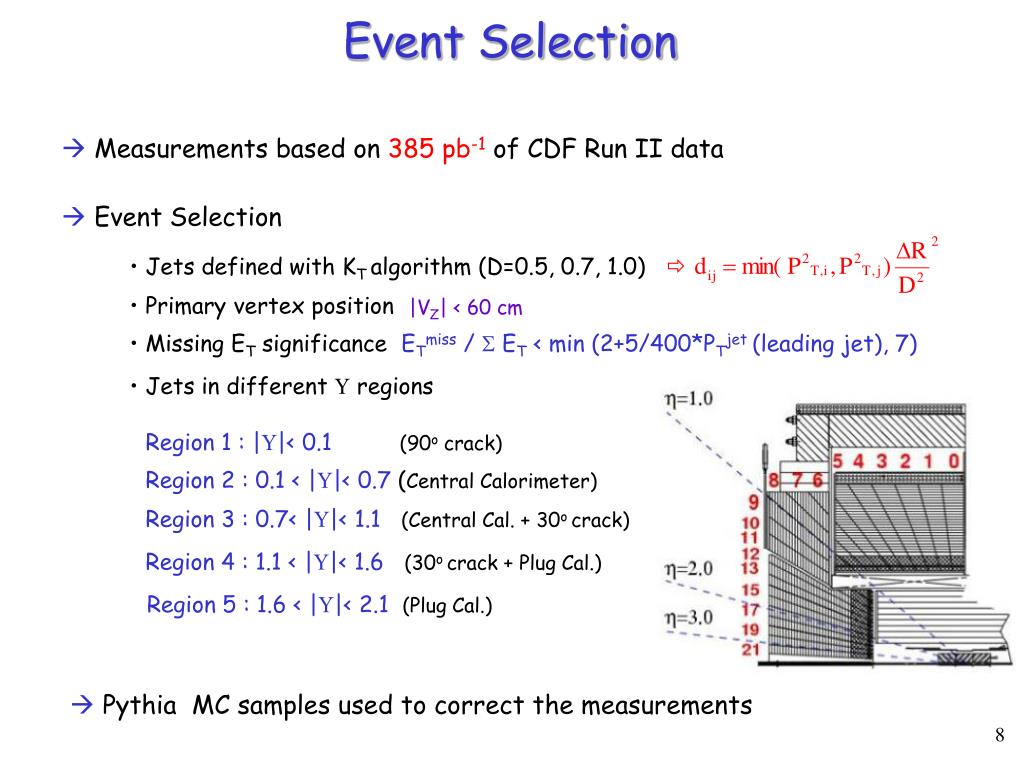

slide8

Event Selection

  • Measurements based on 385 pb-1 of CDF Run II data
  • Event Selection
  • Jets defined with KT algorithm (D=0.5, 0.7, 1.0) 
  • Primary vertex position

|VZ| < 60 cm

  • Missing ET significance ETmiss /  ET < min (2+5/400*PTjet (leading jet), 7)
  • Jets in different  regions

Region 1 : ||< 0.1(90o crack)

Region 2 : 0.1 < ||< 0.7 (Central Calorimeter)

Region 3 : 0.7< ||< 1.1(Central Cal. + 30o crack)

Region 4 : 1.1 < ||< 1.6(30o crack + Plug Cal.)

Region 5 : 1.6 < ||< 2.1(Plug Cal.)

  • Pythia MC samples used to correct the measurements
slide9

MC studies: Dijet Balance

  • To study the jet response relative to central calorimeter region where the MC provides a proper description of the data

Central Region: Calorimeter + Tracking

Jet Calorimeter response well understood (within  2-3% energy scale)

Trigger Jet Central

Probe Jet

  • Dijet events PT > 10 Gev/c
  • Definitions

-> PTMean = (PTTrig + PTProb)/2

-> PTF = (PTProb - PTTrig)/PTMean

->  = (2+ <PTF> )/(2- <PTF>)

Event by event:  = PTProb /PTTrig

In some rapidity regions the MC has to be corrected forcing data =MC

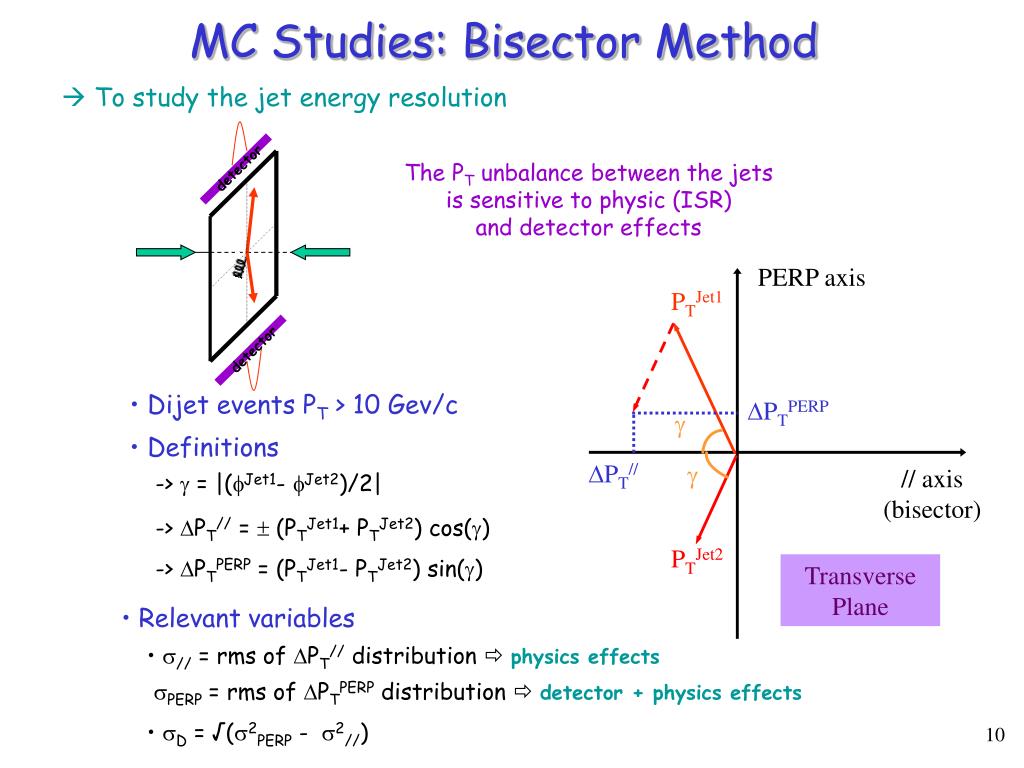

slide10

detector

detector

MC Studies: Bisector Method

  • To study the jet energy resolution

The PT unbalance between the jets is sensitive to physic (ISR) and detector effects

PERP axis

PTJet1

  • Dijet events PT > 10 Gev/c

PTPERP

  • Definitions

PT//

// axis (bisector)

->  = |(Jet1- Jet2)/2|

-> PT// =  (PTJet1+ PTJet2) cos()

PTJet2

-> PTPERP = (PTJet1- PTJet2) sin()

Transverse Plane

  • Relevant variables
  • // = rms of PT// distribution physics effects

PERP = rms of PTPERP distribution  detector + physics effects

  • D = √(2PERP - 2//)
slide11

Bisector method results

|Jet| < 0.1

1.6 < |Jet| < 2.1

Ddata= DMC

Ddata DMC

In some rapidity regions the jet energy resolution is corrected in the MC to force Ddata= DMC

After applying corrections to the MC based on Dijet Balance and Bisector Method studies the MC is ready to be used to correct the raw measurement

slide12

Corrections

From calorimeter to hadron level

-

  • Multiple pp interaction correction

To remove contributions from multiple interactions per bunch crossing

  • Average pT correction (based on MC)

To correct in average the energy measuredin the calorimeter to take into accountnon-compensation and dead material

  • Unfolding correction (based on MC)

To take into account smearing/resolution effects

For comparison to NLO pQCD calculations, the theory has to be corrected for UE/Hadronization (model dependent)

  • Underlying Event contribution
  • Fragmentation into hadrons
slide13

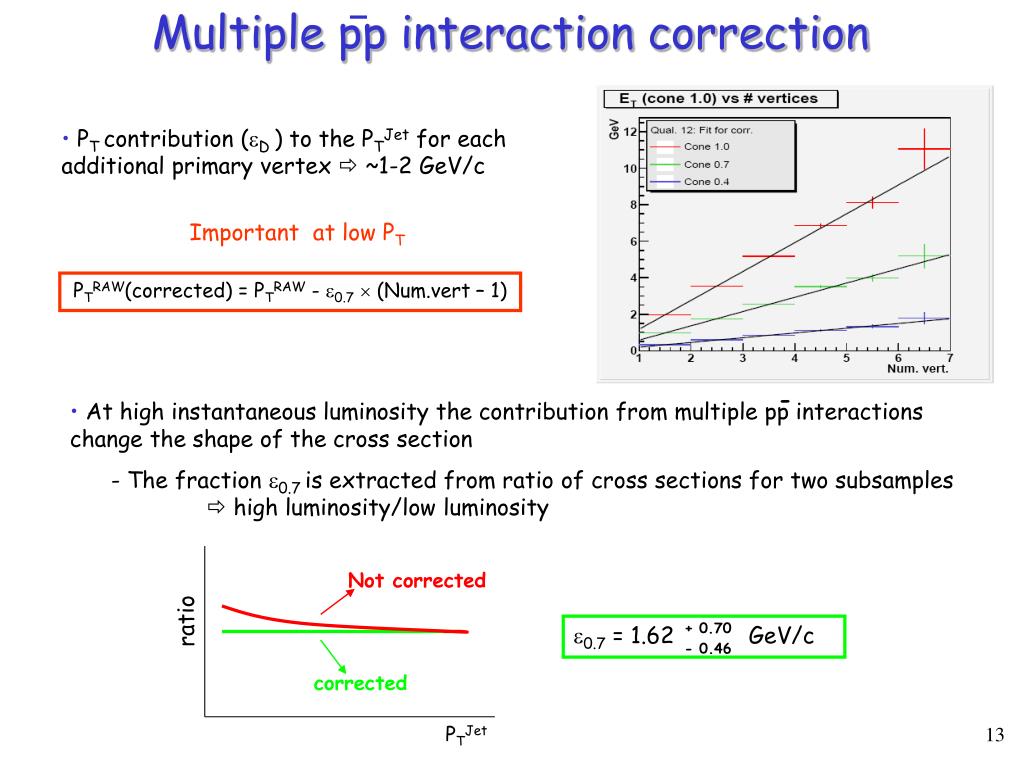

Multiple pp interaction correction

+ 0.70

0.7 = 1.62 GeV/c

- 0.46

  • PT contribution (D ) to the PTJet for each additional primary vertex  ~1-2 GeV/c

Important at low PT

PTRAW(corrected) = PTRAW - 0.7  (Num.vert – 1)

-

  • At high instantaneous luminosity the contribution from multiple pp interactions change the shape of the cross section

- The fraction 0.7 is extracted from ratioof cross sections for two subsamples high luminosity/low luminosity

Not corrected

ratio

corrected

PTJet

slide14

Average PT correction

PT jet measured in the calorimeter is affected by detector response

PTCal < PThad

Hadron level

  • Reconstruct jets at Calorimeter and Hadron level
  • Match pair of CAL-HAD jets in  -  space

Calorimeter level

  • < PTHAD-PTRAW> vs <PTRAW>

|Jet| < 0.1

1.6 < |Jet| < 2.1

slide15

Unfolding Procedure

  • The measured jet spectrum is corrected back to the hadron level

NJet Hadron level

  • Bin-by-bin unfolding factors

Ci =

(PTJet bin i)

NJet Calorimeter level

  • Apply unfolding factors to the measured PT spectrum

Njets UNFOLDED = Ci Njets DATA

Reasonable dependence on PTJet

|Jet| < 0.1

1.6 < |Jet| < 2.1

  • The MC is re-weighted to make the measurements independentof the PDF used
slide16

Systematic Uncertainties

  • Jet Energy Scale • Energy scale varied in MC according to uncertainty estimated ~2-3%
  • ~10% at low PTJet and ~40 to 60% at high PTJet
  • Unfolding • Sensitivity to PT spectrum: ratio of unfolding factors obtained from nominal and weighted Pythia• Sensitivity to fragmentation model: ratio of unfolding factors obtained from weighted Herwig and weighted Pythia

|Jet| < 0.1

  • ~ 5 to 10 % low PT and < 10% high PTJet
  • Jet EnergyResolution • 8%uncertainty on the jet momentum resolution
  • ~2 to 8%

-

  • Multiple pp interactions • Correction changed within its uncertainty
  • < 3%
  • Selection Cuts • Variation of the cuts

1.6 < |Jet| < 2.1

  • ~ 2%
slide17

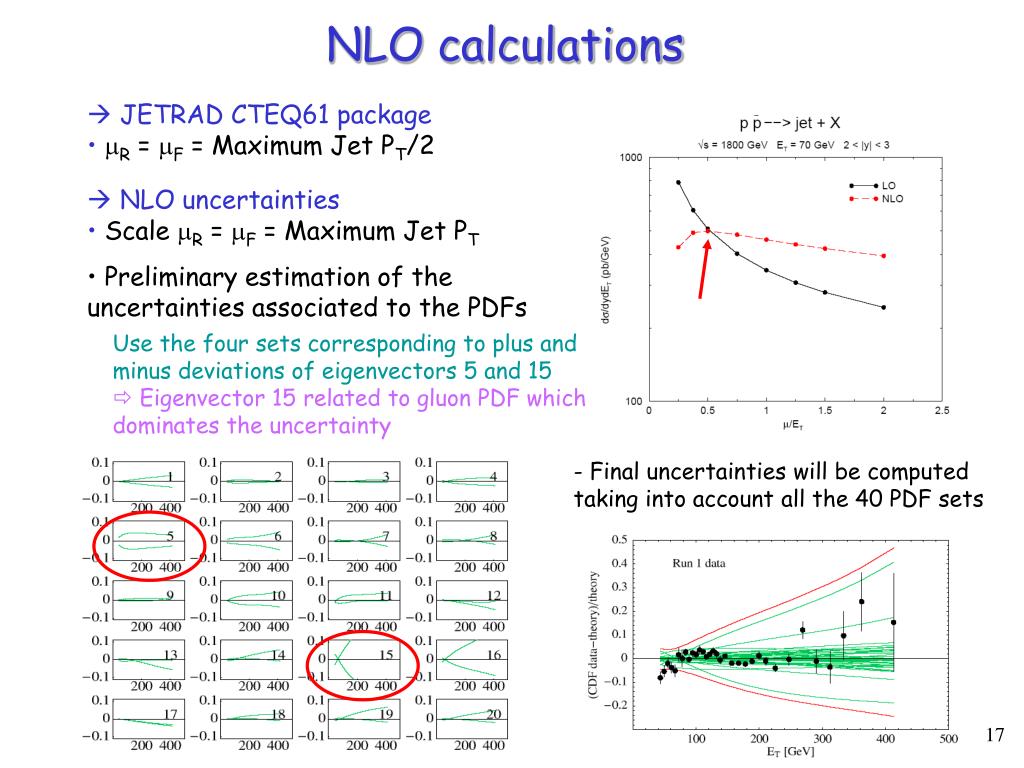

NLO calculations

  • JETRAD CTEQ61 package • R = F = Maximum Jet PT/2
  • NLO uncertainties • ScaleR = F = Maximum Jet PT

• Preliminary estimation of the uncertainties associated to the PDFs

Use the four sets corresponding to plus and minus deviations of eigenvectors 5 and 15 Eigenvector 15 related to gluon PDF which dominates the uncertainty

- Final uncertainties will be computed taking into account all the 40 PDF sets

slide18

NLO corrections

  • UE / Hadronization corrections

• Correct the NLO pQCD calculations for Underlying Event and Fragmentation in order to compare to data

jet

jet

 (Hadron Level Pythia Tune A with MPI)

C HAD (PTJet, Jet) =

(PTJet, Jet)

 (Parton Level Pythia Tune A no MPI)

slide19

jet

jet

KT Jets vs D

D = 0.5

D = 0.7

D = 1.0

slide21

Data/Theory

In all the rapidity regions there is a good agreement between measurements and NLO pQCD calculations

slide22

Summary & Conclusions

  • Inclusive jet cross section measured using 385 pb-1 of CDF Run II data for jets with PT 54 GeV/c in five rapidity regions:

|Jet|< 0.1 ;

0.1<|Jet|< 0.7 ;

0.7 < |Jet|< 1.1 ;

1.1 < |Jet|< 1.6 ;

1.6 < |Jet|< 2.1

  • Using the KT algorithm
  • Fully corrected to the hadron level
  • Good agreement with theory, NLO pQCD corrected for UE / Hadronization
  • The KT algorithm works fine in hadron colliders
  • These measurements will be used to further constrainthe PDFs (gluon at high x)
