  1. 67th NECPUC ANNUAL SYMPOSIUM Whiz Bang New Stuff June 17th, 2014

  2. Electric Energy Technology: Today’s Framework Technology Level Activity Deployment Technology Hardware/Device Software/Application Communication 2 RTO – Wholesale Market Internet – Retail Market Regional Transmission Organization Customer Appliance Customer Meter Distribution Secondary Centralized Generation Distribution Primary Substation Transmission Microgrid Electric Energy Delivery Entities

  3. Smart Grid framework Three Energy EPADS Retail Market Retail Trading Market Clearing for Energy, Ancillaries, energy & capacity Transaction processing Billing EE - DR - DG Market Wholesale Market ISO/RTO Wholesale Trading Energy Market Clearing Control and Operations Demand Management Energy Efficiency Measurement & Verification Local – Area Monitoring Distribution Operations Wide – Area Monitoring Transmission Operations Device Level: EPADS RTO – Bulk Gen Dispatch Energy Service Provider Customer DSPP- DER Dispatch Regional Transmission Organization Distribution Secondary Customer Appliance Customer Micro Grid Distribution Primary Customer Meter DG/Storage Bulk Generation Transmission Substation Electric Energy Delivery Entities 3

  4. Whiz Bang New Stuff : EDGE DSPP EPAD Greater And More Sustainable Savings • Uses real-time AMI data to make control decisions • Responds dynamically to changes on the grid • Identifies circuit improvement opportunities • Measures savings using EPRI validated statistical methods 4 EDGE uses AMI voltage data along with existing SCADA controls to optimize voltage levels on the network, offering seamless integration from the customer home to the control center.

  5. Whiz Bang New Stuff : EDGE DSPP EPAD: Integration Power 5 • Provides insight into savings potential • Checks for errors and voltage outliers • Enables a continuous improvement process • Generates initial bellwether meter set • Provide real-time voltage optimization • Uses customer voltage measurement • Respond dynamically to grid changes • Achieve sustainable savings • Provide circuit by circuit management • Measures actual energy and demand savings • Integrates weather and economics into validation • Leverages EPRI validated statistical methods • Provides feedback into grid efficiency planning

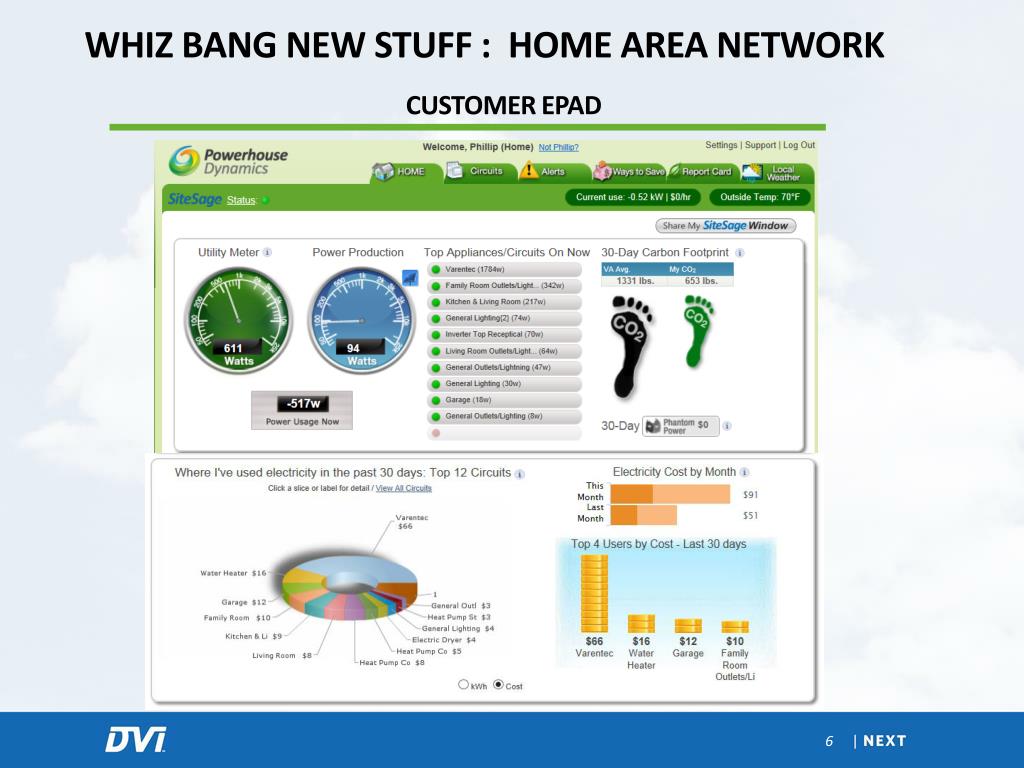

  6. Whiz Bang New Stuff : Home Area NetworkCustomer EPAD 6
