Division of Nuclear Physics American Physical Society October 23-26, 2013 Newport News, VA. Studies of e+A physics at an Electron-Ion Collider. Liang Zheng On behalf of the BNL EIC Science Task Force Brookhaven National Lab

Download Presentation

Studies of e+A physics at an Electron-Ion Collider

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Studies of e a physics at an electron ion collider

Division of Nuclear Physics

American Physical Society

October 23-26, 2013

Newport News, VA

Studies of e+A physics at an Electron-Ion Collider

Liang Zheng

On behalf of the BNL EIC Science Task Force

Brookhaven National Lab

Institute of Particle Physics, Central China Normal University


Overview

Overview

  • EIC eA physics program

    • Nuclear PDF

      • Nuclei F2/FL

    • Nuclear Imaging

      • Coherent t distribution in diffraction

    • Saturation

      • Inclusive diffraction

      • Dihadron correlation

    • Parton propagation and hadronization in nuclear medium

DNP 2013, Liang Zheng


Explore the small x regime

Explore the small x regime

  • Gluons dominate at small x

    • 99% of proton mass accounted by QCD interaction

    • Gluon PDF grows explosively at small x

Must be tamed at some point

DNP 2013, Liang Zheng


Explore the small x regime1

Explore the small x regime

  • Gluons dominate at small x

    • 99% of proton mass accounted by QCD interaction

    • Gluon PDF grows explosively at small x

  • Nonlinear evolution like BK alternative to DGLAP, BFKL due to gluon recombination.

  • Saturation regime, Q2<<Q2s(x)

DNP 2013, Liang Zheng


Nuclear amplification

Nuclear amplification

  • Gluon density scales as nuclear size

  • Effective x much smaller in a nuclei

DNP 2013, Liang Zheng


Eic ea kinematics coverage

EIC eA kinematics coverage

  • Largely extend current reach

  • Possible to explore the saturation regime

DNP 2013, Liang Zheng


Diffractive cross section

Diffractive cross section

  • σdiff/σtot 15% at HERA, predicted 25-40% in eA

  • σdiff~g(x,Q2)2

Color-neutral exchange

Rapidity gap: Signature of a diffractive event.

t=(p-p’)2

DNP 2013, Liang Zheng


Diffractive cross section1

Diffractive cross section

  • Significant difference between saturation and non-saturation

  • Strong discrimination power within a few months of running.

DNP 2013, Liang Zheng


Dihadron correlation

Dihadron correlation

Xiao, Dominguez, Yuan 2011/2012

  • Back to back hadron pairs decorrelate

  • Strong suppression at away side predicted by saturation

  • Probe nuclei in kT space.

trigger

y=0.7

zh1 = zh2 = 0.3

p1T>2GeV

1GeV < p2T < p1T

transverse plane

Df

associate

DNP 2013, Liang Zheng


Dihadron correlation non saturation

Dihadron correlation: non-saturation

ep/eAu 20x100 GeV

0.6<y<0.8

1 <Q2<2 GeV2

pt1>2 GeV, 1 GeV<pt2<pt1

0.2<z1,z2<0.4

2559 < ν < 3412 GeV

<xbj>=2.59x10-4

<xg>=3.42x10-2

Charged particles

  • Nuclear effect:

  • nPDF EPS09

  • Cold nuclear medium energy loss

DNP 2013, Liang Zheng


Dihadron correlation saturation

Dihadron correlation: saturation

  • Constrain sat/nosat models a lot with limited statistics of 1fb-1.

  • Strong suppression can not be reproduced by the nosat model.

DNP 2013, Liang Zheng


Summary

Summary

  • Key eA measurements at EIC:

    • Ratio of diffractive cross section to total, “day one” measurement

    • Dihadron correlation in ep/eA, mark out the saturation region with a low luminosity requirement and ep baseline

    • More details :

      • arXiv:1212.1701 EIC White paper

      • wiki.bnl.gov/eic/index.php/Main_Page

  • What can we learn from this

    • Understand the collective dynamics of gluons

    • Investigate inner landscape of a nuclei

    • Provide initial state input to pA/AA

DNP 2013, Liang Zheng


Back up

Back up

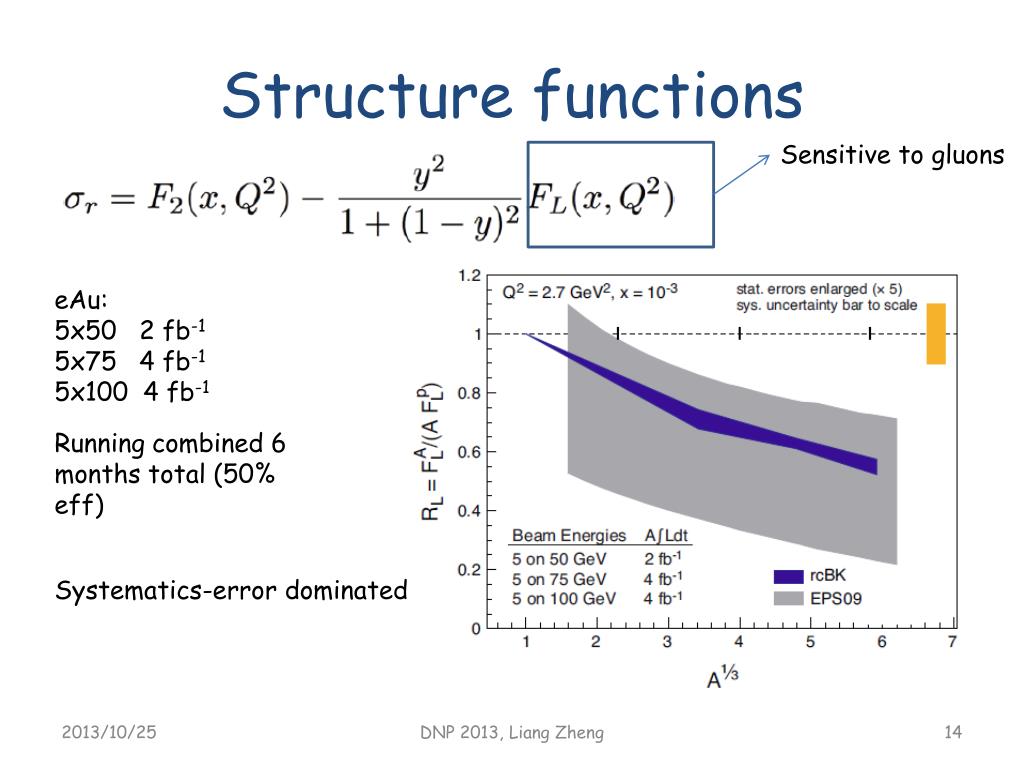

Structure functions

Structure functions

Sensitive to gluons

eAu:

5x50 2 fb-1

5x75 4 fb-1

5x100 4 fb-1

Running combined 6 months total (50% eff)

Systematics-error dominated

DNP 2013, Liang Zheng


Diffraction

Diffraction

Exclusive Vector meson production

Coherent: nuclei intact

Incoherent: break up

Finding the source

DNP 2013, Liang Zheng


Studies of e a physics at an electron ion collider

Dihadron correlation at an EIC

10x100 GeV

Lc = z0.35(1-z) ν

y = 0.3, z = 0.3, ν= 640 GeV, Lc = 420 fm

y = 0.7, z = 0.3, ν = 1492 GeV, Lc = 979fm

charged pion

z>0.1, ν>6 GeV, xFeynman>0, pT>0.1 GeV

Where we are

eic-tf-meeting


Studies of e a physics at an electron ion collider

Kinematics coverage in the Dihadron correlation at an EIC

10x100

20x100

Black box:0.6<y<0.8

Red box:0.25<y<0.35

Qs2 for Au

Qs2 for Ca

Qs2 for proton

eic-tf-meeting


Studies of e a physics at an electron ion collider

Dihadron correlation in different kinematics bins (no sat)

10x100 GeV 1fb-1

eic-tf-meeting


Studies of e a physics at an electron ion collider

Dihadron correlation in different kinematics bins (sat)

10x100 GeV 1fb-1

eic-tf-meeting
