Presentation Transcript
overview

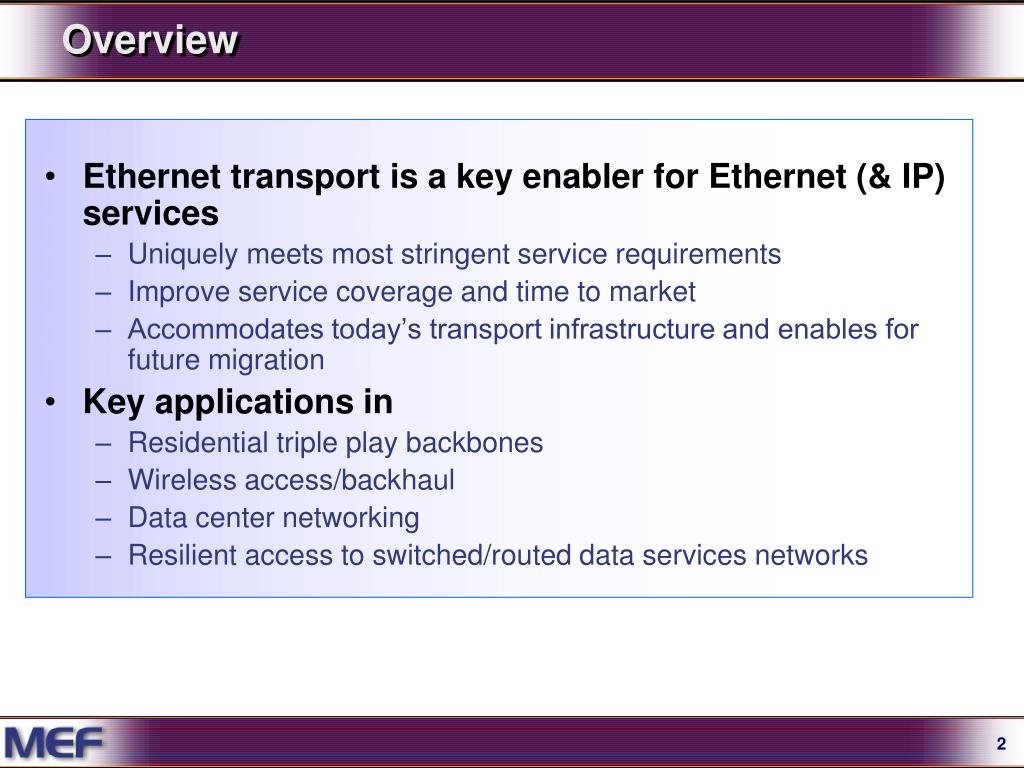

Overview
  • Ethernet transport is a key enabler for Ethernet (& IP) services
    • Uniquely meets most stringent service requirements
    • Improve service coverage and time to market
    • Accommodates today’s transport infrastructure and enables for future migration
  • Key applications in
    • Residential triple play backbones
    • Wireless access/backhaul
    • Data center networking
    • Resilient access to switched/routed data services networks
background
Background

To reduce operating and capital expenditures, many enterprises are considering consolidating their voice, data, and video traffic onto a single converged, packet-based network

Despite the availability of Ethernet metro and WAN services, many enterprises are still searching for solutions that fully address their evolving requirements

Revenues from traditional frame relay, ATM and TDM private line services delivered over separate network infrastructures continue to shrink, but will take a long time to disappear

Co-existence of Ethernet and other services is a necessity !!

challenges for carriers

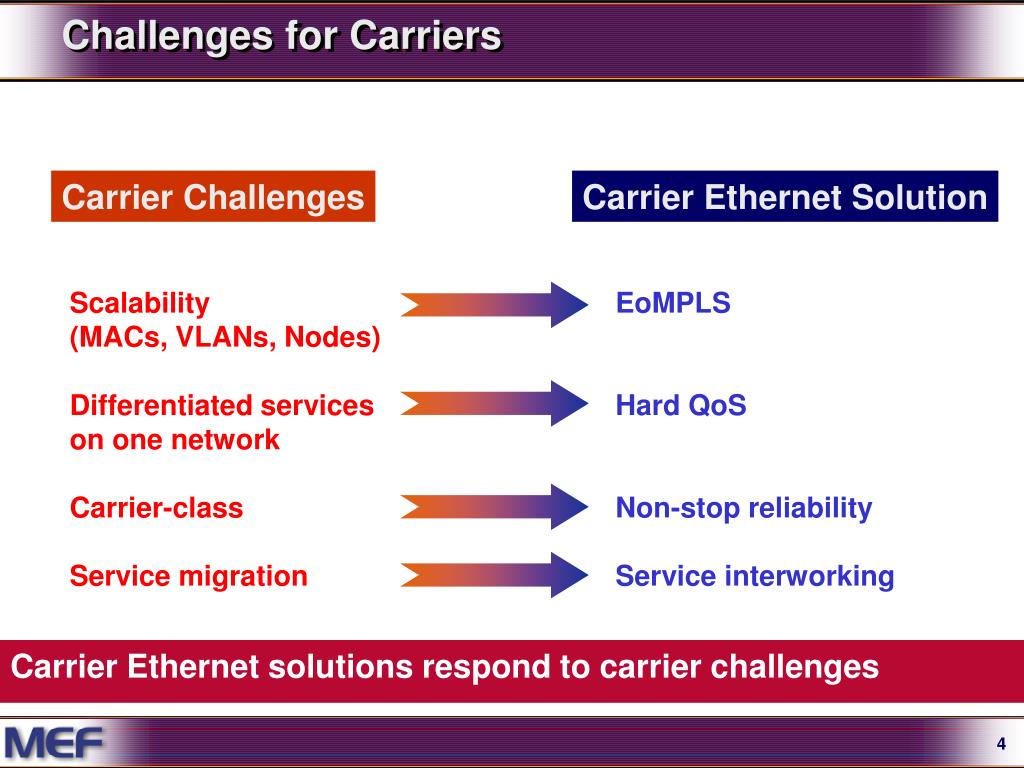

Challenges for Carriers

Carrier Challenges

Carrier Ethernet Solution

Scalability

(MACs, VLANs, Nodes)

Differentiated services on one network

Carrier-class

Service migration

EoMPLS

Hard QoS

Non-stop reliability

Service interworking

Carrier Ethernet solutions respond to carrier challenges

multiple services single network

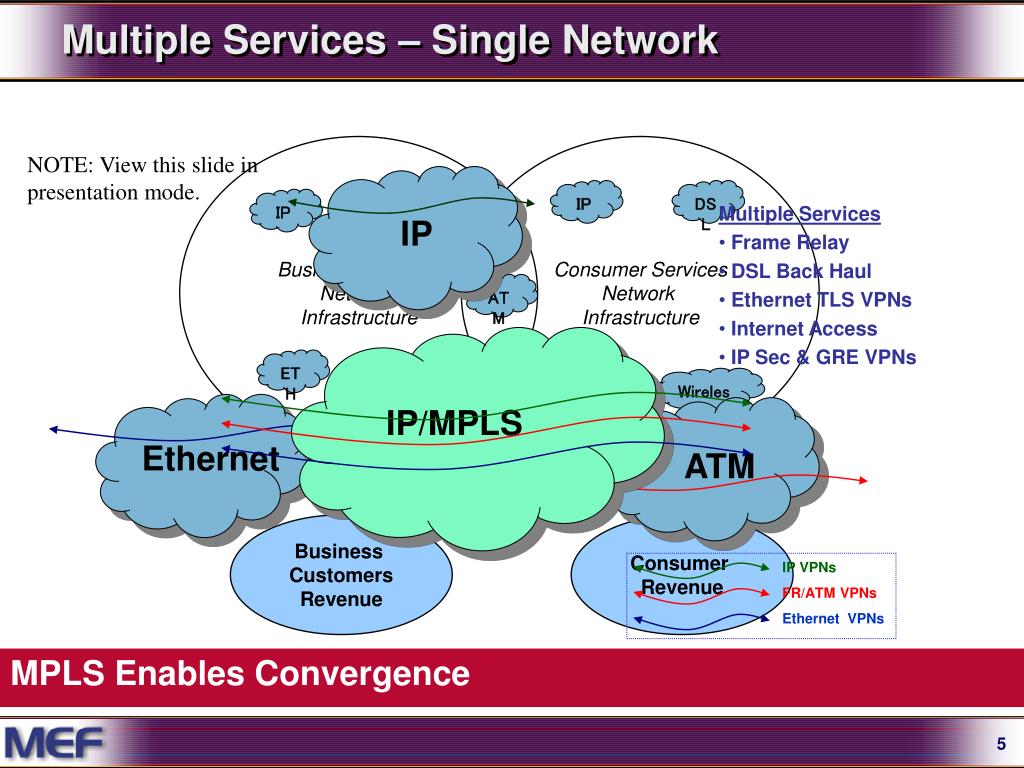

Multiple Services – Single Network

IP

Ethernet

ATM

IP/MPLS

Business Services

Network

Infrastructure

Consumer Services

Network

Infrastructure

NOTE: View this slide in

presentation mode.

IP

DSL

FR

IP

  • Multiple Services
  • Frame Relay
  • DSL Back Haul
  • Ethernet TLS VPNs
  • Internet Access
  • IP Sec & GRE VPNs

ATM

TDM

ETH

Wireless

Business

Customers

Revenue

Consumer

Revenue

IP VPNs

FR/ATM VPNs

Ethernet VPNs

MPLS Enables Convergence

service interworking

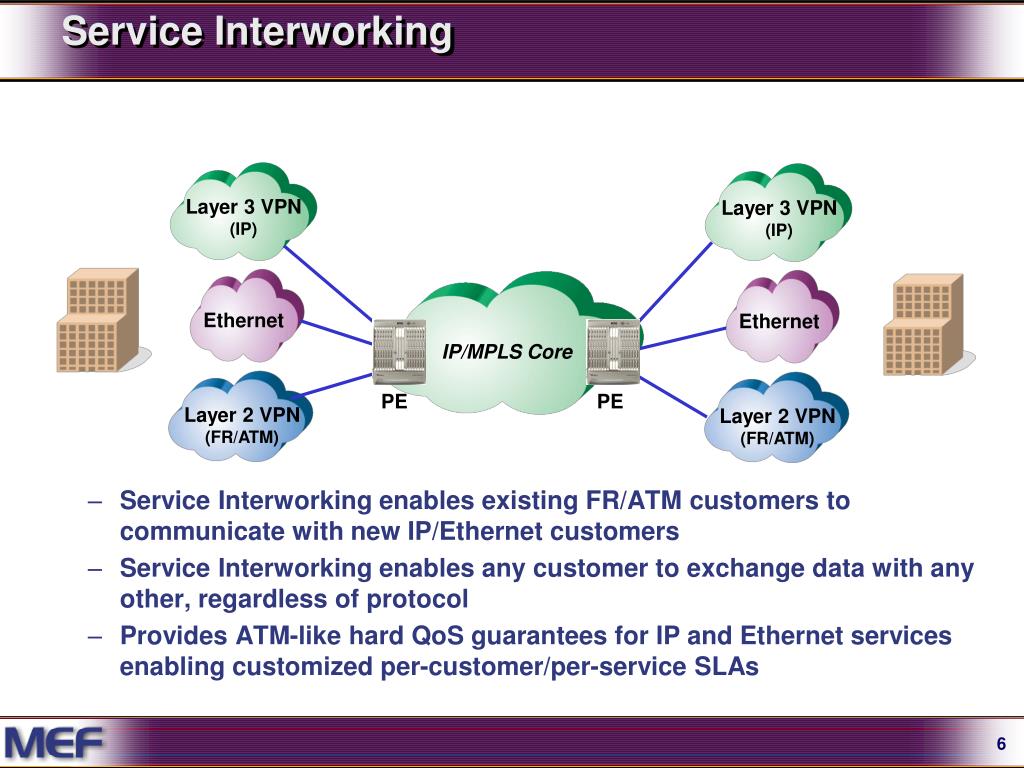

Service Interworking

Layer 3 VPN

(IP)

Layer 3 VPN

(IP)

Ethernet

Ethernet

Layer 2 VPN

(FR/ATM)

Layer 2 VPN

(FR/ATM)

  • Service Interworking enables existing FR/ATM customers to communicate with new IP/Ethernet customers
  • Service Interworking enables any customer to exchange data with any other, regardless of protocol
  • Provides ATM-like hard QoS guarantees for IP and Ethernet services enabling customized per-customer/per-service SLAs

IP/MPLS Core

PE

PE

service interworking example

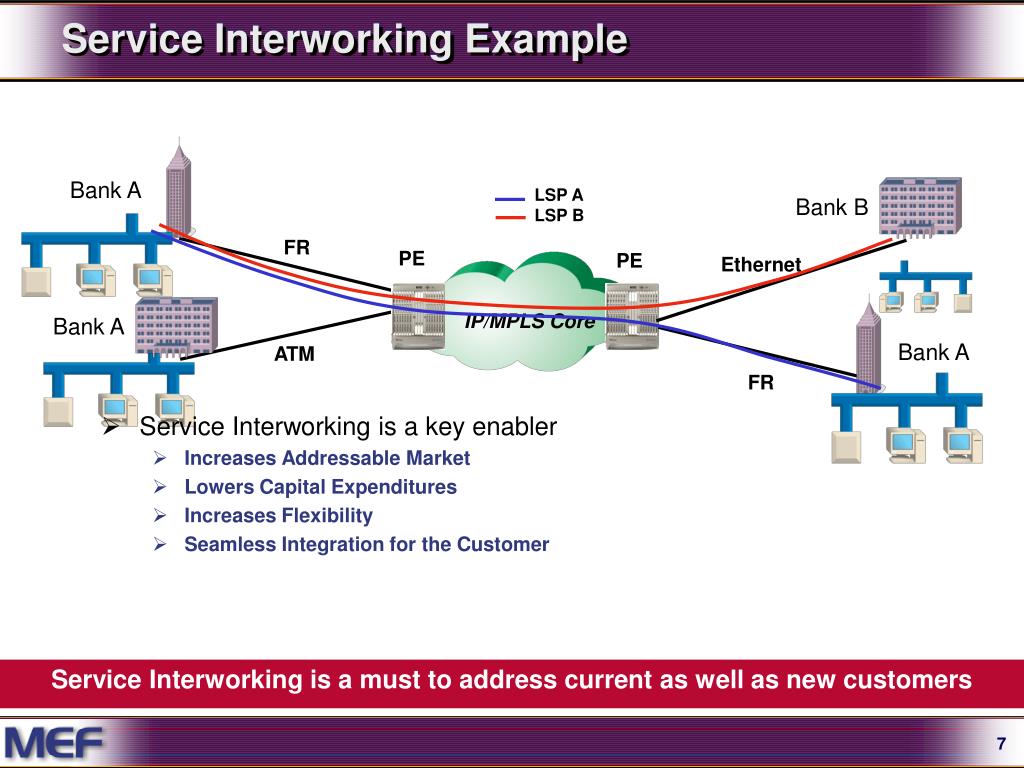

Service Interworking Example
  • Service Interworking is a key enabler
    • Increases Addressable Market
    • Lowers Capital Expenditures
    • Increases Flexibility
    • Seamless Integration for the Customer

Bank A

LSP A

LSP B

Bank B

FR

PE

PE

Ethernet

IP/MPLS Core

Bank A

Bank A

ATM

FR

Service Interworking is a must to address current as well as new customers

slide8

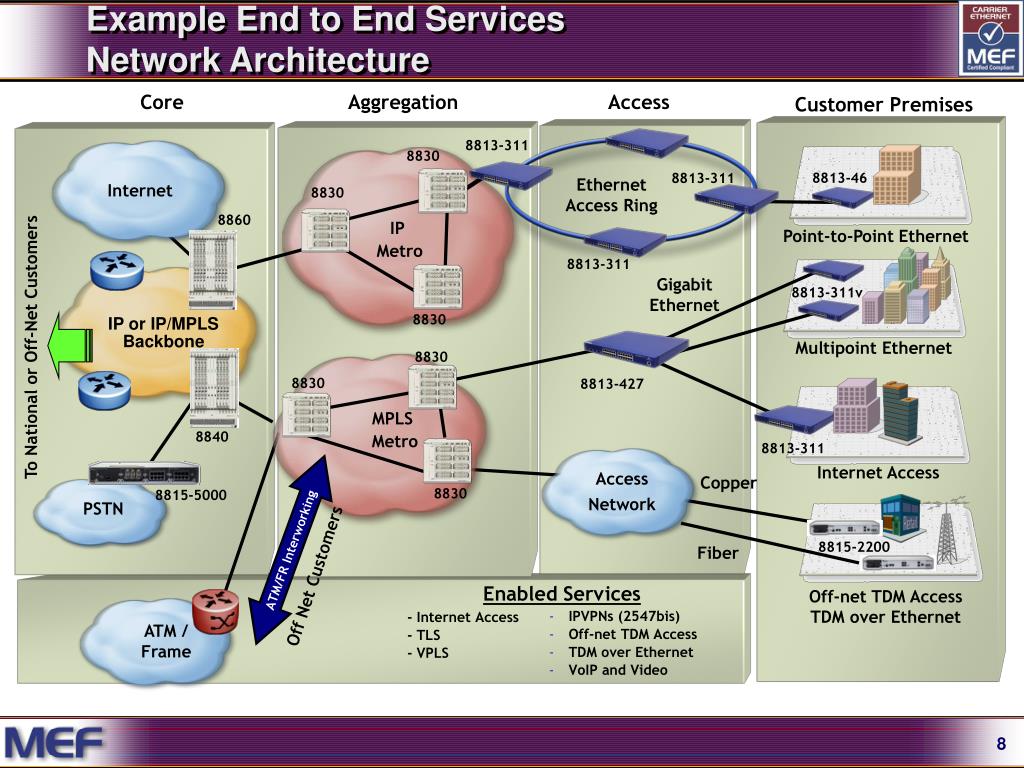

Example End to End ServicesNetwork Architecture

8815-2200

Off-net TDM Access

TDM over Ethernet

Internet

Core

Aggregation

Access

CustomerPremises

8813-311

8830

8813-46

8813-311

Ethernet

Access Ring

8830

8860

IP

Metro

Point-to-Point Ethernet

8813-311

Gigabit Ethernet

8813-311v

8830

IP or IP/MPLS Backbone

Multipoint Ethernet

To National or Off-Net Customers

8830

8830

8813-427

MPLS

Metro

8840

8813-311

Internet Access

Copper

Access

Network

8830

8815-5000

PSTN

ATM/FR Interworking

Fiber

Off Net Customers

Enabled Services

  • IPVPNs (2547bis)
  • Off-net TDM Access
  • TDM over Ethernet
  • VoIP and Video

- Internet Access

- TLS

- VPLS

ATM /

Frame

convergence technologies
Convergence Technologies

SynEth

Enh1588

CESSync

IPTV

OC-48/-192

WiFi

2G

CES

WiMax

OC-3, OC-12

MEth

EoPDH

DoC

MPLS

EoS

VDSL

ADSL

FR

3G

VoIP

xPON

ATM

FCoS

T/E

Key:

Sync over PSN

Not Ethernet-based

Ethernet-based

Partially Ethernet-based

Ref: "Crossing the Chasm" by Geoffrey A. Moore

tdm convergence technologies
TDM Convergence Technologies

Provider Side (typ.)

Customer Side (type)

CES

TDM Signal

Framing and OHT

Adaptation

EoS

EoPDH

RTP (opt.)

Ethernet

Ethernet

UDP/IP (opt.)

GFP-T or GFP-F

GFP-F

MPLS (opt.)

VCAT & LCAS

VCAT & LCAS

VLAN (opt.)

SONET/SDH

Framing & OHT

T/E Carrier

Framing & OHT

Ethernet

SONET/SDH

PHY

T/E Carrier

PHY

Eth PHY

sync over packet network view

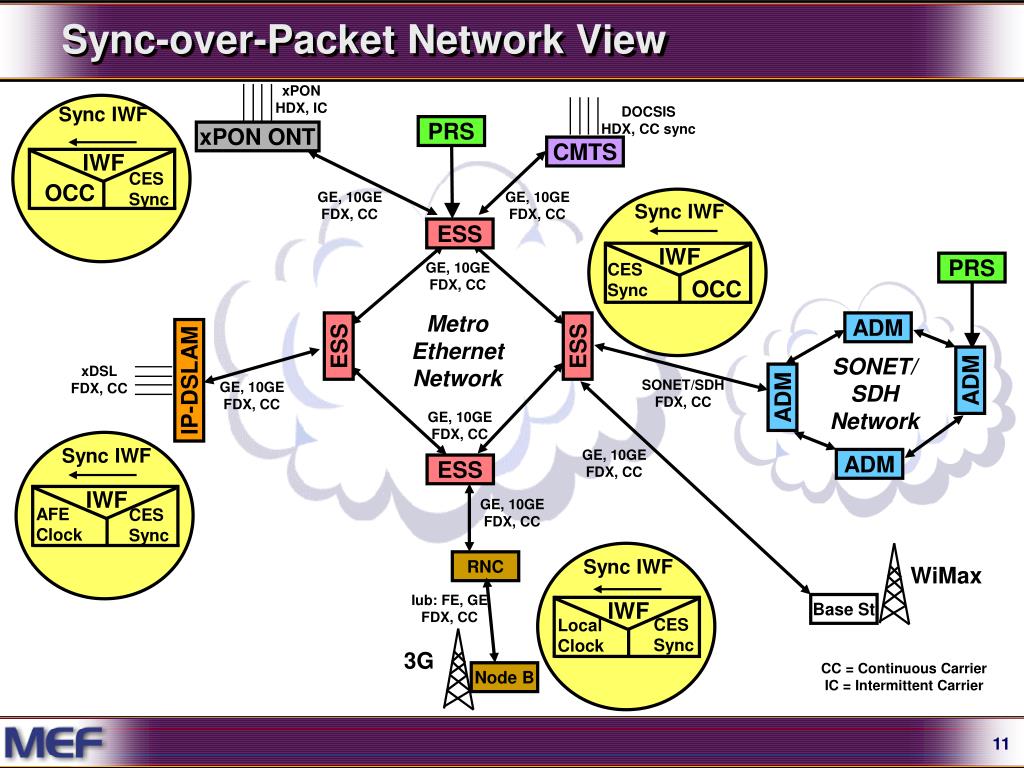

Sync-over-Packet Network View

Sync IWF

IWF

CES

Sync

OCC

Sync IWF

IWF

CES

Sync

OCC

Sync IWF

IWF

AFE

Clock

CES

Sync

Sync IWF

IWF

CES

Sync

Local

Clock

xPON ONT

xPON

HDX, IC

DOCSIS

HDX, CC sync

PRS

CMTS

GE, 10GE

FDX, CC

GE, 10GE

FDX, CC

ESS

PRS

GE, 10GE

FDX, CC

ADM

Metro

Ethernet

Network

ESS

ESS

IP-DSLAM

SONET/

SDH

Network

ADM

xDSL

FDX, CC

ADM

SONET/SDH

FDX, CC

GE, 10GE

FDX, CC

GE, 10GE

FDX, CC

ADM

ESS

GE, 10GE

FDX, CC

GE, 10GE

FDX, CC

RNC

WiMax

Base St

Iub: FE, GE

FDX, CC

3G

Node B

CC = Continuous Carrier

IC = Intermittent Carrier

sync and incumbent carriers
Sync and Incumbent Carriers

Incumbent carriers will want...

  • High-quality sync --> Potential differentiator (or maintain parity)
  • Predictable, reliable, deterministic sync...not traffic-dependent
  • Proven technology, low risk (conservative approach)
  • Hierarchical clock distribution which derives from SONET/SDH
  • Easy fit: Similar OSS & craft setup and management
  • Always operate at the lowest feasible network level
    • Reliability
    • Quality
  • Low incremental CapEx
  • Predictions:
    • #1 Choice: CES Sync (Available now, but not "Layer 1," not forklift)
    • #2 Choice: Synchronous Ethernet ("Layer 1," but not available now, and forklift)
    • #3 Choice: IEEE 1588v2 ("Layer 2, and not available now, and forklift)
    • Wildcard: Cheap GPS!
carrier ethernet convergence is here

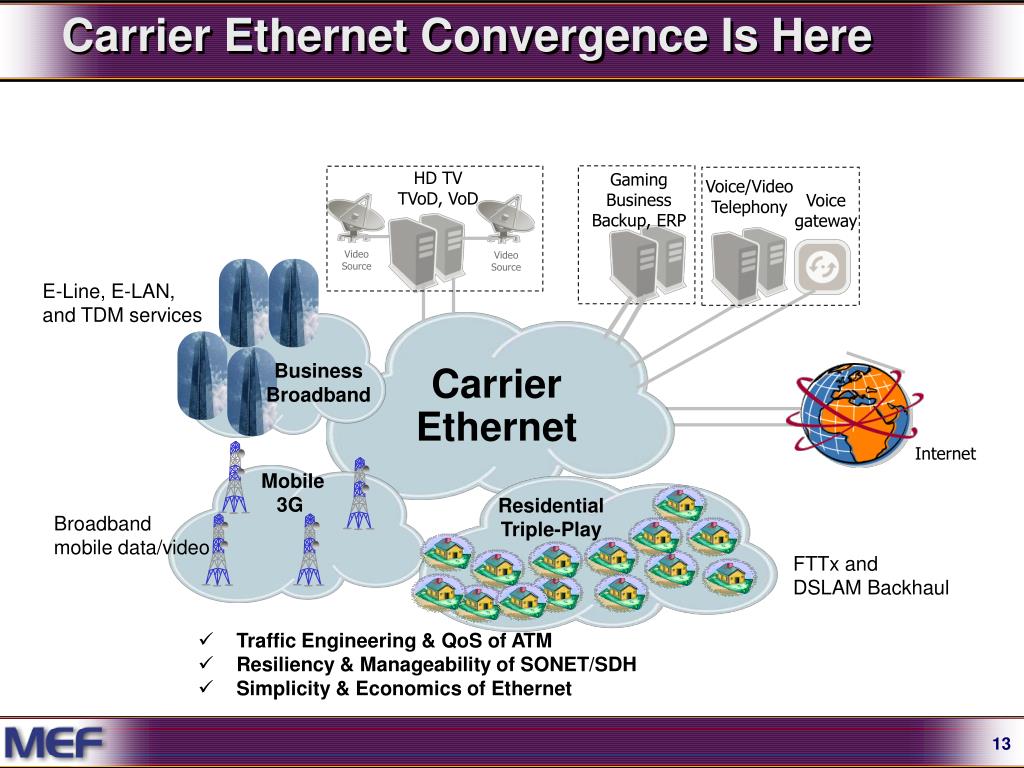

Carrier Ethernet Convergence Is Here

Video Source

Video Source

HD TV

TVoD, VoD

Gaming

Business

Backup, ERP

Voice/Video

Telephony

Voice gateway

E-Line, E-LAN,and TDM services

Carrier Ethernet

Business

Broadband

Internet

Mobile

3G

Residential

Triple-Play

Broadband

mobile data/video

FTTx and

DSLAM Backhaul

  • Traffic Engineering & QoS of ATM
  • Resiliency & Manageability of SONET/SDH
  • Simplicity & Economics of Ethernet
broadband services applications
Broadband Services Applications
  • Business
  • Enriched Services
  • Gigabit connectivity between businesses
  • Data Center Consolidation
  • Storage and disaster recovery
  • Guaranteed rate multi-megabit Internet access
  • Video conferencing & broadcast
  • Business telephony
  • Mobile
  • Wireless Backhaul
  • Wi-Fi Access delivery
  • WiMAX infrastructure
  • 3G and beyond wireless
  • Next gen data services
  • High resolution photo
  • Wireless video
  • Gaming
  • Digital TV
  • Residential
  • Triple Play with IPTV
  • 100’s of TV channels
  • Video on demand
  • Video recording/playback
  • Interactive video apps
  • Multi-megabit Internet access
  • Remote learning
  • Gaming
enterprise services
Enterprise Services

Inter-LAN, Inter-PABX and SAN

VPLS or VPLS-TE Service

High Speed Internet Access

Customer site

Customer site

Customer site

Customer site

Customer site

Carrier Ethernet

VPLS Group

Carrier Ethernet

Carrier Ethernet

www

Customer site

Customer site

Customer site

High Speed Access to IP-VPN

Multi-Service Access

Customer site

Customer site

Customer site

Customer site

Customer site

IP VPN

Carrier Ethernet

Carrier Ethernet

IP VPN

www

Network

Customer site

Customer site

ASP, or

Extranet

triple play services
Triple-Play Services
  • Delivering triple play services over variety of access concentrators (DSLAM, OLT, Base stations) enables the operator to offer extensive and competitive Triple-Play services
  • The Carrier-Ethernet aggregation network is a key factor to enable co-existence of new and legacy access network do deliver new and advanced services

Access

Concentrator

BB-SR

MPLS/Ethernet

Regional

Network

ISP

Aggregation

Network

ASP

RGW

slide17

End-to-End Carrier Ethernet Solution

BTS

Carrier Ethernet with Traditional Ethernet Economics

delivering commercial voice video and data services over packet switched networks
Delivering Commercial Voice, Video and Data Services over Packet Switched Networks

Metro / Campus

FE/GbE

V.35/T1/E1/T3/E3

PBX

PSTN

Circuit Emulation with orwithout compression

PSN w/

Abundant

B/W

Circuit Emulation

T1/E1,

CT3/OC3

STM-1

PBX

PSN w/Limited

B/W

TDM Network(Class 5 Switch, PBX, SONET…)

Metro / WAN

Cable/DSL

Satellite

Leased Lines

Frame Relay

Internet

Circuit Emulationwith compression

  • Voice, Data & Video Pseudowire services over Metro & WAN
  • Circuit Emulation requires at least 1.7Mbps of bandwidth per T1
  • Compression ( with VAD, BOD, LBRC, HDLC flag & SS7 FISU/LISU suppression) reduces bandwidth consumption to under 100Kbps per T1
connecting tdm based pbx s over fe gbe or ip wan

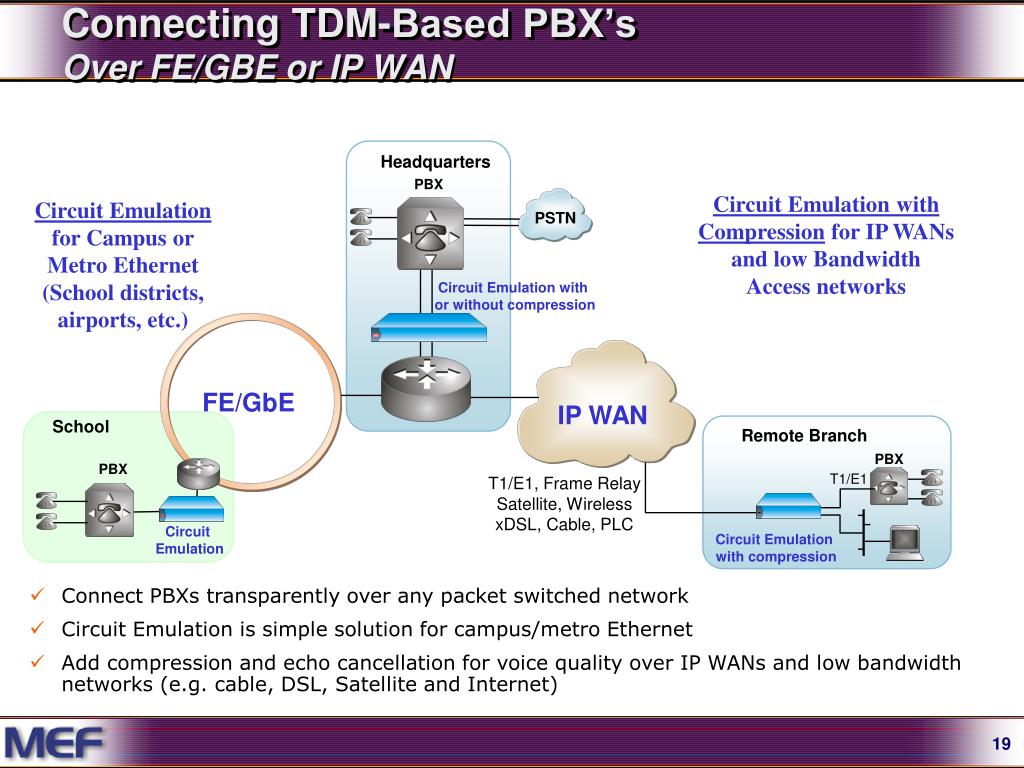

Connecting TDM-Based PBX’sOver FE/GBE or IP WAN

Headquarters

PBX

Circuit Emulation with Compression for IP WANs and low Bandwidth Access networks

Circuit Emulation

for Campus orMetro Ethernet

(School districts, airports, etc.)

PSTN

Circuit Emulation with or without compression

FE/GbE

IP WAN

School

Remote Branch

PBX

PBX

T1/E1

T1/E1, Frame Relay

Satellite, Wireless

xDSL, Cable, PLC

Circuit Emulation

Circuit Emulation with compression

  • Connect PBXs transparently over any packet switched network
  • Circuit Emulation is simple solution for campus/metro Ethernet
  • Add compression and echo cancellation for voice quality over IP WANs and low bandwidth networks (e.g. cable, DSL, Satellite and Internet)
cellular backhaul via pseudowires
Cellular Backhaul via Pseudowires

FT1/T1/n*T1

Switch

Site

FT1/T1/n*T1

Cell Site

CircuitEmulation

Cell Site

Fiber

T1/E1,

CT3/OC3

STM-1

FT1/T1/n*T1

Carrier

Ethernet

FE/GbE

Circuit emulationand cross-connect

Fixed

Wireless

Cell Site

CircuitEmulation

  • T1/E1 leased lines account for 40%-60% of mobile operators expenses
  • Reduces 2G access costs and positions the mobile operator for future 3G network expansion
  • Latency starts at under 3ms
  • Clock complies with G.823/824 jitter and wander requirements

FT1/T1/n*T1

Headend

Cable HFC

Infrastructure

CircuitEmulation

Cell Site

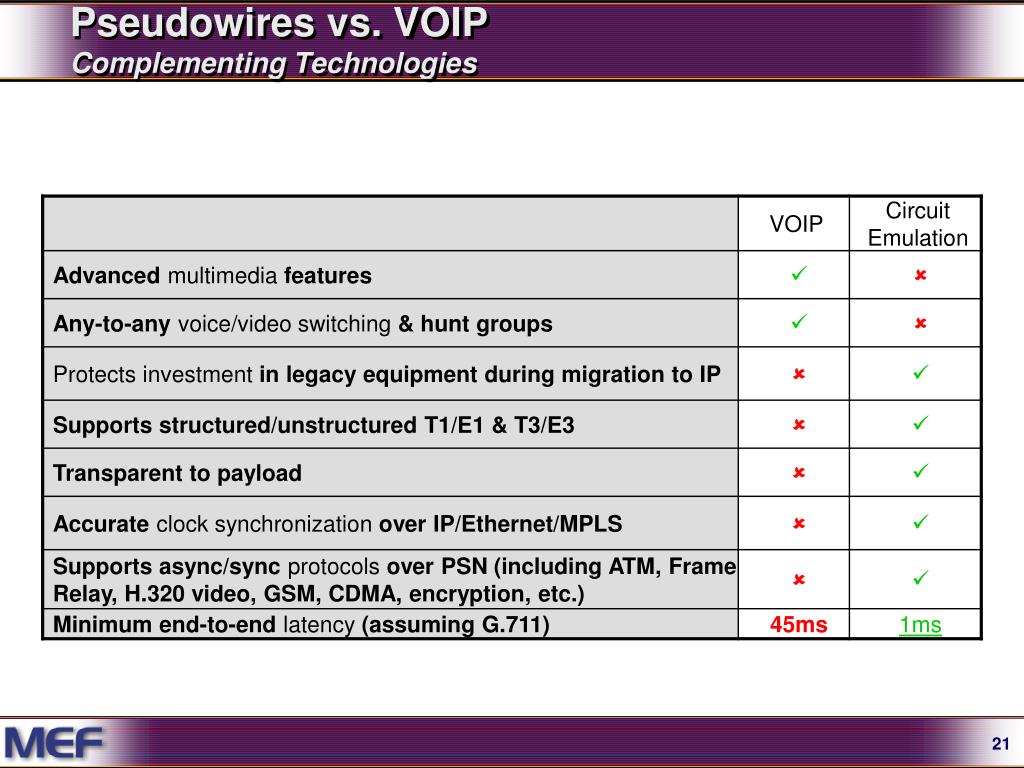

private line services
Private Line (‘legacy’) service revenue still growing

Driving increased demand for circuit emulation

Private Line Services

Total Private Line Revenue (US), 2005-2010 ($Millions) Insight Research Jan 2006

circuit emulation

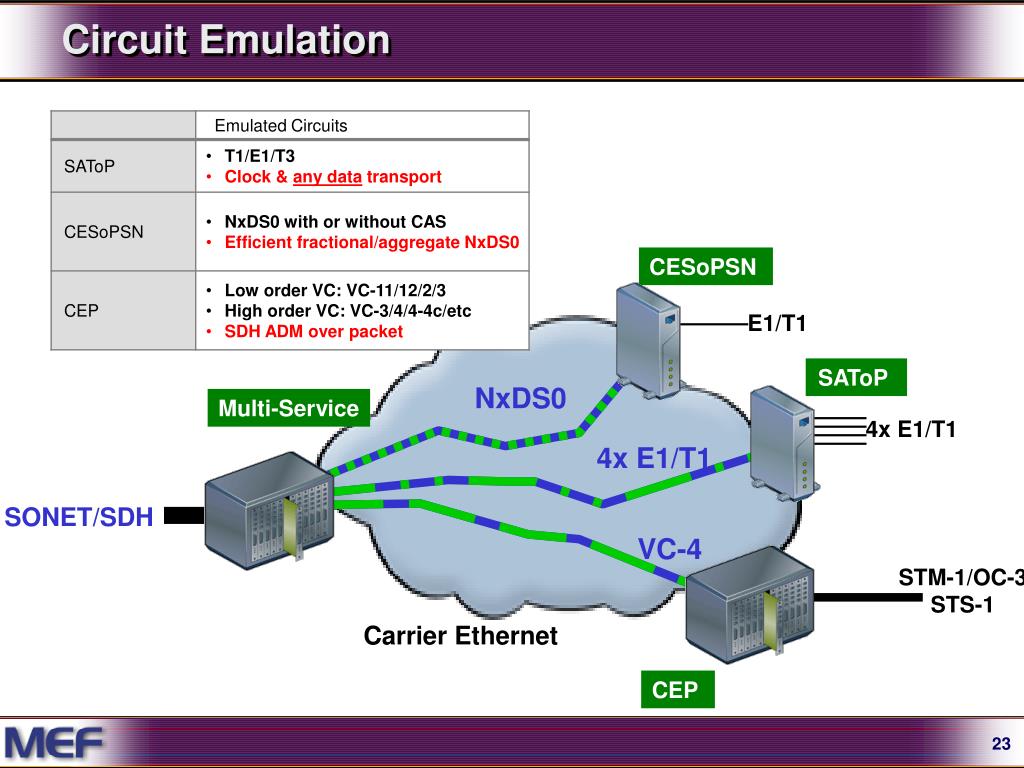

Circuit Emulation

CESoPSN

E1/T1

SAToP

NxDS0

Multi-Service

4x E1/T1

4x E1/T1

SONET/SDH

VC-4

STM-1/OC-3

STS-1

Carrier Ethernet

CEP

typical ces topology
Typical CES Topology

Core

Metro

Access

CPE

Class 5 Switch

TDMBackhaul

SONET/SDH

PSN

nxT1/E1

T1/E1/T3/STM-1/OC-3

Ethernet

Class 5 Switch

Ethernet

Carrier EthernetBackhaul

nxT1/E1

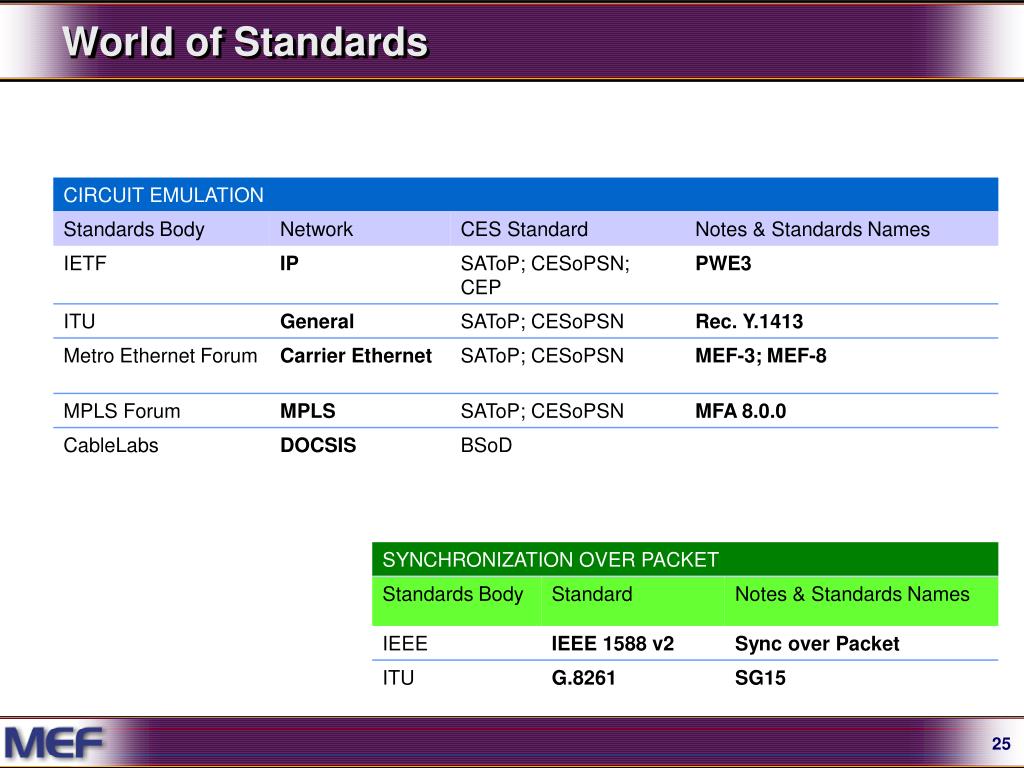

ethernet co exists with other services
Ethernet Co-exists with other Services

MPLS

Hybrid L2 and L3 Ethernet VPNs

ATM Service Inter-working

Carrier

Ethernet

FR Service Inter-working

TDM over Ethernet

ad
