  1. Use of the Nondivergent Wind for Diagnosing Banded Precipitation Systems Thomas J. Galarneau, Jr., and Daniel Keyser Department of Earth and Atmospheric Sciences University at Albany/SUNY Albany, NY 12222 10th Northeast Regional Operational Workshop NOAA/National Weather Service, Albany, NY 6 November 2008

  2. Background • Mesoscale bands modulate the spatial distribution and intensity of precipitation associated with cyclones • Cold-season examples include snowbands within coastal extratropical cyclones • Warm-season examples include coastal fronts within landfalling and transitioning tropical cyclones • CSTAR pedigree for mesoscale substructure within cold- and warm-season cyclones affecting the northeastern U.S. (e.g., Novak et al. 2004, 2006; DeLuca 2004; Klein 2007)

  3. Fig. 3 from Nicosia and Grumm (1999)

  4. 6-h 40-km Meso Eta forecast valid at 1800 UTC 4 Feb 1995 B A Frontogenesis 700 hPa Geo. height 700 hPa Frontogenesis Figs. 4b and 5b from Nicosia and Grumm (1999)

  5. 0000 UTC 6 Feb 2001 WSR-88D Radar Mosaic Fig. 2a from Novak et al. (2004)

  6. 80-km NCEP Eta analysis at 0000 UTC 6 Feb 2001 A B 700 hPa Geo. height 750–650 hPa Frontogenesis 750–650 hPa Warm-air advection 700 hPa Geo. height 750–650 hPa Frontogenesis 750–650 hPa Deformation EPV* Frontogenesis  RH B B A A Figs. 12c,d and 14a,b from Novak et al. (2004)

  7. Conceptual Models Single-banded event Nonbanded event Fig. 15 from Novak et al. (2004)

  8. Conceptual Models Single-banded event Fig. 2 from Novak et al. (2006)

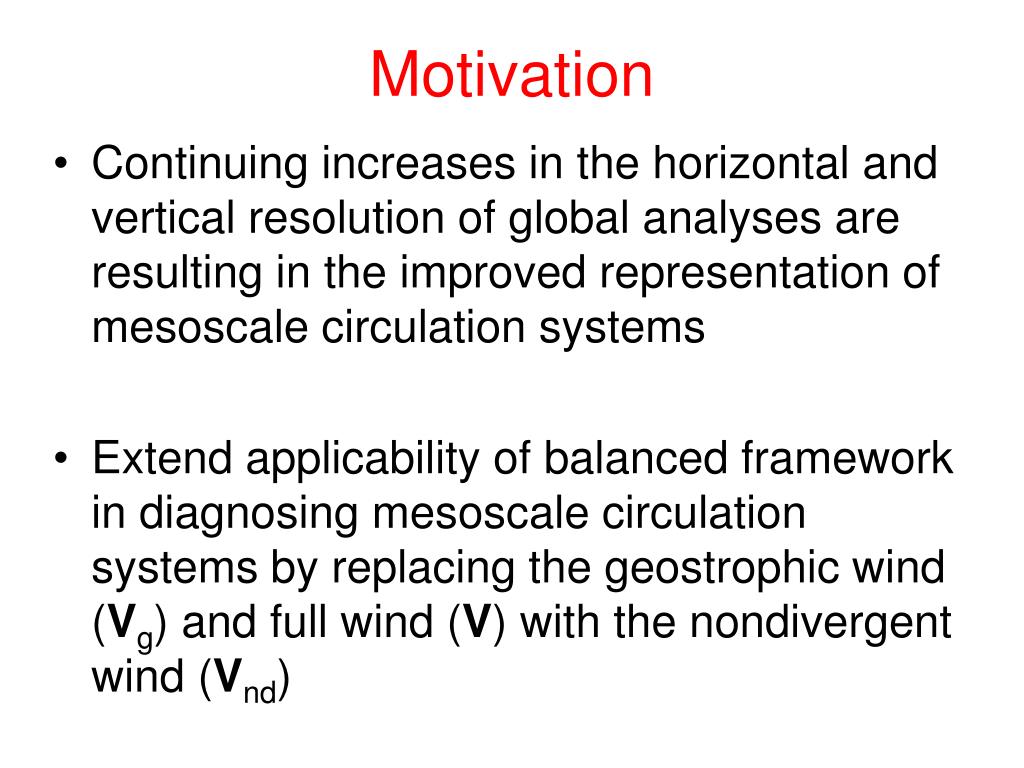

  9. Motivation • Continuing increases in the horizontal and vertical resolution of global analyses are resulting in the improved representation of mesoscale circulation systems • Extend applicability of balanced framework in diagnosing mesoscale circulation systems by replacing the geostrophic wind (Vg) and full wind (V) with the nondivergent wind (Vnd)

  10. Motivation • Use of Vnd in place of Vg and V in a balanced framework is hypothesized to produce cleaner and more coherent diagnostic signatures of mesoscale circulation systems • This hypothesis is addressed here for mesoscale precipitation bands within cold-season cyclones affecting the northeastern U.S.

  11. Effect of Resolution Increase 1800 UTC 14 Feb 2007 1.0 GFS 10 0.5 GFS 700 hPa h (dam),  (K), Q (arrows > 2.5 1010 K m1 s1), Q (1014 K m2 s1)

  12. Calculation of EPV* • Novak et al. (2006, p. 19) discussion of EPV* for the 25 December 2002 snowband case: • We suggest that in curved flow Vnd better represents the balanced wind than Vg or V

  13. Calculation of EPV* • Use of Vnd in EPV* calculation is hypothesized to minimize the spatial extent of EPV* < 0, and the occurrence of localized regions of EPV* << 0 (i.e., EPV* bull’s-eyes) • This modification to the EPV* calculation may lead to a more accurate assessment of the contribution of CSI to the formation and evolution of mesoscale precipitation bands

  14. Goals • Examine mesoscale precipitation bands for two northeast U.S. cyclones • 14 February 2007 • 16 April 2007 • Compare structures shown by diagnostics using Vg, Vnd, and V

  15. Datasets • 0.5 NCEPGFS analyses • NCDC WSR-88D radar archive

  16. Diagnostics • Wind definitions full wind nondivergent wind geostrophic wind

  17. Diagnostics • Petterssen frontogenesis horizontal divergence resultant deformation    angle between isentropes and axes of dilatation

  18. Diagnostics • Saturation equivalent potential vorticity • Q-vectors • Potential temperature in Q-vector calculation is smoothed by a Gaussian filter (weight of 25)

  19. 14 February 2007 00Z/14 12Z 12Z L 00Z/15 12Z 12Z L 12Z 00Z/15 L 00Z/15 L 00Z/12 00Z/12 L 12Z 00Z/14 L 12Z L 12Z L L 12Z 12Z 00Z/13 00Z/14 00Z/14 00Z/13 12Z Position of key synoptic features marked every 12 h L primary cyclone; L secondary cyclone upper-level PV anomaly

  20. Source: http://www.erh.noaa.gov/er/aly/past.htm

  21. dBZ 1200 UTC 1500 UTC VT ME NH NY MA CT RI PA 1800 UTC 2100 UTC 14 February 2007 WSR-88D base reflectivity mosaic

  22. 1800 UTC 14 Feb 2007 approximate band position SLP (hPa), 1000–500 hPa thickness (dam) 10 700 hPa h (dam),  (K), Q (arrows > 2.5 1010 K m1 s1), Q (1014 K m2 s1)

  23. 1800 UTC 14 Feb 2007 approximate band position SLP (hPa), 1000–500 hPa thickness (dam) 700 hPa h (dam), 750–650 hPa frontogenesis [K (100 km)1 (3 h)1], 750–650 hPa E (105 s1)

  24. 1800 UTC 14 Feb 2007 RH (%),  (103 hPa s1) Frontogenesis [K (100 km)1 (3 h)1], EPV* (PVU), es (K)

  25. 16 April 2007 12Z 00Z/12 00Z/15 12Z 00Z/14 00Z/13 12Z 12Z 00Z/16 00Z/17 L 12Z 12Z L 12Z 12Z 00Z/17 L L 00Z/16 00Z/14 00Z/15 00Z/17 L L 12Z 12Z 12Z 00Z/15 00Z/16 L 12Z 00Z/15 Position of key synoptic features marked every 12 h L primary cyclone; L secondary cyclone upper-level PV anomaly

  26. Source: http://www.erh.noaa.gov/er/aly/past.htm

  27. Source: http://www.erh.noaa.gov/er/aly/past.htm

  28. dBZ 2100 UTC 0000 UTC VT ME NH NY MA CT RI PA 0300 UTC 0600 UTC 15–16 April 2007 WSR-88D base reflectivity mosaic

  29. 0000 UTC 16 Apr 2007 approximate band position SLP (hPa), 1000–500 hPa thickness (dam) 10 700 hPa h (dam),  (K), Q (arrows > 2.5 1010 K m1 s1), Q (1014 K m2 s1)

  30. 0000 UTC 16 Apr 2007 approximate band position SLP (hPa), 1000–500 hPa thickness (dam) 700 hPa h (dam), 750–650 hPa frontogenesis [K (100 km)1 (3 h)1], 750–650 hPa E (105 s1)

  31. 0000 UTC 16 Apr 2007 RH (%),  (103 hPa s1) Frontogenesis [K (100 km)1 (3 h)1], EPV* (PVU), es (K)

  32. Case Summary Schematics 16 Apr 2007 14 Feb 2007 N E L L 500 km 700 hPa Novak et al. (2004) conceptual model Streamlines Deformation Frontogenesis Upper-level jet

  33. Concluding Remarks • Increases in horizontal and vertical resolution of global analyses are leading to the improved representation of mesoscale circulation systems, but also are resulting in noisier diagnostics using Vg and V • Use of Vnd in place of Vg and V was hypothesized to produce cleaner and more coherent diagnostic signatures of mesoscale circulation systems

  34. Concluding Remarks • Use of Vnd in place of Vg and V has been shown to produce improved signatures of Q divergence, Petterssen frontogenesis, and moist symmetric stability within banded precipitation systems for two cold-season cyclone cases over the northeastern U.S.: 14 February and 16 April 2007 • sd • Results for these two cases agree with previous work on mesoscale band formation • Deep-layer frontogenesis slopes toward colder air • Band forms on warm-air side of frontogenesis maximum in presence of weak moist symmetric stability
