5 2 xsl

單元5-2:撰寫XSL程式

王豐緒

銘傳大學資工系


5 2 xsl

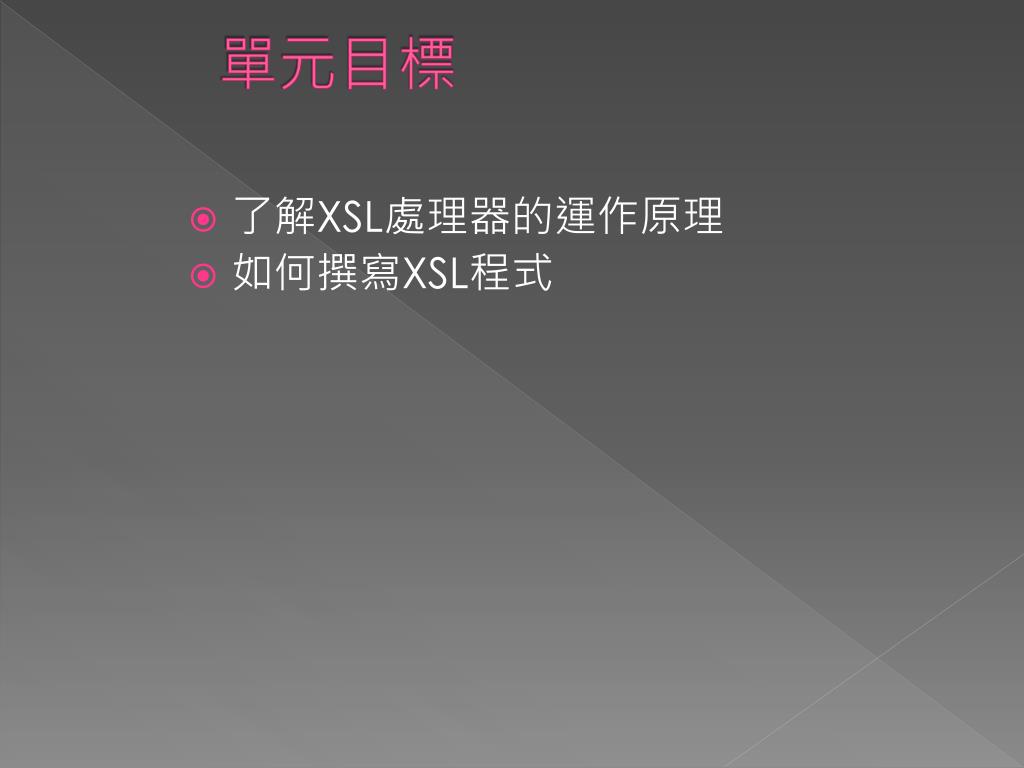

單元目標

  • 了解XSL處理器的運作原理

  • 如何撰寫XSL程式


What is the output 1 2

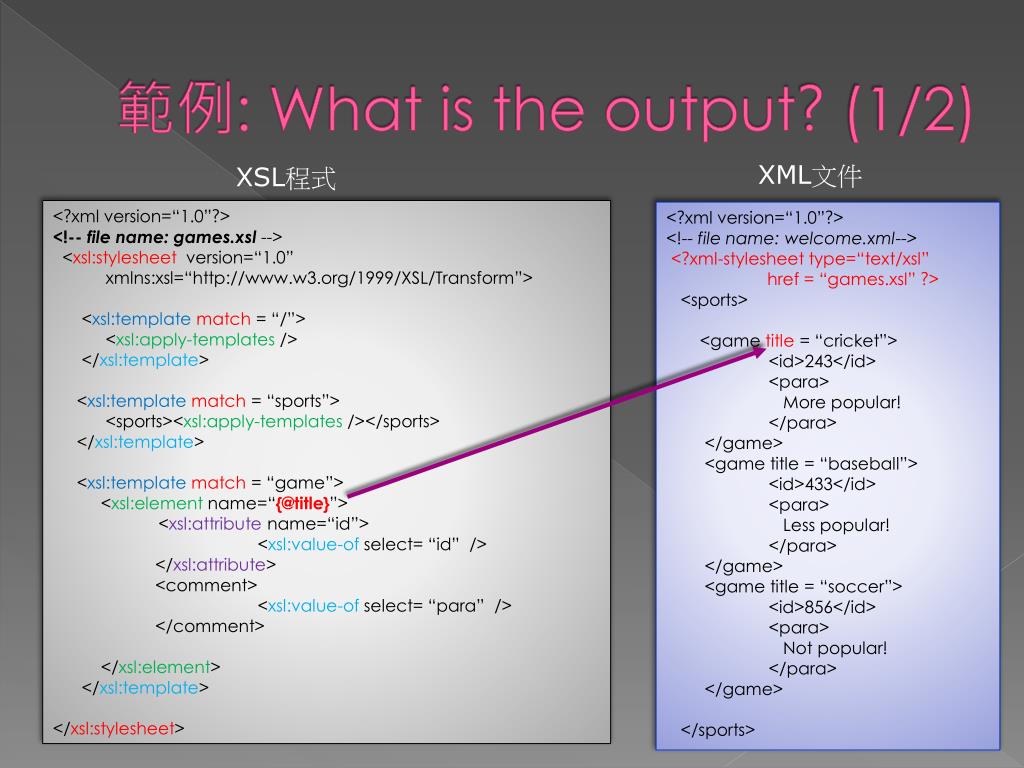

範例: What is the output? (1/2)

XML文件

XSL程式

<?xml version=“1.0”?>

<!-- file name: games.xsl-->

<xsl:stylesheet version=“1.0” xmlns:xsl=“http://www.w3.org/1999/XSL/Transform”>

<xsl:templatematch = “/”>

<xsl:apply-templates />

</xsl:template>

<xsl:templatematch = “sports”>

<sports><xsl:apply-templates /></sports>

</xsl:template>

<xsl:templatematch = “game”>

<xsl:element [email protected]}”>

<xsl:attribute name=“id”>

<xsl:value-of select= “id” />

</xsl:attribute>

<comment>

<xsl:value-of select= “para” />

</comment>

</xsl:element>

</xsl:template>

</xsl:stylesheet>

<?xml version=“1.0”?>

<!-- file name: welcome.xml-->

<?xml-stylesheet type=“text/xsl”href = “games.xsl” ?>

<sports>

<game title = “cricket”>

<id>243</id>

<para>

More popular!

</para>

</game>

<game title = “baseball”>

<id>433</id>

<para>

Less popular!

</para>

</game>

<game title = “soccer”>

<id>856</id>

<para>

Not popular!

</para>

</game>

</sports>


What is the output 2 2

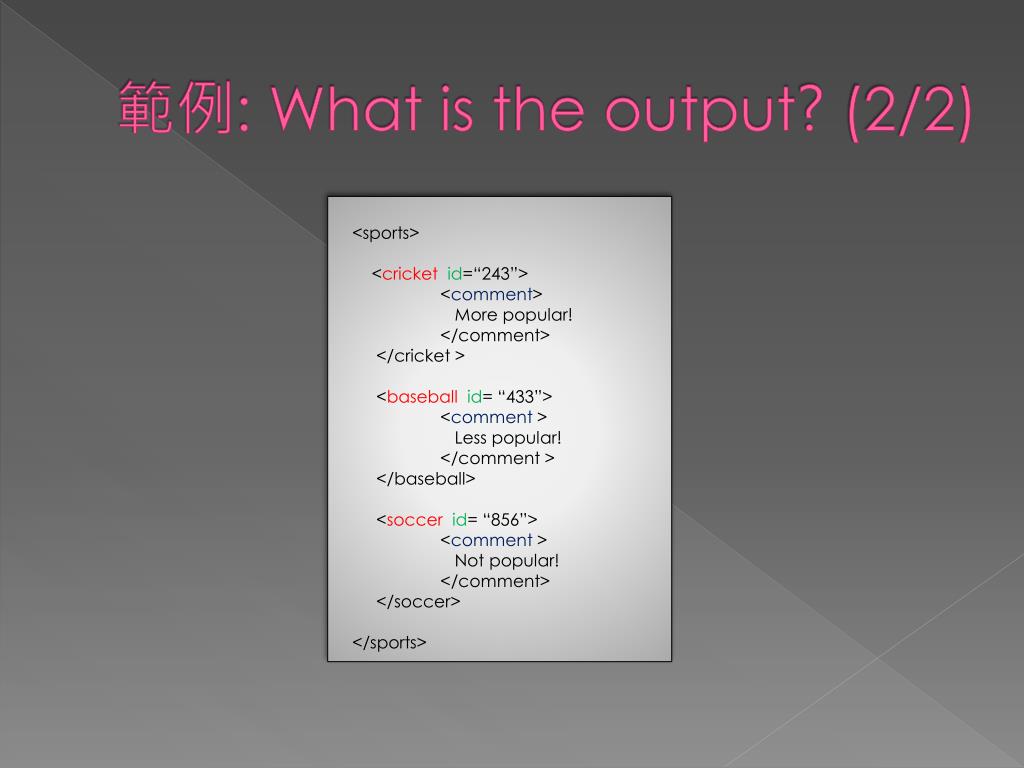

範例: What is the output? (2/2)

<sports>

<cricketid=“243”>

<comment>

More popular!

</comment>

</cricket >

<baseballid= “433”>

<comment >

Less popular!

</comment >

</baseball>

<soccerid= “856”>

<comment >

Not popular!

</comment>

</soccer>

</sports>


Xsl 1 6

/

title=“cricket”

sports

game

id

243

para

More popular

game

id

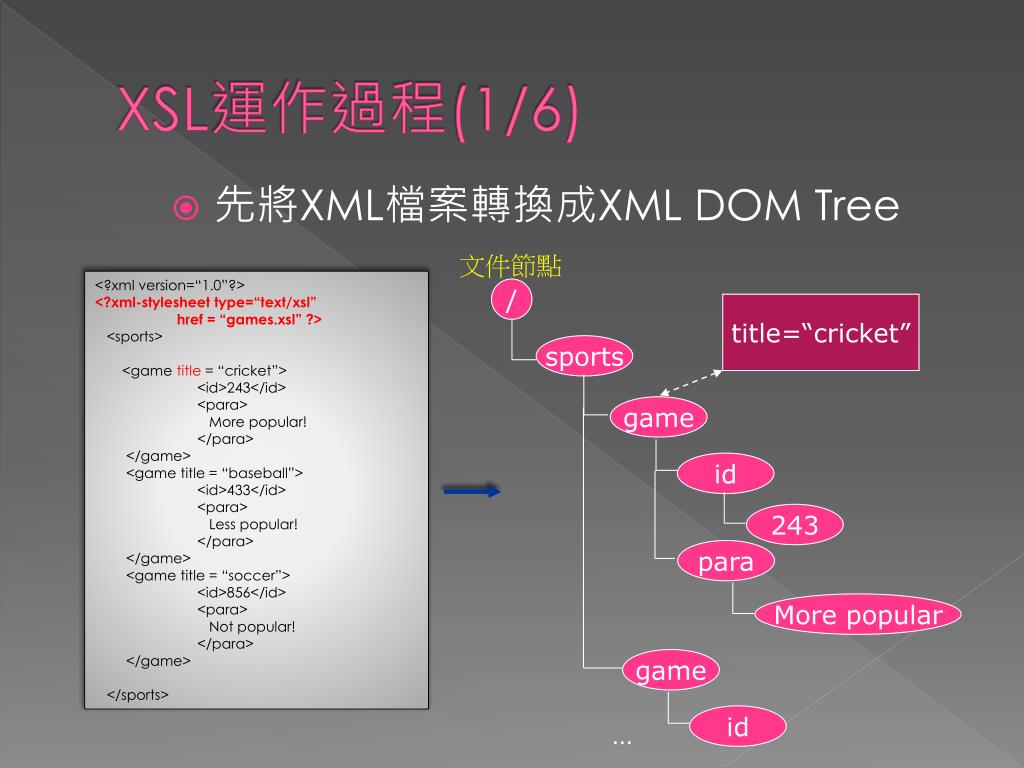

XSL運作過程(1/6)

  • 先將XML檔案轉換成XML DOM Tree

文件節點

<?xml version=“1.0”?>

<?xml-stylesheet type=“text/xsl” href = “games.xsl” ?>

<sports>

<game title = “cricket”>

<id>243</id>

<para>

More popular!

</para>

</game>

<game title = “baseball”>

<id>433</id>

<para>

Less popular!

</para>

</game>

<game title = “soccer”>

<id>856</id>

<para>

Not popular!

</para>

</game>

</sports>


Xsl 2 6

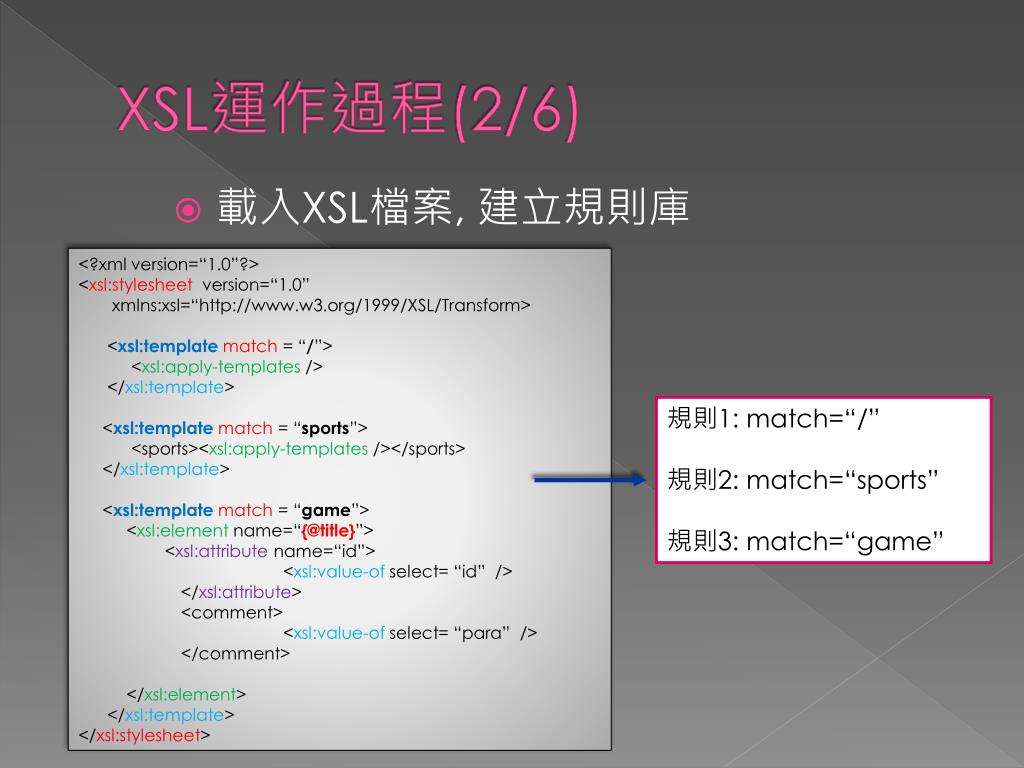

XSL運作過程(2/6)

  • 載入XSL檔案, 建立規則庫

<?xml version=“1.0”?>

<xsl:stylesheet version=“1.0” xmlns:xsl=“http://www.w3.org/1999/XSL/Transform>

<xsl:templatematch = “/”>

<xsl:apply-templates />

</xsl:template>

<xsl:templatematch = “sports”>

<sports><xsl:apply-templates /></sports>

</xsl:template>

<xsl:templatematch = “game”>

<xsl:element [email protected]}”>

<xsl:attribute name=“id”>

<xsl:value-of select= “id” />

</xsl:attribute>

<comment>

<xsl:value-of select= “para” />

</comment>

</xsl:element>

</xsl:template>

</xsl:stylesheet>

規則1: match=“/”

規則2: match=“sports”

規則3: match=“game”


Xsl 3 6

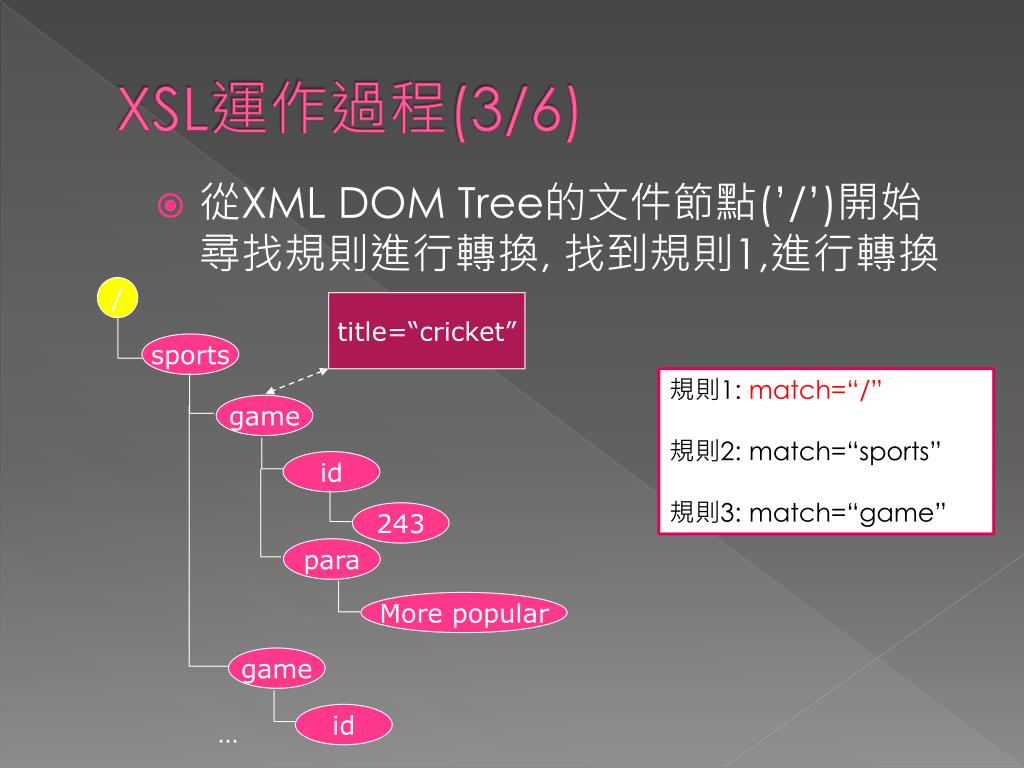

XSL運作過程(3/6)

  • 從XML DOM Tree的文件節點(’/’)開始尋找規則進行轉換, 找到規則1,進行轉換

/

title=“cricket”

sports

規則1: match=“/”

規則2: match=“sports”

規則3: match=“game”

game

id

243

para

More popular

game

id


Xsl 4 6

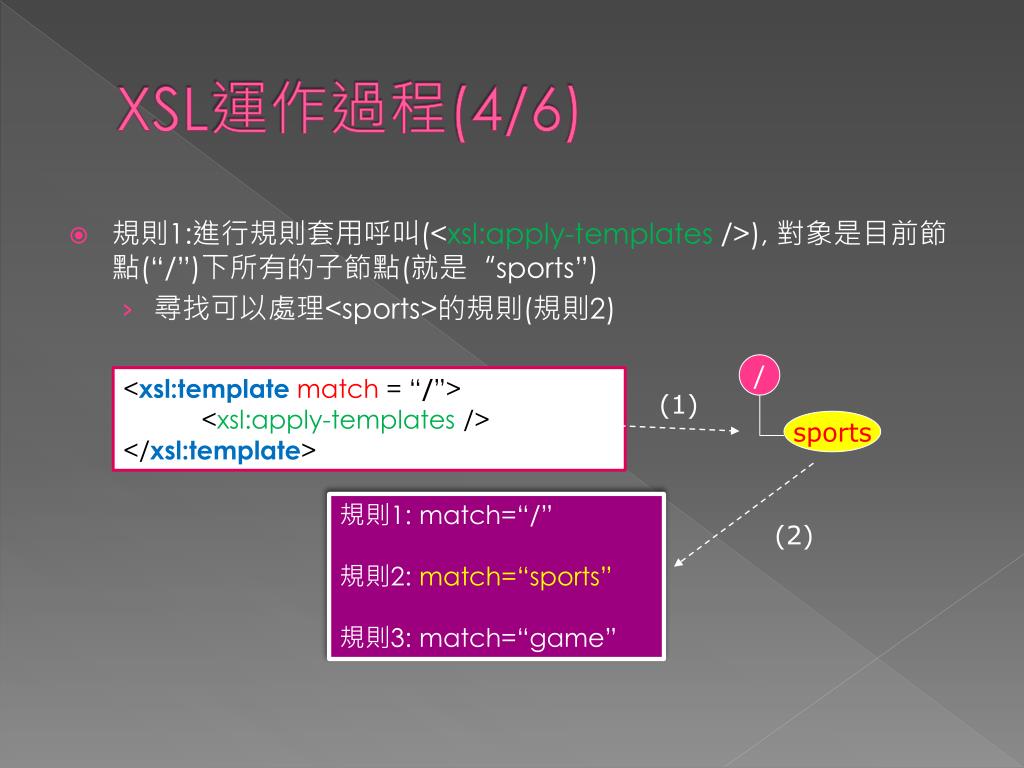

XSL運作過程(4/6)

  • 規則1:進行規則套用呼叫(<xsl:apply-templates />), 對象是目前節點(“/”)下所有的子節點(就是“sports”)

    • 尋找可以處理<sports>的規則(規則2)

/

<xsl:templatematch = “/”>

<xsl:apply-templates />

</xsl:template>

(1)

sports

規則1: match=“/”

規則2: match=“sports”

規則3: match=“game”

(2)


Xsl 5 6

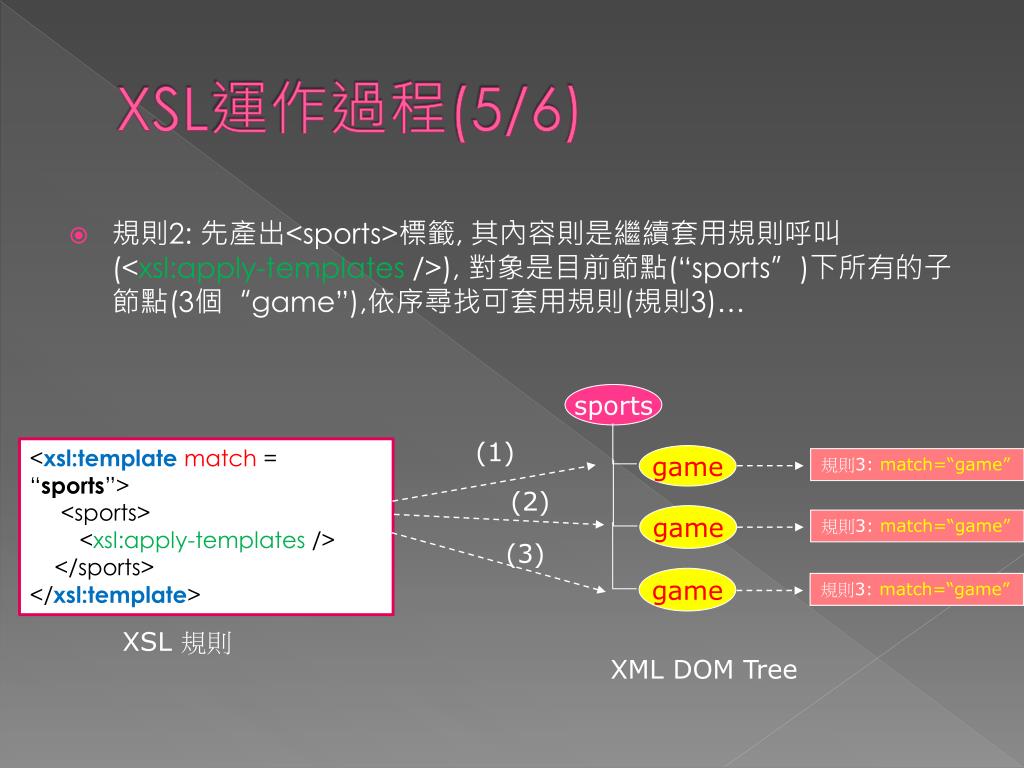

XSL運作過程(5/6)

  • 規則2: 先產出<sports>標籤, 其內容則是繼續套用規則呼叫(<xsl:apply-templates />), 對象是目前節點(“sports”)下所有的子節點(3個“game”),依序尋找可套用規則(規則3)…

sports

(1)

<xsl:templatematch = “sports”>

<sports>

<xsl:apply-templates />

</sports>

</xsl:template>

game

規則3: match=“game”

(2)

game

規則3: match=“game”

(3)

game

規則3: match=“game”

XSL規則

XMLDOMTree


Xsl 6 6

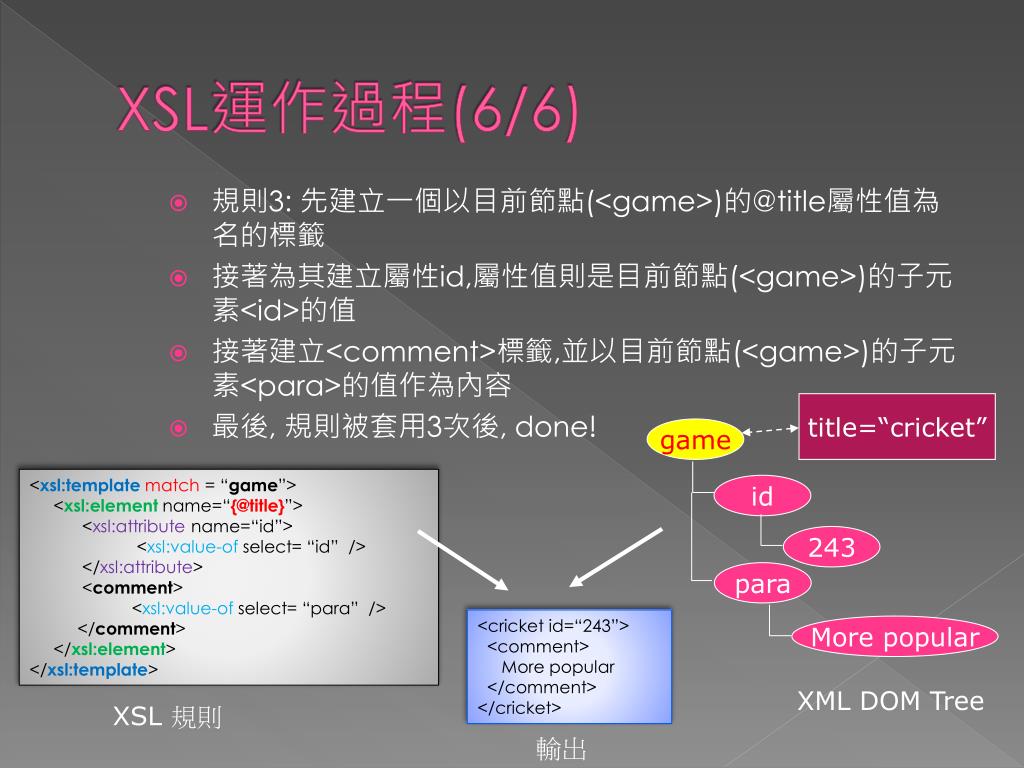

XSL運作過程(6/6)

  • 規則3: 先建立一個以目前節點(<game>)[email protected]

  • 接著為其建立屬性id,屬性值則是目前節點(<game>)的子元素<id>的值

  • 接著建立<comment>標籤,並以目前節點(<game>)的子元素<para>的值作為內容

  • 最後, 規則被套用3次後, done!

title=“cricket”

game

<xsl:templatematch = “game”>

<xsl:element [email protected]}”>

<xsl:attribute name=“id”>

<xsl:value-of select= “id” />

</xsl:attribute>

<comment>

<xsl:value-of select= “para” />

</comment>

</xsl:element>

</xsl:template>

id

243

para

<cricket id=“243”>

<comment>

More popular

</comment>

</cricket>

More popular

XMLDOMTree

XSL規則

輸出


5 2 xsl

如何撰寫XSL程式

  • 務必先了解XSL的運作原理

  • 了解題目所給XML文件的結構

  • 了解所欲轉換成的結果(如HTML網頁)

  • 分析XML與轉換結果的對應關係

  • 撰寫XSL的對應轉換規則

  • 測試-除錯-修改-直到完成


5 2 xsl

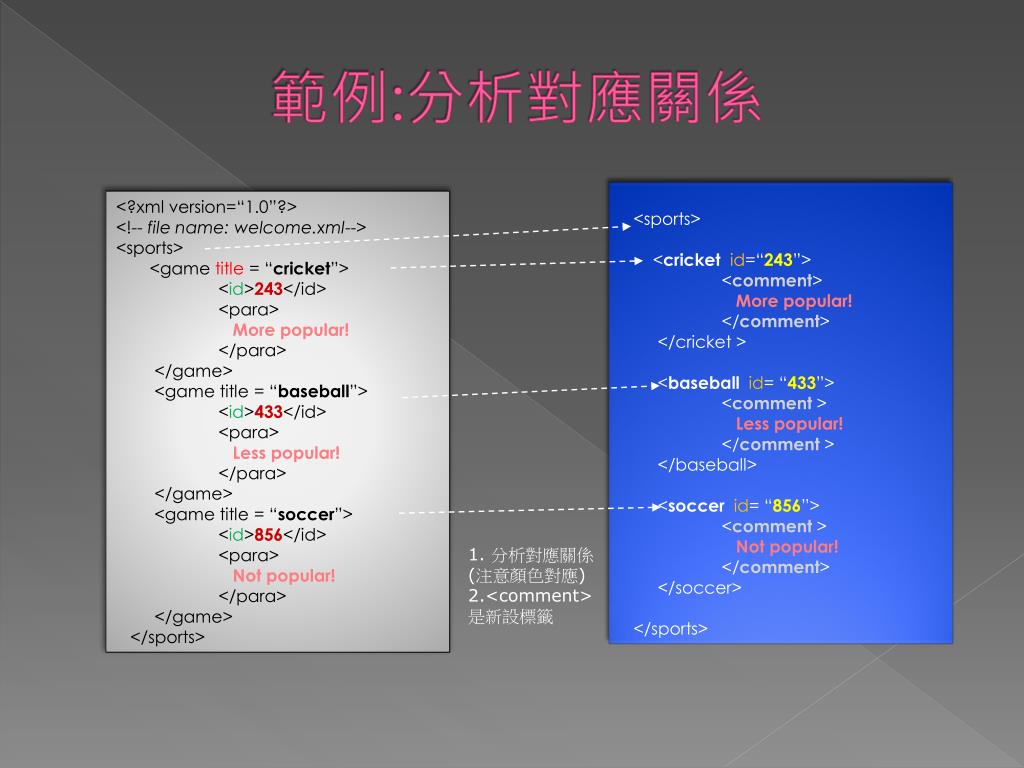

範例:分析對應關係

<sports>

<cricketid=“243”>

<comment>

More popular!

</comment>

</cricket >

<baseballid= “433”>

<comment >

Less popular!

</comment >

</baseball>

<soccer id= “856”>

<comment >

Not popular!

</comment>

</soccer>

</sports>

<?xml version=“1.0”?>

<!-- file name: welcome.xml-->

<sports>

<game title = “cricket”>

<id>243</id>

<para>

More popular!

</para>

</game>

<game title = “baseball”>

<id>433</id>

<para>

Less popular!

</para>

</game>

<game title = “soccer”>

<id>856</id>

<para>

Not popular!

</para>

</game>

</sports>

1. 分析對應關係

(注意顏色對應)

2.<comment>

是新設標籤


5 2 xsl

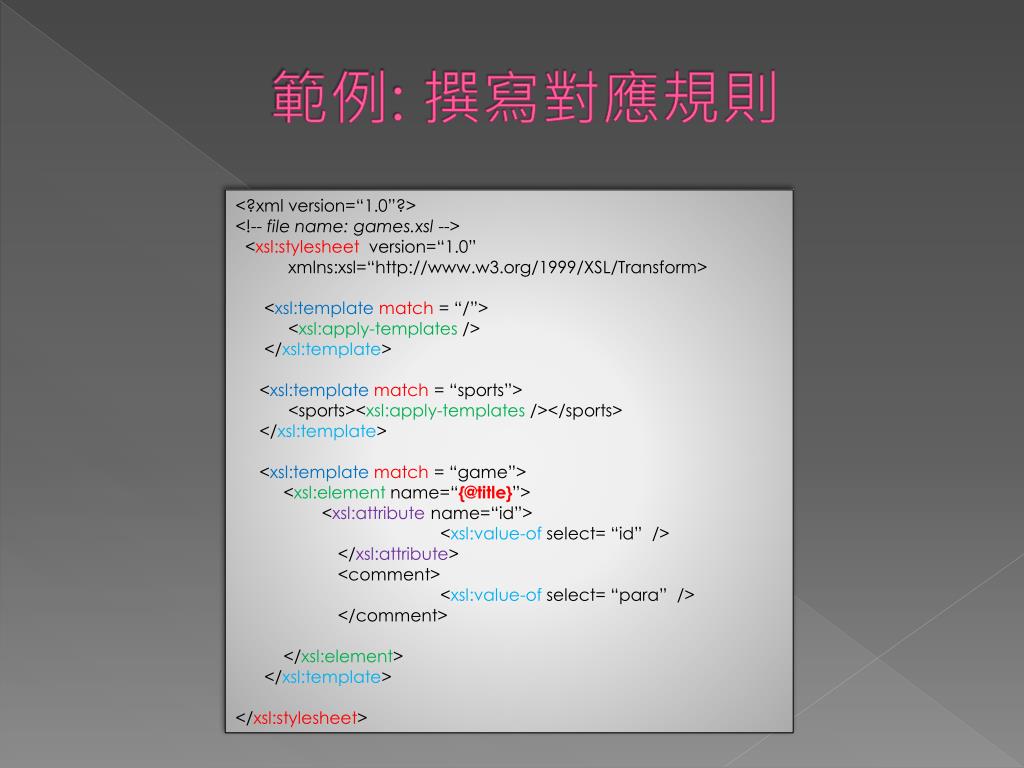

範例: 撰寫對應規則

<?xml version=“1.0”?>

<!-- file name: games.xsl-->

<xsl:stylesheet version=“1.0” xmlns:xsl=“http://www.w3.org/1999/XSL/Transform>

<xsl:templatematch = “/”>

<xsl:apply-templates />

</xsl:template>

<xsl:templatematch = “sports”>

<sports><xsl:apply-templates /></sports>

</xsl:template>

<xsl:templatematch = “game”>

<xsl:element [email protected]}”>

<xsl:attribute name=“id”>

<xsl:value-of select= “id” />

</xsl:attribute>

<comment>

<xsl:value-of select= “para” />

</comment>

</xsl:element>

</xsl:template>

</xsl:stylesheet>


5 2 xsl

單元複習

  • 追蹤更複雜的XSL程式以了解XSL處理器的運作原理

  • 如何撰寫XSL程式的一般性原則
