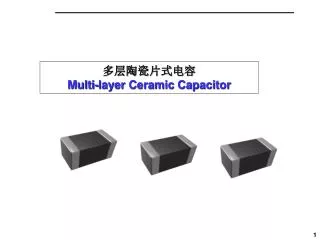

  1. 多层陶瓷片式电容Multi-layer Ceramic Capacitor 1

  2. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor • 1、MLCC 产品特性 Characteristics of MLCC • 体积小 • Miniature size • 容量大，温度特性好 • Large capacitance , good TC • 工业生产标准尺寸 • Industry standard sizes。 • 适合自动安装的8mm和12mm的卷带包装 • 8mm and 12mm Tape & Reel for auto-placement • 可用于再流焊、波峰焊和气流焊 • Available for wave, re-flow or vapor phase solder。 2

  3. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor • 2、MLCC 产品剖面图 MLCC Section Plane。 多层陶瓷片式电容器 3

  4. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor • MLCC 产品剖面图 MLCC Section Plane。 多层陶瓷片式电容器 4

  5. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 3、生产流程PRODUCING FLOW CHART QC QC QC 流延 Casting 瓷浆制备 Mixing & Milling 丝网叠印 Printing 层压 Lamination QC QC QC QC 高温烧成 Firing 排胶 Burn Out 倒角 Tumbling 切割 Cutting QC QC QC QC 封端 Termination 烧端 Terminal Firing 电镀 Plating 清洗 Cleaning QC QC 包装(编带包装、散包装) Package(Tape & Reel, Bulk Package) 终检验 Final Inspection 测试 Testing 5

  6. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 生产现场 Producing Location 6

  7. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 7

  8. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 4、主要类型产品 Main Products 8

  9. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor • 5、其他类型产品 • Other Series • 1. 负温 Temperature Compensating MLCC • 2.中高压 High Voltage MLCC • 3. 高Q High Q Value MLCC • 4. 排容 C-Array • 5. 滤波器 EMI Filter 9

  10. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 6、质量控制 Quality Control 10

  11. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor “8S”生产现场管理 “8S” production field management 11

  12. 多层陶瓷片式电容 Multi-layer Ceramic Capacitor 7、技术革新及新思路： Technology Innovation and New Ideas： A：薄介质、高容量趋势 Thin dielectric, large capacitance B：新型成膜方式 New method to make ceramic film C：高频化 High frequency D：小型化 Small size E：大容量化 Large capacitance F: 新材料的研究开发及应用 R&D and application for New Material 12
