  1. HEPiX Spring 2013Report Luis FERNANDEZ ALVAREZ (IT-OIS)

  2. Security and Networking Security and Networking - 2

  3. Overview • Total of 7 talks in Wednesday session • Spring 2011 (4) 2012 (6) • Fall 2011 (7) 2012 (11) • Topics: • IPv6 • Network monitoring • Identity management • Security • DNS HA • Institutes & Others: • INFN, Indiana University, CNAF, University of Michigan, BrightLite Information Security, STFC, CERN. Security and Networking - 3

  4. IPv6 (I) Talks The HEPiX IPv6 working group The last year of IPv6 HEPiX test bed operation • IPv4 exhaustion, it will also hit CERN • Adoption of IPv6 for applications and WLCG • Have IPv6-only WNs by 2014 • Big challenge => more resources (people + equipment) • HEPiX distributed test bed in progress • LHC Experiments on board: CMS, LHCb, ALICE & ATLAS • Configuration validation: DNS entries, ping6,… • Simple data transfers between all nodes simultaneously • 2013 • Include all Tier 1, decide services running dual stack, testing (volunteers),… Security and Networking - 4

  5. IPv6 (II) • Technologies used in the testbed: • Globus/GridFTP, UberFTP, glibc, DHCPv6, RAs… • The workgroup highlights some issues: • IPv6 seems still not to be taken seriously when it comes to writing/patching software. • Tracking and keeping traction on issues resolution has proved to be slow and expensive • Protocol specification mesh, minor infrastructure rethink Security and Networking - 5

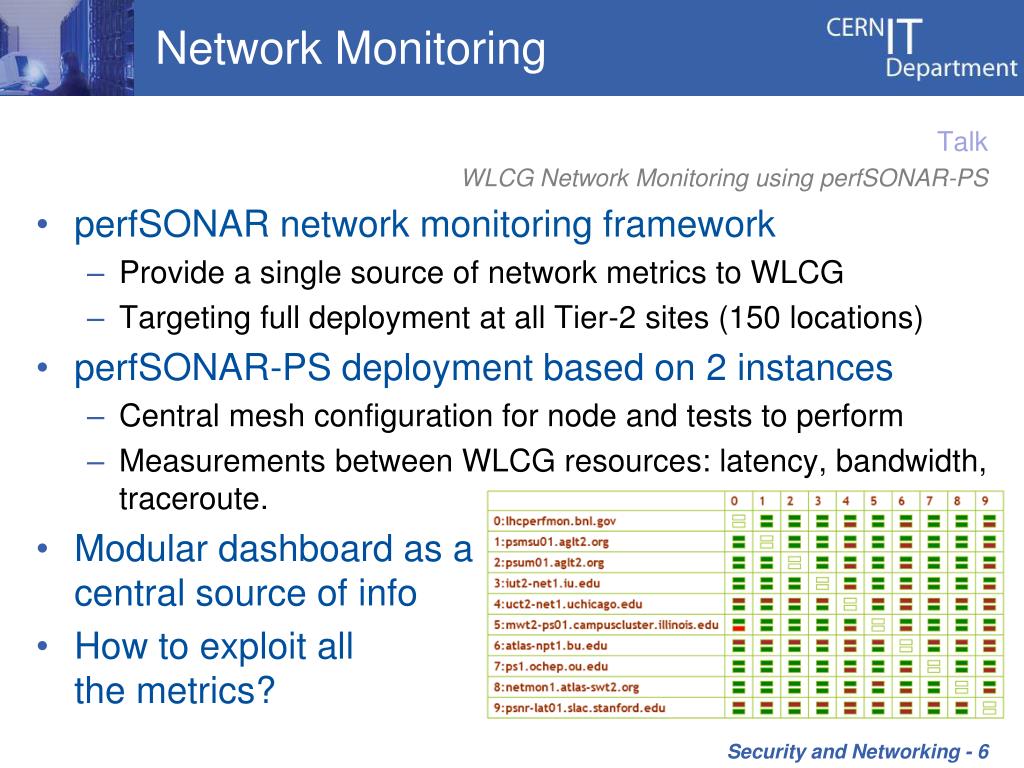

  6. Network Monitoring Talk WLCG Network Monitoring using perfSONAR-PS • perfSONAR network monitoring framework • Provide a single source of network metrics to WLCG • Targeting full deployment at all Tier-2 sites (150 locations) • perfSONAR-PS deployment based on 2 instances • Central mesh configuration for node and tests to perform • Measurements between WLCG resources: latency, bandwidth, traceroute. • Modular dashboard as a central source of info • How to exploit all the metrics? Security and Networking - 6

  7. Identity Management Talks Identity Federation – HEP/WLCG eXtreme Scale Identity Management (XSIM) for Scientific Collaborations • Identity Federation (FIM4R), use cases • Web-based grid portals for job submission. • CLI-based job submission. • Working group: proof-of-concept pilot service for CLI • WLCG resources through home-issued credentials • ECP, CILogon • CLI tool working, promising results • Blocking issues • ECP profile is not widely supported among IdPs • No further work on current pilot based on ECP • Discussion on trust, LoA, Web use case, ECP alternatives… Security and Networking - 7

  8. Identity Management (II) • XSIM: trustworthy extreme-scale scientific collaborations • Understand and formalize a model of IdM • Method • Understand the core elements of trust relationship • How those relations would be expressed in IdM? • Model validation, software and applied research • Interviews with VOs and RPs • Constitution of VOs, relation with RPs and users, threats, policies, lessons learned… • No results in raw format • Unstructured format, privacy • Next target: publication of results at CHEP/eScience Security and Networking - 8

  9. Security Talk Security Update • Botnets & SSH attacks • Citadel (Man-in-the-browser) compromised 11730 hosts • Ebury sshd Trojan: compiled for each victim, stealth,… • WLCG • Risk Analysis: misused identities, attack propagation, OS vulnerabilities • Incidents 10-12 per year (2012 quieter than usual) • Paradigm shift • Control mechanisms: from local users to federation with good reputation sites • Security perimeters: from ensuring attackers to never run any kind of arbitrary code to allow it in an isolated VM environment • VMs isolation impossible & traditional mechanisms obsolete • Traceability for containing, resolving and preventing issues • Store and analyze data Security and Networking - 9

  10. DNS HA Talk DNS multi master architecture for High Availability services • Resilient DNS, guarantee full functionality • Modify IP of a service during the downtime of a site hosting one authoritative DNS • Nagios + BIND9-DLZ + MySQL (circular replication) • BIND9 Limitations: Reads data from text files, stores it in memory, changes implies reloading • It permits to change the IP addresses even if one of the sites is down Security and Networking - 10

  11. Grid, Cloud AND virtualization Grid, cloud and virtualization - 11

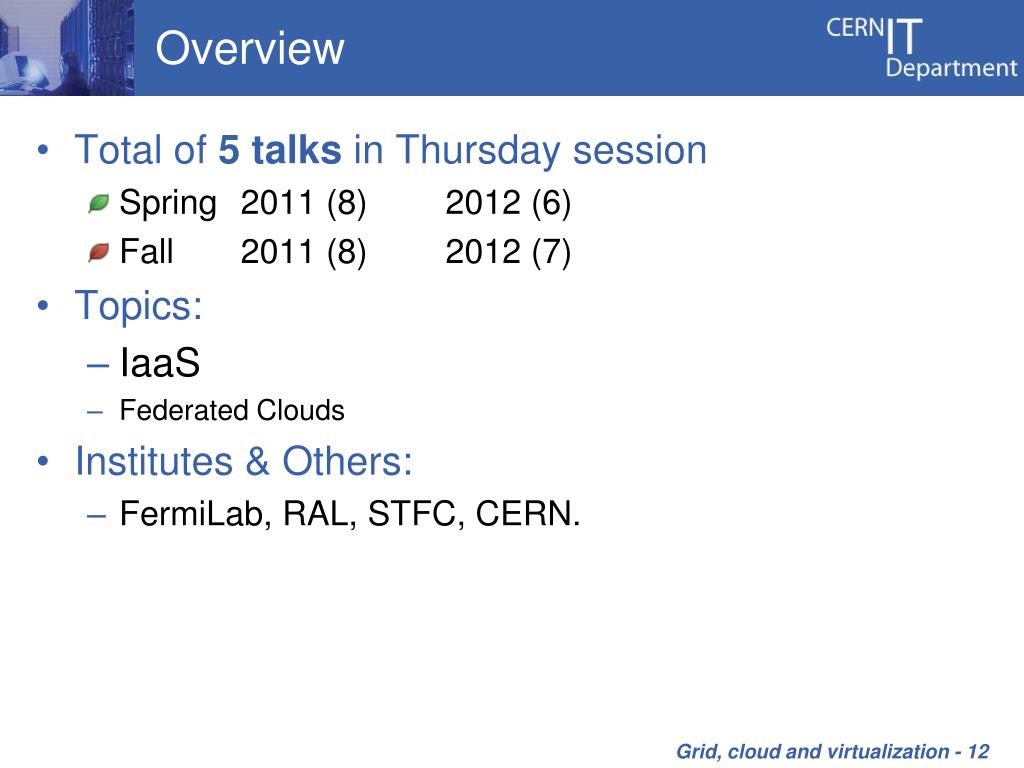

  12. Overview • Total of 5 talks in Thursday session • Spring 2011 (8) 2012 (6) • Fall 2011 (8) 2012 (7) • Topics: • IaaS • Federated Clouds • Institutes & Others: • FermiLab, RAL, STFC, CERN. Grid, cloud and virtualization - 12

  13. IaaS (I) Talks Virtualisation Cloud Computing at the RAL Tier 1 The CMS openstack, opportunistic, overlay, online-cluster Cloud FermiGrid and FermiCloud Updates Vmcaster and Vmcatcher • Virtualization @ RAL (Hyper-V Platform) • ~200VMs over 3 years (provisioning more responsive) • HA shared storage (minimize important data on VMs) • Not wedded to Hyper-V • Prototype StratusLab private cloud (~300 cores) • WiP: Federation, Evaluating CEPH & Integrate the cloud into Tier 1 • Rethink the platform itself • WLCG: dynamically-provisioned worker nodes • Tested with: HTCondor & Slurm Grid, cloud and virtualization - 13

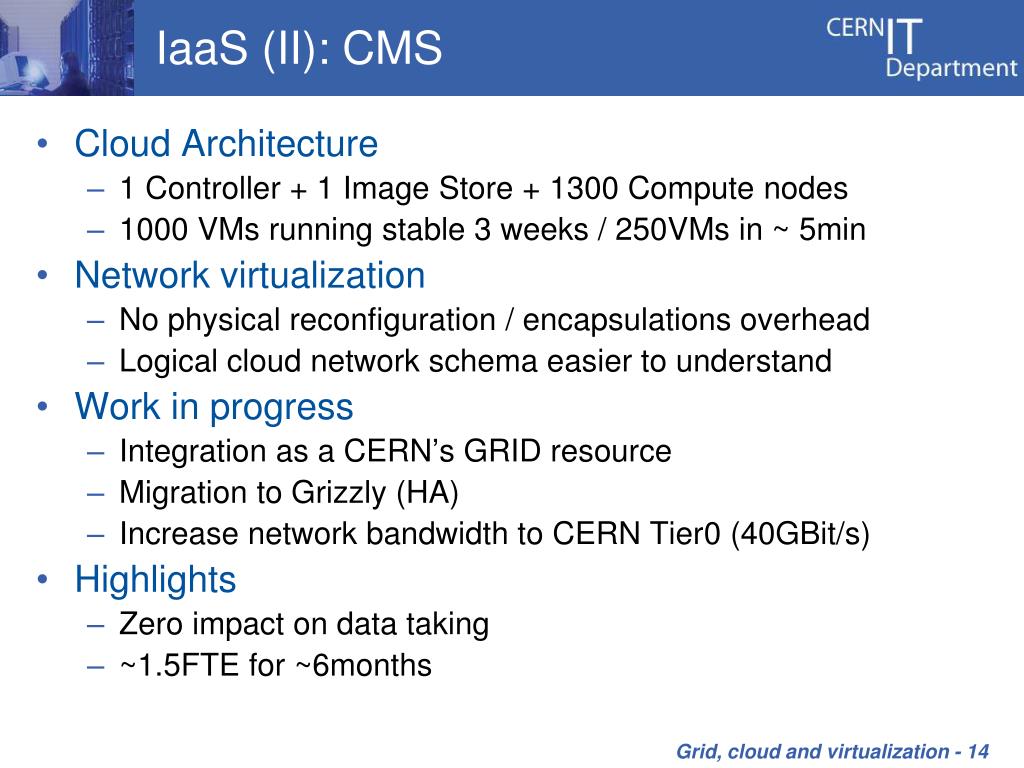

  14. IaaS (II): CMS • Cloud Architecture • 1 Controller + 1 Image Store + 1300 Compute nodes • 1000 VMs running stable 3 weeks / 250VMs in ~ 5min • Network virtualization • No physical reconfiguration / encapsulations overhead • Logical cloud network schema easier to understand • Work in progress • Integration as a CERN’s GRID resource • Migration to Grizzly (HA) • Increase network bandwidth to CERN Tier0 (40GBit/s) • Highlights • Zero impact on data taking • ~1.5FTE for ~6months Grid, cloud and virtualization - 14

  15. IaaS (III) • FermiGrid • FermiGrid-HA(2) • WiP: IPv6, SHA-2, merge services into FermiCloud • FermiCloud based on OpenNebula • Distributed fault tolerance highly desirable • VM Acceptance process (security probes, sandbox,…) • Idle VM detection & suspension when needed • Virtualized MPI results: >96% of the bare metal performance • Starting… • Interoperability and federation • Reevaluate OpenStack and other stacks Grid, cloud and virtualization - 15

  16. IaaS (IV) • vmcaster and vmcatcher • Repository for VM images (rpm/deb style) • Deployments • OpenStack @ CC-IN2P3 • OpenNebula @ CESGA • EGI Federated Cloud Task Force • Contextualisationbased on archiveoverlays • Images are public, overlays are private • Status • Vmcatcher work needed • Vmcaster production Grid, cloud and virtualization - 16

  17. Federated Cloud Talk EGI Federated Cloud Infrastructure status • Create an uniform access to the cloud • Federation system agnostic about a particular stack • Standard interfaces: • OCCI, CDMI,… • 30 active individuals in FedCloud VO Grid, cloud and virtualization - 17

  18. HEPiX Spring 2013Report Thanks
