Medical response to nuclear and radiological events

Medical Response to Nuclear and Radiological Events

Cham Dallas, PhD

DirectorCDC Center for Mass Destruction Defense

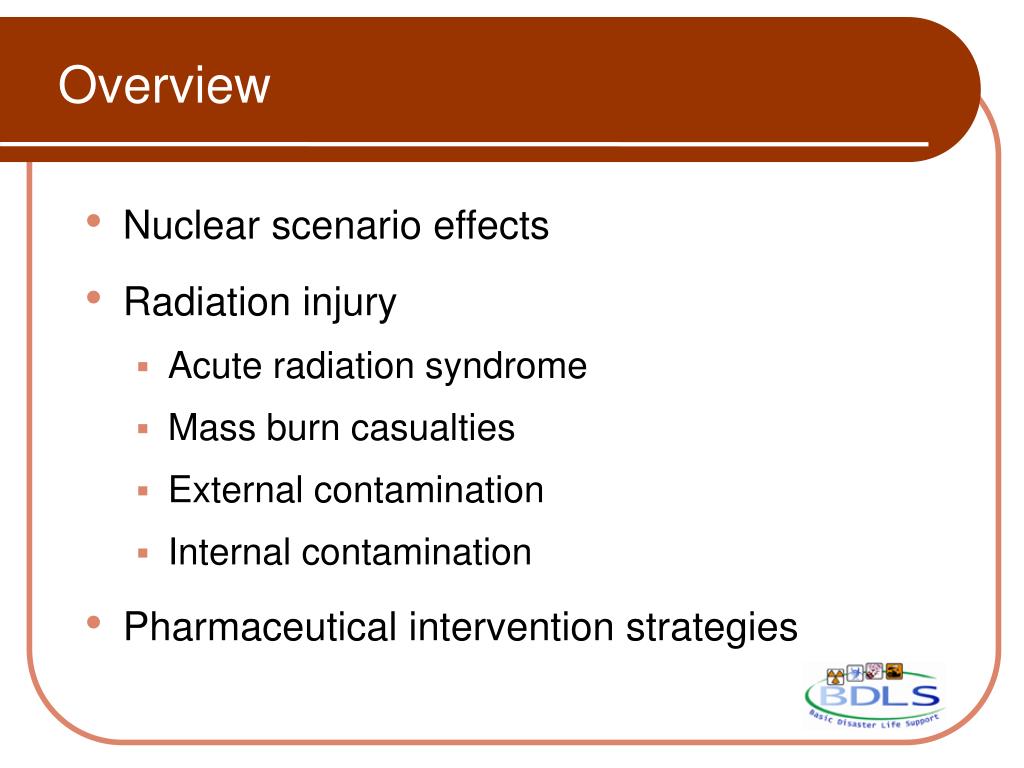

Overview

Overview

  • Nuclear scenario effects

  • Radiation injury

    • Acute radiation syndrome

    • Mass burn casualties

    • External contamination

    • Internal contamination

  • Pharmaceutical intervention strategies


Question

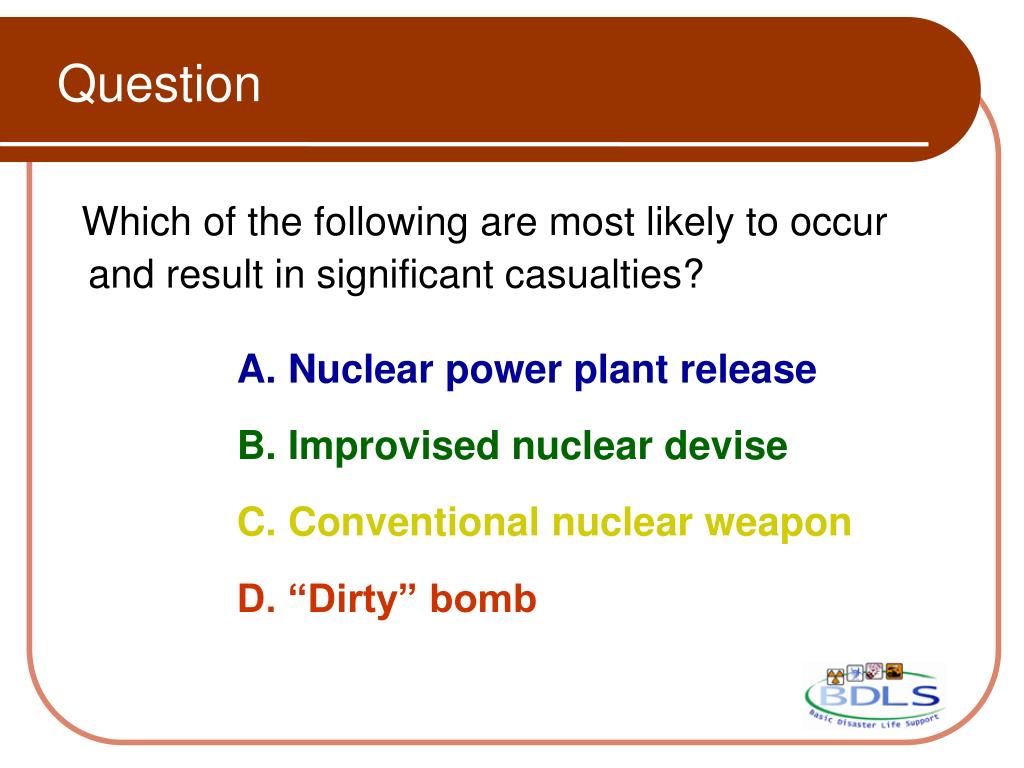

Question

Which of the following are most likely to occur and result in significant casualties?

A.Nuclear power plant release

B.Improvised nuclear devise

C.Conventional nuclear weapon

D. “Dirty” bomb


Potential nuclear radiological hazards in the u s

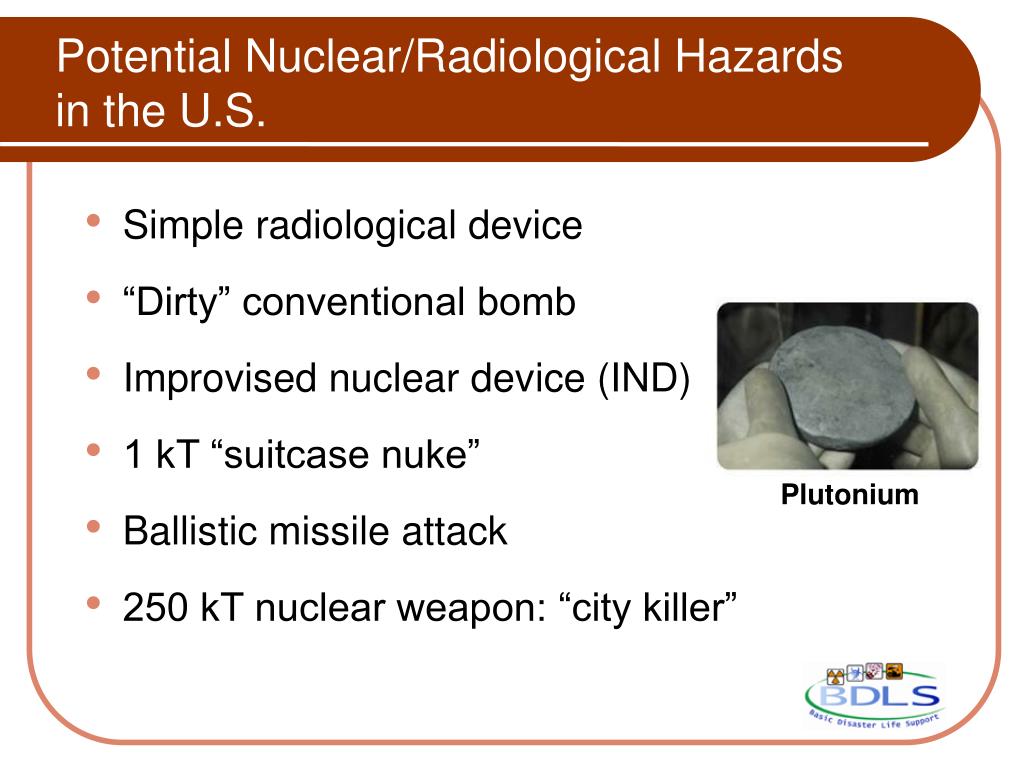

Potential Nuclear/Radiological Hazards in the U.S.

  • Simple radiological device

  • “Dirty” conventional bomb

  • Improvised nuclear device (IND)

  • 1 kT “suitcase nuke”

  • Ballistic missile attack

  • 250 kT nuclear weapon: “city killer”

Plutonium


Diversion of nuclear weapons

Diversion of Nuclear Weapons

50 –100 1 kT “suitcase” nuclear weapons are unaccounted for.

The Threat of Nuclear Diversion. Statement for the Record by John Deutch, Director of the Central Intelligence to the Permanent Subcommittee on Investigations of the Senate Committee on Government Affairs, 20 March 1996.

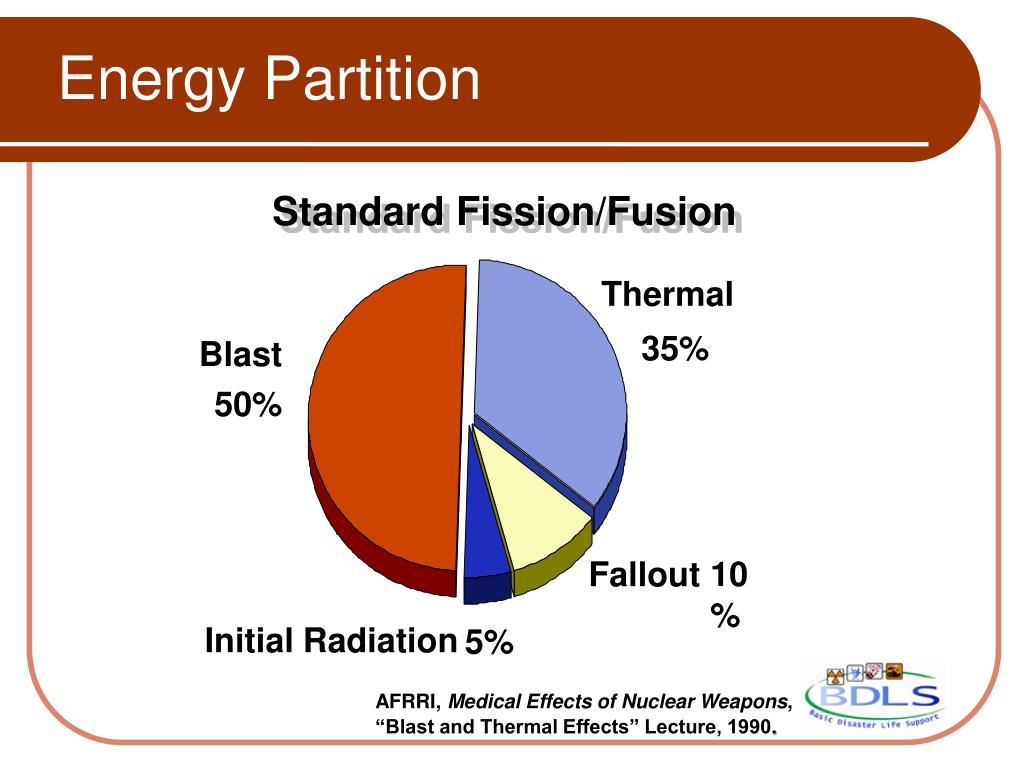

Energy partition

Energy Partition

Standard Fission/Fusion

Thermal

35%

Blast

50%

10%

Fallout

InitialRadiation

5%

AFRRI, Medical Effects of Nuclear Weapons, “Blast and ThermalEffects” Lecture, 1990.


Medical response to nuclear and radiological events

Nuclear Weapon Detonation Results: 1


Medical response to nuclear and radiological events

Nuclear Weapon Detonation Results: 2


Medical response to nuclear and radiological events

Nuclear Weapon Detonation Results: 3


Scenario washington mall

White House

Capitol

Lincoln Memorial

The Mall

Washington Monument

Potomac

River

Scenario: Washington Mall


Medical response to nuclear and radiological events

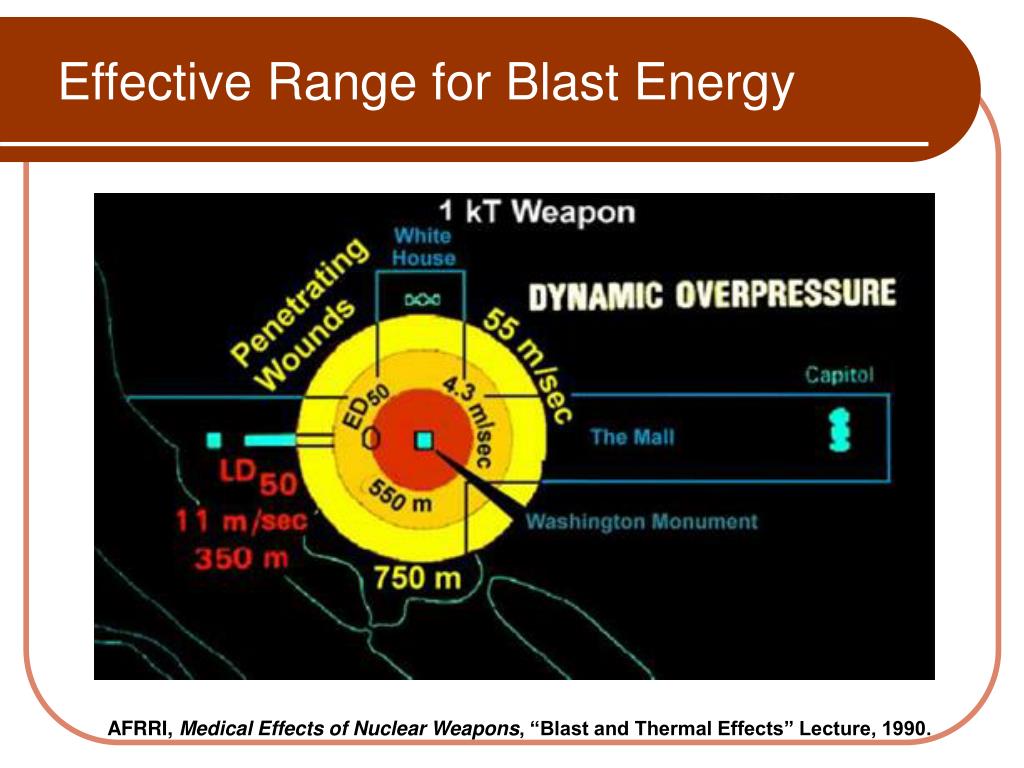

Effective Range for Blast Energy

AFRRI, Medical Effects of Nuclear Weapons, “Blast and Thermal Effects” Lecture, 1990.


Medical response to nuclear and radiological events

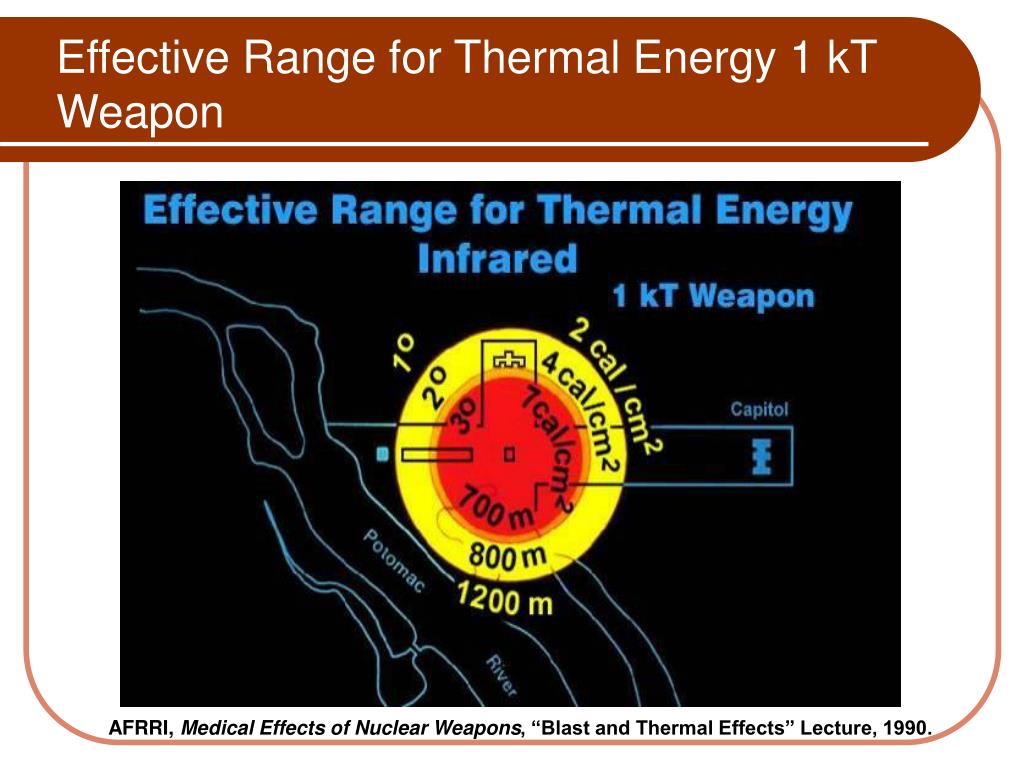

Effective Range for Thermal Energy 1 kT Weapon

AFRRI, Medical Effects of Nuclear Weapons, “Blast and Thermal Effects” Lecture, 1990.


Medical response to nuclear and radiological events

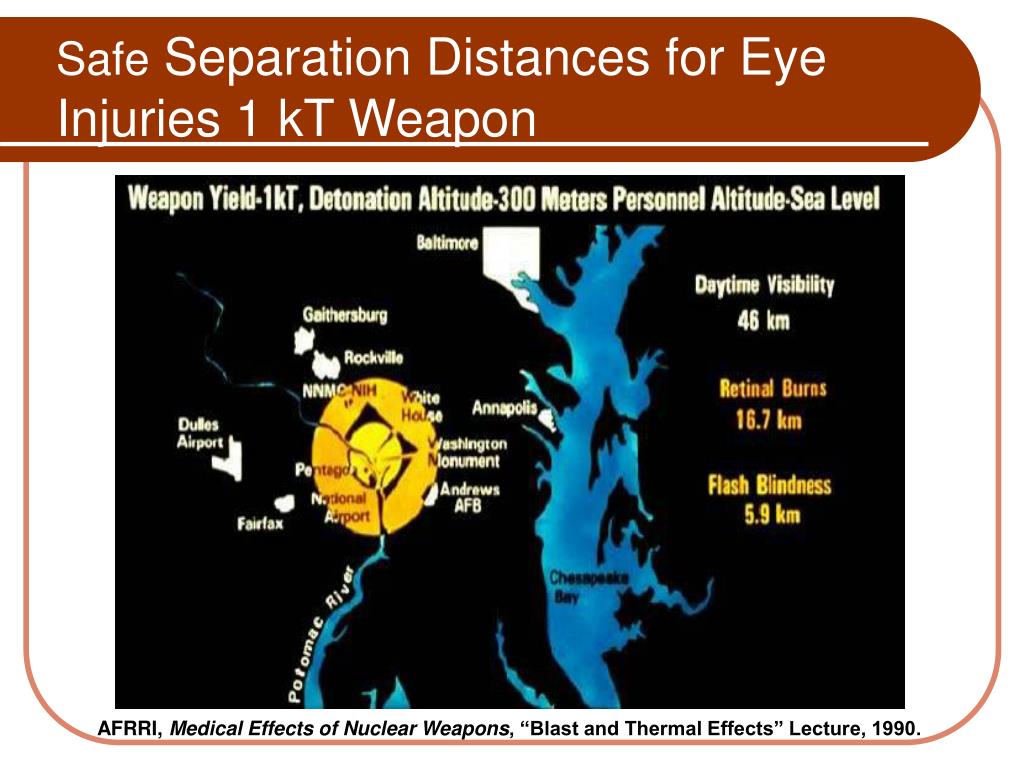

Safe Separation Distances for Eye Injuries 1 kT Weapon

AFRRI, Medical Effects of Nuclear Weapons, “Blast and Thermal Effects” Lecture, 1990.


Atlanta sse med wind 250 kt fatalities

Atlanta SSE Med Wind 250 kT Fatalities

Probability of Fatality (Default Plot)

Time: 32 days, 0.0 hours

Mean Probability of Fatality

Expected

ProbPopulation

90%0.9455,934

50%0.5661,169

10%0.1886,681

Fatality Possible (w/meander)

Expected

Prob Population

90% 0.9 455,934


Atlanta 250 kt sse wind 7 mph

Atlanta 250 kT SSE wind 7 mph


New york 250 kt nuclear detonation

New York: 250 kT Nuclear Detonation

Mortality Probability

3.9m Affected

Red 90%

Lt Brown80%

Yellow 70%

Green 60%

Pale Blue 50%

Dark Blue 40%

Lt Purple 30%

Dk Purple 20%

Dk Pink 10%

Lt Pink 1%

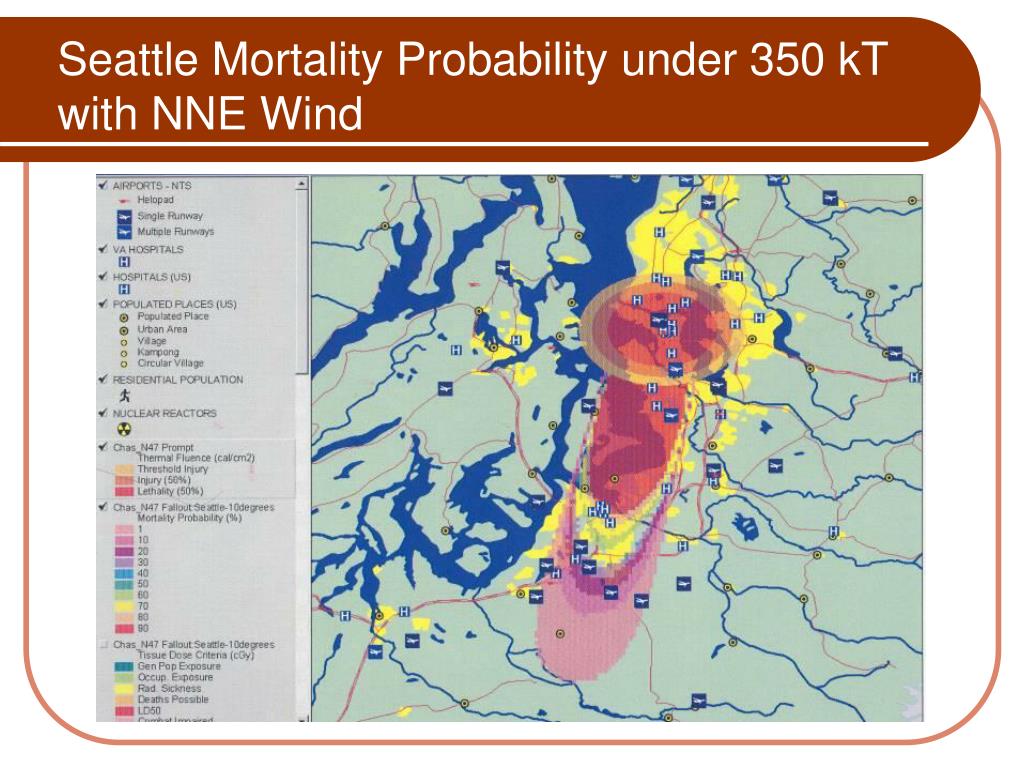

Seattle mortality probability under 350 kt with nne wind

Seattle Mortality Probability under 350 kT with NNE Wind


What is fallout

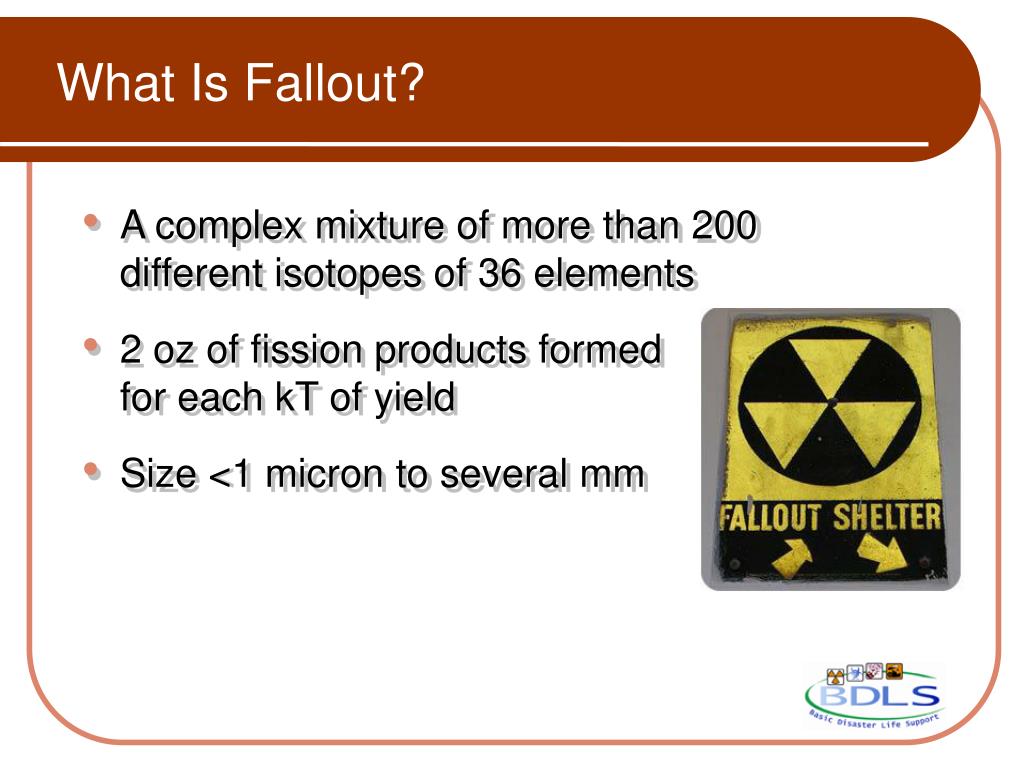

What Is Fallout?

  • A complex mixture of more than 200 different isotopes of 36 elements

  • 2 oz of fission products formed for each kT of yield

  • Size <1 micron to several mm


Question1

Question

The risk from delayed fallout that is dispersed long distances (>100 miles) still has a devastating impact on public health.

A. True

B. False


Early fallout

Early Fallout

  • That which reaches the ground during the first 24 hours after detonation

  • Early fallout fraction 50 –70% of total radioactivity

  • Highest degree of fallout risk


Delayed fallout

Delayed Fallout

  • Arrives after the first day, very fine invisible particles which settle in low concentrations over a considerable portion of the earth’s surface

  • 40% of total radioactivity

  • Much lower degree of risk relative to early fallout


Bikini atoll 1 march 1954

Bikini Atoll (1 March 1954)

Radioactive Contamination

  • 15 mT thermonuclear detonation fallout

  • Population affected: 300 in public domain

    • Int/Ext contamination

    • Local radiation injury

    • Mild ARS

    • Thyroid injury

Radiodermatitis


Ionizing radiation

Ionizing Radiation

Radiation that consists of directly or indirectly ionizing particles or photons

Alpha

Beta

Gamma

Neutron

1 m concrete


Radiation exposure types

*

*

*

*

*

*

*

*

Radiation Exposure Types

External

Contamination

Internal

Contamination

Irradiation

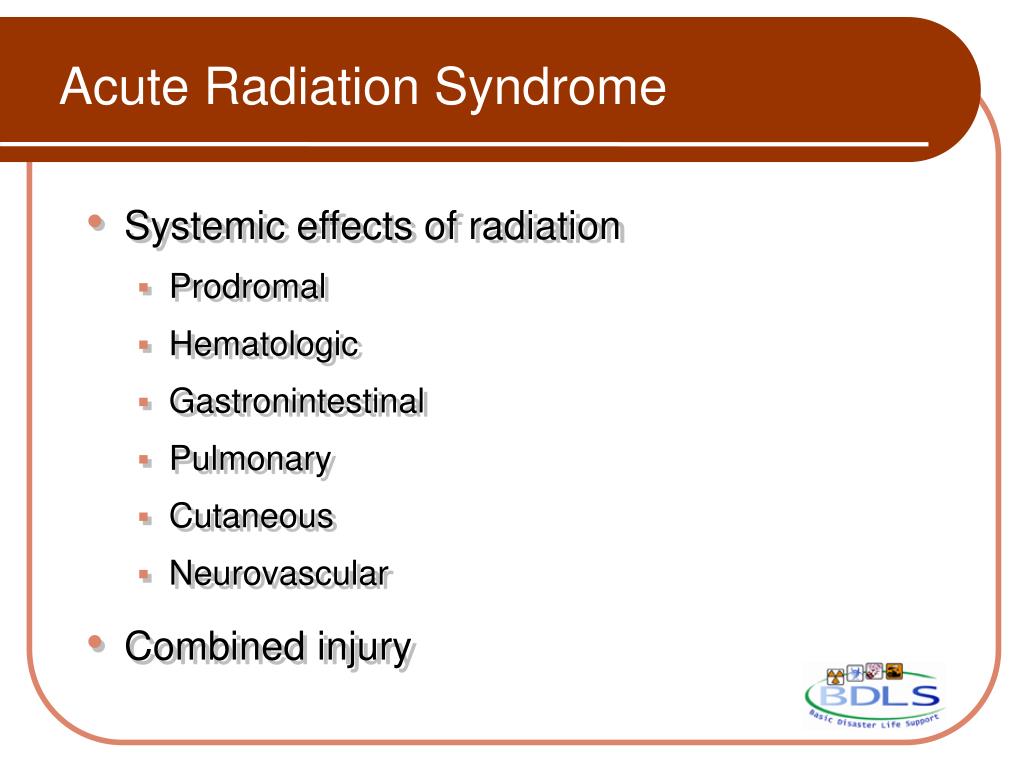

Acute radiation syndrome

Acute Radiation Syndrome

  • Systemic effects of radiation

    • Prodromal

    • Hematologic

    • Gastronintestinal

    • Pulmonary

    • Cutaneous

    • Neurovascular

  • Combined injury

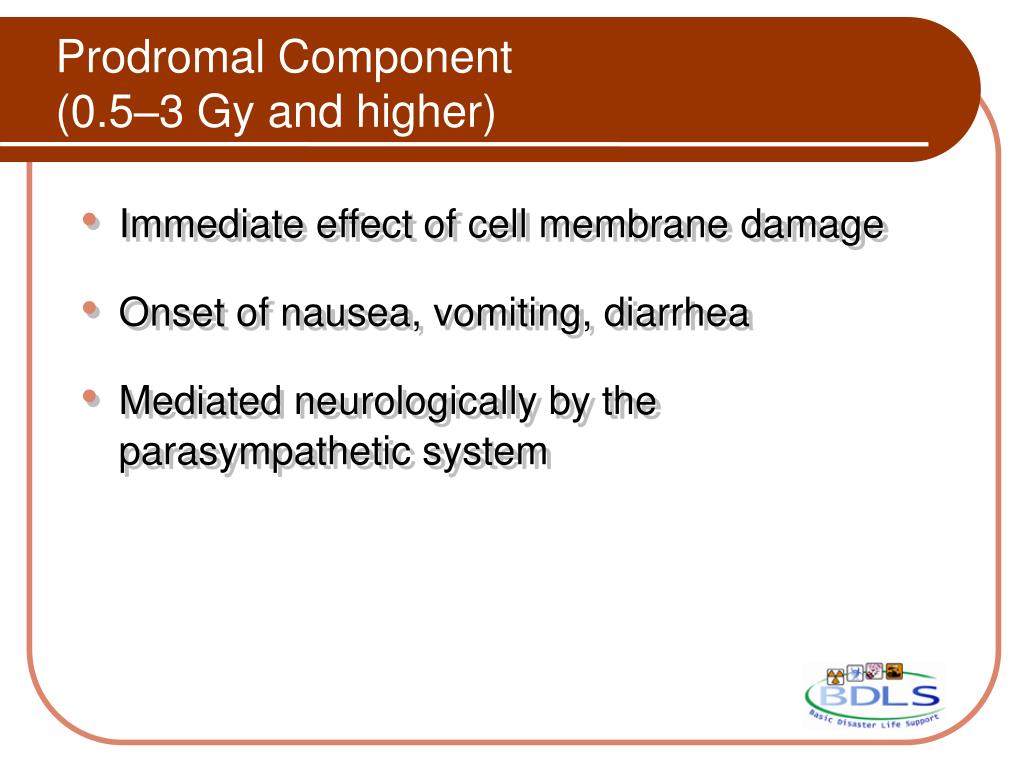

Prodromal component 0 5 3 gy and higher

Prodromal Component (0.5–3 Gy and higher)

  • Immediate effect of cell membrane damage

  • Onset of nausea, vomiting, diarrhea

  • Mediated neurologically by the parasympathetic system

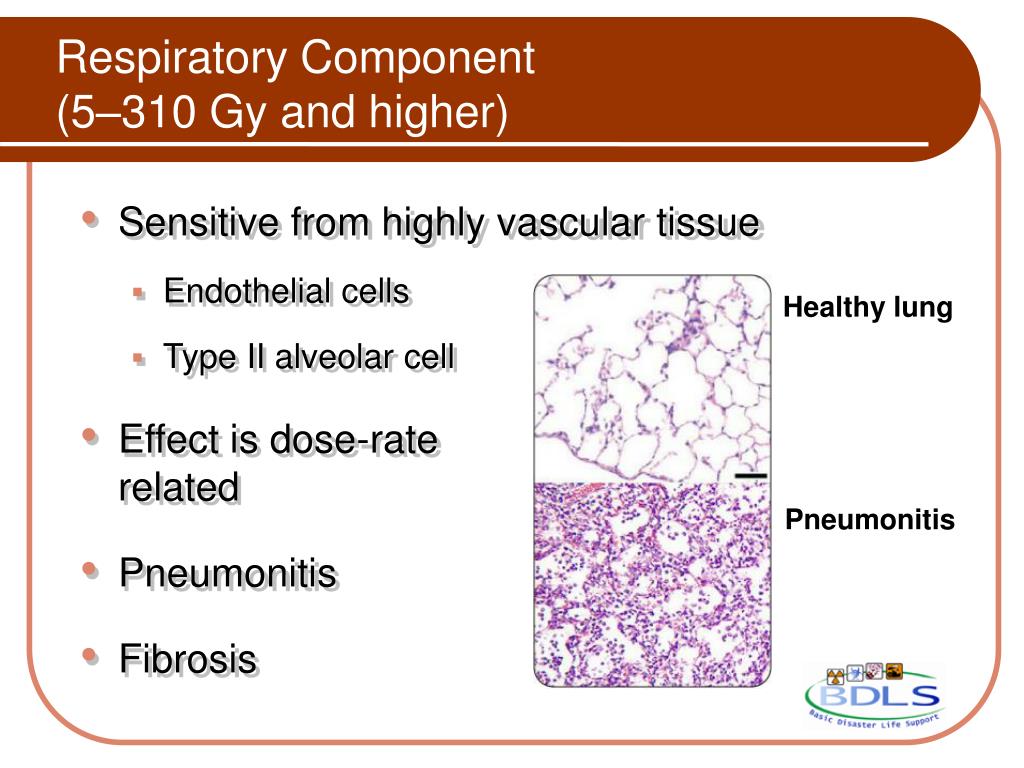

Respiratory component 5 310 gy and higher

Respiratory Component(5–310 Gy and higher)

  • Sensitive from highly vascular tissue

    • Endothelial cells

    • Type II alveolar cell

  • Effect is dose-rate related

  • Pneumonitis

  • Fibrosis

Healthy lung

Pneumonitis

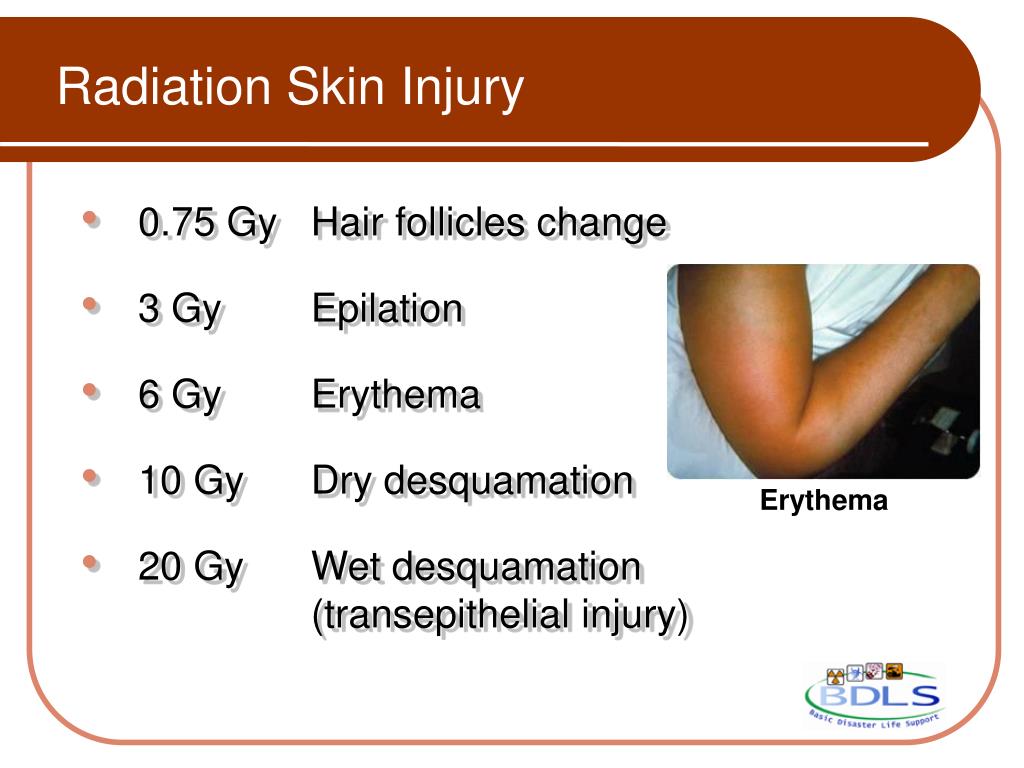

Radiation skin injury

Radiation Skin Injury

  • 0.75 GyHair follicles change

  • 3 Gy Epilation

  • 6 Gy Erythema

  • 10 Gy Dry desquamation

  • 20 Gy Wet desquamation (transepithelial injury)

Erythema


Radiation burns

Radiation Burns

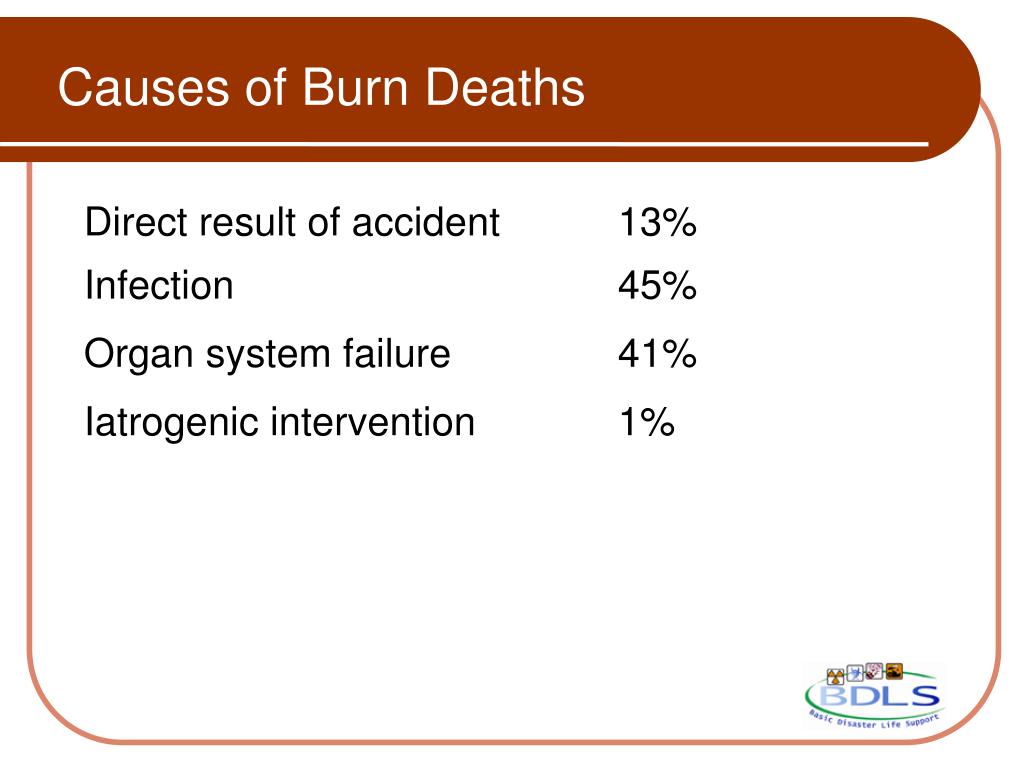

Causes of burn deaths

Causes of Burn Deaths

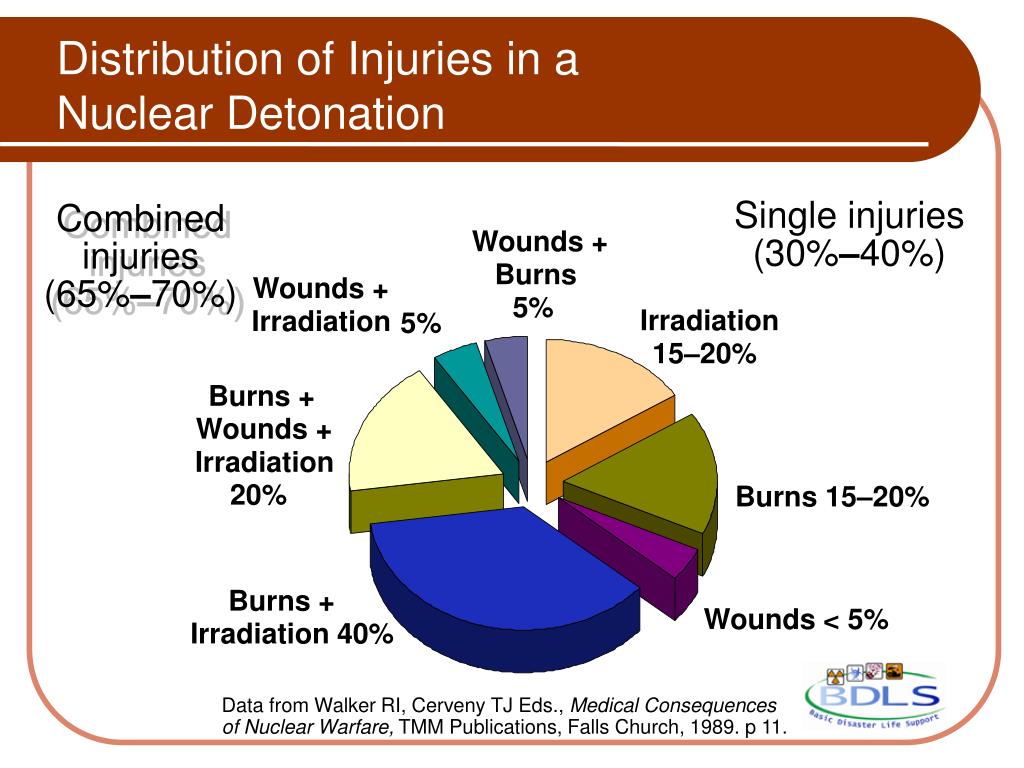

Distribution of injuries in a nuclear detonation

Distribution of Injuries in aNuclear Detonation

Single injuries

(30%–40%)

Combined injuries

(65%–70%)

Wounds +

Burns

Wounds +

5%

Irradiation

Irradiation

5%

15–20%

Burns +

Wounds +

Irradiation

20%

Burns 15–20%

Burns +

Wounds < 5%

Irradiation 40%

Data from Walker RI, Cerveny TJ Eds., Medical Consequences of Nuclear Warfare, TMM Publications, Falls Church, 1989. p 11.


Andrews lymphocyte nomogram

Absolute lymphocyte count over 48 hours

Confirms significant radiation exposure

Andrews Lymphocyte Nomogram

From Andrews GA, Auxier JA, Lushbaugh CC: The Importance of Dosimetry to the Medical Management of Persons Exposed to High Levels of Radiation. In Personal Dosimetry for Radiation Accidents. Vienna, International Atomic Energy Agency, 1965, pp 3- 16

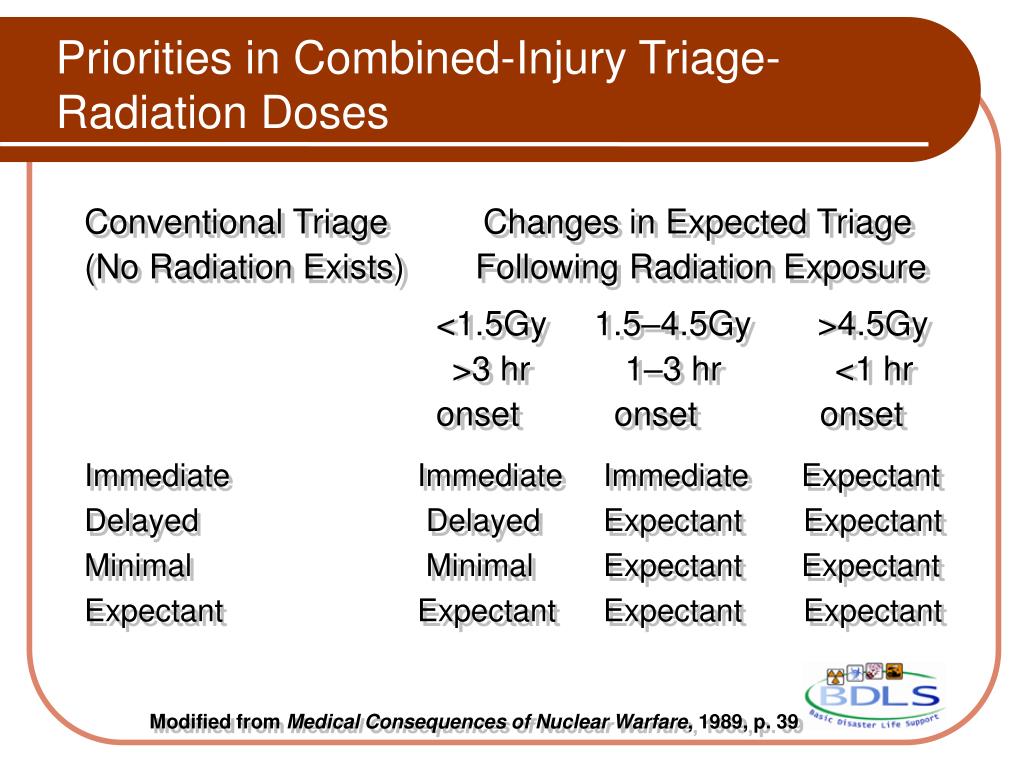

Priorities in combined injury triage radiation doses

Priorities in Combined-Injury Triage- Radiation Doses

Conventional Triage Changes in Expected Triage

(No Radiation Exists) Following Radiation Exposure

<1.5Gy 1.5–4.5Gy >4.5Gy

>3 hr 1–3 hr <1 hr

onset onset onset

Immediate Immediate Immediate Expectant

Delayed Delayed Expectant Expectant

Minimal Minimal Expectant Expectant

ExpectantExpectant Expectant Expectant

Modified from Medical Consequences of Nuclear Warfare, 1989, p. 39


Decontamination equipment

Decontamination Equipment

  • Hospital surgical gown (waterproof)

  • Cap, face shield, booties (waterproof)

  • Double gloves (inner layer taped)

  • Pencil dosimeters, TLDs, survey meters

  • Drapes

  • Plastic bags

  • Butcher paper

  • Large garbage cans

  • Radiation signs and tape


Question2

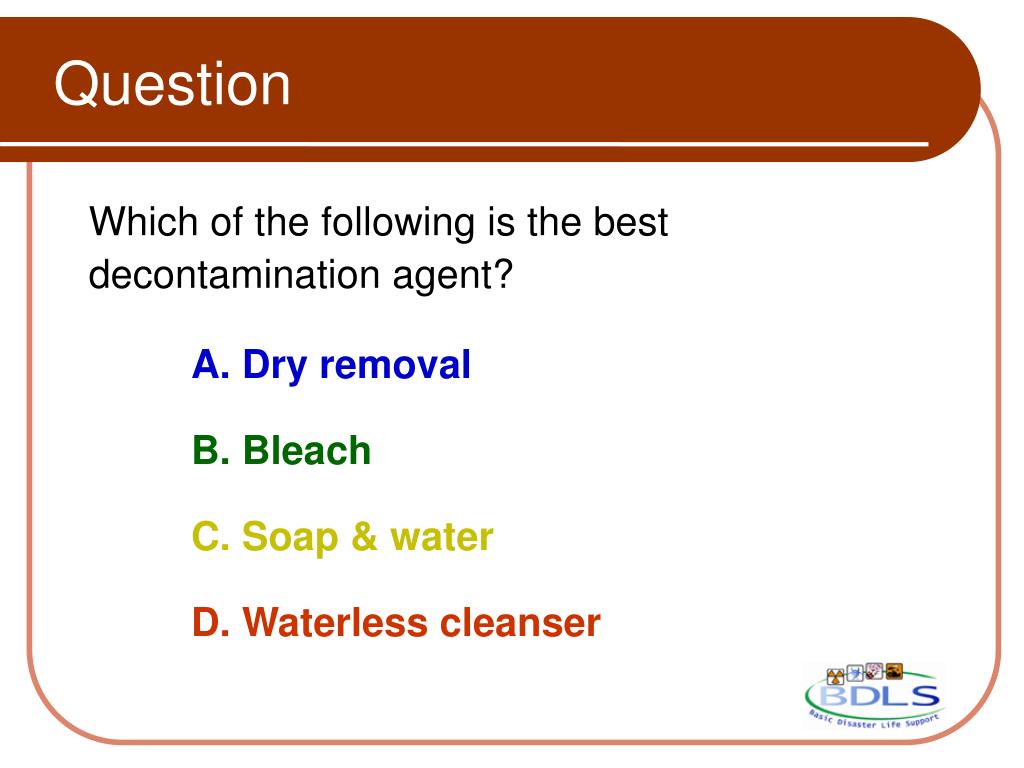

Question

Which of the following is the best decontamination agent?

A. Dry removal

B. Bleach

C. Soap & water

D. Waterless cleanser


Decon agents 1

Decon Agents: 1

  • Dry removal

  • Soap/shampoo

  • Household bleach 1:10 (sodium hypochlorite)

  • Waterless cleansers

  • Povidone-iodine

  • Lava soap

  • Cornmeal/Tide 50:50

  • Vinegar (32P) or club soda

  • Toothpaste


Internal contamination involves 4 stages

Internal Contamination Involves 4 Stages

  • Deposition along route of entry

  • Translocation

  • Deposition in target organ

  • Clearance


Therapeutic interventions

Therapeutic Interventions

  • Plutonium/transuranics: DTPA

  • Cesium: insoluble Prussian Blue

  • Uranium: alkalinization of urine

  • Radioiodine: radiostable iodine

  • Tritium: radiostable water


Is for good men and women to do nothing

…is for good men and women to do nothing.

All that is necessary for the triumph of evil…
