  1. International Workshop on Challenges in Methodology, Representation, and Tooling for Automotive Embedded Systems, Berlin 2012 Target Mapping in a Multi-core Environment Results and Plans Erik Kamsties, Burkhard Igel FH Dortmund

  2. Overview • Background AMALTHEA • What is Target Mapping? • Details and Results • Multi-core CPU Target Platform • Damos and SCT Modeling • Projection of models • AUTOSAR • Tools • Case Study

  3. AMALTHEA Overview on Work Packages WP 5 WP 1 Continuous design flowand methodology WP 6 Dissemination and exploitation Target mapping WP 3 Definition of DSLs WP 2 Demonstrator Continuous tool chain platform WP 4 WP 7 Project management

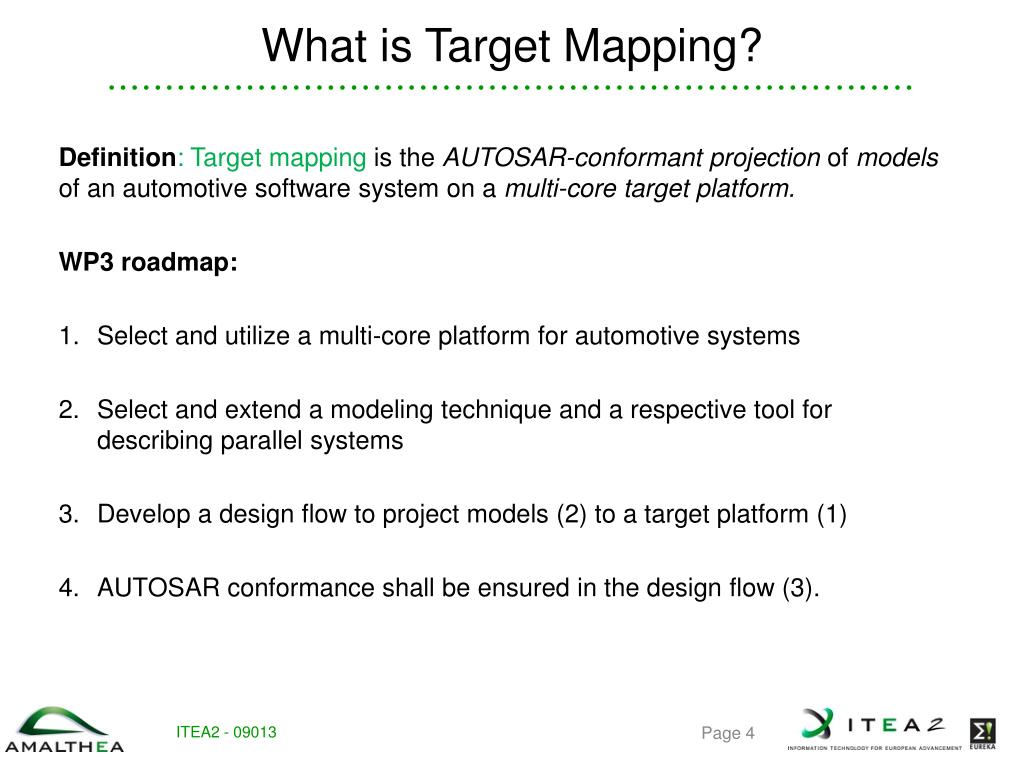

  4. What is Target Mapping? Definition: Target mapping is the AUTOSAR-conformant projection of models of an automotive software system on a multi-core target platform. WP3 roadmap: • Select and utilize a multi-core platform for automotive systems • Select and extend a modeling technique and a respective tool for describing parallel systems • Develop a design flow to project models (2) to a target platform (1) • AUTOSAR conformance shall be ensured in the design flow (3).

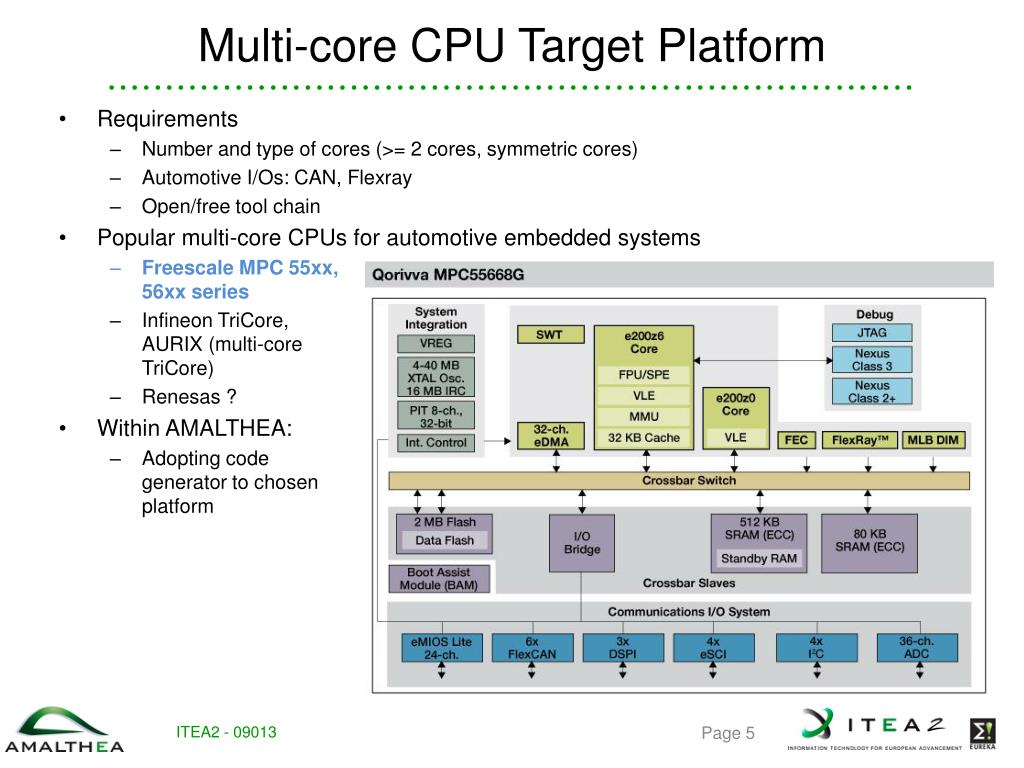

  5. Multi-core CPU Target Platform • Requirements • Number and type of cores (>= 2 cores, symmetric cores) • Automotive I/Os: CAN, Flexray • Open/free tool chain • Popular multi-core CPUs for automotive embedded systems • Freescale MPC 55xx, 56xx series • Infineon TriCore, AURIX (multi-core TriCore) • Renesas ? • Within AMALTHEA: • Adopting codegenerator to chosenplatform

  6. Damos Modeling • Damos • part of Yakindu (open source, Eclipse-based tool chain, developed by itemis) • is a data flow-oriented modeling environment • includes a block diagram editor, simulator and C code generator • Within AMALTHEA • Partitioning data flow models, mapping to runnables/tasks • Generating AUTOSAR compatible C code (.arx files)

  7. SCT Modeling • SCT • part of Yakindu (open source, Eclipse-based tool chain, developed by itemis) • based on finite automata • includes hierarchical state chart editor (based on Harel statecharts), simulator and C code generator • Within AMALTHEA • Partitioning, mapping to runnables/tasks • Generating AUTOSAR compatible C code (.arx files)

  8. Projection of Models to the Platform itemis: AUTOSAR-conformantextensionofDamos TA/HSR: Refinementofagglomeration FhDO: PartitioningofDamosmodels FhDO: Metamodel, methods, andtool clab: AUTOSAR, scheduling, tracing ifak: scheduling, tracing TA/HSR: Generating a mapping BHTC: Prototypicalimplementationandevaluationoftargethardwareplatform t itemis: extensionofcodegenerator

  9. AUTOSAR • Within AMALTHEA, the overall goal is to support an AUTOSAR conformant model-based software development • Derived requirements • A model (e.g. Damos) describes the behavior of a software component (architectural modeling in not considered in WP3) • The code generator shall produce the respective AUTOSAR files (this implies that the meta model of the modeling technique is aligned to AUTOSAR) • AUTOSAR-OS has to be used • Regarding target mapping, the current version 4.0 R3 • permits only local instead of global scheduling • the schedulers of the different cores are required to be independent of each other • atomic software components (SWCs) can be mapped to cores only 1:1 • if memory protection boundary is used for a set of SWCs, all these SWCs must be mapped to the same core • Bottom line: current version 4.0 R3 is overly restrictive regarding multi-core aspects  extensions are required

  10. Tools • Yakindu Damos and SCT • Extending embedded code generators towards multi-core • The Damos code generator was adapted to the Arduino platform and a respective hardware model was created in order to collect experiences about generating hardware-dependent code. • Timing Architects Simulator/Optimizer • Early evaluation of performance attributes (e.g., real-time requirements) based on models of the software and the selected HW platform • For the mapping of tasks to cores a solution based on genetic algorithms is extended towards considering communication based influences and scheduling effects. • Tools for Creating Modeling Tools (DSLs) • Xtext/Xtend are employed

  11. Case Studies • Industrial case study 1: HVAC on the BHTC “Rapid Control Prototyping Box” • Utilizing MPC5668G evaluation board, redesign of current RCP box • Adaptation of Matlab tool chain (providing hardware abstraction layer, adaptation of Matlab/Simulink code generator templates) • Comparison of Matlab baseline and new open source tool chain • Case Study 2: Multi-OS on a multi-core system

  12. Links to MAENAD, SAFE, TIMMO-2-USE • MAENAD: • It is commonly accepted that parallelism which is introduced by multi-core processors should be addressed on higher level of design. Abstractions in modeling are sought which represent parallelism in systems. • SAFE • Multi-core processors are • beneficial, because they easily allow for redundancy (e.g., MPC 56xx lock-step mode) • introduce a number of issues, e.g. shared resources may lead to timing problems • TIMMO-2-USE • Timing information is required for the latter steps of the target mapping process (e.g., timing properties of the different tasks)
