USB Mass Storage
  • USB Mass Storage Architecture
  • C Library to FAT File System Interface
  • FAT File System
  • USB Mass Storage Driver
  • Recommended Readings
c library to file system interface
C Library to File System Interface
  • Interfaces the supported C library file I/O functions to the FAT file system and native file system.
  • Supported C library file I/O functions are: mkdir, rename, remove, fopen, fclose, fread, fwrite, fseek.
  • All FAT volumes are referenced with a single letter.
c library to file system interface cont
C Library to File System Interface – cont.
  • All native file system volumes are referenced with anything other than a single letter.
  • If FAT volume is drive A, do fopen(“A/dir1/dir2/filename”, “w+”)
  • If native FS RAM volume is drive RAM0, do fopen(“RAM0/dir1/dir2/filename”, “w+)
fat file system
FAT File System
  • Sourced from HCC-Embedded in Hungary.
  • Supports FAT12/16/32 depending on size of the media.
  • Supports long file names, multiple FAT volumes, multiple open files per volume and is thread safe.
  • Features a API similar to the C library file I/O functions, but with more functionality.
fat file system cont
FAT File System – cont.
  • The FAT file system is limited to 8.3 file names, 1 FAT volume and 1 open file per volume and is thread safe.
  • FAT file system is version 2.62. Current versions have additional features such as thread context for current working directory (cwd) and a semaphore to synchronize access to each FAT volume.
usb mass storage driver
USB Mass Storage Driver
  • Tested with USB 2.0 and 1.1 full speed Flash memory sticks.
  • Creates FAT volume on device insertion and removes FAT volume on device removal (just like Windows).
  • Uses the lowest drive letter to reference the newly created FAT volume.
usb mass storage driver cont

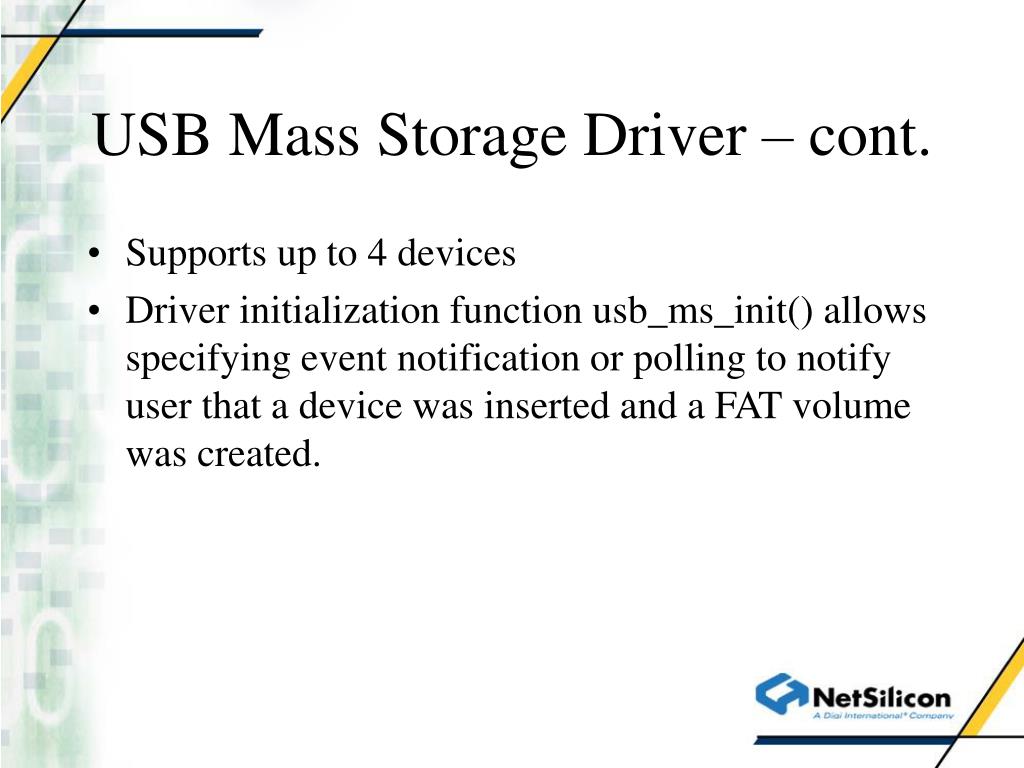

USB Mass Storage Driver – cont.
  • Supports up to 4 devices
  • Driver initialization function usb_ms_init() allows specifying event notification or polling to notify user that a device was inserted and a FAT volume was created.
recommended readings
Recommended Readings
  • HCC-Embedded FAT12/16/32 manual in /netos/src/examples/nafatfs
