MATS. TOF. n. n. c. Q. Preparation. Precision. Time-of-flight. RFQ. EBIT. Mass Analyzer. Penning trap. Penning trap. detector. Precision M easurements of Very-Short Lived Nuclei Using an A dvances T rapping S ystem for Highly-Charged Ions. Frank Herfurth, GSI-Darmstadt

lilka
Download Presentation

MATS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

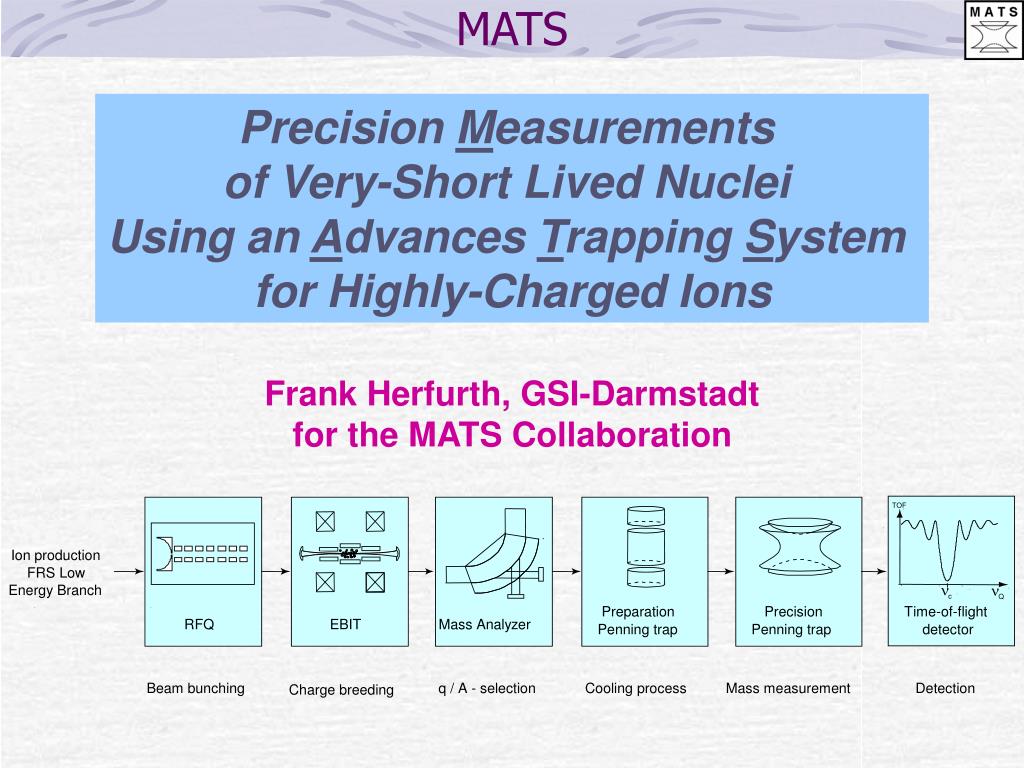

  1. MATS TOF n n c Q Preparation Precision Time-of-flight RFQ EBIT Mass Analyzer Penning trap Penning trap detector Precision Measurements of Very-Short Lived Nuclei Using an Advances Trapping System for Highly-Charged Ions Frank Herfurth, GSI-Darmstadt for the MATS Collaboration Ion production FRS Low Energy Branch Beam bunching q / A - selection Cooling process Mass measurement Detection Charge breeding

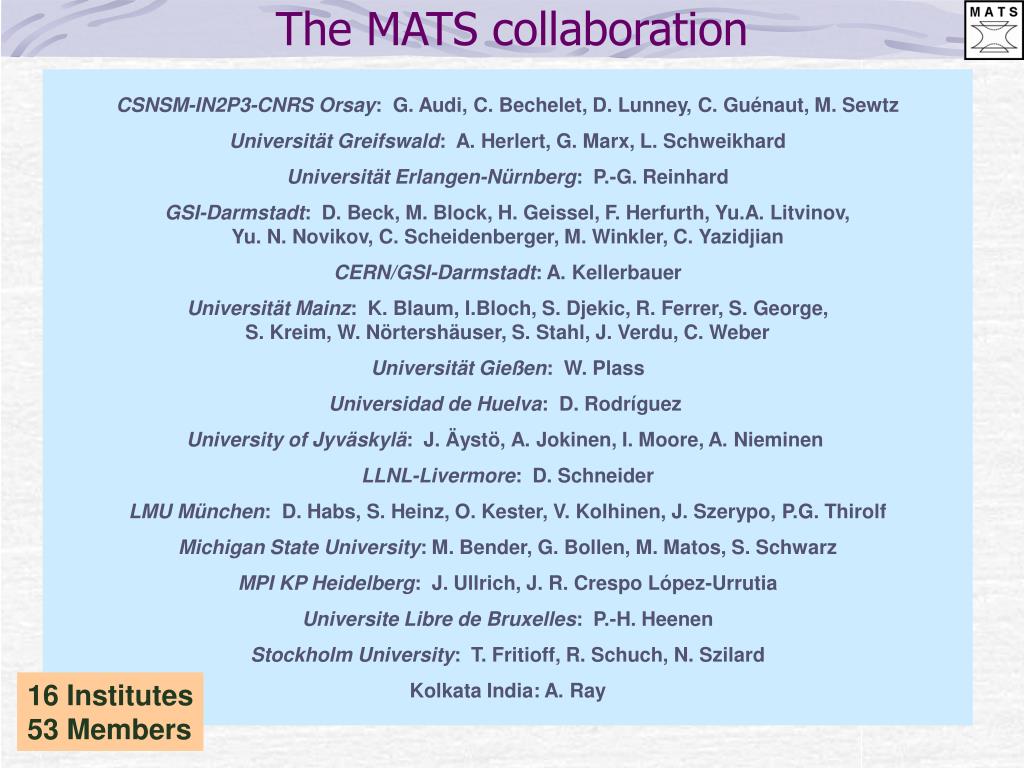

  2. The MATS collaboration CSNSM-IN2P3-CNRS Orsay: G. Audi, C. Bechelet, D. Lunney, C. Guénaut, M. Sewtz Universität Greifswald: A. Herlert, G. Marx, L. Schweikhard Universität Erlangen-Nürnberg: P.-G. Reinhard GSI-Darmstadt: D. Beck, M. Block, H. Geissel, F. Herfurth, Yu.A. Litvinov, Yu. N. Novikov, C. Scheidenberger, M. Winkler, C. Yazidjian CERN/GSI-Darmstadt: A. Kellerbauer Universität Mainz: K. Blaum, I.Bloch, S. Djekic, R. Ferrer, S. George, S. Kreim, W. Nörtershäuser, S. Stahl, J. Verdu, C. Weber Universität Gießen: W. Plass Universidad de Huelva: D. Rodríguez University of Jyväskylä: J. Äystö, A. Jokinen, I. Moore, A. Nieminen LLNL-Livermore: D. Schneider LMU München: D. Habs, S. Heinz, O. Kester, V. Kolhinen, J. Szerypo, P.G. Thirolf Michigan State University: M. Bender, G. Bollen, M. Matos, S. Schwarz MPI KP Heidelberg: J. Ullrich, J. R. Crespo López-Urrutia Universite Libre de Bruxelles: P.-H. Heenen Stockholm University: T. Fritioff, R. Schuch, N. Szilard Kolkata India: A. Ray 16 Institutes 53 Members

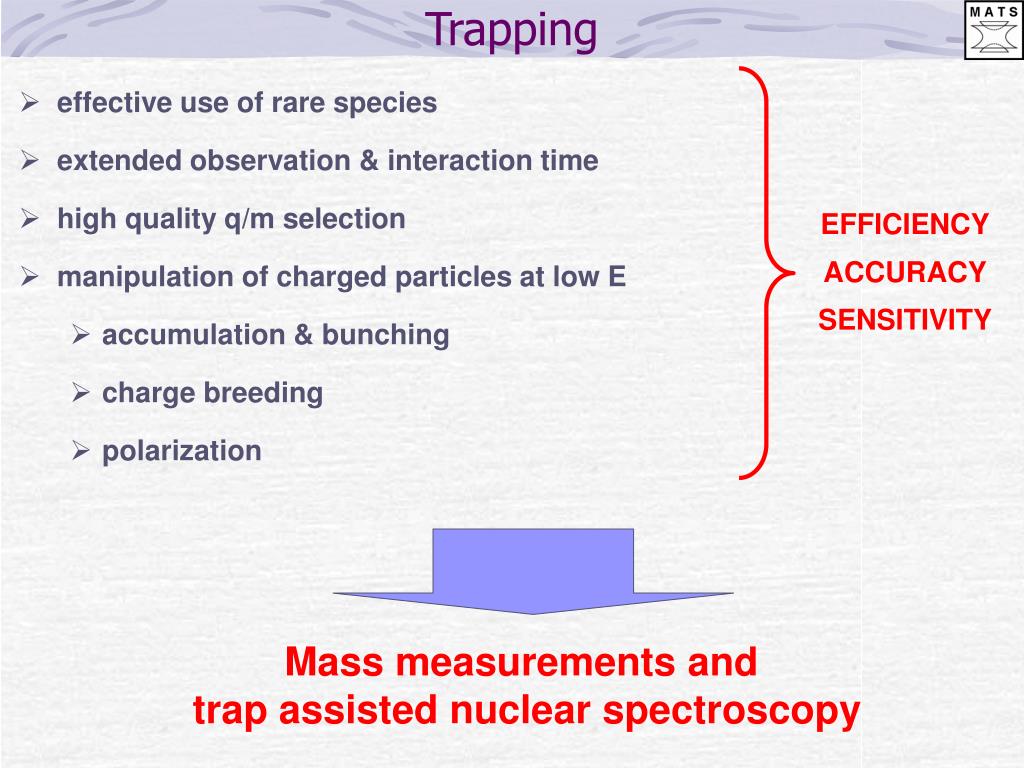

  3. Trapping • effective use of rare species • extended observation & interaction time • high quality q/m selection • manipulation of charged particles at low E • accumulation & bunching • charge breeding • polarization EFFICIENCY ACCURACY SENSITIVITY Mass measurements and trap assisted nuclear spectroscopy

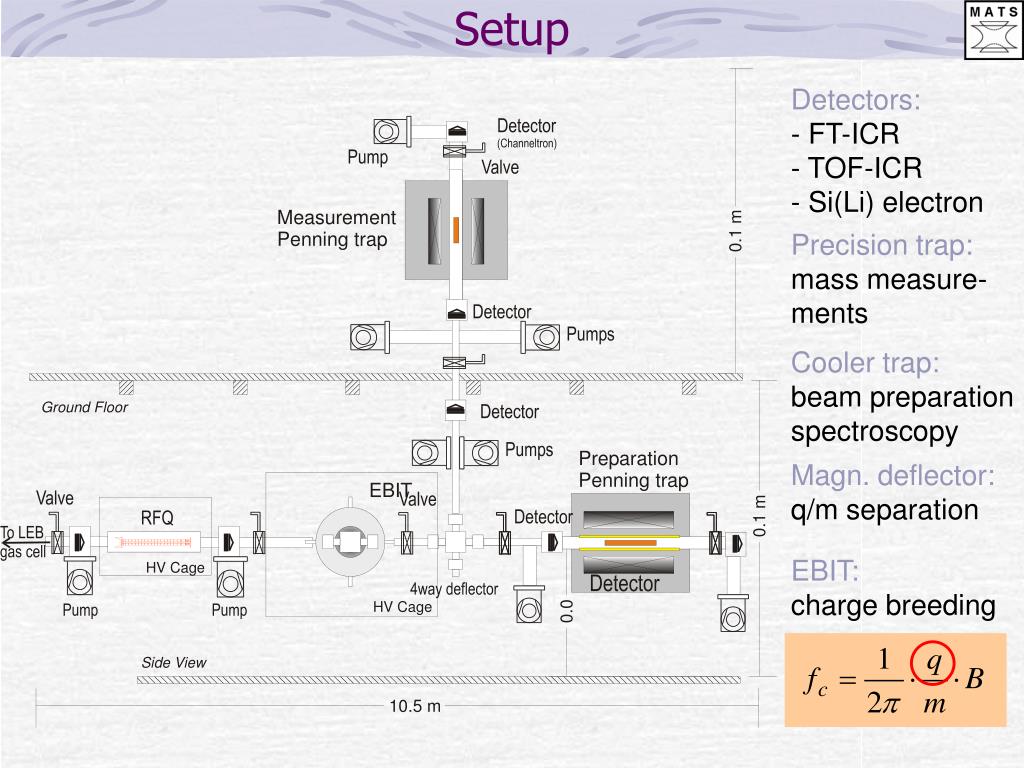

  4. Setup • Detectors: • FT-ICR • TOF-ICR • Si(Li) electron Precision trap: mass measure- ments Cooler trap: beam preparation spectroscopy Magn. deflector: q/m separation EBIT: charge breeding

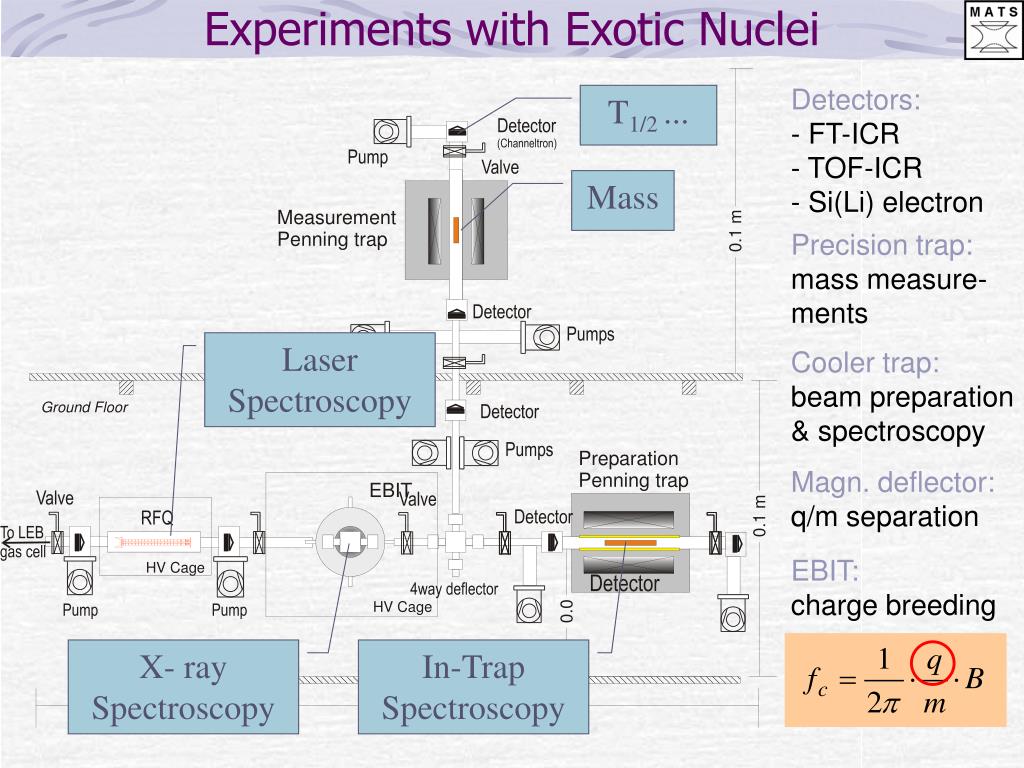

  5. Experiments with Exotic Nuclei • Detectors: • FT-ICR • TOF-ICR • Si(Li) electron T1/2 ... Mass Precision trap: mass measure- ments Laser Spectroscopy Cooler trap: beam preparation & spectroscopy Magn. deflector: q/m separation EBIT: charge breeding X- ray Spectroscopy In-Trap Spectroscopy

  6. RFQ and Mass Analyzer/Separator EBIT Mass Resolving Power m/m Number of Turns Preparation Precision RFQ Mass Analyzer Penning trap Penning trap • Electron-impact ion source • Analyzer with two grid-free electrostatic reflectors based on a four-electrode design • (A. N. Verentchikov et al., Tech. Phys. 50 (2005) 73) • MCP-detector • Kinetic energy 1.5 keV, overall length ~ 0.5 m • Short time of flight (~ 1 ms) • Currently: • Uncooled ion population • No differential pumping Aberration limit with uncooled ions m/m = 70,000 with cooled ions m/m > 105 (expected) T. Dickel, W.R. Plaß, Univerisität Gießen T. Dickel, W.R. Plaß, Univerisität Gießen

  7. RFQ and Mass Analyzer/Separator EBIT Preparation Precision RFQ Mass Analyzer Penning trap Penning trap T. Dickel, W.R. Plaß, Univerisität Gießen

  8. Charge Breeding Preparation Precision RFQ EBIT Mass Analyzer Penning trap Penning trap • cryogenic – XHV • Helmholtz coils – open access Titan EBIT, J. Crespo et al.

  9. Single Ion FT-ICR Amplification: 50000 Preparation Precision RFQ EBIT Mass Analyzer Penning trap Penning trap Universität Mainz, K. Blaum et al. Resonance of the unloaded LC-circuit at T = 4K C. Weber et al., Eur. Phys. J A 25, 65 (2005)

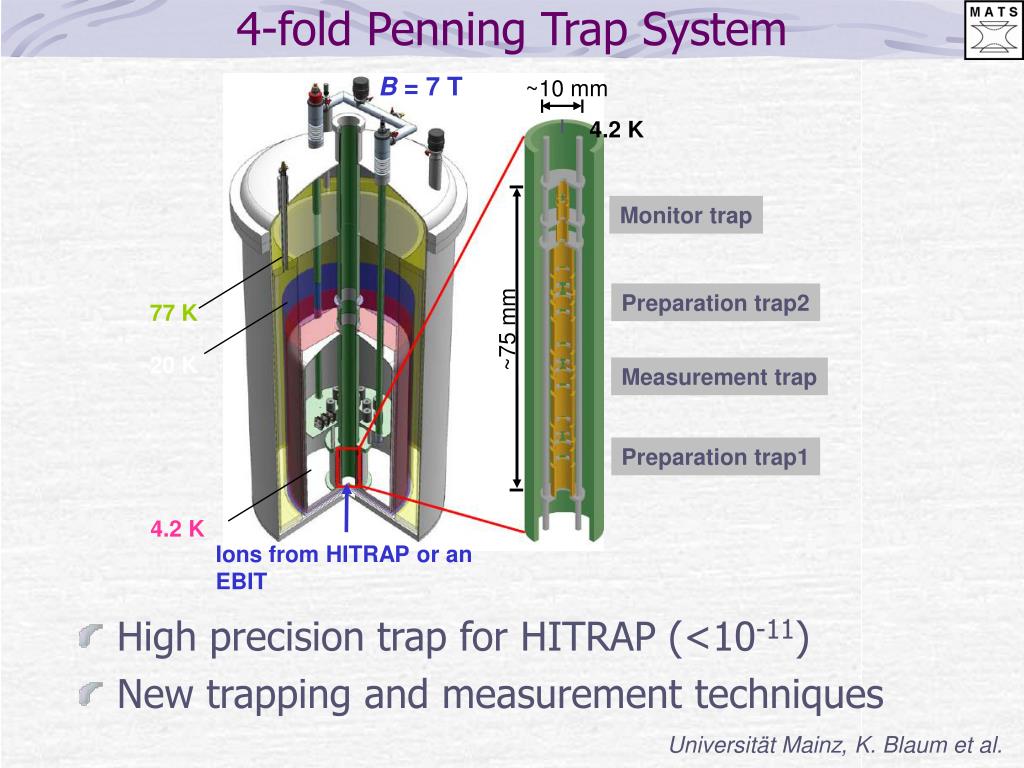

  10. 4-fold Penning Trap System B = 7 T ~10 mm 4.2 K Monitor trap Preparation trap2 77 K ~75 mm 20 K Measurement trap Preparation trap1 4.2 K Ions from HITRAPor an EBIT • High precision trap for HITRAP (<10-11) • New trapping and measurement techniques Universität Mainz, K. Blaum et al.

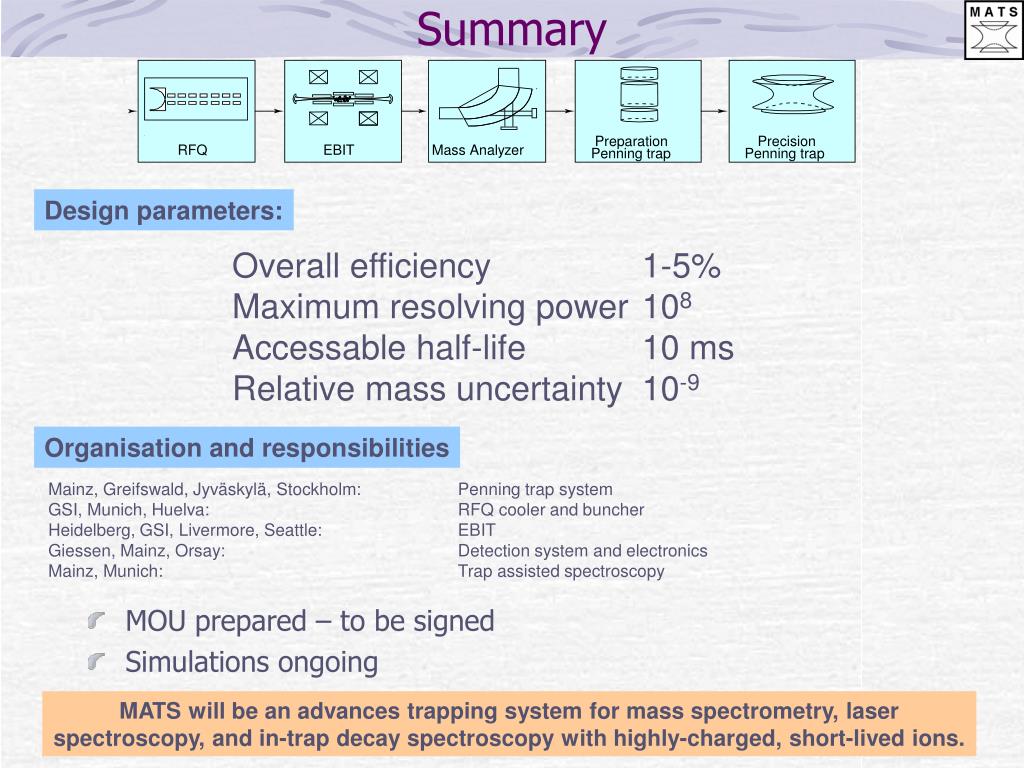

  11. Summary Preparation Precision RFQ EBIT Mass Analyzer Penning trap Penning trap Design parameters: Overall efficiency 1-5% Maximum resolving power 108 Accessable half-life 10 ms Relative mass uncertainty 10-9 Organisation and responsibilities Mainz, Greifswald, Jyväskylä, Stockholm: Penning trap system GSI, Munich, Huelva: RFQ cooler and buncher Heidelberg, GSI, Livermore, Seattle: EBIT Giessen, Mainz, Orsay: Detection system and electronics Mainz, Munich: Trap assisted spectroscopy MOU prepared – to be signed Simulations ongoing MATS will be an advances trapping system for mass spectrometry, laser spectroscopy, and in-trap decay spectroscopy with highly-charged, short-lived ions.
