Experimental Data of Sample STT20080924A.1B and Sample STT20081027A.1A/1B

Experimental Data of Sample STT20080924A.1B and Sample STT20081027A.1A/1B. Overview of Sample STT20080924A.1B B2 Type C (H-shape high speed sites). Junction G8 of STT20080924A.1B C. 80nm*160nm. Idc =0A. Bsat=-0.25T B=0T. Bsat=-0.25T B=-0.0033T. Bsat=0.25T B=0.02T.

lilith
Download Presentation

Experimental Data of Sample STT20080924A.1B and Sample STT20081027A.1A/1B

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Experimental Data of Sample STT20080924A.1B and Sample STT20081027A.1A/1B

  2. Overview of Sample STT20080924A.1BB2Type C (H-shape high speed sites)

  3. Junction G8 of STT20080924A.1B C 80nm*160nm Idc=0A Bsat=-0.25T B=0T Bsat=-0.25T B=-0.0033T Bsat=0.25T B=0.02T

  4. Junction G10 of STT20080924A.1B C 80nm*160nm Bsat=-0.25T B=-0.0075T Bsat=-0.25T B=-0.0025T Bsat=-0.25T B=-0.02T

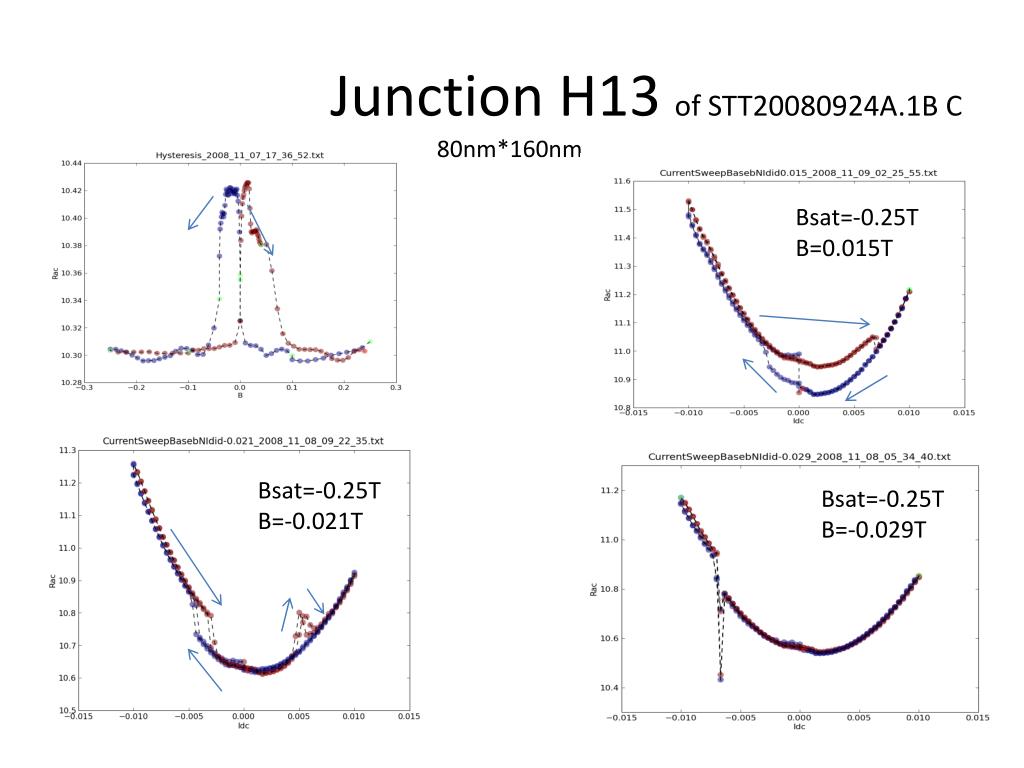

  5. Junction H13 of STT20080924A.1B C 80nm*160nm Bsat=-0.25T B=0.015T Bsat=-0.25T B=-0.021T Bsat=-0.25T B=-0.029T

  6. Overview of Sample STT20081027A.1AB2 Type C (H-shape high speed sites)

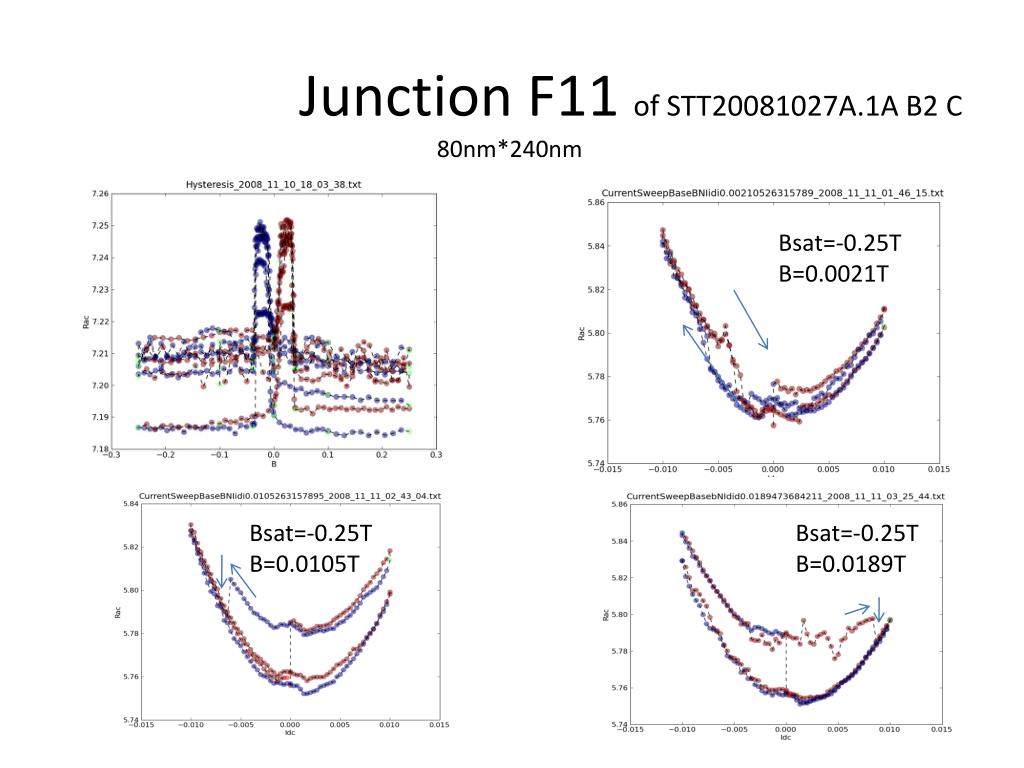

  7. Junction F11 of STT20081027A.1A B2 C 80nm*240nm Bsat=-0.25T B=0.0021T Bsat=-0.25T B=0.0105T Bsat=-0.25T B=0.0189T

  8. Overview of Sample STT20081027A.1BB2 Type C (H-shape high speed sites)

  9. Junction G11 of STT20081027A.1B B2 C 80nm*160nm Bsat=-0.25T B=0.02T Bsat=-0.25T B=0.016T Bsat=-0.25T B=0.008T

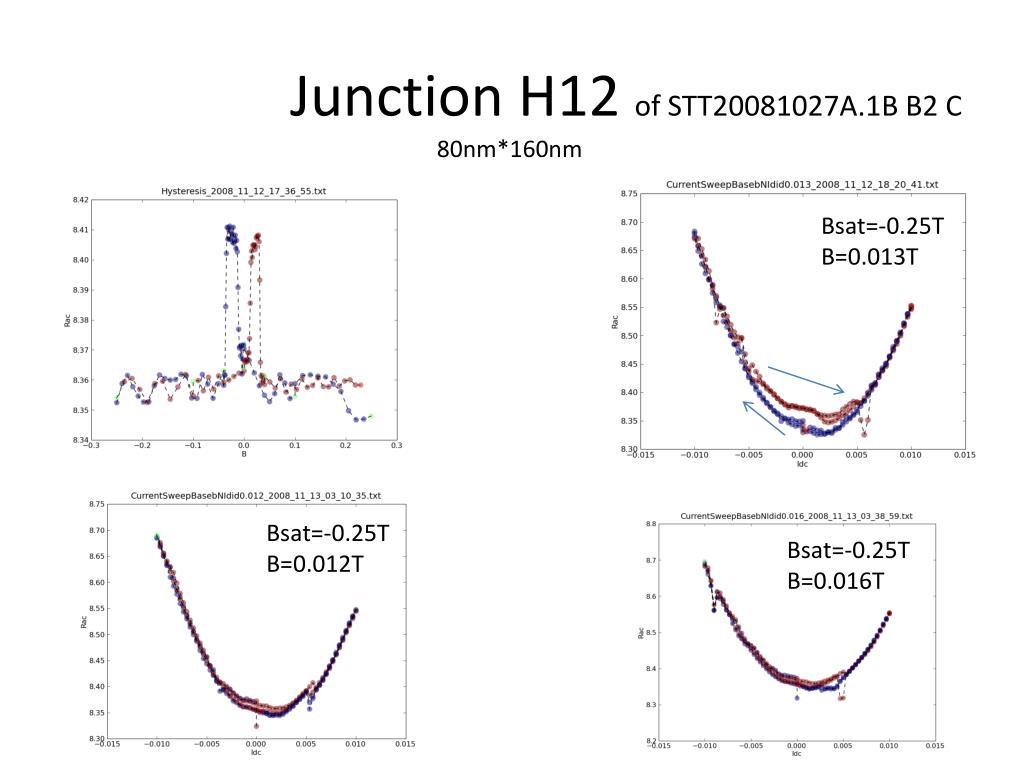

  10. Junction H12 of STT20081027A.1B B2 C 80nm*160nm Bsat=-0.25T B=0.013T Bsat=-0.25T B=0.012T Bsat=-0.25T B=0.016T
