Baroclinic instability variations

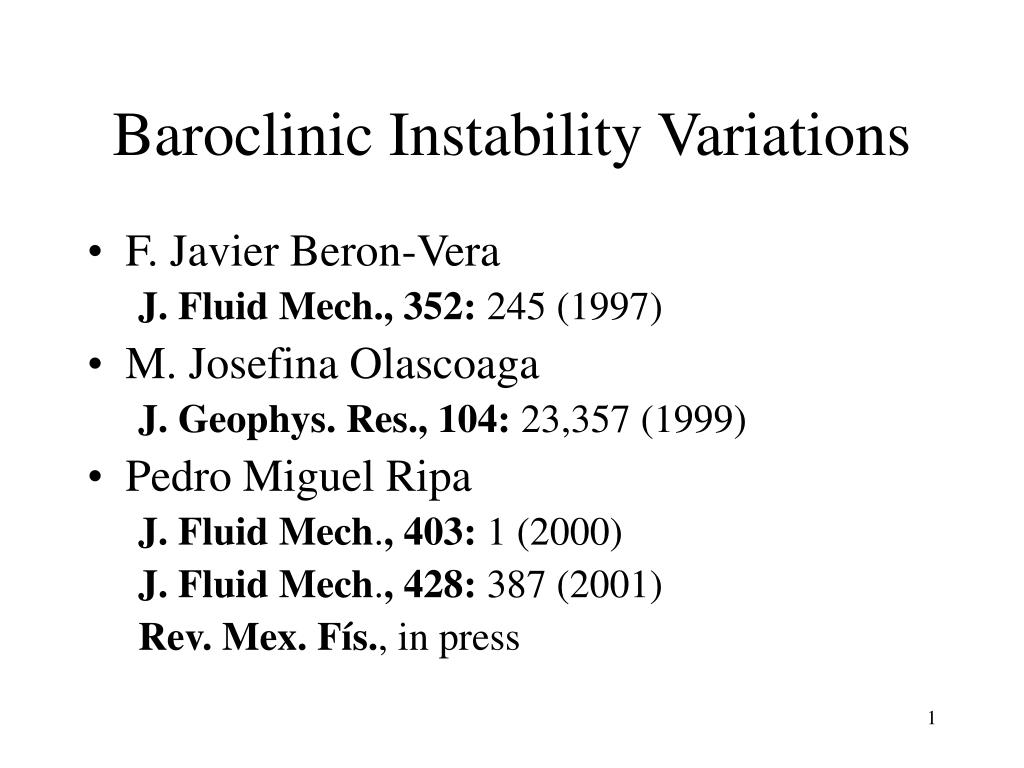

Baroclinic Instability Variations

  • F. Javier Beron-Vera

    J. Fluid Mech., 352: 245(1997)

  • M. Josefina Olascoaga

    J. Geophys. Res., 104: 23,357(1999)

  • Pedro Miguel Ripa

    J. Fluid Mech., 403: 1(2000)

    J. Fluid Mech., 428: 387(2001)

    Rev. Mex. Fís., in press


Outline

Outline

  • Background

  • Generalizing Two-field models

  • Charney Numbers – Arnold-1

  • Low- and Short-wave cutoff – Arnold-2

  • Components “resonance”

  • Rossby Waves resonance

  • Bounds on the growth of perturbations


Baroclinic instability variations 1351473

Eady (1949):β = 0, rigid horizontal boundaries

Blumsack & Gierasch (1972):β = 0, sloping bottom

Fukamachi et al. (1995):β = 0, free bottom, βT = 0 (topographic)

Beron-Vera (1997):β = 0, free bottom, βT 0

Lindzen (1994):β  0, but q uniform.

Phillips (1951):β  0, rigid horizontal boundaries

Bretherton (1966):β = 0, rigid sloping boundaries

Olascoaga (1999) :β  0, free bottom , βT 0


Baroclinic instability variations 1351473

Basic Flow: Two Charney # (beta/shear)

Outside the wedge, a hamiltonian (“energy”) is H > 0: nonlinear stability (Arnold’s First Theorem)


Baroclinic instability variations 1351473

Enter another variable: the perturbation wavenumber κ

All hamiltonians are sign independent for

κL(b,bT) < κ < κS(b,bT)

Notice the finite region for κL(b,bT) = 0


Baroclinic instability variations 1351473

Normal Mode instability, for κL(b,bT) < κ < κS(b,bT)


Baroclinic instability variations 1351473

Growth Rate along different directions in the (b,bT) plane (see color coded regions in slide 5)

  • If the advection of a q field by the other q field is arbitrarely neglected, these uncoupled components “resonate” along the blue curve. This “explains” the instability onset. (If shear  0 then b, bT  along b/bT = const.)

  • Maximum growth rate near b + bT  0


Baroclinic instability variations 1351473

Resonance of Rossby Waves

The conditionb + bT  0 corresponds to the cancellation of both beta effects+ T  0: near resonance of true waves.This “explains” the maximum growth rate.


Baroclinic instability variations 1351473

Bounding the wavy part of the perturbation qj,à la Shepherd, or the whole perturbation qj


Conclusions

Conclusions

  • Generalized Phillips-like or Eady-like model:

    • either two layers with constant density and variable potential vorticity orone layer with constant potential vorticity and variable boundary densities

    • free boundary and/or fixed topography

  • Necessary and sufficient stability conditions

  • “Resonance” of uncouple dynamical fields

  • At the cancellation of planetary and topographic beta effects:

    • resonance of Rossby waves

    • maximum growth rate

    • perturbation growth bounds are trivial
