Polymer liquid crystals

Polymer Liquid Crystals

Behzad Pourabbas

Polymer Eng. Dep.

Sahand University of Technology

Tabriz, Iran

[email protected]

www.sut.ac.ir



Liquid Crystals crystals

States between crystalline and

isotropic liquid


Overlook
Overlook crystals

  • History

  • Terms and definitions

  • Mesomorphism

  • Basic Properties


Discovery of crystalsliquid crystals

Liquid crystals form from organic compounds and is thought of as the phase of matter between the solid and liquid state of a crystal. This phenomena was discovered in 1888 by Austrian chemist FrederichReinitzer.


Liquid Crystals, 1805-1922. crystals

Before discovery of LC, Lehmann designed a microscope that could be used to monitor phase transition process.


1888 by Prof. crystalsReinitzer, a botanist, University of Prague, Germany


Phase Transition first defined by crystals

Georges Freidel in 1922



The term in encyclopedias
The term in Encyclopedias crystals

  • Liquid crystal (1891): n. A liquid in which the molecules are oriented parallel to each other resulting in birefringence and interference patterns visible in polarizing light.

    Collins PJ (1997) Introduction to liquid crystals: chemistry and physics, vol 1.Taylor and Francis, New York.


The terms in encyclopedias
The terms in Encyclopedias crystals

  • Liquid‐crystal polymer (LC polymer, liquid crystalline polymer, and mesomorphic polymer).

    • A polymer capable of forming regions of highly ordered structure (mesophase) while in the liquid (melt or solution) phase.

    • The degree of order is somewhat less than that of a regular solid crystal.

    • Four types have been identified: rod‐like, including aromatic polyamides, esters, azomethines, and benzobisoxazoles; helical, mostly natural materials such as polypeptides; side‐chain (comb polymers); and block copolymers with alternating rigid and flexible units.

    • These polymers are described as nematic, in which the mesogens (ordered regions) show no positional order, only long‐range order; Cholesteric or chiral, a modified nematic phase in which the orientation direction changes from layer to layer in a helical pattern; and smectic, in which the mesogens have both long‐range order and 1‐ or 2‐dimensional positional order.

    • Collins PJ (1997) Introduction to liquid crystals: chemistry and physics, vol 1. Taylor and Francis, New York.


The term in encyclopedias1
The term in Encyclopedias crystals

  • Liquid‐crystal polymer (LC polymer, liquid crystalline polymer, and mesomorphic polymer).

    • Liquid‐crystal polymers are difficult to get into the molten condition because the solid crystals generally decompose before melting.

    • The most commercially successful ones to date are those processed in solution, e.g., poly(p‐phenyleneterephthalamide) (Kevlar).

    • LC polymers are also classified as lyotropic and thermotropic.

    • Lyotropic ones show their liquid‐crystalline character only in solution, while thermotropic ones can show it in the melt without the presence of a solvent.

    • Collins PJ (1997) Introduction to liquid crystals: chemistry and physics, vol 1. Taylor and Francis, New York.



Main properties
Main Properties crystals

  • Rigid and Flexible sequences.

  • Orderness

  • Blend PLCS with EPS (Engineering Polymers) in such proportions that the good properties of PLCS ‘‘show up,’’ while at the same time there is in each case enough of an EP to keep the costs at bay. (Compatibility problem)


Types of orderness
Types of crystalsOrderness

  • Three types of ordering

    • positional,

    • orientational, and

    • conformational ordering;


What plcs are
what PLCs are crystals

  • Positional Disordering:

    • When methane melts, various relative positions of its quasi-spherical molecules become possible—since positional disordering occurs.


What plcs are1
what PLCs are crystals

  • Orientational Disordering:

    • When we move to the next homolog in the n-alkane series, ethane, its melting is accompanied also by positional disordering; intermolecular distances become less uniform.

    • However, melting of ethane involves at the same time orientational disordering since two molecules can now be perpendicular to each other, or parallel as they largely were before, or anything in between.


What plcs are2
what PLCs are crystals

  • Conformational ordering;

    • A longer paraffin hydrocarbon molecule such as n-decane also undergoes positional and orientational disordering, but conformational disordering dominates here: the segments acquire freedom to execute rotations about single bonds.


Lcs and types of orderness
LCs and types of crystalsorderness

  • liquid crystals exhibit positional disordering;

  • plastic crystals show orientational disordering; and

  • condis crystals exhibit conformational disordering.


Orderness and the conditions
Orderness crystals and the conditions

  • Thermotropic : PLC phases which appear in certain temperature intervals,

  • Lyotropic: LC properties are induced by the presence of a solvent,

  • Barotropic :liquid crystallinity induced by pressure elevation


Liquid crystal polymers rigid and semiflexible molecules with orientational ordering
Liquid Crystal Polymers crystals(rigid and semiflexible molecules, with orientational ordering)

  • Isotropic

  • Nematic

  • Smectic-A

director

layers


Molecular structures classification of plcs
MOLECULAR STRUCTURES crystalsClassification of PLCs

  • Classification of PLCs on the basis of molecular structures


Molecular structure property connection
Molecular Structure–Property Connection crystals

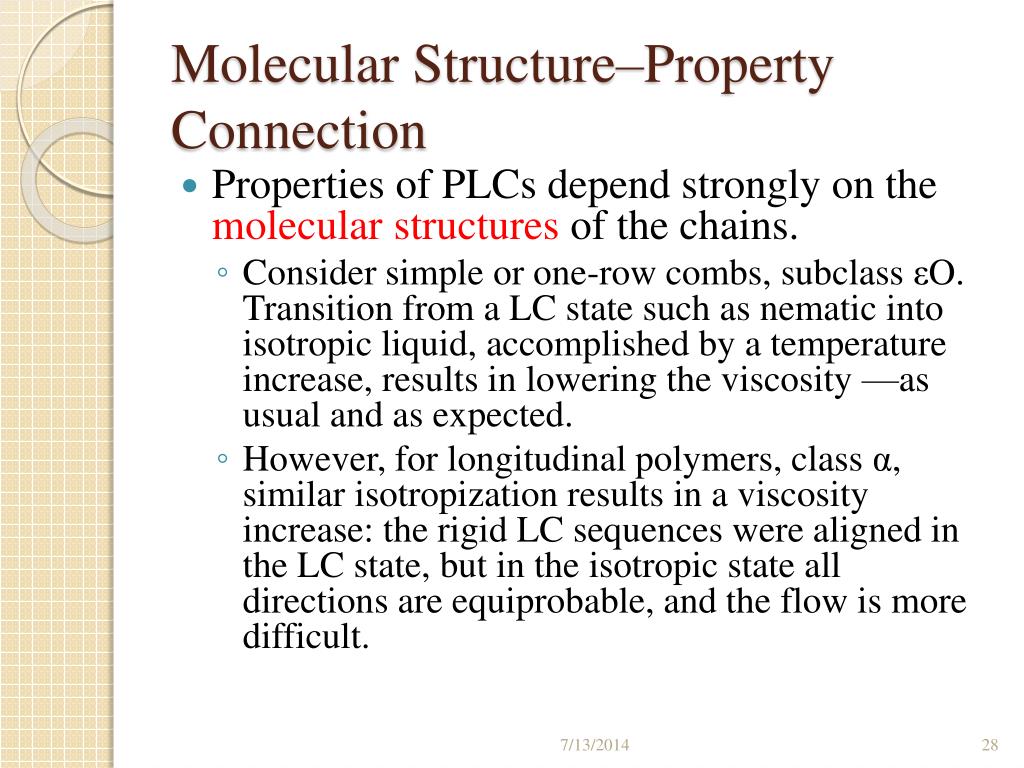

  • Properties of PLCs depend strongly on the molecularstructures of the chains.

    • Consider simple or one-row combs, subclass εO. Transition from a LC state such as nematic into isotropic liquid, accomplished by a temperature increase, results in lowering the viscosity —as usual and as expected.

    • However, for longitudinal polymers, class α, similar isotropization results in a viscosity increase: the rigid LC sequences were aligned in the LC state, but in the isotropic state all directions are equiprobable, and the flow is more difficult.


Lc phases and thermophysical properties
LC PHASES AND THERMOPHYSICAL PROPERTIES crystals

  • Kinds of LC Phases

    • Nematic, cholesteric, and a variety of smectic phases.

    • These three names have been proposed by Friedel in 1922 who imagined that such phases should exist—long before his concepts were confirmed by diffractometric experiments.

    • In all these phases the entire molecules (in MLCs) or the LC sequences in the chains (in PLCs) are oriented approximately—but not quite—perpendicularly to a preferred axis in space called director.

    • The degree of alignment is characterized by the order parameter (also called the anisotropy factor) defined in 1946 by Hermans [36] as:


Lc phases and thermophysical properties1
LC PHASES AND THERMOPHYSICAL PROPERTIES crystals

  • Kinds of LC Phases

where θ is the angle between the molecular axis and the director, and the braces <> denote an average for the material (or a layer). We see from the Eq. that in a completely isotropic system s = 0 while a System perfectly aligned along the director would have s = 1.


Order parameter

Order Parameter crystals

S = ½<(3cos²θ-1)>

The order parameter in a liquid crystal range from 0.3 to 0.9


Electric field effects
Electric field Effects crystals

  • If an electric field is applied to a liquid crystal the molecules will align in the same direction as the field.


Lc phases and thermophysical properties2
LC PHASES AND THERMOPHYSICAL PROPERTIES crystals

A cholesteric phase is formed by a pile of nematic phases with the director changing from one layer to another;

  • Kinds of LC Phases

Smectic phases have also layers, but each layer has at least one more element of long-range order in addition to the director.

The simplest among LC phases are nematic, in which the orientation along the director is the only kind of long-range order present;

An example of a nematic (a), cholesteric (b)

and smectic C (c) phase.


Nematic

Kinds of LC Phases: crystals

Nematic


Nematic crystals Liquid Crystals


Cholesteric phases

Kinds of LC Phases: crystals

Cholesteric phases


Cholesteric crystals Phase Liquid Crystals


Twisted nematic
Twisted Nematic crystals

  • This is called the twisted nematic liquid crystal and the spacing between the planes change with temperature. The spacing is associated with the wavelengths of light.


Smectic phases

Kinds of LC Phases: crystals

smectic phases


Lc phases and thermophysical properties3
LC PHASES AND THERMOPHYSICAL PROPERTIES crystals

  • Kinds of Smectit LC Phases

    • SmecticA phase: the centers of molecules (in MLCs) or of LC sequences (in PLCs) lie on equidistant planes perpendicular to the director.

    • In smecticB phases there are also such planes, but there is additionally a two-dimensional hexagonal lattice within each plane.

    • There is no hexagonal structure in smecticC phases, while the director is tilted with respect to the plane normal.


Classification of crystals

Smectic Liquid Crystals

A type: molecular alignment perpendicular to the surface of the layer, but lack of order within the layer.

B type: molecular alignment perpendicular to the surface of the layer, having order within the layer.

C type: having a tilted angle between molecular alignment and the surface of the layer.


Smectic crystals A Liquid Crystals


Smectic crystals B Liquid Crystals


Smectic crystals C Liquid Crystals


Smectic crystalsA Liquid Crystals




Nematic phase
Nematic crystals Phase

  • Molecules in this phase are long and rod-like in shape. They are free to move in space.


Self-organized pattern of a crystalsnematic liquid crystal created by interface orientations at the liquid crystal-isotropic phase transition temperature


Smectic phase
Smectic Phase crystals

  • This phase can be reached at lower temperatures than the nematic phase.

  • Molecules align themselves in layers.(They are restricted to their plane.)

  • More order and higher viscosity


Subjects to be studied
Subjects to be studied crystals

  • OPTICAL PROPERTIES

    • Nonlinear Optical (NLO) Effects

    • PLCs for NLO Applications

  • ELECTRICAL AND MAGNETIC PROPERTIES

    • Effects of Electric Fields

    • Effects of Magnetic Fields and NMR Spectroscopy

  • BLENDING AND RHEOLOGICAL PROPERTIES

    • Rheology of Pure PLCs and of EP ‏ PLC Blends

    • Properties of Blends



Uses of liquid crystals
Uses of Liquid Crystals crystals

  • Flat screen television

  • Wristwatches

  • Laptop screens

  • Digital clocks

  • Thermometers

  • Switchable windows
