Chapter 3 data types and abstraction

Chapter 3Data types and Abstraction

ICS 202  2011 spring  Data Structures and Algorithms 


Chapter 3 data types and abstraction

Outline

  • Abstract Data Types

  • Design Patterns

    • Class Hierarchy

    • Java Objects and the Comparable Interface

    • Wrappers for the Primitive Types

    • Containers

    • Visitors

    • Enumerations

    • Searchable Containers

    • Associations


Chapter 3 data types and abstraction

Lec1


Chapter 3 data types and abstraction

1. Abstract Data Types

  • A variable in a procedural programming language is an abstraction.

  • The abstraction comprises a number of attributes: name, address, value, lifetime, scope, type, and size.

  • Each attribute has an associated value (int x: the attribute name is x and the attribute type has value int)

  • Assigning a value to an attribute is called binding(covering).

  • The binding can be static or dynamic

    • In Java the type of a variable is determined at compiler time – static binding however, the value of a variable is usually not determined until run time – dynamic binding


Chapter 3 data types and abstraction

1. Abstract Data Types

  • In this chapter we are concerned primarily with the type attribute of a variable

  • The type of a variable specifies two sets:

    • a set of values, and

    • a set of operations.

  • For int x, we know that x can represent an integer in the range [-231, 231-1] and that we can perform operations on x such as addition, subtraction, multiplication, and division.

  • The type int is an abstract data type (we don’t need to know how ints are represented or how the operations are implemented to be able to use them).


Chapter 3 data types and abstraction

1. Abstract Data Types

  • Object oriented programs need an appropriate collection of abstractions, and abstract data types to represent the abstracts.

  • The abstract data types requires the specification of both a set of values and a set of operations on those values.

  • In Java the class construct creates both a set of values and an associated(link) set of operations(Methods).


Chapter 3 data types and abstraction

2. Design Patterns

  • In this section we will show how a set of basic abstract data type has been designed as a hierarchy of Java classes.

  • This section presents an overview of the class hierarchy and lays the ground-work for the following chapters.


Chapter 3 data types and abstraction

2. Design Patterns: Class hierarchy

Concrete Class

Abstract Class

Interface

“extends” relation between classes and between interfaces

“implements” relation between a class and the interface(s) it implements


Chapter 3 data types and abstraction

2. Design Patterns: Class hierarchy

  • A Java interface comprises a set of method declaration.

  • An interface doesn’t supply implementations for the methods it declares.

  • In effect, an interface identifies the set of operations provided by every class that implements the interface.

  • An abstract class in Java is a class that defines only part of an implementation.

  • It’s not possible to create object instances of abstract classes.

  • In Java, an abstract class typically contains one or more abstract methods.

  • An abstract method is one for which no implementation is given (method with out implementation).


Chapter 3 data types and abstraction

2. Design Patterns: Class hierarchy

  • An abstract class is intended to be used as the base class from which other classes are derived.

  • By declaring abstract methods in the base class, it is possible to access the implementations provided by the derived classes through the base-class methods.

  • there for , no need to know how a particular object instance is implemented or of which derived class it is instance.

  • This design pattern uses the idea of polymorphism (having many forms)


Chapter 3 data types and abstraction

2. Design Patterns: Class hierarchy

  • The main idea is that a Java interface is used to define the set of values and the set of operations – the abstract data type.

  • Then, various different implementations (many forms) of the interface can be made.


Chapter 3 data types and abstraction

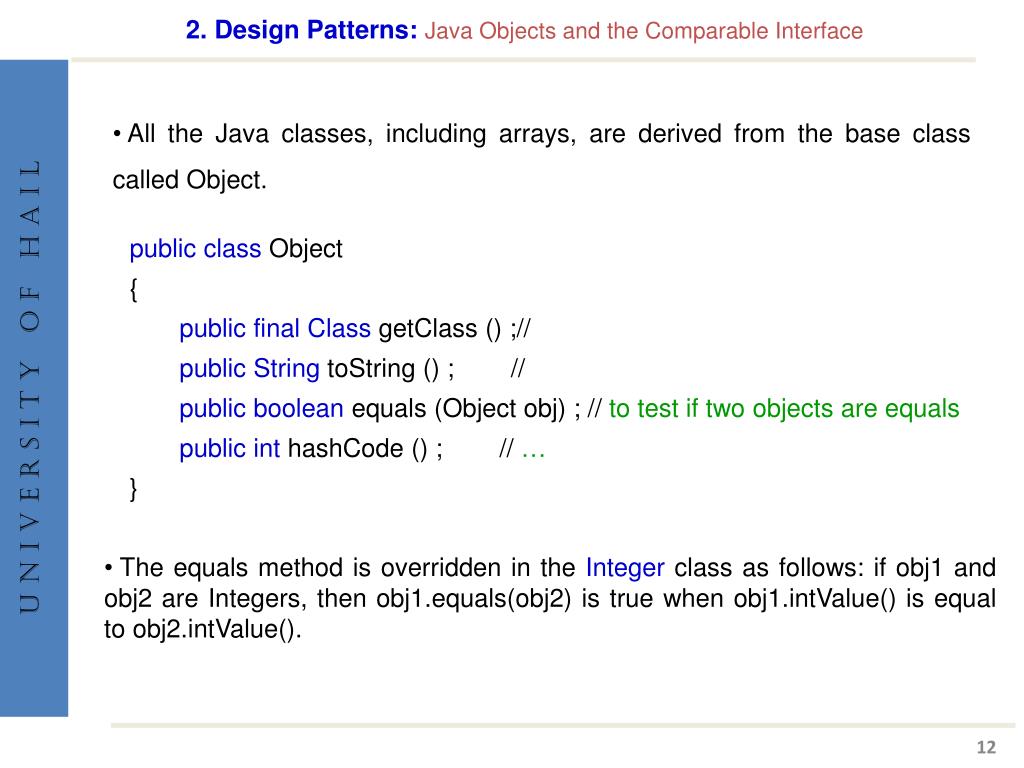

2. Design Patterns: Java Objects and the Comparable Interface

  • All the Java classes, including arrays, are derived from the base class called Object.

publicclass Object

{

public final Class getClass () ;//

public String toString () ; //

publicboolean equals (Object obj) ; // to test if two objects are equals

publicint hashCode () ; // …

}

  • The equals method is overridden in the Integer class as follows: if obj1 and obj2 are Integers, then obj1.equals(obj2) is true when obj1.intValue() is equal to obj2.intValue().


Chapter 3 data types and abstraction

2. Design Patterns: Java Objects and the Comparable Interface

  • Java objects don’t provide a mean to test whether one object is “less than” or “greater than” another object.

  • The Comparable interface solves this problem.

publicinterface Comparable

{

boolean isLT (Comparable object); // less than

boolean isLE (Comparable object); // less than or equal

boolean isGT (Comparable object); // greater than

boolean isGE (Comparable object); // greater than or equal

boolean isEQ (Comparable object); // equals

boolean isNE (Comparable object); // not equal

int compare (Comparable object); // obj1.compare(obj2) = (0) if

// obj1=obj2; (<0) if obj1<obj2; (>0) if obj1>obj2

}


Chapter 3 data types and abstraction

2. Design Patterns: Java Objects and the Comparable Interface

  • The abstract class at the top of the class hierarchy is called AbstractObject

  • All the other classes in the hierarchy are derived from this class.

  • The AbstractObject implements the Comparable interface.

  • All the methods defined in AbstractObject are final (they can’t be overridden).

  • All the methods defined in AbstractObject except the method equals call the compare method.


Chapter 3 data types and abstraction

2. Design Patterns: Java Objects and the Comparable Interface

public abstract class AbstractObject implements Comparable

{

public finalboolean isLT (Comparable object)

{ return compare (object) < 0; }

public final boolean isLE (Comparable object)

{ return compare (object) <= 0; }

public final boolean isGT (Comparable object)

{ return compare (object) > 0; }

public final boolean isGE (Comparable object)

{ return compare (object) >= 0; }

public final boolean isEQ (Comparable object)

{ return compare (object) == 0; }

public final boolean isNE (Comparable object)

{ return compare (object) != 0; }

public final boolean equals (Object object)

{

if (object instanceof Comparable)

return isEQ ((Comparable) object);

else

returnfalse;

}

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Java Objects and the Comparable Interface

public abstract class AbstractObject implements Comparable

{

protected abstract int compareTo (Comparable arg); // abstract method

public final int compare (Comparable arg) // call like obj1.compare(obj2)

{

if (getClass () == arg.getClass ()) // are obj1 and obj2 instances of

// the same class

return compareTo (arg); // called to do the comparison

elsereturn getClass().getName().compareTo(

arg.getClass ().getName ()); // comparison based on the names

} // of the 2 classes. Ex. If obj1 is instance of Opus5.StackAsArray and obj2 is

// instance of Opus5.QueueAsLinkedthen obj1 < obj2

}


Chapter 3 data types and abstraction

Lec 2


Chapter 3 data types and abstraction

2. Design Patterns: Wrappers for the Primitive Types

  • The primitive types in Java are void, boolean, char, short, int long, float, and double.

  • For each primitive type, the Java language defines a class that wraps the primitive.

  • The wrapper classes are Void, Boolean, Char, Short, Int Long, Float, and Double.

  • The wrapper classes are derived from the Object class.

  • They provide an equals method to test for equality.

  • The methods isLT, isGT, IsGE, isEQ, isNE are not supported by the wrapper classes because they don’t implement the Comparable interface.


Chapter 3 data types and abstraction

2. Design Patterns: Wrappers for the Primitive Types

public class Chr extends AbstractObject // wrapper class to implement the

{ // Comparable interface

protected char value;

public Chr (char value)

{ this.value = value; }

public char charValue ()

{ return value; }

protected int compareTo (Comparable object)

{

Chr arg = (Chr) object;

return (int) value - (int) arg.value;

}

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Wrappers for the Primitive Types

public class Int extends AbstractObject

{

protectedint value;

public Int (int value)

{ this.value = value; }

public int intValue ()

{ return value; }

protectedint compareTo (Comparable object)

{

Int arg = (Int) object;

long diff = (long) value - (long) arg.value;

if (diff < 0)

return -1;

elseif (diff > 0)

return +1;

else

return 0;

}

}


Chapter 3 data types and abstraction

2. Design Patterns: Wrappers for the Primitive Types

public class Dbl extends AbstractObject

{

protected double value;

public Dbl (double value)

{ this.value = value; }

public double doubleValue ()

{ return value; }

protected int compareTo (Comparable object)

{

Dbl arg = (Dbl) object;

if (value < arg.value)

return -1;

else if (value > arg.value)

return +1;

elsereturn 0;

}

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Wrappers for the Primitive Types

public class Str extends AbstractObject

{

protected String value;

public Str (String value)

{ this.value = value; }

publicString stringValue ()

{ return value; }

protected int compareTo (Comparable object)

{

Str arg = (Str) object;

return value.compareTo (arg.value);

}

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Containers

  • A container is an object that contains within it other objects

  • An interface Container is defined to be implemented by the various data structure classes

public interface Container extends Comparable

{

int getCount (); // returns the number of objects in the container

boolean isEmpty (); // returns true if the container is empty

boolean isFull (); // returns true if the container is full

void purge (); // deletes the objects of the container

void accept (Visitor visitor); // will be discussed later

Enumeration getEnumeration (); // will be discussed later

}


Chapter 3 data types and abstraction

2. Design Patterns: Containers

public abstractclass AbstractContainer

extends AbstractObject implements Container

{ // base class from which actual container are derived

protected int count; // to count the number of items in the container

public int getCount () // returnsthe number of items in the container

{

return count;

}

public boolean isEmpty ()

{

return getCount () == 0;

}

publicboolean isFull ()

{

return false; // by default the container has an infinity capacity

}

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Visitors

public interface Visitor // a visitor is an object that has two methods visit and

{ // isDone

void visit (Object object);

boolean isDone (); // to determine whether a visitor has finished its

// work

}


Chapter 3 data types and abstraction

2. Design Patterns: Enumerations

public interface Enumeration

{ // a class to access one-by-one all of the objects in a container

boolean hasMoreElements () ; // returnstrue if the container

// has more elements

Object nextElement ( ) throws NoSuchElementException;

// returns the pointer of the next element of the container

}


Chapter 3 data types and abstraction

2. Design Patterns: Searchable Container

public interface SearchableContainer extends Container

{

boolean isMember (Comparable object);

//to test whether the given object instance is in the container

void insert (Comparable object);

//to put an object in the container

void withdraw (Comparable obj);

//to remove an object from the container

Comparable find (Comparable object);

//to locate an object in a container and to return its reference

}


Chapter 3 data types and abstraction

2. Design Patterns: Associations

  • An association is an ordered pair of objects.

  • The first element is called the key.

  • The second element is the value associated with the given key.

  • Associations are useful for storing information in a data base.

  • A data base can be viewed as a container that holds key-and-value pairs.


Chapter 3 data types and abstraction

2. Design Patterns: Associations

public class Association extends AbstractObject

{

protected Comparable key;

protectedObject value;

public Association (Comparable key, Object value)

{ this.key = key; this.value = value; }

public Association (Comparable key) { this (key, null); }

public Comparable getKey ()

{ return key; }

public Object getValue ()

{ return value; }

// ...

}


Chapter 3 data types and abstraction

2. Design Patterns: Associations

public class Association extends AbstractObject

{

protected Comparable key;

protectedObject value;

protectedint compareTo (Comparable object)

{ // used to compare associations

Association association = (Association) object;

return key.compare (association.getKey ( ) ) ;

}

public String toString ( )

{ // used to return the textual representation of the association

String result = "Association {" + key;

if (value != null)

result += ", " + value;

return result + "}";

}

// ...

}


Chapter 3 data types and abstraction

END


  • Login
