Temperature

TEMPERATURE


Temperature

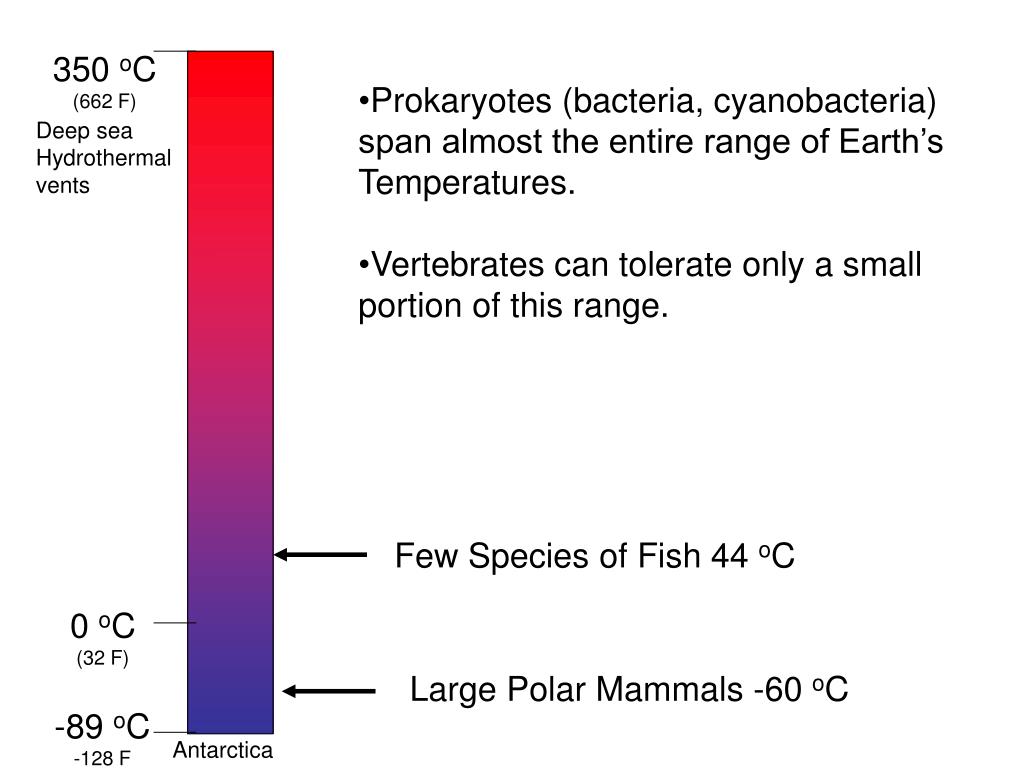

350 oC

(662 F)

  • Prokaryotes (bacteria, cyanobacteria) span almost the entire range of Earth’s Temperatures.

  • Vertebrates can tolerate only a small portion of this range.

Deep sea Hydrothermal vents

Few Species of Fish 44 oC

0 oC

(32 F)

Large Polar Mammals -60 oC

-89 oC

-128 F

Antarctica


Temperature

Temperature sets limits…

Physiology

Morphology

Behavior

performance

Darwinian fitness

Environment


Temperature

Biochemical structures (i.e. enzymes) breakdown

Rate of reaction

Increasing T

Limits at the Cellular Level

Increased Temperature speeds up biochemical reactions…

…to a point


Temperature

Thermal performance curves:

specialist

generalist

Performance

Lower lethal temp

Upper lethal temp

Temperature

… but limits are species-specific


Temperature outline

Temperature Outline

  • Definitions:

    • Heat Transfer

    • Physiological strategy: endo, ecto, etc.

    • Temperature tolerance

  • Extreme Temperature: HEAT

    • Death?

    • Avoidance strategies

    • Tolerance strategies

  • Extreme Temperature: COLD

    • Death?

    • Avoidance strategies

    • Tolerance strategies

  • Example: Camels are cool!


Temperature basics

Temperature Basics

  • Heat Transfer

  • Thermal Strategies

  • Thermal Tolerance


Temperature

Heat transfer between animals and environment


Temperature

What’s the difference between temperature & heat?

Measure of intensity of heat

Total KE

(calories or joules)

(oC, oF, K)

Same temp,

Different heat content

1 Calorie

= energy required to raise 1g of water 1o C

How many calories to heat 1g water from 25o C to 50o C?

= 25 calories

How many calories to heat 100g water from 25o C to 50o C?

= 2500 calories


Temperature

Heat production

-

+

Heat in

Heat out

(metabolism)

=

Heat stored

Body temperature depends on heat stored

Gains > losses


Temperature

Heat flows from warmer cooler

4 Mechanisms of heat transfer

  • Conduction

  • Conduction + Convection

  • Radiation

  • Evaporation

“The Rules”

Greater temperature gradient, greater flux

Physical properties matter


Temperature

1. Conduction

= heat transfer between bodies in direct physical contact

  • temperature differential

  • area of contact

• conductivity of materials


Temperature

2. Convection

CONDUCTION ONLY

CONDUCTION AND

CONVECTION

Hot object

Hot object

= bulk movement of fluid

- Accelerates heat transfer between a solid and a fluid

Why?

Boundary Layer is Removed


Temperature

2. Convection

…All fluids come to rest at a solid surface

Air reaches full speed

Air reaches full speed

= “boundary layer”

Fluid speed

0

Distance from solid surface

Size of boundary layer is influenced by:

Thicker boundary layer, less heat loss to conduction

  • size (and shape) of animal

  • surface roughness

  • fluid speed (air, H2O)


Temperature

3. Radiation

Short wavelengths

Surface temperature is important:

-intensity

T4

Long wavelengths

= transfer of heat between objects without contact

Above absolute zero, all objects emit & receive radiation

-hotter surface, shorter wavelengths

Area of radiative surface is, too


Temperature

4. Evaporation

=Extremely effective method of losing heat

@ 35o C, it takes 580 cal to vaporize 1g of H2O!

  • exposure of moist surfaces

  • moisture gradient


Temperature

4. Evaporation

=Extremely effective method of losing heat

@ 35o C, it takes 580 cal to vaporize 1g of H2O!

  • exposure of moist surfaces

  • moisture gradient


Temperature

Heat flux from different sources is additive

Infrared thermal radiation from lizard

Infrared thermal radiation from atmosphere

Direct sunlight

Evaporation

Conduction from rock

Infrared thermal radiation from rock

+

-

Heat Production

(metabolism)

HEAT IN

HEAT OUT

=

Body Temp

Conduction to air

+ Convection by wind


Temperature basics1

Temperature Basics

  • Heat Transfer

    • Conduction

    • Convection

    • Radiation

    • Evaporation

  • Thermal Strategies

  • Thermal Tolerance


Thermal strategies

Thermal Strategies

  • Ectotherms: a body temperature principally dependent on external heat sources

  • Endotherms: a body temperature principally dependent on internally generated metabolic heat

  • Homeotherms: body temperature kept constant

  • Poikilotherms: body temperature varies


Temperature

Some small birds

and mammals

Brooding

Python

A few fish

MR

MR

Tb

Tb

Ta

Ta

ENDOTHERMS

Terrestrial Birds

and Mammals

POIKILOTHERMY

HOMEOTHERMY

Polar

Marine Fish

Most Amphibians

and Reptiles

A few Amph

and Rept

Freshwater

Fish

Most

Marine Fish

ECTOTHERMS

Shivering Python

http://www.flickr.com/photos/smacdonald/2520515097/


Temperature basics2

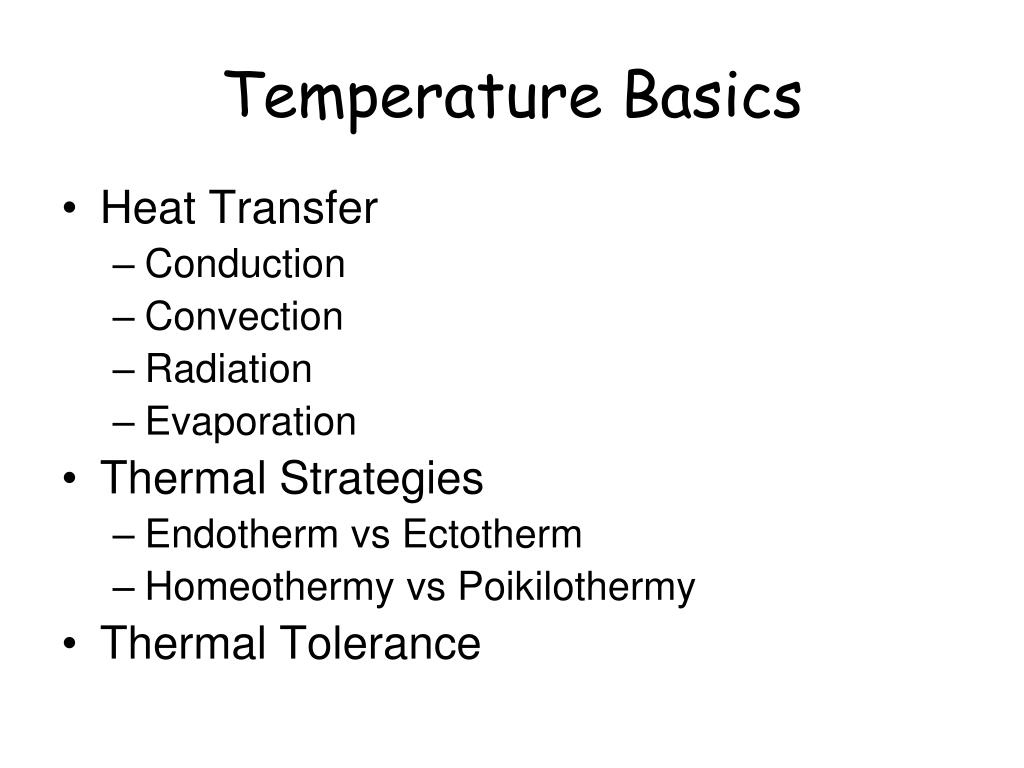

Temperature Basics

  • Heat Transfer

    • Conduction

    • Convection

    • Radiation

    • Evaporation

  • Thermal Strategies

    • EndothermvsEctotherm

    • HomeothermyvsPoikilothermy

  • Thermal Tolerance


Temperature

Thermal performance curves:

Preferred Body Temp

Performance

Temperature


Temperature

Thermal performance curves:

Preferred Body Temp

Performance

Temperature

Environmental Temperature shift?

ACCLIMITIZATION!!


Temperature tolerance

Will discuss in hot vs. cold

Temperature Tolerance

  • Acclimitization

    • Biochemical

      • Membrane dynamics

      • Enzyme types and concentrations

      • Heat Shock Proteins

  • Behavioral

  • Morphological

  • Physiological


Membrane dynamics

Membrane Dynamics

What are the kinks?


Temperature

Polyunsaturated

Fatty Acid

(Omega 6)


Temperature

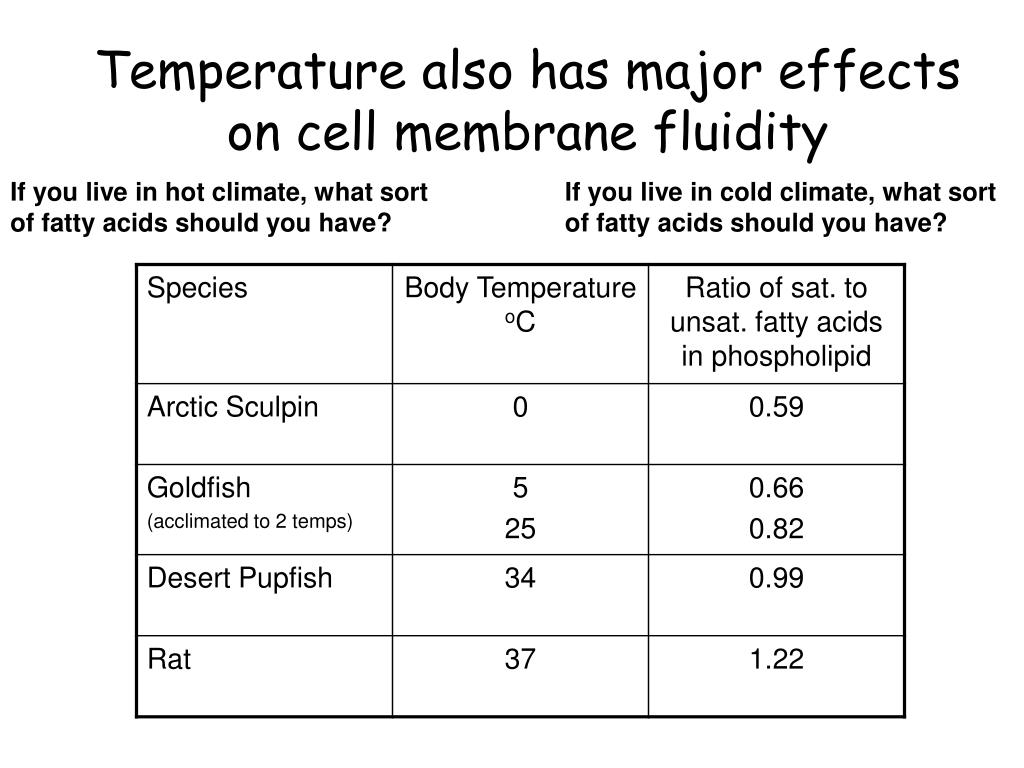

Temperature also has major effects on cell membrane fluidity

If you live in hot climate, what sort of fatty acids should you have?

If you live in cold climate, what sort of fatty acids should you have?


Temperature

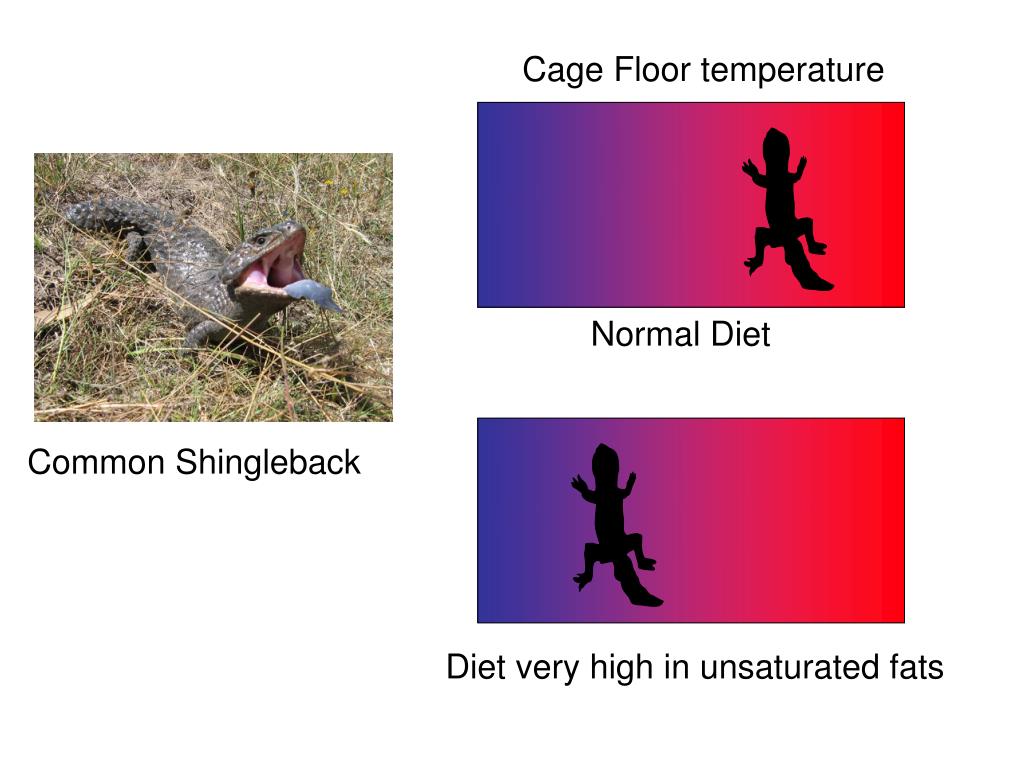

Cage Floor temperature

Diet very high in unsaturated fats

Normal Diet

Common Shingleback


Temperature

Thermal performance curves:

Preferred Body Temp

Performance

Temperature

Environmental Temperature shift?

Increase PUFA in diet!


Enzymes

Enzymes

= different forms of particular enzymes with different temperature optima

  • isozymes

4 different

forms of ATPase

Each with a separate

thermal performance

curve


Enzymes1

Alligator lizard

Fence lizard

Desert Fringed Lizard

Desert Iguana

Enzymes

  • isozymes


Temperature

Heat Shock Proteins

  • Under High Temperatures, Proteins unfold (denature)

How can you protect

Cells during protein denaturation?


Temperature

“Heat Shock Proteins” protect against heat damage

  • = proteins synthesized in response to cellular stress (including high temps)

  • function as “molecular chaperones”

Heat increases

Protein denatures from Heat

HSP expression increases (more HSP)

HSP binds up denatured protein

Heat decreases

HSP lets go, protein can refold


Cataglyphis ants

Cataglyphis Ants

>50C on sand

45C in nest entrance

Cataglyphis spend 10-15 minutes

In the tunnel to the nest, making heat shock proteins to protect their cells while they are out on the desert foraging

Other insects stop foraging

<30C inside nest

http://www.youtube.com/watch?v=w9KDM4C1kVg&feature=related


Temperature acclimatization

Temperature Acclimatization

  • Biochemical

    • Membrane dynamics

      • Colder? Incoporate more PUFA

      • Hotter? Use less PUFA

    • Enzyme types and concentrations

      • Colder or hotter? Change isozyme

Goldfish Swimming

Speed


Temperature acclimatization1

Temperature Acclimatization

  • Biochemical

    • Membrane dynamics

      • Colder? Incoporate more PUFA

      • Hotter? Use less PUFA

    • Enzyme types and concentrations

      • Colder or hotter? Change isozyme

    • Heat Shock Proteins

      • Protect protein denaturation from killing cells


Temperature basics3

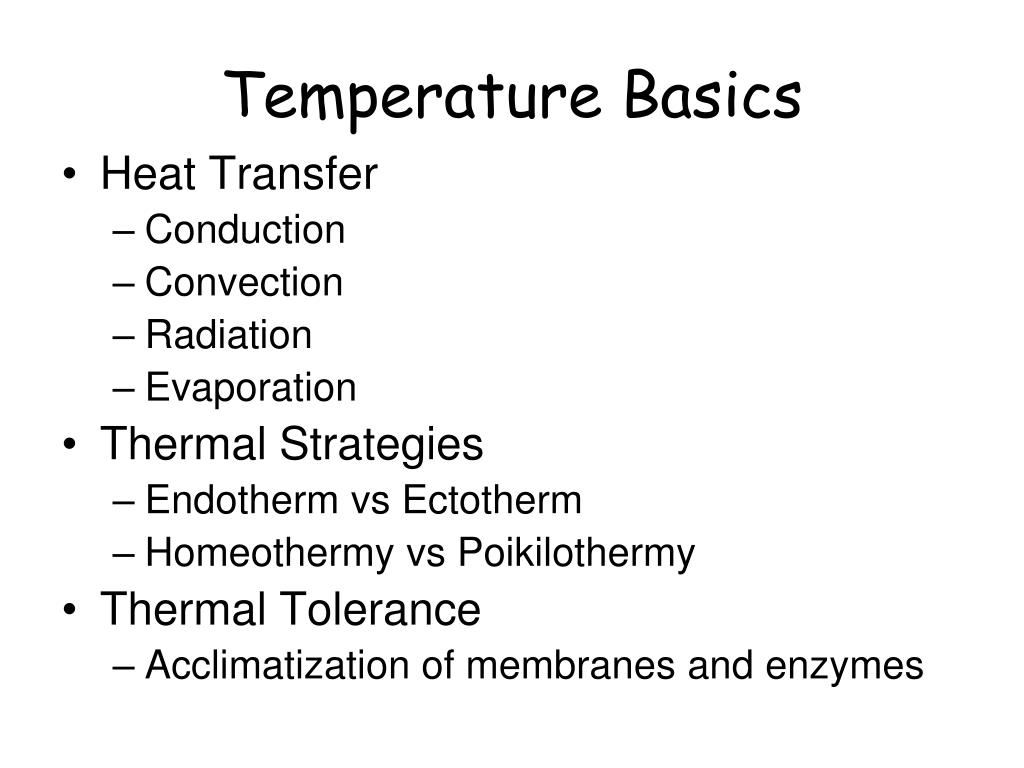

Temperature Basics

  • Heat Transfer

    • Conduction

    • Convection

    • Radiation

    • Evaporation

  • Thermal Strategies

    • Endotherm vs Ectotherm

    • Homeothermy vs Poikilothermy

  • Thermal Tolerance

    • Acclimatization of membranes and enzymes


Temperature outline1

Temperature Outline

  • Definitions:

    • Heat Transfer

    • Physiological strategy: endo, ecto, etc.

    • Temperature tolerance

  • Extreme Temperature: COLD

    • Death?

    • Avoidance strategies

    • Tolerance strategies

  • Extreme Temperature: HEAT

    • Death?

    • Avoidance strategies

    • Tolerance strategies


Temperature

COLD

  • What causes death?

  • Avoidance Strategies

  • Tolerance Strategies


Temperature

What causes cold death?

  • Intracellular ice formation

    - 0.5o C terrestrial, -1.7o C marine

  • Chemical reaction rates drop

  • CNS control, integration reduced


Temperature

COLD

  • What causes death?

    • Intracellular ice

    • Low enzymatic reactions

    • CNS control

  • Avoidance Strategies

  • Tolerance Strategies


Temperature

Avoidance

Hibernation/torpor


Temperature

Body Temperature

Daytime temp

Time of day

Avoidance

Significantly lowered Tb

Hibernation/torpor


Temperature

COLD

  • What causes death?

    • Intracellular ice

    • Low enzymatic reactions

    • CNS control

  • Avoidance Strategies

    • Hibernation/Torpor

  • Tolerance Strategies

    • Behavioral

    • Physiological

    • Extreme Cold adaptations


Temperature

Tolerance Strategies: 1 (behavioral)

  • Change conduction, convection, evaporation and radiation


Temperature

Tolerance Strategies: 2 (physiological)

Countercurrent heat exchangers

also help keep animals warm…

Countercurrent can be used to retain heat…


Temperature

Countercurrent heat exchangers

Or countercurrent can be bypassed to lose heat


Temperature

Countercurrent heat exchangers

But what happens below 0OC?

  • occasional pulses of blood to feet

  • prevent tissue damage


Temperature

• warm up flight muscles

Tolerance Strategies: 2 (physiological)

Shivering Thermogenesis

Shivering

  • keep body temp elevated 5oC

  • nearly 9X increase in MR!


Temperature

(mammals)

Non-shivering thermogenesis

Tolerance Strategies: 2 (physiological)

BAT = Brown adipose tissue

Oxidation of BAT produces heat, but not ATP

- highly vascularized

- abundant mitochondria

• neonatal animals

• some cold acclimated mammals

• hibernators during arousal


Temperature

COLD

  • What causes death?

    • Intracellular ice

    • Low enzymatic reactions

    • CNS control

  • Avoidance Strategies

    • Hibernation/Torpor/Estivation

  • Tolerance Strategies

    • Behavioral: alter heat transfer properties

      • Conduction, convection, radiation

    • Physiological

      • Counter-current exchange

      • Shivering thermogenesis

      • Non-shivering thermogenesis

    • Extreme Cold adaptations


Temperature

Extreme Cold! (ectotherms)

Avoid Freezing

Tolerate Freezing


Temperature

How do some ectotherms deal with extreme cold?

Avoid Freezing

Option 1: use antifreeze compounds

  • colligative antifreezes

= lower freezing point by colligative properties

e.g., glycerol, sorbitol, mannitol

  • Non-colligative antifreezes

= lower freezing point b/c of special chemical properties


Temperature

Non-colligative antifreezes:

Glycoprotein- polar groups; bind to ice crystals & prevent their growth

(lowers the temp at which ice crystals enlarge)


Temperature

Non-colligative antifreezes:

expression of genes for antifreeze protein increase seasonally…

…and freezing point decreases seasonally in winter flounder.


Antifreeze colligative and non colligative

Antifreeze—colligative and non-colligative

} non-colligative

} colligative


Temperature

How do some ectotherms deal with extreme cold?

Avoid Freezing

Option 1: use antifreeze compounds

Option 2: supercooling*

-with gradual cooling, a liquid may remain unfrozen well below its freezing point…

-…in the absence of ice nucleating agents

* Lowers the temperature at which ice crystals form


Temperature

Option 3: promote extracellular ice formation…

How do some ectotherms deal with extreme cold?

Avoid Freezing

Tolerate Freezing

Option 1: use antifreeze compounds

Option 2: supercooling


Temperature

Water drawn from cell

(65% frozen)

(70% frozen)

(50% frozen)

Promoting extracellular ice formation

  • animals must remain inactive

  • ice formation is restricted to extracellular fluid

Ice nucleating agents promote freezing

As ECF freezes…


Wood frog freeze tolerant

Becoming Frozen:

Unfreezing:

Wood Frog: Freeze Tolerant

Dark areas are frozen

Why?

Freeze from outside in

Thaw evenly


Temperature

COLD

  • What causes death?

    • Intracellular ice

    • Low enzymatic reactions

    • CNS control

  • Avoidance Strategies

    • Hibernation/Torpor/Estivation

  • Tolerance Strategies

    • Behavioral: alter heat transfer properties

      • Conduction, convection, radiation

    • Physiological

      • Counter-current exchange

      • Shivering thermogenesis

      • Non-shivering thermogenesis

    • Extreme Cold adaptations

      • Freeze avoidance: antifreezes (colligative and non-colligative)

      • Freeze Tolerance: promote extracellular ice formation


Temperature outline2

Temperature Outline

  • Definitions:

    • Heat Transfer

    • Physiological strategy: endo, ecto, etc.

    • Temperature tolerance

  • Extreme Temperature: COLD

    • Death?

    • Avoidance strategies

    • Tolerance strategies

  • Extreme Temperature: HEAT

    • Death?

    • Avoidance strategies

    • Tolerance strategies


Temperature

HEAT

  • What causes death?

  • Avoidance Strategies

  • Tolerance Strategies


Temperature

Acetylcholinesterase

What ultimately causes heat death?

  • Disruption of membrane integrity

  • Exceeding optimal temp for enzyme function

temperature optima

vary by species


Temperature

What ultimately causes heat death?

  • Disruption of membrane integrity

  • Exceeding optimal temp for enzyme function

  • Protein Denaturation


Temperature

HEAT

  • What causes death?

    • Membrane disruption

    • Enzyme function

    • Protein denaturation

  • Avoidance Strategies

  • Tolerance Strategies


Estivation summer sleep

Metabolic rates reduced

Thermal tolerance limits expanded

Growth and reproduction cease

Animal becomes relatively unresponsive to external stimuli

Estivation = ‘summer sleep’

Avoidance Strategies

Migration

  • Spend part of the year in different location


Alter heat transfer properties

Tolerance Strategies: 1 (behavioral)

Alter Heat Transfer Properties

  • Decrease conduction from warm surfaces

  • Increase Convection

  • Increase Evaporation

  • Decrease Radiation Intake


Locate appropriate microclimate

Tolerance Strategies: 1 (behavioral)

Locate appropriate microclimate

High evaporation

Burrowing

FIND SHADE!


Change effective surface area

Tolerance Strategies: 1

Change Effective Surface Area

Change Foraging strategy

ants

Change Color


Temperature

Tolerance Strategies: 2 (physiological)

Vasodilation

-promotes heat loss


Temperature

Even cicadas “sweat”!

Tolerance Strategies: 2 (physiological)

Vasodilation

Evaporative heat loss

  • accelerated water loss for evaporative cooling at 41o C

  • replenish with plant juices


Temperature

Tolerance Strategies: 2 (physiological)

Without rest, this rabbit will die of heat exhaustion, but the dog can keep on running…

HOW?


Temperature

Arterial vessel

Venous vessel

Heat exchange

Rete mirabile

“wonderful net”

  • Countercurrent heat exchanger


Temperature

Evaporative

cooling

Rete mirabile

“wonderful net”


Temperature

Cat

Sheep

Dog

Rat

??

Rete mirabile

Who has it?

• primates

• (& rabbits!)


Temperature

HEAT

  • What causes death?

    • Membrane disruption

    • Enzyme function

    • Protein denaturation

  • Avoidance Strategies

    • Estivation

    • Migration

  • Tolerance Strategies

    1. Behavioral:

    Alter heat transfer properties

    Locate appropriate microclimate

    Change color

    Change foraging strategy

    Change effective surface area

    2. Physiological:

    Vasodilation

    Sweating

    Retemirabile


Temperature outline3

Temperature Outline

  • Definitions:

    • Heat Transfer

    • Physiological strategy: endo, ecto, etc.

    • Temperature tolerance

  • Extreme Temperature: COLD

    • Death?

    • Avoidance Strategies

    • Tolerance Strategies

  • Extreme Temperature: HEAT

    • Death?

    • Avoidance Strategies

    • Tolerance Strategies


Temperature

BODY HEAT REGULATION

WATER

BRAIN FUNCTION

Ta (air temp) can exceed 50ºC (138 F)

Normal mammalian body temp = 37ºC

How do they cope????

CAMELS


Temperature

How do camels manage to live in the desert heat?

1. Thick fur: prevents heat gain


Temperature

How do camels manage to live in the desert heat?

  • Thick fur: prevents heat gain

  • Body Heat can increase above 37ºC

  • Body temp can increase to 41ºC (106ºF)

    • Heat can be lost at night, don’t need to lose water through evaporative cooling

      • Saves 5 L of water a day

    • Lowers temp difference between air and camel


Temperature

How do camels manage to live in the desert heat?

  • Thick fur: prevents heat gain

  • Body Heat can increase above 37ºC

  • Fat stored in Hump, not under skin

Why Helpful???

During cool nights, heat loss is not restricted


Temperature

BODY HEAT REGULATION

Thick Fur

Body Heat to 41ºC

Fat stored in hump

WATER

BRAIN FUNCTION

Ta (air temp) can exceed 50ºC (138 F)

Normal mammalian body temp = 37ºC

How do they cope????

CAMELS


Temperature

How do camels manage to live in the desert heat?

  • Can go for 3-4 days without water

When they reach water, they can drink up to 100L in 10 minutes


Temperature

How do camels manage to live in the desert heat?

  • Can go for 3-4 days without water

  • Minimize water loss…

  • Concentrate Urine

  • Camel does not sweat (until body temp above 41)

  • The NOSE:

    • Main place for evaporative cooling

      • Our nasal passages 10 cm2

      • Camel Nasal Passages 1000 cm2

        • Called ‘nasal turbinate’

    • Can open and close to save water

    • Nasal Membranes are HYGROSCOPIC (very cool)


Temperature

BODY HEAT REGULATION

Thick Fur

Body Heat to 41ºC

Fat stored in hump

WATER

Can go 3-4 days without water

Concentrate urine 9-fold over plasma

Doesn’t sweat (mostly)

THE NOSE

Huge surface area—used for evaporative cooling

Can close nostrils to save water

HYGROSCOPIC

BRAIN FUNCTION

Ta (air temp) can exceed 50ºC (138 F)

Normal mammalian body temp = 37ºC

How do they cope????

CAMELS


Temperature

Rete mirabile

“wonderful net”

Arterial vessel

Venous vessel

Heat exchange

How do camels manage to live in the desert heat?

Body Temp can increase 6C…

But Brain can’t function at that temp

…?

THEY KEEP THEIR BRAIN COOL!

= Counter Current

Exchange


Temperature

Evaporative

cooling

Rete mirabile

“wonderful net”


Temperature

Rete mirabile

• brain temperature remains lower


Temperature

BODY HEAT REGULATION

Thick Fur

Body Heat to 41ºC

Fat stored in hump

WATER

Can go 3-4 days without water

Concentrate urine 9-fold over plasma

Doesn’t sweat (mostly)

THE NOSE

Huge surface area—used for evaporative cooling

Can close nostrils to save water

HYGROSCOPIC

BRAIN FUNCTION

Rete Mirabile

Allows for brain cooling in spite of very high body temp

Ta (air temp) can exceed 50ºC (138 F)

Normal mammalian body temp = 37ºC

How do they cope????

CAMELS


Migration routes

Migration Routes


  • Login
