The NGC Compressor Family

Merging the latest evolutions in Screw Compressor technology with greater flexibility & value added features for Natural Gas Compression

The

Inside

Scoop


On board full time oil pump powered by the engine drive shaft.

Integral suction strainer eliminates the need for an external strainer.

Internally ported hydraulics eliminates control tubing.

Hermetically sealed linear transmitter and slide valve transmitter help eliminate potential leaks and provide more accurate compressor performance feedback.

Combination gear box - discharge housing provides added operating flexibility while internal porting eliminates the need for an external oil circuit.


Gear drive concept opening the operating window
Gear Drive Concept shaft.Opening the Operating Window

Couple a 600HP/1800RPM driver to the NGC 300 and watch what happens:

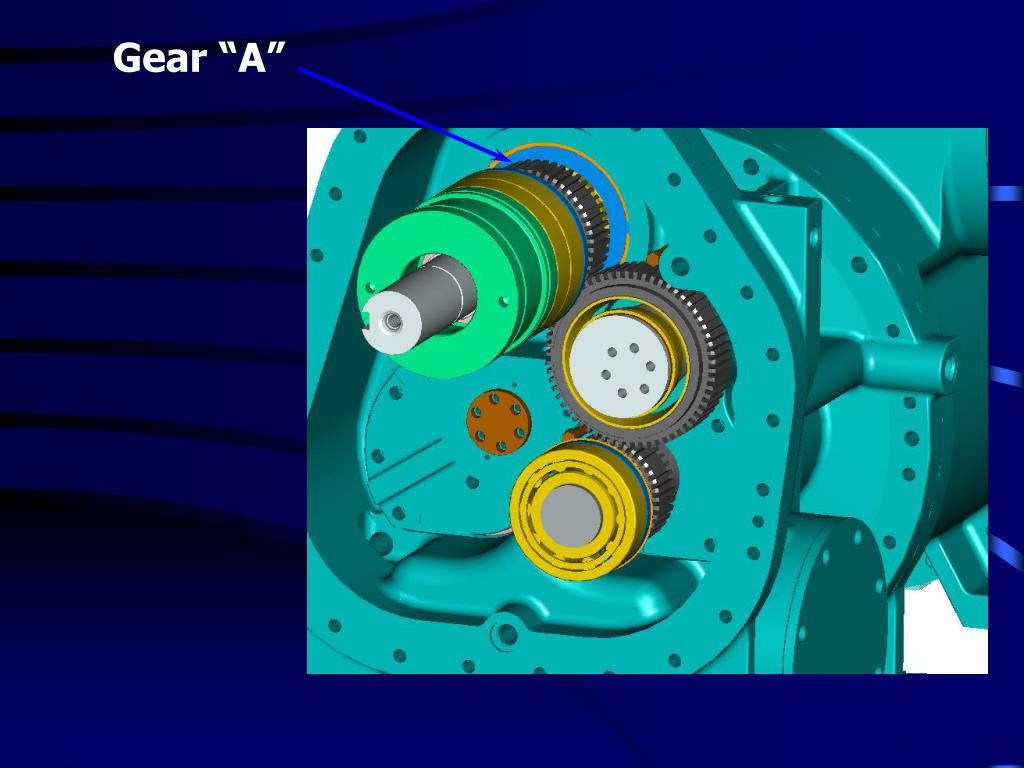

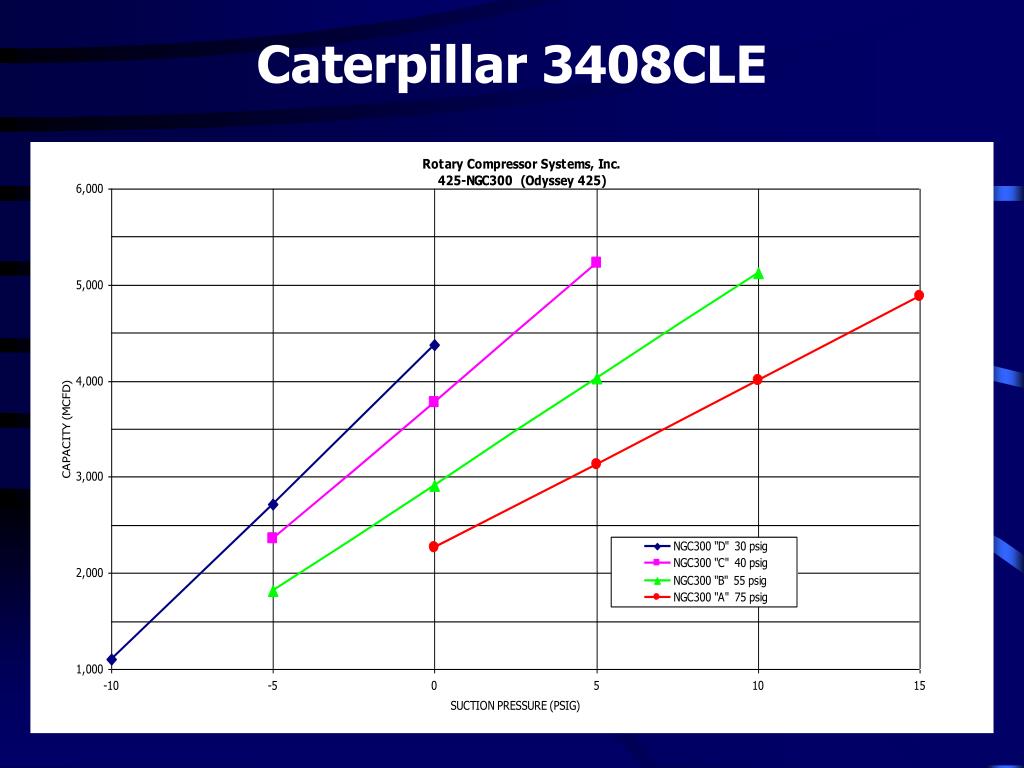

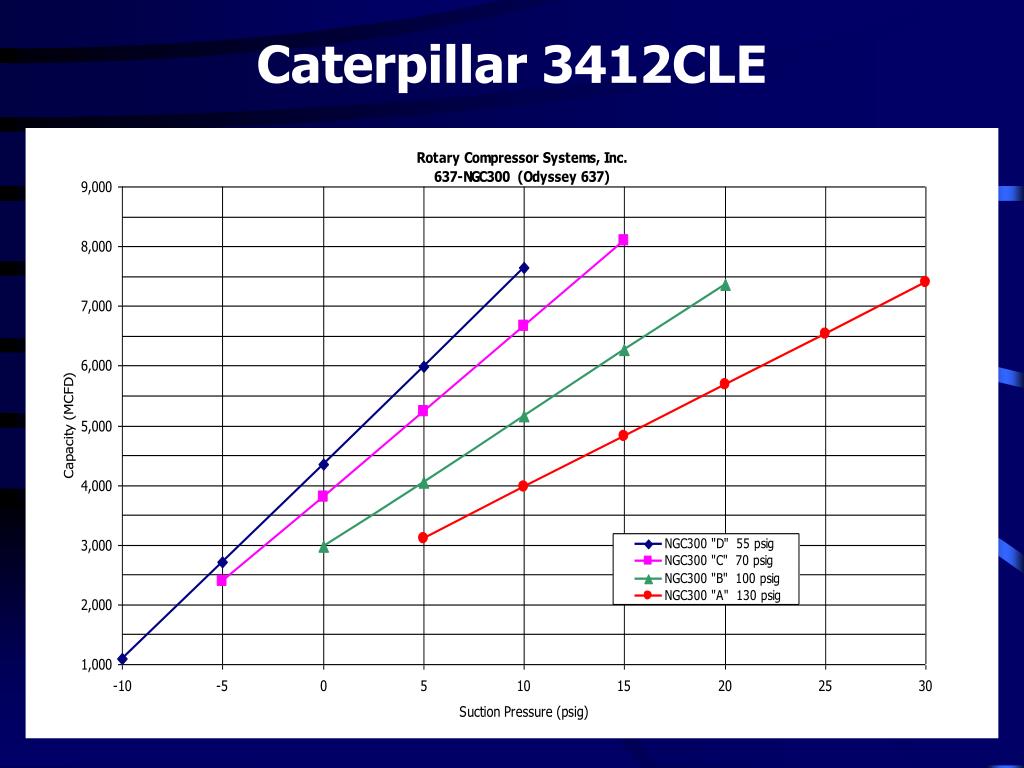

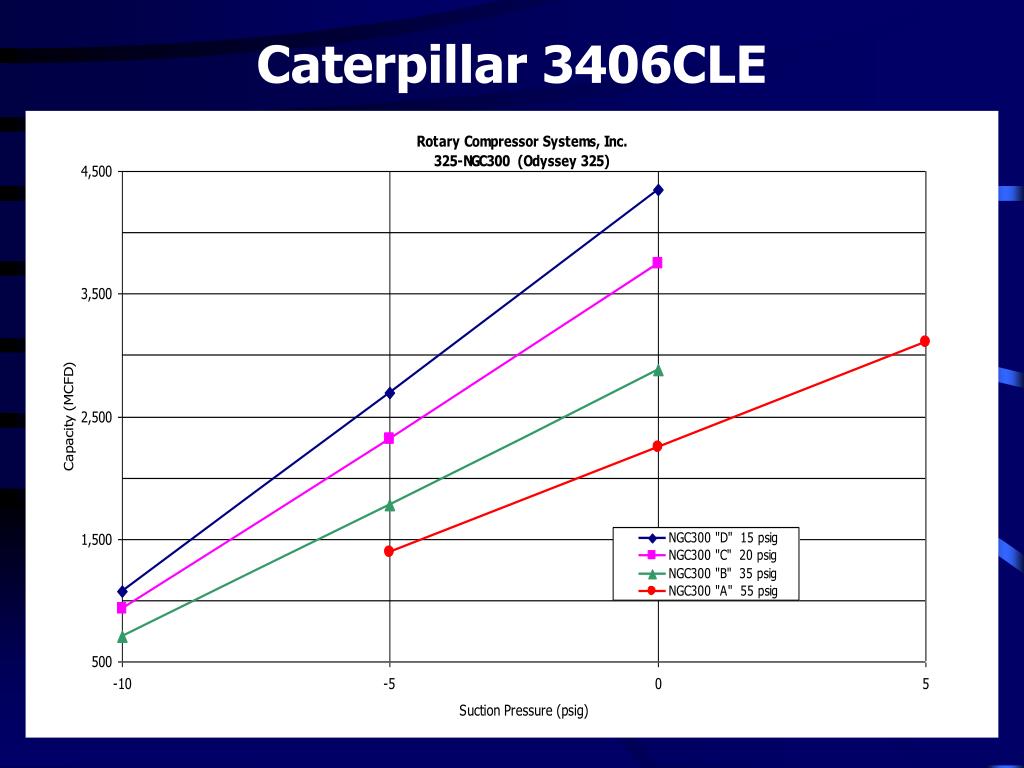

  • Minimum - Gear “A” 400 to 2,660 MCFD

  • Intermediate 1 - Gear “B” 500 to 3,380 MCFD

  • Intermediate 2 - Gear “C” 640 to 4,280 MCFD

  • Maximum - Gear “D” 740 to 4,960 MCFD

  • Increased variable screw speed allows the engine to run at maximum HP for maximum efficiency in different applications.

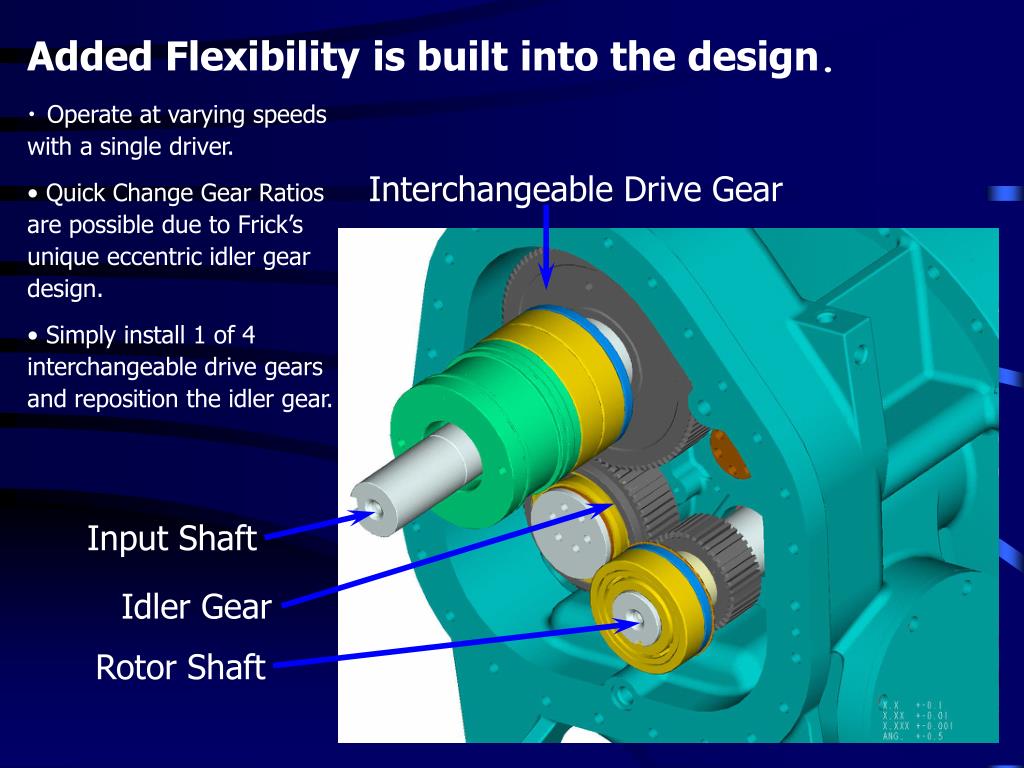

Added Flexibility is built into the design shaft..

  • Operate at varying speeds with a single driver.

  • Quick Change Gear Ratios are possible due to Frick’s unique eccentric idler gear design.

  • Simply install 1 of 4 interchangeable drive gears and reposition the idler gear.

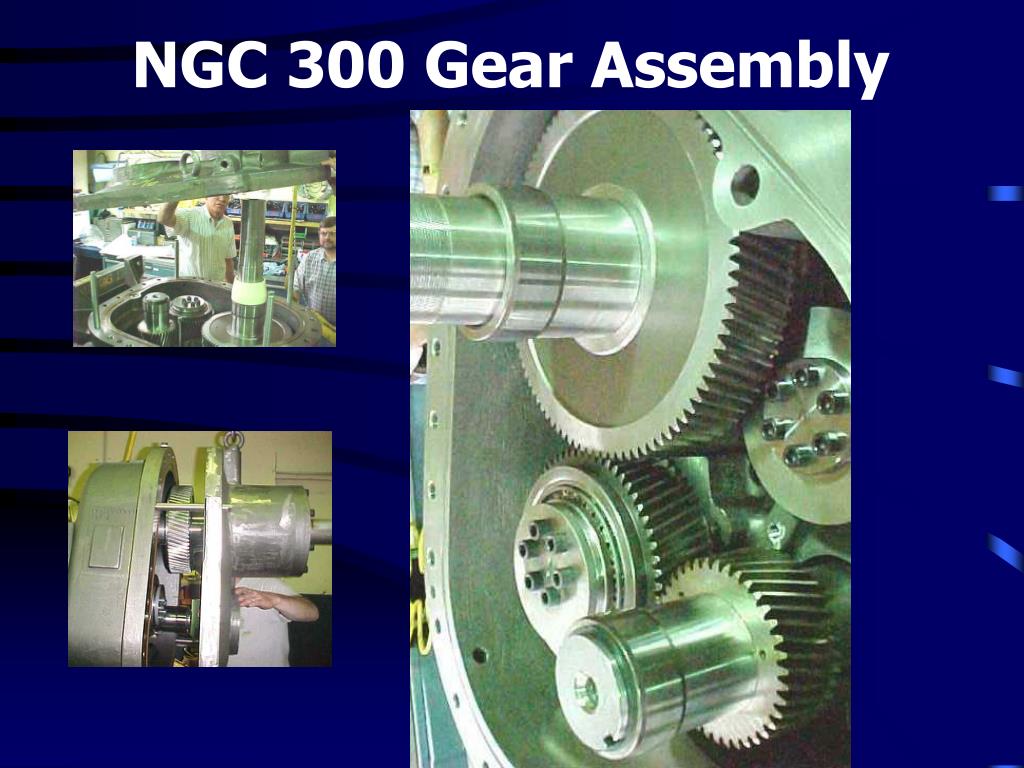

Interchangeable Drive Gear

Input Shaft

Idler Gear

Rotor Shaft

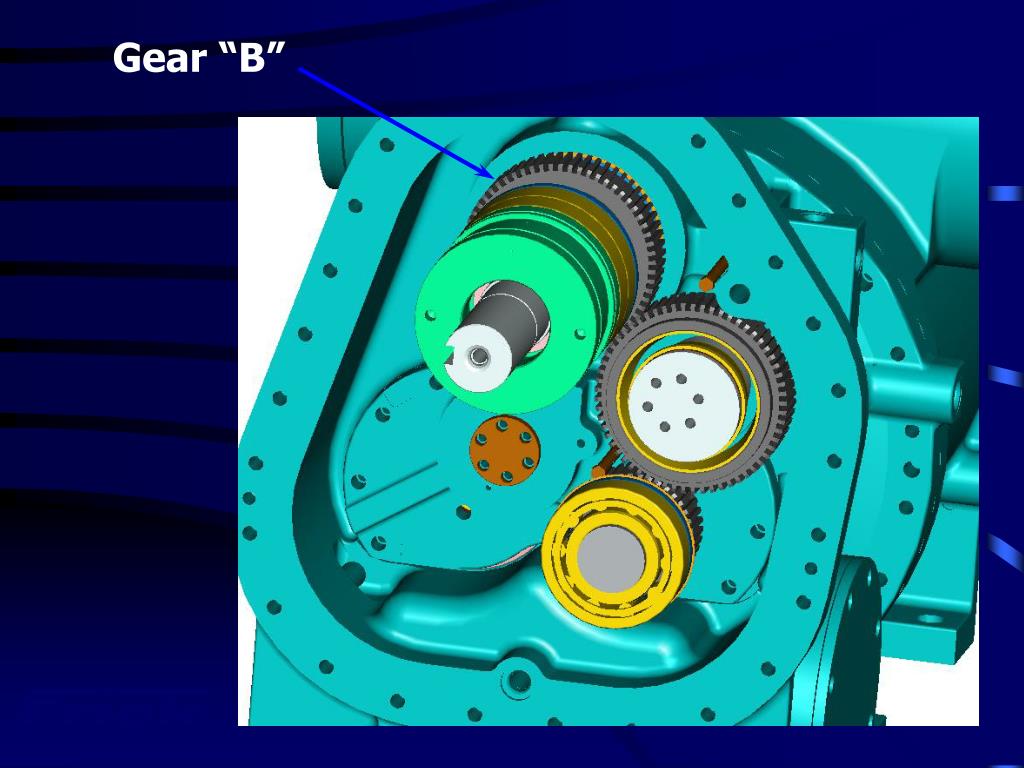

Gear “B” shaft.

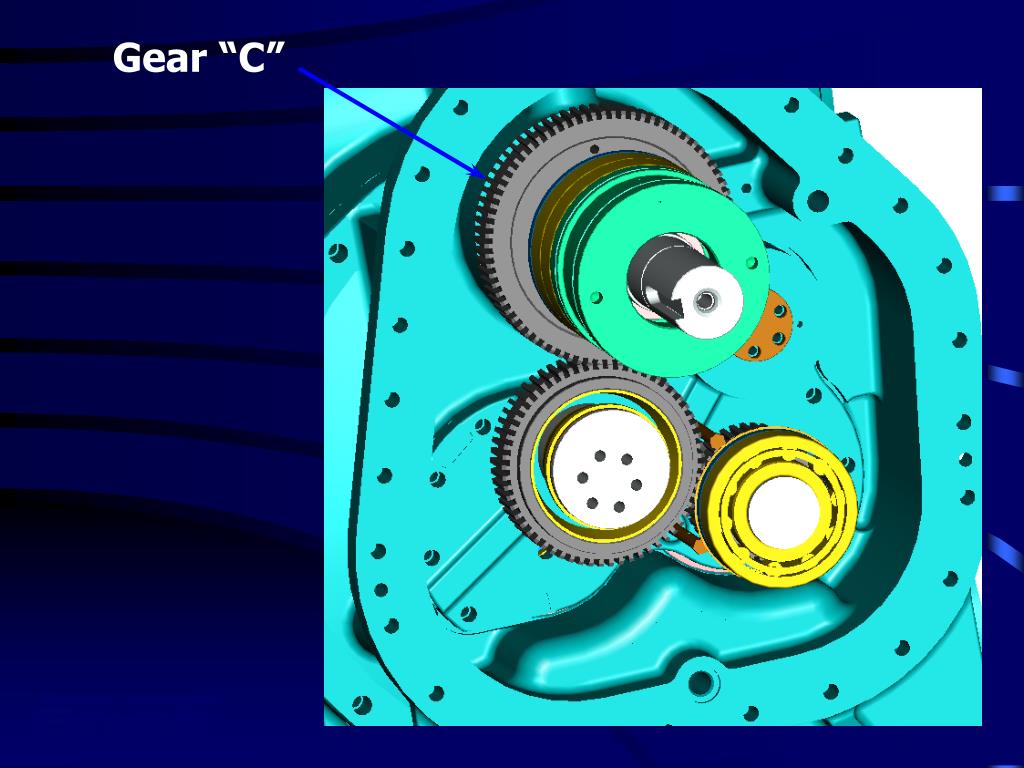

Gear “C” shaft.

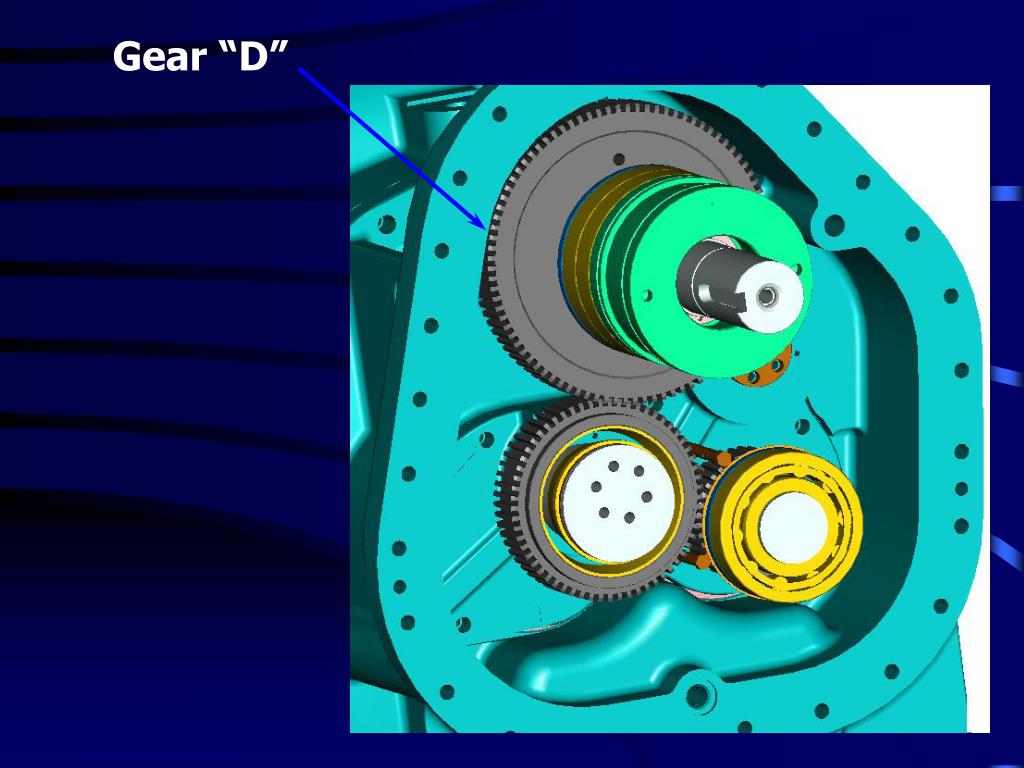

Gear “D” shaft.

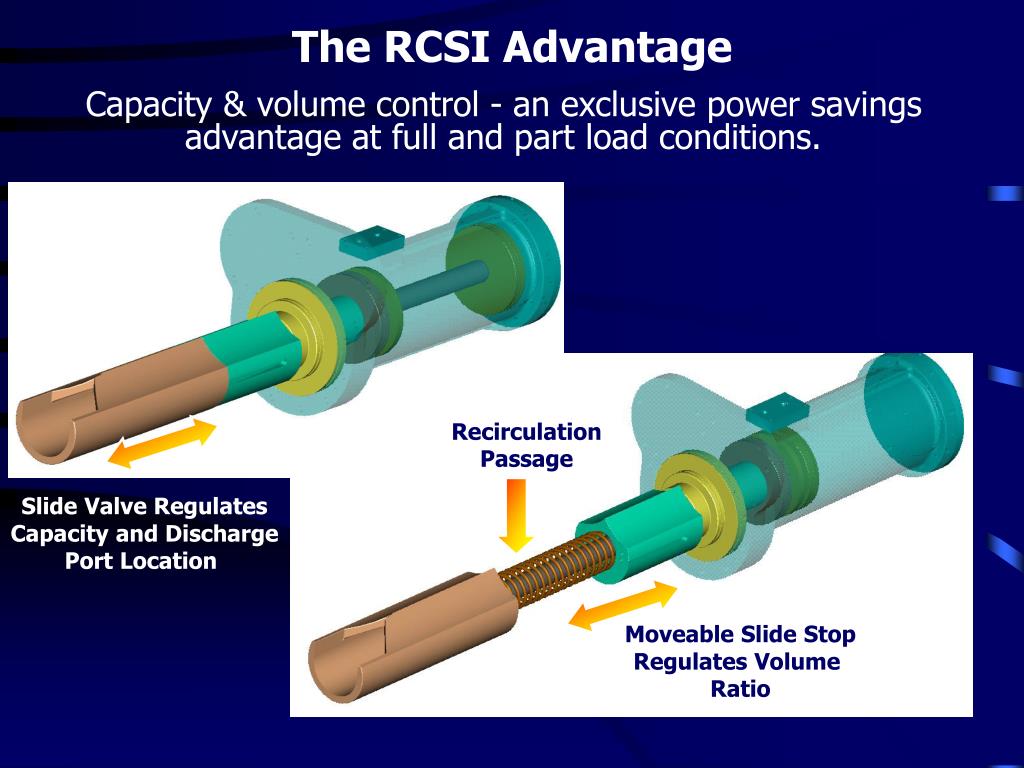

The RCSI Advantage shaft.

Capacity & volume control - an exclusive power savings advantage at full and part load conditions.

Recirculation

Passage

Slide Valve Regulates

Capacity and Discharge

Port Location

Moveable Slide Stop

Regulates Volume

Ratio

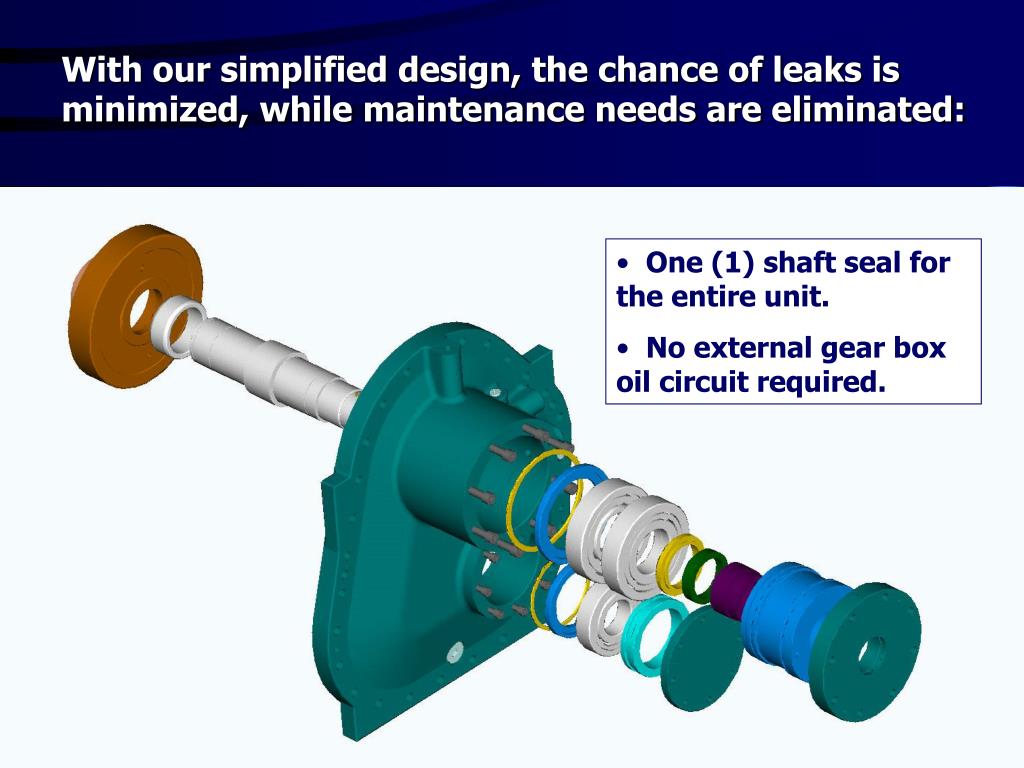

With our simplified design, the chance of leaks is minimized, while maintenance needs are eliminated:

  • One (1) shaft seal for the entire unit.

  • No external gear box oil circuit required.

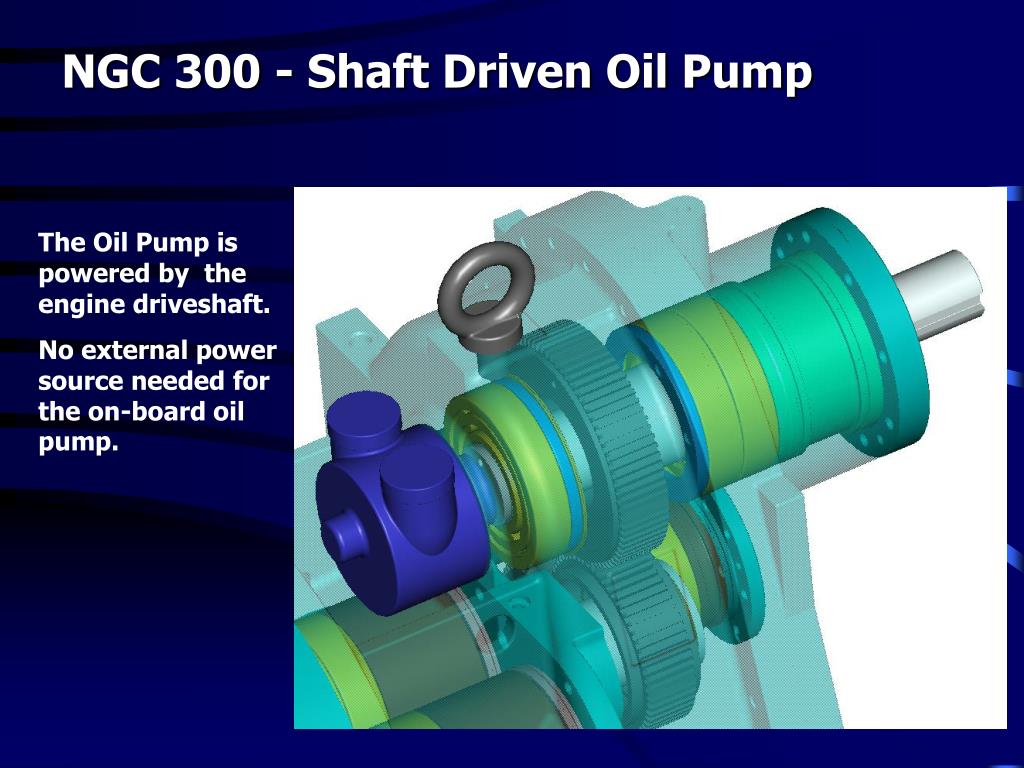

NGC 300 - Shaft Driven Oil Pump minimized, while maintenance needs are eliminated:

The Oil Pump is powered by the engine driveshaft.

No external power source needed for the on-board oil pump.

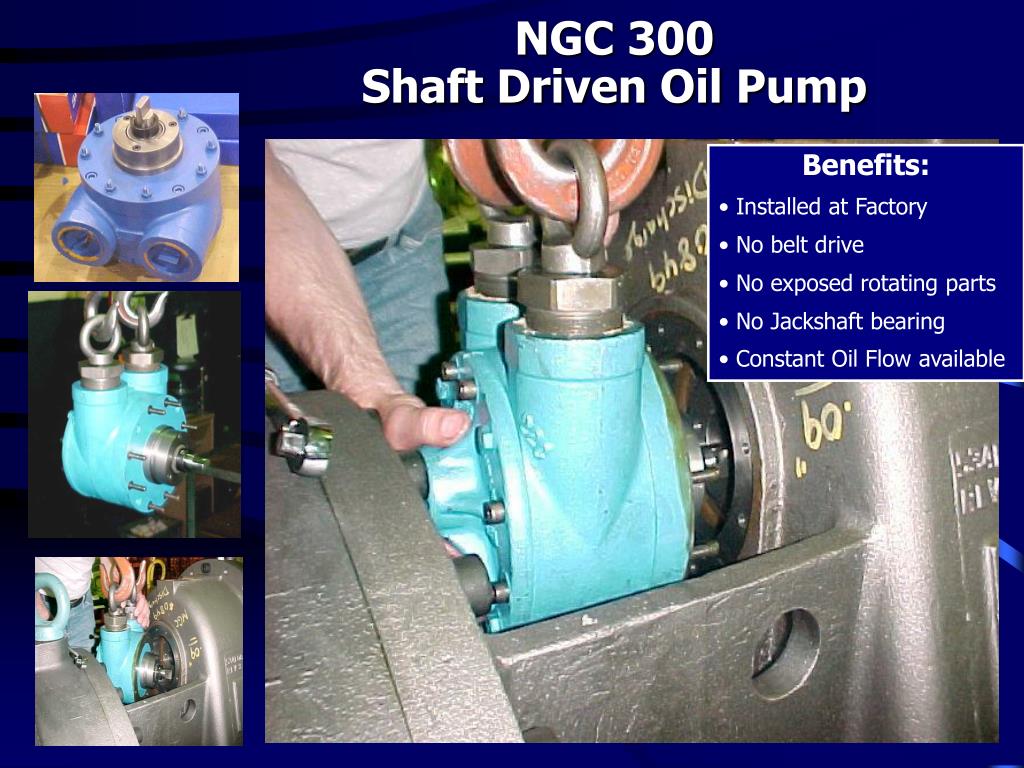

Ngc 300 shaft driven oil pump
NGC 300 minimized, while maintenance needs are eliminated:Shaft Driven Oil Pump

  • Benefits:

  • Installed at Factory

  • No belt drive

  • No exposed rotating parts

  • No Jackshaft bearing

  • Constant Oil Flow available

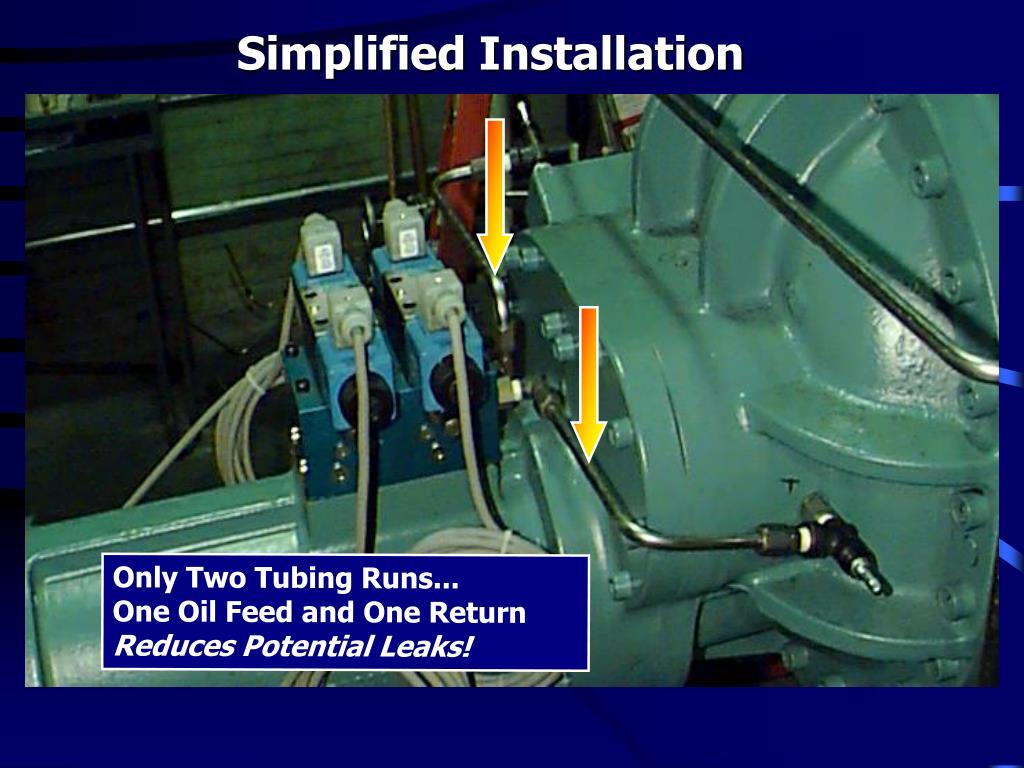

Simplified Installation minimized, while maintenance needs are eliminated:

Only Two Tubing Runs...

One Oil Feed and One Return

Reduces Potential Leaks!

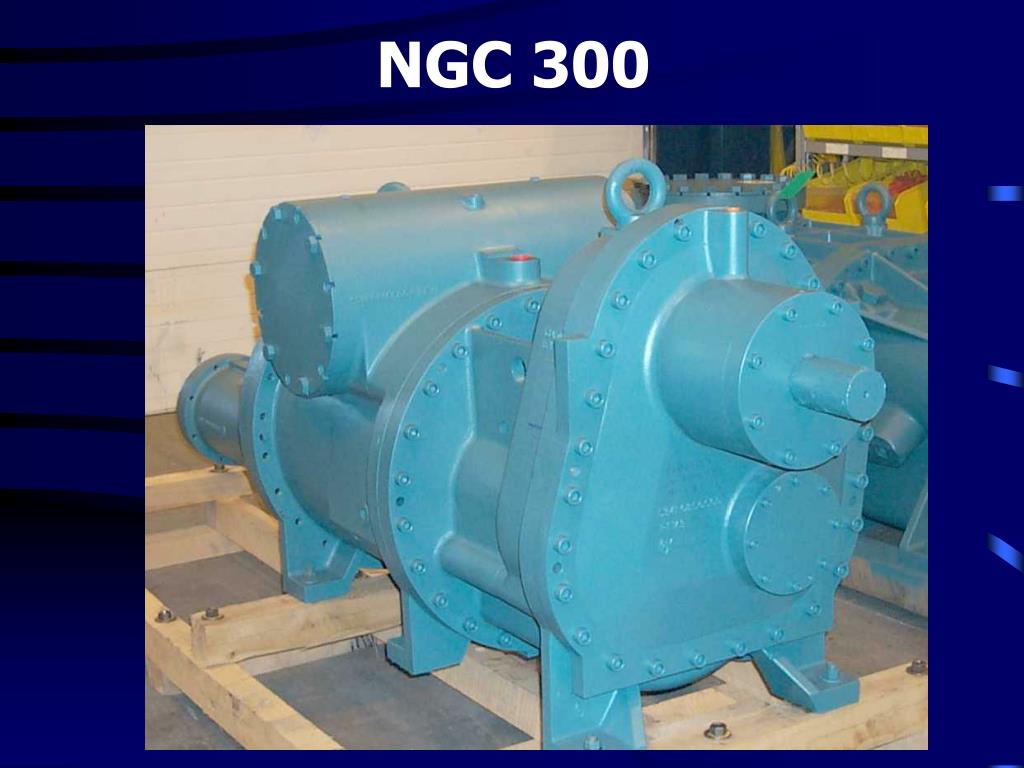

Ngc 300
NGC 300 minimized, while maintenance needs are eliminated:


Ngc 3001
NGC 300 minimized, while maintenance needs are eliminated:
