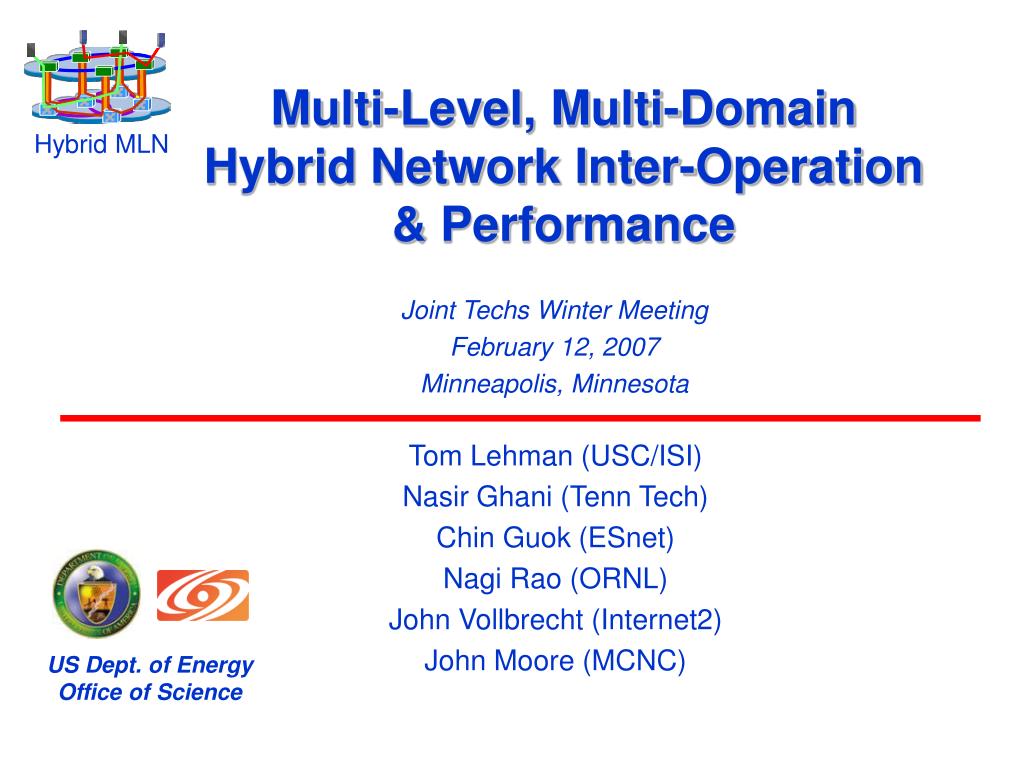

  1. Hybrid MLN Multi-Level, Multi-Domain Hybrid Network Inter-Operation & Performance Joint Techs Winter Meeting February 12, 2007 Minneapolis, Minnesota Tom Lehman (USC/ISI) Nasir Ghani (Tenn Tech) Chin Guok (ESnet) Nagi Rao (ORNL) John Vollbrecht (Internet2) John Moore (MCNC) US Dept. of Energy Office of Science

  2. Outline • Project Overview • Multi-Layer, Multi-Domain Hybrid Network Issues/Investigation Areas • Hybrid Network DataPlane(s) • Hybrid Network Control Plane(s)

  3. Project Overview • Hybrid Multi-Layer Network Control Project • Funded by DOE Office of Science • Dr. Thomas D. Ndousse, Program Manager • Investigating issues associated with Multi-Layer, Multi-Domain Hybrid Networks from an architecture, data plane, and control plane perspective • Design and analysis • Experimentation and data collection • Modeling and simulation

  4. Hybrid MLN Participants • Tennessee Tech University • Nasir Ghani • Qing Liu • Information Sciences Institute East • Tom Lehman • Xi Yang • Internet2 • Rick Summerhill • John Vollbrecht • Andrew Lake • Oak Ridge National Laboratory • Nagi Rao • ESnet LBNL • Chin Guok

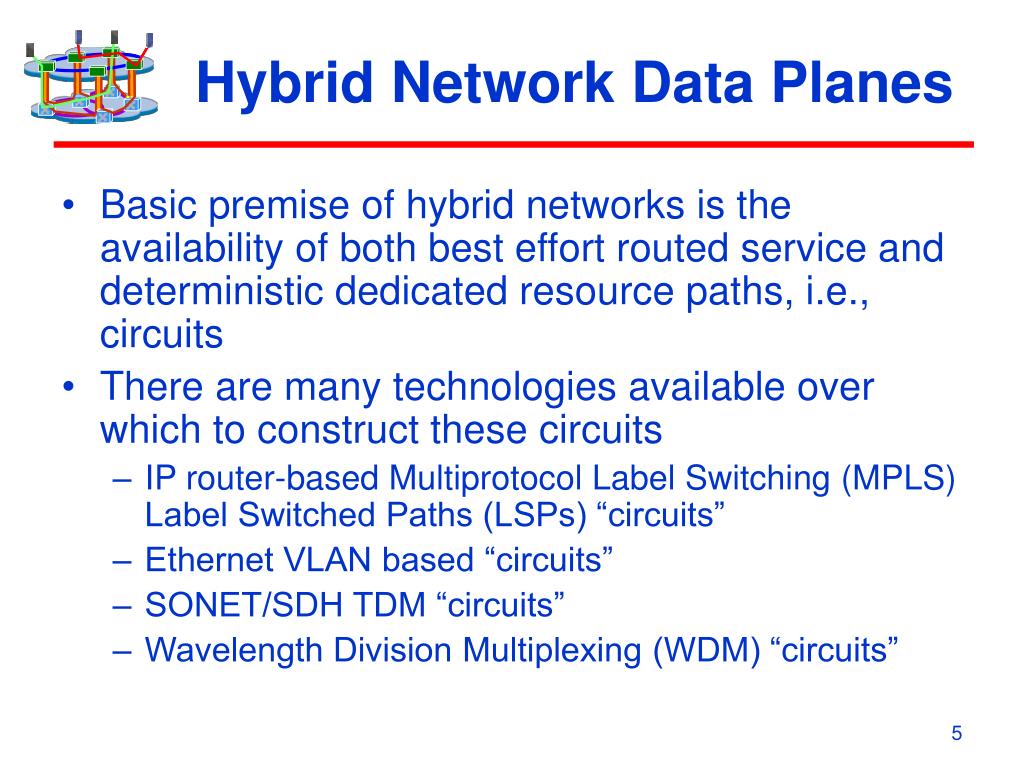

  5. Hybrid Network Data Planes • Basic premise of hybrid networks is the availability of both best effort routed service and deterministic dedicated resource paths, i.e., circuits • There are many technologies available over which to construct these circuits • IP router-based Multiprotocol Label Switching (MPLS) Label Switched Paths (LSPs) “circuits” • Ethernet VLAN based “circuits” • SONET/SDH TDM “circuits” • Wavelength Division Multiplexing (WDM) “circuits”

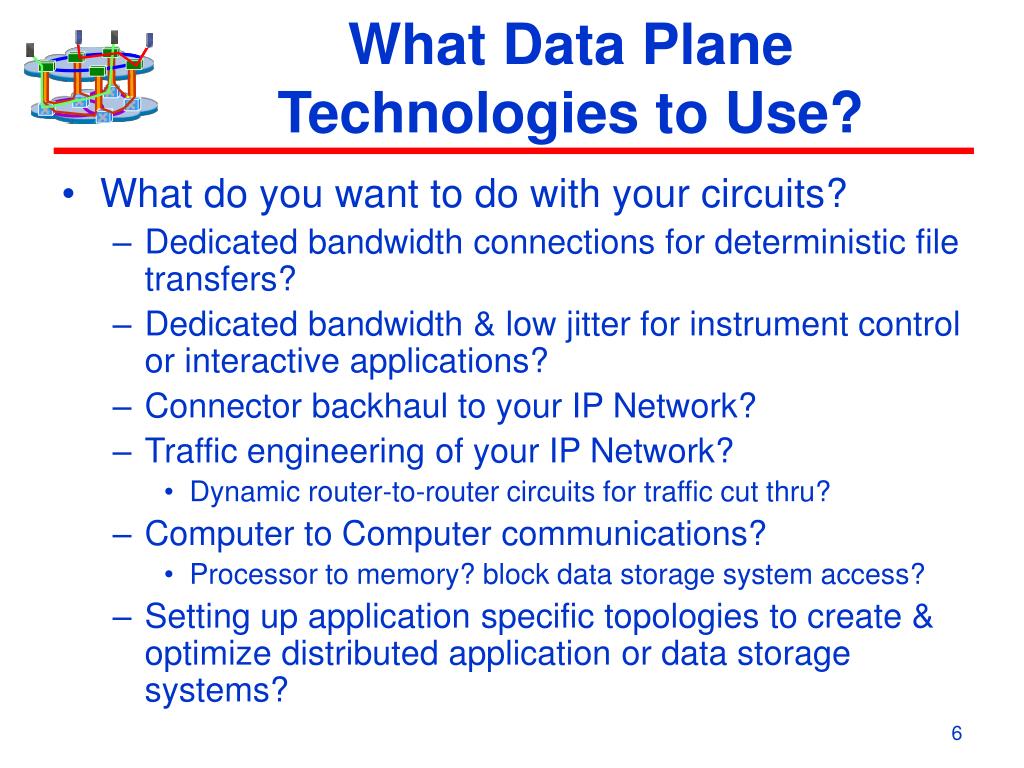

  6. What Data Plane Technologies to Use? • What do you want to do with your circuits? • Dedicated bandwidth connections for deterministic file transfers? • Dedicated bandwidth & low jitter for instrument control or interactive applications? • Connector backhaul to your IP Network? • Traffic engineering of your IP Network? • Dynamic router-to-router circuits for traffic cut thru? • Computer to Computer communications? • Processor to memory? block data storage system access? • Setting up application specific topologies to create & optimize distributed application or data storage systems?

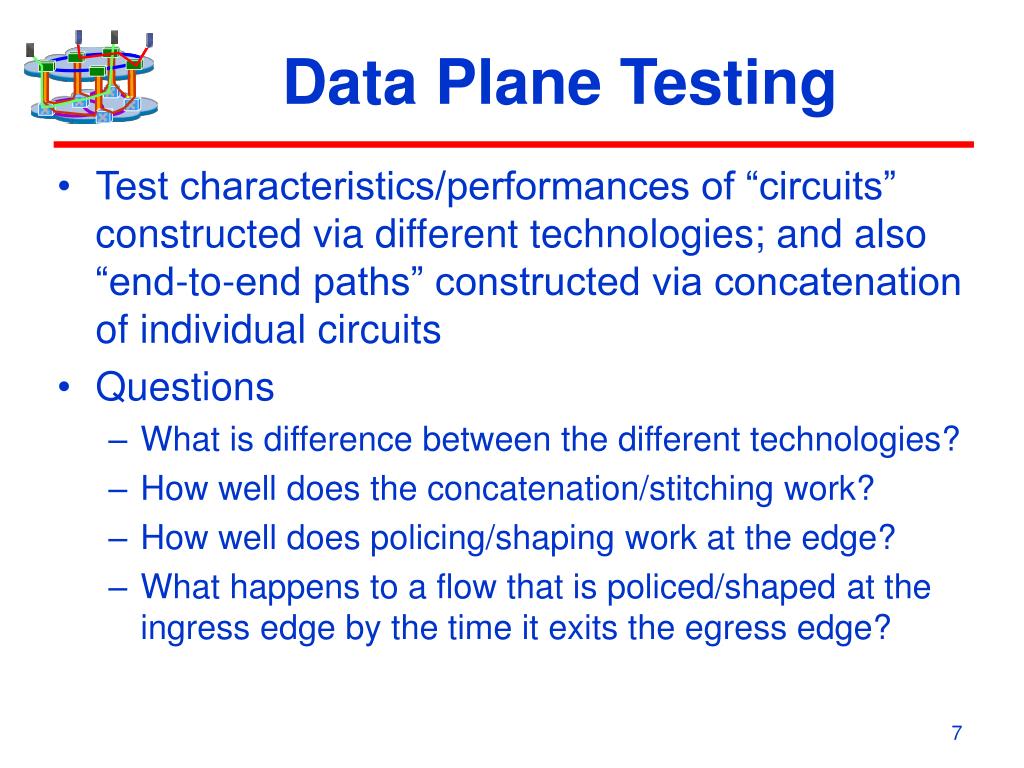

  7. Data Plane Testing • Test characteristics/performances of “circuits” constructed via different technologies; and also “end-to-end paths” constructed via concatenation of individual circuits • Questions • What is difference between the different technologies? • How well does the concatenation/stitching work? • How well does policing/shaping work at the edge? • What happens to a flow that is policed/shaped at the ingress edge by the time it exits the egress edge?

  8. More Questions • What are the performance characteristics (jitter, loss, latency) of circuits provisioned using individual data plane technologies? • What are the performance characteristics of end-to-end circuits constructed via concatenation of multiple individual circuits (spanning multiple data plane technologies & network domains) • What is the performance of an end-to-end circuit constructed via the hierarchical nesting of circuits at different technology levels? • How to quantify and characterize the performance of data plane technologies so that network designers and end-users can make decisions as to what is best suited to their needs and objectives? • Can analytical and simulation models be built to correlate empirical findings of real world data collection to a reasonably close degree? • Can these analytical/simulation models further predict performance in generalized hybrid networks and assist w. design efforts?

  9. Data Plane Testing • Circuit Descriptions • Circuit type: • network [accessframing:dataplane:accessframing] • Circuit path: • network [ingressloc:transitnodes:egressloc] • Circuit Type: • network[accessframing:dataplane:accessframing] • Where the following values are possible for the above parameters: • Network - esnet, sdn, abilene, i2dsn, hopi, usn, dragon • Accessframing - ethernet, sonet (not included in this test plan), infiniband (not included in this test plan) • Dataplane - psc, pscq, l2sc, tdm, lsc (where pscq is a PSC path with QoS applied to the LSP)

  10. Data Plane Testing Multi-Layer, Multi-Domain LSPs

  11. An Example Circuit • The formal description of this extended inter-network path: • Circuit type: • usn [ethernet:tdm:ethernet]:i2dsn [ethernet:tdm:ethernet]:esnet [ethernet:pscq:ethernet]:usn[ethernet:tdm:ethernet] • Circuit path: • usn [ORNL:CHIN]:i2dsn [CHIN:WASH]:esnet [WASH:CHIN]:usn [CHIN:STTL:SUNV]

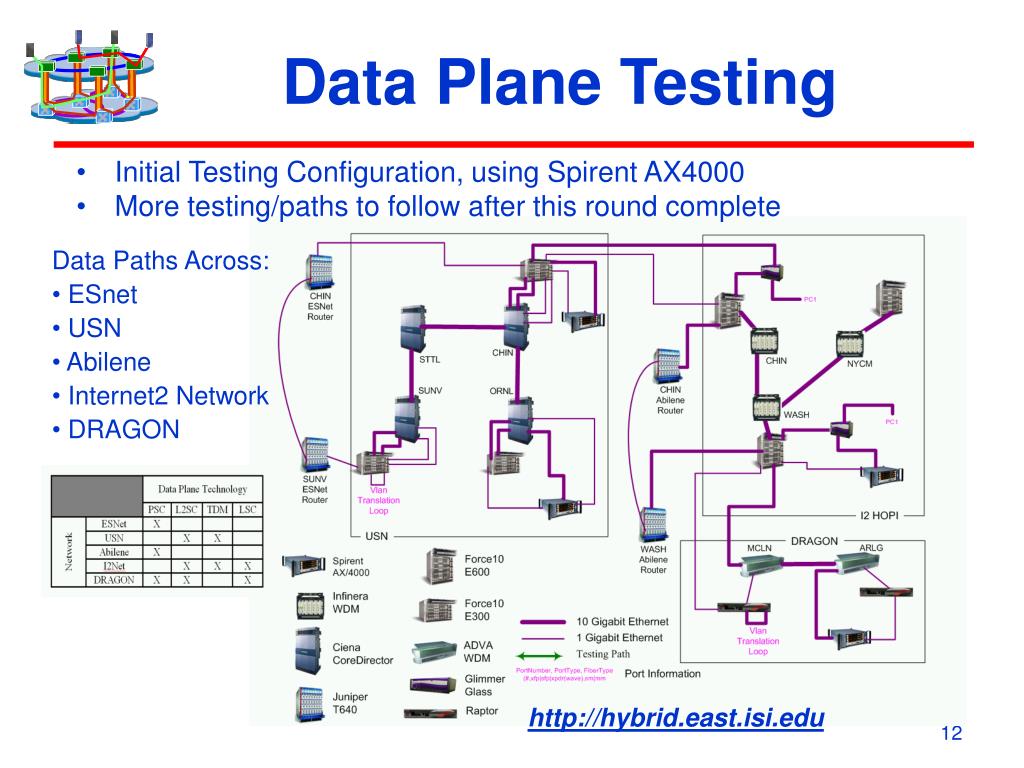

  12. Data Plane Testing • Initial Testing Configuration, using Spirent AX4000 • More testing/paths to follow after this round complete • Data Paths Across: • ESnet • USN • Abilene • Internet2 Network • DRAGON http://hybrid.east.isi.edu

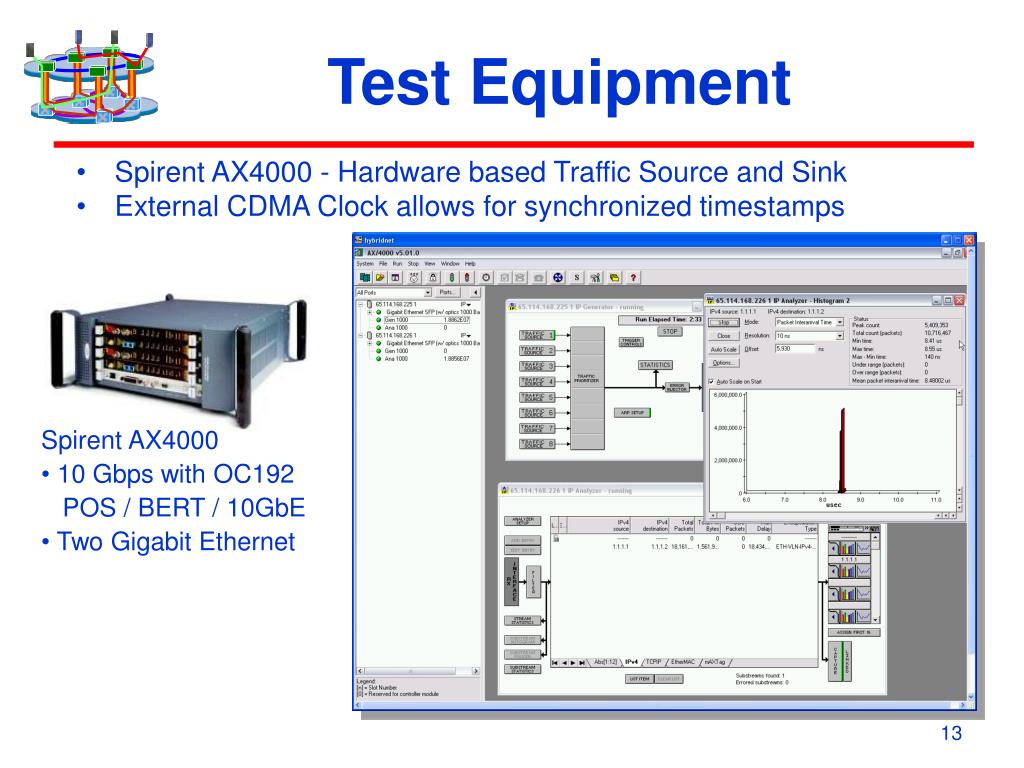

  13. Test Equipment • Spirent AX4000 - Hardware based Traffic Source and Sink • External CDMA Clock allows for synchronized timestamps • Spirent AX4000 • 10 Gbps with OC192 • POS / BERT / 10GbE • Two Gigabit Ethernet

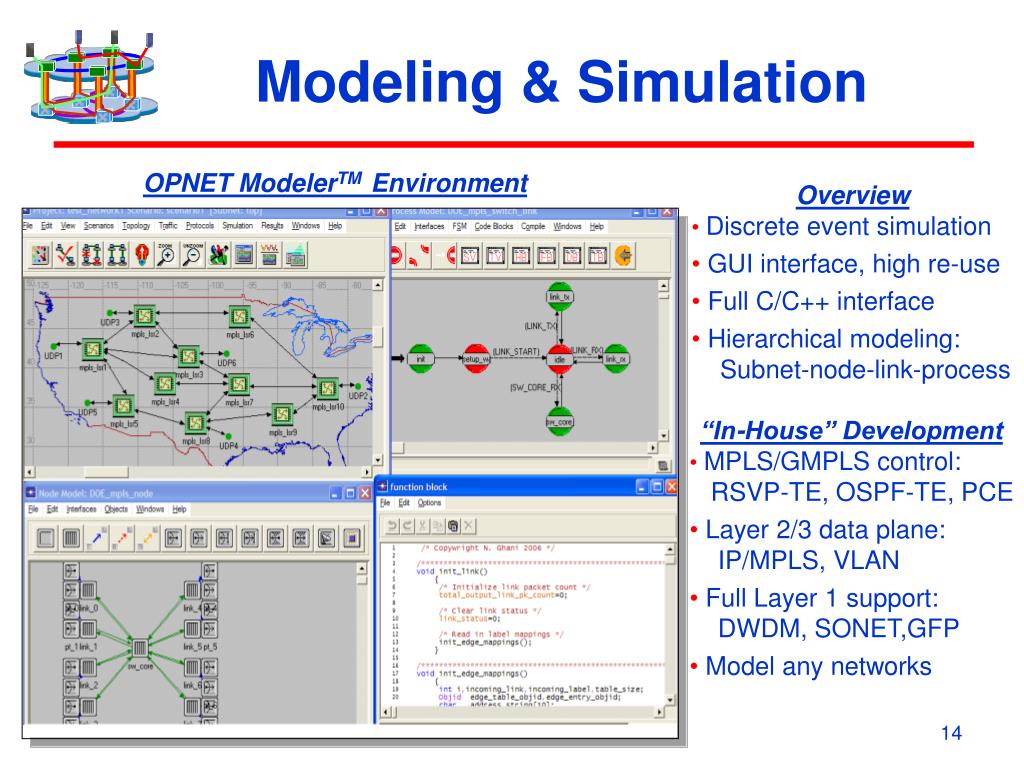

  14. Modeling & Simulation OPNET ModelerTM Environment • Overview • Discrete event simulation • GUI interface, high re-use • Full C/C++ interface • Hierarchical modeling: • Subnet-node-link-process • “In-House” Development • MPLS/GMPLS control: • RSVP-TE, OSPF-TE, PCE • Layer 2/3 data plane: • IP/MPLS, VLAN • Full Layer 1 support: • DWDM, SONET,GFP • Model any networks

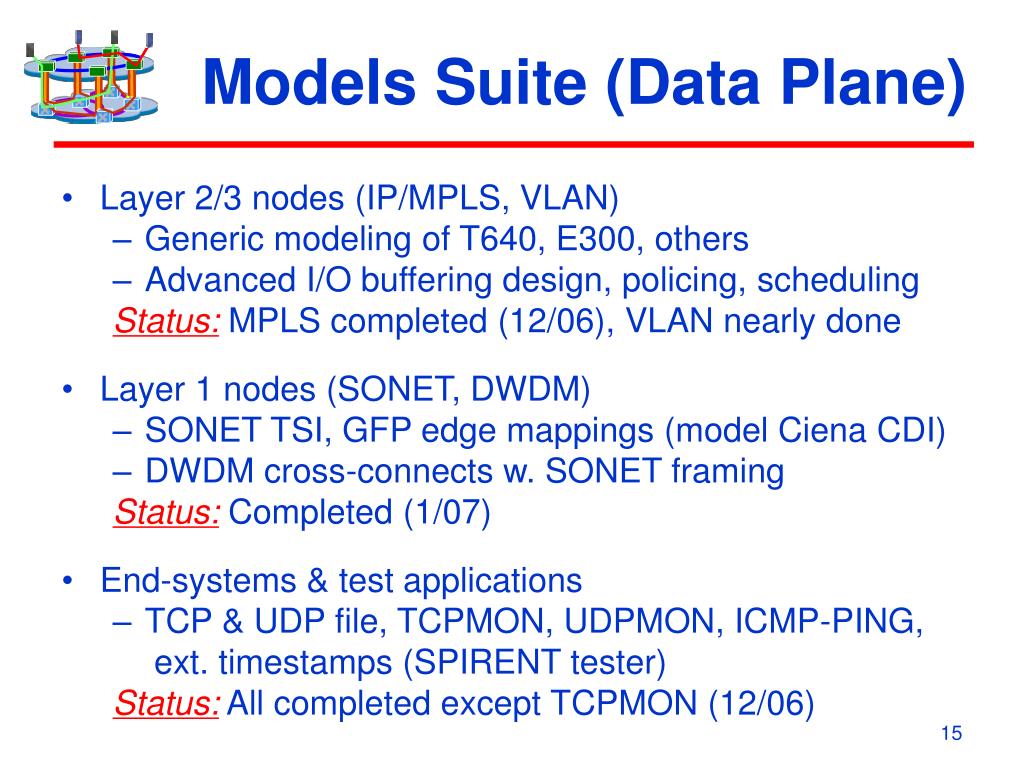

  15. Models Suite (Data Plane) • Layer 2/3 nodes (IP/MPLS, VLAN) • Generic modeling of T640, E300, others • Advanced I/O buffering design, policing, scheduling Status: MPLS completed (12/06), VLAN nearly done • Layer 1 nodes (SONET, DWDM) • SONET TSI, GFP edge mappings (model Ciena CDI) • DWDM cross-connects w. SONET framing Status: Completed (1/07) • End-systems & test applications • TCP & UDP file, TCPMON, UDPMON, ICMP-PING, ext. timestamps (SPIRENT tester) Status:All completed except TCPMON (12/06)

  16. Simulation Test Plan • Current activities • Coding wrap-up, active development/testing of end-to-end delay and jitter scenarios • Corroborating simulations with recent live tests on ESnet-USN, USN-Cheetah, USN-Hopi, etc • Gauge impact of SONET segments in e-2-e path • Near term & future activities • Extrapolate out and simulate larger networks & domain mixtures (VLAN-SONET-MPLS) • Generate inputs for subsequent control plane development phase (i.e., TE routing rule-sets)

  17. Thank-You Questions & Comments ?Tom Lehmantlehman@isi.edu
