  1. MUTATIONSMistakes in DNA

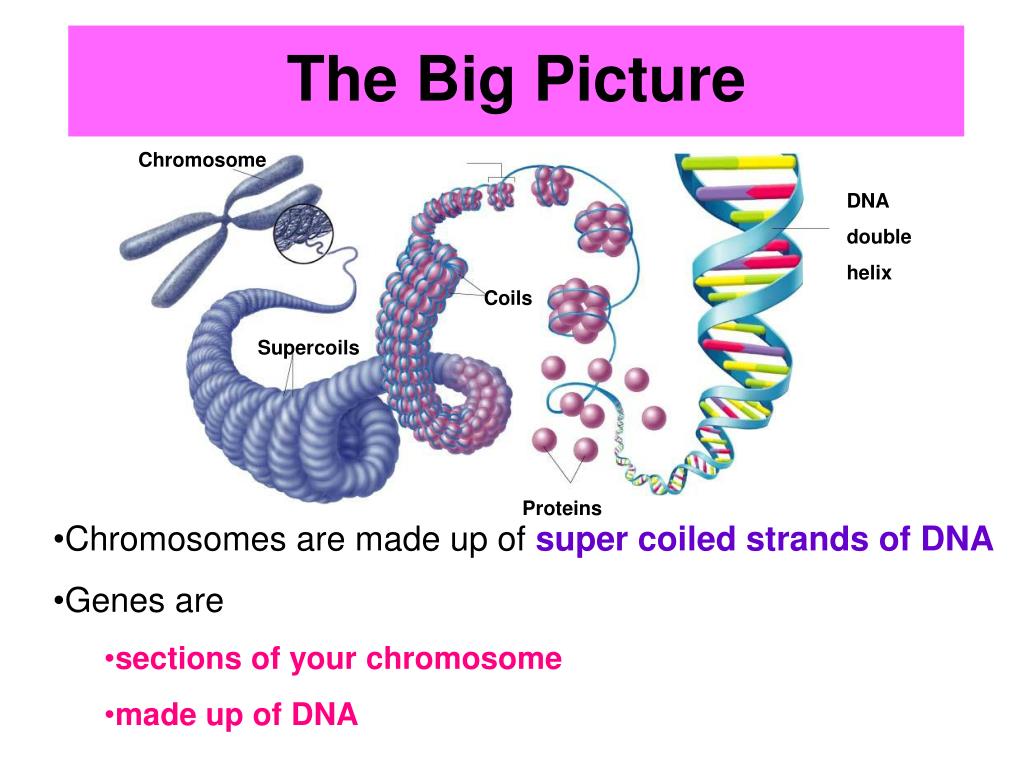

  2. The Big Picture Chromosome DNA double helix Coils Supercoils Proteins • Chromosomes are made up of super coiledstrands of DNA • Genes are • sections of your chromosome • made up of DNA

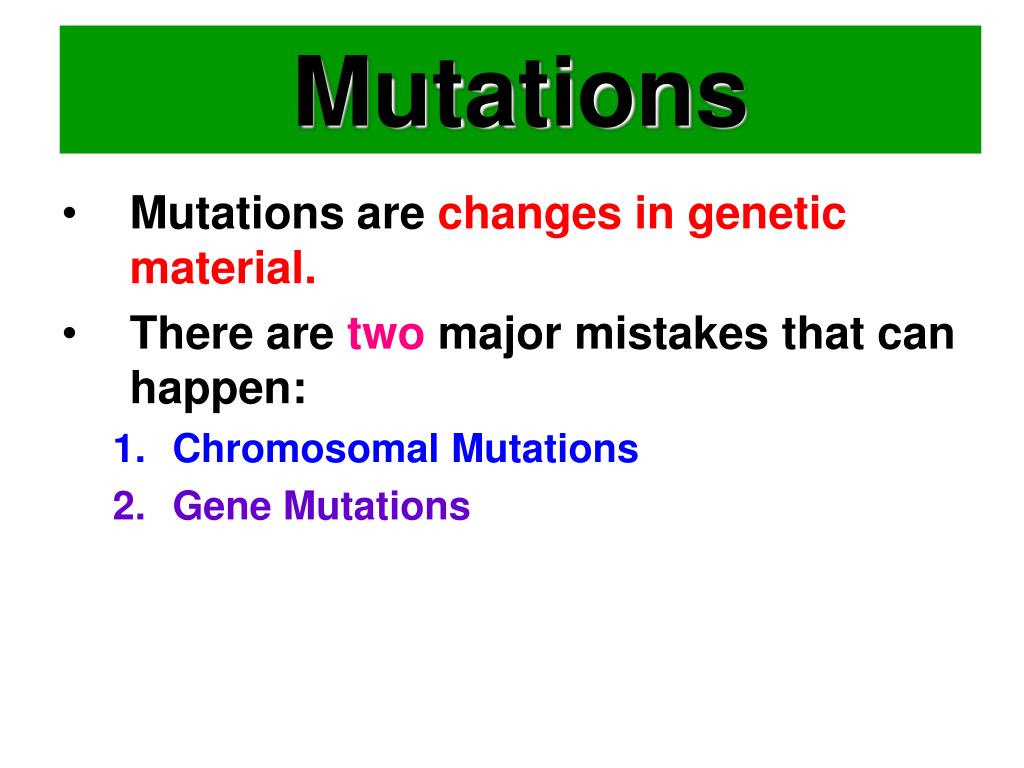

  3. Mutations • Mutations are changes in genetic material. • There are two major mistakes that can happen: • Chromosomal Mutations • Gene Mutations

  4. Type 1: Chromosomal Mutations • Whole chromosome is affected. • Large sections of DNA can be • Removed from a chromosome • Added to a chromosome • Rearranged within a chromosome • Switched with DNA from another chromosome. • These mutations are usually very harmful

  5. Chromosomal Mutations Deletion loss of material Duplicationaddition of material Inversionrearrangement of material Translocation switching material with another chromosome

  6. Type 2: Gene Mutations • Changes that occur in a single gene. • Change occurs at the DNA nucleotide level Nucleotide Hydrogen bonds Sugar-phosphate backbone Key Adenine (A) Thymine (T) Cytosine (C) Guanine (G)

  7. Two Types of Gene Mutations • Point mutations: one nucleotide that affects one amino acid. Example: Substitution C changes to G

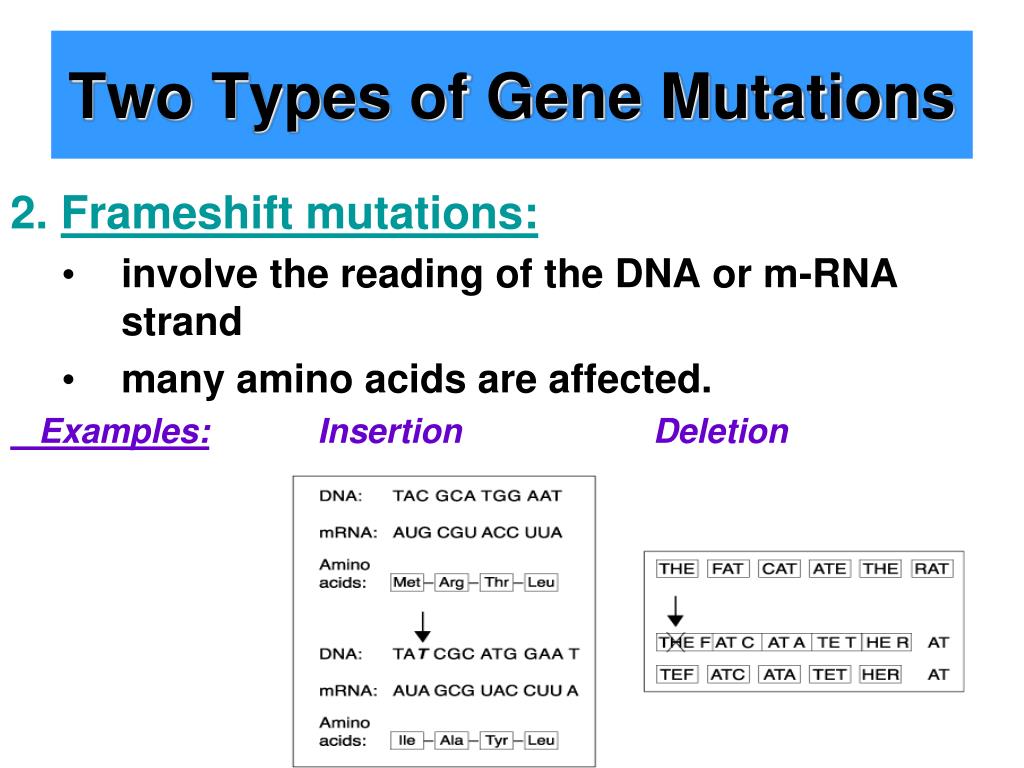

  8. Two Types of Gene Mutations 2. Frameshift mutations: • involve the reading of the DNA or m-RNA strand • many amino acids are affected. Examples: Insertion Deletion

  9. Mutation Can Be… • Neutral (a.k.a. Silent) • Example: Substitution • UCU = Serine if the last U is changed to C, A or G the mRNA will still make Serine • Harmful • Example: Substitution • Sickle Cell Anemia • There is a change 17th nucleotide in the code for hemoglobin • A is changed to a T - GAG changes to GTG • How does this change the amino acid? • GLU changes to VAL • This changes hemoglobin’s shape from round to sickle shaped

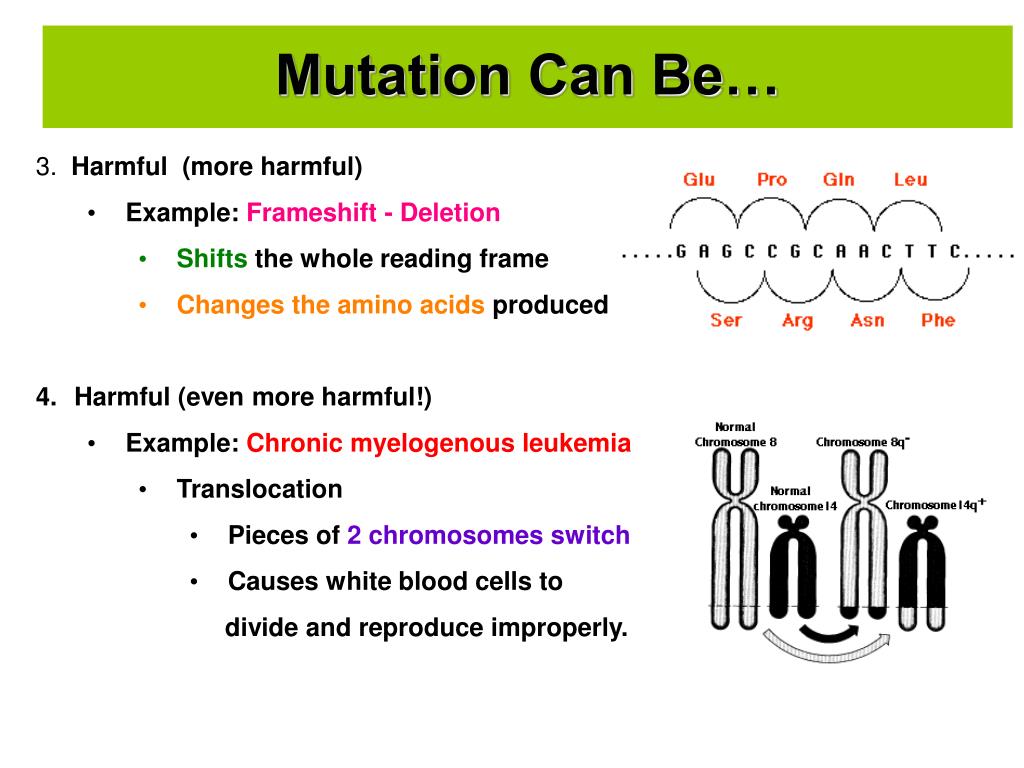

  10. Mutation Can Be… 3. Harmful (more harmful) • Example: Frameshift - Deletion • Shifts the whole reading frame • Changes the amino acids produced • Harmful (even more harmful!) • Example: Chronic myelogenous leukemia • Translocation • Pieces of 2 chromosomes switch • Causes white blood cells to divide and reproduce improperly.
