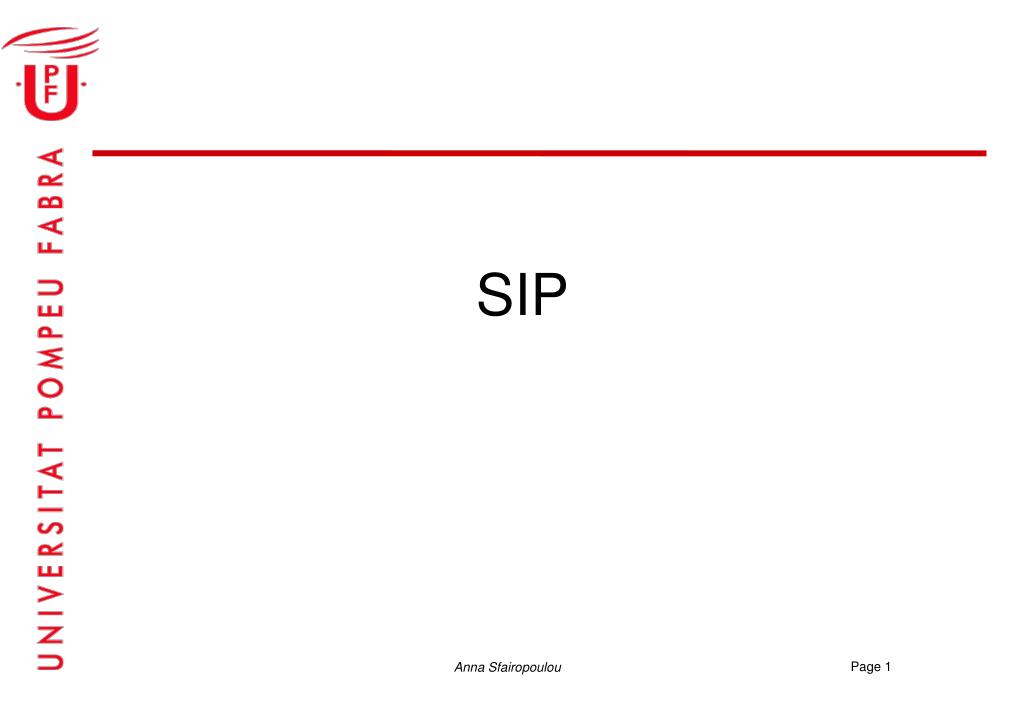

  1. SIP

  2. What we will see... • Signalling vs Media • SIP standarization and design principles • Message syntax • SIP addressing • SIP methods • Request messages • Response messages • SIP entities (servers) • Examples

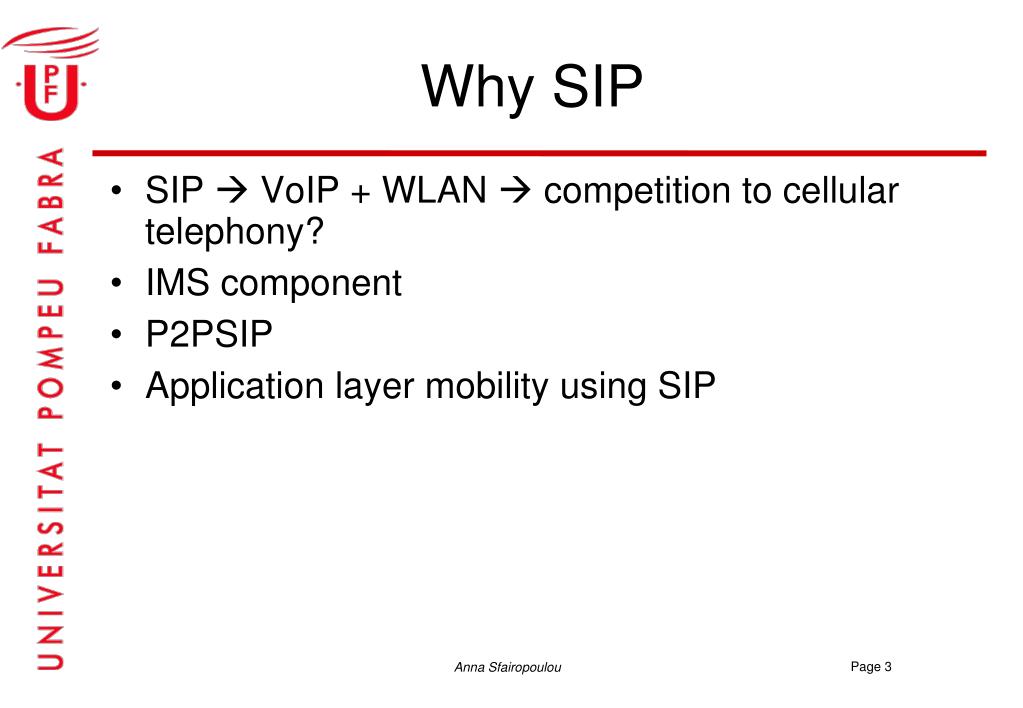

  3. Why SIP • SIP  VoIP + WLAN  competition to cellular telephony? • IMS component • P2PSIP • Application layer mobility using SIP

  4. Self-written Java code: • Open socket • Wait for UDP packets • Playback voice samples • Self-written C code: • Open socket • Take voice samples from microphone • Send voice samples in UDP packets Knows address 192.168.20.2 Listening on port 5060 Knows port 5060 Expecting UDP Knows UDP Expecting CODEC PCM A-law Knows CODEC PCM A-law The simplest voice call Bob Alice Internet 10.0.0.1 192.168.20.2

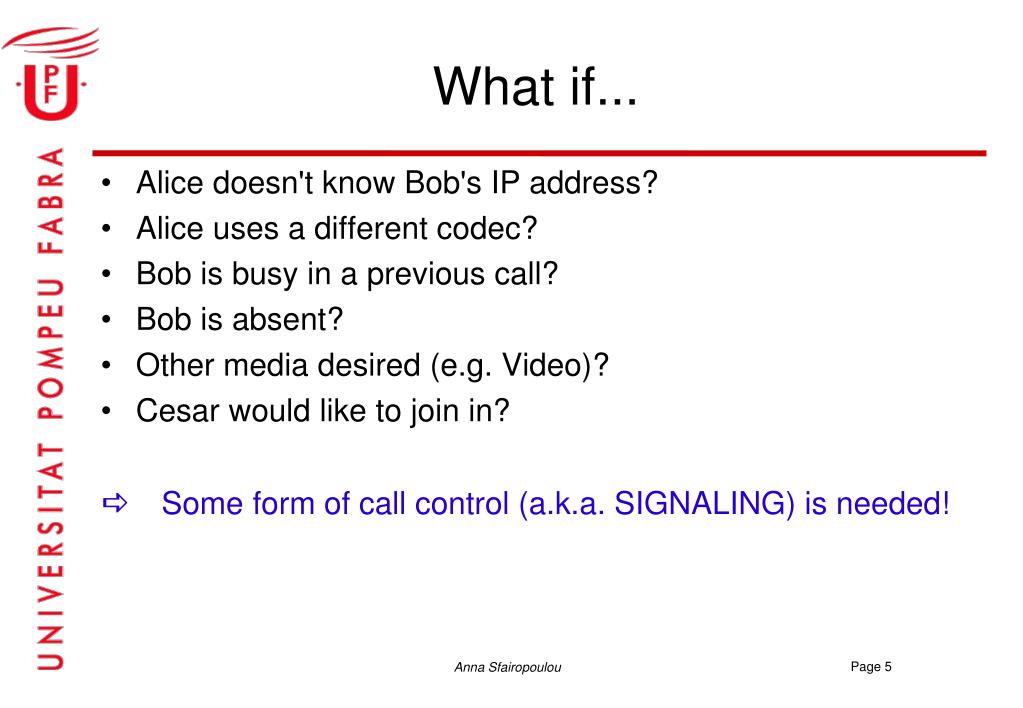

  5. What if... • Alice doesn't know Bob's IP address? • Alice uses a different codec? • Bob is busy in a previous call? • Bob is absent? • Other media desired (e.g. Video)? • Cesar would like to join in? a Some form of call control (a.k.a. SIGNALING) is needed!

  6. Think about the road system...

  7. Media vs Signaling • To interchange user data, transport protocols are used • UDP • TCP • To control that interchange, signaling protocols are used • RSVP • SIP • RTSP (+ RTP on top)

  8. Signaling serves to... • Set up and tear down VoIP calls/sessions • Reserve bandwidth among routers • Establish secure connections over the Internet • Interchange routing information • Inform of network malfunctions • Configure network equipment remotely • Etc.

  9. The ATM cube revisited

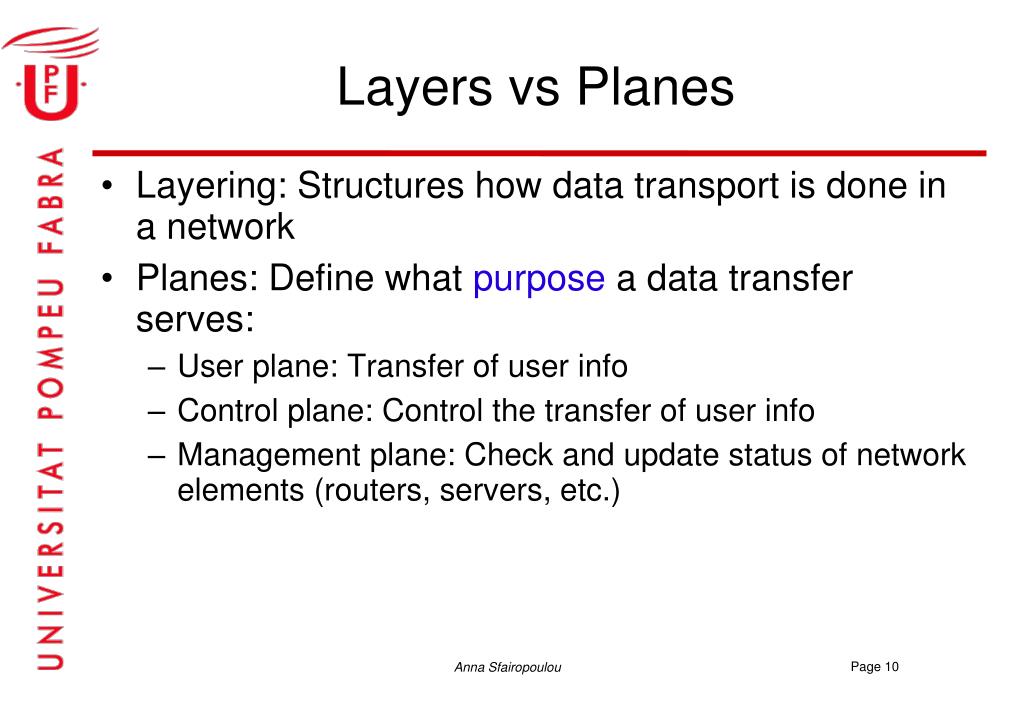

  10. Layers vs Planes • Layering: Structures how data transport is done in a network • Planes: Define what purpose a data transfer serves: • User plane: Transfer of user info • Control plane: Control the transfer of user info • Management plane: Check and update status of network elements (routers, servers, etc.)

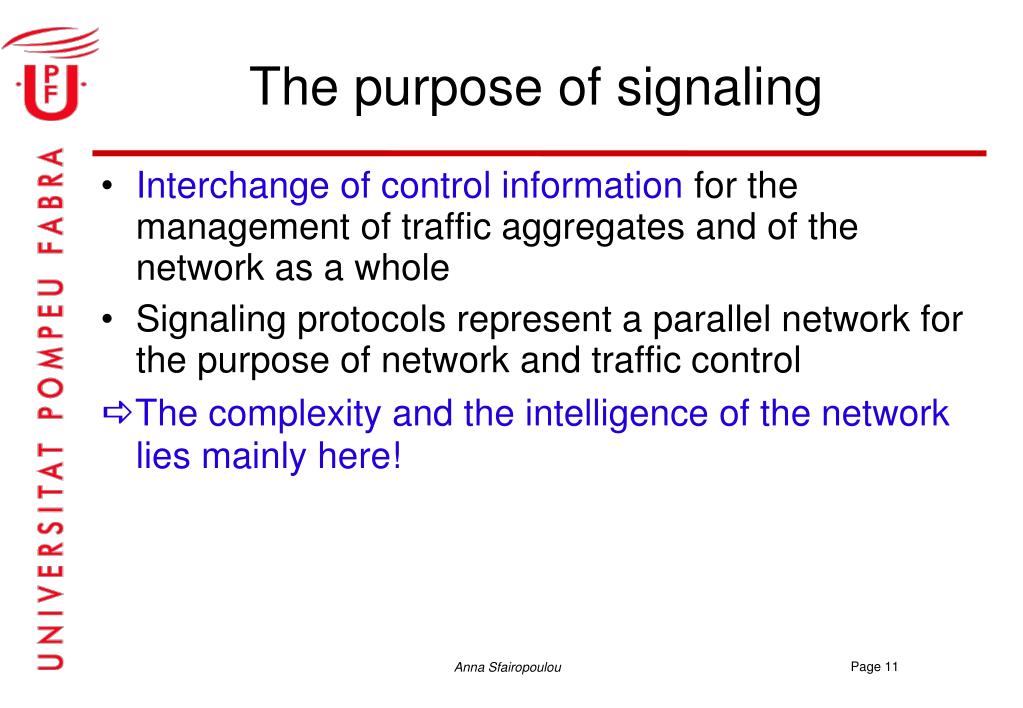

  11. The purpose of signaling • Interchange of control information for the management of traffic aggregates and of the network as a whole • Signaling protocols represent a parallel network for the purpose of network and traffic control aThe complexity and the intelligence of the network lies mainly here!

  12. The real “simplest” voice call

  13. The real “simplest” voice call Database (MySQL) DNS (Named) SIP Express Server (SER) Twinkle

  14. Signalling • Signalling serves to control user data transfer across the network • Data transfer is easy, signaling is hard! • SIP is a session-layer signaling protocol • RTP is a session-layer data transfer protocol • UDP is the transport protocol mostly used to transport both

  15. SIP standardization • First designed by Henning Schulzrinne and Mark Handley starting in 1996 • Standardized in IETF RFC 3261 • See also RFC 3551, 2327, 3219, 3761, 3525, 3398 ... • Decentralized design • The intelligence lies on the nodes • Ongoing process • Extensions • Services

  16. SIP design principles (I) • Modelled after HTTP • Text-based • Based on transactions • Request / response • Simple • Less than 10 methods / packet types • Only for call control • No QoS, no media transfer, no application-specific functions

  17. SIP design principles (II) • Session-oriented • Can manage any session-based service • Online gaming • Videoconferencing • Virtual reality • Chat • Etc

  18. The SIP-related protocol “Zoo” • Loosely coupled to other Internet protocols • SDP, DNS, SMTP, HTTP, RSVP, ... • Defines complementary protocols to enable special services • TRIP, ENUM, SPIRITS, PINT, ... • Any VoIP network needs a combination of protocols to work

  19. VoIP protocol stack Presentation Layer Signaling Media Transport Support MPEG, H.261, etc. SIP RTP RTCP, TRIP, etc. Session TCP / UDP / SCTP? TCP / UDP? UDP Transport IP Network Fast/GigEth, ATM, 802.11 MAC/LLC, etc. Datalink Physical DSL, Phy GigEth,802.11 PHY etc.

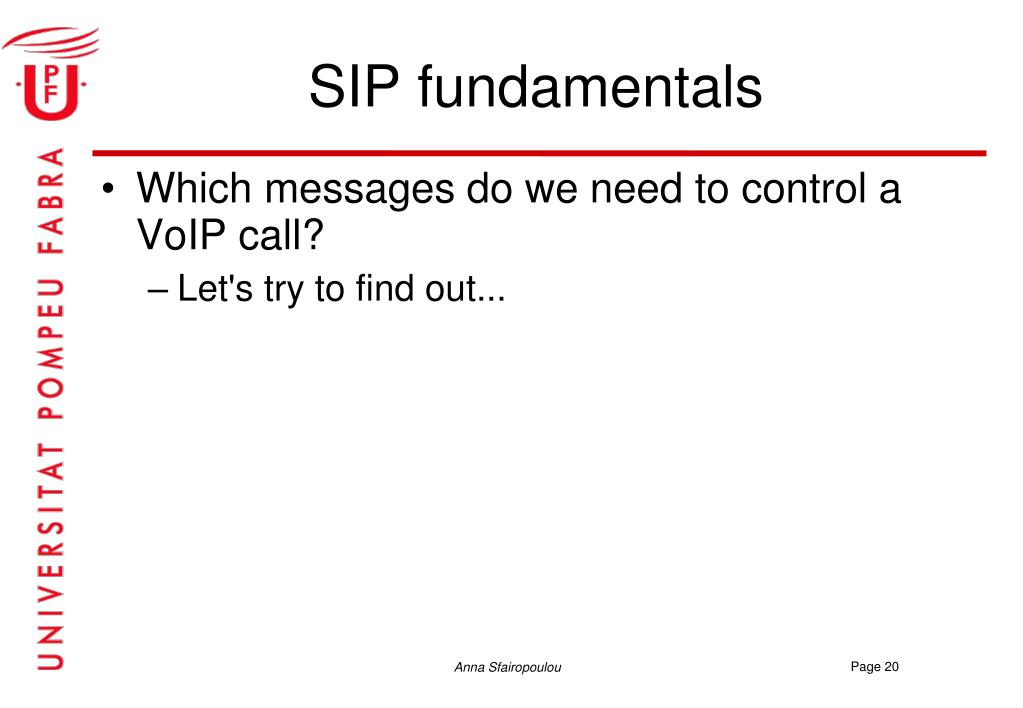

  20. SIP fundamentals • Which messages do we need to control a VoIP call? • Let's try to find out...

  21. A basic SIP call Alice Bob | | | INVITE | |----------------------->| | 180 Ringing | |<-----------------------| | | | 200 OK | |<-----------------------| | ACK | |----------------------->| | Both Way RTP Media | |<======================>| | | | BYE | |<-----------------------| | 200 OK | |----------------------->| | | INVITE sip:bob@biloxi.com SIP/2.0 From: Alice <sip:alice@atlanta.com> To: Bob <sip:bob@biloxi.com> m=audio 49172 RTP/AVP 0 a=rtpmap:0 PCMU/8000 SIP/2.0 200 OK m=audio 3456 RTP/AVP 0 a=rtpmap:0 PCMU/8000

  22. Request Line or Status Line Message Headers Payload Message syntax (I) • SIP is request / response • Every request carries a method indicating the request type INVITE sip:bob@biloxi.com SIP/2.0 • Every response carries a status code explaining the answer SIP/2.0 200 OK

  23. Message syntax (II) • Both carry message headers with the parameters • Variable depending on method / context • Additional information about the message • Ex: From: Alice <sip:alice@atlanta.com> • Payload transports additional info (normally using SDP) • No user data! • description of audio / video capabilities • Ex: m=audio 3456 RTP/AVP 0

  24. SIP addressing • SIP URL (Uniform Resource Locator) • Specify the location of a resource (user) • Email-like addresses • sip:User@Domain • But it is not an e-mail address! • sip:alice@atlanta.com • sip:33445566@google.com • Non sip URLs can be also found in SIP messages • mailto, tel. im …

  25. Original SIP methods (I) • Six methods defined initially in the standard • INVITE • ACK • BYE • CANCEL • OPTIONS • REGISTER

  26. Original SIP methods (II) • INVITE initiates sessions • session description included in message body • re-INVITEs used to change session state • ACK confirms session establishment • can only be used with INVITE • BYE terminates sessions

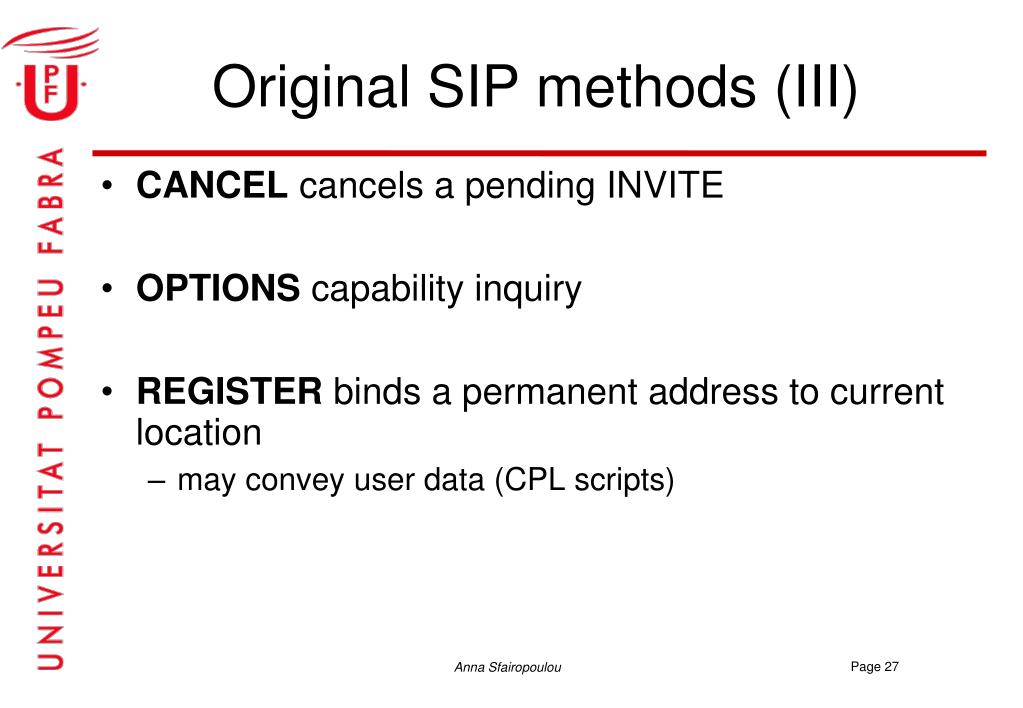

  27. Original SIP methods (III) • CANCEL cancels a pending INVITE • OPTIONS capability inquiry • REGISTER binds a permanent address to current location • may convey user data (CPL scripts)

  28. SIP methods extensions • INFO mid-call signaling • COMET preconditions met • PRACK provisional reliable responses ACK • SUBSCRIBE/NOTIFY/MESSAGE instant messaging • REFER call re-direction • UPDATE update call state • PUBLISH user info

  29. SIP responses (I) • Borrowed from HTTP: xyz code + explanatory text • Receivers need to understand x • 1yz Informational • 100 Trying • 180 Ringing • 183 Session in progress • 2yz Success • 200 ok

  30. SIP responses (II) • 3yz Redirection • 300 Multiple choices • 302 Moved temporarily • 305 Use proxy • 4yz Request failure • 400 Bad Request • 401 Unauthorized • 407 Proxy authentication required • 486 Busy Here

  31. SIP responses (III) • 5yz Server failure • 500 Server internal error • 501 Not implemented • 503 Service unavailable • 6yz Global failure • 600 Busy everywhere • 606 Not acceptable

  32. A basic SIP call (again) Alice Bob | | | INVITE | |----------------------->| | 180 Ringing | |<-----------------------| | | | 200 OK | |<-----------------------| | ACK | |----------------------->| | Both Way RTP Media | |<======================>| | | | BYE | |<-----------------------| | 200 OK | |----------------------->| | | INVITE sip:bob@biloxi.com SIP/2.0 From: Alice <sip:alice@atlanta.com> To: Bob <sip:bob@biloxi.com> m=audio 49172 RTP/AVP 0 a=rtpmap:0 PCMU/8000 SIP/2.0 200 OK m=audio 3456 RTP/AVP 0 a=rtpmap:0 PCMU/8000

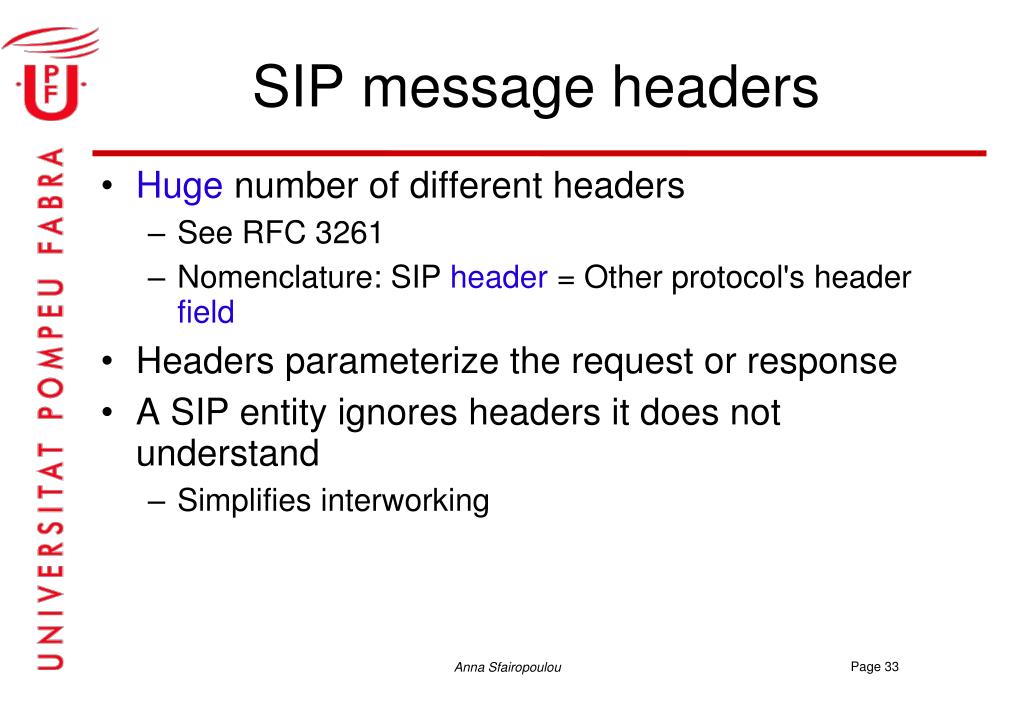

  33. SIP message headers • Huge number of different headers • See RFC 3261 • Nomenclature: SIP header = Other protocol's header field • Headers parameterize the request or response • A SIP entity ignores headers it does not understand • Simplifies interworking

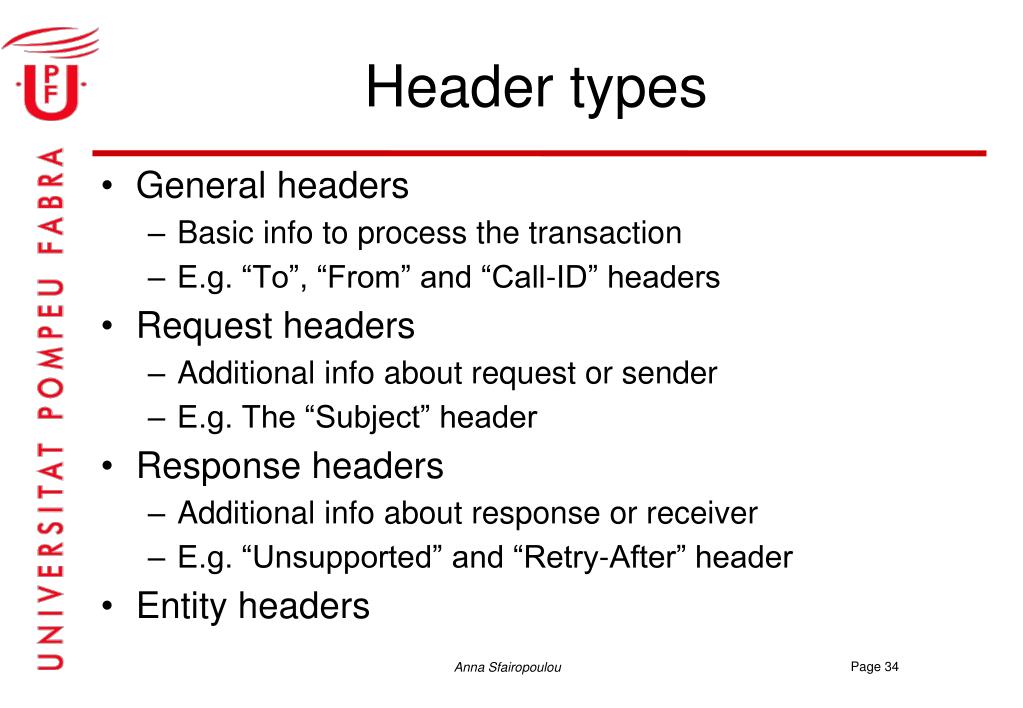

  34. Header types • General headers • Basic info to process the transaction • E.g. “To”, “From” and “Call-ID” headers • Request headers • Additional info about request or sender • E.g. The “Subject” header • Response headers • Additional info about response or receiver • E.g. “Unsupported” and “Retry-After” header • Entity headers

  35. A complete SIP message

  36. Example: Invite message Starting Line Headers Separator Message Body

  37. SIP entities: UAC & UAS • User Agent Client (UAC) • Places calls • Sends requests • User Agent Server (UAS) • Waits for incoming calls • Sends responses • A SIP terminal is a UAC + UAS • Beware of this special client/server terminology!

  38. SIP network entities • Servers (UAS) • Proxy server • redirect server • registrar • Can be combined in a single device  p.e. SER!!! • They deal only with signaling • Media is transported end-to-end • There are exceptions... Signaling controls media interchange: It is not necessary to touch the media streams directly!

  39. SIP entities: Registrar • Users register their contact info • Keeps the info at a Location Server • (Which is simply a database) • SIP address, but also other addresses, with a type indication: sip:anna.sfairopoulou@upf.edu sip:935422942@upf.edu, user = phone • Enables personal and terminal mobility and user behaviour patterns

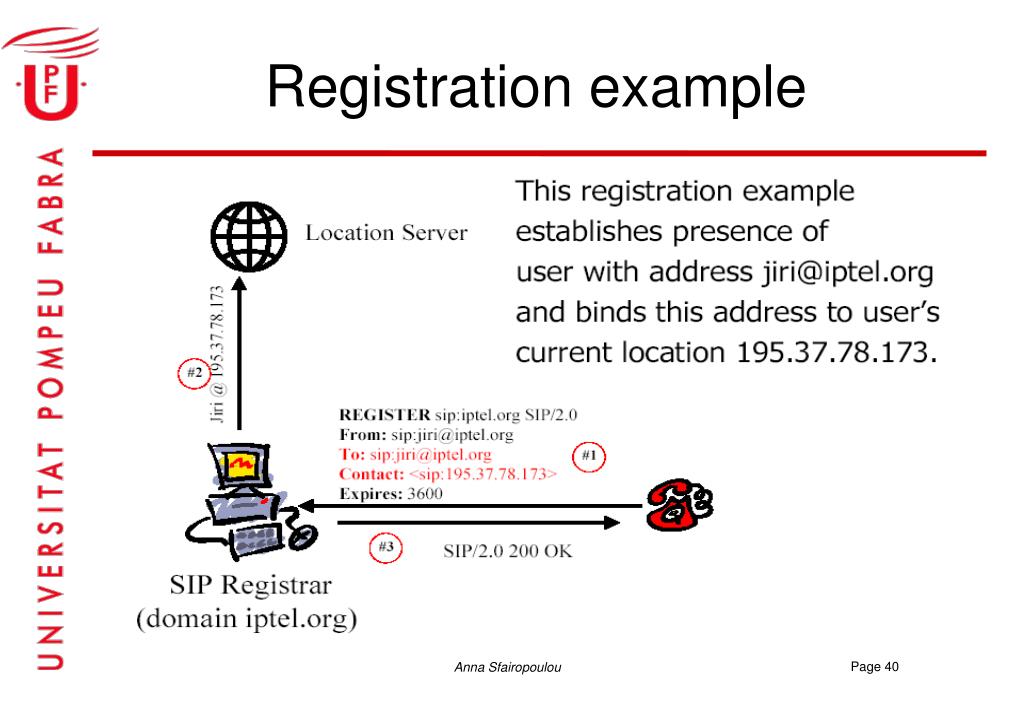

  40. Registration example

  41. Registration example • Contact could also be a specific location • e.x. pc1.grup2.labtel2.upf.edu • Un-Register • Send the same message but with • EXPIRE = 0

  42. SIP entities: Proxy server • Proxy Server • Acts on behalf of UAC • Processing the request • Responding to requests • Forwarding requests • Can impersonate the client • Acts both as client and server • Forking proxies • Forwards an INVITE to several destinations in parallel

  43. Proxy example

  44. Stateless vs Stateful proxy • In general • Stateless: get a request, forward it, forget about it • Stateful: remembers previous responses/requests of a particular transaction act more intelligently on subsequent requests! • Record-Route: force future messages to pass from this proxy

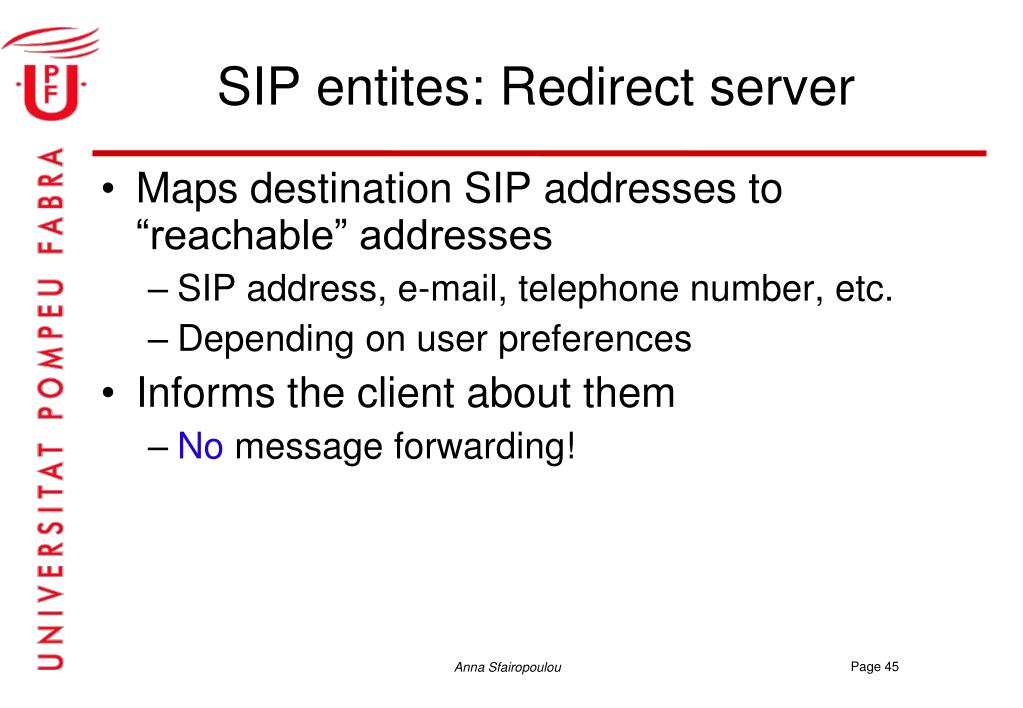

  45. SIP entites: Redirect server • Maps destination SIP addresses to “reachable” addresses • SIP address, e-mail, telephone number, etc. • Depending on user preferences • Informs the client about them • No message forwarding!

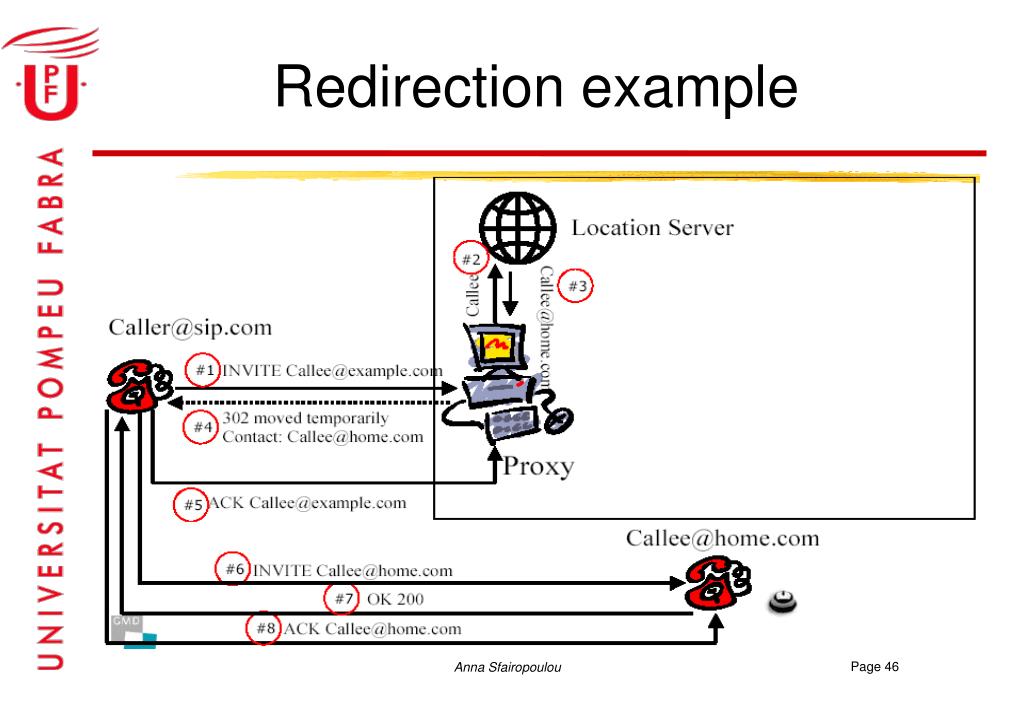

  46. Redirection example

  47. Additional examples (taken from RFC 3665 and Collins)

  48. Session establishment through two proxies In this scenario, Alice completes a call to Bob using two proxies Proxy 1 and Proxy 2. The initial INVITE (F1) contains a pre-loaded Route header with the address of Proxy 1 (Proxy 1 is configured as a default outbound proxy for Alice). The request does not contain the Authorization credentials Proxy 1 requires, so a 407 Proxy Authorization response is sent containing the challenge information. A new INVITE (F4) is then sent containing the correct credentials and the call proceeds. The call terminates when Bob disconnects by initiating a BYE message. Proxy 1 inserts a Record-Route header into the INVITE message to ensure that it is present in all subsequent message exchanges. Proxy 2 also inserts itself into the Record-Route header. The ACK (F15) and BYE (F18) both have a Route header.

  49. Unsuccessful temporarily unavailable In this scenario, Bob initially sends a 180 Ringing response to Alice, indicating that alerting is taking place. However, then a 480 Unavailable is then sent to Alice. This response is acknowledged and then proxied back to Alice.
