1. Spill Response Overview 2013 Clean Gulf Associates

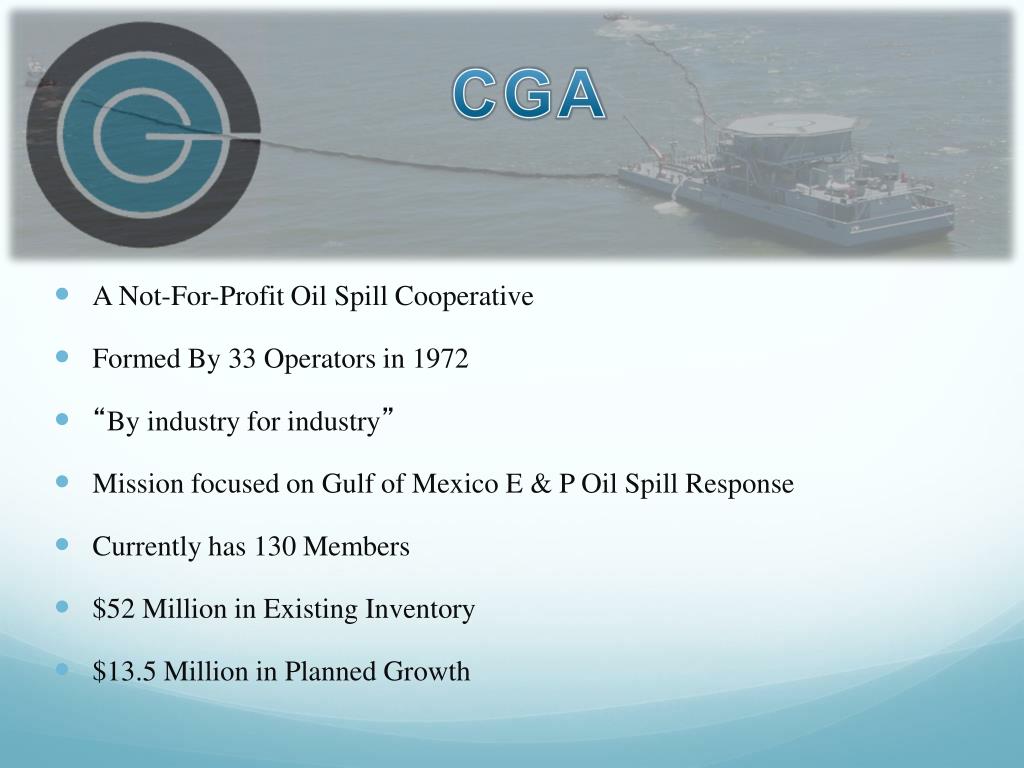

2. A Not-For-Profit Oil Spill Cooperative Formed By 33 Operators in 1972 “By industry for industry” Mission focused on Gulf of Mexico E & P Oil Spill Response Currently has 130 Members $52 Million in Existing Inventory $13.5 Million in Planned Growth CGA

3. Mission “Clean Gulf Associates is committed to maintaining a state of the art continuous oil spill response capability with equipment and highly trained and experienced personnel that are ready to meet the on-water oil spill response needs and requirements of our membership.”

4. The Role of CGA “A Layered Approach to Spill Response”

5. OFFSHORE

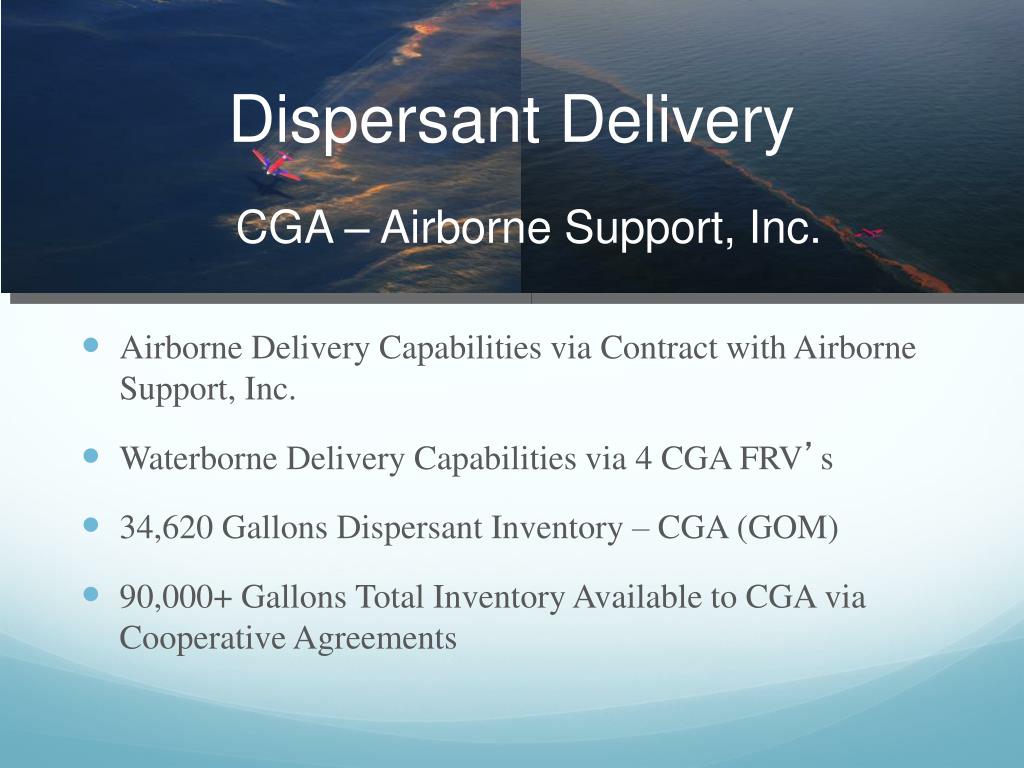

6. Dispersant Delivery CGA – Airborne Support, Inc. • Airborne Delivery Capabilities via Contract with Airborne Support, Inc. • Waterborne Delivery Capabilities via 4 CGA FRV’s • 34,620 Gallons Dispersant Inventory – CGA (GOM) • 90,000+ Gallons Total Inventory Available to CGA via Cooperative Agreements

7. Airborne Support, Inc. • 2000 gallon capacity • 5 gallon / acre – appl. rate • 200 gallon per minute • 7 hour flight time / 200 MPH Operational Requirements Loading Crew Dispersant (Corexit 9500) Spotter Aircraft

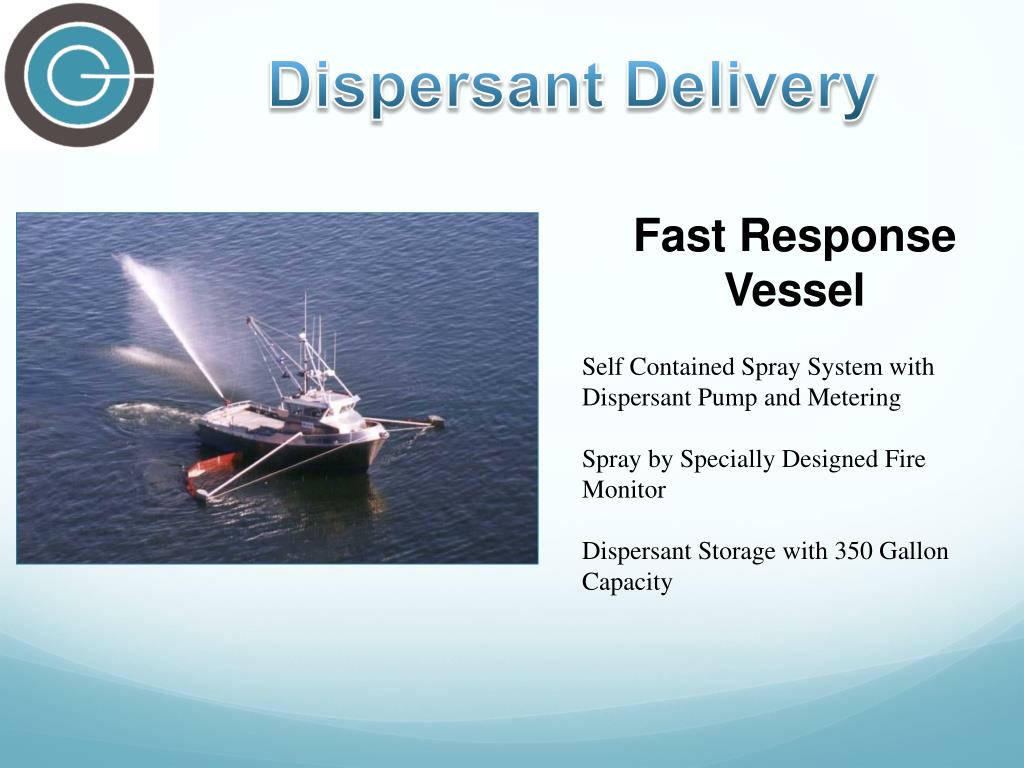

10. Dispersant Delivery Fast Response Vessel Self Contained Spray System with Dispersant Pump and Metering Spray by Specially Designed Fire Monitor Dispersant Storage with 350 Gallon Capacity

11. Elastec Hydro Fire Boom New capability – 2 sets 12-16 burns each In Macondo spill, an estimated 5% of the oil was burned

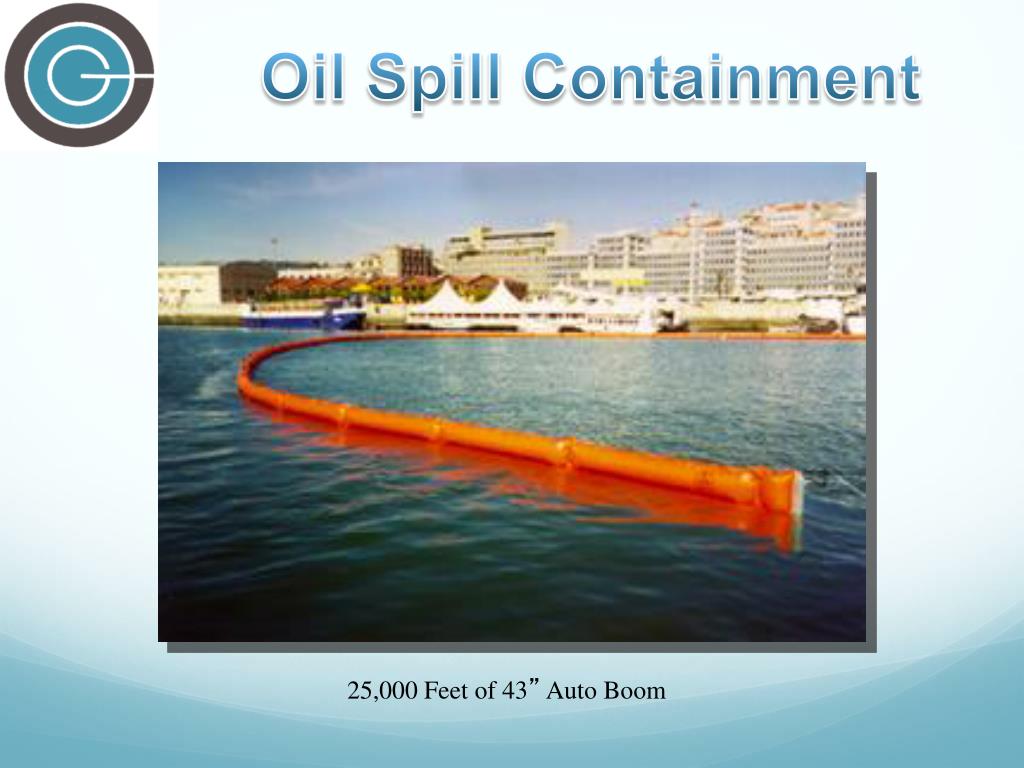

12. Oil Spill Containment 25,000 Feet of 43” Auto Boom

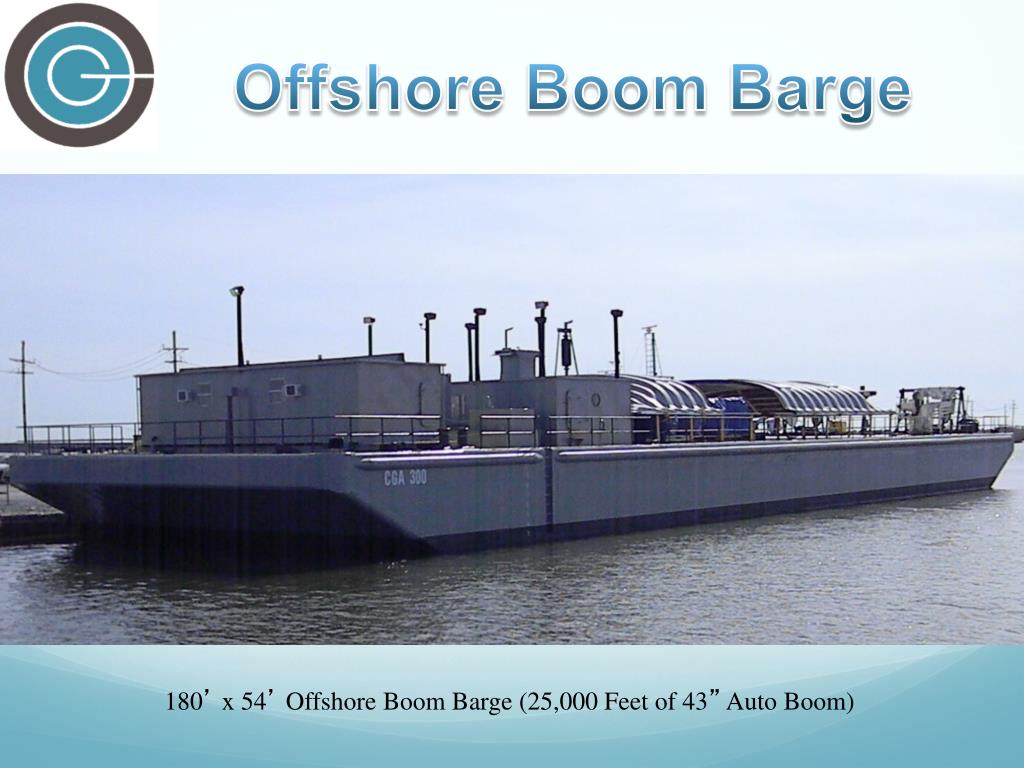

13. Offshore Boom Barge 180’ x 54’ Offshore Boom Barge (25,000 Feet of 43” Auto Boom)

14. Oil Spill Detection and Tracking • 24/7 (night) spill tracking and response • Aptomar/SeCurus • Radar & Infrared Camera • Installed on HOSS Barge • Capability on 95’FRVs • 3 handheld Diop Cadet 75

15. Allows Day & Night Skimming/Tracking Operations

16. X-Band/IR

17. Oil Spill Recovery Fast Response Vessels • HOSS Barge • Koseq Arms & Aqua Guard Skimmers • Fast Response Vessels 46’ & 95’ • Fast Response Units • Shallow Water Skimmers – Marco, Egmopol, and Trinity Oil Spill Recovery

18. HOSS Barge High Volume Open Sea Skimmer System System Highlights • Draft: 6 feet, Storage 4,000 bbls • 30 bbl / min recovery rate • 16 Man Living Quarters Operational Requirements • Personnel: 4 CGA/8 OSRO • Offshore Tugs: 2 - 1200 hp • Offshore Tugs: 1 - 1600 hp

19. HOSS Barge High Volume Open Sea Skimmer System System Highlights • 24 Hour Response Time • 4 – 36” Marco Oleophilic Belts • EDRC – 43,000 bbls Requirements • 2,640’ – 67” Sea Sentry Boom • Helipad: 52’ X 52’ – 20k lbs capacity

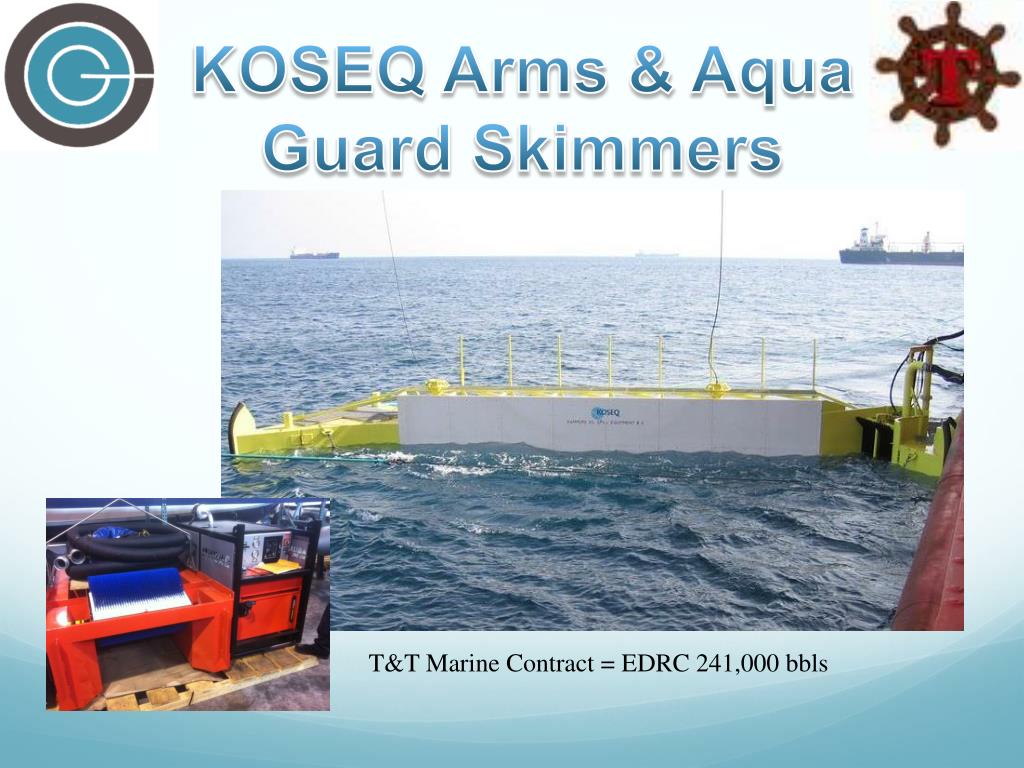

22. KOSEQ Arms & Aqua Guard Skimmers T&T Marine Contract = EDRC 241,000 bbls

23. KOSEQ Skimming Arms

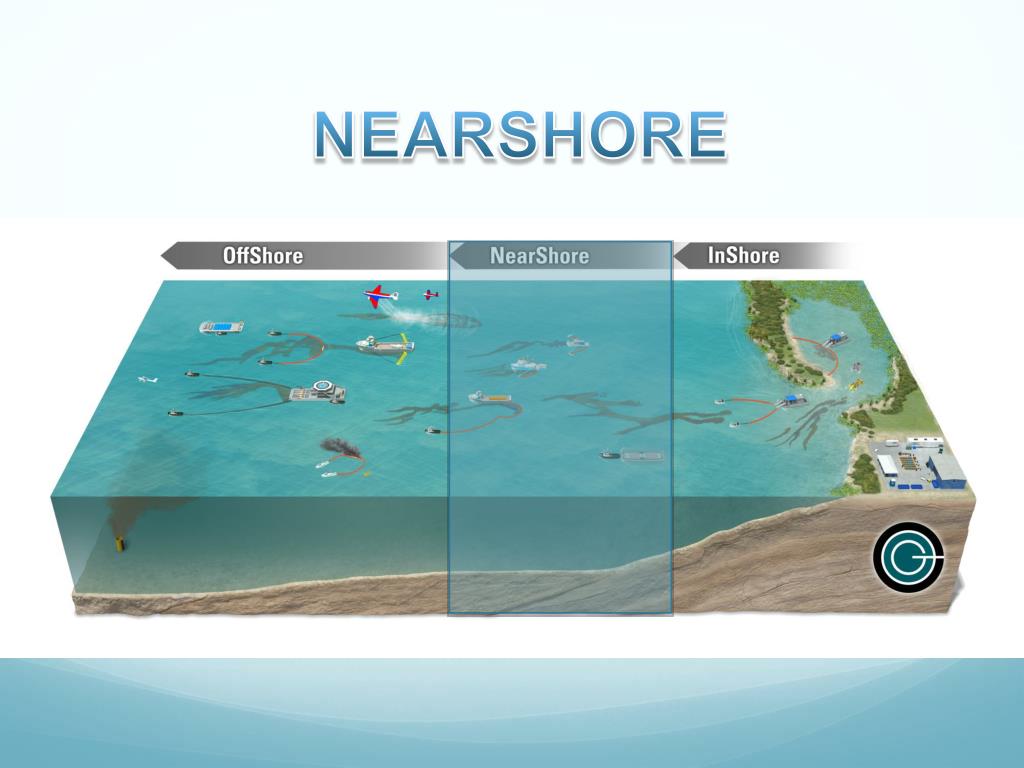

24. NEARSHORE

25. New GenerationFast Response Vessels • Three vessels are completed and operational • Equipped with State-of-the-Art AptomarSECurus Integrated Oil Detection System • Staged in Leeville, Venice, Galveston TX • All aluminum construction with up to 200 mile range and speed of 24+ knots

28. 46’ Fast Response Vessel (FRV) • Max Speed 25 knots, Cruising Speed 23 knots • Lori Brush Skimmers (2) – Built into Hull • Oil Directed Through Doors by Outrigger Booms • EDRC – 5,000 bbls • Located at Venice, Leeville, Lake Charles and Aransas Pass, TX

30. Fast Response Unit (FRU) All Sites Operational Requirements • Transportation – 18 Wheeler • UTV – 140‘ • Ideal – 30’x 65’ deck • 10 Ton Crane • 1 CGA/3 OSRO Highlights • High Mobility, Long Duration • 100 bbl Storage • EDRC – 4,251 bbls

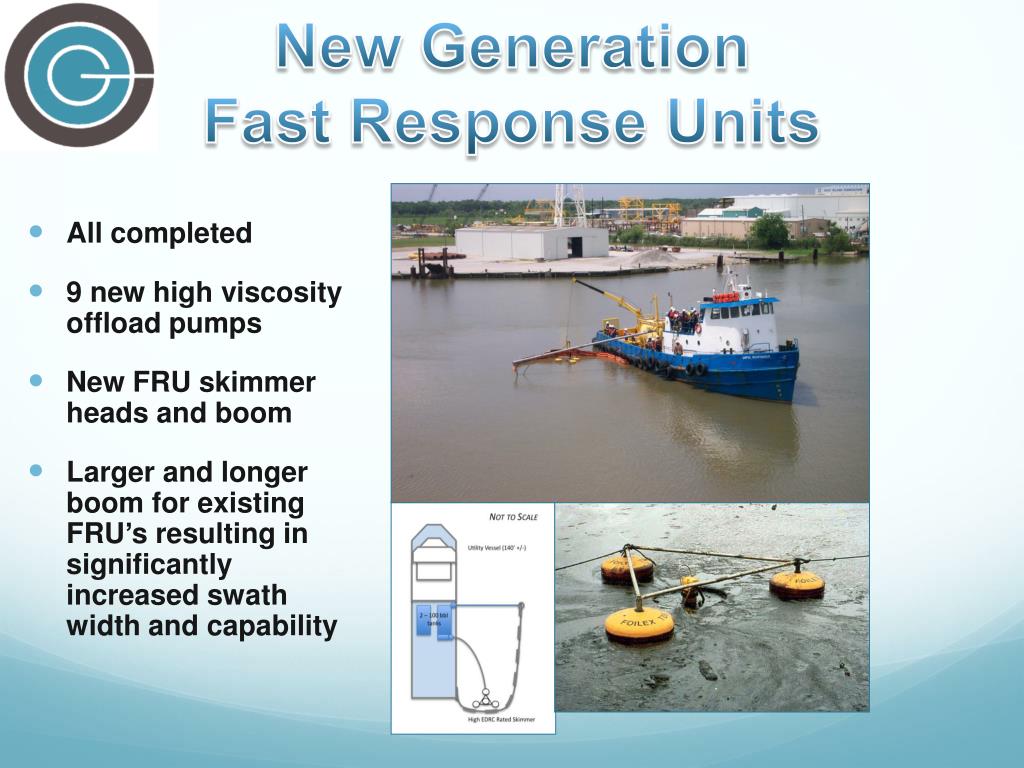

31. New GenerationFast Response Units • All completed • 9 new high viscosity offload pumps • New FRU skimmer heads and boom • Larger and longer boom for existing FRU’s resulting in significantly increased swath width and capability

32. Offshore Skimming Tactical Direction Cessna CJ3 Citation

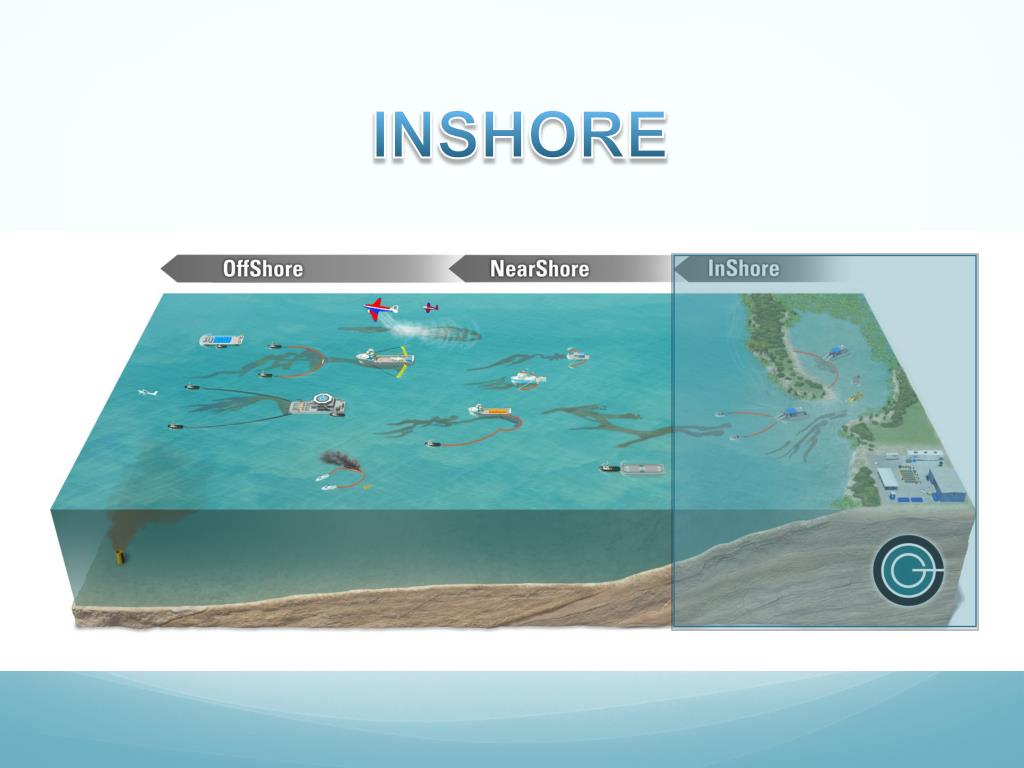

33. INSHORE

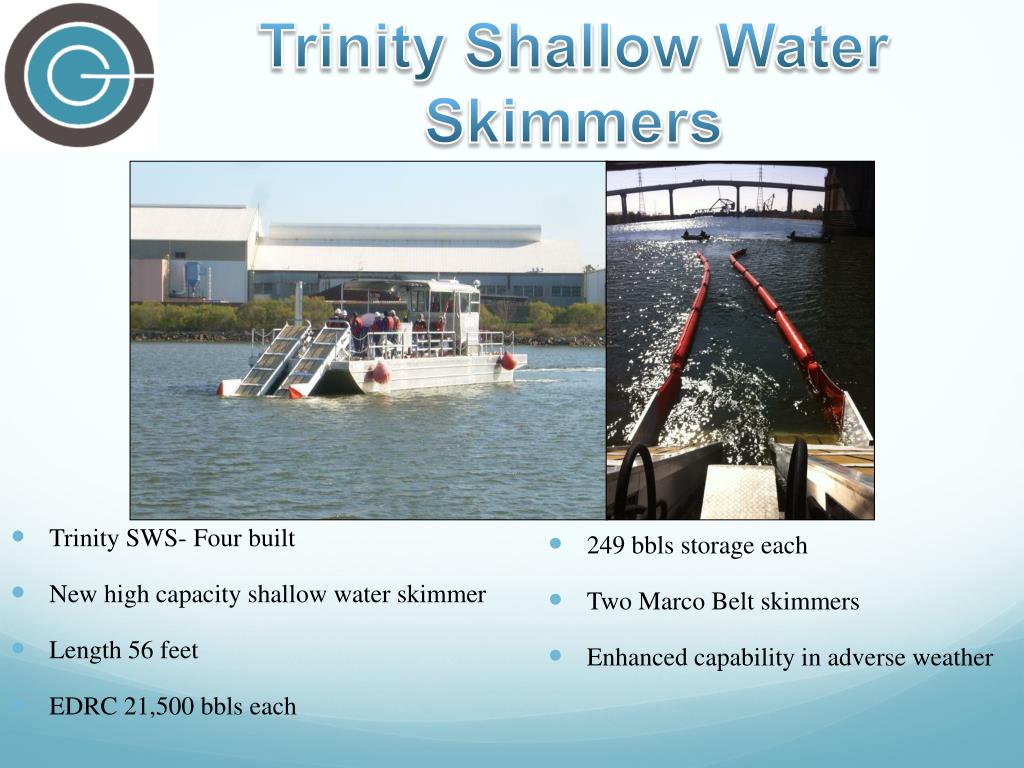

34. Trinity Shallow Water Skimmers • Trinity SWS- Four built • New high capacity shallow water skimmer • Length 56 feet • EDRC 21,500 bbls each • 249 bbls storage each • Two Marco Belt skimmers • Enhanced capability in adverse weather

35. Recovered Oil Storage Locations – Galveston, Lake Charles, Leeville, Venice Four– 249 Barrel Recovered Oil Storage Barges

36. Wildlife Rehabilitation • CGA Built Equipment – Designed by Wildlife Rehab Experts • Store, Maintain, and Deployment on a 24/7 Basis • Support Personnel – Set up, Operate, and Assist Clean Gulf’s Role

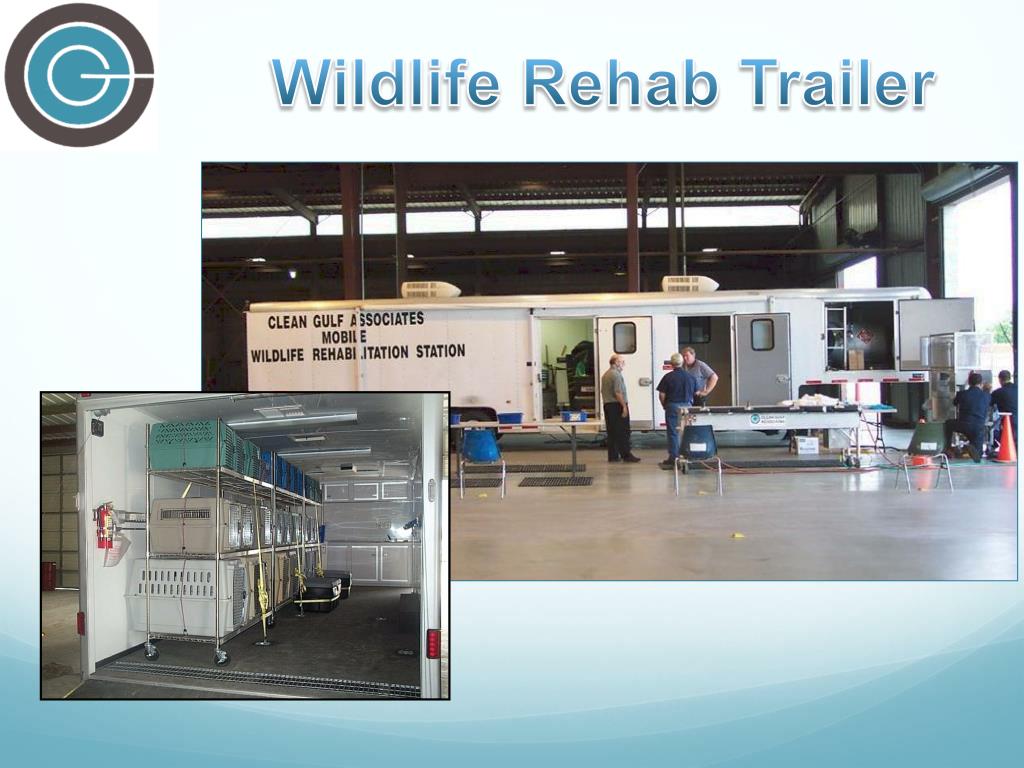

37. Wildlife Rehab Trailer

40. Current EDRC Capability

41. CGA SITE LOCATIONS Lake Charles Harvey Morgan City Galveston Intracoastal City Venice Leeville Aransas Pass

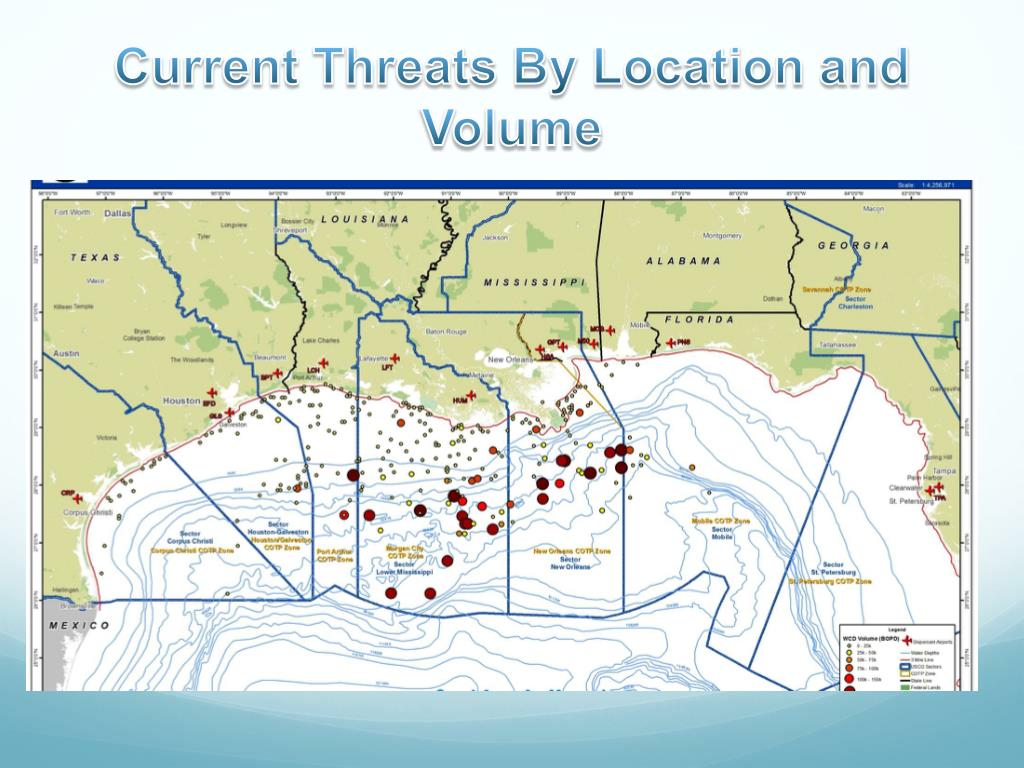

42. Current Threats By Location and Volume

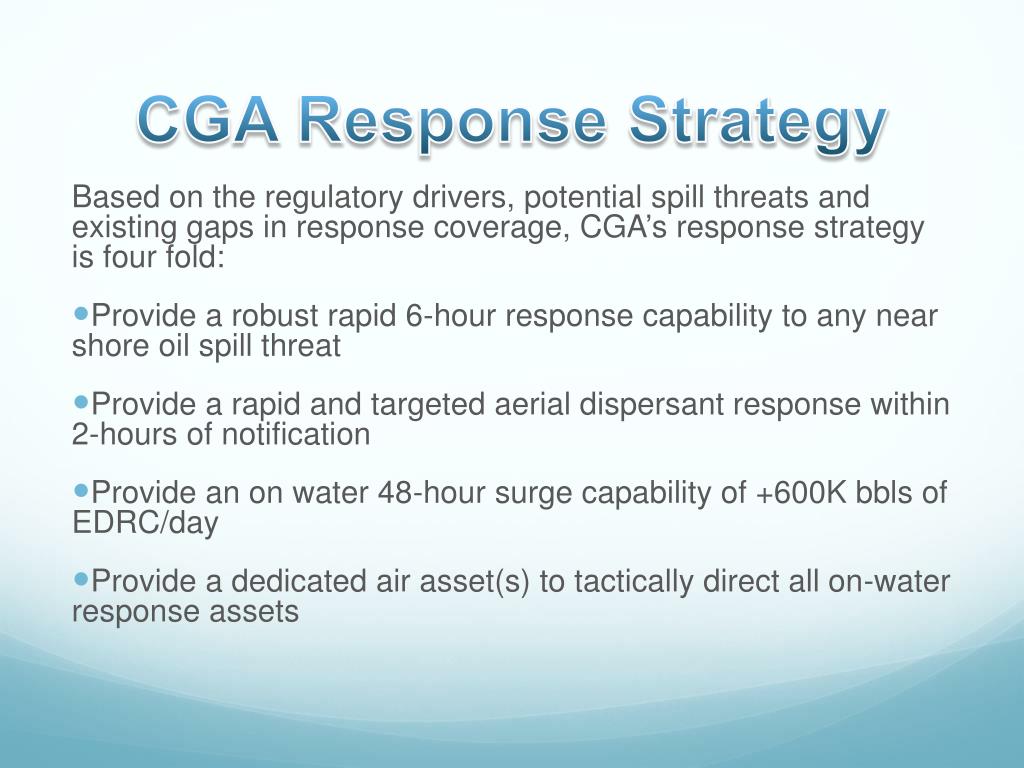

43. CGA Response Strategy Based on the regulatory drivers, potential spill threats and existing gaps in response coverage, CGA’s response strategy is four fold: Provide a robust rapid 6-hour response capability to any near shore oil spill threat Provide a rapid and targeted aerial dispersant response within 2-hours of notification Provide an on water 48-hour surge capability of +600K bbls of EDRC/day Provide a dedicated air asset(s) to tactically direct all on-water response assets

44. CGA Business Plan • Approved CGA Equipment 2013-2014 • Phase 1 –Immediate Implementation • Purchase One Offshore Oil Spill Recovery Vessel >7500 BBLS EDRC located at Intracoastal City, LA • Purchase Four Shallow Water Skimming Systems located at Intracoastal City, LA, Lake Charles, LA, Ingleside, TX, Pascagoula, MS - 86,000 bbls EDRC • Establish New Shore Base in Intracoastal City, LA • Enhanced Aerial Skimming Surveillance Aircraft • Conduct Koseq Arm system study • Phase 2- 2015 - TBD based on Drilling Activity in the Eastern GOM

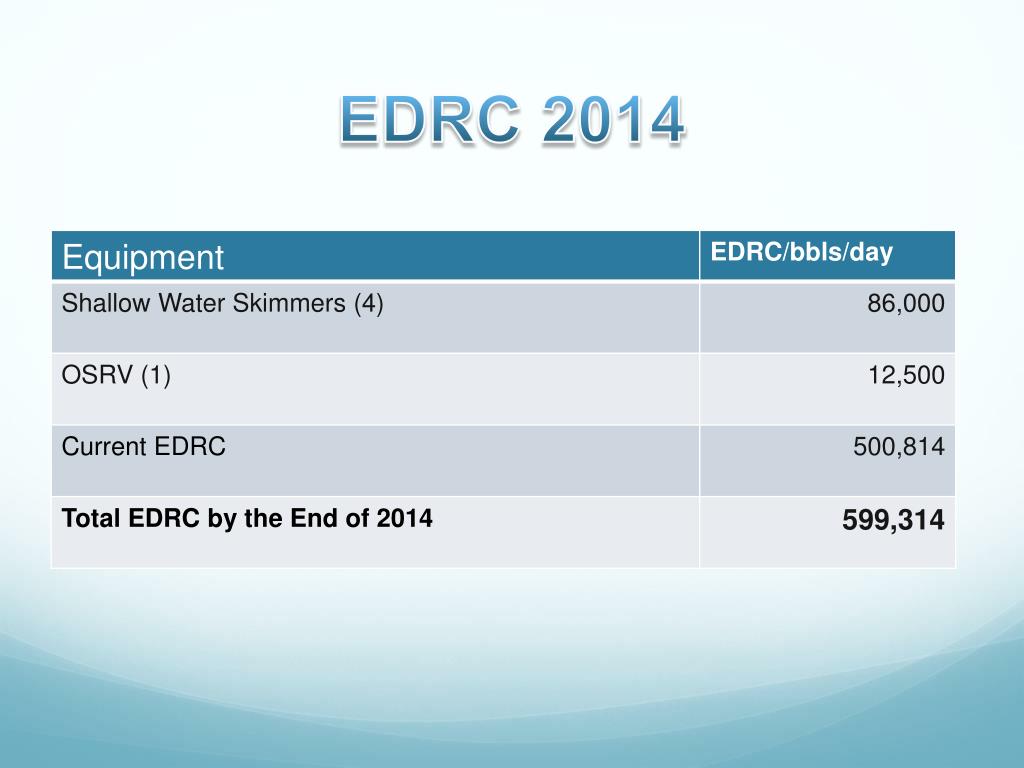

45. EDRC 2014

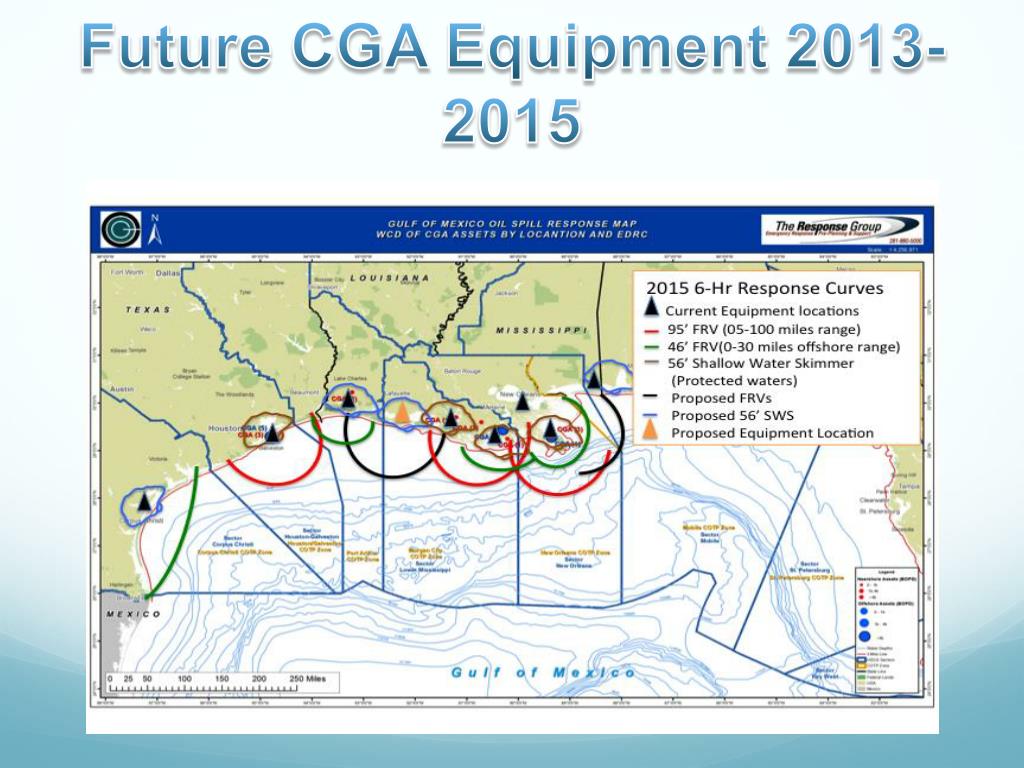

46. Future CGA Equipment 2013-2015

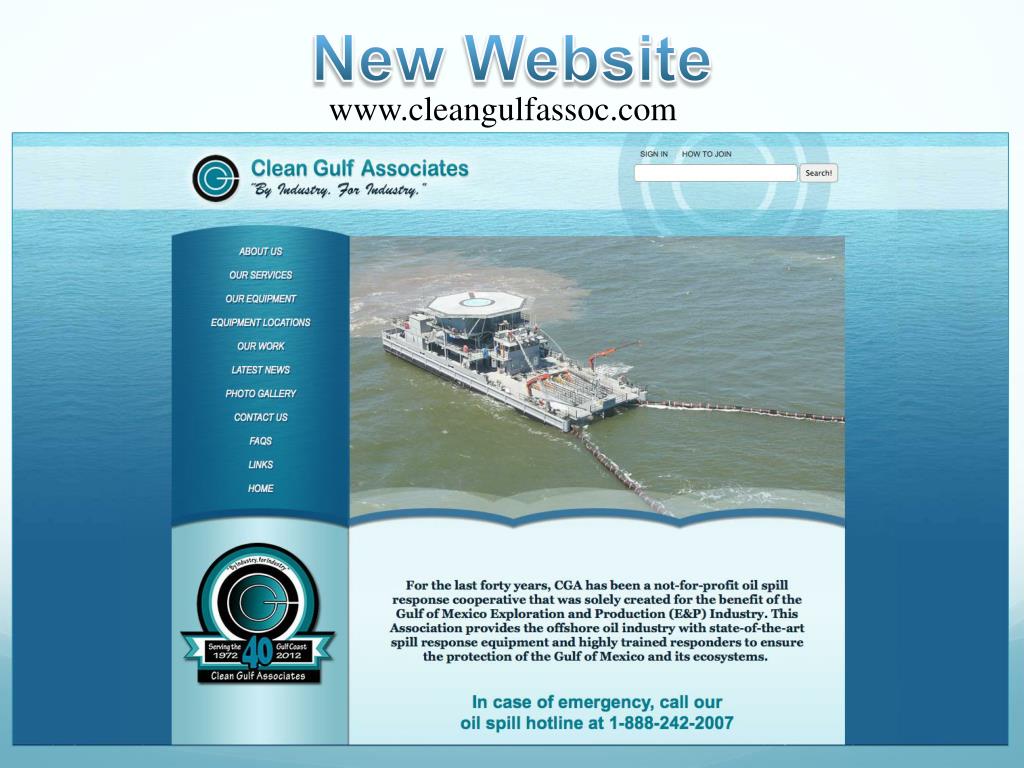

47. New Website www.cleangulfassoc.com

48. Contact Information (24 Hour) 888-242-2007 Frank Paskewich Email: paskewich@cleangulfassoc.com Phone: 504-799-3035 James Hanzalik Email: hanzalik@cleangulfassoc.com Phone 504-799-3037
