Presentation Transcript


Slide1 l.jpg

CALIBRATION AND MONITORING METHODS (C&M)

FOR

THE LIQUID XENON CALORIMETER

AND

FOR THE WHOLE MEG DETECTOR........

Xe calorimeter, wire-chamber spectrometer, timing counters

an updated discussion on:

advantages, disadvantages, open problems, etc.

of proposed methods

  • C&M for the entire MEG:

  • at any time

  • during PSI beam-off periods, tuning....

  • efficient use of beam-on periods

BVR, July 18th 2005, CB + T. Iwamoto


Slide2 l.jpg

an internal note

requested by the

INFN MEG Referees

(MEG-TN027)


Slide3 l.jpg

MEG internal note and then NIM collaboration paper

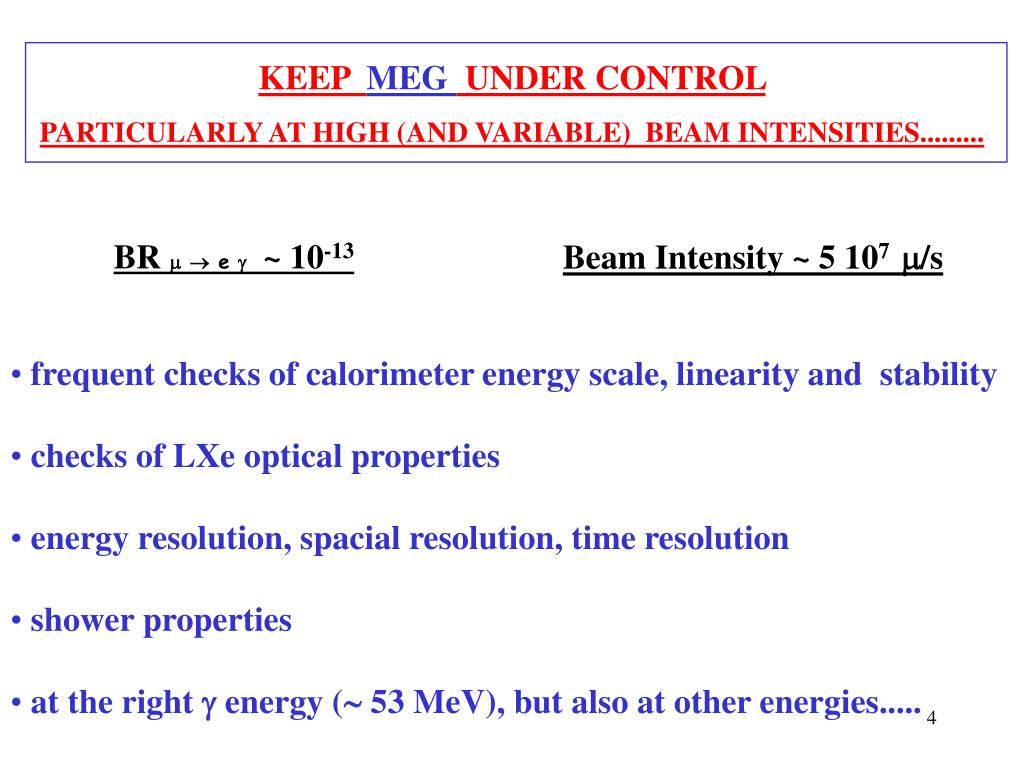

Slide4 l.jpg

KEEP MEG UNDER CONTROL

PARTICULARLY AT HIGH (AND VARIABLE) BEAM INTENSITIES.........

BR   eg~ 10-13

Beam Intensity ~ 5 107 /s

  • frequent checks of calorimeter energy scale, linearity and stability

  • checks of LXe optical properties

  • energy resolution, spacial resolution, time resolution

  • shower properties

  • at the right  energy ( 53 MeV), but also at other energies.....


Slide5 l.jpg

TWO MAIN TARGETS:

  • MAINTAIN THE MEG ENERGY, SPACE AND TIME

  • RESOLUTIONS OPTIMIZED OVER LONG PERIODS

  • OF TIME

  • HAVE RECORDED PROOFS OF MEG PERFORMANCES

  • (WHATEVER THE FINAL MEG RESULT ON BR   eg)

  • emphasize the reliability of our experiment !

  • GOOD C&M IS THE KEY TO MEG SUCCESS

no single calibration method has all the required characteristics

use complementary (and redundant) methods,

make the best use of their intrinsic properties


Slide6 l.jpg

attempt to grade the different C&M methods


Slide7 l.jpg

500 KV PROTON ACCELERATOR AND LITIUM TARGET FOR A

17.6 MEV GAMMA LINE

[P.R. 73, 666 (1948), N.P. 21 1 (1960),

Zeitschrift f. Physik A351 229 (1995)]

37Li (p,)48Be

  • Potentialities :

  • strongly exothermic nuclear reaction

  • unique: -emission much favoured over -emission

  • obtainable: at resonance (E p =440 keV 14 keV)

  •  106 /s (isotropic) for Ip 50 A

  • from LiF target at COBRA center; ’s on the whole cal.

  • entrance face

  • energy and position calibration; shower properties

  • rather frequent use

  • privilege simple, fast, (semi-automatic) mechanical system

  • for proton beam and LiF target introduction and positioning

  • (give up the use for the calorimeter monitoring from the back)


Slide8 l.jpg

  • further studies:

  • compatibility with normal beam and target

  • COBRA field, accelerator (and focusing element) position

  • project for easiness of target-tube mounting

  • p-beam divergence and protons on target; p29 MeV/c

  • post-acceleration to scan the resonance

  • thin-target, thick-target

  • H2+ ions, effects on -line, (H2+ elimination by a mag.-triplet)


Slide9 l.jpg

astrophysics data

http://pntpm.ulb.ac.be/nacre.htm

E sigma error S-factor error (MeV) (b) (b) (MeV b) (MeV b)

0.1294.55E-062.3E-07 1.37E-037.00E-05

0.375 1.44E-03 8.5E-05 5.10E-02 3.00E-03

0.384 5.86E-03 1.5E-04 2.02E-01 5.00E-03

0.388 4.44E-03 1.8E-04 1.51E-01 6.00E-03

1.0057.59E-05 4.3E-06 1.23E-037.00E-05

at the Tp* 384 keV resonance and compound nucleus formation

+ non resonant direct reaction elsewhere


Slide10 l.jpg

E0 = 17.6 MeV

E1 = 14.6

6.1

Bpeak 0/(0+ 1)= 0.720.07

37Li (p,)48Be

resonant at Ep= 440 keV =14 keV peak = 5 mb

0

1

NaI 12”x12”

 spectrum


Slide11 l.jpg

other interesting possibilities..... :

13H (p,) 24HeE ~ 20 MeV !! used in SNO

 in : Hahn et al. PRC 51 1624 (1995)

but Tritium....and low rate.......

511B (p,)612C

Cecil et al. NP A539 75 (1992)

10x10 cm NaI crystal

resonant at Ep= 163 keV

= 7 keV

E0 = 16.1 MeV peak = 5.5 b

E1 = 11.7 + 4.4 peak = 152 b

  •  7500/s (isotropic)

  • 20.0001/s for Ip 50 A

lower proton energy !

lower rate at 50 A !!


Slide12 l.jpg

ENERGY, TARGET THICKNESS AND -LINE QUALITY

correspondence between resonanceand range intervalR

“thin target” R   “thick target” R >> 

if Tp = 445 keV and R = 

R = 0.120  N=7 x 1017 LiF/cm2

at 80 A Ip Np= 5x1014 p/s N= 1.8x106 /s(up to 1.6x105 in calorimeter)

very clean -line (more difficult calibration tuning)

if Tp = 445 keV and R = Range (445 keV) >>

R = 413  N = 2.5 x 1019 LiF/cm2

at 80 A Ip Np= 5x1014 p/s N= 6x105 /s (+ N=1.8x106 /s)

-line with appreciable left shoulder from 17.6 to 17.1 MeV

(simple calibration tuning)

of the total 5x1014 p/s, 2x106 p/sproduce photons at resonance,

some of the residual 2.5x108 p/s produce direct photons of lower energy (if Tp > resonant energy, right tail also.........)

H2+ ion effects........(30% of CW-beam)


Slide13 l.jpg

N= 1.8x106 /s over 4(up to 1.6x105 /sinto the whole calorimeter)

(PMT non linearity over Ia = 4 A, therefore at about 2x105 /sin the calorimeter)

Very high -intensity

(other optional reactions have smaller cross-section)

(possibility of using low-efficiency selective triggers)

MEG aquisition rate is about 100 Hz

The accelerator current can be easily limited, but one can also test

the calorimeter and the PMT behaviour

as a function of an increasing -rate in the calorimeter......


Slide14 l.jpg

CHOICE OF THE ACCELERATOR

Cockroft-Walton, Van der Graaf, Radio Frequency Quadrupole

HV Engineering, NEC, AccSys, Neue Technologien GmbH

  • overall price, guarantees, delivery time, test, assistance,

  • spare parts, etc.

  • energy interval of operation, current, stability, beam phase space,

  • background radiation, etc.

  • simplicity of use, reliability, type of computer control

  • source duration, 1-year without servicing, etc.

  • fast conditioning and tuning

  • beam height

  • possibility of moving the accelerator system

  • availability and possible use at the beginning of the experiment

  • The collection of information on all points is a slow, multistep process......:

  • visits to experiments using similar accelerators

  • visit to accelerator factories

  • discussion with national lab. experts


Slide15 l.jpg

STRONG PREFERENCE FOR A COCKROFT-WALTON

  • reliable system, in use for several precision experiments, visits to GS

  • good assistance in mounting and test; “nearby” factory

  • large energy interval of machine operation

  • visit to HV in Amersfoort and visit of HV to Pisa (Legnaro lab. expert

  • present)

  • adequate current, good beam properties, stability

  • fast tuning and operation if 1 MV machine in the same tank of the

  • 0.5 MV machine. (15% increase in price)

  • very low-background machine

  • well interfaced, good safety system, interlocks, good software

  • (and program source available)

  • compact machine in pressurized (and shielding) container

  • one year operation without service

If one wants to use the machine for the MEG start-up

an order must be issued as soon as possible (September !)


Slide16 l.jpg

model: “coaxial SINGLETRON”


Precise calibration l.jpg

BVR February 2005

FULLY TESTED......

PRECISE CALIBRATION

θ

  • Potentialities :

  • energy and position calibration

  • shower properties and reconstruction at

  • Eg  55 MeV, the proper energy !

  • fully tested in “large prototype” runs

  • Open problems:

  • definition of -lines by collimators or by

  • -hit reconstruction (for ~ 180º).

  • NaI set-up. Several positions.

  • NaI behind coils.

  • H2 cryogenics, negative beam, different

  • target, target introduction in COBRA.

  • how often it can be performed ?

E (MeV)


Slide18 l.jpg

TWO POSSIBLE WAYS TO PERFORM THE º CALIBRATION

IN MEG

  • EXTRAPOLATION FROM PREVIOUS TESTS FOR MEG

  • Movable NaI system

  • Safe solution at the beginning of the experiment.

  • CONVERSION METHOD

  • No movable parts.

  • More comprehensive applications (wire-chambers,timing counters).

  • It depends on a trigger systems which is presently untested.

  • Both methods allow Xe calorimeter calibration in 1-2 days


Nai detector stage design l.jpg

NaI Detector Stage design

Anti Counter

  • NaI detector (~100kg) needs to be moved 2 dimensionally at the opposite side of the xenon detector.

  • The movable stage and motor need to be magnetic tolerable with reasonable positioning accuracy.

  • Test under COBRA field  OK

No bearing ball

Linear slider

g

up

Screw drive

Prism guide

p0

down

g

target

Linear slider: http://www.tollo.com

Motor: http://www.animatics.com

Motor

Example

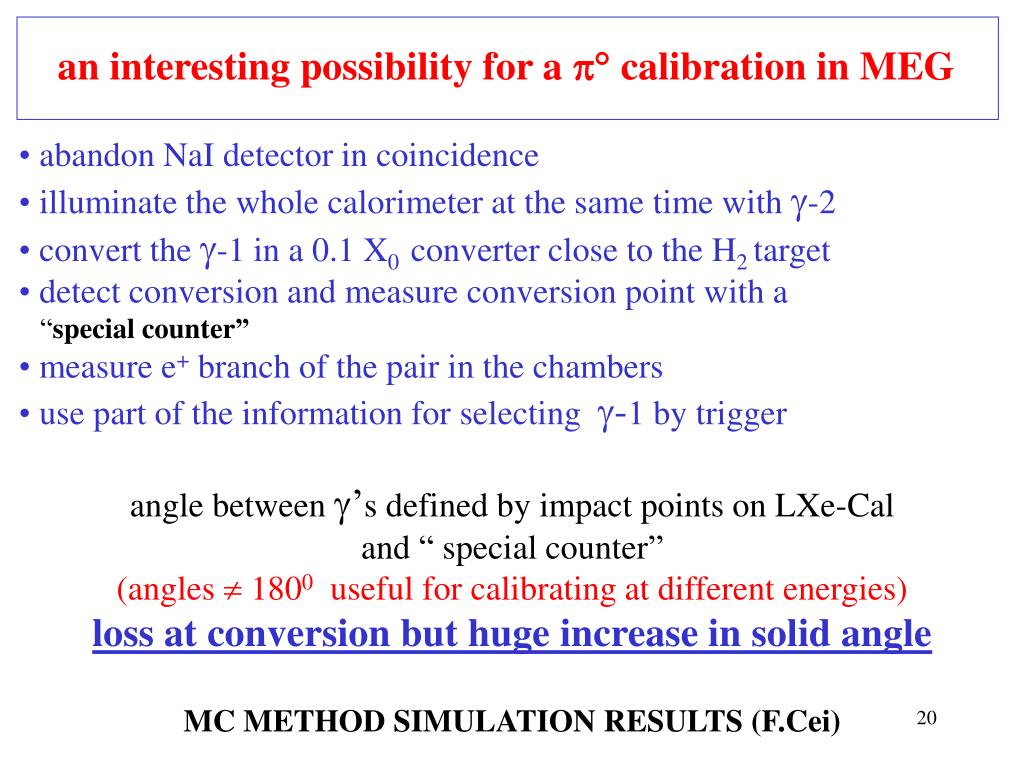

Slide20 l.jpg

an interesting possibility for a  calibration in MEG

  • abandon NaI detector in coincidence

  • illuminate the whole calorimeter at the same time with -2

  • convert the -1 in a 0.1 X0 converter close to the H2 target

  • detect conversion and measure conversion point with a

  • “special counter”

  • measure e+ branch of the pair in the chambers

  • use part of the information for selecting -1 by trigger

angle between ’s defined by impact points on LXe-Cal

and “ special counter”

(angles  1800 useful for calibrating at different energies)

loss at conversion but huge increase in solid angle

MC METHOD SIMULATION RESULTS (F.Cei)


Slide21 l.jpg

TRIGGER UNDER STUDY

  • Ingredients:

  • LXe Cal. and QSUM threshold

  • “special counter”

  • good time resolution, pixelization for conversion point reconstruction,

  • separation of e+ e-- pairs from single particles

  • positron (from n ) or pair trajectory (from n ) by the wire-chamber trigger

  • timing-counters

  • depending on the particular calibration........

A FULL TEST OF THE WIRE-CHAMBERS SPECTROMETER

CAN ALSO BE PERFORMED !

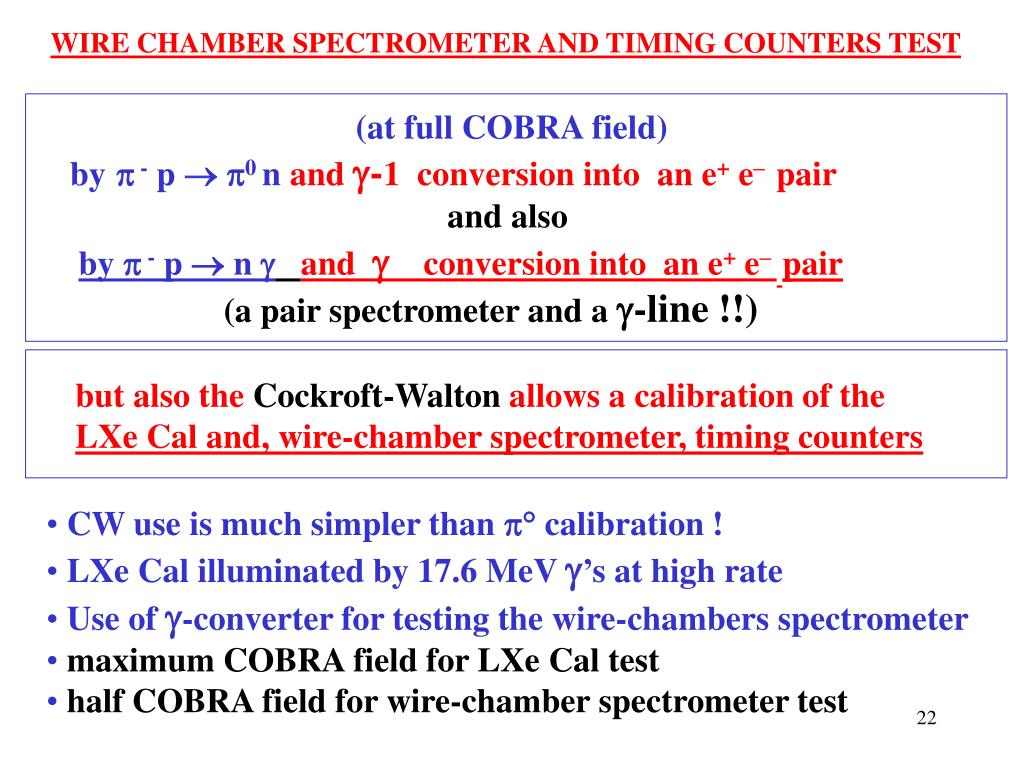

Slide22 l.jpg

WIRE CHAMBER SPECTROMETER AND TIMING COUNTERS TEST

(at full COBRA field)

by - p  0 n and -1 conversion into an e+ e– pair

and also

by  - p  n and  conversion into an e+ e– pair

(a pair spectrometer and a -line !!)

but also the Cockroft-Walton allows a calibration of the

LXe Cal and, wire-chamber spectrometer, timing counters

  • CW use is much simpler than  calibration !

  • LXe Cal illuminated by 17.6 MeV ’s at high rate

  • Use of -converter for testing the wire-chambers spectrometer

  • maximum COBRA field for LXe Cal test

  • half COBRA field for wire-chamber spectrometer test


Slide23 l.jpg

g energy release: increased statistics

0.1 X0, NDC > 4,

relative angle > 1750

  • Intrinsic width for photons

  • emitted with relative angle

  • > 1750: 0.3 %.

  • Leakage effects: ~ 1 %.

  • Remaining contributions

    from natural angular width

    of e+e- pair production and

    multiple scattering in the

    target.

FWHM

2.60.3 %


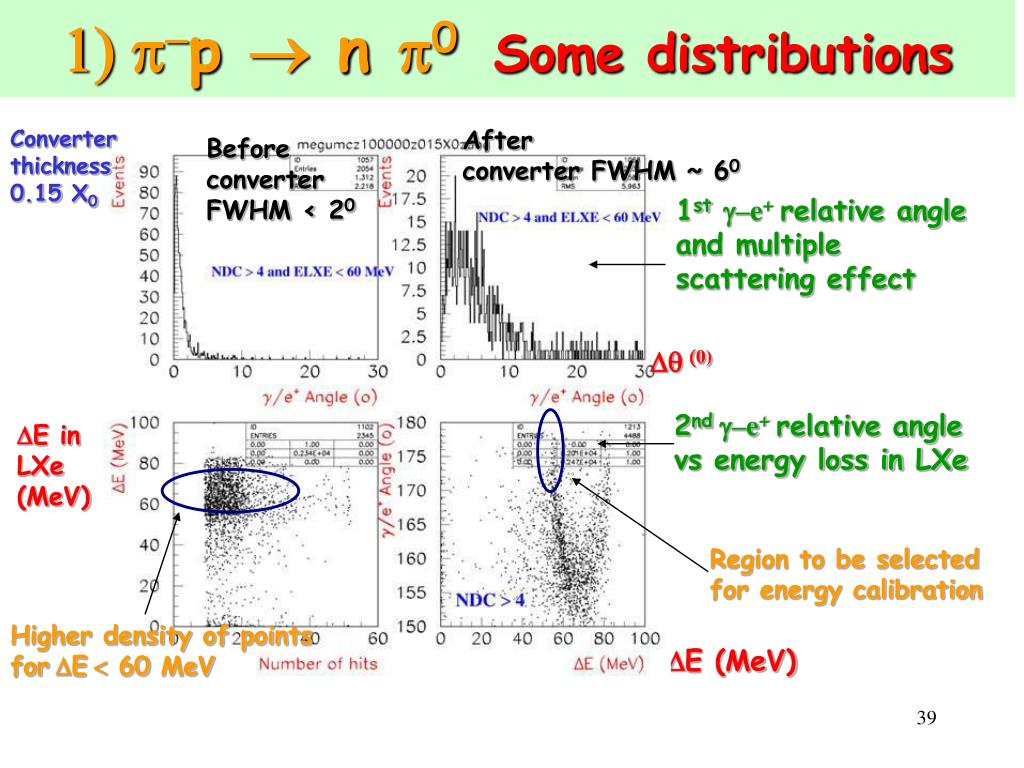

P p n g 129 mev e e l.jpg

p-p  n g (129 MeV)  e+ e-

  • Main purpose: calibration of wire-chamber

    spectrometer and timing counters.

  • Use e+e- pair production from 129 MeV

    gamma conversion in Tungsten.

  • Both e+ and e- must be detected and their

    tracks reconstructed. Pair spectrometer !

  • Interesting thing: it provides a fixed (total)

    energy calibration point for the wire-chamber

    spectrometer

    (normally not easily obtainable......).


Efficiency vs converter thickness l.jpg

Efficiency vs converter thickness

106 events

(> 4 chambers)

  • 4 chambers required for detection

Large errors due to

small statistics, but

promising results; 0.1 X0 looks the best choice.

Generated 100000 events in the

whole solid angle (4 p).

~ 400 Hz


Slide26 l.jpg

Total momentum distribution

No reconstruction

included

Thickness

0.1 X0

FWHM ~ 0.7  0.9 %

This FWHM must

be compared with

the value quoted

in the Proposal:

e+ + e- momentum (MeV)


Slide27 l.jpg

Am SOURCES ON WIRE AND WALLS

BVR February 2005

Sources in production.

Soon available for all LXe devices.

  • Potentialities :

  • PMT quantum efficiencies

  • Xenon optical properties

  • low-energy position and energy

  • calibration

  • use in Xe gas and liquid

  • stability checks ?

  • a unique method for cryogenic liquid

  • detectors !!

Wire presently mounted in “Large Prototype”

  • Open problems:

  • will the method be usable under full intensity beam conditions ?

  • To be verified by test !


Slide28 l.jpg

reconstruction of the 8 -source positions in gaseous Xe.

Recent measurement with the large-prototype.

(Po-source produced in Genoa)


Slide29 l.jpg

RINGS

IN

LIQUID XENON

the ring radius

depends on

the Rayleigh scattering length

in LXe


Slide30 l.jpg

Determination of the relative

QE for 4 different PMTs by

the use of 4 dot-wire-sources

in Xe gas of the large-prototype

the relative QEs are given by

the slope of the linear fits.


Slide31 l.jpg

C&M by NEUTRONS AND NICKEL-LINE , AT THE BACK OF THE CALORIMETER

large-prototype

NaI

/E=2.5%

in the large-prototype

the line is worse.....

(thermal neutrons in LXe !)

the measurement must be

repeated, protecting LXe from

thermal neutrons by a borated-foil


Slide32 l.jpg

CONCLUSIONS

  • Several C&M methods tested with satisfactory results:

  • wire-sources

  • p0and  from p–charge exchange

  • thermal neutrons and nickel -line

  • Other C&M methods in preparation or being modified

  • for MEG:

  • CW accelerator and 37Li (p,)48Be reaction

  • new methods for p0and  from p–charge exchange


Slide33 l.jpg

EXTRA SLIDES


Some distributions a l.jpg

Some distributions – a)

Pe+ + Pe- = Eg

129 MeV

Thickness

0.15 X0

Energy loss

and MS


Some distributions b l.jpg

Some distributions – b)

Thickness

0.15 X0

Region to be

selected (both

e+/e- seen)

e+/e- momenta

At least 4 chambers

(7 hits) required

Relative

angle

genergy


Slide36 l.jpg

RADIO FREQUENCY QUADRUPOLE ACCELERATOR

  • practically monoenergetic

  • pulsed operation; frequency 100 Hz 100 ms pulses

  • average current 50 mA , pulsed current 5 mA

  • beam energy bin approx. 10 keV

  • small vessel, pre-accelerator

  • beam optical properties ? 1mm ; 20 mR

  • RF radiation ? No

  • proton source ? Plasma

  • cost ? acceptable (AccSys), (Neue Tech.) !!!!!

  • special design....time to produce ? One year

  • not an out-of-the-shelf machine

  • Companies: AccSys, Neue Technologien GMBH


Mc ingredients l.jpg

MC ingredients

  • Liquid hydrogen (LH2) target close to the muon

    stopping target (10 cm length x 5 cm diameter);

  • Thin tungsten converter adjacent to the LH2

    target; thickness between 0.05 X0and 0.3 X0;

  • p0 decay & n g pair generated in the LH2 target with

    the correct energy and angular distributions;

  • Tracking of photons from p0 decay;

  • Tracking of electron & positron from photon conversion;

  • Multiple scattering in tungsten included;

  • Minimum number of chambers (4) in DC system

    required to define a track;

  • Energy/momentum reconstructions: work in progress

  • Increase of MC statistics: under way


1 p p n p 0 some distributions l.jpg

1) p-p  n p0Some distributions

Converter thickness 0.15 X0

After

converter FWHM ~ 60

Before

converter

FWHM < 20

1stg–e+relative angle

and multiple scattering effect

Dq (0)

2nd g–e+relative angle

vs energy loss in LXe

DE in

LXe

(MeV)

Region to be selected

for energy calibration

Higher density of points

forDE< 60 MeV

DE (MeV)


Impact point and g energy release in lxe l.jpg

Impact point and g energy release in LXe

cos (q)

Converter thickness 0.15 X0

Uniform coverage of

the whole calorimeter

FWHM  6.50

g1-e+

Relative angle g2-e+

Dq > 1750

FWHM(energy)  4 - 5%


Efficiency vs converter thickness41 l.jpg

Efficiency vs converter thickness

106 events

(> 4 chambers)

Generated 100000 events in the solid

angle covered by the LXe calorimeter

(10%)

  • 4 chambers; relative angle  1750

~ 23 Hz


Rough estimate of the time needed for the lxe calibration l.jpg

Rough estimate of the time needed for the LXe calibration

Reconstruction and trigger efficiencies under evaluation

Solid angle factor

  • <e> (20  30)/105/10 = (20  30) x 10-6

  • R = Rp0 x <e> = (Rp0/106)x 106 x (20  30) x 10-6 =

    (20  30) x (Rp0/106) Hz(max.MEG acquisition rate 100 Hz)

  • Events/day  8.64 x 104 R  2 x 106 x (Rp0/106)

  • Assuming  50 locations to be calibrated

    (216 PMTs in groups of 4):

    (< 1000 events/location would be sufficient)

    1000 events/50 s total for 50 locations 2500 s < 1 h


Slide43 l.jpg

Assuming N0 = 106 129 MeV photons/s:

N(e+e- pairs detected)/s =

N0 x epair ~ 400/s.

Requiring 106 pairs in the wire-chamber

spectrometer (at a rate of 100 Hz:

Time = 106/(100/s) = 104 s

(less than three hours).


  • Login
