Presentation Transcript


Week 3 modeling l.jpg

WEEK 3: MODELING

[email protected]


Modeler concepts l.jpg

Modeler Concepts

  • Modeler a person who performs the process of creating objects with a 3D software program

[email protected]


Slide3 l.jpg

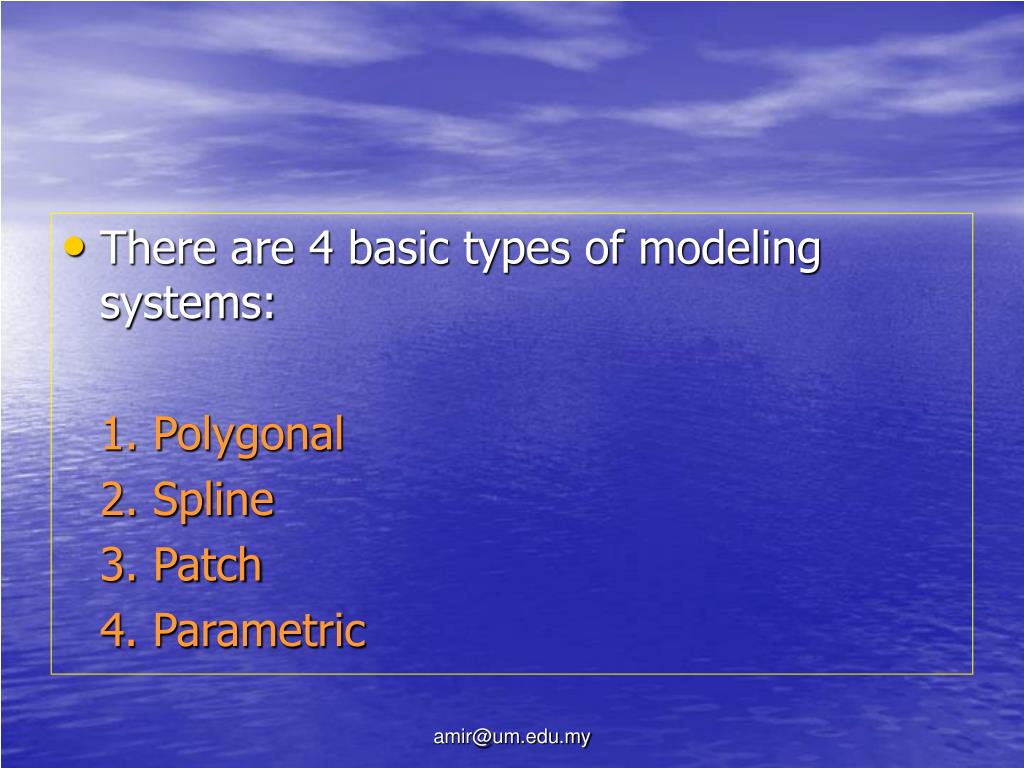

  • There are 4 basic types of modeling systems:

    1. Polygonal

    2. Spline

    3. Patch

    4. Parametric

[email protected]


Polygonal modelers l.jpg

Polygonal Modelers

  • The oldest type of 3D modeling

  • Objects are constructed with polylines and polygons

  • Very useful to create low polygon models –in games

[email protected]


Slide5 l.jpg

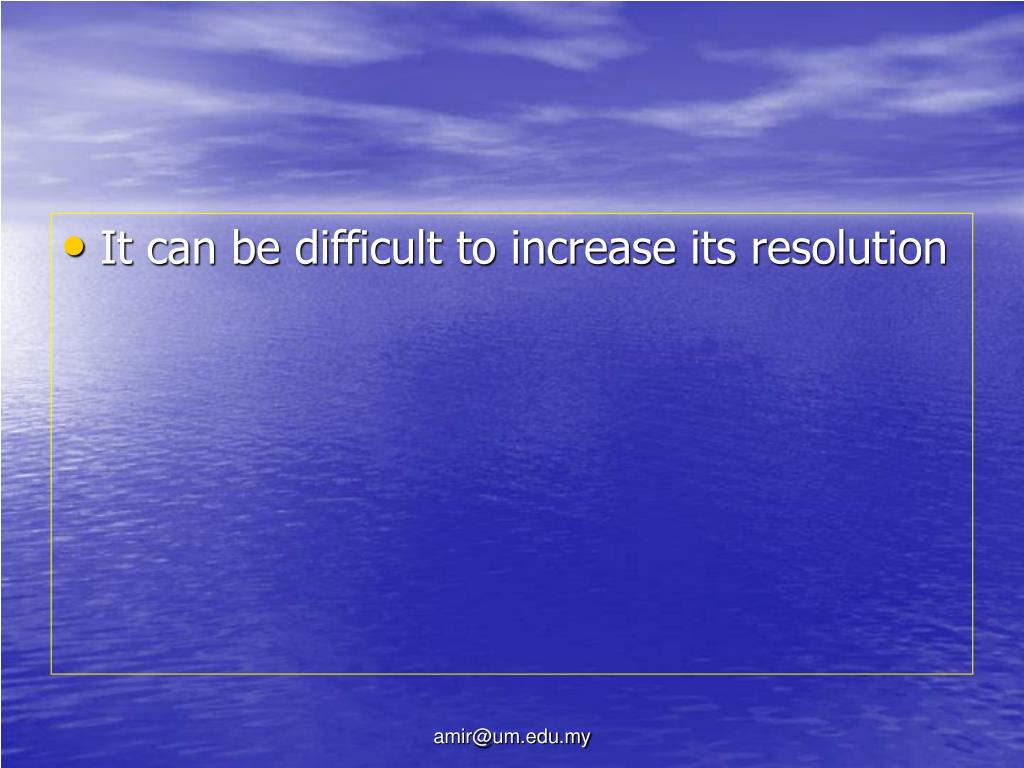

  • It can be difficult to increase its resolution

[email protected]


Spline modelers l.jpg

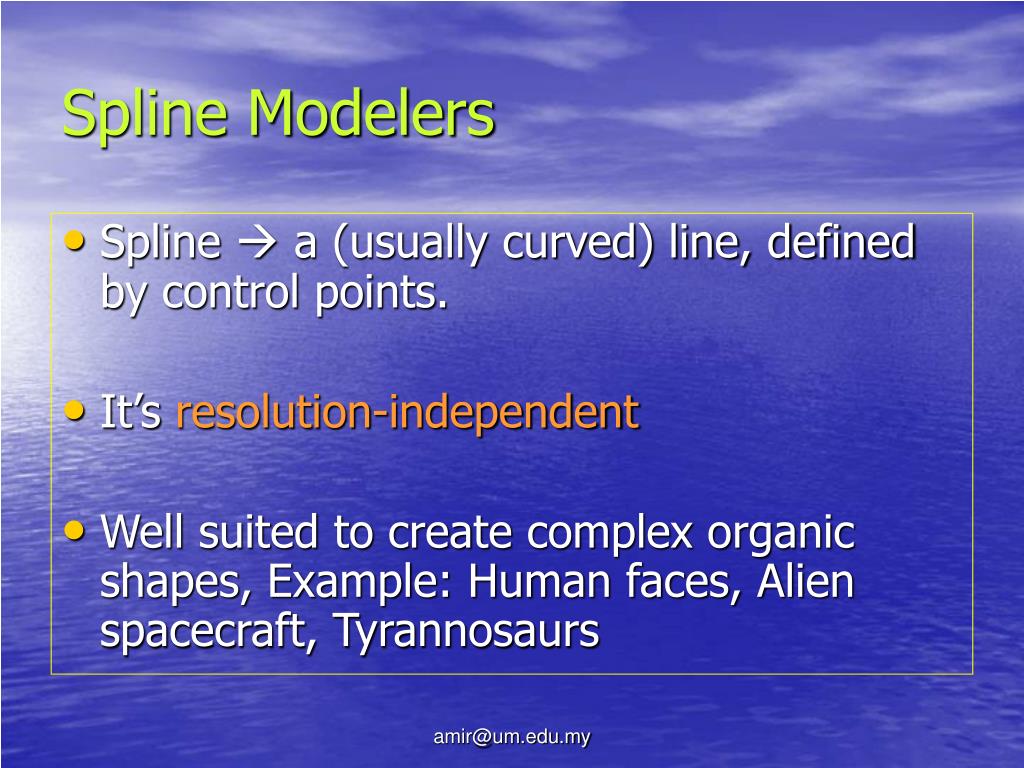

Spline Modelers

  • Spline  a (usually curved) line, defined by control points.

  • It’s resolution-independent

  • Well suited to create complex organic shapes, Example: Human faces, Alien spacecraft, Tyrannosaurs

[email protected]


Slide7 l.jpg

  • It uses smooth and natural curves

  • Types of splines:

    1. B-spline

    2. Bezier

    3. NURBS

[email protected]


Patch modelers l.jpg

Patch Modelers

  • Use a network of control points to define and modify the shape of the patch

  • Control points  control vertices (CVs) – exert a magnet-like influence on the flexible surface of the patch, stretching and tugging it in one direction to another

[email protected]


Slide9 l.jpg

  • Patches can be subdivided to allow more detail

  • Can produce very smooth results

  • Well suited for organic forms modeling

[email protected]


Parametric modelers l.jpg

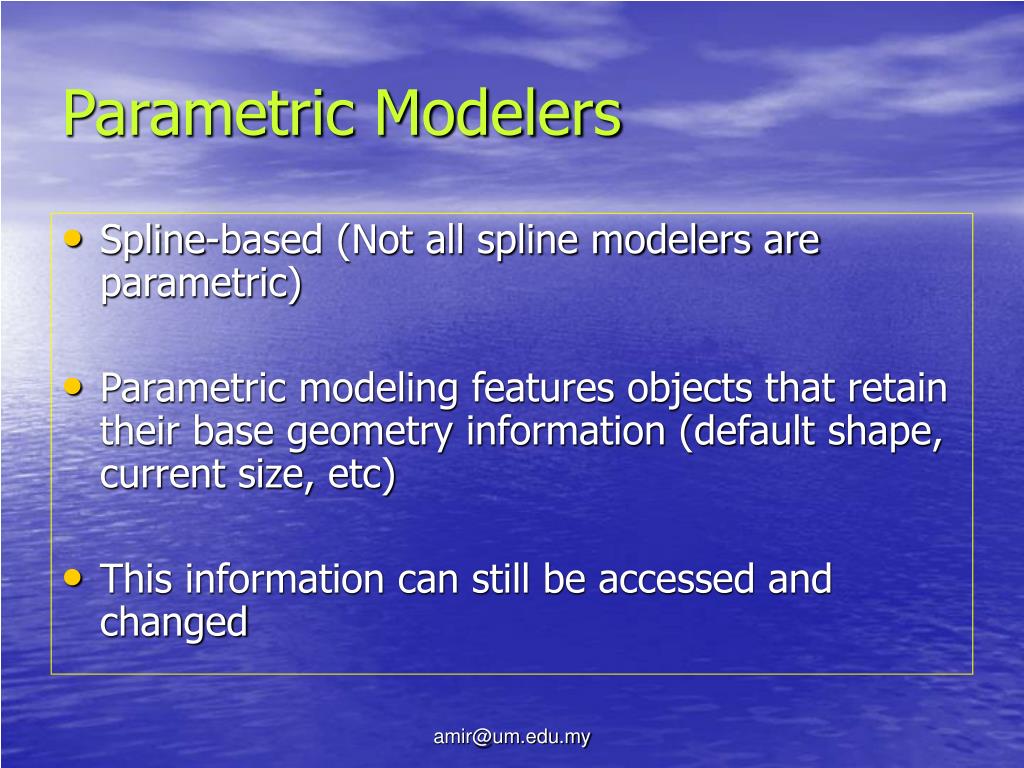

Parametric Modelers

  • Spline-based (Not all spline modelers are parametric)

  • Parametric modeling features objects that retain their base geometry information (default shape, current size, etc)

  • This information can still be accessed and changed

[email protected]


Slide11 l.jpg

  • Deformations applied to parametric objects can be adjusted any time

[email protected]


Splines l.jpg

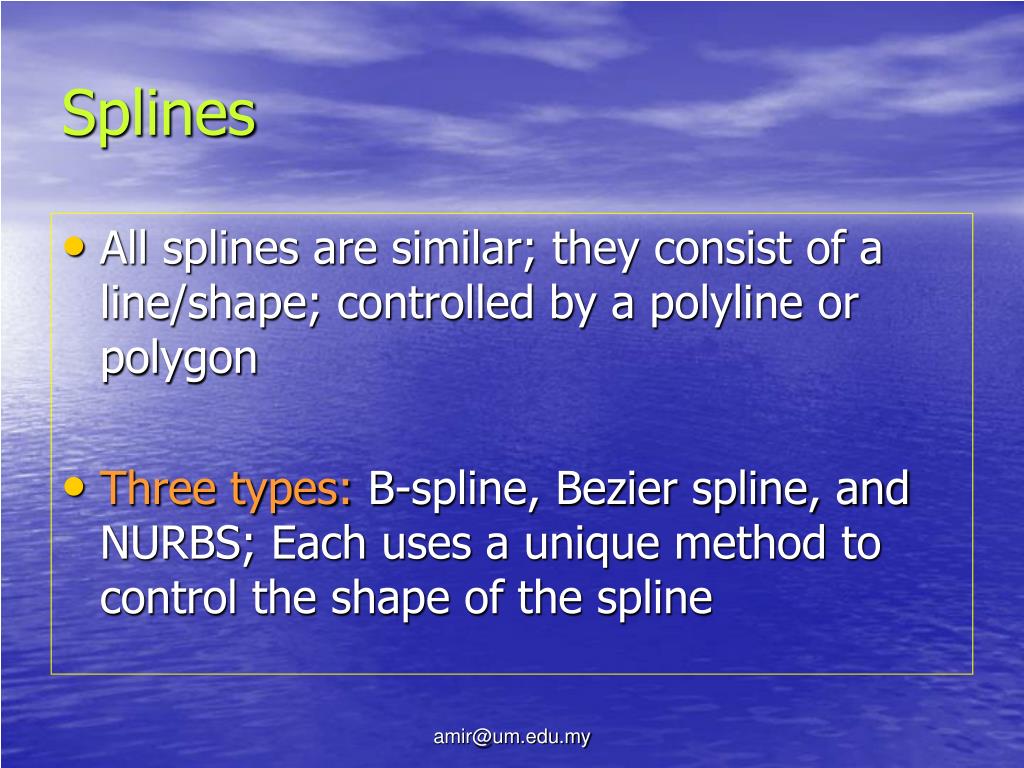

Splines

  • All splines are similar; they consist of a line/shape; controlled by a polyline or polygon

  • Three types: B-spline, Bezier spline, and NURBS; Each uses a unique method to control the shape of the spline

[email protected]

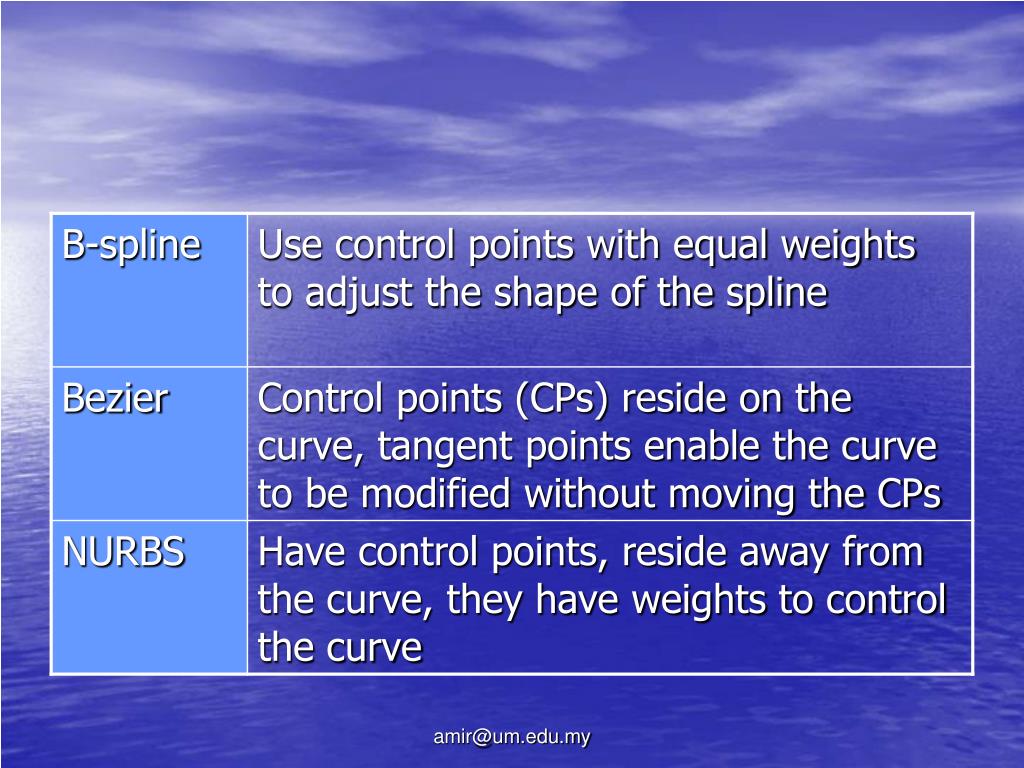

Slide13 l.jpg

[email protected]


Editing 2d shapes l.jpg

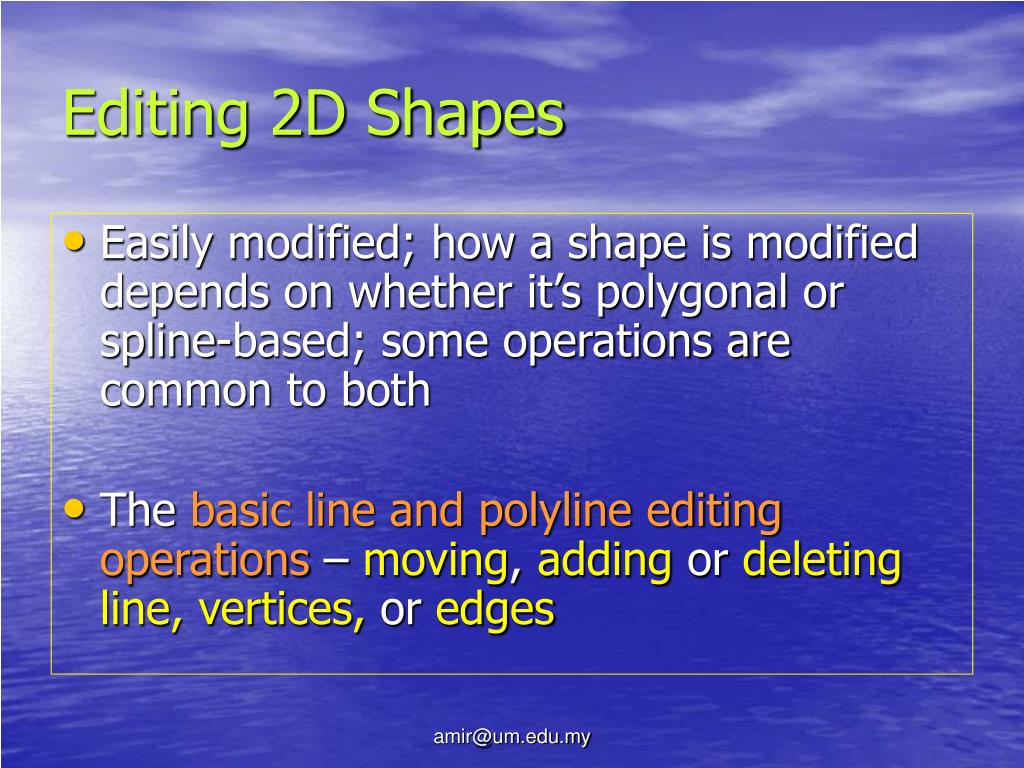

Editing 2D Shapes

  • Easily modified; how a shape is modified depends on whether it’s polygonal or spline-based; some operations are common to both

  • The basic line and polyline editing operations – moving, adding or deleting line, vertices, or edges

[email protected]


Slide15 l.jpg

[email protected]


2d booleans l.jpg

2D Booleans

  • Enable us to build onto a shape by combining it with second shape from the first or carve away at a shape by subtracting a second shape from the first

  • Very useful tools;

[email protected]


Slide17 l.jpg

  • Operands – shapes selected for Boolean operations

  • Operations  Add, Subtract, Intersection and Split

[email protected]


Slide18 l.jpg

[email protected]


Turning 2d shapes into 3d objects l.jpg

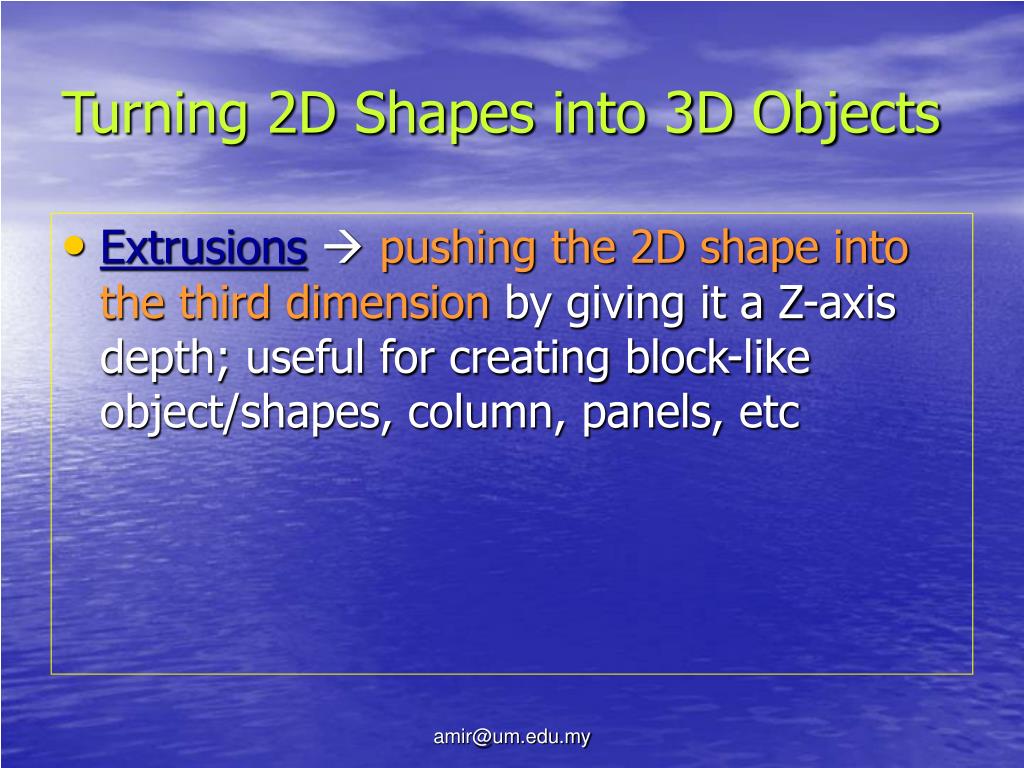

Turning 2D Shapes into 3D Objects

  • Extrusions pushing the 2D shape into the third dimension by giving it a Z-axis depth; useful for creating block-like object/shapes, column, panels, etc

[email protected]


Slide20 l.jpg

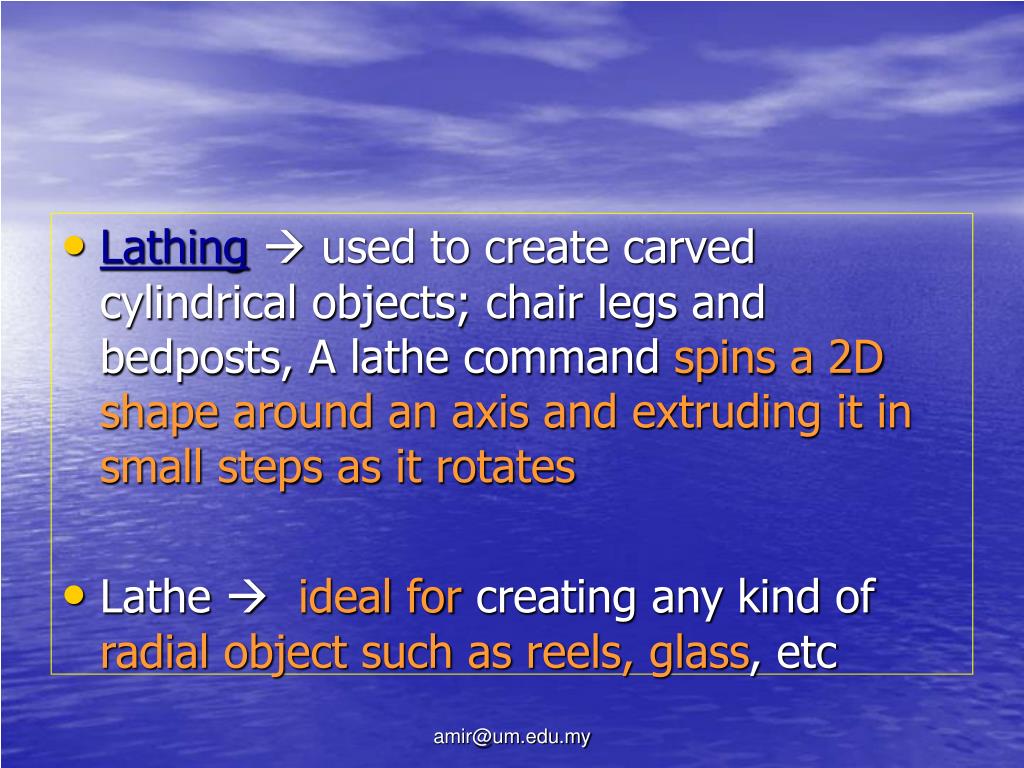

  • Lathing used to create carved cylindrical objects; chair legs and bedposts, A lathe command spins a 2D shape around an axis and extruding it in small steps as it rotates

  • Lathe  ideal for creating any kind of radial object such as reels, glass, etc

[email protected]


Slide21 l.jpg

  • Sweeping/lofting A sweep: a single 2D cross-section that is extruded along path

  • Sweep Types:

    1. Open sweep

    2. Helical sweep

    3. Closed sweep

[email protected]


Slide22 l.jpg

  • Skinning  similar to open sweep, but here you can use different cross-sectional shapes along the path

  • It creates a surface to bridge the cross-sections

[email protected]


3d primitives l.jpg

3D Primitives

  • Cube

  • Cylinder

  • Tube

  • Sphere

  • Torus

  • Cone

[email protected]


Transforms l.jpg

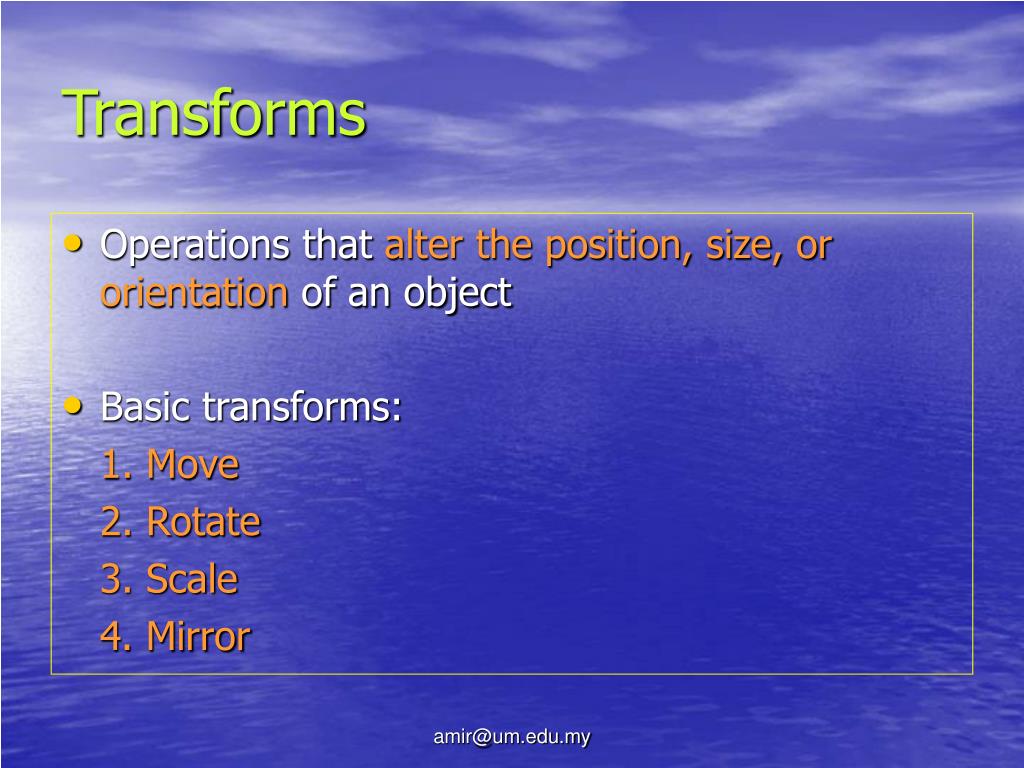

Transforms

  • Operations that alter the position, size, or orientation of an object

  • Basic transforms:

    1. Move

    2. Rotate

    3. Scale

    4. Mirror

[email protected]


Deforms l.jpg

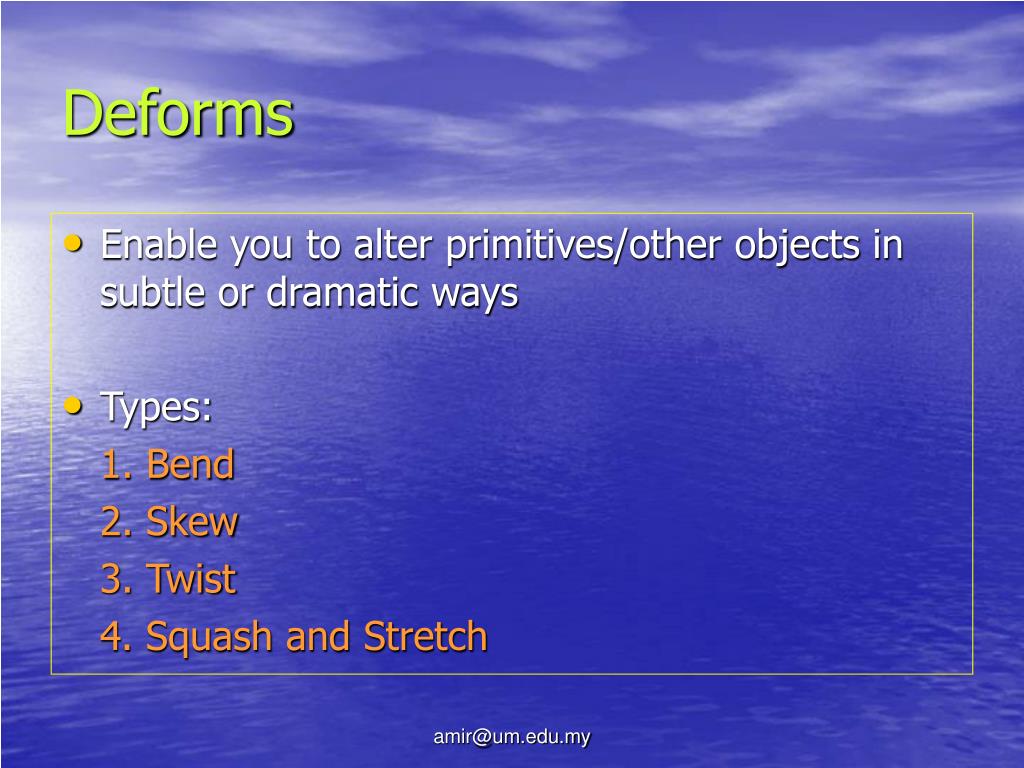

Deforms

  • Enable you to alter primitives/other objects in subtle or dramatic ways

  • Types:

    1. Bend

    2. Skew

    3. Twist

    4. Squash and Stretch

[email protected]


Duplicating mesh l.jpg

Duplicating Mesh

  • Objects and shapes can be duplicated via several ways:

    1. Copying and Instancing(use clone or copy operation)

    2. Arrays (Eg. Basic linear array, Linear array with rotation, linear array with scaling)

[email protected]
