Presentation Transcript
Introduction l.jpg
Introduction

  • Background and Marketing – Ben Kuhlman

  • Robot – Troy Wohlfert

  • Global Positioning System – Laura O’Rear

  • LADAR – Stephen Sherman

  • System Design – Matt Knollman

  • Navigation and Control – Alex Hain


Markets for our product l.jpg
Markets for Our Product

  • One-Third of all military vehicles by 2015

    • Current Military Applications

    • Future Applications

      • Detection, Heavy Combat, Monitoring

  • Possible Civilian Applications

    • Agriculture, Materials Handling, Mass Transportation, Automobile enhancement


Robotics development l.jpg
Robotics Development

  • Current Civilian Applications

    • AGVs, Robotic Arms, Smart Appliances.

    • Automated Highway Systems Disappointment

      • National Automated Highway System Consortium

  • Challenges for the Future of Robotics


Darpa defense advanced research project agency l.jpg
DarpaDefense Advanced Research Project Agency

  • Department of Defense

    • Armed forces a decisive edge

  • Grand Challenge

    • Race between Barstow and Las Vegas

    • $1 Million Prize

    • Rough Terrain

      • fencing

      • water

      • bushes


Atrv 2 l.jpg
ATRV-2

  • Manufactured by IRobot

    • Off-Road capabilities

    • 220 lbs load capacity

    • 2 m/s maximum speed

  • Application for Darpa


Slide6 l.jpg

Global Positioning System (GPS)

  • How GPS Works:

    • 24 satellites broadcast on two frequencies:

      • L1 (1575.42 MHz), C/A code and P(Y) code

      • L2 (1227.60 MHz), P(Y) code

    • P(Y) code

    • C/A code

      • Pseudo-random Noise

      • Contains almanac of satellite (SV) positions

      • Contains ephemeris, SV position corrections

    • Distance (from SV) = Velocity x Time

      • Velocity is approx. the speed of light 3.0*108 m/sec

      • Time is the delay needed to match pseudo-code

    • Trilateration (for position calculation)

      • Requires min. of 4 satellites

      • Four equations with four unknowns

www.garmin.com


Gps application l.jpg

NovAtel Propak-LB-L1/L2 Receiver

10 cm level accuracy, 10 Hz

30 ~ 50 sec acquire time

3.7 Watts, 7 to 15 V DC input

Output

3 RS-232 serial

PPS (pulse per second)

Rugged design

NovAtel GPS-600-LB Antenna

Tracks SVs up to 15° below horizon

GPS Application


Ladar l.jpg

LADAR

LAser Detection And Ranging

How it works

]


Ladar9 l.jpg
LADAR

  • Our Model: Sick LMS 30206

  • Specs

    • Range: 80m

    • Angular Resolution: .25o, .5o, 1o (selectable)

    • Image Resolution: 10mm

    • large power consumption (20~140 W)

  • Placement

    • Front center of ATRV angled Downward


Slide10 l.jpg

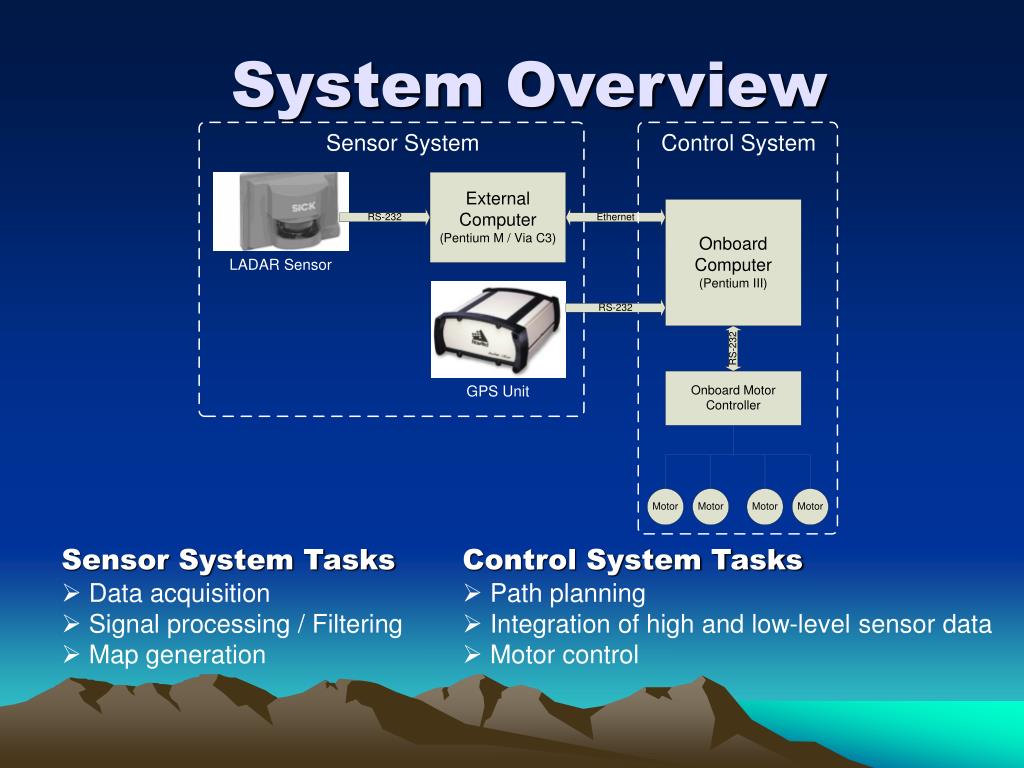

System Overview

  • Sensor System Tasks

  • Data acquisition

  • Signal processing / Filtering

  • Map generation

  • Control System Tasks

  • Path planning

  • Integration of high and low-level sensor data

  • Motor control


Computer hardware l.jpg
Computer Hardware

Sensor Computer

  • EPIA PD 1000

    • 1 GHz Via C3 CPU

    • 4 serial ports

    • Dual Ethernet ports

    • Small 17cm x 17cm footprint

      Power Supply

  • DC-DC converter

    • 80 Watt output

    • Wide input voltage range (11-30V)

      Storage

  • 512MB Compact Flash card


Software l.jpg
Software

Linux OS

  • Free (GPL)

  • Scalable and very powerful

    Sensor Software

  • Use existing API to interface with LADAR

  • Generate virtual map of environment

  • Client / Server architecture

    Control Software

  • Integrate data from LADAR and GPS

  • Identify obstacles

  • Generate driving path

  • Use existing API to interface with ATRV-II

    GUI (Display Software)

  • Relay robot position and LADAR map to user

  • Use Mobility Robot Integration API

  • Communicate with vehicle via wireless Ethernet link


Navigation and tracking l.jpg

Navigation and Tracking

GPS used for broad view

LADAR used for immediate area

Brute force used when GPS fails



Conclusion l.jpg
Conclusion

  • ATRV-2 test platform

  • GPS is used for accurate positioning

  • LADAR is used for object avoidance

  • Use of multiple computer systems mimics actual DARPA vehicle

  • Robust and accurate control system

  • Simple AI, reduced complication
