Presentation Transcript
Slide1 l.jpg

Gene Ontology (GO) Project

http://www.geneontology.org/

Jane Lomax


Slide2 l.jpg

There is a lot

of biological

research output



Slide4 l.jpg

You get 6752

results!

How will you

ever find what

you want?


Slide5 l.jpg

time

Defense response

Immune response

Response to stimulus

Toll regulated genes

JAK-STAT regulated genes

Puparial adhesion

Molting cycle

hemocyanin

Amino acid catabolism

Lipid metobolism

Peptidase activity

Protein catabloism

Immune response

Immune response

Toll regulated genes

control

attacked

Microarray data

shows changed

expression of

thousands of genes.

How will you spot the patterns?

Bregje Wertheim at the Centre for Evolutionary Genomics, Department of Biology, UCL and Eugene Schuster Group, EBI.


Slide6 l.jpg

Scientists

work hard


Slide7 l.jpg

There are

lots of papers

to read

http://www.teamtechnology.co.uk/f-scientist.jpg


Slide8 l.jpg

More papers…

http://www.teamtechnology.co.uk/f-scientist.jpg


Slide9 l.jpg

more and

more

and more…

http://www.teamtechnology.co.uk/f-scientist.jpg


Slide10 l.jpg

Help!

more and

more

and more!

http://www.teamtechnology.co.uk/f-scientist.jpg


Slide11 l.jpg

The Gene Ontology provides a way to capture and represent biological all this knowledge in a computable form


Slide12 l.jpg

The Gene Ontology biological all this knowledge in a computable form


Slide13 l.jpg

GO browser biological all this knowledge in a computable form


Slide14 l.jpg

Search on ‘mesoderm development’ biological all this knowledge in a computable form

mesoderm development


Slide16 l.jpg

Definition of biological all this knowledge in a computable form

mesoderm

development

Gene products

involved in

mesoderm

development


Slide17 l.jpg


Microarray process l.jpg
Microarray process: biological all this knowledge in a computable form

  • Treat samples

  • Collect mRNA

  • Label

  • Hybridize

  • Scan

  • Normalize

  • Select differentially regulated genes

  • Understand the biological phenomena involved


Traditional analysis l.jpg
Traditional analysis biological all this knowledge in a computable form

  • gene by gene basis

  • requires literature searching

  • time-consuming

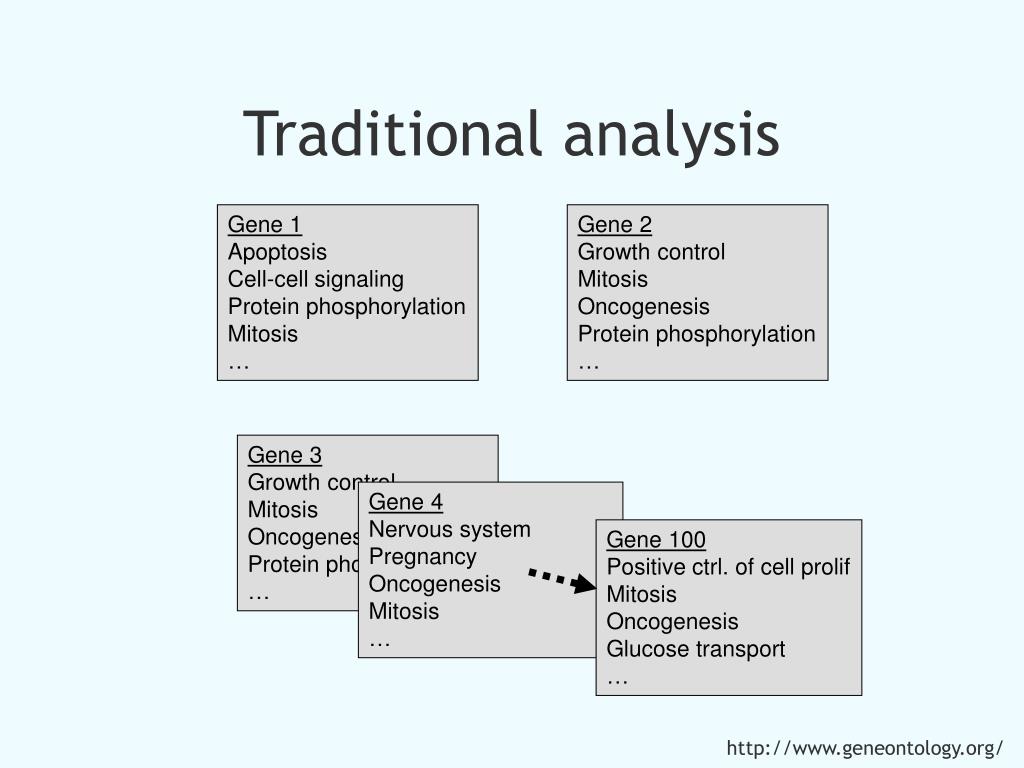

Traditional analysis20 l.jpg

Gene 1 biological all this knowledge in a computable form

Apoptosis

Cell-cell signaling

Protein phosphorylation

Mitosis

Gene 2

Growth control

Mitosis

Oncogenesis

Protein phosphorylation

Gene 3

Growth control

Mitosis

Oncogenesis

Protein phosphorylation

Gene 4

Nervous system

Pregnancy

Oncogenesis

Mitosis

Gene 100

Positive ctrl. of cell prolif

Mitosis

Oncogenesis

Glucose transport

Traditional analysis

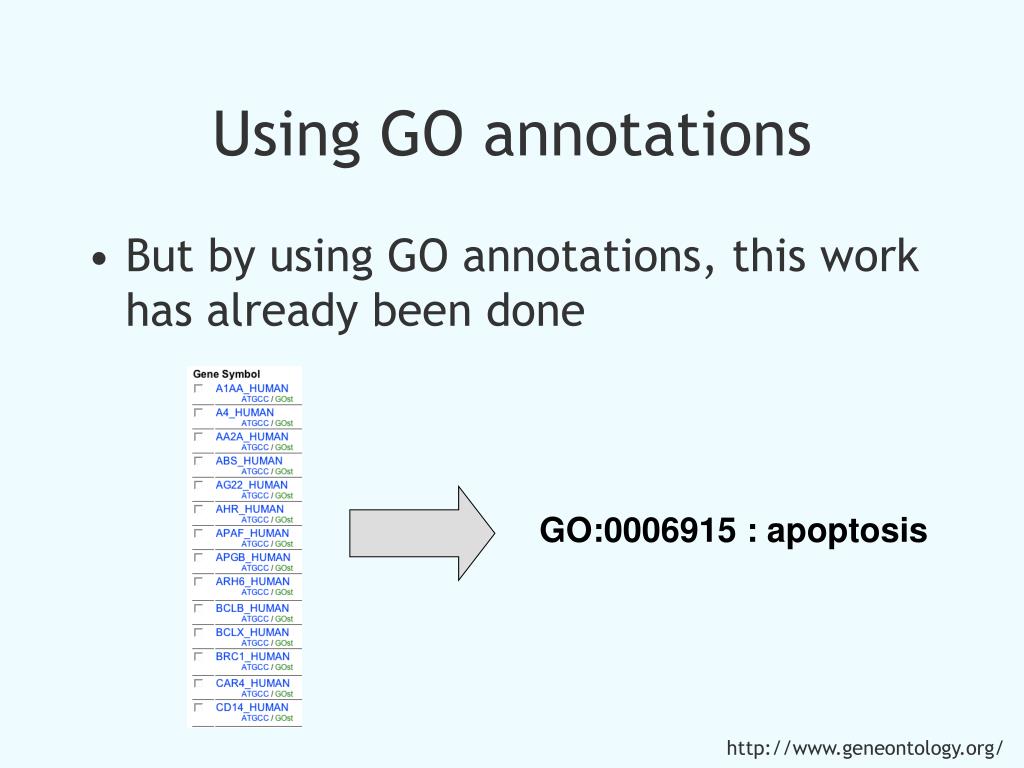

Using go annotations l.jpg

GO:0006915 : apoptosis biological all this knowledge in a computable form

Using GO annotations

  • But by using GO annotations, this work has already been done


Grouping by process l.jpg
Grouping by process biological all this knowledge in a computable form

Mitosis

Gene 2

Gene 5

Gene45

Gene 7

Gene 35

Glucose transport

Gene 7

Gene 3

Gene 6

Apoptosis

Gene 1

Gene 53

Positive ctrl. of

cell prolif.

Gene 7

Gene 3

Gene 12

Growth

Gene 5

Gene 2

Gene 6

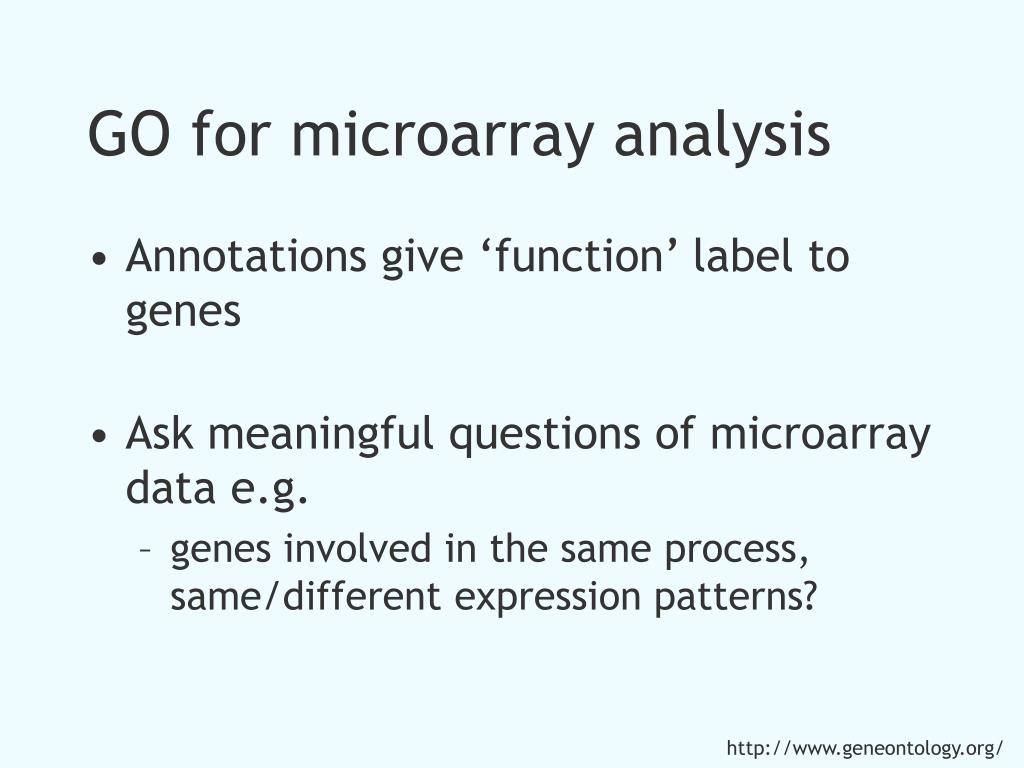

Go for microarray analysis l.jpg
GO for microarray analysis biological all this knowledge in a computable form

  • Annotations give ‘function’ label to genes

  • Ask meaningful questions of microarray data e.g.

    • genes involved in the same process, same/different expression patterns?


Slide24 l.jpg

How does the biological all this knowledge in a computable form

Gene Ontology work?


Go structure l.jpg
GO structure biological all this knowledge in a computable form

  • GO isn’t just a flat list of biological terms

  • terms are related within a hierarchy


Go structure26 l.jpg

gene A biological all this knowledge in a computable form

GO structure


Go structure27 l.jpg
GO structure biological all this knowledge in a computable form

  • This means genes can be grouped according to user-defined levels

  • Allows broad overview of gene set or genome


How does go work l.jpg
How does GO work? biological all this knowledge in a computable form

What information might we want to capture about a gene product?


How does go work29 l.jpg
How does GO work? biological all this knowledge in a computable form

What information might we want to capture about a gene product?

  • What does the gene product do?


How does go work30 l.jpg
How does GO work? biological all this knowledge in a computable form

What information might we want to capture about a gene product?

  • What does the gene product do?

  • Where and when does it act?


How does go work31 l.jpg
How does GO work? biological all this knowledge in a computable form

What information might we want to capture about a gene product?

  • What does the gene product do?

  • Where and when does it act?

  • Why does it perform these activities?


Go structure32 l.jpg
GO structure biological all this knowledge in a computable form

  • GO terms divided into three parts:

    • cellular component

    • molecular function

    • biological process


Cellular component l.jpg
Cellular Component biological all this knowledge in a computable form

  • where a gene product acts


Cellular component34 l.jpg
Cellular Component biological all this knowledge in a computable form


Cellular component35 l.jpg
Cellular Component biological all this knowledge in a computable form


Cellular component36 l.jpg
Cellular Component biological all this knowledge in a computable form

  • Enzyme complexes in the component ontology refer to places, not activities.


Molecular function l.jpg
Molecular Function biological all this knowledge in a computable form

  • activities or “jobs” of a gene product

glucose-6-phosphate isomerase activity


Molecular function38 l.jpg
Molecular Function biological all this knowledge in a computable form

insulin binding

insulin receptor activity


Molecular function39 l.jpg
Molecular Function biological all this knowledge in a computable form

drug transporter activity


Molecular function40 l.jpg
Molecular Function biological all this knowledge in a computable form

  • A gene product may have several functions; a function term refers to a reaction or activity, not a gene product

  • Sets of functions make up a biological process

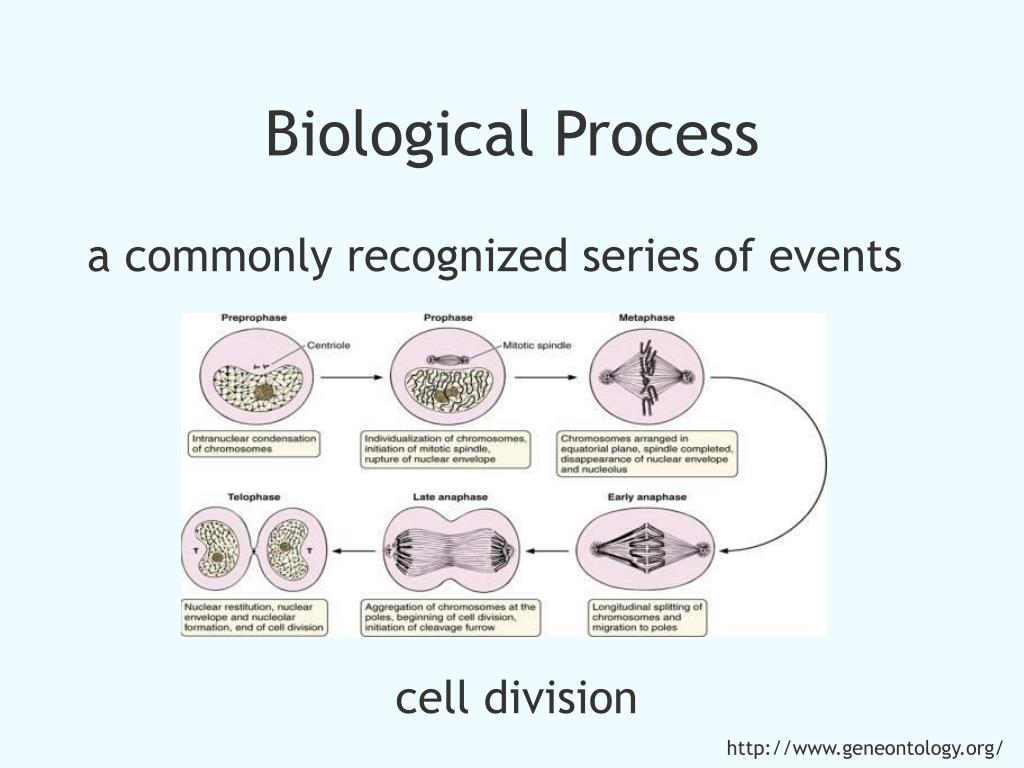

Biological process l.jpg

cell division biological all this knowledge in a computable form

Biological Process

a commonly recognized series of events


Biological process42 l.jpg
Biological Process biological all this knowledge in a computable form

transcription


Biological process43 l.jpg
Biological Process biological all this knowledge in a computable form

regulation of gluconeogenesis


Biological process44 l.jpg
Biological Process biological all this knowledge in a computable form

limb development


Biological process45 l.jpg
Biological Process biological all this knowledge in a computable form

courtship behavior


Ontology structure l.jpg
Ontology Structure biological all this knowledge in a computable form

  • Terms are linked by two relationships

    • is-a 

    • part-of 


Ontology structure47 l.jpg

cell biological all this knowledge in a computable form

membrane chloroplast

mitochondrial chloroplast

membrane membrane

is-a

part-of

Ontology Structure


Ontology structure48 l.jpg
Ontology Structure biological all this knowledge in a computable form

  • Ontologies are structured as a hierarchical directed acyclic graph (DAG)

  • Terms can have more than one parent and zero, one or more children


Ontology structure49 l.jpg
Ontology Structure biological all this knowledge in a computable form

cell

membrane chloroplast

mitochondrial chloroplast

membrane membrane

Directed Acyclic Graph (DAG) - multiple parentage allowed


Anatomy of a go term l.jpg
Anatomy of a GO term biological all this knowledge in a computable form

unique GO ID

id: GO:0006094

name: gluconeogenesis

namespace: process

def: The formation of glucose from

noncarbohydrate precursors, such as

pyruvate, amino acids and glycerol.

[http://cancerweb.ncl.ac.uk/omd/index.html]

exact_synonym: glucose biosynthesis

xref_analog: MetaCyc:GLUCONEO-PWY

is_a: GO:0006006

is_a: GO:0006092

term name

ontology

definition

synonym

database ref

parentage



Slide52 l.jpg

In biology… amongst scientific communities

Taction

Tactition

Tactile sense

?


Slide53 l.jpg

Tactition amongst scientific communities

Taction

Tactile sense

perception of touch ; GO:0050975


Slide54 l.jpg

Bud initiation? amongst scientific communities


Slide55 l.jpg

= amongst scientific communitiestooth bud initiation

= cellular bud initiation

= flower bud initiation


Slide56 l.jpg

Categorization of gene products amongst scientific communities

using GO is called annotation.

So how does that happen?


Slide57 l.jpg

P05147 amongst scientific communities

Take a gene or protein


Slide58 l.jpg

P05147 amongst scientific communities

PMID: 2976880

Find papers

about it


Slide59 l.jpg

P05147 amongst scientific communities

GO:0047519

PMID: 2976880

Find the GO

term describing its

function, process

or location of action.


Slide60 l.jpg

P05147 amongst scientific communities

PMID: 2976880

IDA

What

evidence

do they

show?

GO:0047519


Slide61 l.jpg

P05147 amongst scientific communities

GO:0047519

P05147 GO:0047519 IDA PMID:2976880

PMID: 2976880

IDA

Record these:


Slide62 l.jpg

Submit to the GO Consortium amongst scientific communities


Slide63 l.jpg

Annotation appears in GO database amongst scientific communities


Slide64 l.jpg

Clark amongst scientific communitieset al., 2005

Many species

groups annotate

We see the

research of one

function across

all species


Slide65 l.jpg

Adding terms amongst scientific communities

to the GO


Developing go l.jpg
Developing GO amongst scientific communities

  • GO under constant development

  • International group of developers

    • central editorial office at EBI - 4 members

  • Developed in consultation with domain experts

    • Term suggestions handled through online tracking system


Slide71 l.jpg

2006 Consortium Meeting, amongst scientific communities

St. Croix,

U.S. Virgin Islands, March 30 - April 3, 2006


Slide72 l.jpg

Contributors amongst scientific communities

dictyBase FlyBase GeneDB Gramene

Reactome WormBase The GO Editorial Office

Berkeley Bioinformatics and Ontology Project (BBOP)

Gene Ontology Annotation @ EBI (GOA)

Mouse Genome Database (MGD) and Gene Expression Database (GXD)

Rat Genome Database (RGD)

Saccharomyces Genome Database (SGD)

The Arabidopsis Information Resource (TAIR)

The Institute for Genomic Research (TIGR)

Zebrafish Information Network (ZFIN)


ad
