Presentation Transcript
What is the secret of life l.jpg

What is the Secret of Life?

Deoxyribonucleic Acid is the Answer


History lesson on dna l.jpg
History Lesson on DNA

  • 1869

  • Swiss scientist Friedrich Miescher collected bloodied bandages at the local hospital

    • Collected nuclei from cells found on the bandages

    • Isolated a substance called NUCLEIN - this is the first time that DNA was isolated

    • Unfortunately, he didn’t know anything else about this molecule


History lesson on dna3 l.jpg
History Lesson on DNA

  • 1944

  • Canadian Scientist Oswald Avery proposed that DNA was involved in HEREDITY (the passing of traits down from parent to offspring)

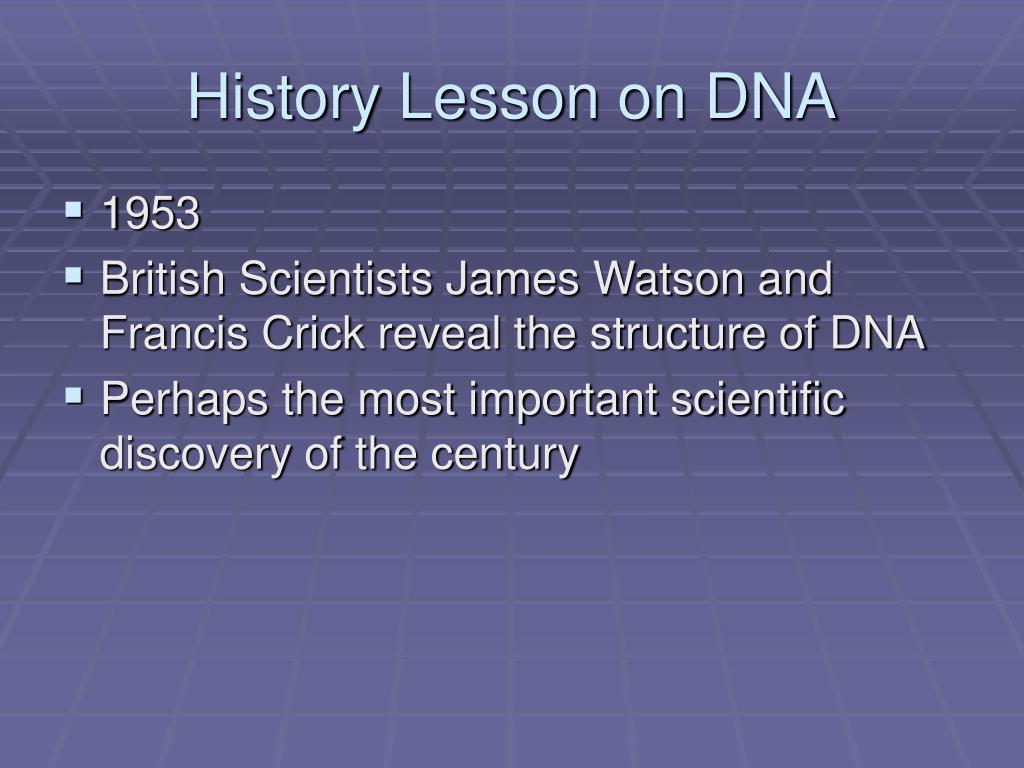

History lesson on dna4 l.jpg
History Lesson on DNA

  • 1953

  • British Scientists James Watson and Francis Crick reveal the structure of DNA

  • Perhaps the most important scientific discovery of the century

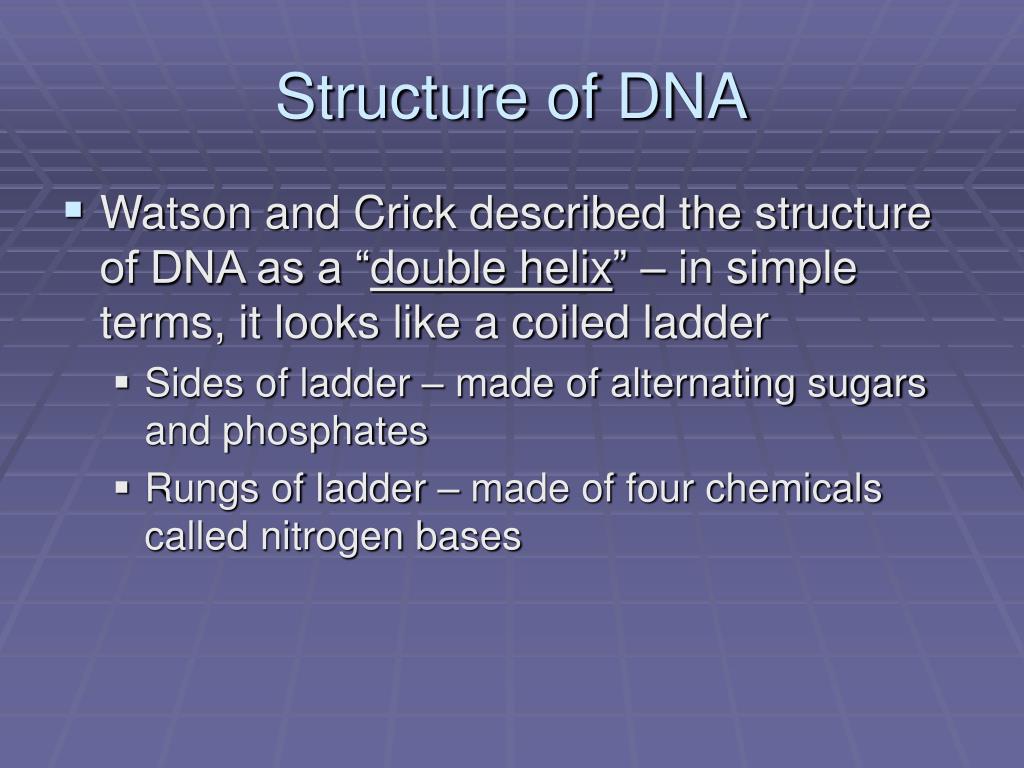

Structure of dna l.jpg
Structure of DNA

  • Watson and Crick described the structure of DNA as a “double helix” – in simple terms, it looks like a coiled ladder

    • Sides of ladder – made of alternating sugars and phosphates

    • Rungs of ladder – made of four chemicals called nitrogen bases



Nitrogen bases l.jpg
Nitrogen Bases

  • There are only four nitrogen bases that make up a molecule of DNA

    • Adenine (abbreviated as A)

    • Cytosine (abbreviated as C)

    • Guanine (abbreviated as G)

    • Thymine (abbreviated as T)

  • The secret of life is contained in the order of these four nitrogen bases on a DNA molecule – GENETIC CODE

    • This code instructs cells what structures every cell in an organisms’ body should produce


The genetic code l.jpg
The Genetic Code

  • The code is like a blueprint that controls the production of proteins in the cell

  • Proteins makes up a lot of structures in animals and plants

  • Airlines use three letter codes for airports around the world

    • YYC – Calgary

    • YYZ – Toronto

    • YVR – Vancouver

    • LAX – Los Angeles

  • Each section of DNA will code for a specific part of a protein – just like airlines


Nitrogen bases9 l.jpg
Nitrogen Bases

  • Remember that a DNA molecule is a double helix

  • Certain nitrogen bases are compatible only with each other

    • Adenine (A) will only pair with Thymine (T)

    • Cytosine (C) will only pair with Guanine (G)

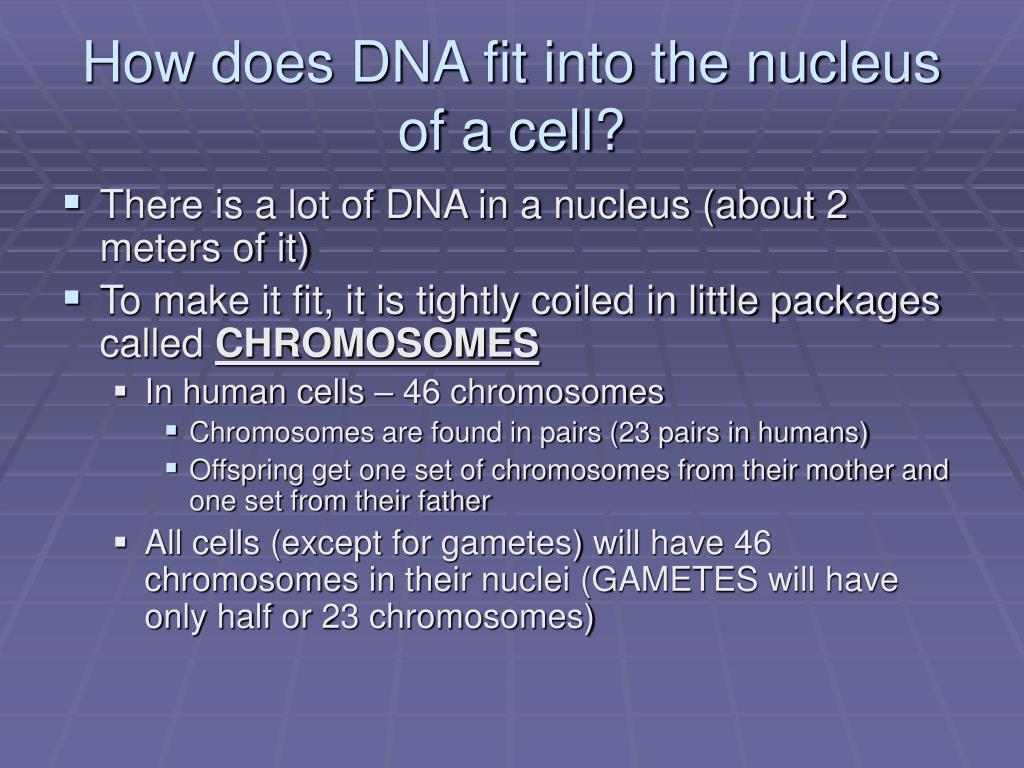

How does dna fit into the nucleus of a cell l.jpg
How does DNA fit into the nucleus of a cell?

  • There is a lot of DNA in a nucleus (about 2 meters of it)

  • To make it fit, it is tightly coiled in little packages called CHROMOSOMES

    • In human cells – 46 chromosomes

      • Chromosomes are found in pairs (23 pairs in humans)

      • Offspring get one set of chromosomes from their mother and one set from their father

    • All cells (except for gametes) will have 46 chromosomes in their nuclei (GAMETES will have only half or 23 chromosomes)


Chromosomes of other organisms l.jpg
Chromosomes of other Organisms

  • Humans have 46 chromosomes but not all species have that number

    • Gorilla - 48 chromosomes (24 pairs)

    • Fruit Fly – 8 chromosomes (4 pairs)

    • Sheep – 54 chromosomes (27 pairs)

    • Dog – 78 chromosomes (39 pairs)

    • Cat – 38 chromosomes (19 pairs)

    • Horse – 64 chromosomes (32 pairs)

  • Even though all of these species have different numbers of chromosomes – the DNA is still made up of A, C, G, and T – just in a different order


What happens when there are a different number of chromosomes in a cell l.jpg
What happens when there are a different number of chromosomes in a cell?

  • Normal human cells have 46 chromosomes, however during reproduction, problems can occur causing fewer or more chromosomes being present

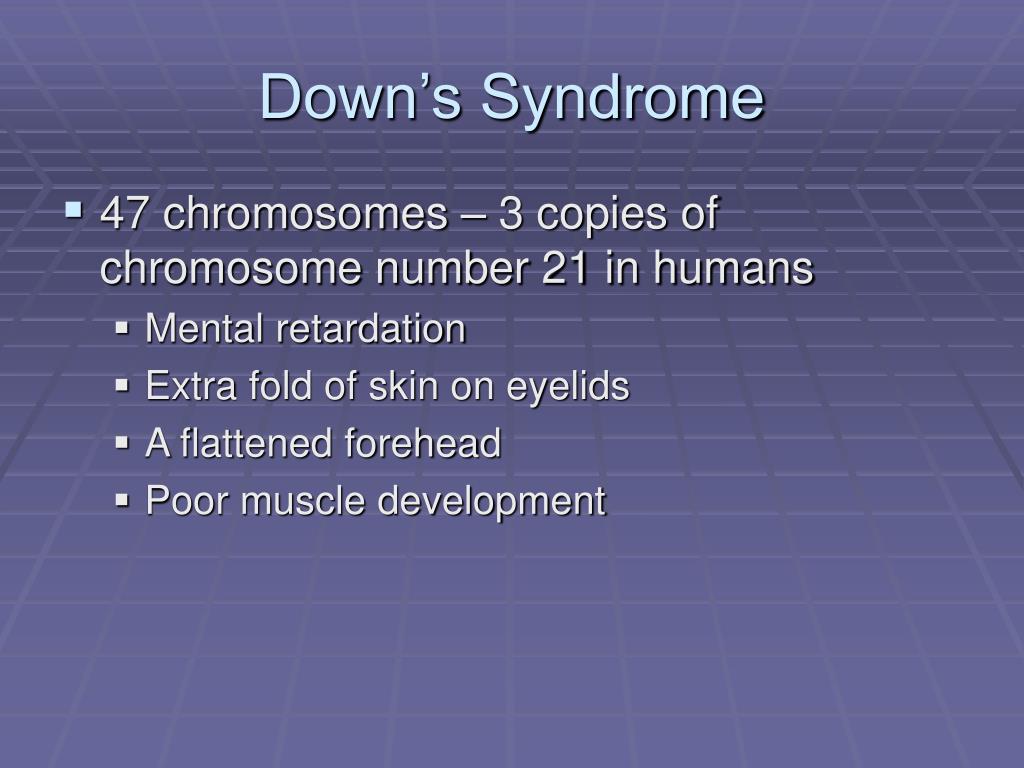

Down s syndrome l.jpg
Down’s Syndrome chromosomes in a cell?

  • 47 chromosomes – 3 copies of chromosome number 21 in humans

    • Mental retardation

    • Extra fold of skin on eyelids

    • A flattened forehead

    • Poor muscle development


Down s syndrome14 l.jpg
Down’s Syndrome chromosomes in a cell?

www.einstein-syndrome.com/ house/evan_stories.htm


Turner s syndrome l.jpg
Turner’s Syndrome chromosomes in a cell?

  • 45 chromosomes – only 1 X chromosome (normal females have 2 X chromosomes and normal males have 1 X and 1 Y chromosome)

    • Sterile

    • Short stature


Turner s syndrome karyotype of a patient with the syndrome l.jpg
Turner’s Syndrome chromosomes in a cell?Karyotype of a patient with the syndrome


Xyy super male l.jpg
XYY “Super Male” chromosomes in a cell?

  • 47 chromosomes – males that have 2 Y chromosomes (normal males only have 1 Y chromosome)

    • Used to be thought to be a cause of violent behaviour


Klinefelter s syndrome l.jpg
Klinefelter’s Syndrome chromosomes in a cell?

  • 47 chromosomes – males have an extra X chromosomes

    • Small testicles

    • Sterile

    • Frequent mental retardation

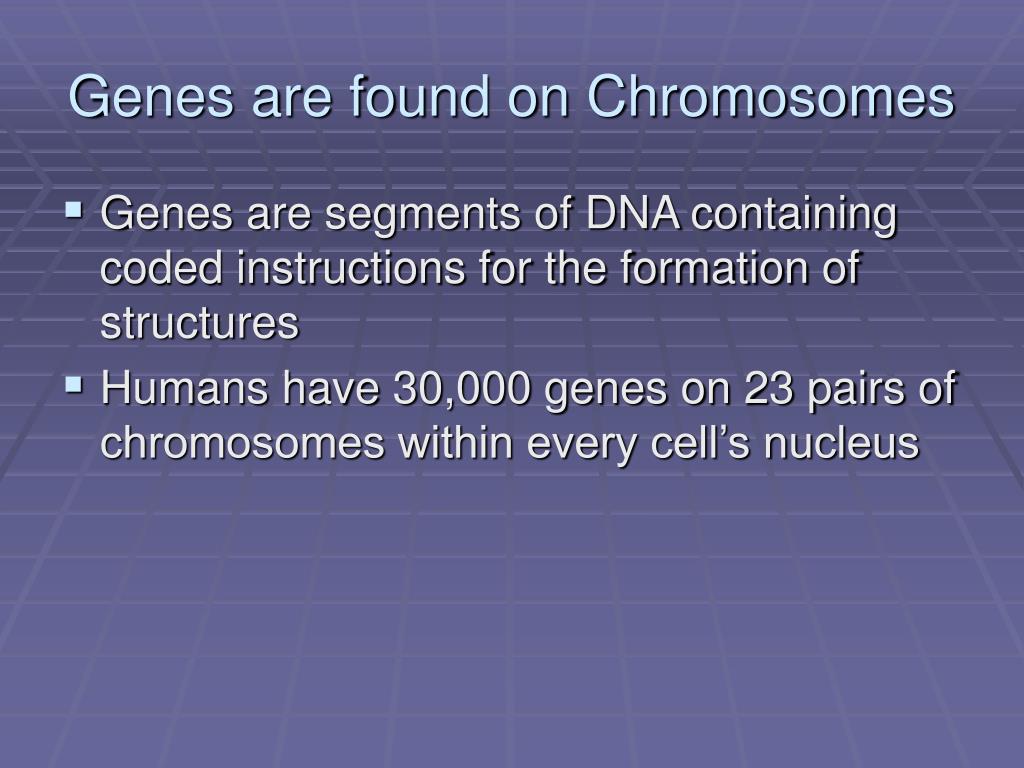

Genes are found on chromosomes l.jpg
Genes are found on Chromosomes chromosomes in a cell?

  • Genes are segments of DNA containing coded instructions for the formation of structures

  • Humans have 30,000 genes on 23 pairs of chromosomes within every cell’s nucleus


Characteristics of genes l.jpg
Characteristics of Genes chromosomes in a cell?

  • Genes are located on chromosomes in nuclei

  • Each chromosome has a number of genes located on it

  • Genes, like chromosomes, come in pairs

  • Both genes in a pair carry DNA instructions for the same thing, and they occupy matching locations on the two chromosomes

  • Offspring inherit genes from both parents, however the genes may be in different forms (ALLELES)


Chromosomes genes and alleles l.jpg
Chromosomes, Genes and Alleles chromosomes in a cell?
