Load balance and efficient hierarchical data centric storage in sensor networks

Load Balance and Efficient Hierarchical Data-Centric Storage in Sensor Networks

Yao Zhao,List Lab, Northwestern Univ

Yan Chen, List Lab, Northwestern Univ

Sylvia Ratnasamy, Intel Research


Outline
Outline in Sensor Networks

  • Background and Motivation

  • Hierarchical Voronoi Graph based Routing

    • Basic routing algorithm

    • Practical design issues

  • Evaluation

  • Conclusions and Future Work

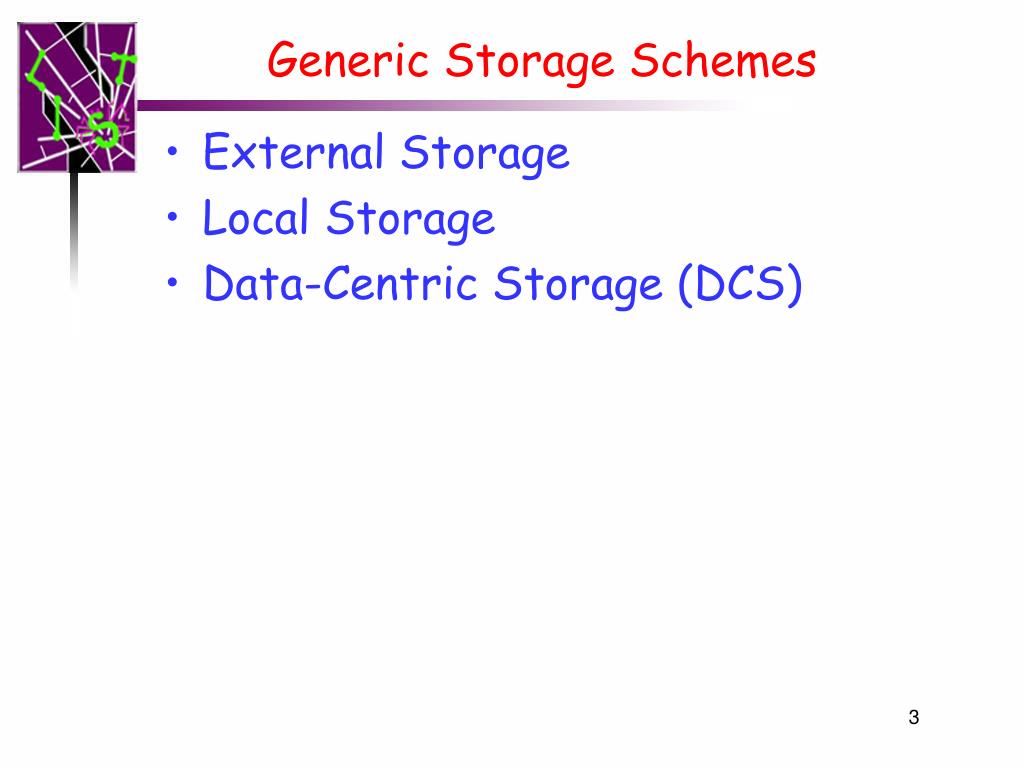

Generic storage schemes
Generic Storage Schemes in Sensor Networks

  • External Storage

  • Local Storage

  • Data-Centric Storage (DCS)

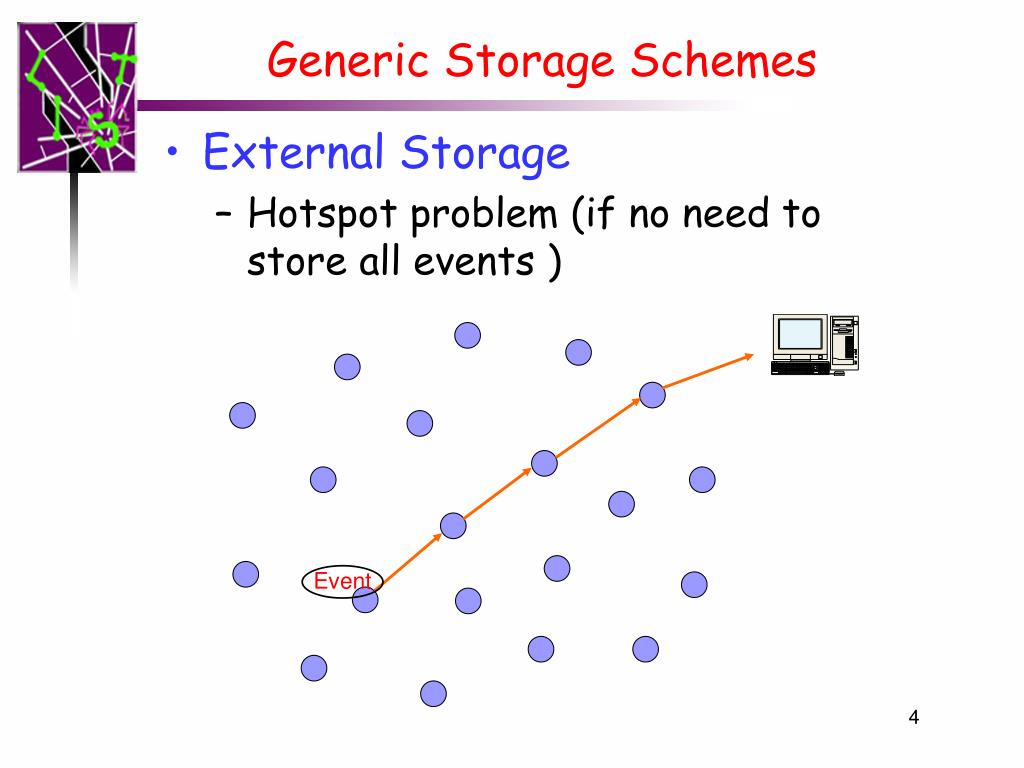

Generic storage schemes1

Event in Sensor Networks

Generic Storage Schemes

  • External Storage

    • Hotspot problem (if no need to store all events )


Generic storage schemes2

Event in Sensor Networks

Generic Storage Schemes

  • Local Storage

    • Overhead of flooding

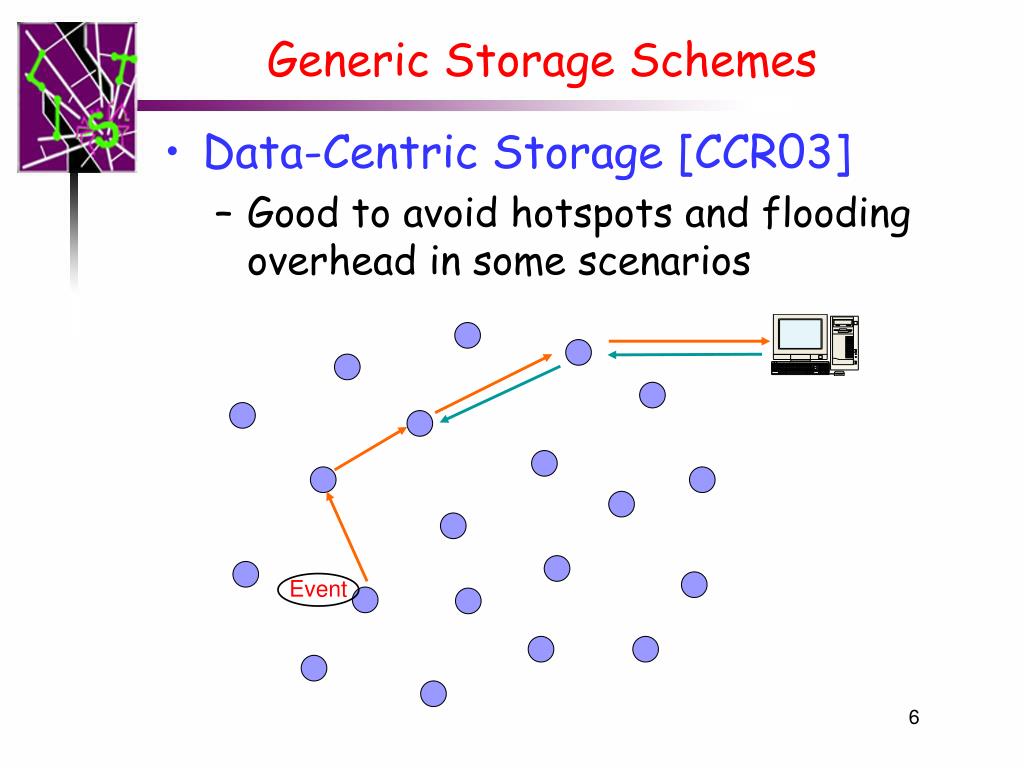

Generic storage schemes3

Event in Sensor Networks

Generic Storage Schemes

  • Data-Centric Storage [CCR03]

    • Good to avoid hotspots and flooding overhead in some scenarios


Motivation
Motivation in Sensor Networks

  • Routing Primitive for Data-Centric Storage vs Any-to-any Routing

    • DCS doesn’t require any-to-any routing

      • E.g. in pathDCS [NSDI06], not all nodes are routable

    • Any-to-any routing may not be suitable for DCS

      • E.g. BVR[NSDI05] and S4[NSDI07]

    • Only a few any-to-any routing can be DCS routing

      • E.g. VRR [Sigcomm06], GEM[Sensys03]


Motivation1
Motivation in Sensor Networks

  • Routing Primitive for Data-Centric Storage vs Any-to-any Routing

  • Desirable Properties of DCS Routing

    • No GPS (or other location device)

    • Scalability

    • Efficiency

      • Path stretch (routing path length / shortest path length)

    • Load Balancing

      • In routing (forwarding overhead)

      • In Storage

  • Our Goal

    • Design routing primitive for DCS with the above properties


Outline1
Outline in Sensor Networks

  • Background and Motivation

  • Hierarchical Voronoi Graph based Routing

    • Basic routing algorithm

    • Practical design issues

  • Evaluation

  • Conclusions and Future Work

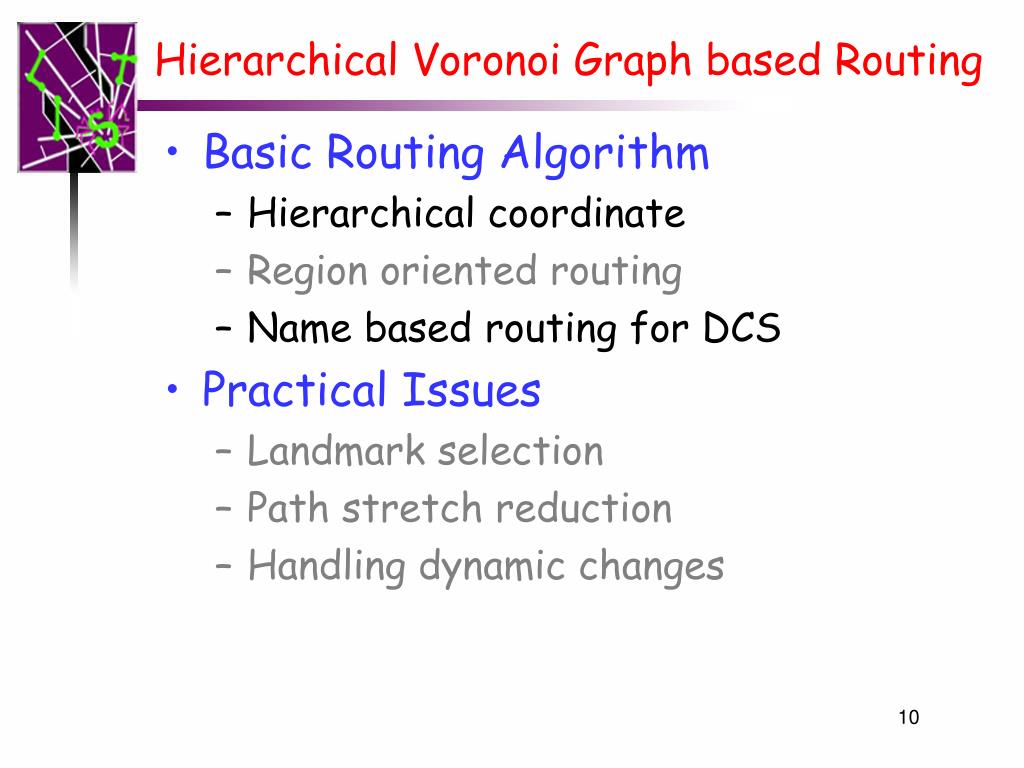

Hierarchical voronoi graph based routing
Hierarchical Voronoi Graph based Routing in Sensor Networks

  • Basic Routing Algorithm

    • Hierarchical coordinate

    • Region oriented routing

    • Name based routing for DCS

  • Practical Issues

    • Landmark selection

    • Path stretch reduction

    • Handling dynamic changes


Voronoi graph
Voronoi Graph in Sensor Networks


Hierarchical coordinate
Hierarchical Coordinate in Sensor Networks

  • Divide the network based on the hop distance to landmarks

Irregular borderline in realilty

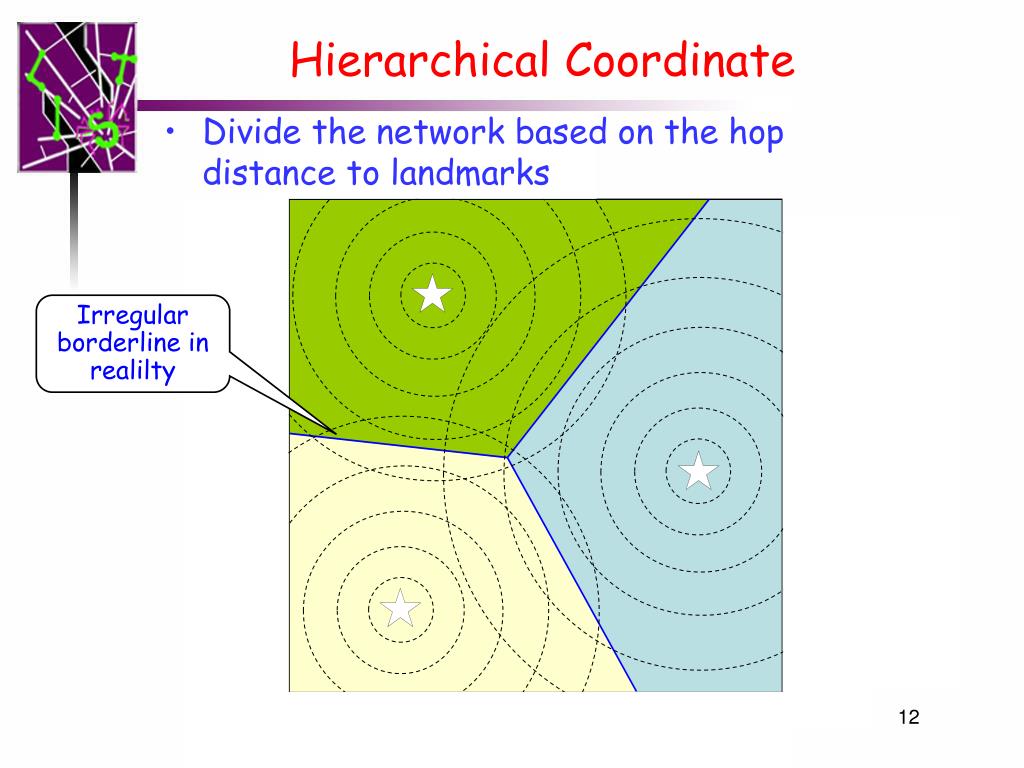

Hierarchical coordinate1
Hierarchical Coordinate in Sensor Networks

  • Divide the network based on the hop distance to landmarks

In smallest region, nodes know each other

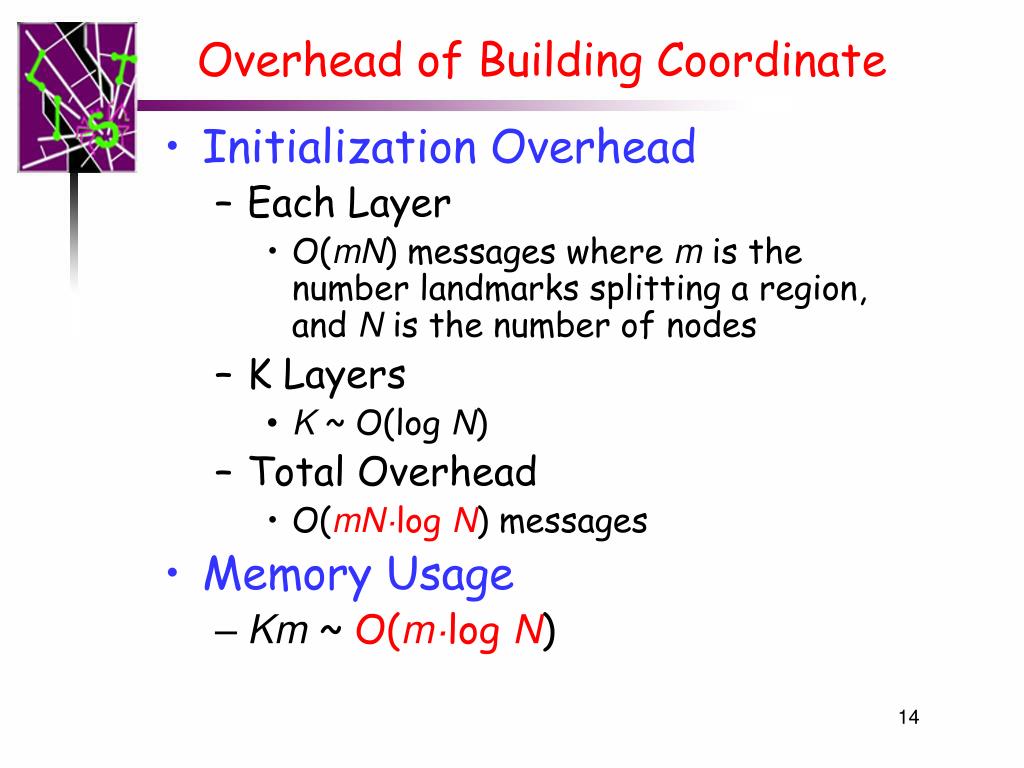

Overhead of building coordinate
Overhead of Building Coordinate in Sensor Networks

  • Initialization Overhead

    • Each Layer

      • O(mN) messages where m is the number landmarks splitting a region, and N is the number of nodes

    • K Layers

      • K ~ O(log N)

    • Total Overhead

      • O(mN·log N) messages

  • Memory Usage

    • Km ~ O(m·log N)

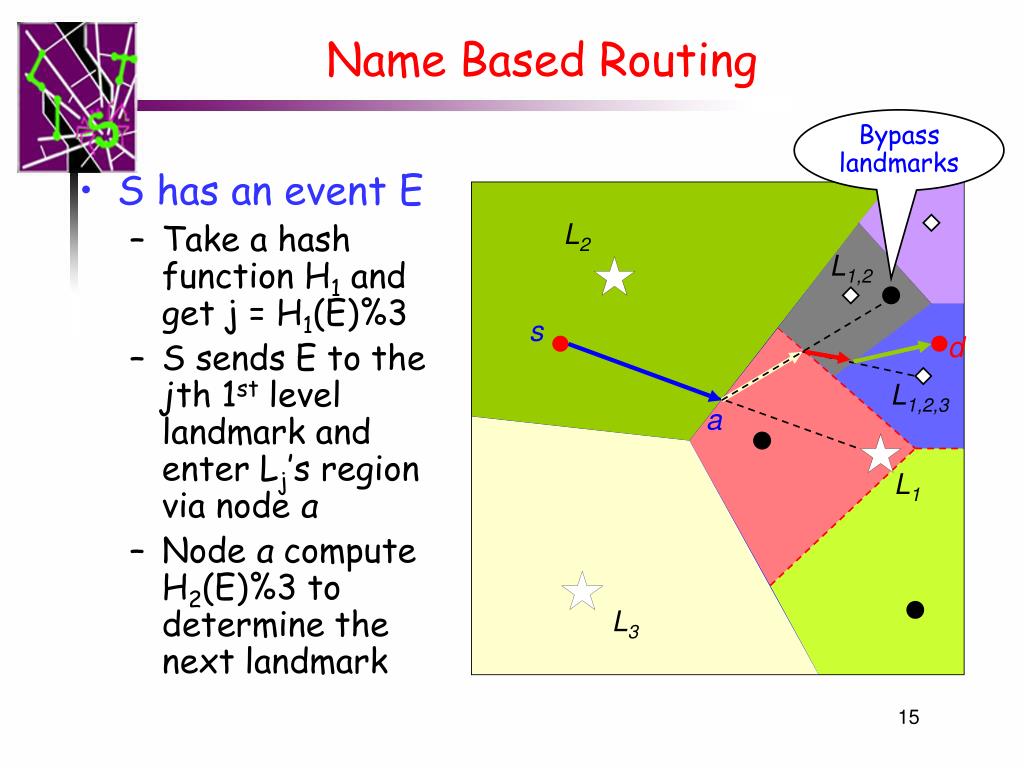

Name based routing

d in Sensor Networks

Name Based Routing

Bypass landmarks

  • S has an event E

    • Take a hash function H1 and get j = H1(E)%3

    • S sends E to the jth 1st level landmark and enter Lj’s region via node a

    • Node a compute H2(E)%3 to determine the next landmark

L2

L1,2

s

L1,2,3

a

L1

L3

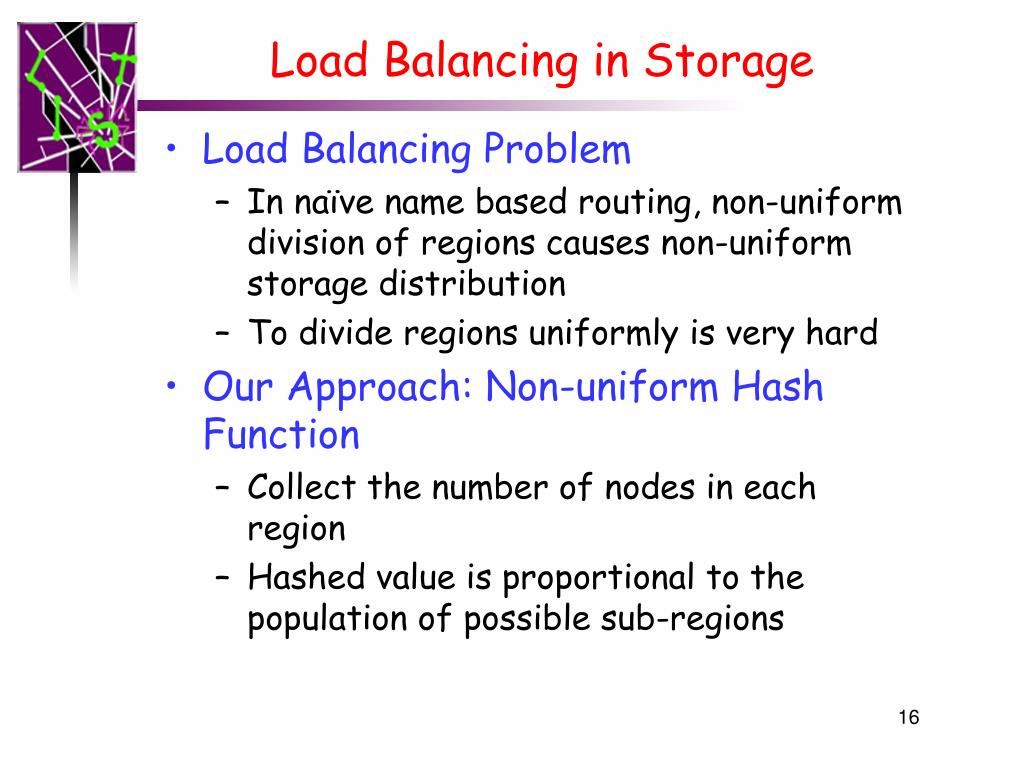

Load balancing in storage
Load Balancing in Storage in Sensor Networks

  • Load Balancing Problem

    • In naïve name based routing, non-uniform division of regions causes non-uniform storage distribution

    • To divide regions uniformly is very hard

  • Our Approach: Non-uniform Hash Function

    • Collect the number of nodes in each region

    • Hashed value is proportional to the population of possible sub-regions

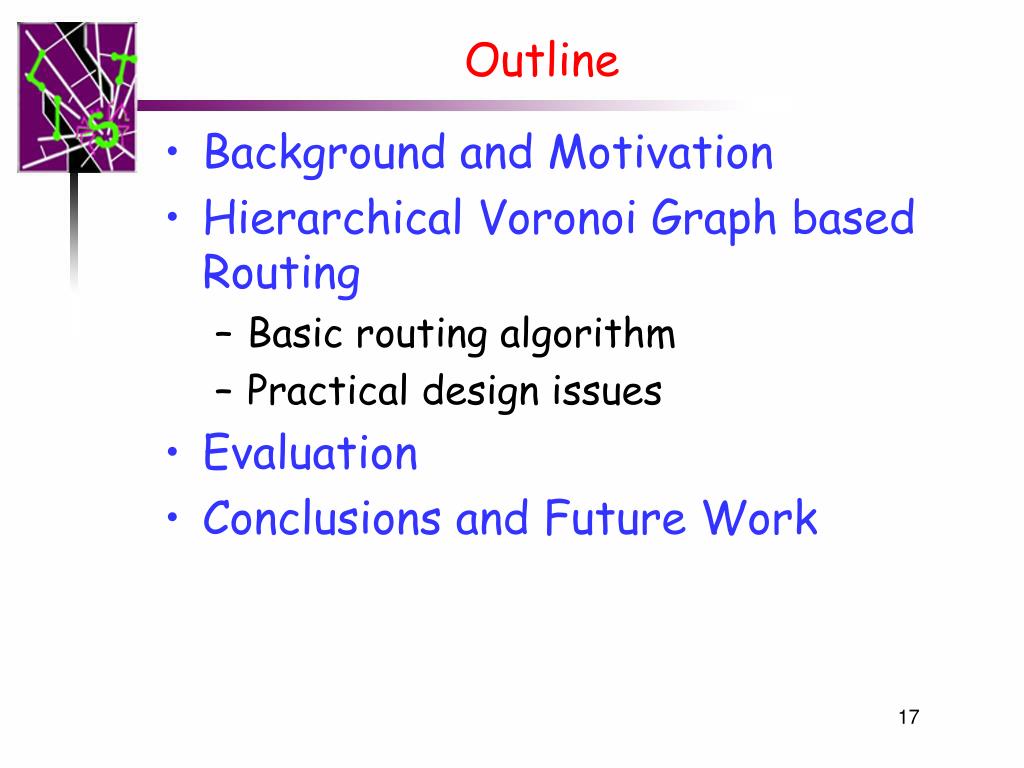

Outline2
Outline in Sensor Networks

  • Background and Motivation

  • Hierarchical Voronoi Graph based Routing

    • Basic routing algorithm

    • Practical design issues

  • Evaluation

  • Conclusions and Future Work


Evaluation
Evaluation in Sensor Networks

  • Simulation Setup

    • C++ implementation

    • Simple MAC without collision

    • Unit disk graph model in 2D space (communication range 1)

    • Baseline simulation

      • 3200 nodes

      • Density: 3π neighbors in average

    • Simulate HVGR, HVGR+ and VRR[Sigcomm06]

      • m = 6 (number of landmarks splitting a region)

  • Metrics

    • Path stretch

    • Load balancing: CDF for visualization

    • Route table size

    • Initialization overhead

    • Maintenance overhead

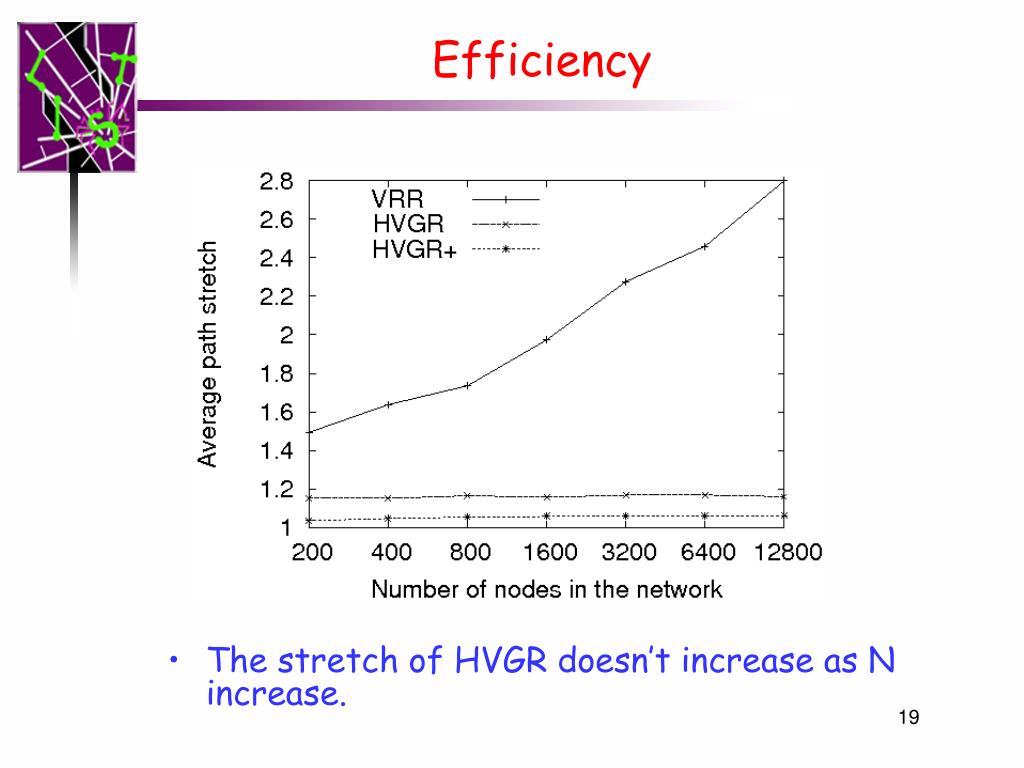

Efficiency
Efficiency in Sensor Networks

  • The stretch of HVGR doesn’t increase as N increase.

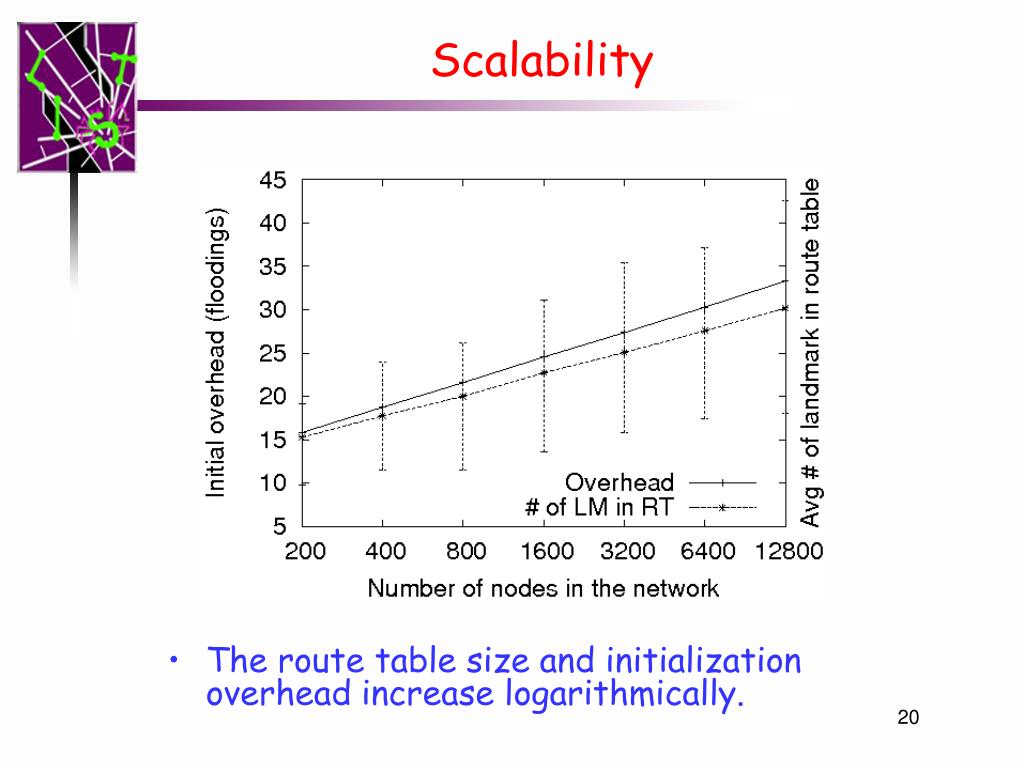

Scalability
Scalability in Sensor Networks

  • The route table size and initialization overhead increase logarithmically.


Routing load balancing
Routing Load Balancing in Sensor Networks

  • The routing load balancing feature of HVGR is close to that of shortest path routing.

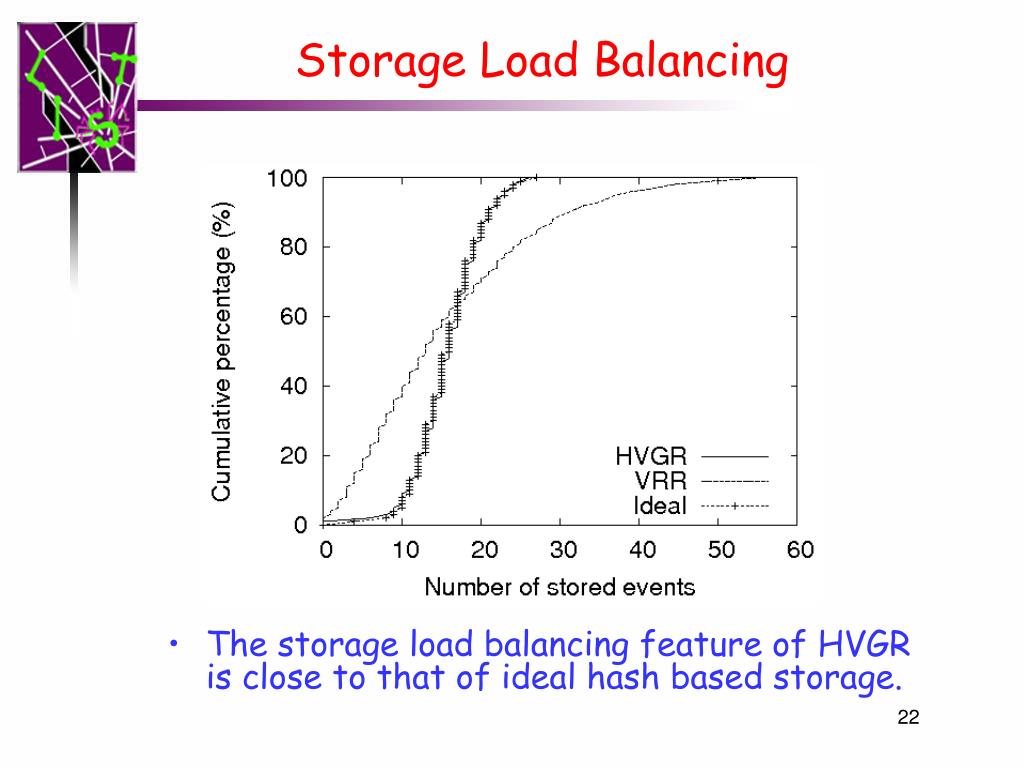

Storage load balancing
Storage Load Balancing in Sensor Networks

  • The storage load balancing feature of HVGR is close to that of ideal hash based storage.


Conclusion
Conclusion in Sensor Networks

  • Design HVGR/HVGR+

    • Topology based routing (No GPS)

    • Good scalability (log N memory)

    • High efficiency (close to shortest path routing)

    • Balanced load in both routing and storage

  • Future Work

    • Theoretical analysis

    • Tinyos implementation


Thanks
Thanks! in Sensor Networks

Q&A?


Name based routing for dcs
Name Based Routing for DCS in Sensor Networks

  • Convert Name to Label

    • Event name S

    • A series of hash functions Hi

    • Order the m landmarks

    • Let j = Hi(S) mod m, the ith level label is the j th landmark

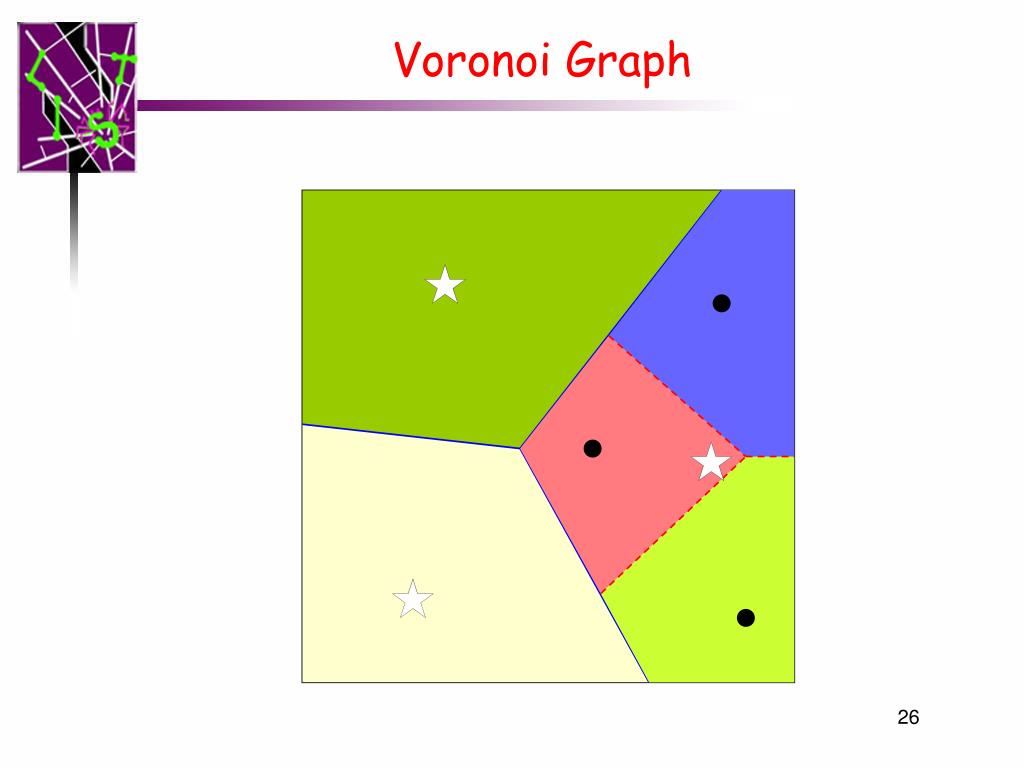

Voronoi graph1
Voronoi Graph in Sensor Networks


Voronoi graph2
Voronoi Graph in Sensor Networks

  • Divide the regions based on the closest landmark rule.

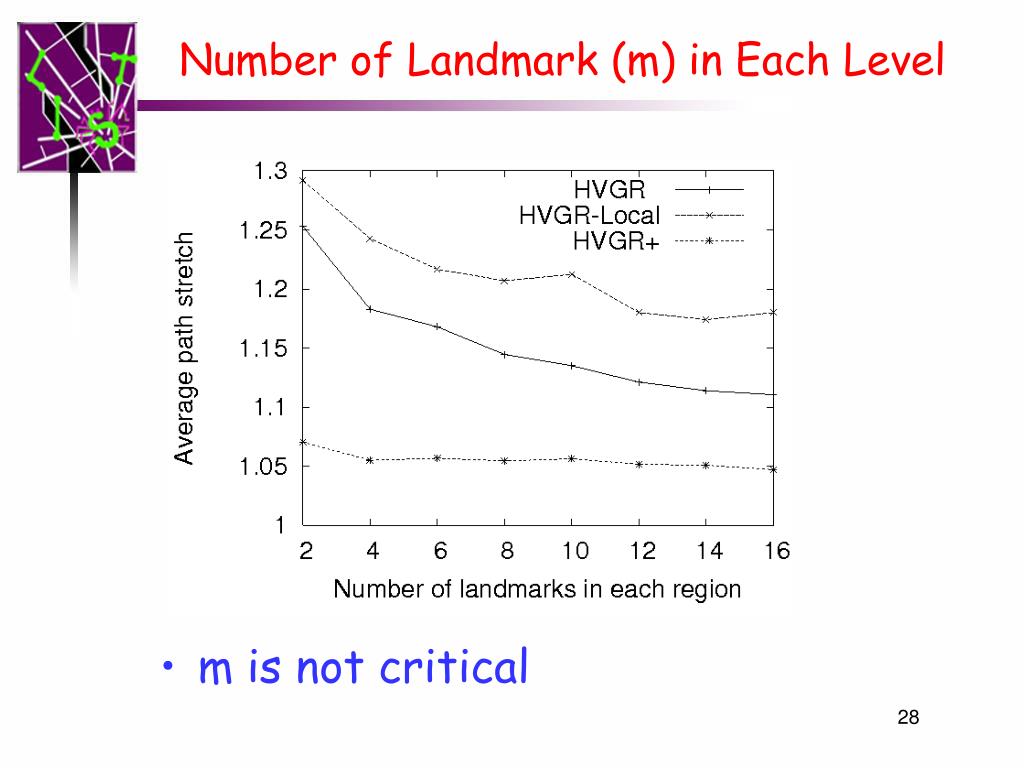

Number of landmark m in each level
Number of Landmark (m) in Each Level in Sensor Networks

  • m is not critical


Number of landmark m in each level1
Number of Landmark (m) in Each Level in Sensor Networks

  • The larger the m, the more overhead. We pick m=6 finally.


Desirable properties of dcs
Desirable Properties of DCS in Sensor Networks

  • DCS without Location Information

    • No GPS or other location devices

  • Scalability

    • Memory usage

    • Control message overhead

  • Efficiency

    • Path stretch (routing path length / shortest path length)

  • Load Balancing

    • In routing (forwarding overhead)

    • In Storage


Outline3
Outline in Sensor Networks

  • Background and Motivation

  • Hierarchical Voronoi Graph based Routing

    • Basic routing algorithm

    • Practical design issues

  • Evaluation

  • Conclusions and Future Work


Region oriented routing
Region Oriented Routing in Sensor Networks

  • From s to d with label (L1, L1,2, L1,2,3)

Bypass landmarks

L1,2

s

d

L1,2,3

a

L1

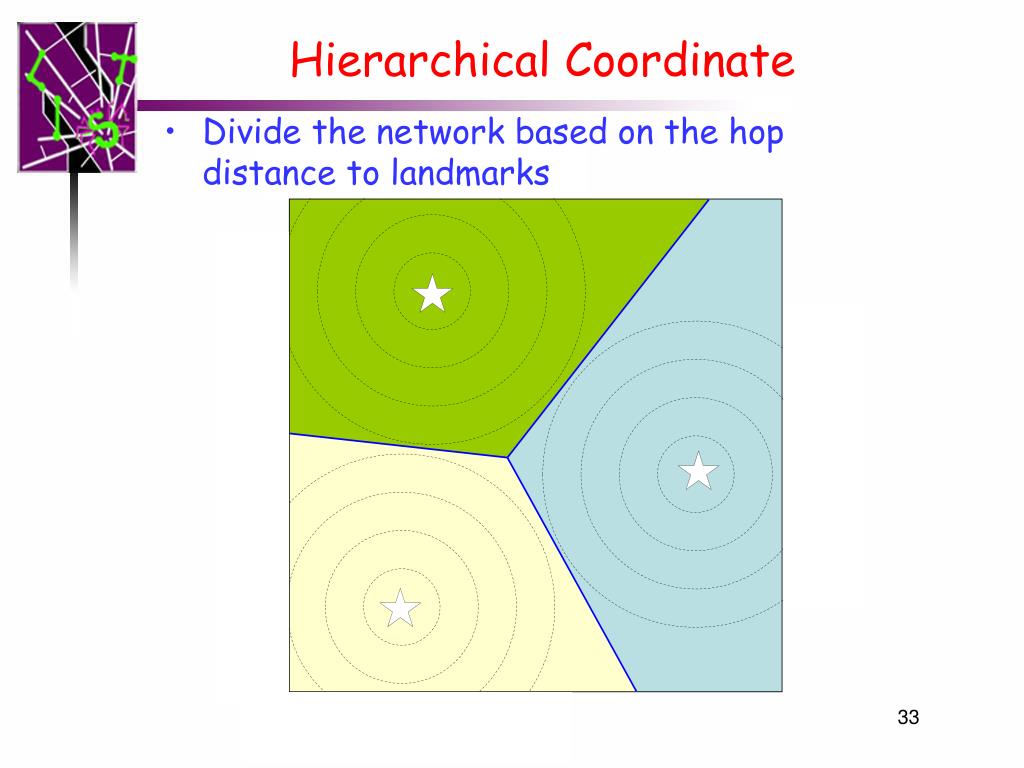

Hierarchical coordinate2
Hierarchical Coordinate in Sensor Networks

  • Divide the network based on the hop distance to landmarks
