Presentation Transcript
Canary cage update

Canary Cage Update

LANL

Steve Elliott

Vic Gehman

Vince Guiseppe

Keith Rielage

UW

Tom Burritt

Mark Howe

Mike Marino

Alexis Schubert

John Wilkerson

Cryostat Workshop

November 29-30, 2007


Canary cage overview
Canary Cage Overview

  • Test stand for thermal and mechanical aspects of Majorana

    • Radiative crystal cooling

    • Detector string design

  • Goal is to operate a string of “canary” detectors

  • Located in LANL basement lab

  • Cryostat is OHFC copper

  • Not low mass

  • Not low background

Cryostat Workshop

November 29-30, 2007

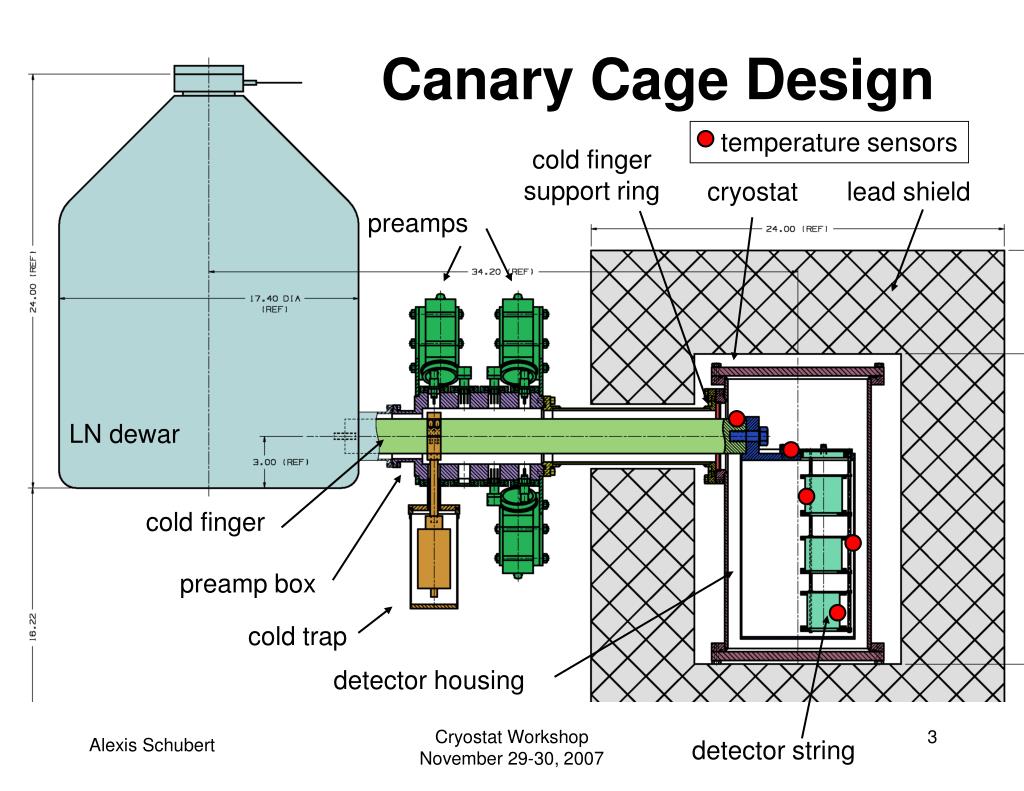

Canary cage design
Canary Cage Design

temperature sensors

cold finger support ring

cryostat

lead shield

preamps

LN dewar

cold finger

preamp box

cold trap

detector housing

Cryostat Workshop

November 29-30, 2007

detector string


Detector strings
Detector Strings

  • Cryostat has 3-string capacity

  • Each string can hold 3 detectors

  • Thermal test string holds 3 detector blanks

    • Stainless steel for approximate thermal mass and emissivity of Ge crystals

    • Thermocouple mounted on each crystal

    • Thermocouple readouts at preamp box

Mounting points for temperature sensors

Cryostat Workshop

November 29-30, 2007


Canary cooling
Canary Cooling

Cryostat Workshop

November 29-30, 2007

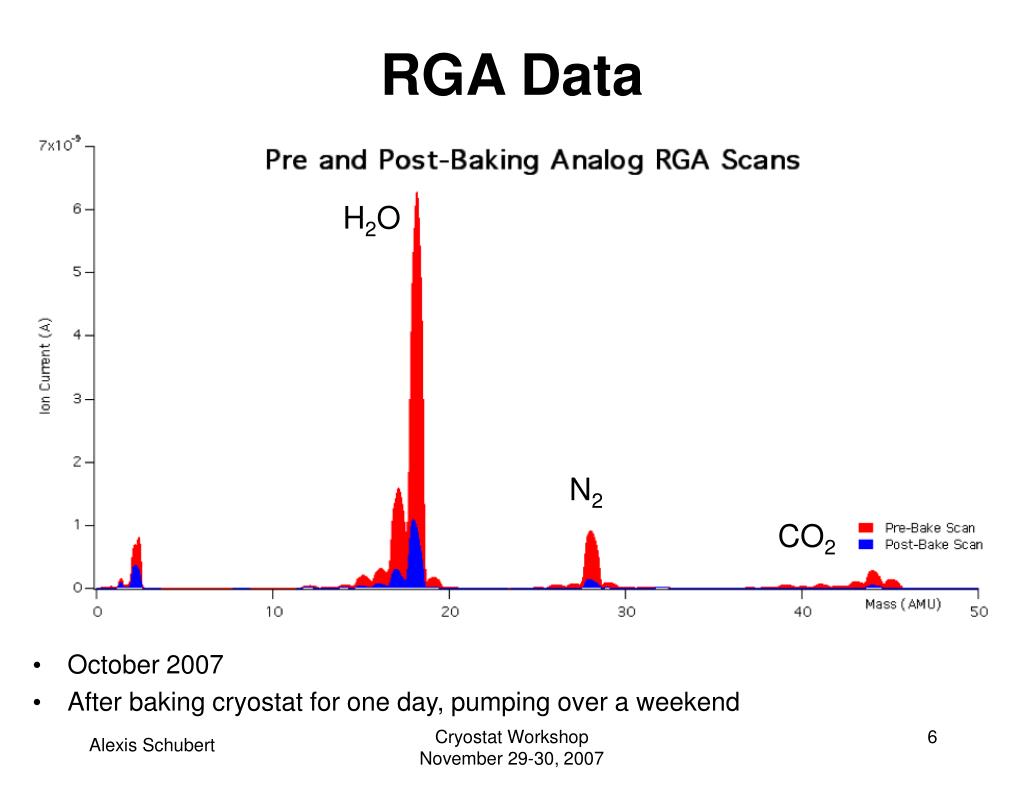

Rga data
RGA Data

  • October 2007

  • After baking cryostat for one day, pumping over a weekend

H2O

N2

CO2

Cryostat Workshop

November 29-30, 2007


Glove box
Glove Box

Cryostat Workshop

November 29-30, 2007


Recent work
Recent Work

  • LN controller (AMI 286) calibrated and added to Orca to monitor LN consumption

  • Signal and HV cable in place and wired to feed throughs

  • Parts ready

    • Butt splices for signal and HV connections to existing wires on crystal

    • Teflon tubing for insulation

  • Baking procedure established and tested for safe temperature

    • External heat tape

    • Light bulb inside of dewar

  • Pumping and baking in progress

Cryostat Workshop

November 29-30, 2007


Plans for the near future
Plans for the near future

  • Add a functioning canary detector

    • Canberra p-type detector attached to dipstick

      • 1.5% at 1332 keV

    • Transfer to an empty detector string

    • Make the signal and HV connections

    • Insert into Canary Cage

  • Possibly replace one stainless steel blank with an old Ge(Li) crystal

    • Attach a temperature sensor

    • Eliminate assumptions about thermal properties of germanium

  • Pump, bake, cool

  • Make external preamp connections

  • Bias detector

  • Characterize detector

Cryostat Workshop

November 29-30, 2007


Extra info canary pressure
Extra info - canary pressure

  • This was taken in June, before baking and reducing the number of vacuum fittings

Cryostat Workshop

November 29-30, 2007


Extra info
Extra info

Cryostat Workshop

November 29-30, 2007
