Presentation Transcript


Automobile materials srjc engr 45 semester project fall 09 l.jpg

Automobile MaterialsSRJC - ENGR 45 Semester Project (Fall ’09)

Brian Goff

Mario Grasso

Oscar Briceno


Some background l.jpg

Some Background...

  • Cars at first were built entirely of wood, and later of wood frames with steel body panels.

  • In the early 1900’s, the idea of a body-on-frame design came about.

  • These vehicles had

  • a load-bearing chassis

  • that supported all the

  • mechanical parts

  • and a body usual made

  • of steel.

Ford Model T

Courtesy Car Body Design

http://www.carbodydesign.com/articles/2005-04-13-chassis-history/2005-04-13-chassis-history.php


Moving forward l.jpg

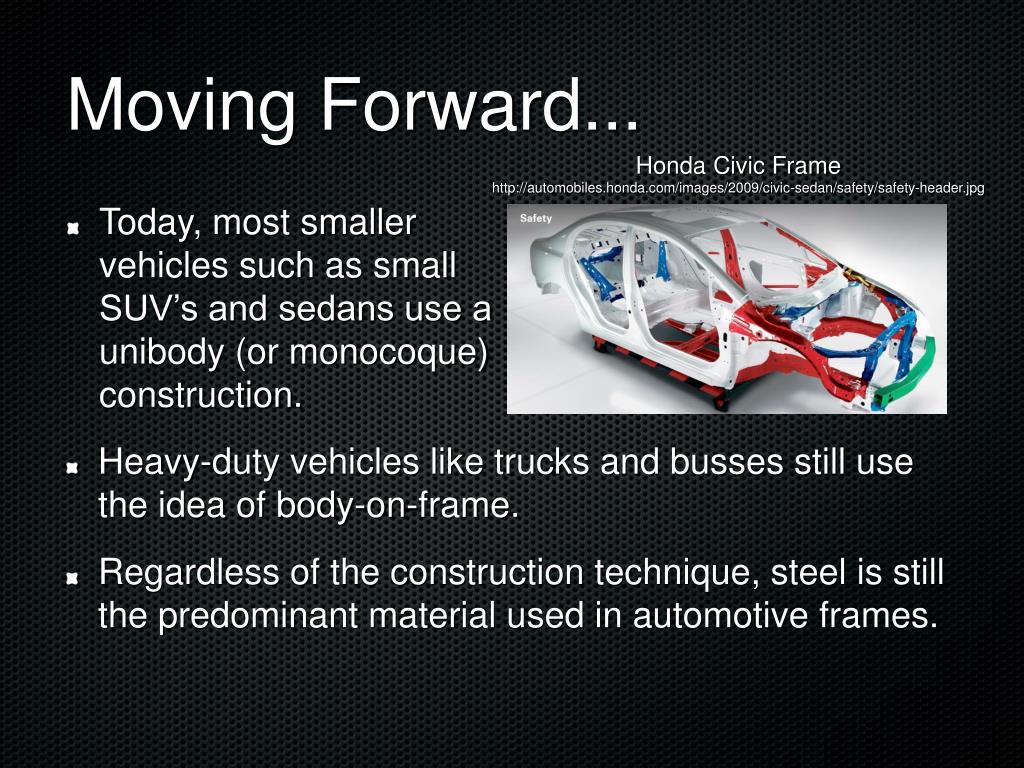

Moving Forward...

Honda Civic Frame

http://automobiles.honda.com/images/2009/civic-sedan/safety/safety-header.jpg

  • Today, most smaller vehicles such as small SUV’s and sedans use a unibody (or monocoque) construction.

  • Heavy-duty vehicles like trucks and busses still use the idea of body-on-frame.

  • Regardless of the construction technique, steel is still the predominant material used in automotive frames.


A quick comparison l.jpg

A Quick Comparison

Typical Ladder Frame

Monocoques


What it s all about l.jpg

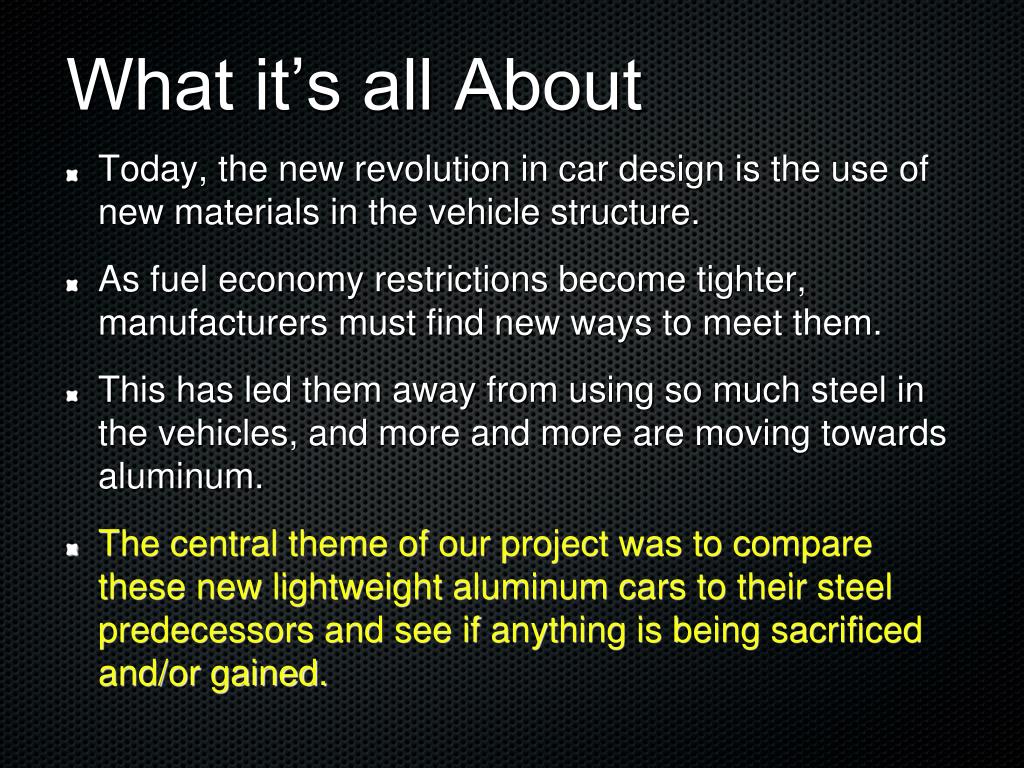

What it’s all About

  • Today, the new revolution in car design is the use of new materials in the vehicle structure.

  • As fuel economy restrictions become tighter, manufacturers must find new ways to meet them.

  • This has led them away from using so much steel in the vehicles, and more and more are moving towards aluminum.

  • The central theme of our project was to compare these new lightweight aluminum cars to their steel predecessors and see if anything is being sacrificed and/or gained.


A basic comparison l.jpg

A Basic Comparison

  • Two common alloys used in car manufacturing:

    • For Aluminum: AA 5182

    • For Steel: AISI 1020

Data Courtesy efunda

http://www.efunda.com/materials/alloys/carbon_steels/show_carbon.cfm?ID=AISI_1020&prop=all&Page_Title=AISI%201020

http://www.efunda.com/materials/alloys/aluminum/show_aluminum.cfm?ID=AA_5182&show_prop=all&Page_Title=AA%205182


Properties l.jpg

Properties

  • Density of Steel: 7.88 g/cm3

  • Density of Aluminum: 2.7 g/cm3

  • Aluminum is about 3 times lighter than steel per unit volume, but can be made just as strong using certain alloys/shapes/bonding methods.

  • Because of this, AL parts can be thicker, and thus stronger, than their steel counterparts, all while weighing less.


The cost issue l.jpg

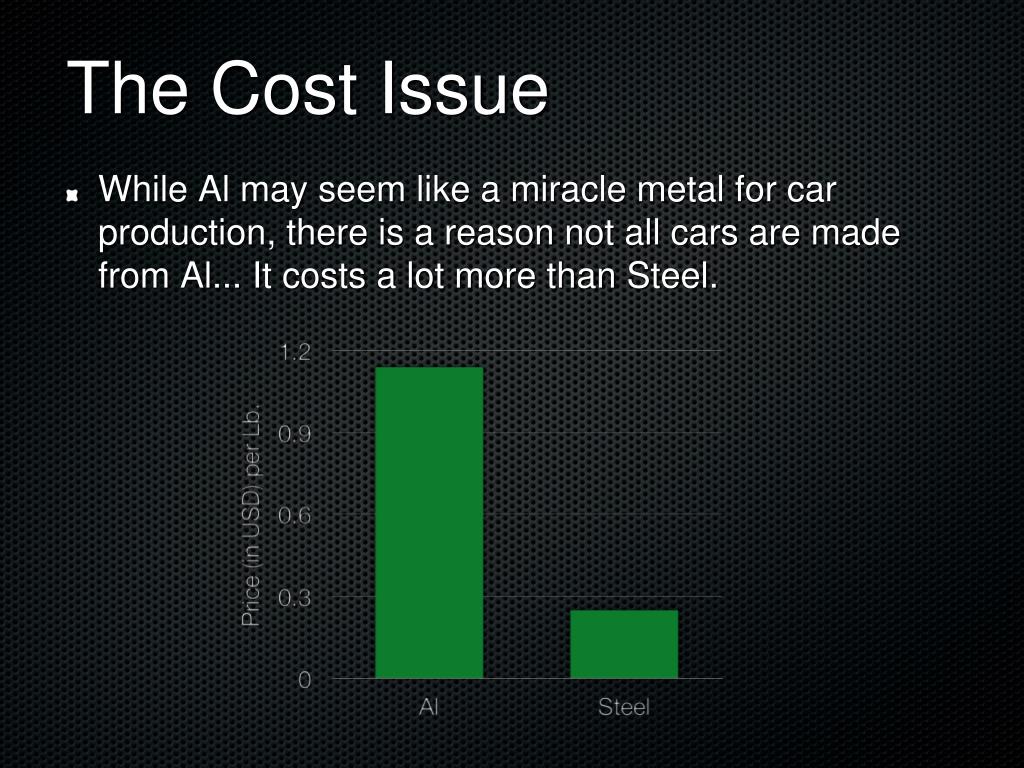

The Cost Issue

  • While Al may seem like a miracle metal for car production, there is a reason not all cars are made from Al... It costs a lot more than Steel.


The move to aluminum l.jpg

The Move to Aluminum

  • The first production vehicle to move to an Al frame was the Audi A8 in 1994.

  • This allowed Audi to make their full-size car lighter than the competitions (BMW, Mercedes,Lexus...), thus giving them the edge in performance & handling.

  • This comes at a price premium though, for instance compared to a Lexus LS460 (Steel framed) which costs around $65,000. The A8 starts at $75,000

Audi A8

Lexus LS460


An increasing trend l.jpg

An Increasing Trend

http://www2.prnewswire.com/mnr/duckerworldwide/37515/


Cars utilizing al frames l.jpg

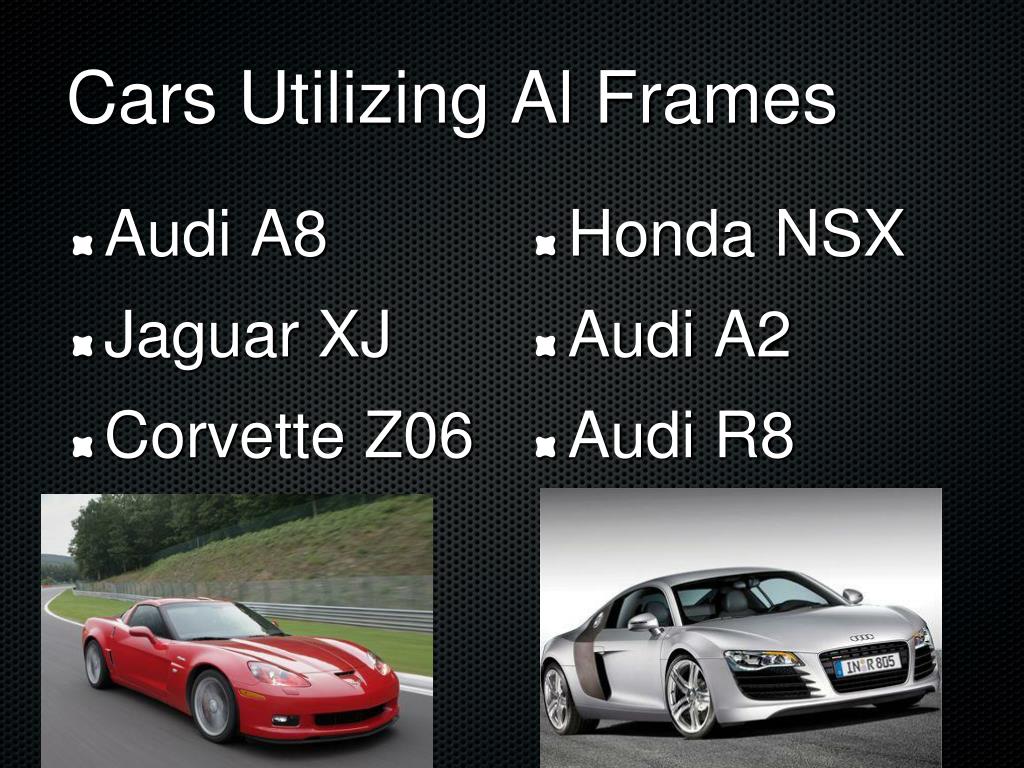

Cars Utilizing Al Frames

  • Audi A8

  • Jaguar XJ

  • Corvette Z06

  • Honda NSX

  • Audi A2

  • Audi R8


Weight l.jpg

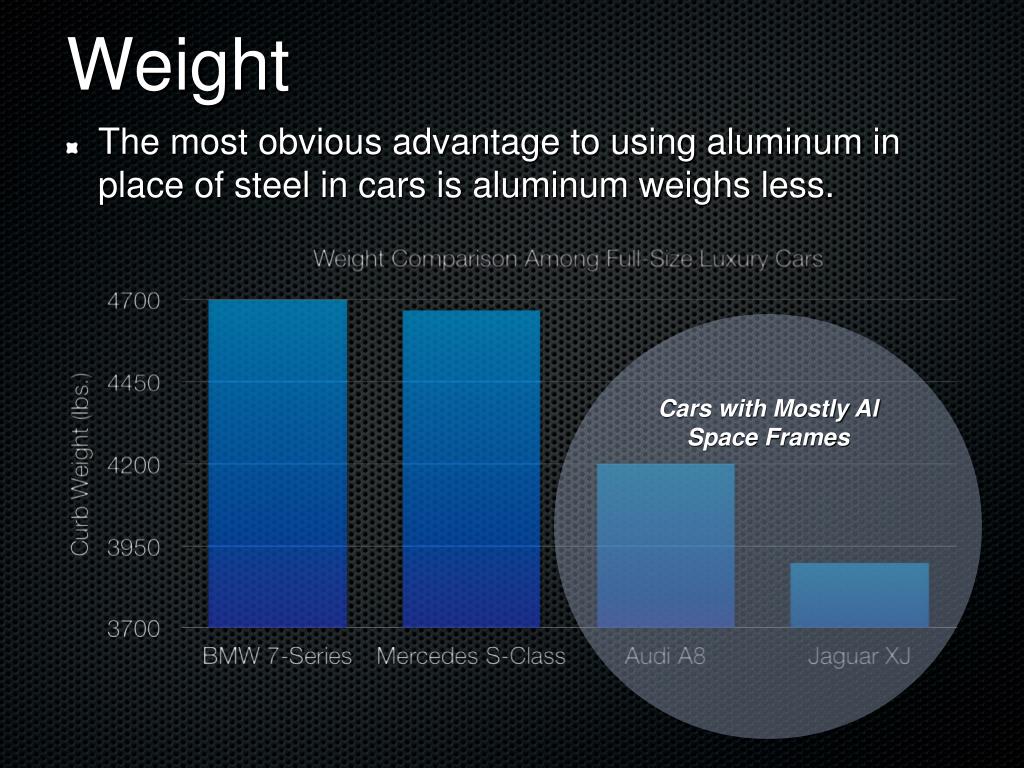

Weight

  • The most obvious advantage to using aluminum in place of steel in cars is aluminum weighs less.

Cars with Mostly Al

Space Frames


Safety l.jpg

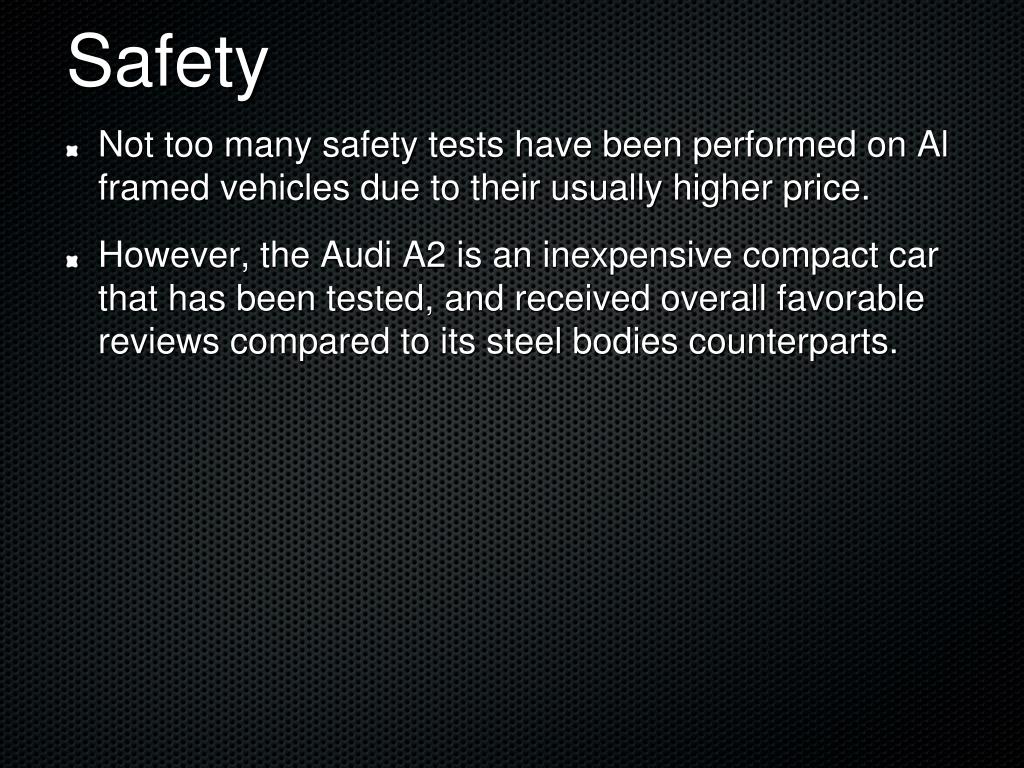

Safety

  • Not too many safety tests have been performed on Al framed vehicles due to their usually higher price.

  • However, the Audi A2 is an inexpensive compact car that has been tested, and received overall favorable reviews compared to its steel bodies counterparts.


Some other advantages l.jpg

Some other advantages...

  • There are some manufacturing methods that can only be done with aluminum, such as extrusions.

  • These extrusions allows the Al Space Frame to have about half the amount of parts as a traditional steel monocoque.

  • Because of all this, Al is already a cheaper material to use for low volume production cars (under 100,000 units a year or so).


A few other facts l.jpg

A Few Other Facts...

  • Today, the average car contains about 200 pounds of aluminum parts.

  • Aluminum space frames (like that from Audi), contain fewer parts and fewer connection nodes, which helps keep production costs lower.


In the future l.jpg

In The Future

http://andrewbeard.wordpress.com/2009/05/11/technology-carbon-fiber-monocoque-chassis/

  • While Aluminum may be the wave of the future for now, some exotic car companies are already looking ahead to composite materials.

  • Take for example Porsche Carrera GT, which used a completely Carbon-Fiber monocoque construction in addition to Carbon-Fiber body panels.

  • Because of this, the curb weight of the car was only 3000 lbs., even with a 5.7L V-10 engine powering it.

Porsche Carrera GT

http://upload.wikimedia.org/wikipedia/commons/thumb/6/65/Porsche_Carrera_GT_-_Goodwood_Breakfast_Club_%28July_2008%29.jpg/800px-Porsche_Carrera_GT_-_Goodwood_Breakfast_Club_%28July_2008%29.jpg


References l.jpg

References

  • Building an aluminum carhttp://www.allbusiness.com/professional-scientific/scientific-research-development/443897-1.html

  • History of Automobile Body and Chassishttp://www.carbodydesign.com/articles/2005-04-13-chassis-history/2005-04-13-chassis-history.php

  • Automobile Bodies: Can Aluminum Be an Economical Alternative to Steel?http://www.tms.org/pubs/journals/JOM/0108/Kelkar-0108.html

  • Different Types of Chassishttp://www.autozine.org/technical_school/chassis/tech_chassis2.htm

  • Aluminum Versus Steelhttp://www.travistrailer.com/public/pag16.aspx
