Presentation Transcript


Florida seaports natural gas workshop

Florida Seaports Natural Gas Workshop

April 10, 2014

Rob Vickers

CDM Smith

Tallahassee, FL

The Fundamentals of Natural Gas in Transportation


Presentation overview

Presentation Overview

Introduction to Natural Gas in Transportation Sector

Economic Considerations

Florida-Specific Findings

Other Modes: Rail and Seaports

Intermodal Opportunities

Florida Seaports Natural Gas Workshop


Natural gas basics

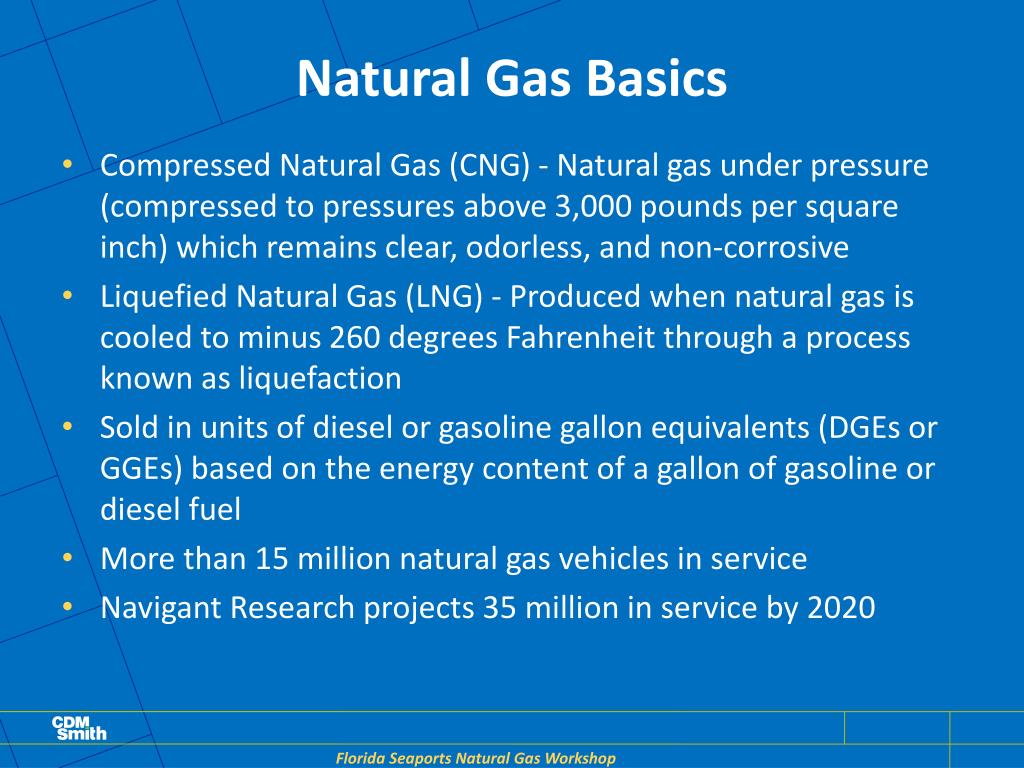

Natural Gas Basics

Compressed Natural Gas (CNG) - Natural gas under pressure (compressed to pressures above 3,000 pounds per square inch) which remains clear, odorless, and non-corrosive

Liquefied Natural Gas (LNG) - Produced when natural gas is cooled to minus 260 degrees Fahrenheit through a process known as liquefaction

Sold in units of diesel or gasoline gallon equivalents (DGEs or GGEs) based on the energy content of a gallon of gasoline or diesel fuel

More than 15 million natural gas vehicles in service

Navigant Research projects 35 million in service by 2020

Florida Seaports Natural Gas Workshop


Benefits of natural gas

Benefits of Natural Gas

Energy Security – 97% of the natural gas used in the U.S. is produced in North America

Lower Emissions- 20-30% fewer greenhouse gas emissions and significantly reduced tailpipe emissions compared to petroleum

Reduced Maintenance Costs – Cleaner burning, quieter, longer engine life

Comparable Performance – Similar to conventionally fueled vehicles in terms of power, acceleration and cruising speed

Fuel Costs– Savings of 40% - 50% compared to gas/diesel

Florida Seaports Natural Gas Workshop


Natural gas vehicles

Natural Gas Vehicles

  • The number of OEM vehicles is growing

  • CNG vehicles are cost-effective for high-mileage, centrally-fueled fleets that operate within a limited area

  • The greater fuel capacity of LNG vehicles means they are often the preferred option for long distance travel

  • Most popular heavy-duty applications:

    • Transit/School Buses

    • Refuse Trucks

    • Shuttle Buses

    • Tractor Trailers

    • Step Vans

Florida Seaports Natural Gas Workshop


Total annual lng cng heavy duty truck sales north america 2013 2022

Total Annual LNG/CNG Heavy Duty Truck SalesNorth America 2013-2022

Florida Seaports Natural Gas Workshop


Natural gas fueling infrastructure

Natural Gas Fueling Infrastructure

  • DOE reports 160,000 gasoline fueling stations nationwide

  • In comparison - 1,069 CNG and 146 LNG fueling stations nationwide (2012)

  • CNG Stations: Fast-Fill vs. Time-Fill

    • Fast-Fill stations are ideal for retail situations serving light- and medium duty vehicles

    • Time-Fill stations are typically used by heavy-duty fleet operators who fuel at a central facility overnight

  • LNG Stations dispense a liquid fuel and are structurally similar to gasoline and diesel stations

  • Natural gas fueling facilities vary considerably based on size, capacity, and the type of fuel dispensed

Florida Seaports Natural Gas Workshop


July 2013 average fuel prices on energy equivalent basis

July 2013 Average Fuel Prices on Energy Equivalent Basis

Florida Seaports Natural Gas Workshop


Costs of natural gas vehicles infrastructure

Costs of Natural Gas Vehicles/Infrastructure

Initial NGV investments are significant…

Representative heavy-duty CNG truck costs $63,600 more than diesel equivalent prior to incentives (2011 DOE Report)

CNG conversion cost for new light-duty vehicles generally ranges between $12,000 and $18,000

CNG fueling facility cost range from $10,000 to $2 million depending on the size and application

LNG fueling site can range from $1 to $4 million

The good news on costs…

Incentives are available to help off-set initial vehicle costs

Station builders/operators provide turn-key facilities

Florida Seaports Natural Gas Workshop


Natural gas vehicles stations in florida

Natural Gas Vehicles/Stations in Florida

  • In 2011 DOE reported there were fewer that 3,000 NGVs in operation in Florida

  • Examples of businesses and agencies converting to NGV:

    • AT&T

    • Leon County Schools

    • Waste Management

    • Saddle Creek

    • J.J. Taylor Companies

    • Numerous transit agencies

  • 60 natural gas stations in Florida

    • 48 stations operational (18 public/30 private)

    • 12 stations planned (10 public/2 private)

Florida Seaports Natural Gas Workshop


Natural gas fueling facilities in florida

Natural Gas Fueling Facilities in Florida

Florida Seaports Natural Gas Workshop


Florida natural gas fuel fleet vehicle rebate

Florida Natural Gas Fuel Fleet Vehicle Rebate

Provides eligible applicants a rebate for the cost of conversion or the incremental cost incurred in connection with conversion, purchase or lease of a natural gas fleet vehicle

Maximum rebate is $25,000 per purchased/leased or converted vehicle, not to exceed 50 percent of eligible costs

Each applicant may receive up to a total of $250,000 per fiscal year on a first come, first serve basis

To qualify, the vehicle must be part of a public or private fleet and must be placed into service on or after July 1, 2013

60% of funds allocated for commercial applicants and 40% allocated for governmental applicants

*See DACS Office of Energy for additional information

Florida Seaports Natural Gas Workshop


Other modal applications rail

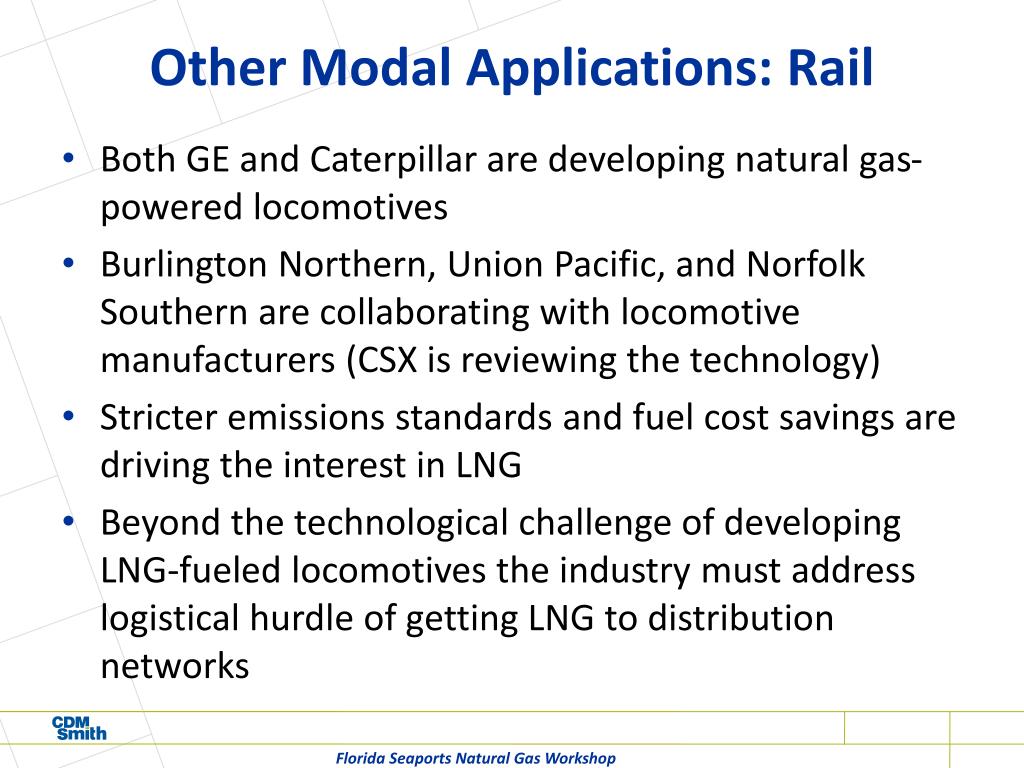

Other Modal Applications: Rail

Both GE and Caterpillar are developing natural gas-powered locomotives

Burlington Northern, Union Pacific, and Norfolk Southern are collaborating with locomotive manufacturers (CSX is reviewing the technology)

Stricter emissions standards and fuel cost savings are driving the interest in LNG

Beyond the technological challenge of developing LNG-fueled locomotives the industry must address logistical hurdle of getting LNG to distribution networks

Florida Seaports Natural Gas Workshop


Other modal applications seaports

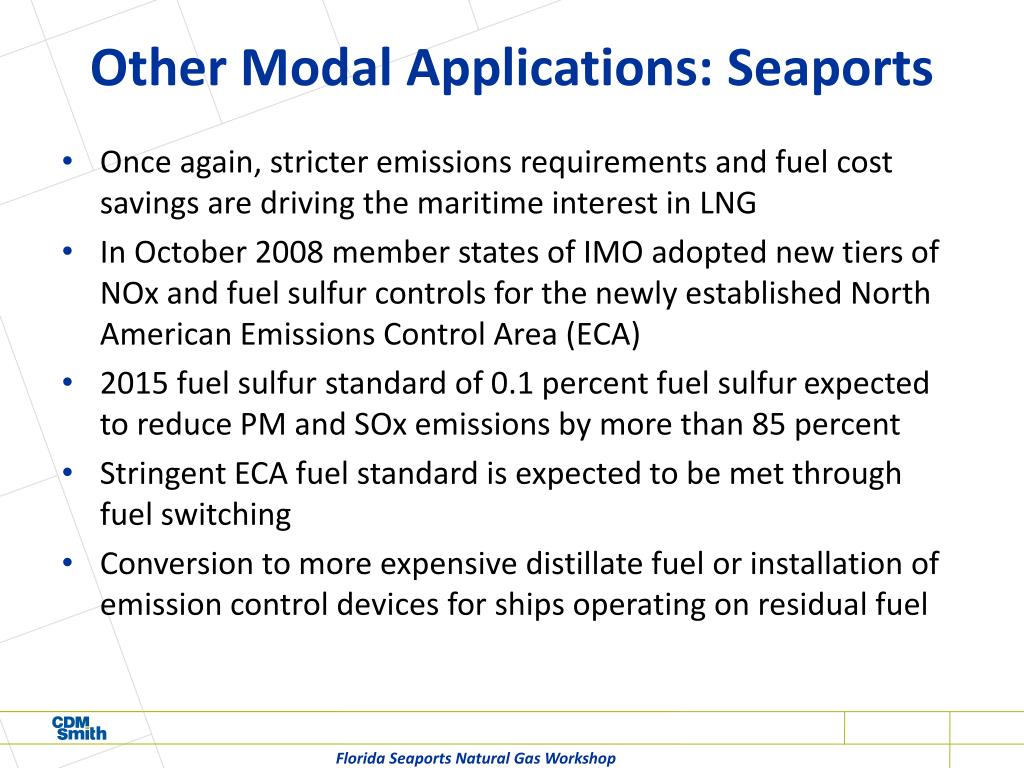

Other Modal Applications: Seaports

Once again, stricter emissions requirements and fuel cost savings are driving the maritime interest in LNG

In October 2008 member states of IMO adopted new tiers of NOx and fuel sulfur controls for the newly established North American Emissions Control Area (ECA)

2015 fuel sulfur standard of 0.1 percent fuel sulfur expected to reduce PM and SOx emissions by more than 85 percent

Stringent ECA fuel standard is expected to be met through fuel switching

Conversion to more expensive distillate fuel or installation of emission control devices for ships operating on residual fuel

Florida Seaports Natural Gas Workshop


Current future emission control areas

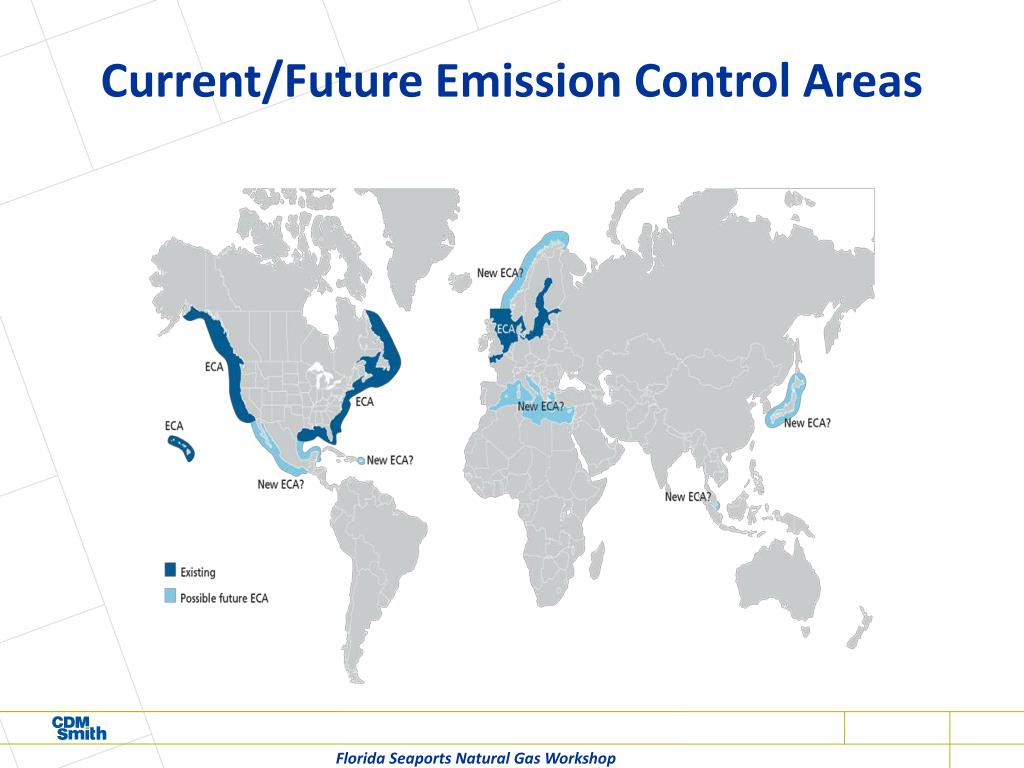

Current/Future Emission Control Areas

Florida Seaports Natural Gas Workshop


Key considerations in maritime investments in lng

Key Considerations in MaritimeInvestments in LNG

Natural gas commodity prices are low relative to marine petroleum fuels

To be used as a marine fuel natural gas must be liquefied to increase its energy efficiency (limited liquefaction facilities)

Conversion of vessels to LNG is expensive (conversion of engines, installation of LNG storage tanks and related safety systems and ship modifications)

Fleet operators should focus on vessels with high utilization and fuel use relative to size and engine power (maximize fuel cost savings)

Economics of any specific project will hinge on: (1) vessel fuel use; (2) delivered LNG prices; and (3) vessel conversion costs

Florida Seaports Natural Gas Workshop


Intermodal opportunities

Intermodal Opportunities

Summary of CNG Port Drayage Truck Demonstration Program

Timeline: 2010 to 2014

Natural Gas trucks deployed: 219

Partners: South Coast Air Quality Management District, CA Energy Commission, CA Air Resources Board, Ports of Los Angeles and Long Beach, U.S. DOE, Clean Cities Coalitions

Objectives: increase use of alternative fuels; significant reductions in diesel air pollution; create/preserve jobs to stimulate the economy; increase end-user experience with alternative fuel vehicles

Results: Increased use of alternative fuels (reduced consumption of diesel fuel); significant reductions in NOx and diesel PM emissions; reduced air toxic emissions and associated public health risk; reduced GHG emissions; preserved/created jobs related to manufacturing, natural gas refueling, maintenance and operation of the natural gas vehicles

Florida Seaports Natural Gas Workshop


Potential application ilcs

Potential Application: ILCs

Florida Seaports Natural Gas Workshop
