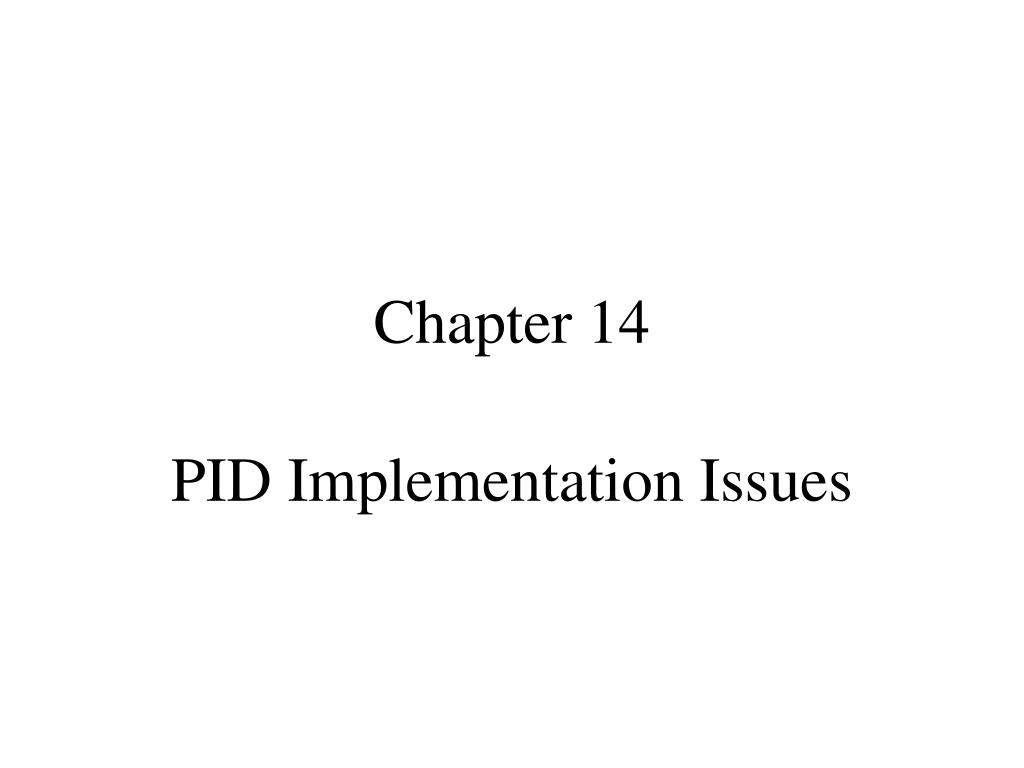

### Chapter 14

PID Implementation Issues

• Develop the skills necessary to function as an industrial process control engineer.

• Skills

• Tuning loops

• Control loop design

• Control loop troubleshooting

• Command of the terminology

• Fundamental understanding

• Process dynamics

• Feedback control

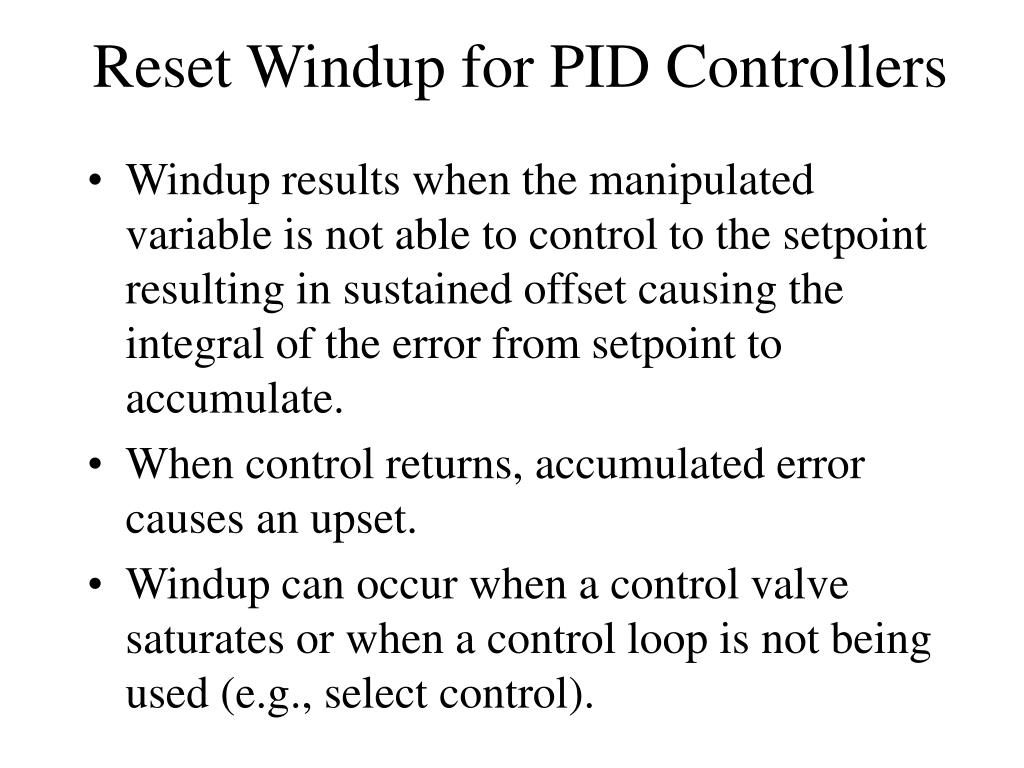

• Windup results when the manipulated variable is not able to control to the setpoint resulting in sustained offset causing the integral of the error from setpoint to accumulate.

• When control returns, accumulated error causes an upset.

• Windup can occur when a control valve saturates or when a control loop is not being used (e.g., select control).

• Note that controller output saturates causing area “A” to accumulate by the integral action.

• After the disturbance returns to its normal level, the controller output remains saturated for a period of time causing an upset in y.

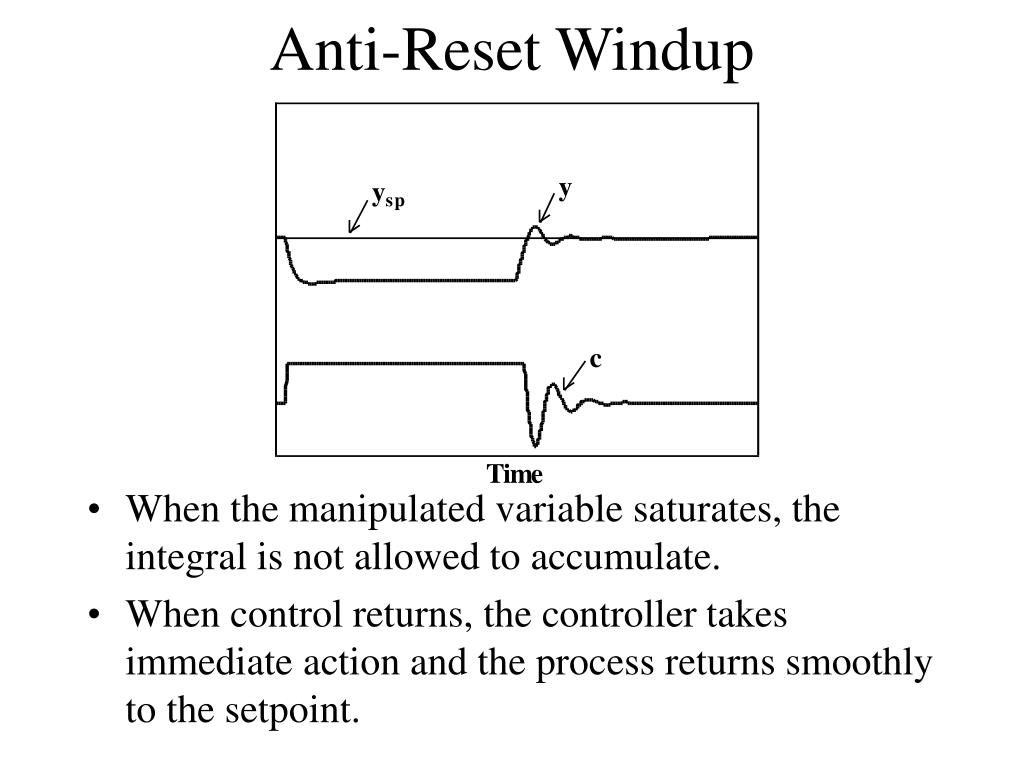

• When the manipulated variable saturates, the integral is not allowed to accumulate.

• When control returns, the controller takes immediate action and the process returns smoothly to the setpoint.

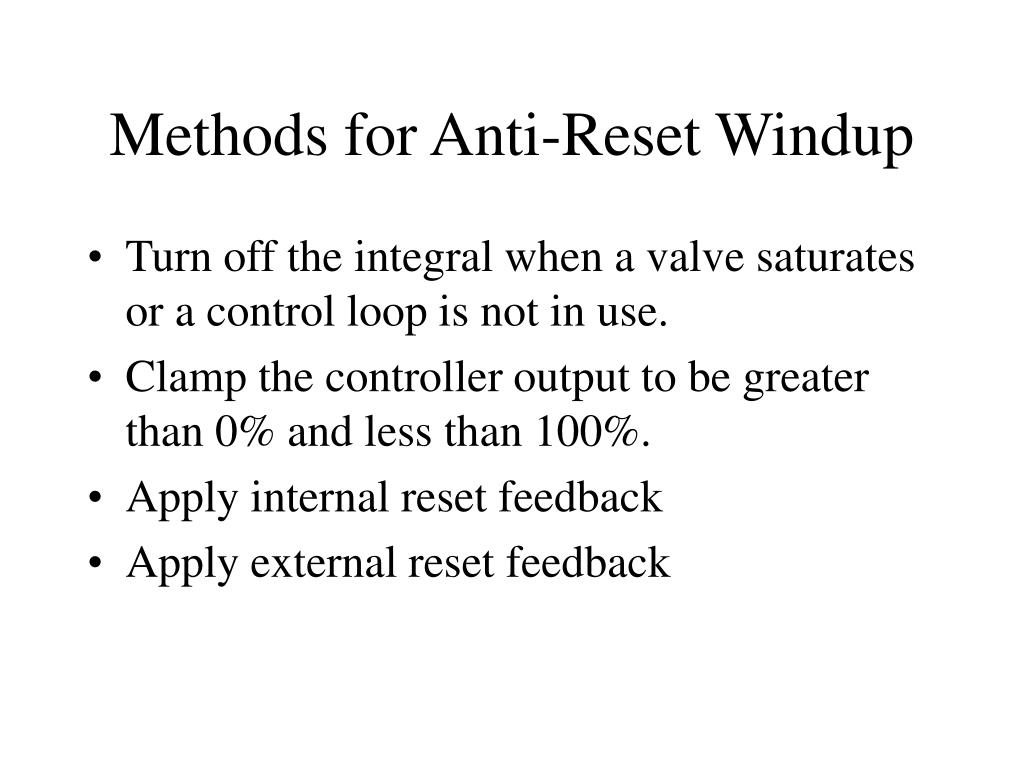

• Turn off the integral when a valve saturates or a control loop is not in use.

• Clamp the controller output to be greater than 0% and less than 100%.

• Apply internal reset feedback

• Apply external reset feedback

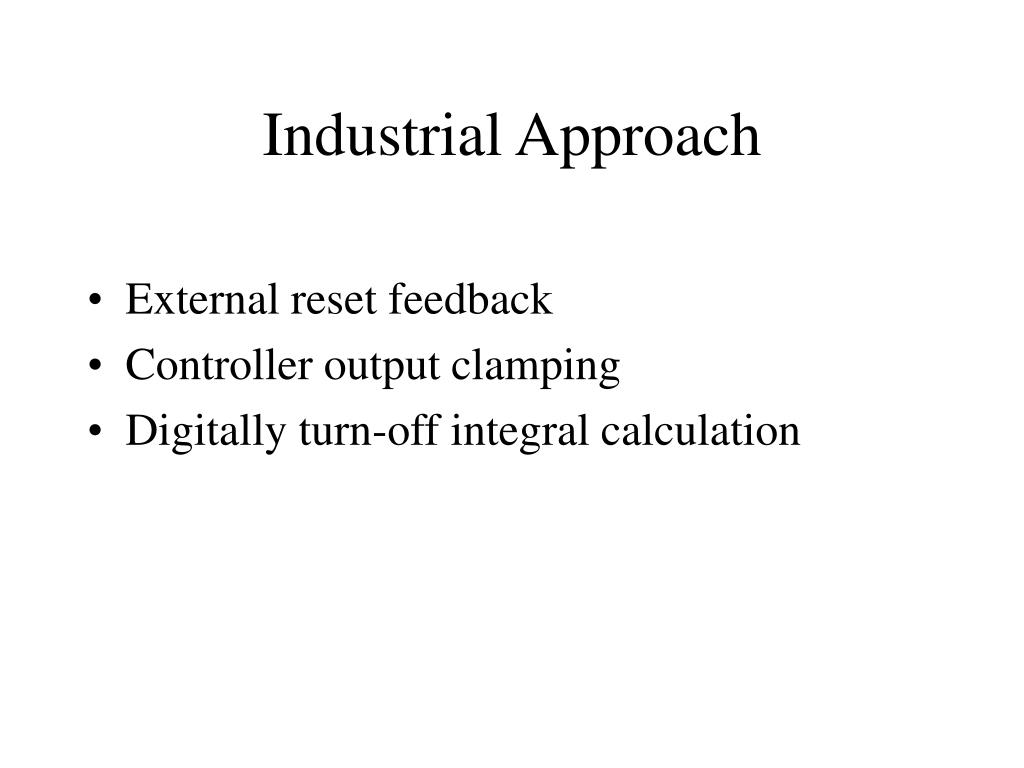

• External reset feedback

• Controller output clamping

• Digitally turn-off integral calculation

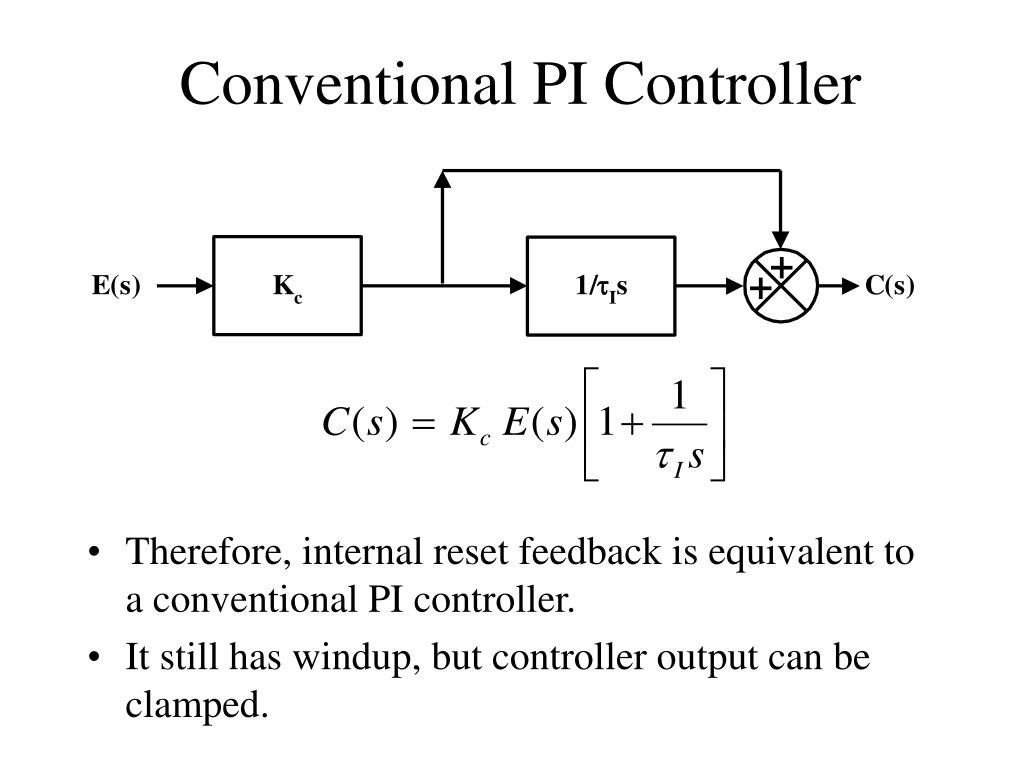

• Therefore, internal reset feedback is equivalent to a conventional PI controller.

• It still has windup, but controller output can be clamped.

• An extension of internal reset feedback, therefore, it is equivalent to a conventional PI controller.

• When u saturates, windup will cease preventing windup.

• Less windup than clamping, but requires umeas.

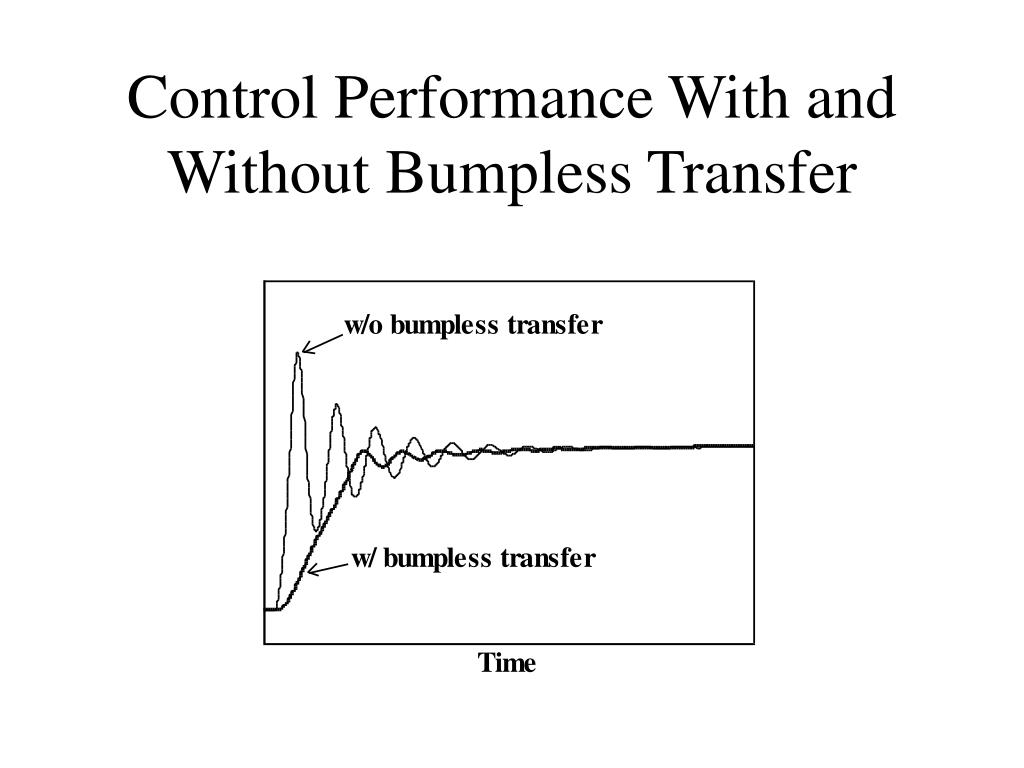

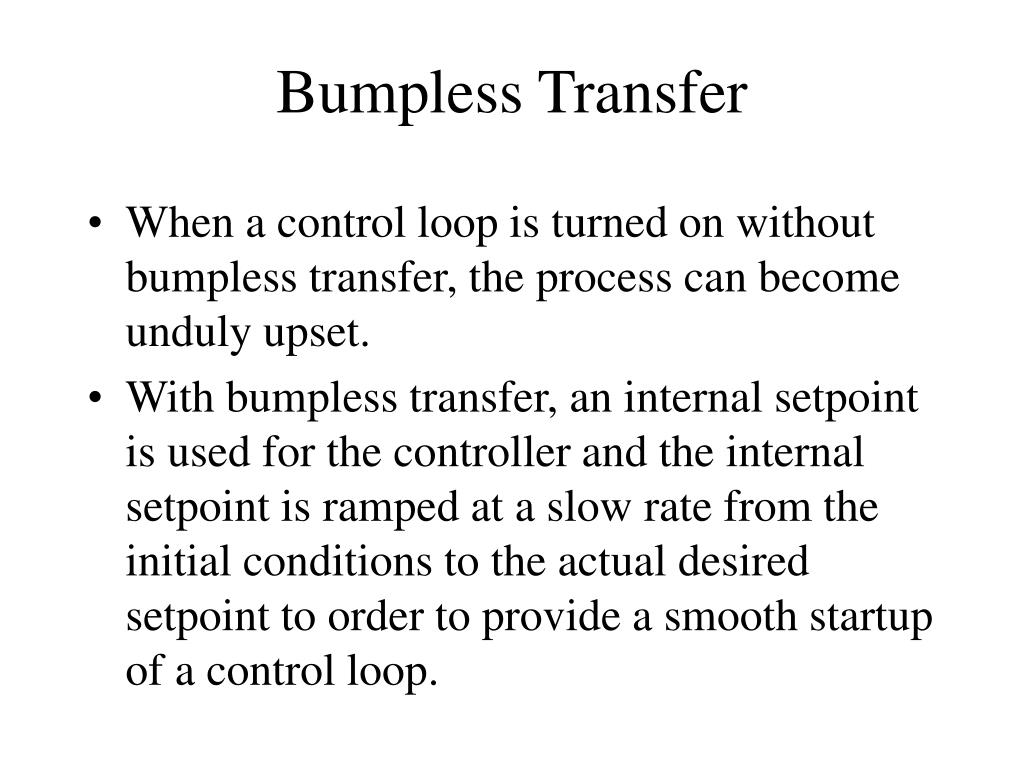

• When a control loop is turned on without bumpless transfer, the process can become unduly upset.

• With bumpless transfer, an internal setpoint is used for the controller and the internal setpoint is ramped at a slow rate from the initial conditions to the actual desired setpoint to order to provide a smooth startup of a control loop.

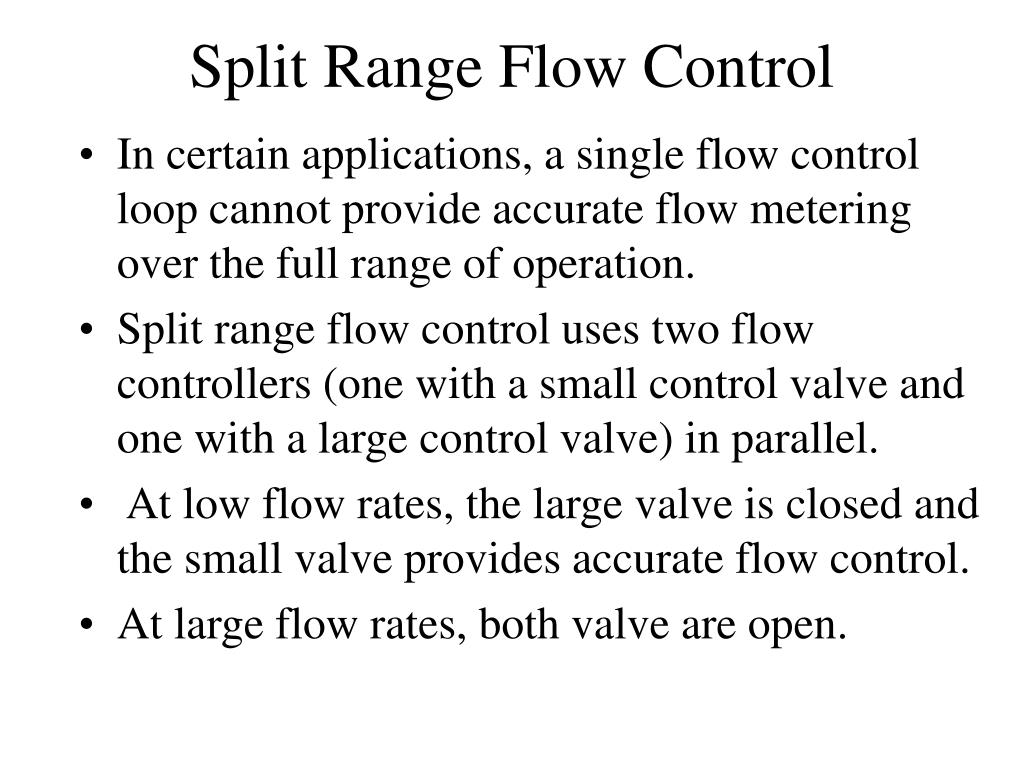

• In certain applications, a single flow control loop cannot provide accurate flow metering over the full range of operation.

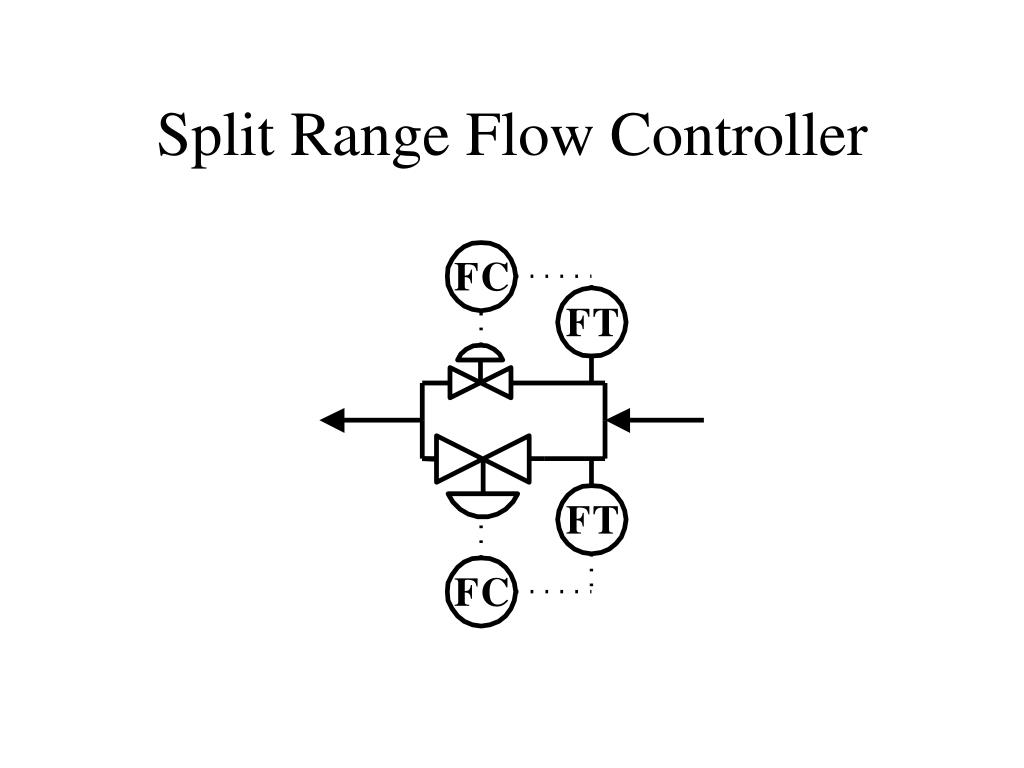

• Split range flow control uses two flow controllers (one with a small control valve and one with a large control valve) in parallel.

• At low flow rates, the large valve is closed and the small valve provides accurate flow control.

• At large flow rates, both valve are open.

• Therefore, for accurate pH control for a wide range of flow rates for acid wastewater, a split range flow controller for the NaOH is required.

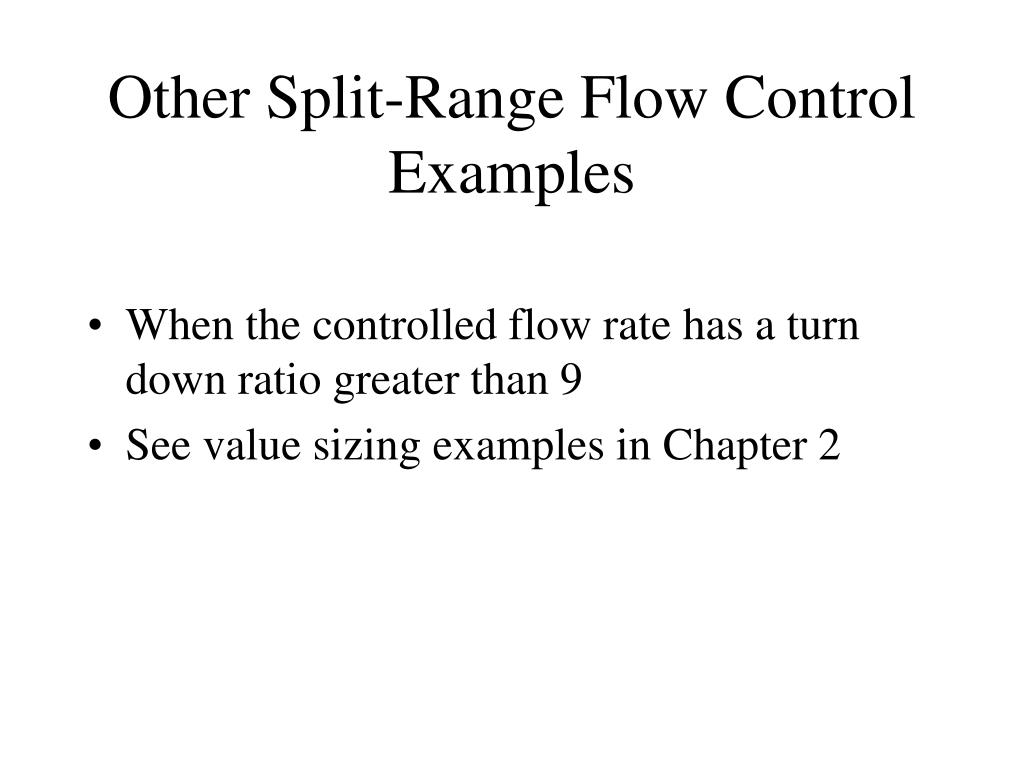

• When the controlled flow rate has a turn down ratio greater than 9

• See value sizing examples in Chapter 2

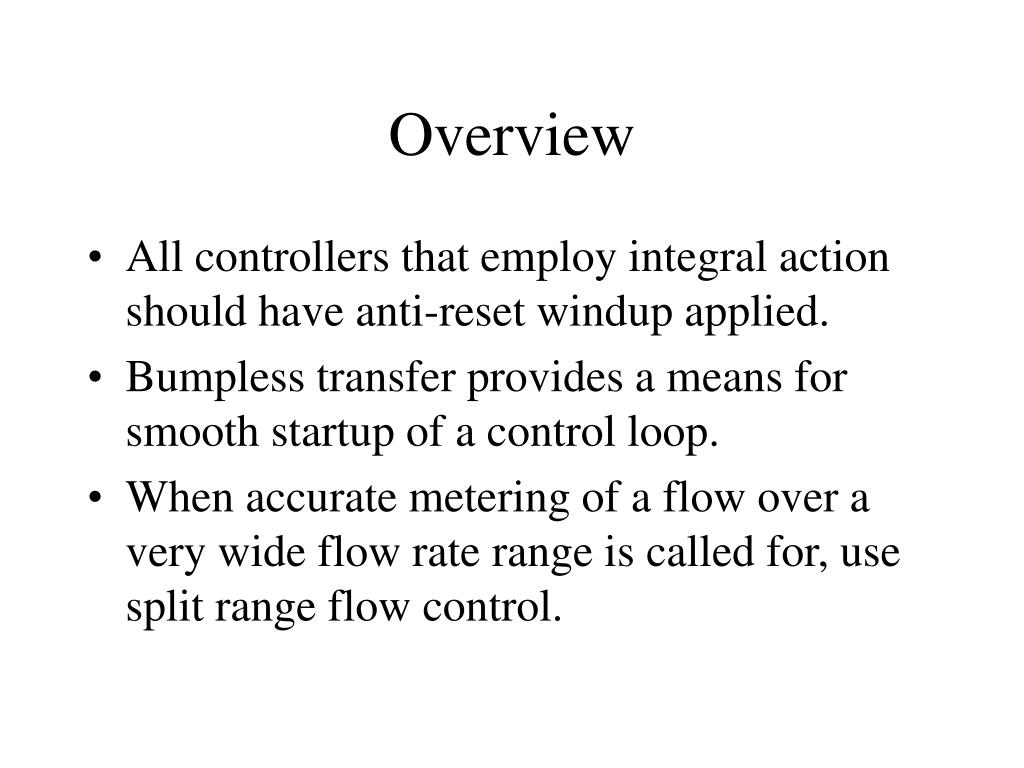

• All controllers that employ integral action should have anti-reset windup applied.

• Bumpless transfer provides a means for smooth startup of a control loop.

• When accurate metering of a flow over a very wide flow rate range is called for, use split range flow control.
