Presentation Transcript


Personal security l.jpg

Personal Security

Security Tips for Home Internet Users


Securing your home computer l.jpg

Securing your home computer

  • Accessing the Internet from home

    • Convenient

    • Abundance of information

    • Exposes your computer

    • Can be costly or damaging


Overview l.jpg

Overview

  • Internet access

  • Why Should I be concerned with Security

  • What are the most common vulnerabilities

  • What security tools are available

  • Where can I find more information


Internet l.jpg

Internet

  • Complex system of attached networks

  • Designed to distribute data geographically at high speeds in a short period of time

  • Data is distributed in a variety of formats

    • Examples: PDF, JPEG, MOV, MP3, Text

  • Information is stored or viewed locally on your computer


Broadband l.jpg

Broadband

  • High speed access to the home user

  • Types

    • DSL

    • Cable Modem


Slide6 l.jpg

DSL

  • Digital Subscriber Line

  • Typically ADSL

    • Asymmetric Digital Subscriber Line

  • Offers dedicated bandwidth

  • Speed

    • 384 kbps downstream

    • 128 kbps upstream

    • Up to 1.5 Mbps down 800 kbps up

    • Varies depending on service level and distance from CO (Central Office)

    • Maximum distance varies 14000 – 17500 ft


Dsl configuration l.jpg

DSL Configuration

  • DSL Modem

  • DSL Splitter and Filters

  • DSLAM

    • Digital Subscriber Line Access Multiplexer

  • ISP

    • Internet Service Provider


Cable modem l.jpg

Cable Modem

  • Shared bandwidth

  • Speed per channel

    • 27 Mbps shared download

    • 10 Mbps Upload

  • Connects to CMTS (Cable Modem Transmission System) at cable company

    • Provides packet filtering, and traffic shaping


What about security l.jpg

What about security?

  • Why should I be concerned?

  • What are the vulnerabilities?

  • What can I do to protect myself?

  • How do I recover from an attack?


Why should i be concerned l.jpg

Why should I be Concerned

  • You lose crucial data

  • You spend time and money on recovery

  • You feel violated, helpless and foolish

  • You risk propagating the attack to your peers and others

  • Your peers and others know how foolish you are


Vulnerabilities l.jpg

Vulnerabilities

  • Viruses

  • Hacks

  • Data Capturing

  • Lack of contingency planning


Virus l.jpg

Virus

  • 60,000 Variations in circulation

  • Types of Viruses

  • Antivirus Software

  • Best Practices


Types of viruses l.jpg

Types of Viruses

  • Viruses are Segments of code or complete programs that can damage your system or degrade system performance.

    • Trojan Horse

    • Worm

    • Hoax


Trojan horses l.jpg

Trojan Horses

  • A program disguised as having a desired purpose while subversively performing an unwanted action on your system.

  • Often open backdoor access to your system

  • Notorious Trojan Horses

    • Simpson's

    • Backdoor

    • Sub7

    • BackOrafice

    • NetBus


Slide15 l.jpg

Worm

  • Self Propagating independent program that adversely affects your computer performance or damages your computer

  • Hall of fame

    • Melissa

    • Nimda

    • LoveLetter

    • Anna Kournikova

    • CodeRed

    • SirCam


Slide16 l.jpg

Hoax

  • An unsubstantiated virus alert intended to cause panic

  • Typically warning of the most damaging or dangerous virus

  • Examples

    • BudweiserFrogs

    • A virtual card for you

    • !0000 – Stop mass mailings

    • Wobbler

    • Win a holiday


Best practice virus prevention l.jpg

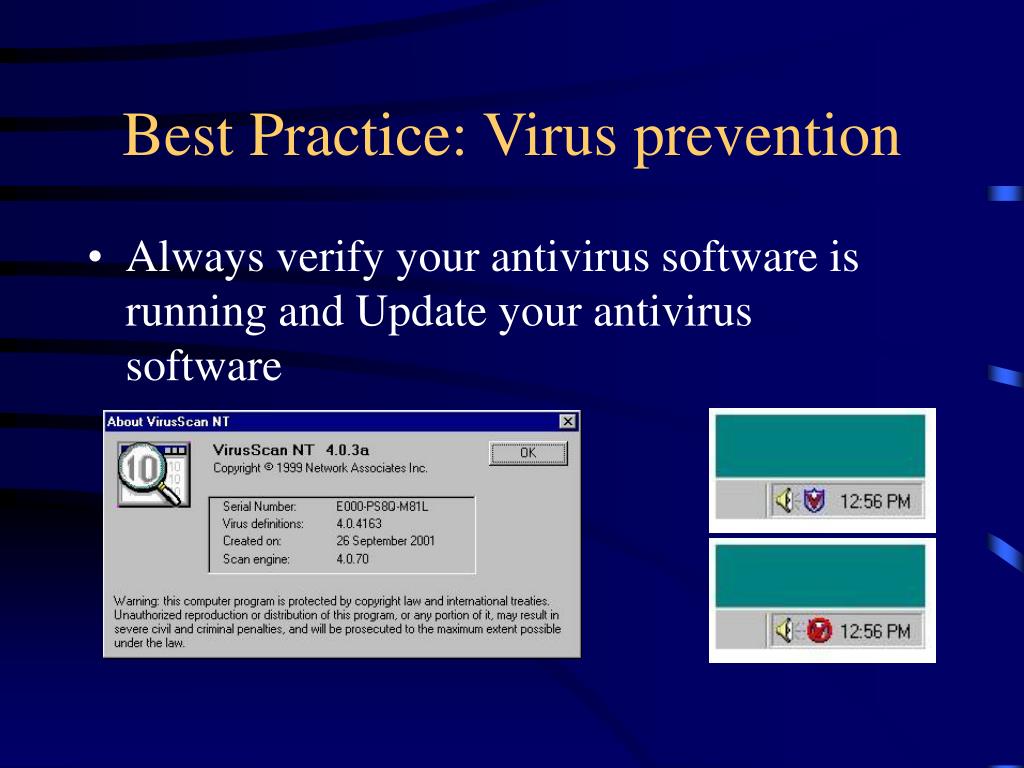

Best Practice: Virus prevention

  • Always verify your antivirus software is running and Update your antivirus software


Best practice virus prevention 2 l.jpg

Best Practice: Virus prevention 2

  • When receiving email do not open attachments unless you are expecting them

  • Take virus alerts seriously

  • Sources of alerts

    • Institutional Notification

    • News Media alerts

    • Word of mouth


Virus recovery l.jpg

Virus recovery

  • Use antivirus software and tools to clean system

    • http://www.mcafee.com

    • http://www.symantec.com

  • Find manual steps for virus removal

  • Reinstall your system from scratch


Hacks l.jpg

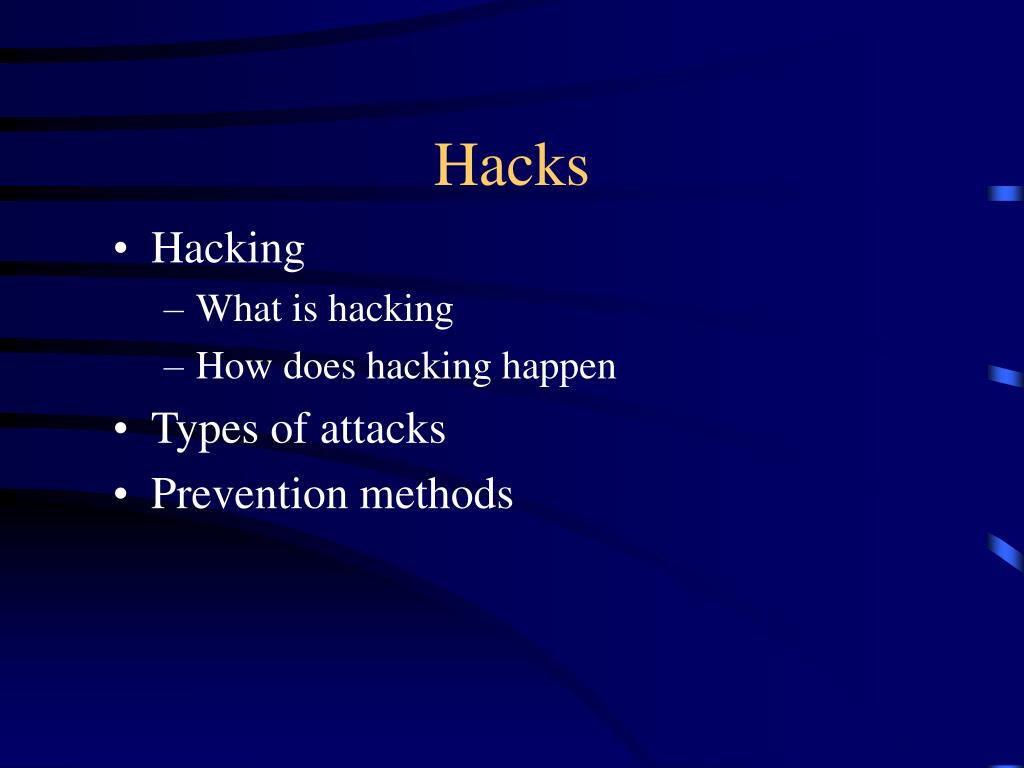

Hacks

  • Hacking

    • What is hacking

    • How does hacking happen

  • Types of attacks

  • Prevention methods


Hacking l.jpg

Hacking

  • Gaining unauthorized access to computer systems for malicious purposes


How hacking happens l.jpg

How Hacking Happens

  • System information is collected

    • Footprinting

    • Scanning

    • Probing

    • Enumeration

  • Software vulnerabilities are exploited

  • System passwords are guessed or not employed


Types of attacks l.jpg

Types of Attacks

  • Interference

  • Interception

  • Impersonation


Interference l.jpg

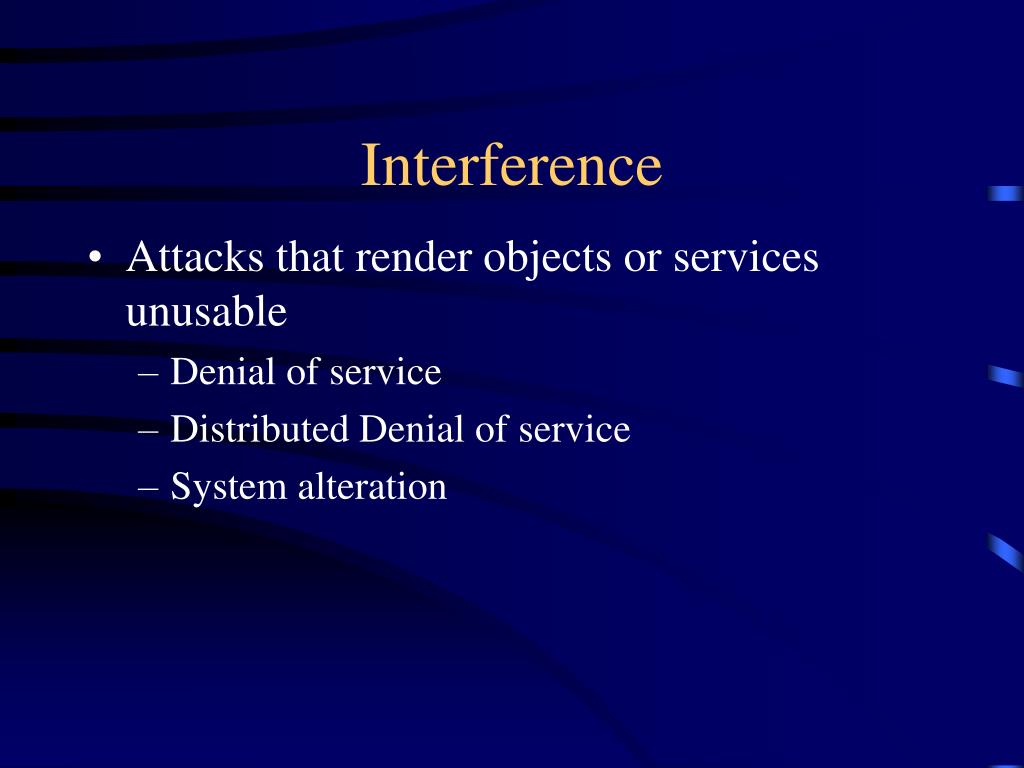

Interference

  • Attacks that render objects or services unusable

    • Denial of service

    • Distributed Denial of service

    • System alteration


Interception l.jpg

Interception

  • Captures Data through monitoring or redirection

    • Monitoring

      • Wire taps

      • Network Monitoring

    • Redirection

      • Alteration of DNS servers

      • Man in the middle


Impersonation l.jpg

Impersonation

  • When the attacker assumes the identity of a trusted source

    • Spoof attacks

      • Using the IP source address of a trusted source computer

    • Password attacks

      • Password enumeration


Prevention methods l.jpg

Prevention Methods

  • Know your system

  • Tools to help protect your system

  • Watch for and apply security patches

  • Contingency planning


Know your system l.jpg

Know your system

  • Inventory your system

  • Baseline system and network performance

  • Identify vulnerabilities


Inventory your system l.jpg

Inventory your system

  • Software Inventory

    • Running Software

    • File and printer sharing

    • Startup Software

    • Installed Software

    • Software Keys

    • Software Licensing

  • Hardware

    • Installed components

    • Vendor specific device drivers


Inventory tools l.jpg

Inventory Tools

  • Microsoft

    • System Information 98

    • Manage Computer System summary

    • Windows NT Diagnostics


Inventory tools 2 l.jpg

Inventory Tools 2

  • Belarc Advisor


System baseline l.jpg

System Baseline

  • Task manager

    • Memory Utilization

    • Process Utilization

  • Performance monitor

    • Log low use system state

    • Log high use system state


Network baseline l.jpg

Network Baseline

  • Check Internet Bandwidth speed

    • McAfee Speedometer

      • http://promos.mcafee.com/speedometer/test_0150.asp

    • Ftp Large Files

      • Hash

      • Download Statistics


Network baseline 2 l.jpg

Network Baseline 2

  • Use traceroute

    • Check TTL stats

  • Use performance monitor to check utilization

    • Network Utilization


Identify vulnerablilities l.jpg

Identify Vulnerablilities

  • Filesharing

    • Opens access to your files remotely

    • Should be turned off if not used

    • Protected with security device and used with complex passwords

  • Web Browsing

    • Personal information is accessible via cookie files

    • ActiveX components can launch Visual Basic Application components included in Microsoft Office

    • Disable ActiveX components unless necessary


Security boundries l.jpg

Security Boundries

  • Personal Computer

  • Local Network Security

  • Internet Security


Internet protocol ip l.jpg

Internet Protocol (IP)

  • Address your computer on the network and where your computer can be reached

  • 32 Bit numeric device address.

  • Dotted Decimal Notation

    • Ex: 192.168.99.32

  • Consists of network and host address.

  • Determined by subnet mask

    • 255.255.255.0

    • Network 192.168.99.0

    • Host 0.0.0.32


Network security l.jpg

Network Security

  • Dynamic Addressing

    • IP address changes over scheduled time

  • Private Addressing

    • Reserved address range by IANA

    • 10.0.0.0

    • 192.168.0.0

    • 172.16.0.0

  • Encryption


Encryption l.jpg

Encryption

  • Method of repackaging data into cyphertext in order to keep observers from viewing data and preserve data integrity

  • SSL – Secure Sockets Layer

    • Encrypts Communication between web browsers and web servers over the internet

    • Uses Public and private key exchange

  • VPN – Virtual Private Networking

    • Secure Tunnel

    • Key Encryption

      • Symmetric

      • Asymmetric

    • Encryption Algorithms

      • SHA – Secure Hashing Algorithm

      • DES – Data Encryption Standard


What your isp does for you l.jpg

What your ISP does for you

  • Private addressing

  • Dynamic addressing

  • Email virus scanning

  • [email protected]


Security tools l.jpg

Security Tools

  • Routers

  • Proxy Servers

  • Firewalls

    • Application

    • Circuit Switching

  • Scanners


Routers l.jpg

Routers

  • ACL Filter packets

    • Deny or Allow

    • Destination or Source

  • Separate Networks

    • Gateway

    • Private Network


Proxy server l.jpg

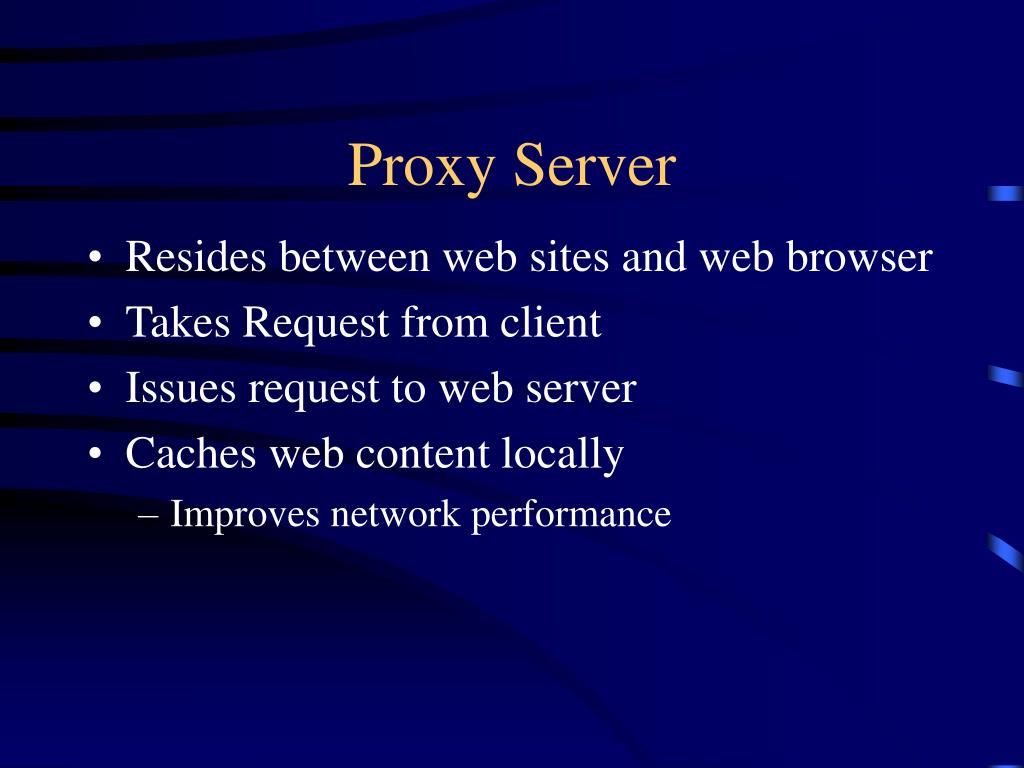

Proxy Server

  • Resides between web sites and web browser

  • Takes Request from client

  • Issues request to web server

  • Caches web content locally

    • Improves network performance


Firewalls l.jpg

Firewalls

  • Separates untrusted external network with trusted internal network.

  • Types of Firewalling

  • Personal Firewall

  • Network Firewall


Types of firewalling l.jpg

Types of Firewalling

  • ACL – Access Control Lists

    • Filters Packets

  • Application Firewalling

    • Verifies command legitimacy

    • Can be performance intensive

  • Proxying

  • Circuit Switching

    • Allows data sessions by request


Personal firewall l.jpg

Personal Firewall

  • Installed on local Computer

  • Rules Based

  • Alerts to system intrusion

  • Accounting Logs events for network forensics

  • Risky can affect stability of your computer

    • Personal firewalls replace operating system kernel components and can conflict with other applications

  • Vendors

    • Sygate Personal Firewall – http://www.sygate.com

    • Black Ice Defender – http://www.networkice.com

    • McAfee Personal Firewall – http://www.mcafee.com

    • Norton Personal Firewall – http://www.symantec.com

    • Zone Alarm – http://www.zonelabs.com


Network firewalls l.jpg

Network Firewalls

  • DSL Cable Routers

    • Filter Packets

    • Separates Network

      • Uses Private Addressing

  • Vendors

  • Linksys DSL/Cable Router

    • http://www.linksys.com

  • Dlink Home Gateway Internet Sharing and Firewall

    • http://www.dlink.com

  • Proxim – Netline Gateway

    • http://www.proxim.com

  • SMC Barricade

    • http://www.smc.com


Port scanners l.jpg

Port Scanners

  • Scans IP Port numbers for available services

  • Gibson Research Center

    • http://www.grc.com


Contingency l.jpg

Contingency

  • Backup your data

  • Often

  • Use Rotation schedule

  • Store software, license and key information in a safe convenient place.

  • Software includes device drivers, application software, and operating system


Who can i turn to l.jpg

Who can I turn to?

  • [email protected]

  • System Administration Networking Security

    • http://www.sans.org

  • Carnegie Mellon - Computer Emergency Response Center

    • http://www.cert.org

  • FBI – Internet Fraud Complaint Center

    • http://www.fbi.gov/interagency/ifcc/filingcomplaint.htm


Links l.jpg

Links

  • Broadband

    • http://www.cable-modem.net/gc/questions.html

    • http://www.dslreports.com/

  • Antivirus

    • http://www.mcafeeb2b.com/naicommon/avert/avert-research-center/default.asp

    • http://www.symantec.com/avcenter/index.html

  • System Inventory

    • http://www.belarc.comPersonal Firewalls

    • http://www.zonelabs.com

    • http://www.symantec.com

    • http://www.mcafee.com

    • http://www.networkice.com

    • http://www.sygate.com


Links 2 l.jpg

Links 2

  • Network Firewalls/Routers

    • http://www.linksys.com

    • http://www.dlink.com

    • http://www.proxim.com

    • http://www.smc.com

  • System and Port Scanners

    • http://www.grc.com

    • http://security1.norton.com/us/home.asp

    • http://www.mcafee.com/support/system_req/browser_test.asp

    • http://www.microsoft.com/technet/mpsa/start.asp

  • Agencies

    • http://www.ciac.org/ciac/

    • http://www.sans.org

    • http://www.fbi.gov/interagency/ifcc/filingcomplaint.htm

    • Report abuse to any ISP. Ex [email protected]

  • This Presentation

    • http://homepage.smc.edu/rojas_dan


  • Login
