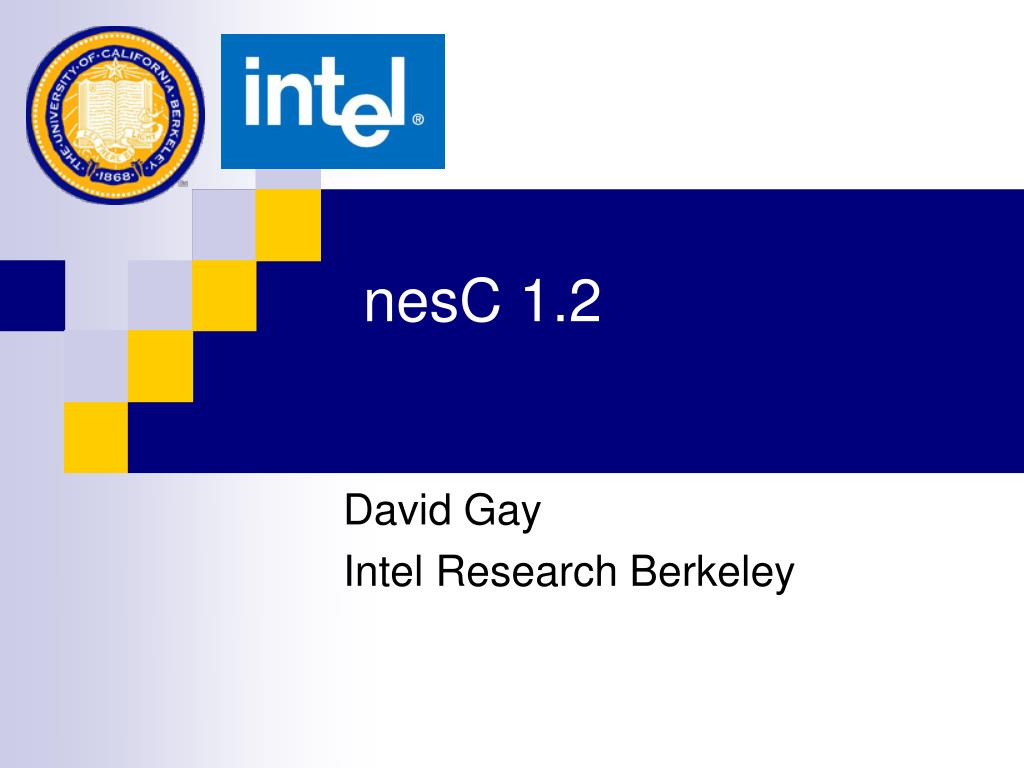

nesC 1.2

David Gay

Intel Research Berkeley


Introduction l.jpg
Introduction

  • nesC 1.2 is a major revision to the nesC language

    • “external” types (with Kevin Chang, UCLA)

    • generic components

    • binary components

    • attributes

  • Goals

    • simplify TinyOS programming

    • make it easier to define new abstractions and services


External types why l.jpg
External Types: Why?

  • Current message formats defined as C structures

    • machine-dependent representation

      • different padding

      • different endianness

  • Until recently, not a problem:

    • homogeneous networks, with platform-specific radios

    • mig tool decodes structures for PCs

  • Now: 802.15.4 on telos, micaz, imote2

    • want interoperability!


Standard solutions l.jpg
Standard Solutions

  • Marshalling/unmarshalling:

    • needs extra RAM

    • protocol stack built by wiring components, so no obvious central place to do marshalling/unmarshalling

  • Unix-style htons, htonl, etc calls

    • programmer-unfriendly

    • only addresses endiannness

  • gcc’s “packed” attribute

    • only addresses padding


External types l.jpg
External Types

  • nesC 1.2 introduces “external types”, which have a platform-independent representation:

    OLDNEW

    struct TOSMsg { nx_struct TOSMsg {

    uint16_t addr; nx_uint16_t addr;

    uint8_t group; nx_uint8_t group;

    … …

    • nx_structs have no padding

    • nx_uint16_t, etc are big-endian on all platforms

    • these types can be used like any C types (some minor restrictions)

  • Very easy to convert TinyOS code to use external types


Generic components l.jpg
Generic Components

  • Components with numeric and type arguments, that can be instantiated at compile-time

    • Interfaces can also have type arguments

  • Uses:

    • utility components: filters, adapters, queues, buffers, etc

    • wiring patterns: see OSKI

generic module QueueC(typedef t, int n) {

provides interface Queue<t>;

} implementation {

t q[n];

}

configuration App { }

implementation {

components AppM,

new QueueC(TOSMsg, 10) as MyQ;

AppM.MsgQ -> MyQ;

}


Other changes in brief l.jpg
Other Changes (in brief)

  • Attributes (inspired by Java 1.5)

    • programmers can add custom annotations to nesC programs

    • external tools can extract program information

    • uses: wiring checks, network management attributes, etc

  • Binary components

    • compile nesC “app” to .o file with specified entry, exit points

    • uses:

      • build, use, distribute components in binary form

      • encapsulate set of components as C library


Status l.jpg
Status

  • All features implemented

  • Alpha release at http://sf.net/projects/nescc

  • Being used for TinyOS 2.x development work

  • Will be released with TinyOS 2.0



Generic configurations l.jpg
Generic Configurations

generic configuration SomeAssembly() {

provides interface X;

} implementation {

components new SomeAssemblyM() as SA,

new QueueC(TOSMsg, 10) as SomeQ;

X = SA.X;

SA.Queue -> SomeQ;

}

  • Every instantiation of SomeAssembly will create new instances of SomeAssemblyM and IntQueueC


Generic interfaces l.jpg
Generic Interfaces

  • Many interfaces similar, except for result, argument types

    • Generic interfaces support this by allowing interfaces to take type parameters

    • Two generic interfaces are connectable iff they have the same type arguments

  • Generic components with type arguments can use generic interfaces to:

    • Provide functionality dependent on that type

    • Express requirements of operations on that type


Slide12 l.jpg

configuration MyApp { }

implementation {

components MyCode,

new QueueC(int, 10) as

MyQ;

MyCode.Queue -> MyQ;

}

interface Queue<t> {

command void push(t x);

command t pop();

}

generic module QueueC

(typedef t, int n) {

provides interface Queue<t> as Q;

} implementation {

t q[n];

int p1, p2;

command void Q.push(t x) {

q[p1++] = x;

if (p1 == n) p1 = 0;

} …

}


Another example l.jpg

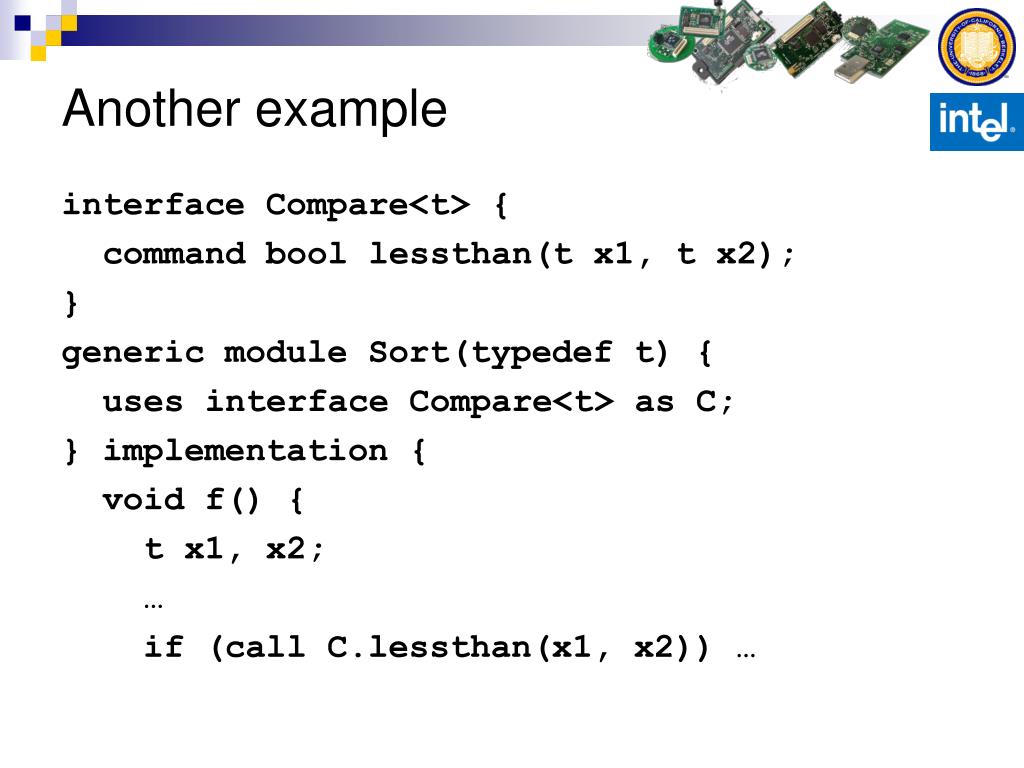

Another example

interface Compare<t> {

command bool lessthan(t x1, t x2);

}

generic module Sort(typedef t) {

uses interface Compare<t> as C;

} implementation {

void f() {

t x1, x2;

if (call C.lessthan(x1, x2)) …


Binary components l.jpg
Binary Components

component ExternalInterface {

provides interface StdControl;

uses interface Timer;

}

  • entry points (of program including ExternalInterface):

    • ExternalInterface.Timer.fired

  • exit points:

    • ExternalInterface.StdControl.{init, start, stop}

    • ExternalInterface.Timer.{start, stop}


Attributes l.jpg
Attributes

struct @atmostonce { };

struct @snms { int key; };

provides interface Timer @atmostonce();

provides interface SNMSAttribute @snms(KEY_PARENT);

  • Information on attributes, etc output in XML

    • Java-based parser for this XML schema

    • Sample “wiring check” demo app
