Presentation Transcript
Dacron l.jpg

Dacron

Sanaz Leilabadi and Linda Edwards


Get to know dacron l.jpg
Get to know Dacron

  • Trade name for Polyethylene Terephthalate

    aka PET, PETE, PETP

  • Polyethylene Terephthalate is a resin of the polyester family that is used to make beverage, food and other liquid containers, synthetic fibers

  • Clear, tough plastic with good gas and moisture barrier properties

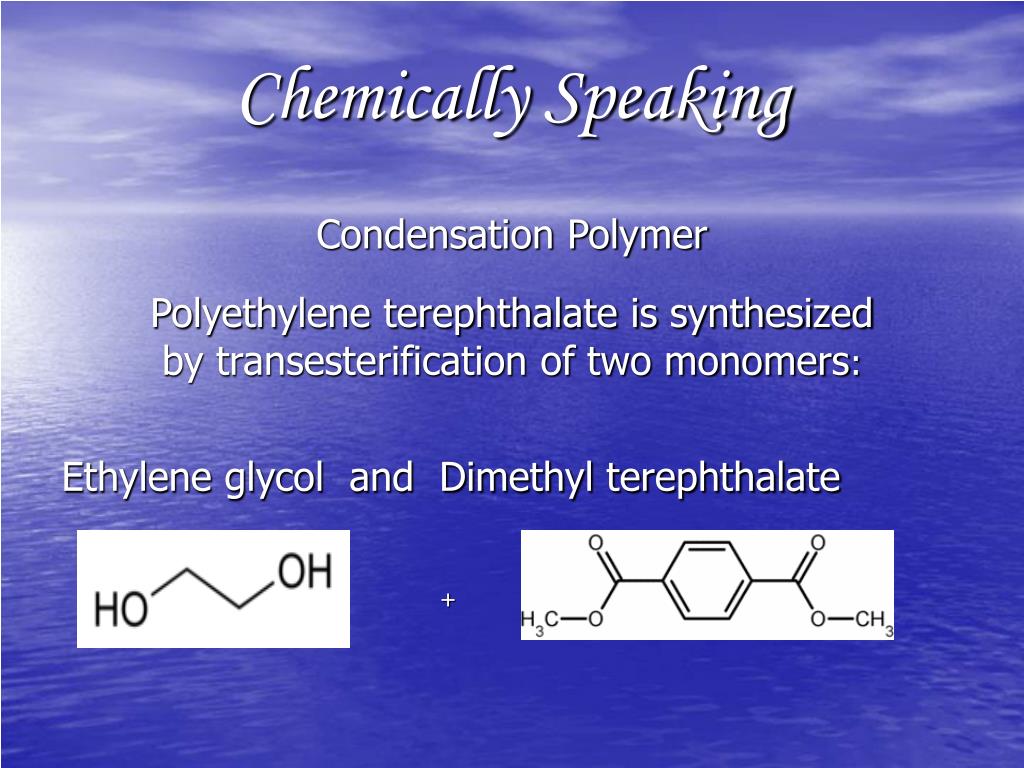

Chemically speaking l.jpg
Chemically Speaking

Condensation Polymer

Polyethylene terephthalate is synthesized

by transesterification of two monomers:

Ethylene glycol and Dimethyl terephthalate

+


Slide4 l.jpg

Transesterification is used in the synthesis of polyester, in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.


Catalysts l.jpg
Catalysts in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • Transesterification reactions are often catalyzed by the addition of an acid or base.

  • Acids can catalyse the reaction by donating a proton to the alkoxy group, thus making it more reactive, while bases can catalyse the reaction by removing a proton from the alcohol, thus making it more reactive.


Polymer l.jpg
Polymer in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.


Mechanism of polymerization l.jpg
Mechanism of Polymerization in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.


History of dacron l.jpg
History of Dacron in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • PET: originally patented by British chemists

    • John Rex Whinfield and James Tennant Dickson in 1941 after early research by Wallace Carothers

  • Dupont used its nylon technology to improve the polyester fiber that was patented by the British

  • Dacron was created in 1950 by Dupont


What is dacron l.jpg
What IS Dacron? in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • A polyester fiber used in clothing.

  • A yarn used in:

    • curtains

    • dress fabrics

    • high pressure fire hoses

    • men’s shirts

    • threads.

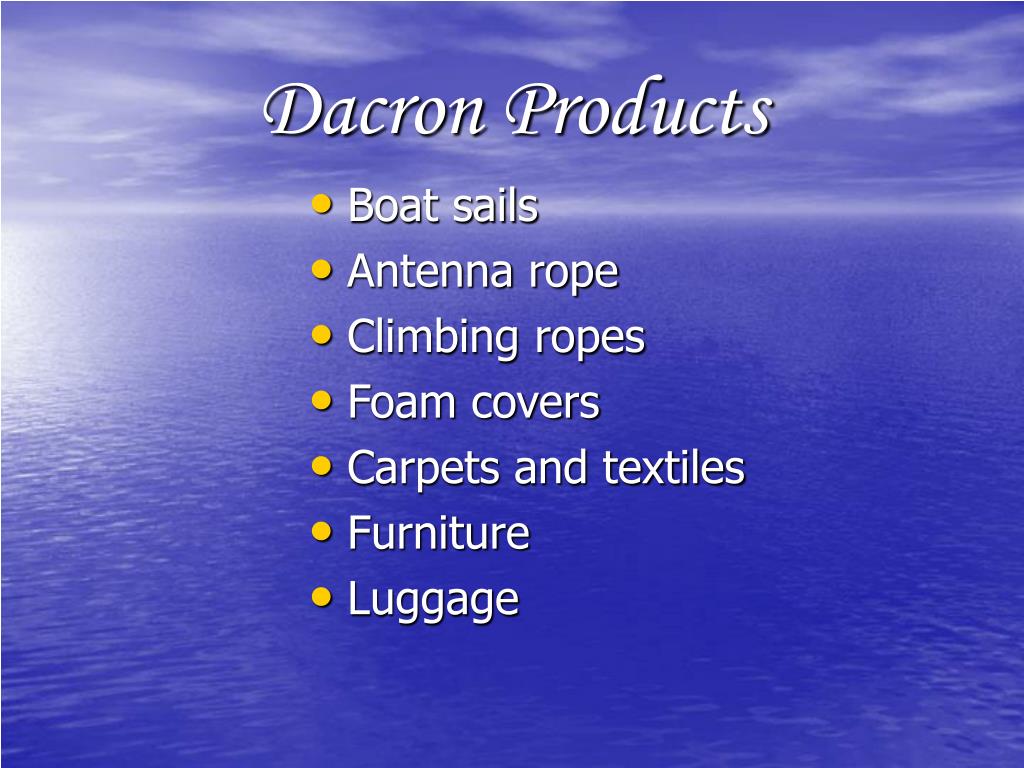

Dacron products l.jpg
Dacron Products in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • Boat sails

  • Antenna rope

  • Climbing ropes

  • Foam covers

  • Carpets and textiles

  • Furniture

  • Luggage


Where can we find it l.jpg
Where can we find it? in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.


Dacron in medicine l.jpg
Dacron in Medicine in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • Cardiothoracic and Vascular grafts and implants

    • Aneurysm repair

      (Thoracic and Abdominal Aorta)

    • Patch Angioplasty

    • Vascular grafts

  • Strong, flexible and treated

    with collagen to keep blood

    from soaking through

  • Chemically inert and thus well

    tolerated inside the body


Dacron then and now l.jpg
Dacron- Then and Now in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • Dacron has come a long way since 1950

  • More commonly used today thanks to new technology

  • Price range varies depending on the product it as been made into

  • Intrinsic viscosity (thickness) of ~0.60 (fibers)

    • PET can range up to ~0.85 for tire cord


Recycling dacron l.jpg
Recycling Dacron in which diesters undergo transesterification with diols to form macromolecules. In our case, dimethyl terephthalate and ethylene glycol react to form polyethylene terephthalate and methanol, which is evaporated to drive the reaction forward.

  • Methanolysis is an example

    of reverse transesterification

    and has been used to recycle

    polyesters into individual monomers

  • Fully recyclable- when needed

  • Its polymer chains can be recovered for reuse.


Health effects l.jpg

One study showed that after imbedding polymer films of Dacron in rodents there was evidence of some malignant tumor formation, study was later deemed inadequate

Further research shows no short term or long term toxicity with use of Dacron

However, strong evidence of nausea, vomiting, central nervous system paralysis and kidney damage with prolonged exposure to ethylene glycol

Health Effects


Dacron properties l.jpg
Dacron Properties Dacron in rodents there was evidence of some malignant tumor formation, study was later deemed inadequate

  • High tensile strength, high resistance to stretching, both wet and dry, and good resistance to degradation by chemical bleaches and to abrasion which is why it is preferred for surgical use

  • High melting temperature of 496 degrees Fahrenheit (256 degrees Celsius), due to cross-linkage in synthesis of the fiber.


For more information l.jpg
For more information Dacron in rodents there was evidence of some malignant tumor formation, study was later deemed inadequate

  • http://www.elmhurst.edu/~chm/vchembook/402condensepolymers.html

  • http://www.bicuspidfoundation.com/Aortic_Aneurysm_and_Dissection.html

  • http://www.bartleby.com/65/da/Dacron.html

  • http://www.nlm.nih.gov/medlineplus/ency/article/002345.htm

  • http://md1.csa.com/partners/viewrecord.php?requester=gs&collection=TRD&recid=CA6703713WC

  • http://education.yahoo.com/reference/encyclopedia/entry/Dacron

  • http://www.me.berkeley.edu/ME117/S05/finalproject/pdf/Vascular_Graft.pdf

  • http://www.alibaba.com/productsearch/Adhesive_Paper/10.html

  • http://www.surgical-tutor.org.uk/default-home.htm?tutorials/graft.htm~right

  • http://www.texdev.com/sld007.html

  • http://en.wikipedia.org/wiki/Dacron

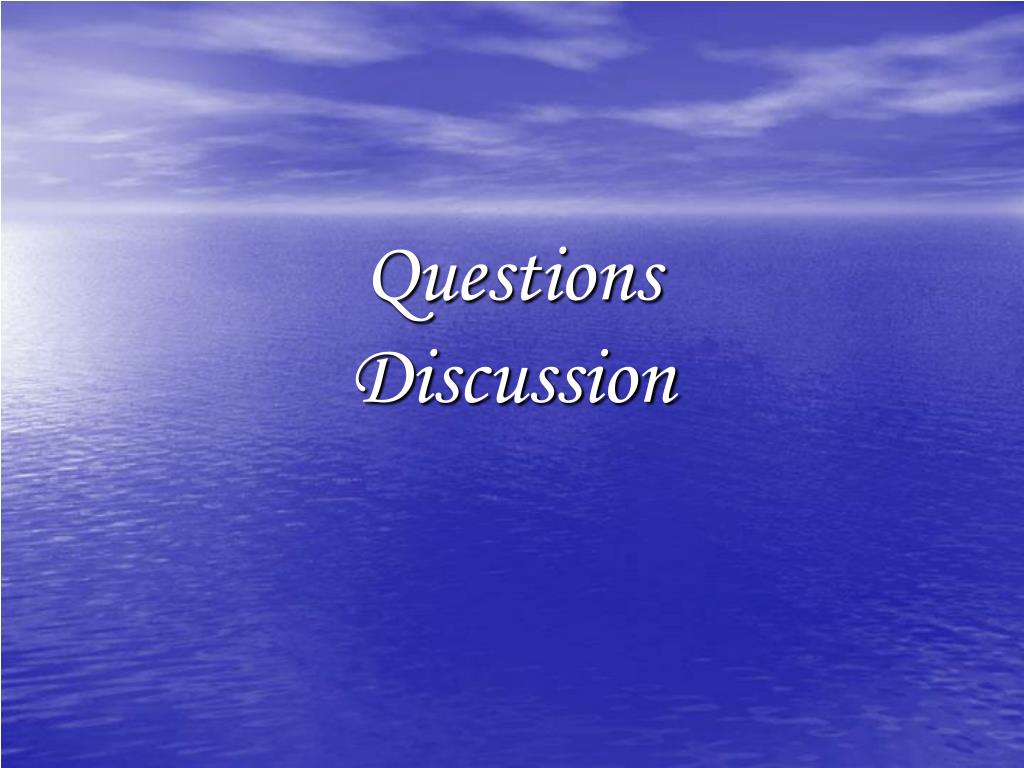

Questions discussion l.jpg

Questions Dacron in rodents there was evidence of some malignant tumor formation, study was later deemed inadequateDiscussion
