Presentation Transcript
Ci agent curb mounted oil stop valve part 2 sch40slpvcosvx length l.jpg

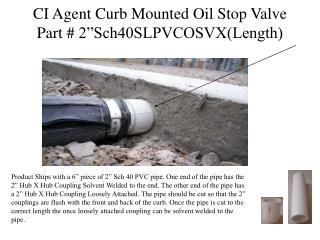

CI Agent Curb Mounted Oil Stop ValvePart # 2”Sch40SLPVCOSVX(Length)

Product Ships with a 6” piece of 2” Sch 40 PVC pipe. One end of the pipe has the 2” Hub X Hub Coupling Solvent Welded to the end. The other end of the pipe has a 2” Hub X Hub Coupling Loosely Attached. The pipe should be cut so that the 2” couplings are flush with the front and back of the curb. Once the pipe is cut to the correct length the once loosely attached coupling can be solvent welded to the pipe.


Ci agent curb mounted oil stop valve l.jpg
CI Agent Curb Mounted Oil Stop Valve

The CI Agent Oil Stop Valve Fits Into the 2” Coupling. The CI Agent Oil Stop Valve can be installed into the coupling on the front or back of the curb depending on which makes the most sense at the job site.


Ci agent curb mounted oil stop valve3 l.jpg
CI Agent Curb Mounted Oil Stop Valve

  • The CI Agent Oil Stop Valve Ships with a 2” adapter on the end which is designed to solvent weld into the 2” coupling in the curb.

  • Once the adapter is solvent welded into the 2” coupling, the CI Agent Oil Stop Valve can be removed by rotating counterclockwise. The only time the CI Agent Oil Stop Valve needs to be removed is if it comes into contact with enough oil/hydrocarbon to stop the water flow.


Slide4 l.jpg

For Additional Information Contact:Bethea Tool & Equipment CompanyMichael GudgerPh# 770-436-6386Fx# 770-436-9743e-mail: msgudger@bellsouth.net
