  1. 計算機程式Computer Programming LanguageLecture 3 邏輯運算 郭修伯 助理教授 (5488)

  2. 流程判斷 • If … then ...end if

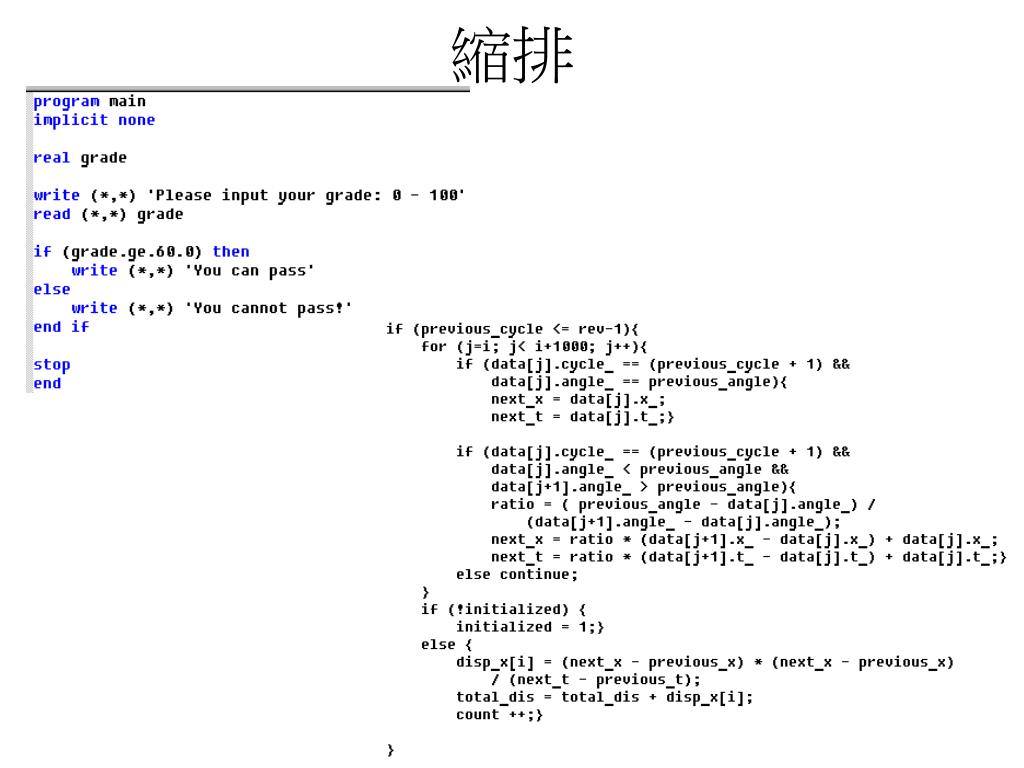

  3. 縮排

  4. == /= > >= < <= .EQ. .NE. .GT. .GE. .LT. .LE. 邏輯判斷 • .AND. • .OR. • .NOT. • .EQV. • .NEQV.

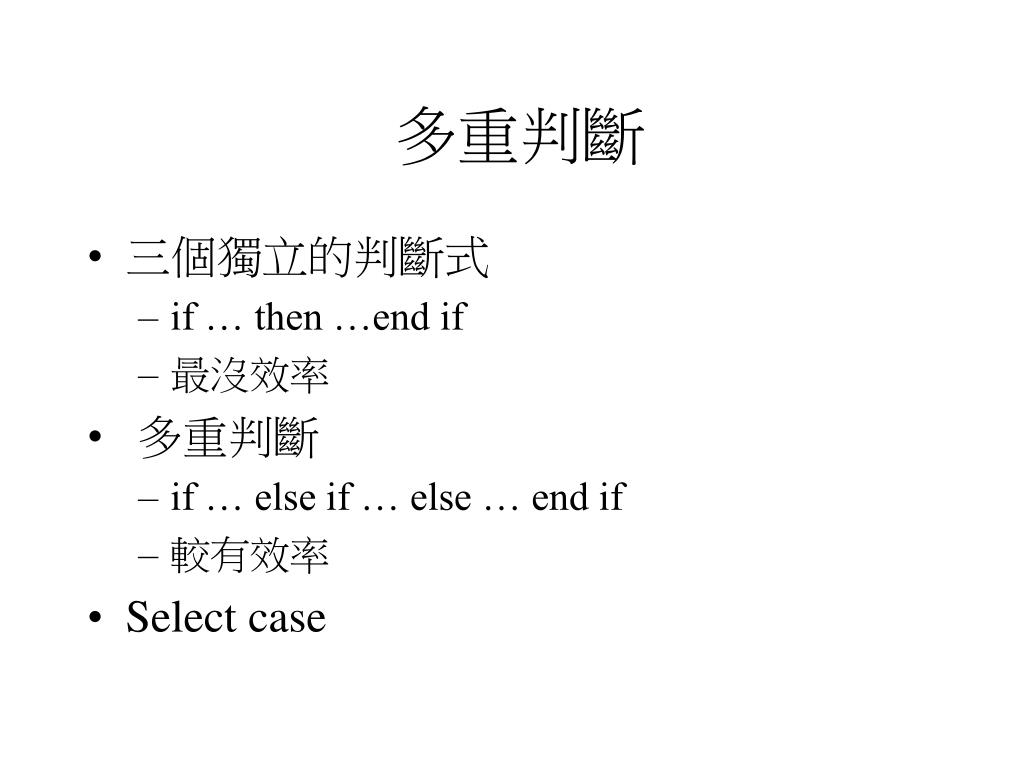

  5. 多重判斷 • 三個獨立的判斷式 • if … then …end if • 最沒效率 • 多重判斷 • if … else if … else … end if • 較有效率 • Select case

  6. select case ( variable) case (A) ... case (B) ... case (C) … case default … end select case (1) case (1:3) case (1: ) case ( :5) case (1,3,5) • 只能是固定常數,不能是變數 • 不能使用浮點數及複數

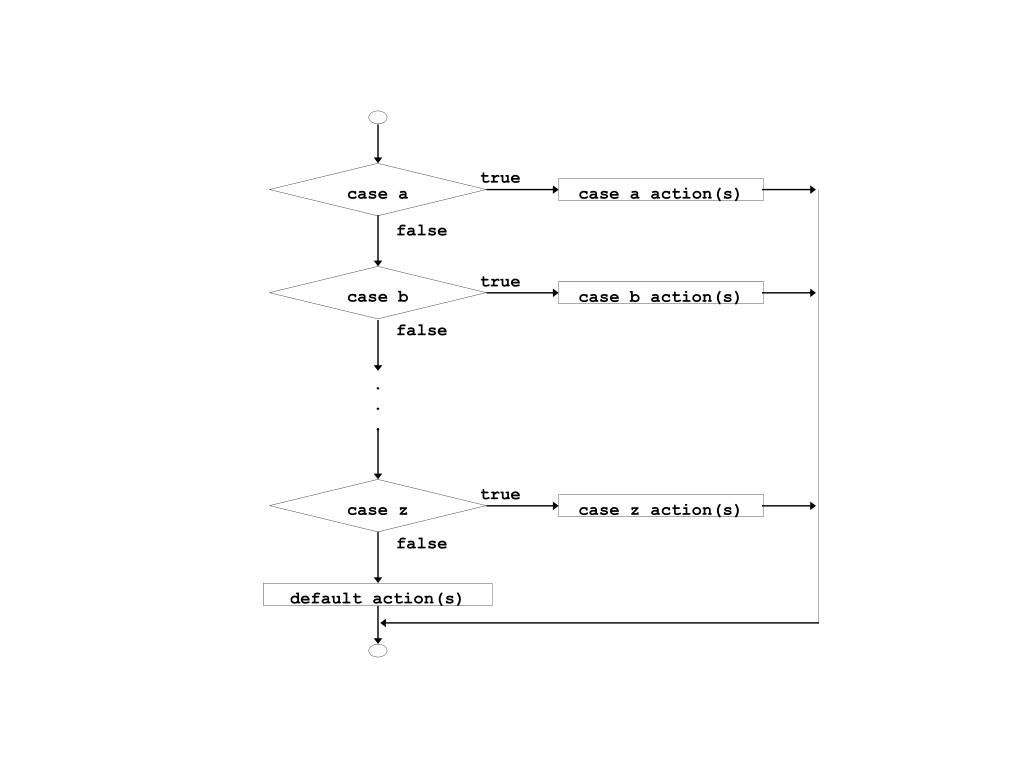

  7. true false true false . . . true false case a action(s) case b action(s) case z action(s) default action(s) case a case b case z

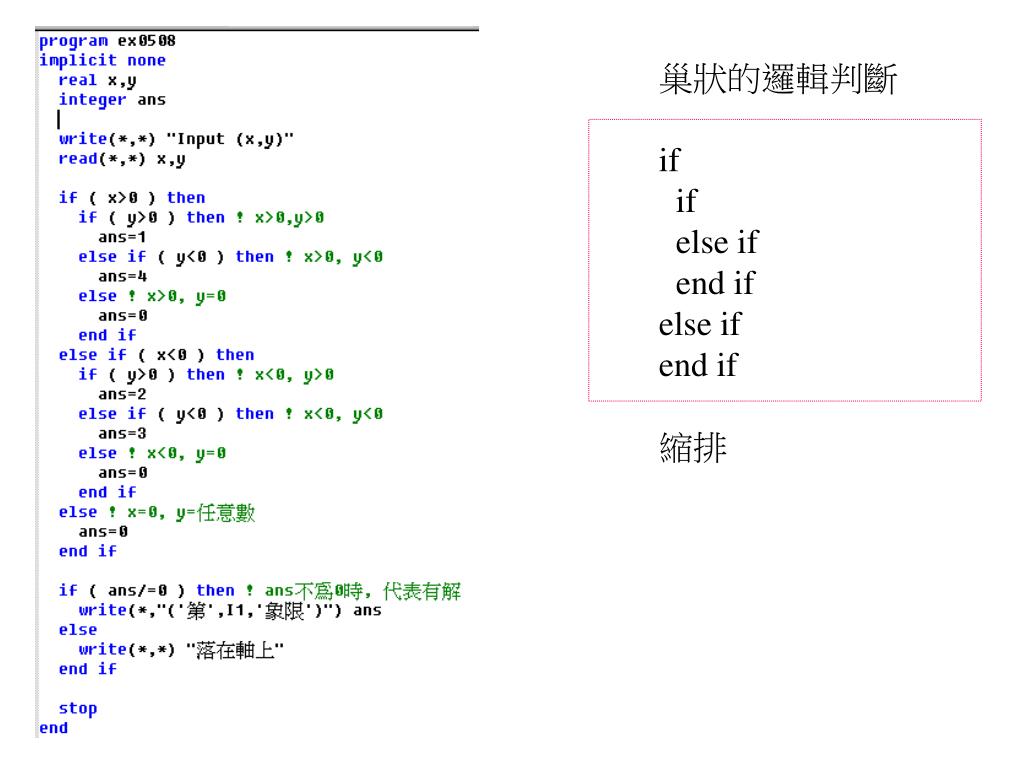

  8. 巢狀的邏輯判斷 if if else if end if else if end if 縮排

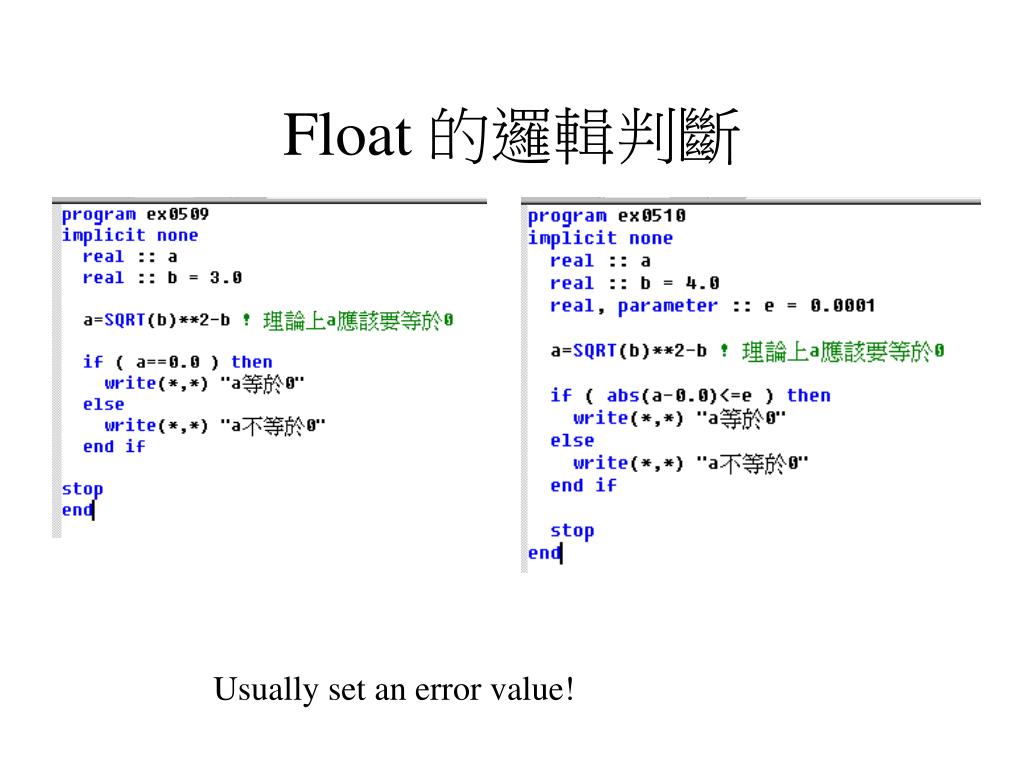

  9. Float的邏輯判斷 Usually set an error value!

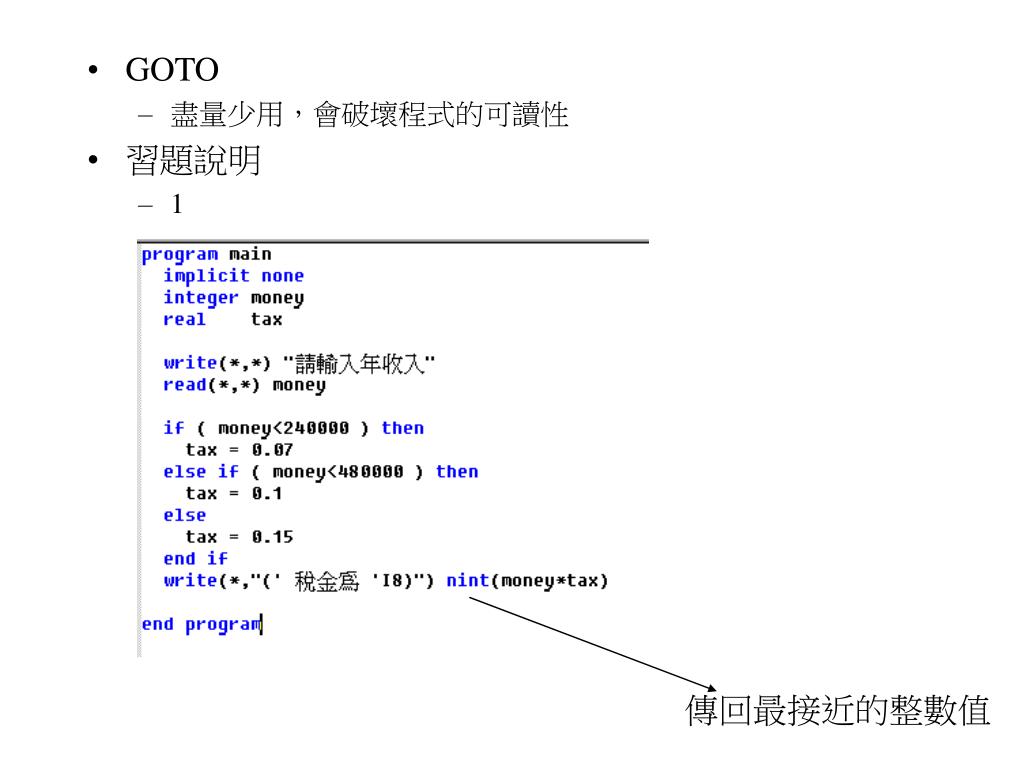

  10. GOTO • 盡量少用,會破壞程式的可讀性 • 習題說明 • 1 傳回最接近的整數值

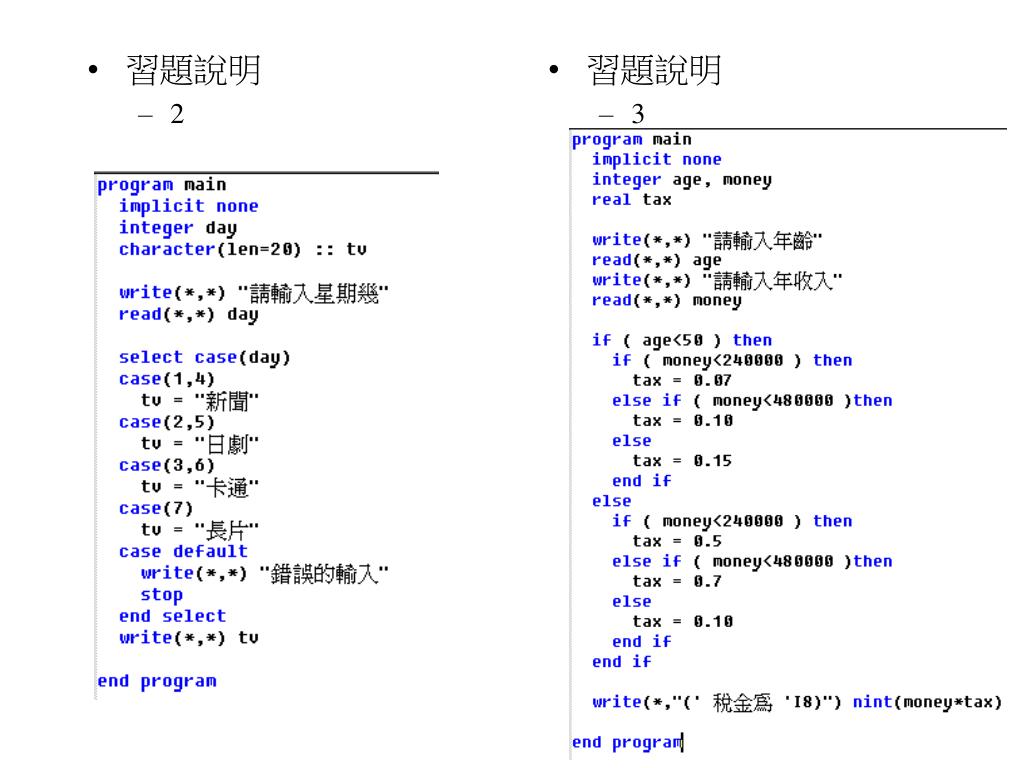

  11. 習題說明 • 3 • 習題說明 • 2

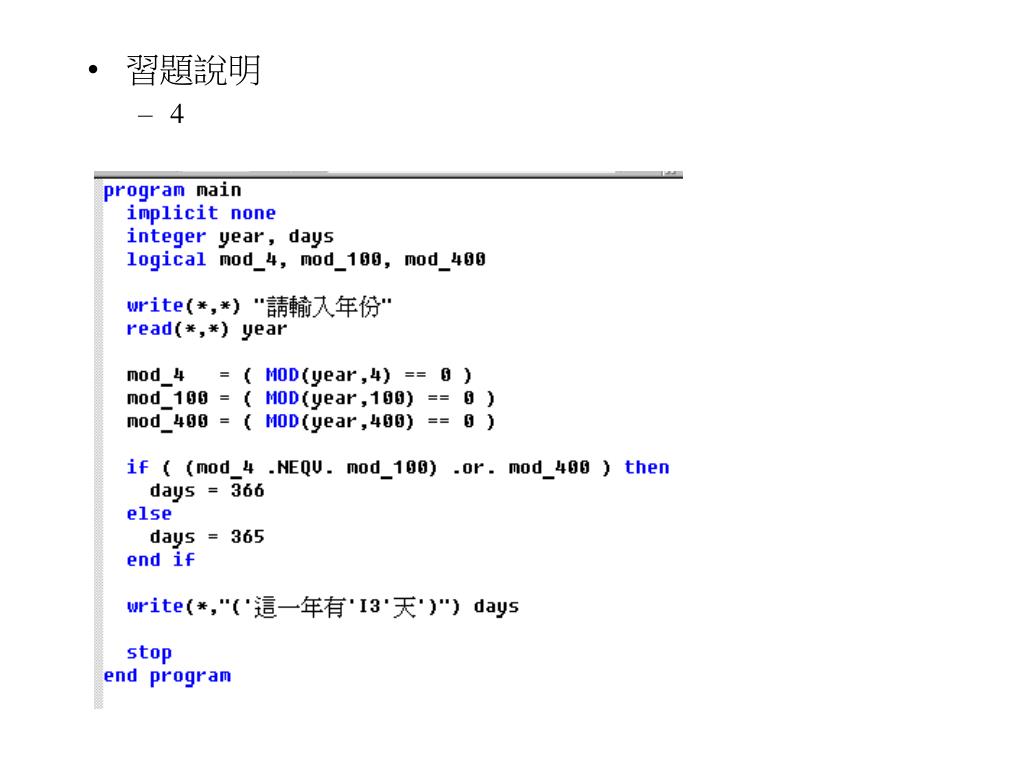

  12. 習題說明 • 4

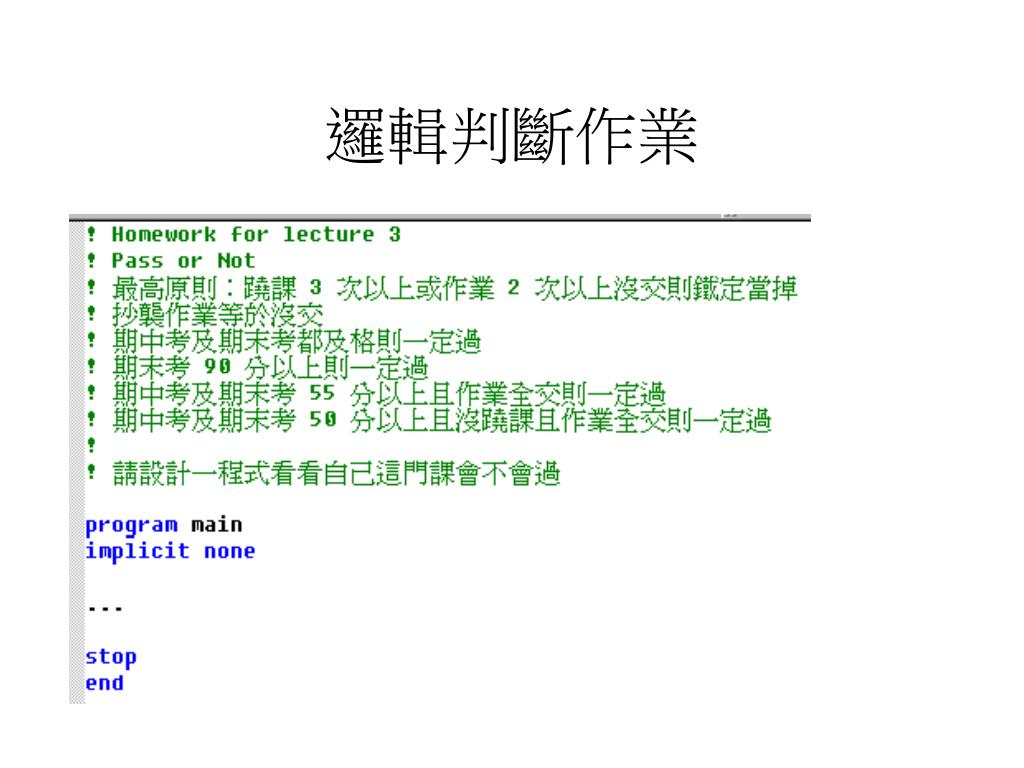

  13. 邏輯判斷作業
