Presentation Transcript


Rocket pay load

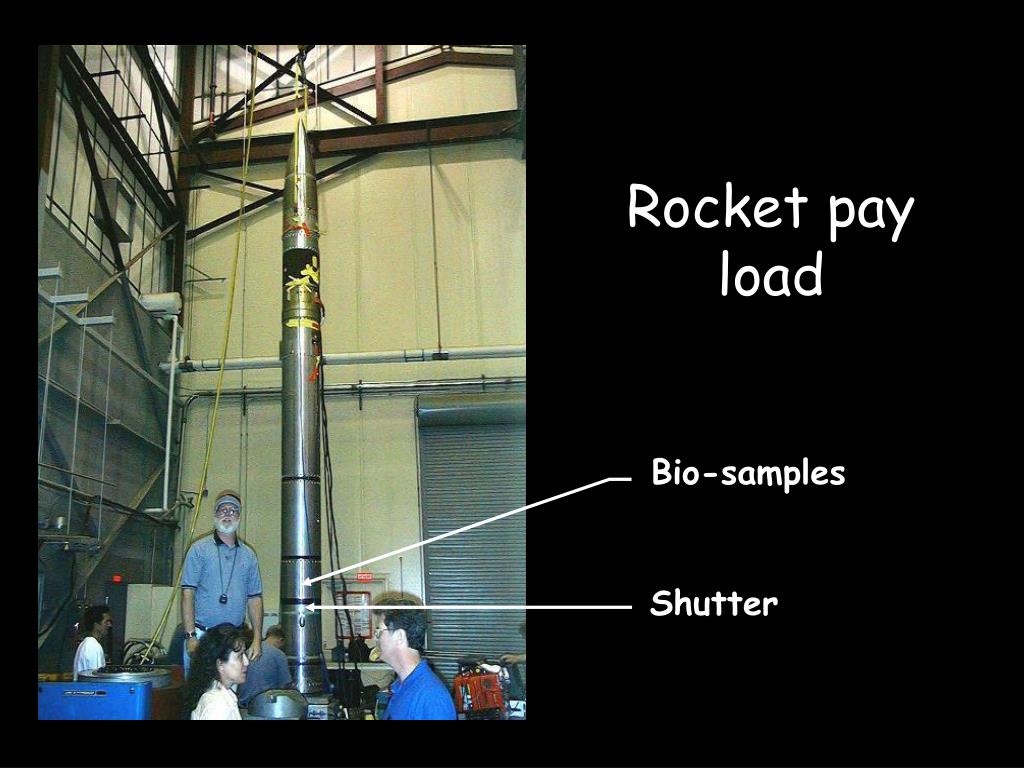

Rocket pay load

Bio-samples

Shutter


Rocket pay load

PAYLOAD

BLACK BRANT VC

TERRIER Mk-70


Rocket pay load

The Flight

White Sand Missile Range, New Mexico

SERTS telescope on a Terrier Black Brant Rocket

Altitude of 304 km in 283.5s

Shutters stayed open for 441s

Irradiation dose:

6 1012 photons/cm2 at 30.4 nm


Rocket pay load

Synchrotron studies

- SURF III at NIST

- 6.1 1011 photons/s/cm2/mAmp of beam current, typically 100 mAmp

- sun exposure with SERTS will be achieved in 1 second
